DGE1030 DGE1060 30MHz Arbitrary Waveform Generator Single Channel 1CH 3.6inchs B

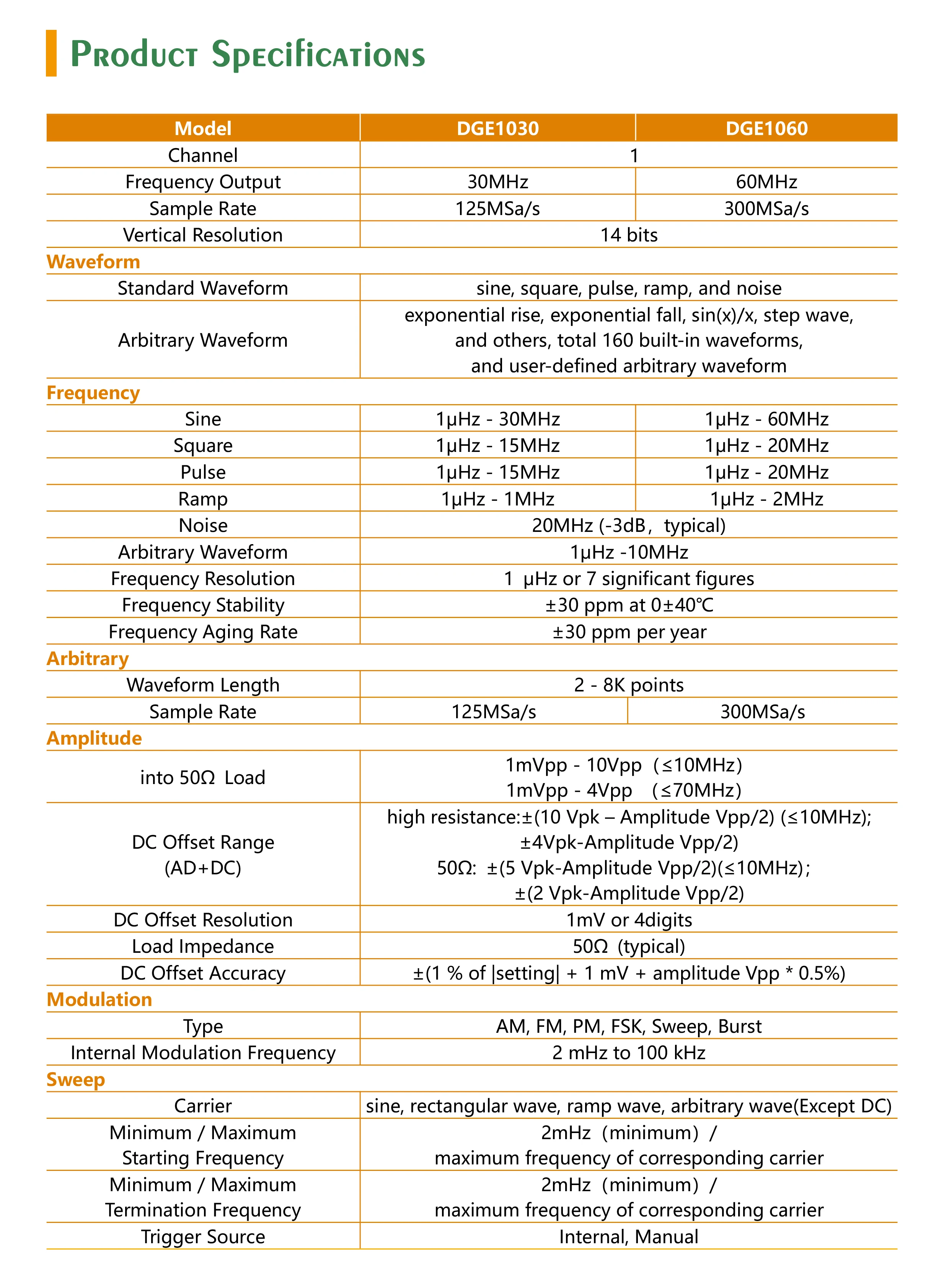

Model

DGE1030

DGE1060

Channel

1

Frequency Output

35MHz

60MHz

Sample Rate

125MSa/s

300MSa/s

Vertical Resolution

14 bits

Waveform

Standard Waveform

sine, square, pulse, ramp, and noise

Arbitrary Waveform

exponential rise, exponential fall, sin(x)/x, step wave,
and others, total 150 built-in waveforms,
and user-defined arbitrary waveform

Frequency

Sine

1μHz - 30MHz

1μHz - 60MHz

Square

1μHz - 15MHz

1μHz - 20MHz

Pulse

1μHz - 15MHz

1μHz - 20MHz

Ramp

1μHz - 1MHz

1μHz - 2MHz

Noise

20MHz (-3dB，typical)

Arbitrary Waveform

1μHz -10MHz

Frequency Resolution

1 μHz or 7 significant figures

Frequency Stability

±30 ppm at 0±40℃

Frequency Aging Rate

±30 ppm per year

Arbitrary

Waveform Length

2 - 8K points

Sample Rate

125Ma/s

300Ma/s

Amplitude

into 50Ω Load

1mVpp - 20Vpp（≤10MHz）
1mVpp - 4Vpp （≤60MHz）

DC Offset Range
(AD+DC)

±(10 Vpk – Amplitude Vpp/2) high resistance
±(5 Vpk – Amplitude Vpp/2) 50 Ω

DC offset Resolution

1mV or 4digits

Load Impedance

50Ω (typical)

DC offset Accuracy

±(1 % of |setting| + 1 mV + amplitude Vpp x 0.5%)

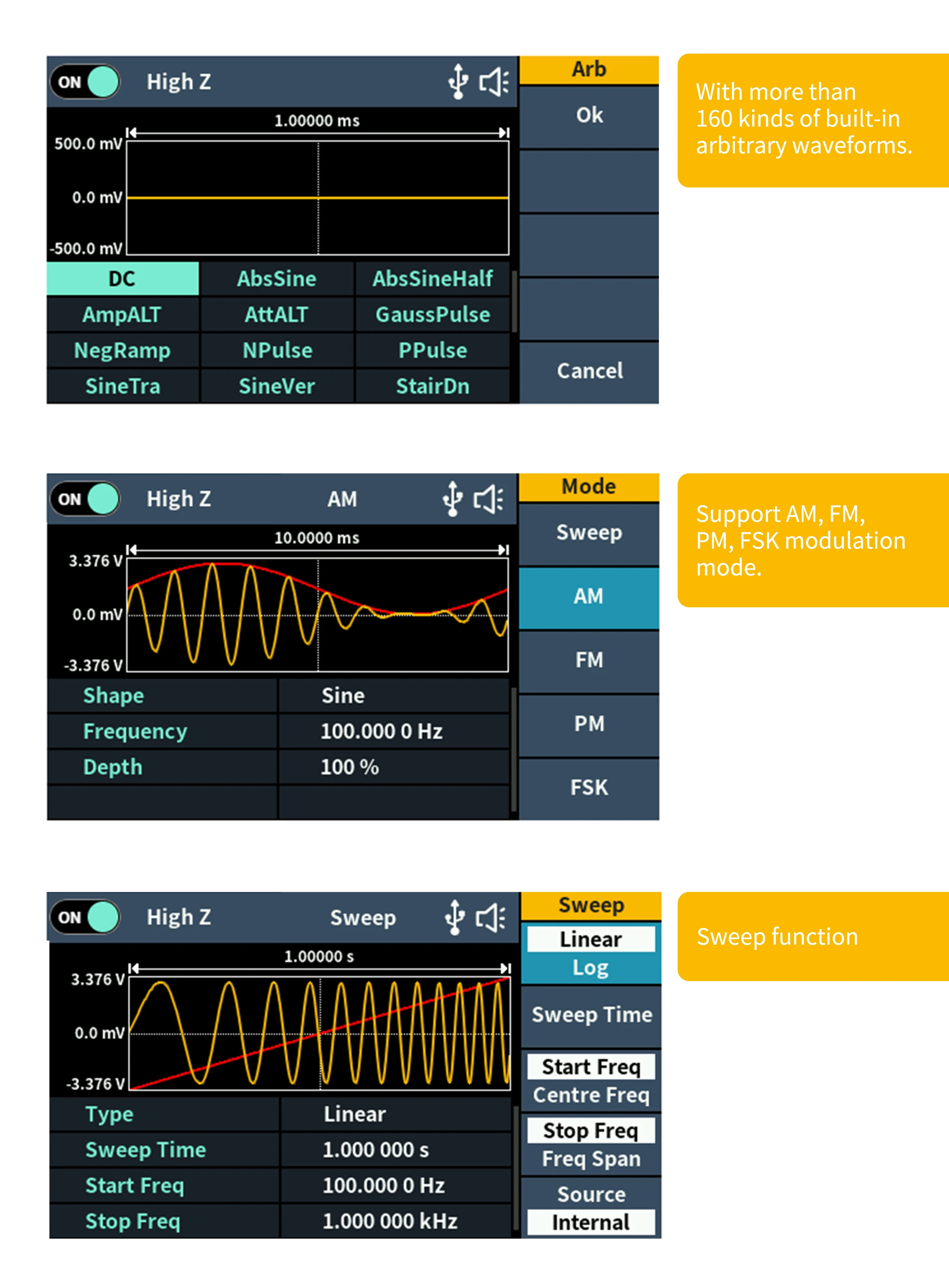

Modulation

Type

AM, FM, PM, FSK, sweep, Burst

Internal Modulation Frequency

2 mHz to 100 kHz

Sweep

Carrier

Sine, rectangular wave, ramp wave, arbitrary wave(Except DC)

Minimum/Maximum
Starting Frequency

2mHz（minimum）/ maximum frequency of corresponding carrier

Minimum/Maximum
Termination Frequency

2mHz（minimum）/ maximum frequency of corresponding carrier

Trigger Source

internal, manual

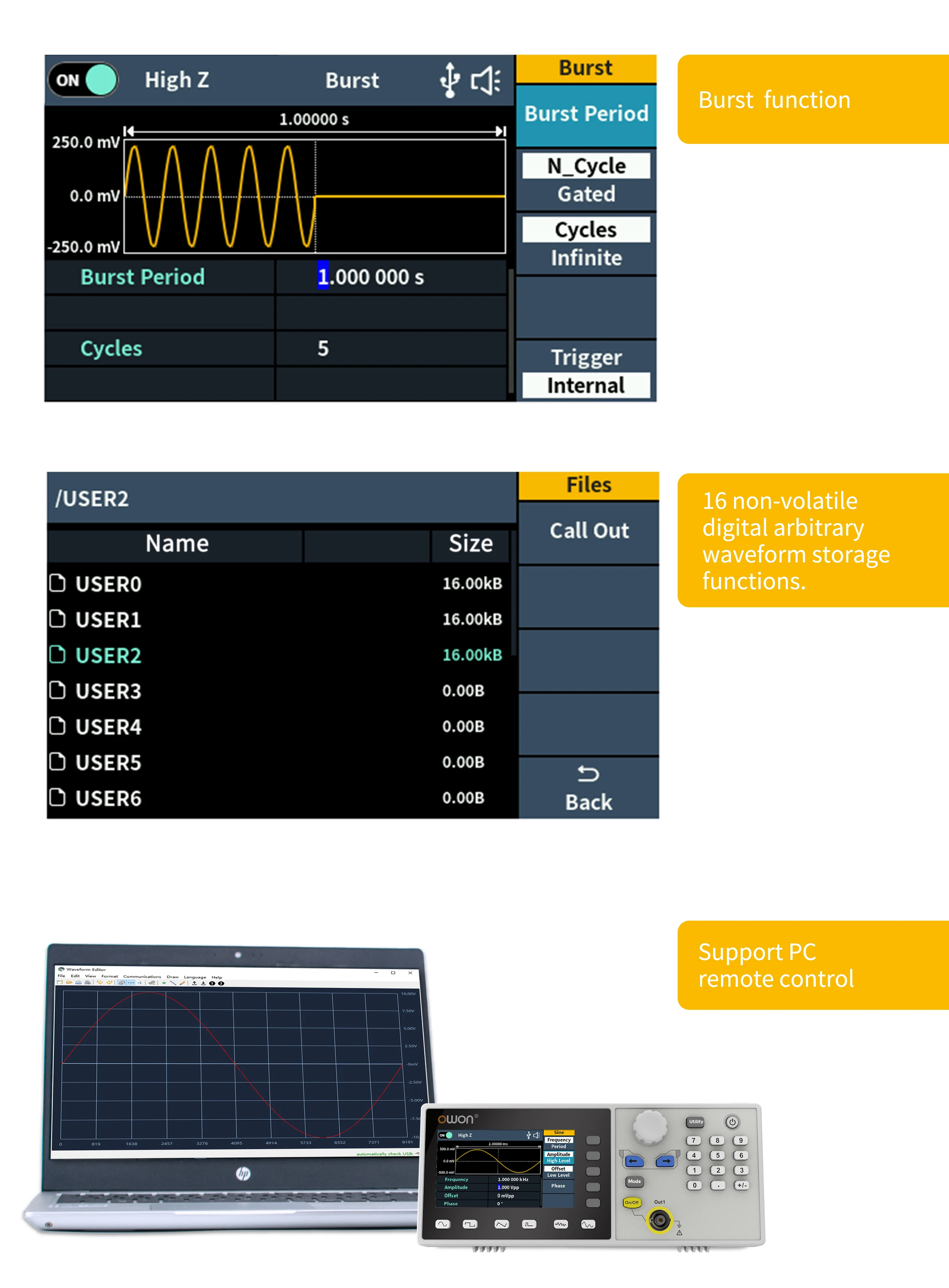

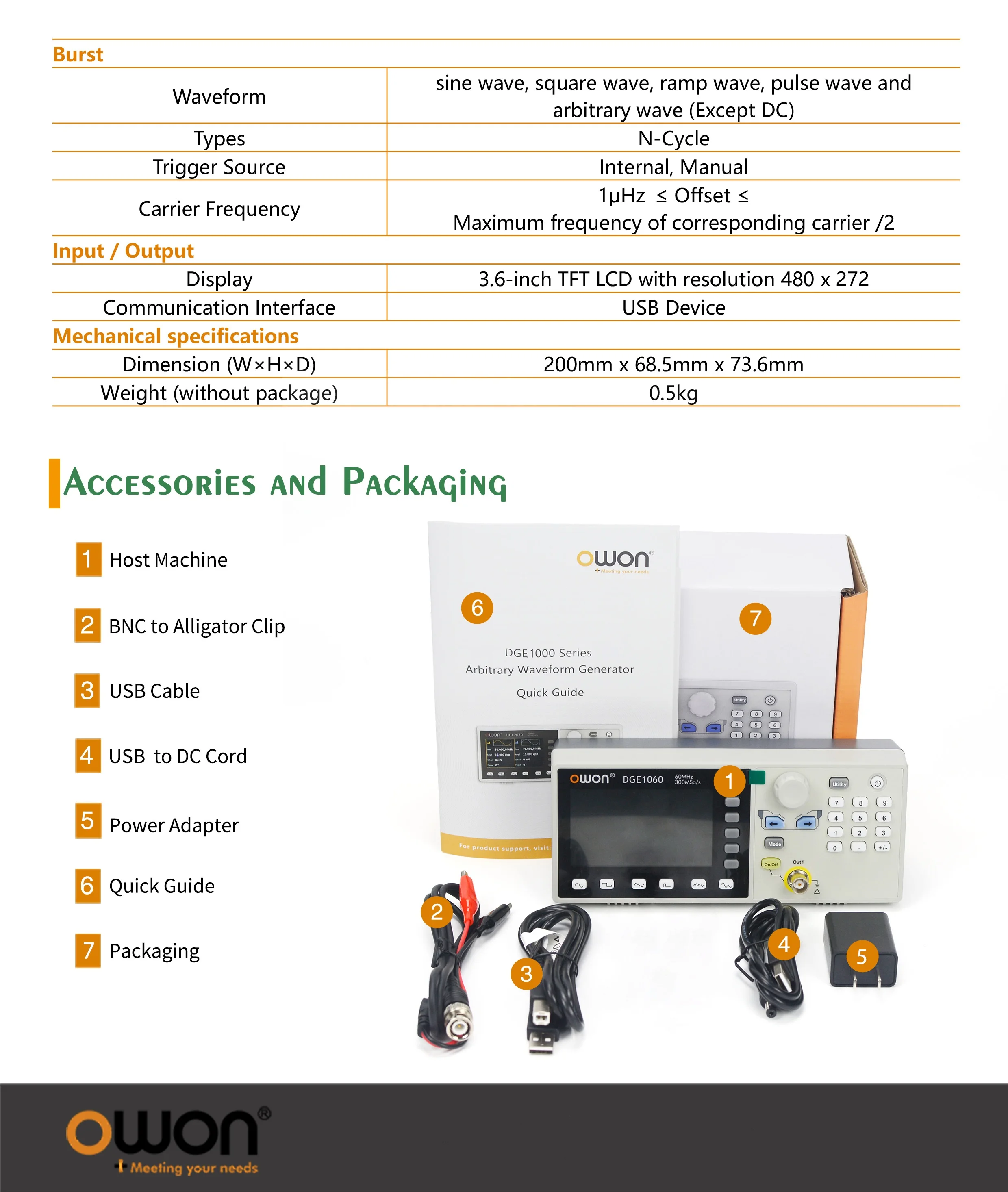

Burst

Waveform

Sine wave, square wave, ramp wave, pulse wave and
arbitrary wave (Except DC)

Types

N-Cycle

Trigger source

Internal, manual

Carrier frequency

1μHz ≤ Offset ≤ Maximum frequency of corresponding carrier /2

Input / Output

Display

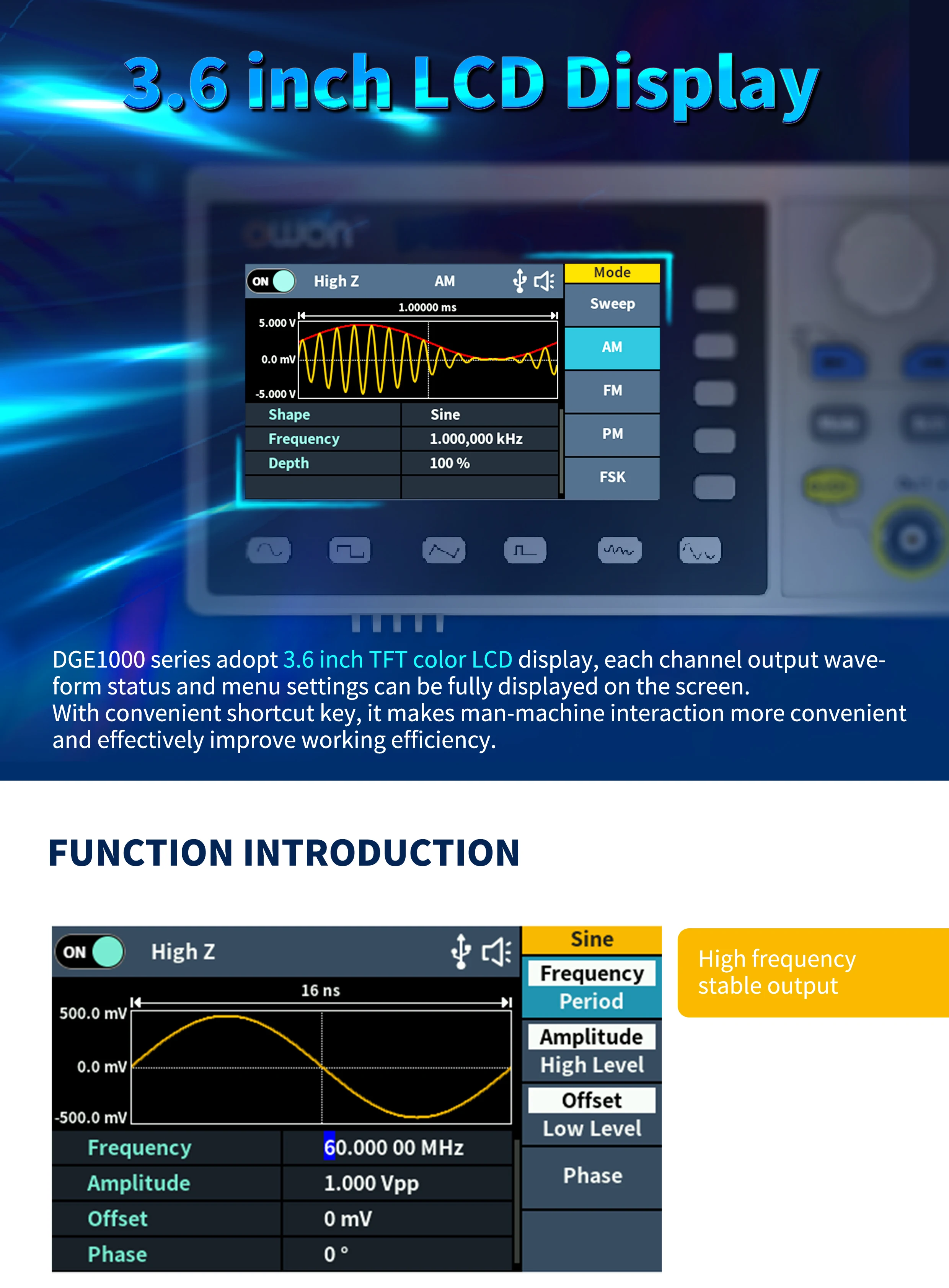

3.6-inch TFT LCD with resolution 480 x 272

Communication Interface

USB Device

Mechanical specifications

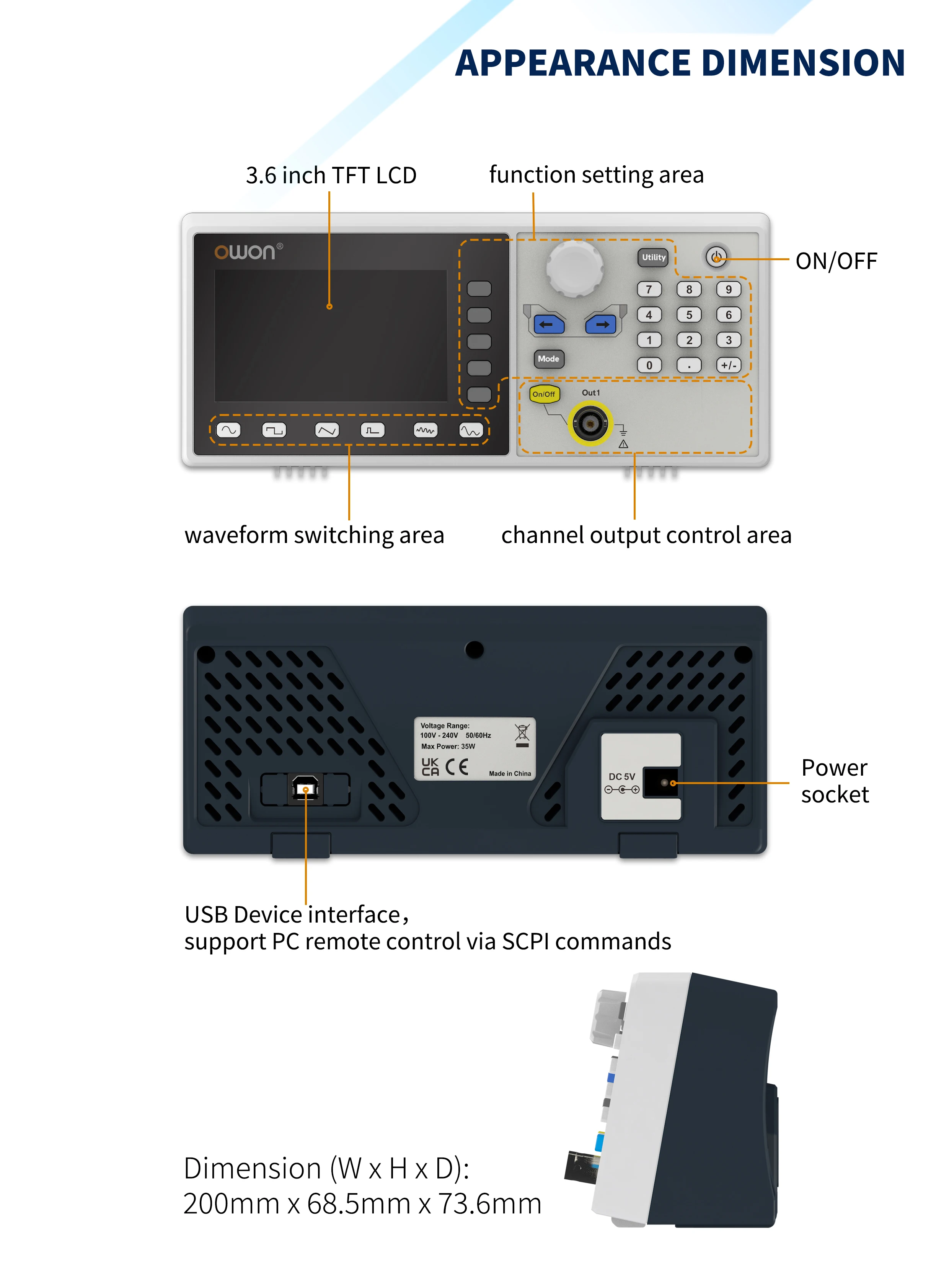

Dimension (W×H×D)

200mm x 68.5mm x 74.5mm

Weight (without package)

0.5kg
