Product Description

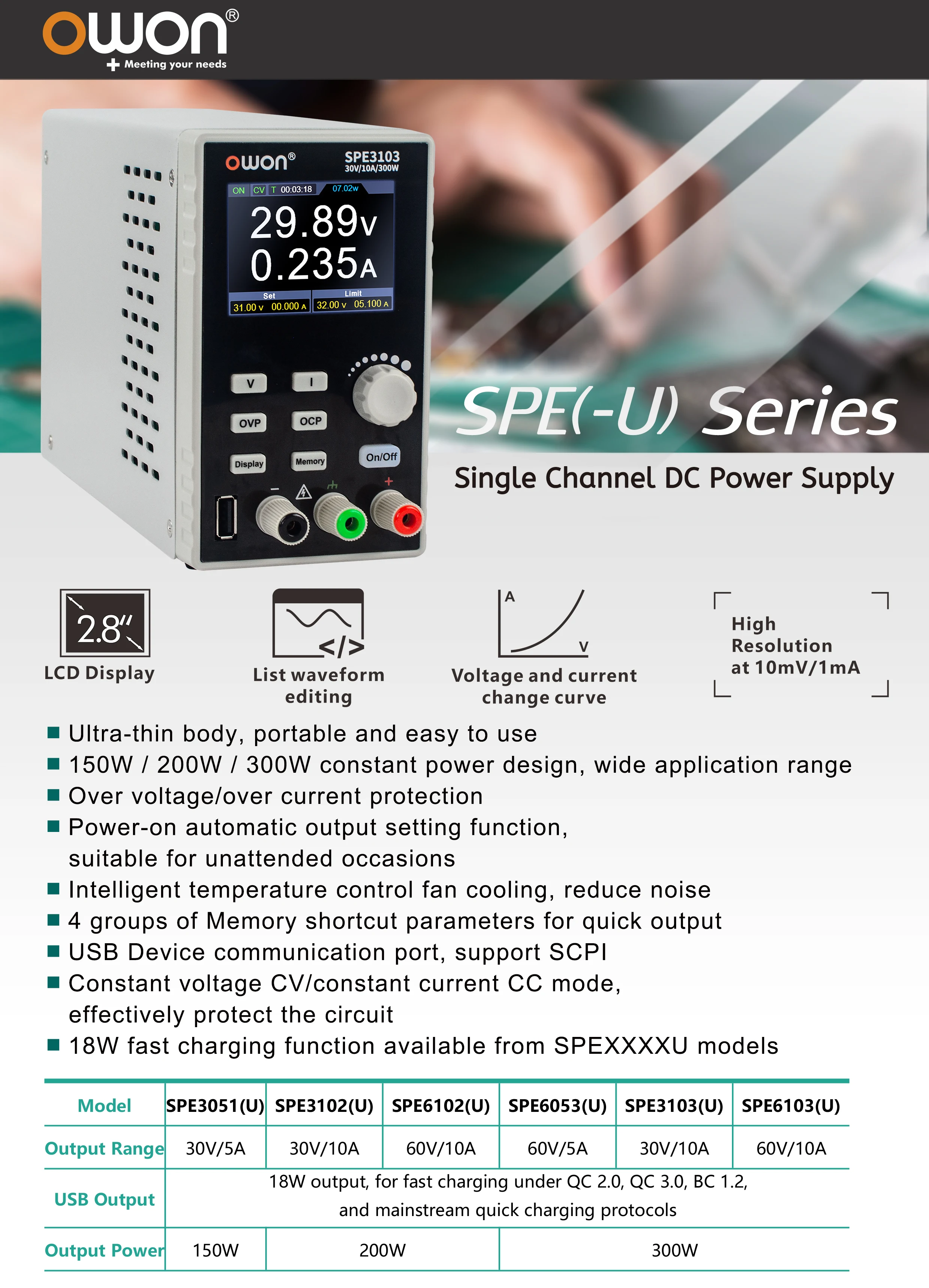

SPE Programmable DC Power Supply 300W 60V/10A 60V/5A 2.8" LCD 10mV/1mA Resolution Digital Voltage Regulator Switch SPE6103
SPE Programmable DC Power Supply 300W 60V/10A 60V/5A 2.8" LCD 10mV/1mA Resolution Digital Voltage Regulator Switch SPE6103OWON SPE Programmable DC Power Supply 300W 60V/10A 60V/5A 2.8" LCD 10mV/1mA Resolution Digital Voltage Regulator Switch SPE6103 SPE3103 SPE6053 SPE3053

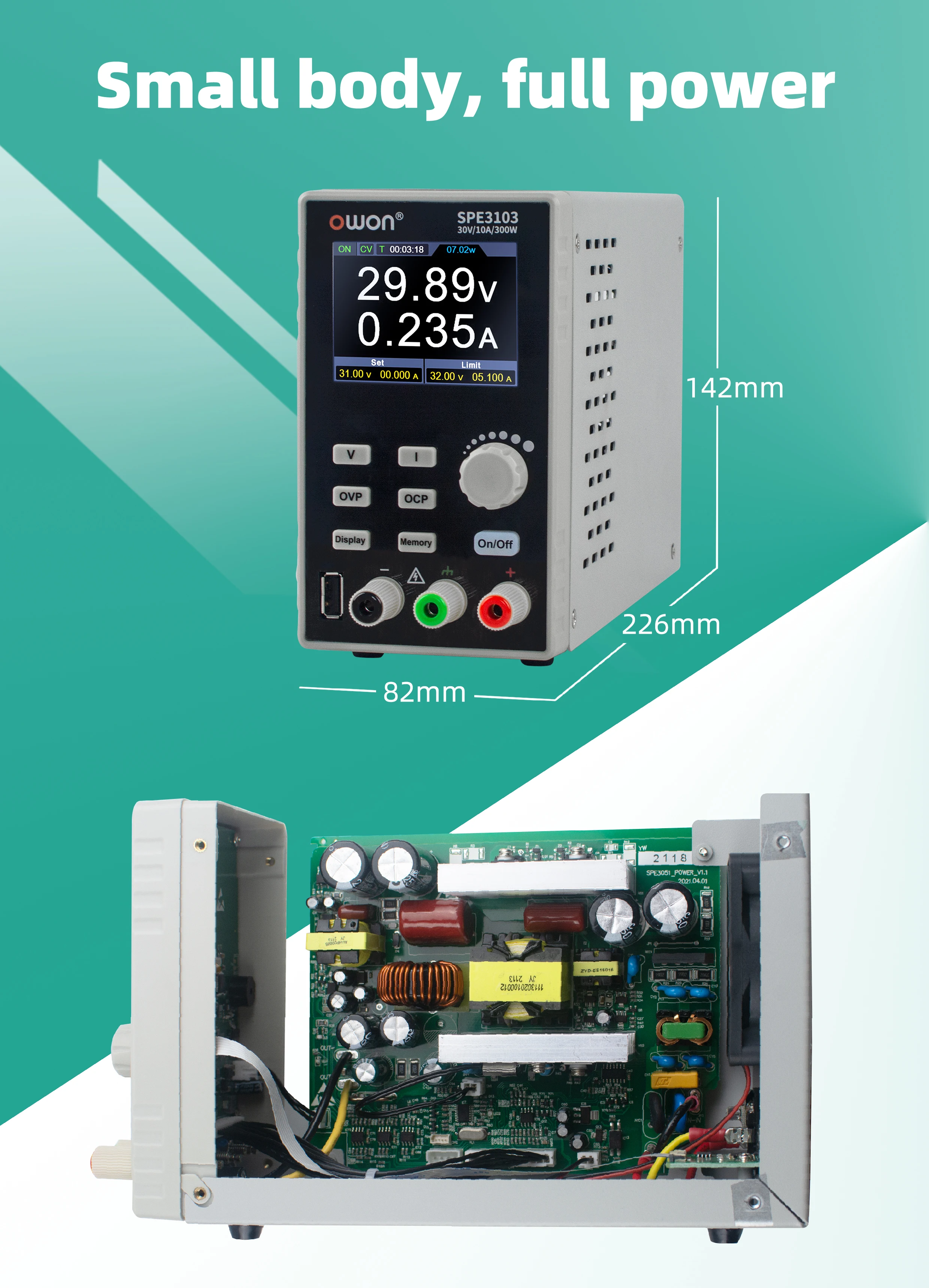

+ Small body for easy carry
+ High resolution: 10mV / 1mA

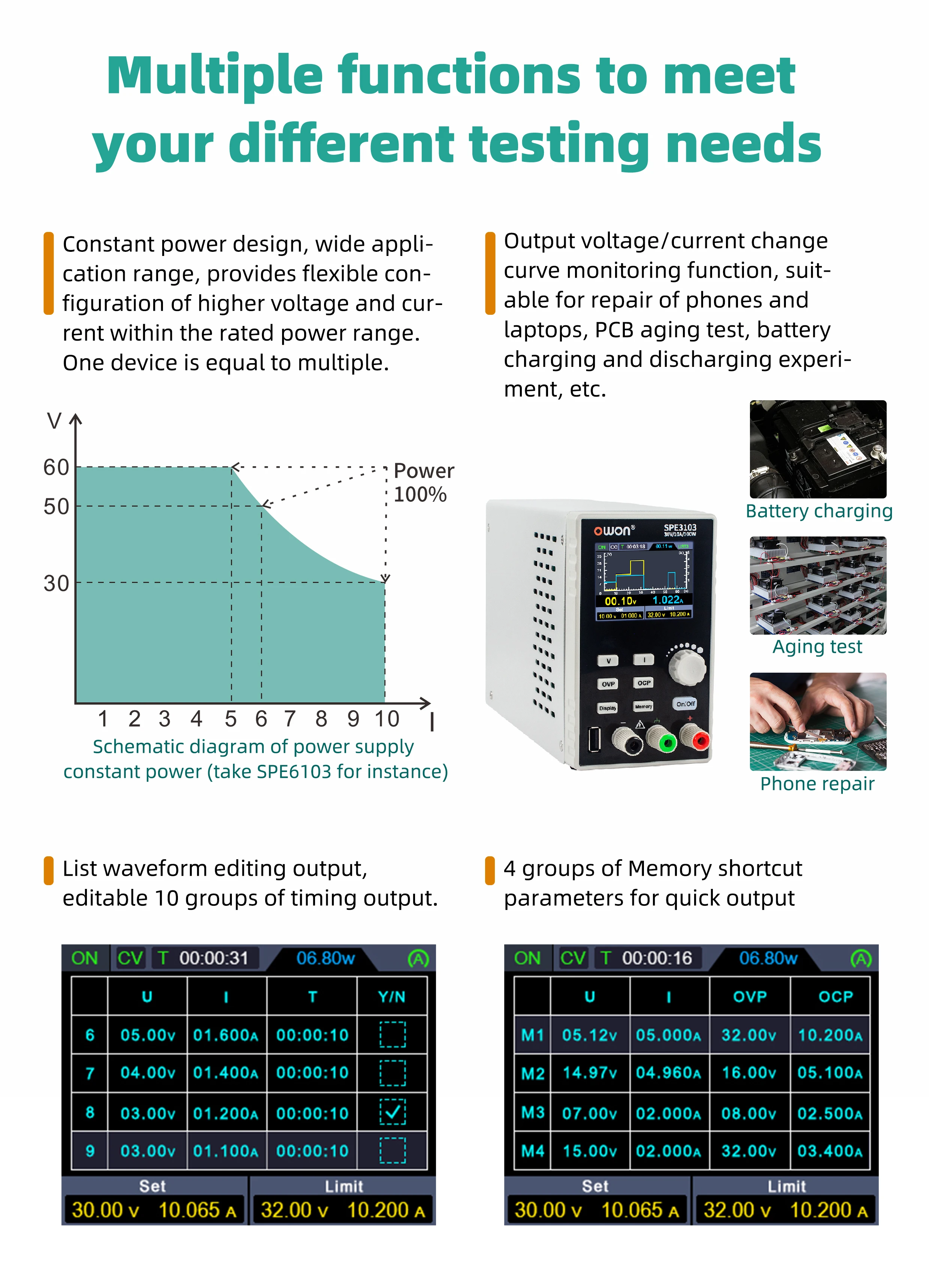

+ List waveform editing output, editable 10 groups of timing output function

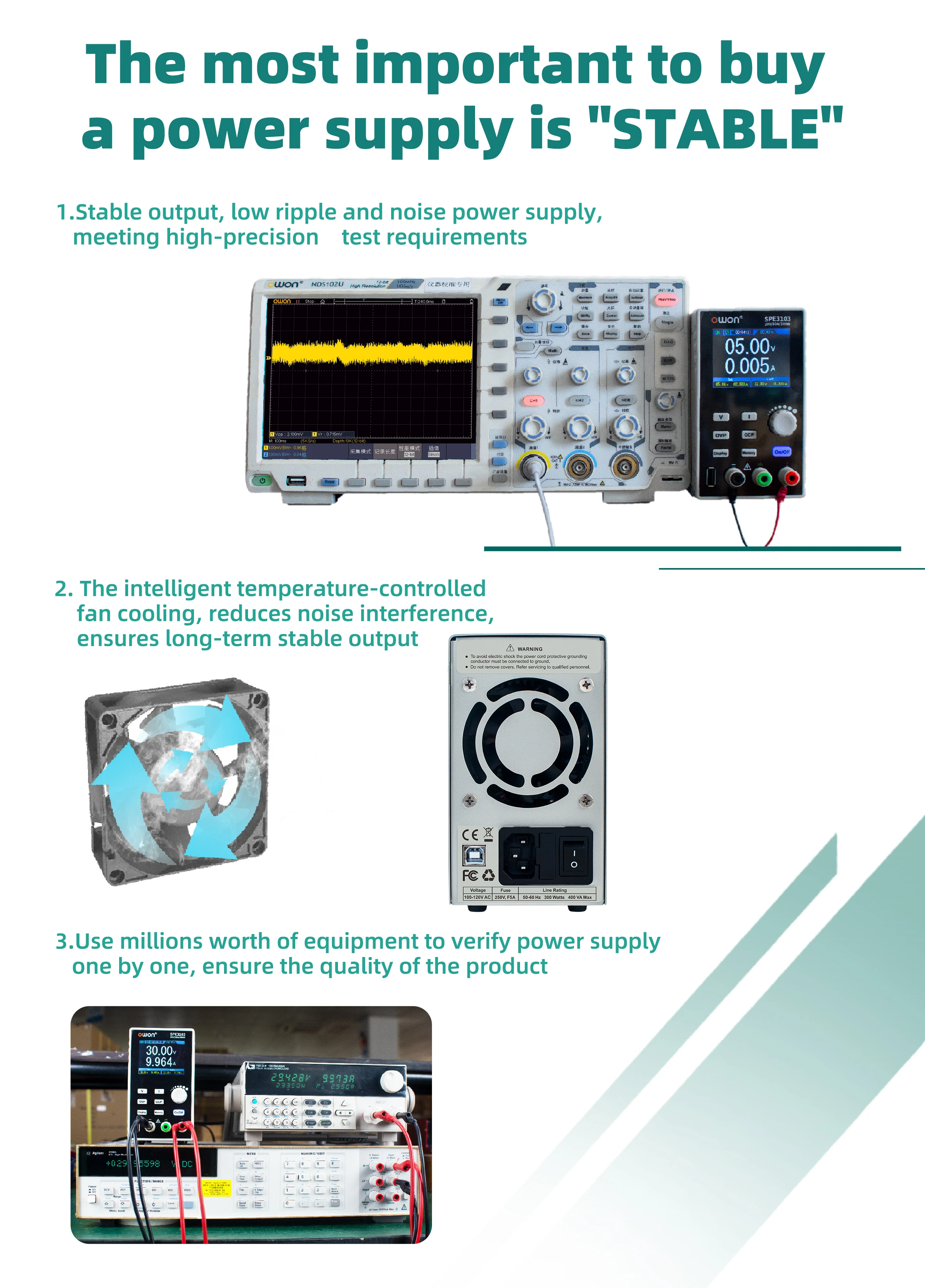

+ Low ripple / noise

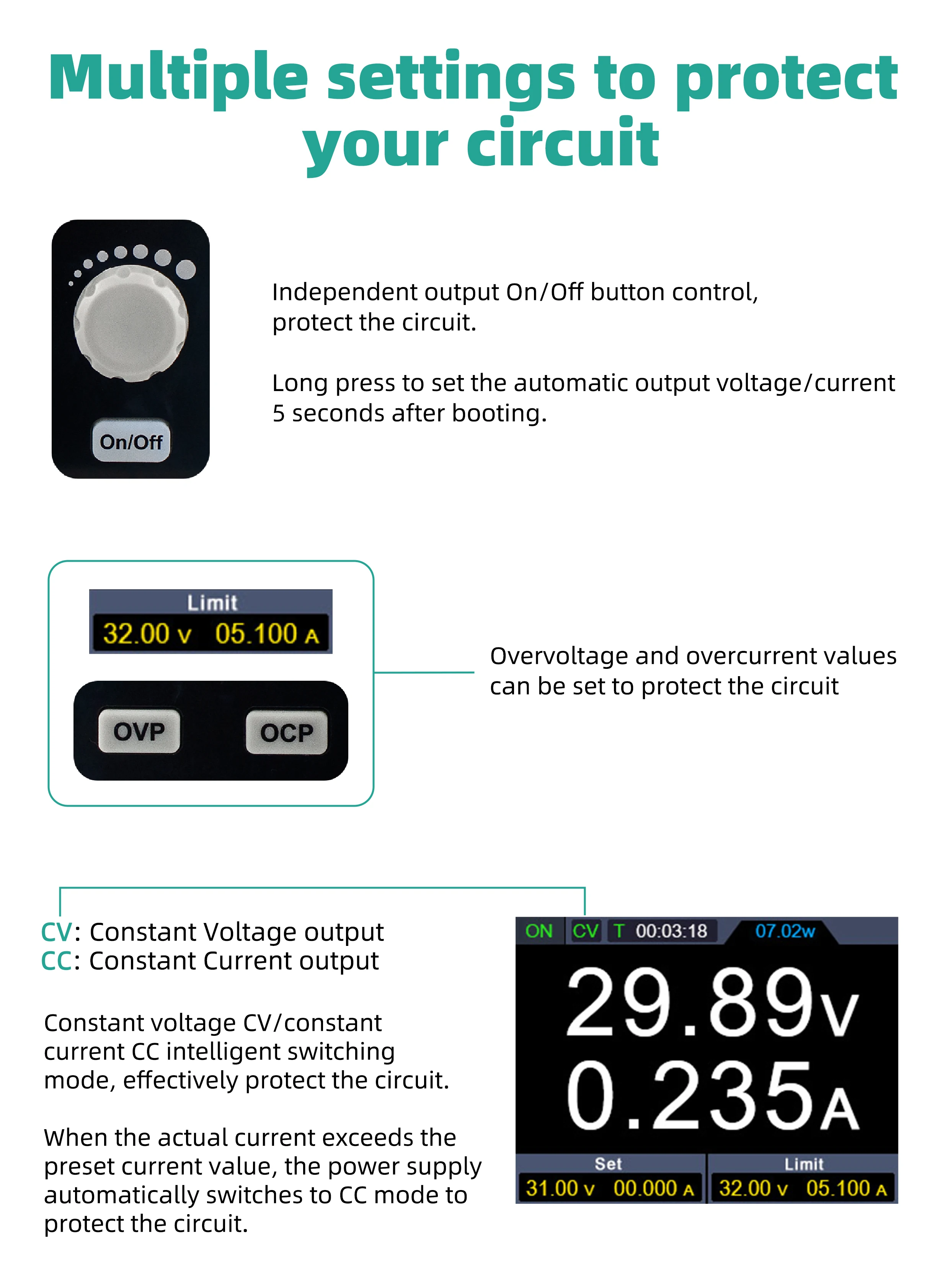

+ Over voltage / over current protection
+ Output voltage and current curve monitoring function
+ Intelligent temperature control fan cooling

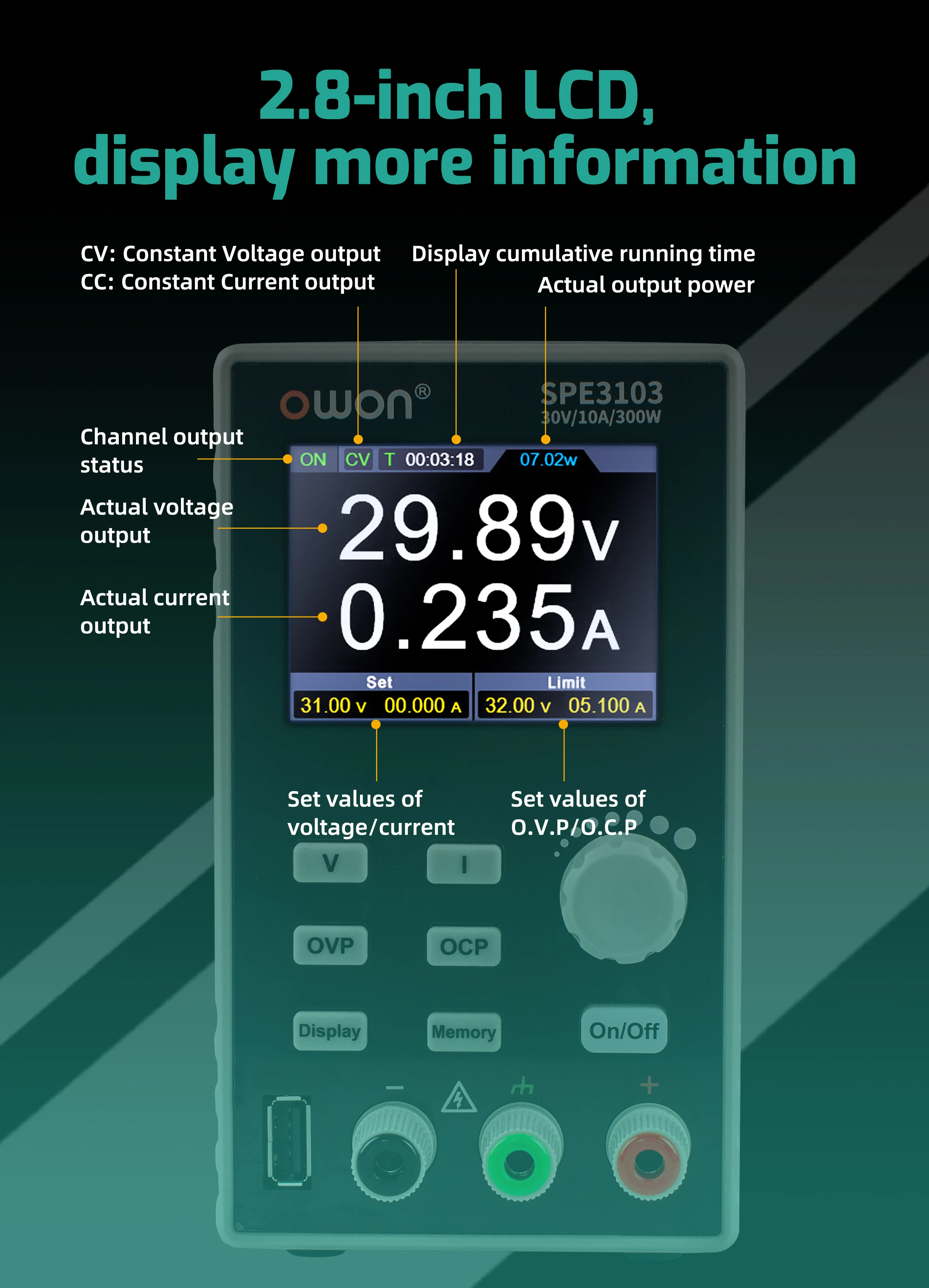

+ 2.8-inch TFT LCD display
Model | SPE3051(U) | SPE3102(U) | SPE6102(U) | SPE6053(U) | SPE3103(U) | SPE6103(U) |
Channel | Single Channel Output | |||||
Total Output Power | 150W | 200W | 300W | |||
Channel Output | 0 - 30V / 0 - 5A | 0 - 30V / 0 - 10A | 0 - 60V / 0 - 10A | 0 - 60V / 0 - 5A | 0 - 30V / 0 - 10A | 0 - 60V / 0 - 10A |
USB Output | 5V1A(SPE series) or fast charging under QC 2.0, QC 3.0, BC 1.2, and mainstream quick charging protocols (SPE-U series) | |||||
Display | 2.8 inch color LCD display | |||||
Dimension | 82mm(L)*142mm（H）*226mm（D） | |||||
Weight | Approx. 1.5kg | |||||
Interface | USB |

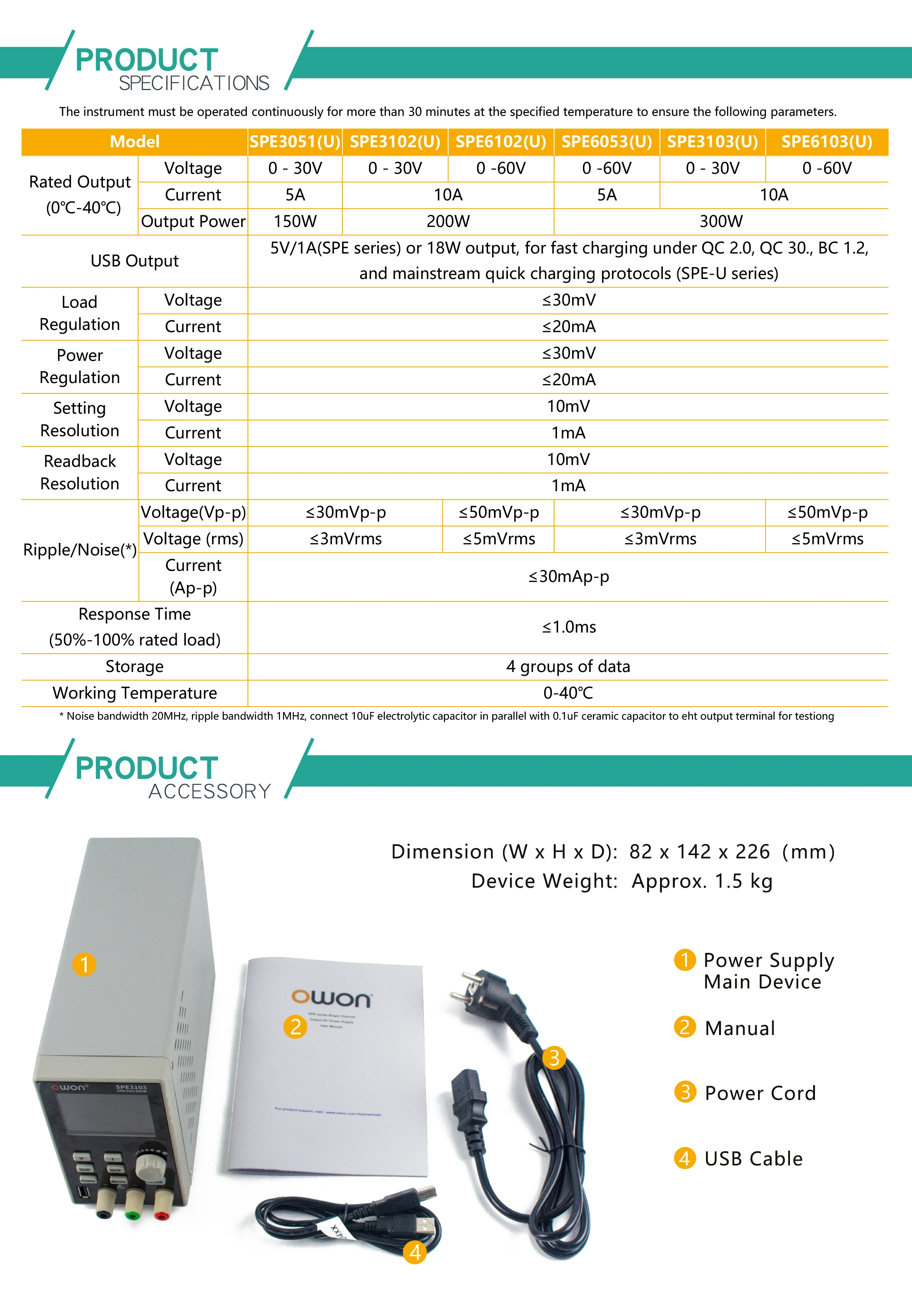

The instrument must be operated continuously for more than 30 minutes at the specified temperature to ensure the following parameters.
Model | SPE3051(U) | SPE3102(U) | SPE6102(U) | SPE6053(U) | SPE3103(U) | SPE6103(U) | |
Rated Output (0℃-40℃) | Voltage | 0 - 30V | 0 - 30V | 0 -60V | 0 -60V | 0 - 30V | 0 -60V |
Current | 5A | 10A | 10A | 5A | 10A | 10A | |
Power | 150W | 200W | 200W | 300W | 300W | 300W | |
Load Regulation | Voltage | ≤30mV | |||||
Current | ≤20mA | ||||||
Power Regulation | Voltage | ≤30mV | |||||
Current | ≤20mA | ||||||
Setting Resolution | Voltage | 10mV | |||||
Current | 1mA | ||||||
Readback Resolution | Voltage | 10mV | |||||
Current | 1mA | ||||||
Model | SPE3051(U) | SPE3102(U) | SPE6102(U) | SPE6053(U) | SPE3103(U) | SPE6103(U) | |
SetingAccuracy | Voltage | ≤0.1% ± 20mV | ≤0.1% ± 30mV | ≤0.1% ± 20mV | ≤0.1% ± 30mV | ||
Current | ≤0.1% ± 10mA | ||||||
Readback Accuracy | Voltage | ≤0.1% ± 20mV | ≤0.1% ± 30mV | ≤0.1% ± 20mV | ≤0.1% ± 30mV | ||
Current | ≤0.1% ± 10mA | ||||||
Ripple/Noise(*) | Voltage(Vp-p) | ≤30mVp-p | ≤50mVp-p | ≤30mVp-p | ≤50mVp-p | ||
Voltage (rms) | ≤3mVrms | ≤5mVrms | ≤3mVrms | ≤5mVrms | |||
Current | ≤30mAp-p | ||||||
Output temperature coefficient (0℃-40℃) | Voltage | 100ppm/℃ | |||||
Current | 200ppm/℃ | ||||||
Readback temperature coefficient | Voltage | 100ppm/℃ | |||||
Current | 200ppm/℃ | ||||||
Response Time(50%-100% rated load) | ≤1.0ms | ||||||
Storage | 4 groups of data | ||||||
Working Temperature | 0-40℃ |
* Noise bandwidth 20MHz, ripple bandwidth 1MHz, connect 10uF electrolytic capacitor in parallel with 0.1uF ceramic capacitor to eht output terminal for testiong.
The above parameters are subject to change without further notice, please refer to the website update.
＋Application
Military R&D Quality Inspection Circuit Functional Testing Automotive Circuit Testing Education and Technical Training Electronic component testing and aging experiment Monitoring battery charging curve
＋AccessoriesThe picture is for reference only, please refer to the actual product
Power Cord User Manual Fuse Test Leads (optional)
