Product Description
XDM2041 Digital Multimeter With 4 inch LCD Supports Dual Row Display and Chart Mode SCPI programming 55000 Counts True RMS
XDM2041 Digital Multimeter With 4 inch LCD Supports Dual Row Display and Chart Mode SCPI programming 55000 Counts True RMSXDM2041 Digital Multimeter

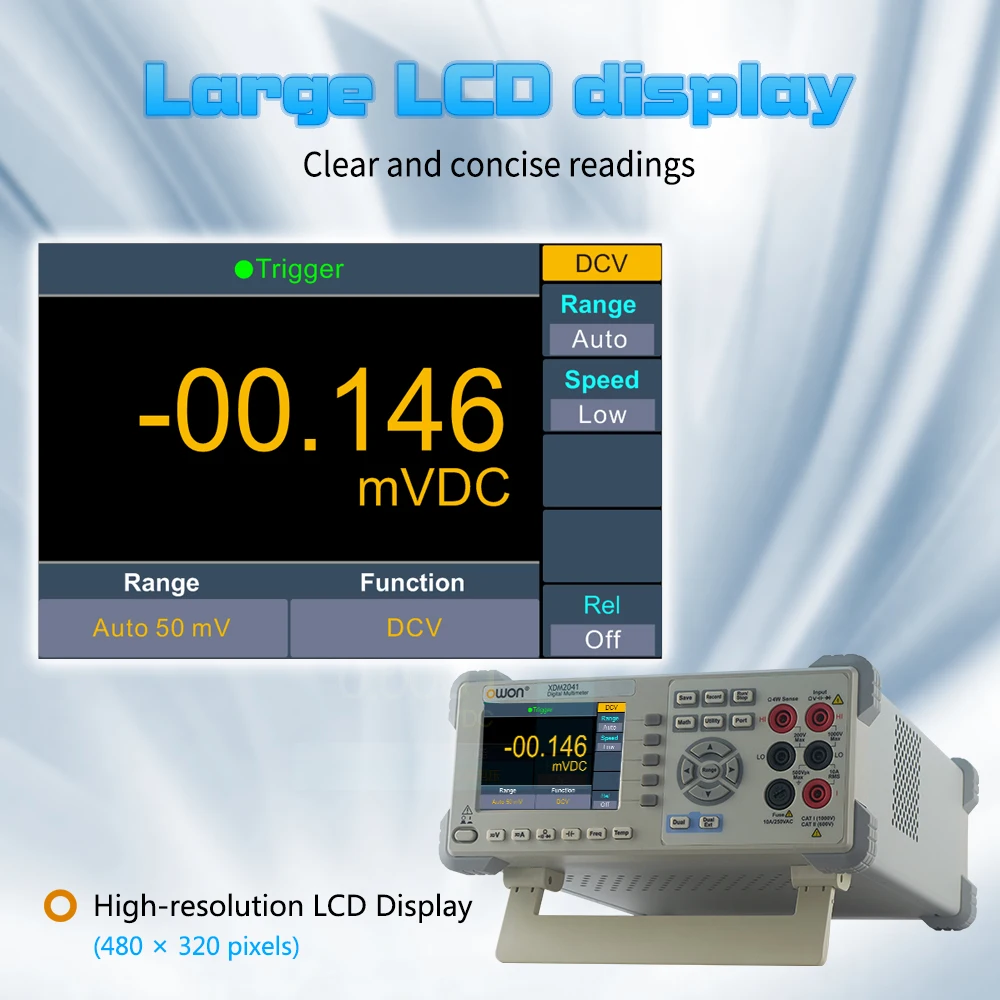

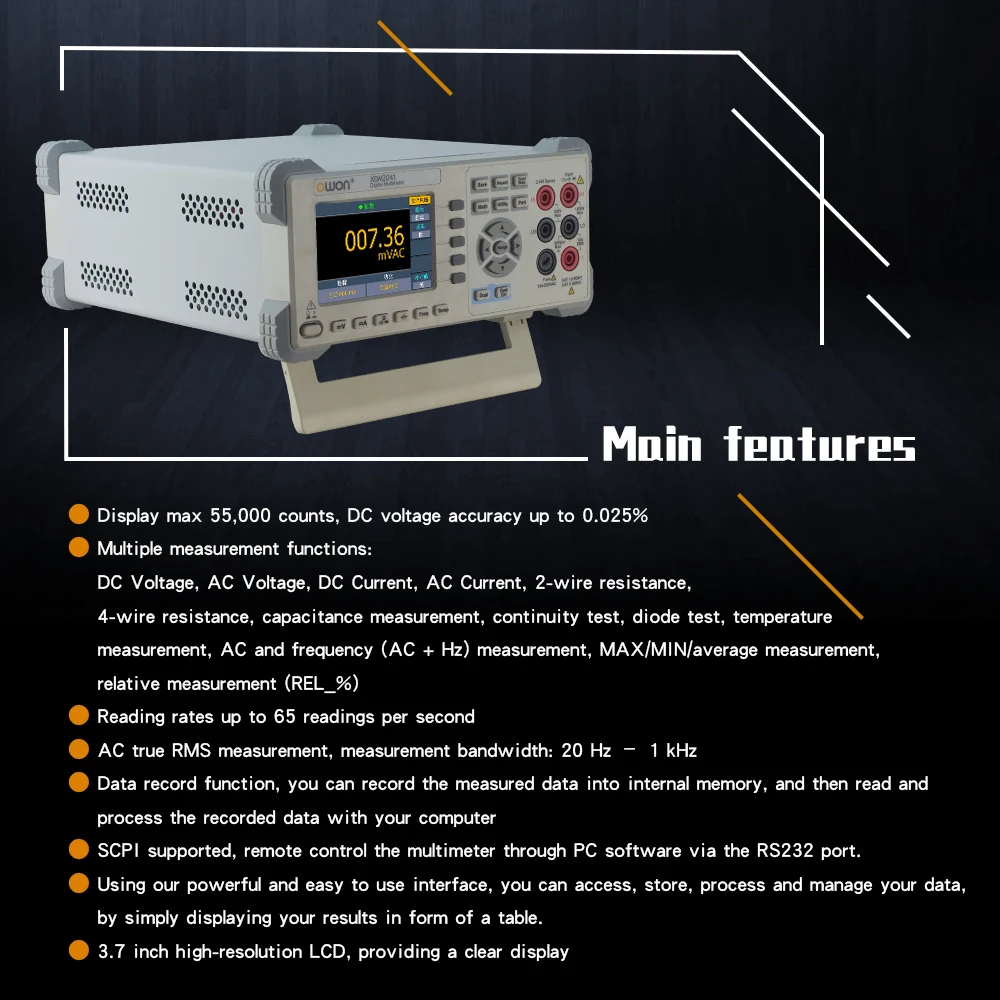

+ 4 inch (480x320) high resolution LCD
+ 55,000 counts
+ Up to 65readings per second
+ True RMS AC voltage / current measurement

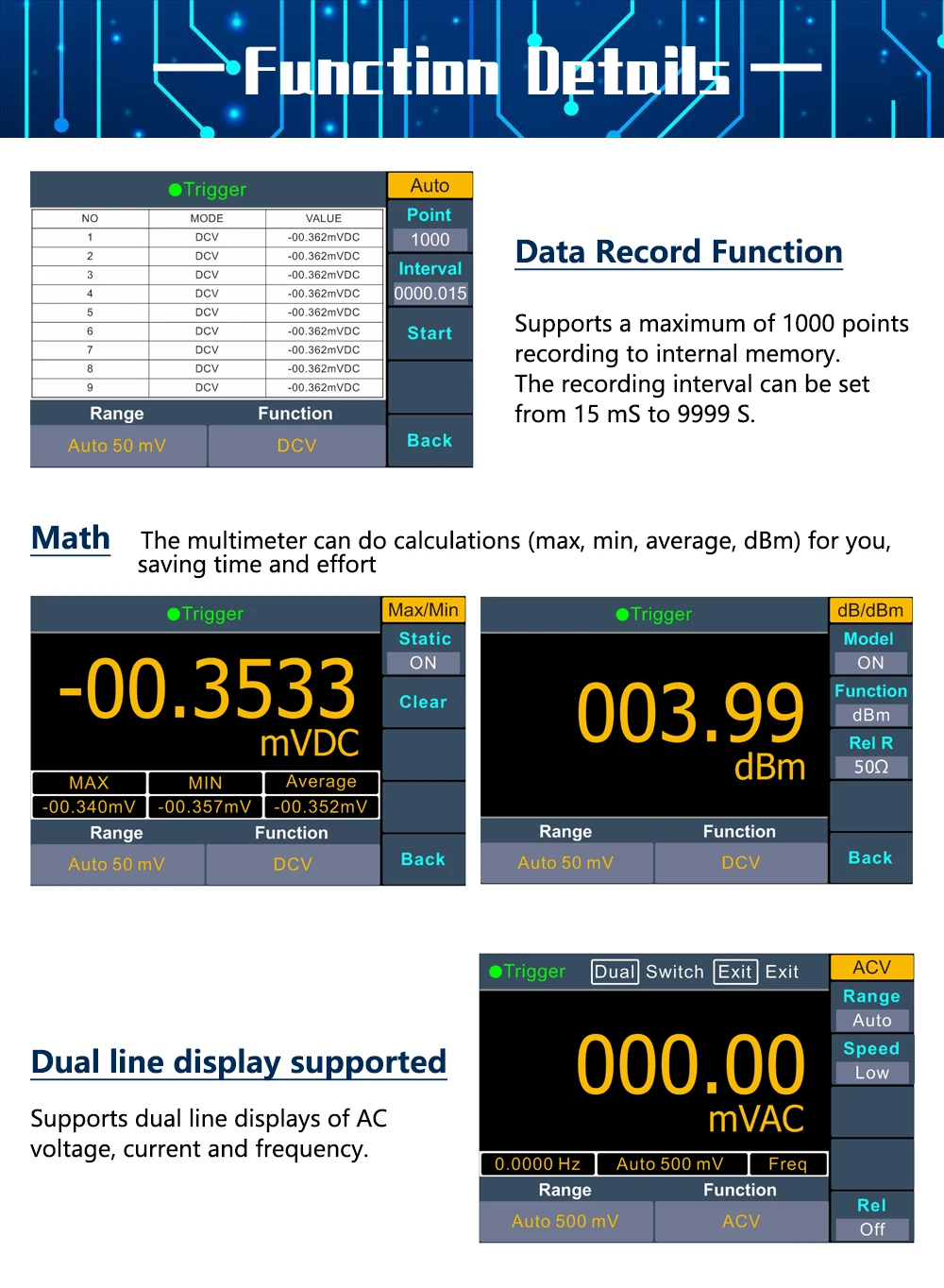

+ Dual line display supported
+ Trend analysis accessiblein chart mode
+ SCPI support

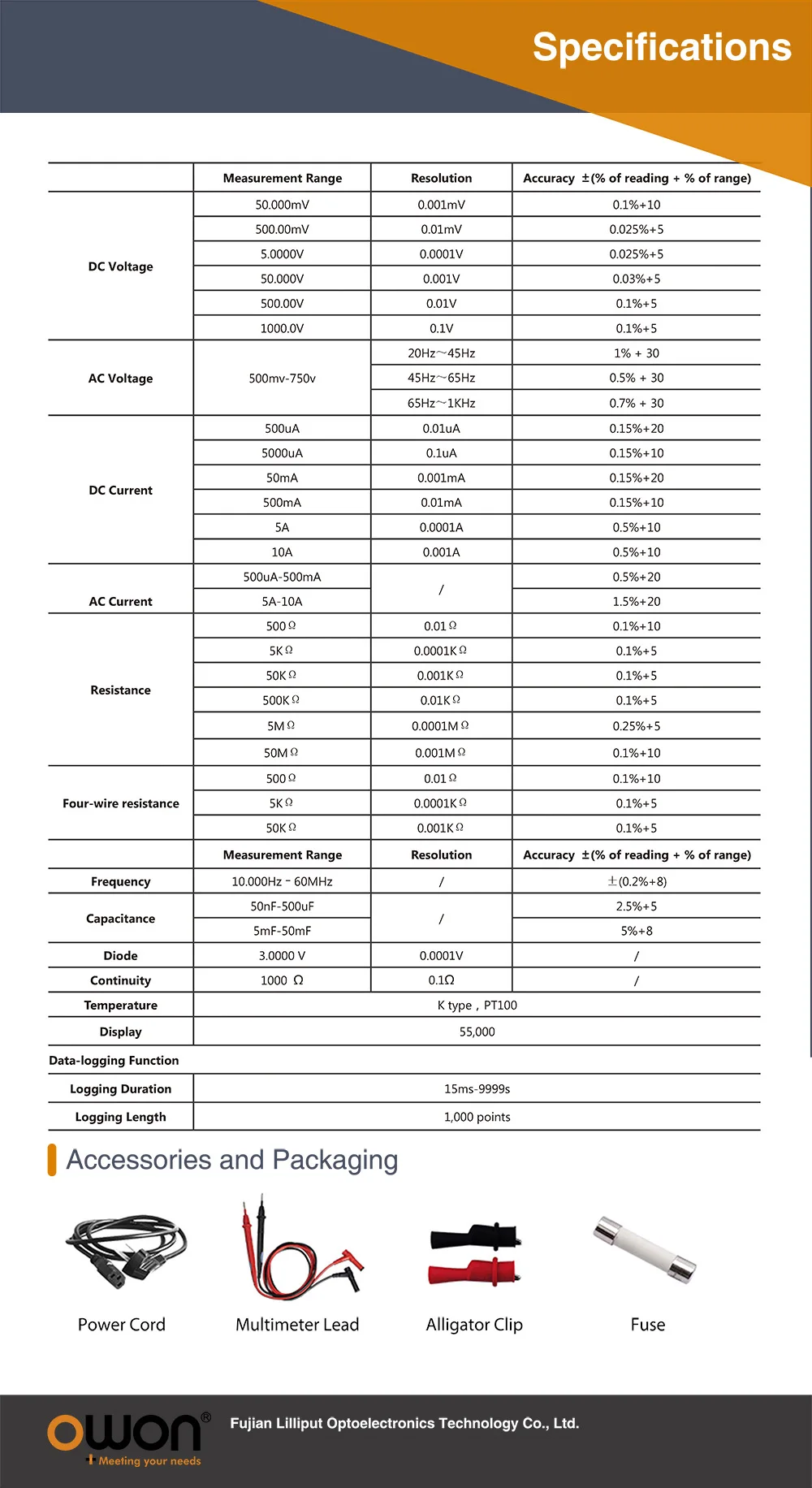

＋Performance Specifications
Measurement Range | Resolution | Accuracy ±(% of reading + LSB) | |
DC Voltage | 50.000mV | 0.001mV | 0.1%+10 |
500.00mV | 0.01mV | 0.025%+5 | |
5.0000V | 0.0001V | 0.025%+5 | |
50.000V | 0.001V | 0.03%+5 | |
500.00V | 0.01V | 0.1%+5 | |
1000.0V | 0.1V | 0.1%+5 | |
AC Voltage | 500mv-750v | 20Hz -45Hz | 1% + 30 |
45Hz -65Hz | 0.5% + 30 | ||
65Hz -1KHz | 0.7% + 30 | ||
DC Current | 500uA | 0.01uA | 0.15%+20 |
5000uA | 0.1uA | 0.15%+10 | |
50mA | 0.001mA | 0.15%+20 | |
500mA | 0.01mA | 0.15%+10 | |
5A | 0.0001A | 0.5%+10 | |
10A | 0.001A | 0.5%+10 | |
AC Current | 500uA-500mA | 20 Hz - 1 kHz | 0.5%+20 |
5A-10A | 1.5%+20 | ||
Resistance | 500Ω | 0.01Ω | 0.1%+10 |
5KΩ | 0.0001KΩ | 0.1%+5 | |
50KΩ | 0.001KΩ | 0.1%+5 | |
500KΩ | 0.01KΩ | 0.1%+5 | |
5MΩ | 0.0001MΩ | 0.25%+5 | |
50MΩ | 0.001MΩ | 0.1%+10 | |

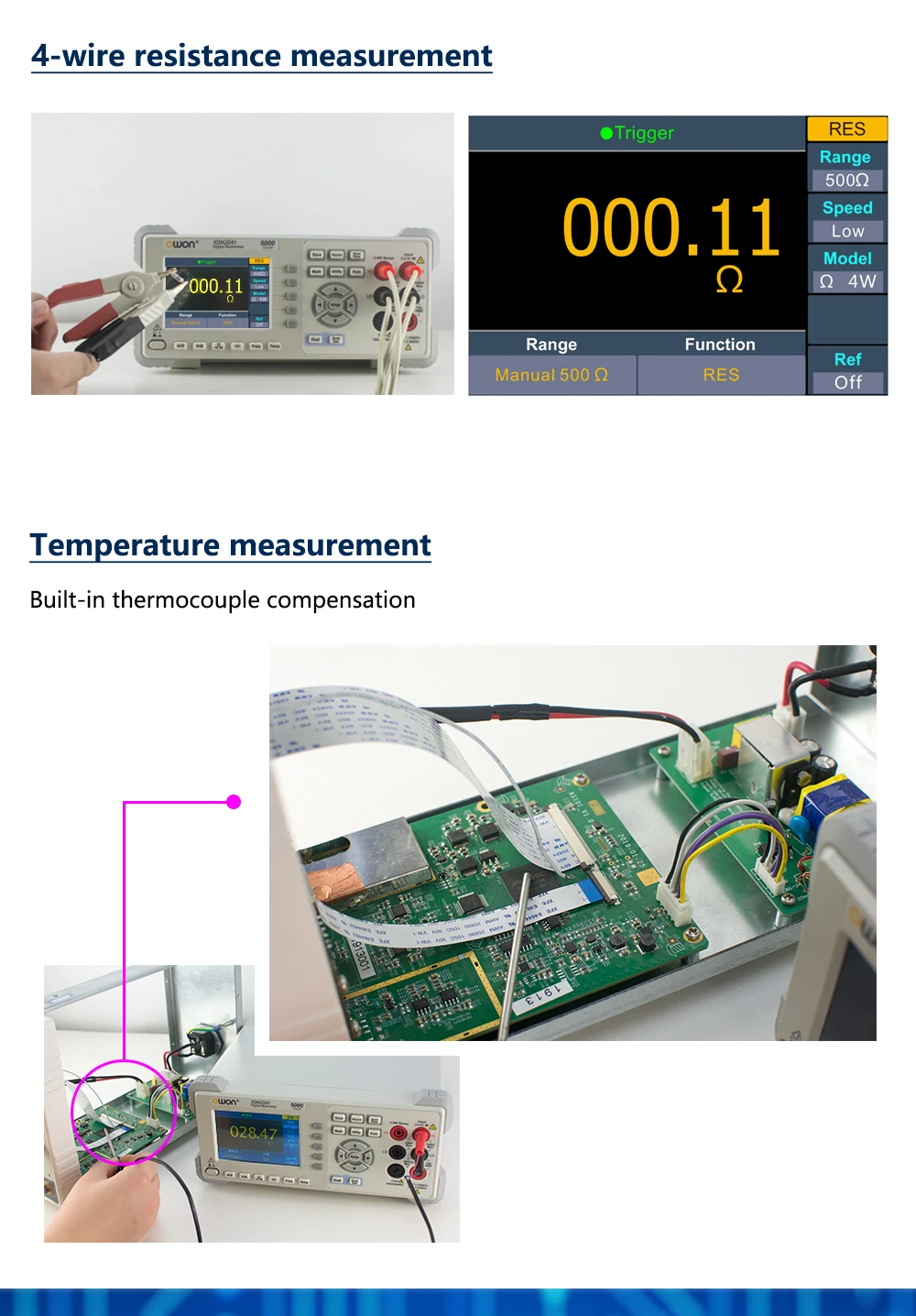

Four-wire resistance | 500Ω | 0.01Ω | 0.1%+10 |
5KΩ | 0.0001KΩ | 0.1%+5 | |
50KΩ | 0.001KΩ | 0.1%+5 | |
Measurement Range | Resolution | Accuracy ±(% of reading + LSB) | |
Frequency | 10.000Hz–60MHz | / | ±(0.2%+8) |
Capacitance | 50nF-500uF | / | 2.5%+5 |
5mF-50mF | 5%+8 | ||
Diode | 3.0000 V | 0.0001V | / |
Continuity | 1000 Ω | 0.1Ω | / |
Temperature | K type，PT100 | ||
Display | 55,000 | ||
Data-logging Function | |||
Logging Duration | 15ms-9999s | ||
Logging Length | 1,000 points |
General | |

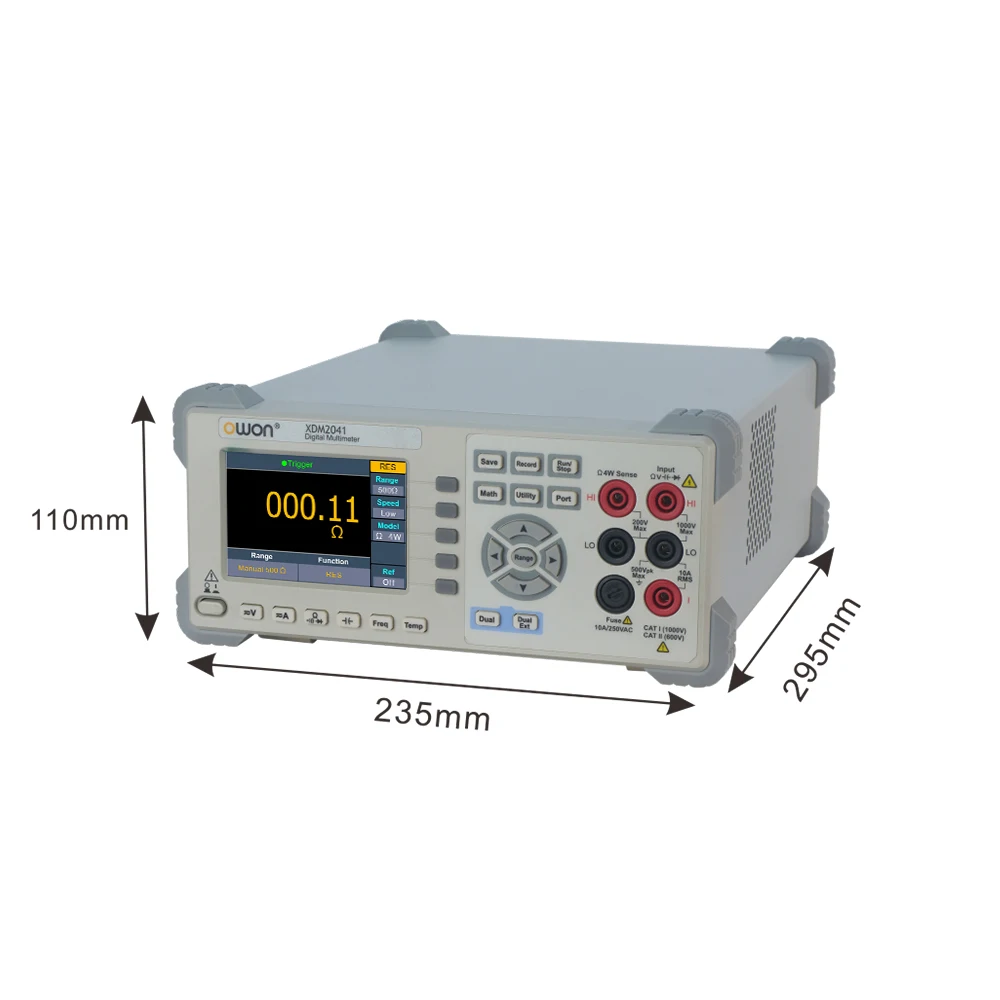

Dimensions (W×H×D) | 235 x 110 x 295 (mm) |
Device Weight | Approximately 2.3kg |
Packaging includ
1* XDM2041 Desktop digital multimeter
1* Power Cord
1* Manual
1* Spare Fuse
1* Multimeter Leads
1* Alligator Clips
