Product Description

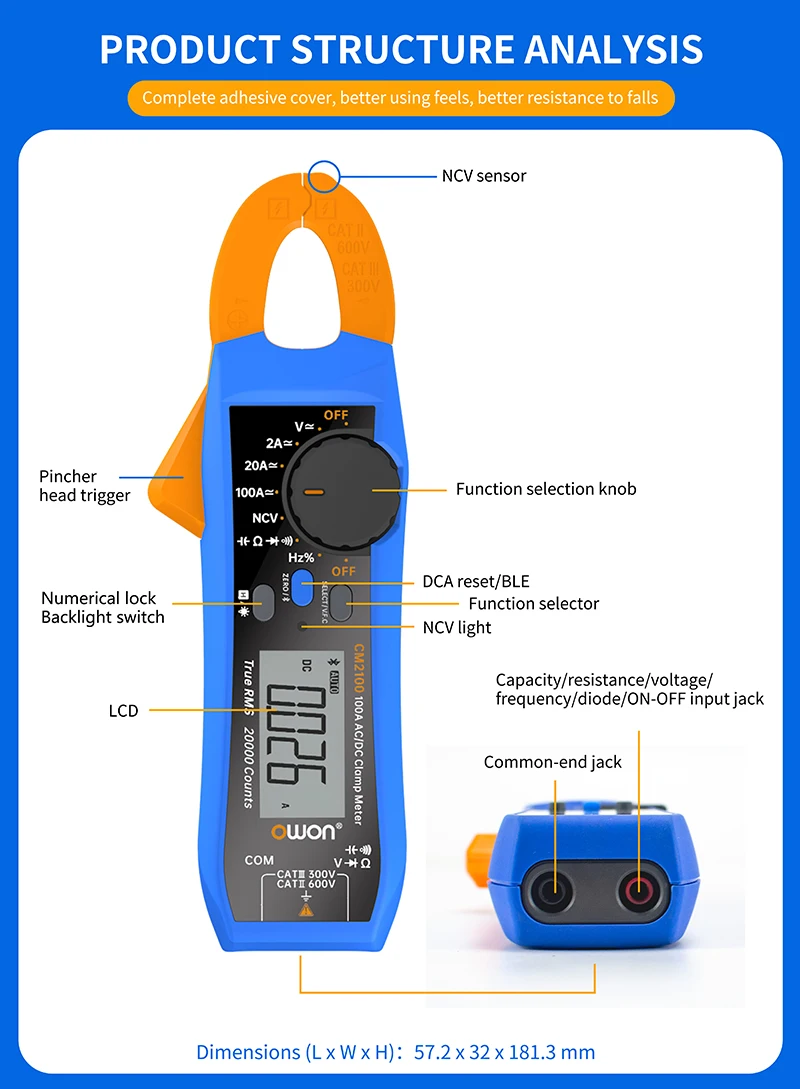

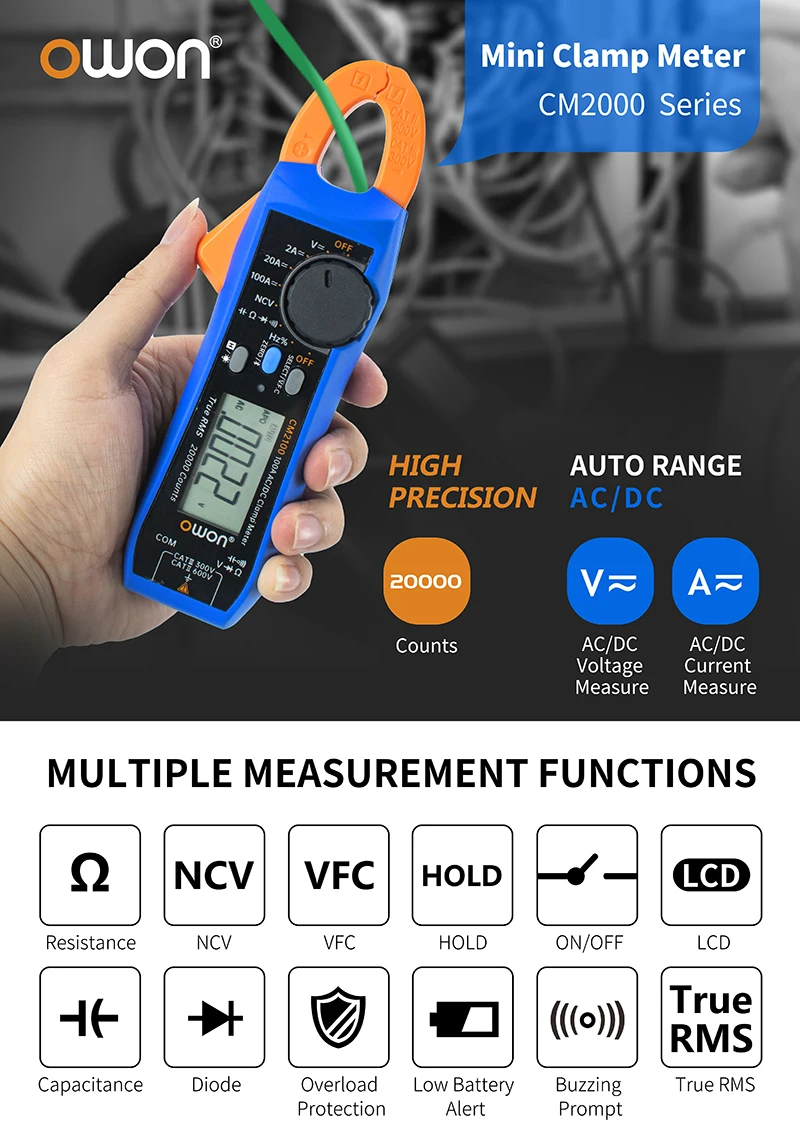

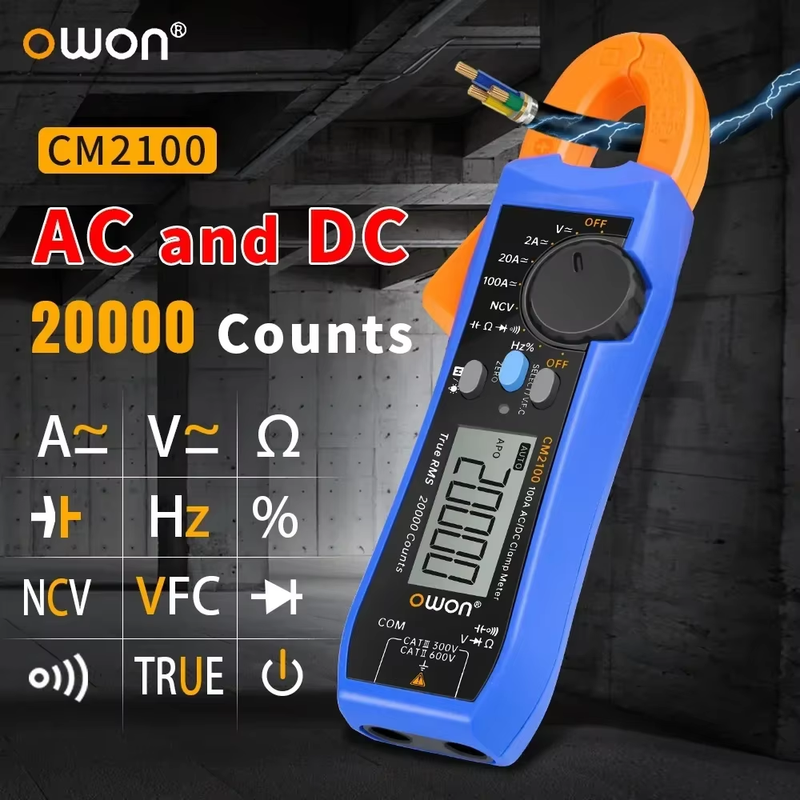

CM2100 CM2100B Digital Multimeter High-Precision 20000 Count AC/DC Current Clamp Tester True RMS VFC Diode Portable Ammeter
CM2100 CM2100B Digital Multimeter High-Precision 20000 Count AC/DC Current Clamp Tester True RMS VFC Diode Portable AmmeterDigital Clamp Meter- CM2100&2100B+AC/DC current, AC/DC voltage

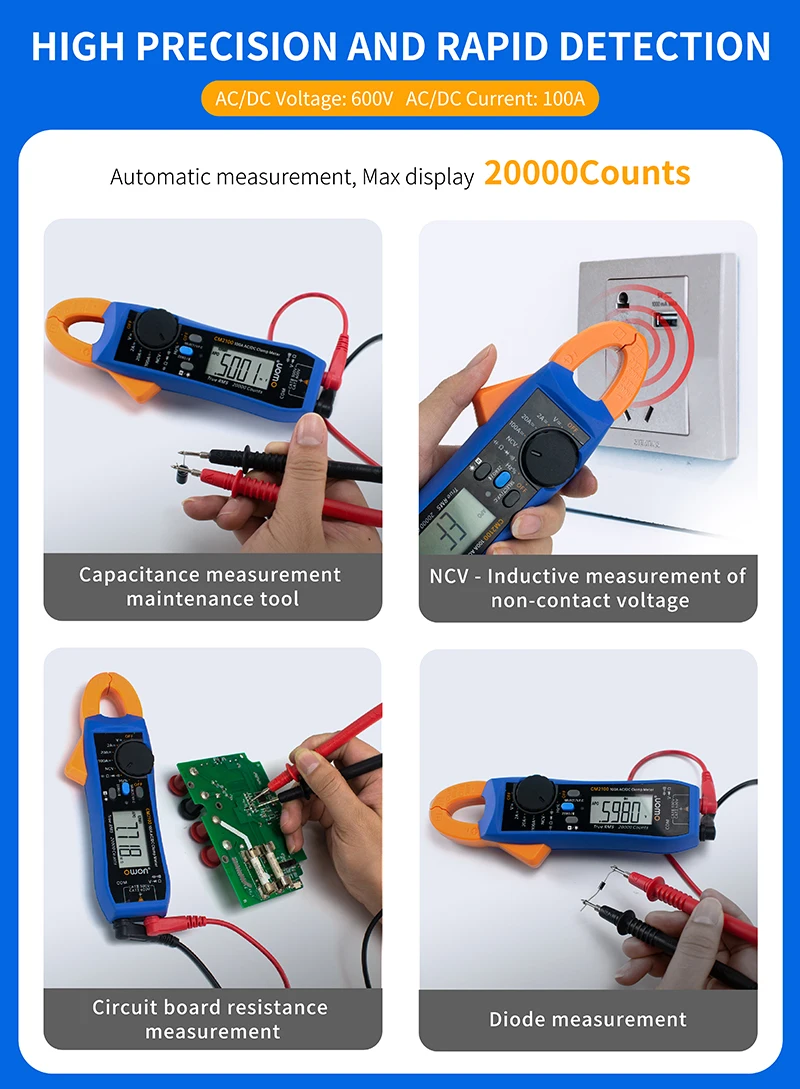

+20000 count true RMS automatic range clamp meter
+Standard non-contact AC voltage sensing (NCV) function
+VFC mode can filter high-frequency interference signals to ensure accurate measurement data.
+AC frequency response up to 1000Hz
+Small size, easy to carry

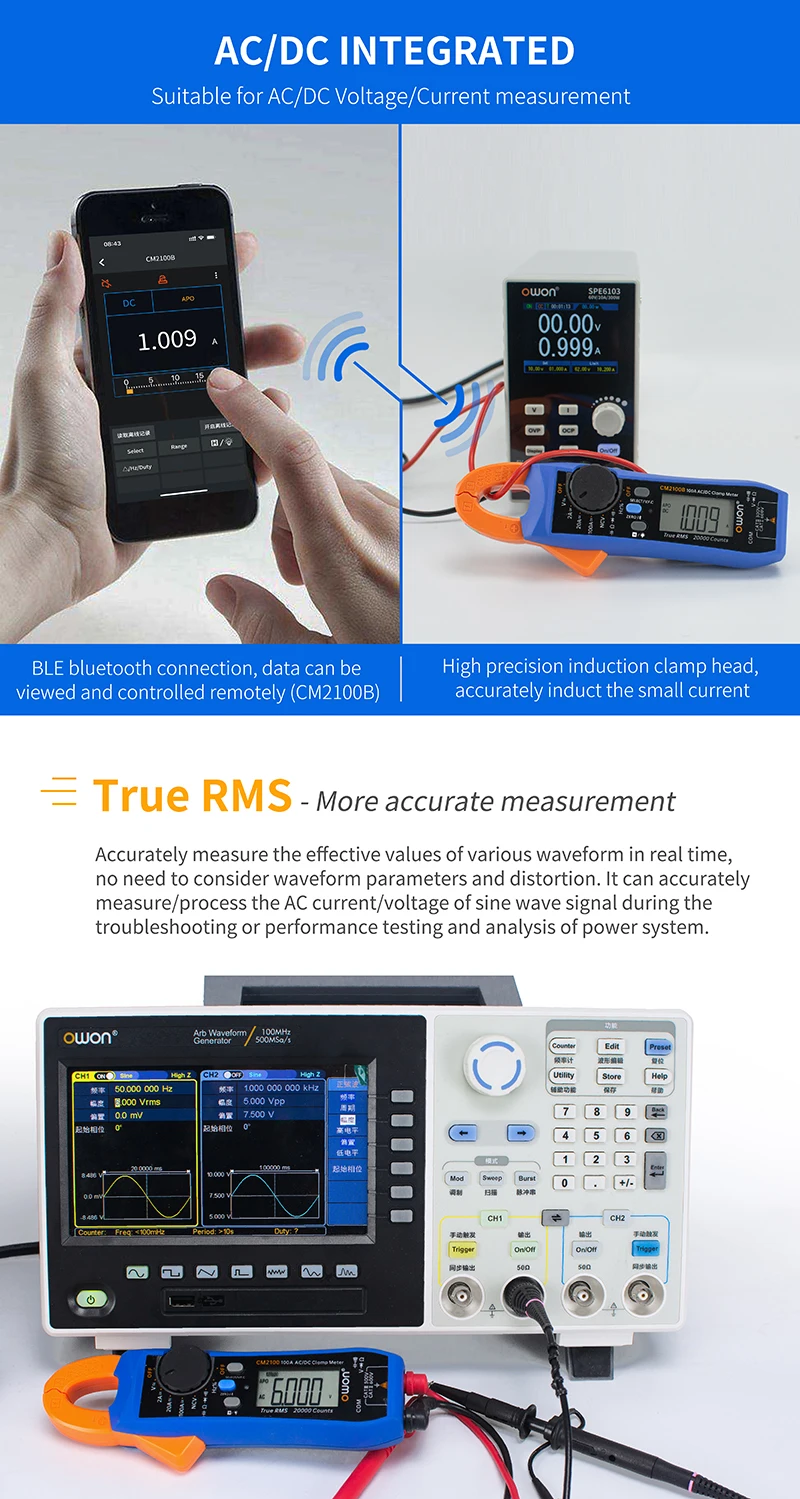

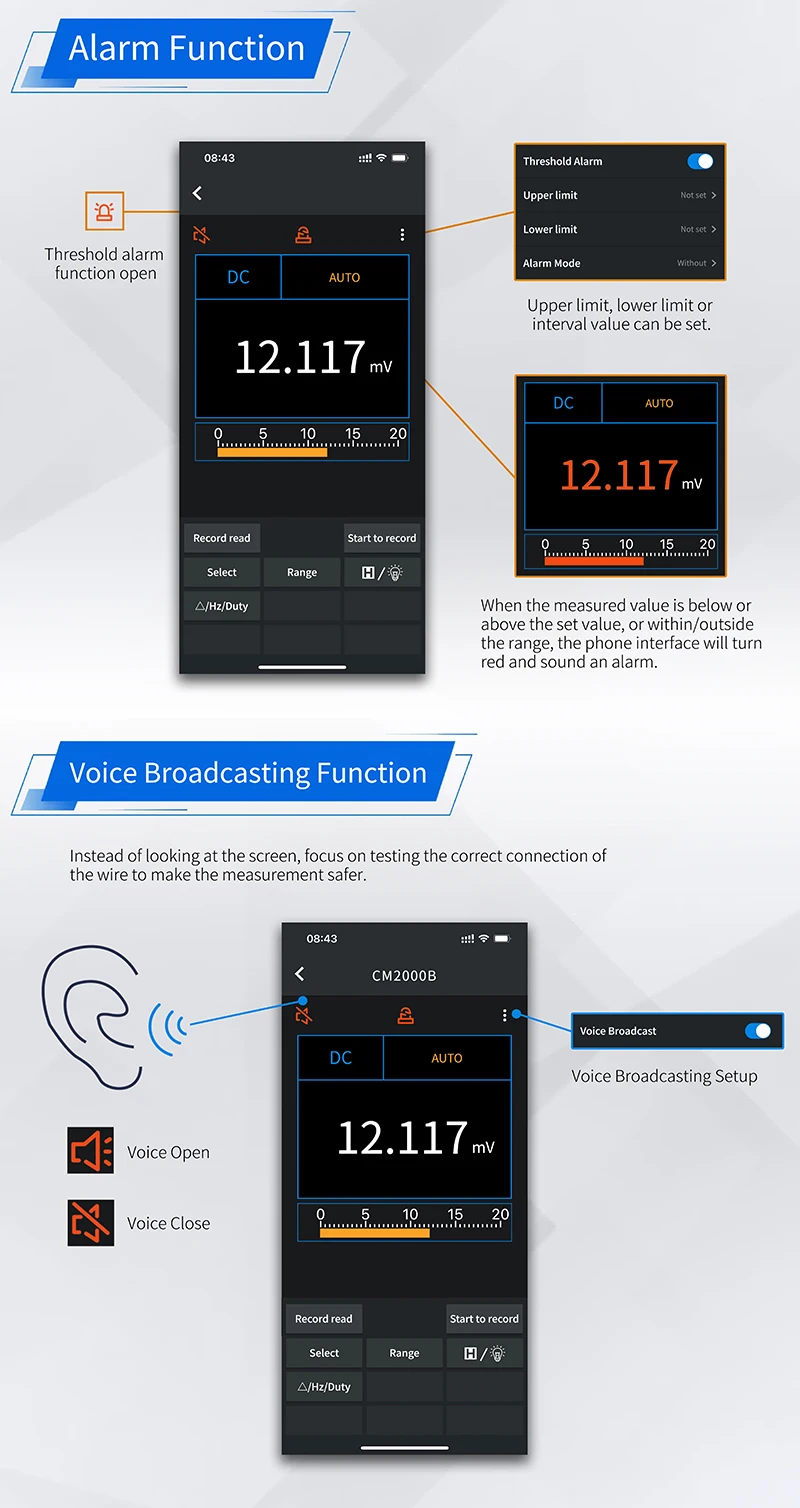

+Bluetooth communication function, supporting Android and Apple phones, enabling remote data viewing and instrument control (2100B)

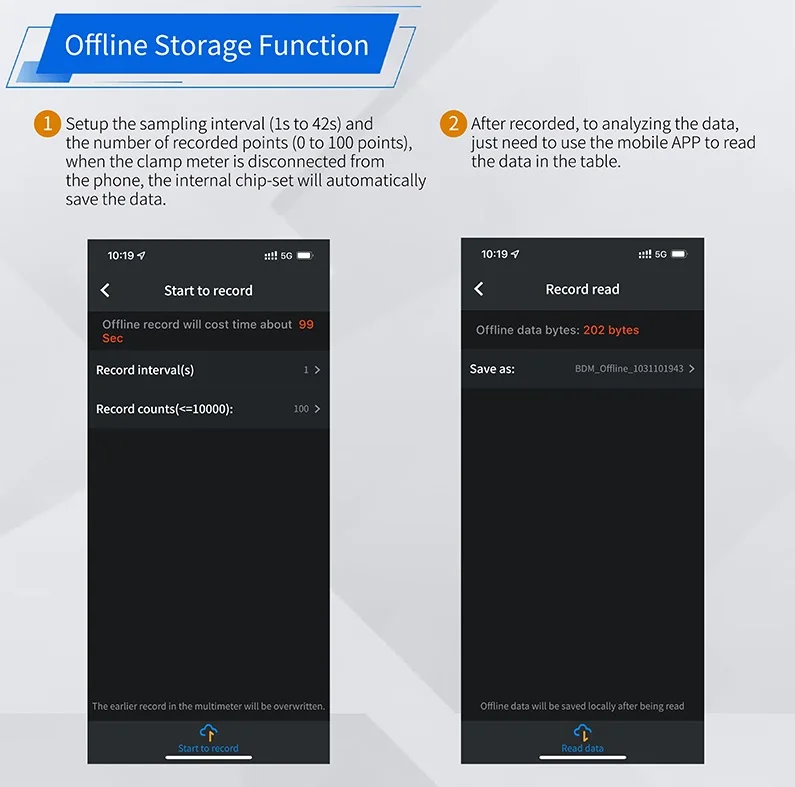

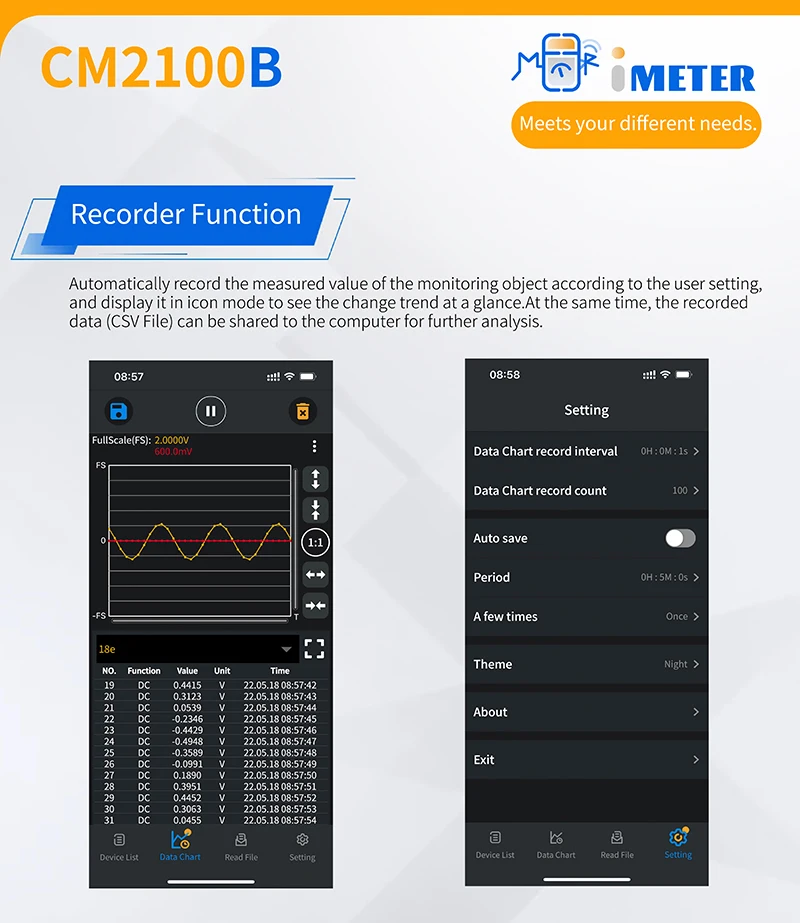

+Support the recording function, record and analyze the measured values, share the recorded data, and work together (2100B)

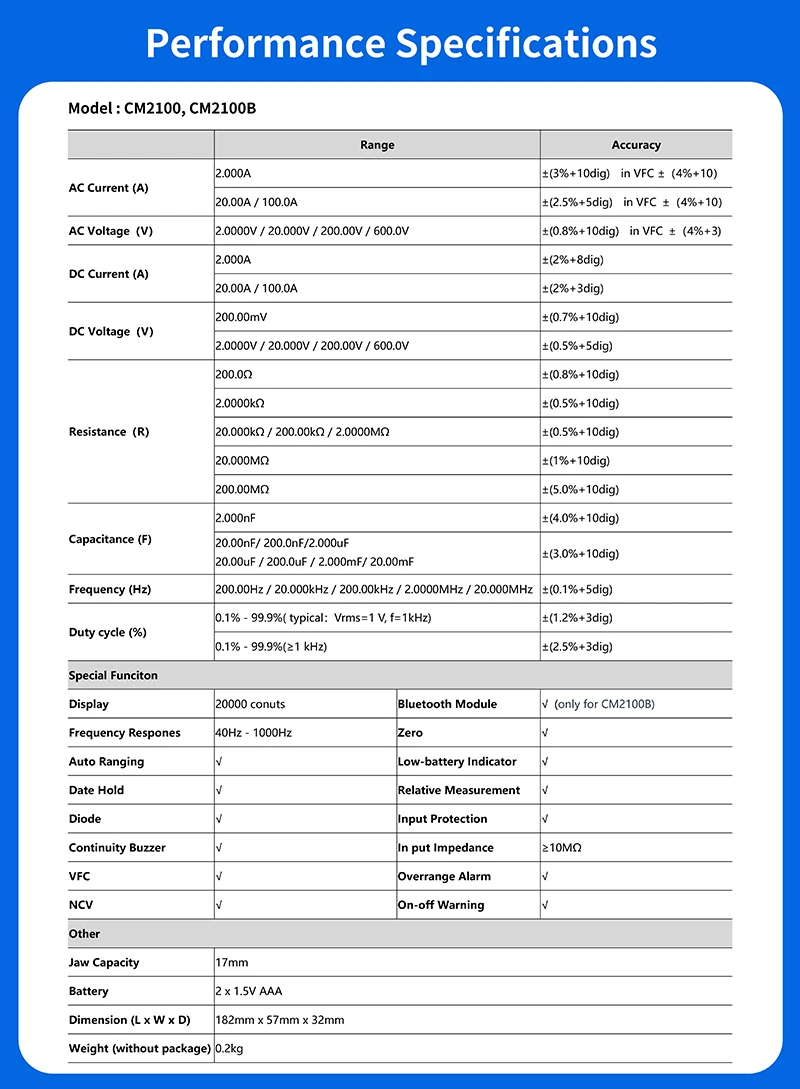

＋Performance Specifications
Range | Accuracy | |
AC Current (A) | 2.000A | ±(3%+10dig) in VFC ±（4%+10） |
20.00A | ±(2.5%+5dig) in VFC±（4%+10） | |
100.0A / | ||
AC Voltage（V） | 2.0000V | ±(0.8%+10dig) in VFC±（4%+3 |
20.000V | ||
200.00V | ||
600.0V | ||
DC Current (A) | 2.000A | ±(2%+8dig) |
20.00A | ±(2%+3dig) | |
100.0A | ||
DC Voltage（V） | 20.00mV | ±(0.7%+10dig) |
200.00mV | ||
2.0000V | ±(0.5%+5dig) | |
20.000V | ||
200.00V | ||
600.0V | ||
Resistance（R） | 200.0Ω | ±(0.8%+10dig) |
2.0000kΩ | ±(0.5%+10dig) | |
20.000kΩ | ±(0.5%+10dig) | |
200.00kΩ | ||
2.0000MΩ | ||
20.000MΩ | ±(1%+10dig) | |
200.00MΩ | ±(5.0%+10dig) | |
Capacitance (F) | 2.0000nF/ 20.000nF/ 200.00nF/2.0000uF 20.000uF/ 200.00uF / 2.0000mF/ 20.000mF | ±(3.0%+10dig) |
Frequency (Hz) | 200.00Hz / 20.000kHz / 200.00kHz / 2.0000MHz / 20.000MHz | ±(0.1%+5dig) |
Duty cycle (%) | 0.1% - 99.9%( typical：Vrms=1 V, f=1kHz) | ±(1.2%+3dig) |
0.1% - 99.9%(≥1 kHz) | ±(2.5%+3dig) | |
General | ||
Display | 20000 conuts | |
Frequency Respones | 40Hz～1000Hz | |
Auto Ranging | √ | |
Date Hold | √ | |
Jaw Capacity | 17mm | |
Diode | √ | |
Continuity Buzzer | √ | |
NCV | √ | |
VFC | √ | |
Zero | √ | |
Low-battery Indicator | √ | |
Relative Measurement | √ | |
Input Protection | √ | |
In put Impedance | ≥10MΩ | |
Overrange Alarm | √ | |
On-off Warning | √ | |
other | ||
Battery | 2 x 1.5V AAA | |
Dimension (L *W* D) | 182mm*57mm*32mm | |
Weight (without package) | 0.2K |
