Product Description
HDS120 HDS160 Digital Oscilloscope Multimeter 20000/60000 Counts True RMS 1MHz 5MS/s Automatic Range 18650 Lithium Battery

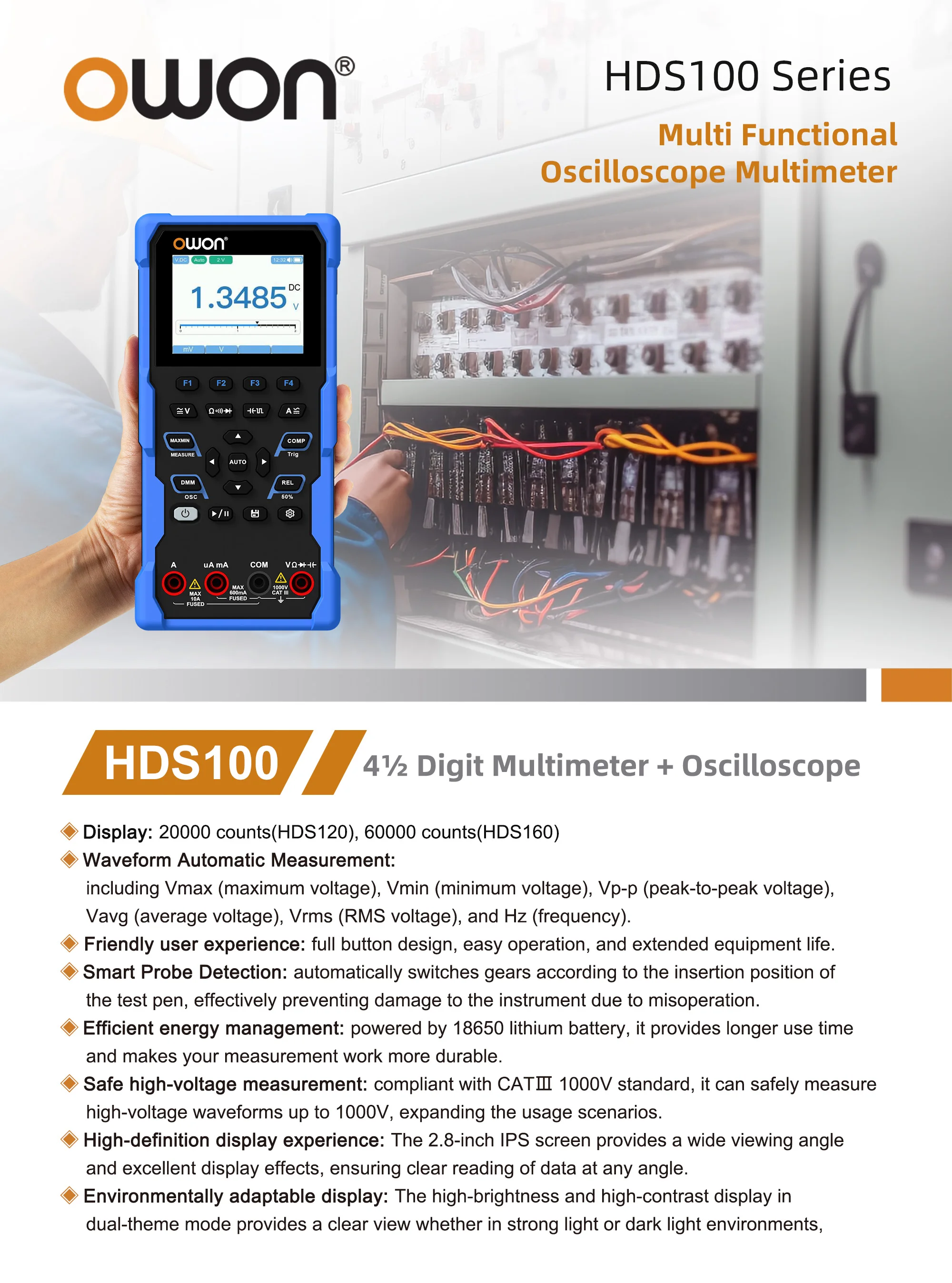

HDS120 HDS160 Digital Oscilloscope Multimeter 20000/60000 Counts True RMS 1MHz 5MS/s Automatic Range 18650 Lithium BatteryHandheld oscilloscope Multimeter HDS120/HDS160

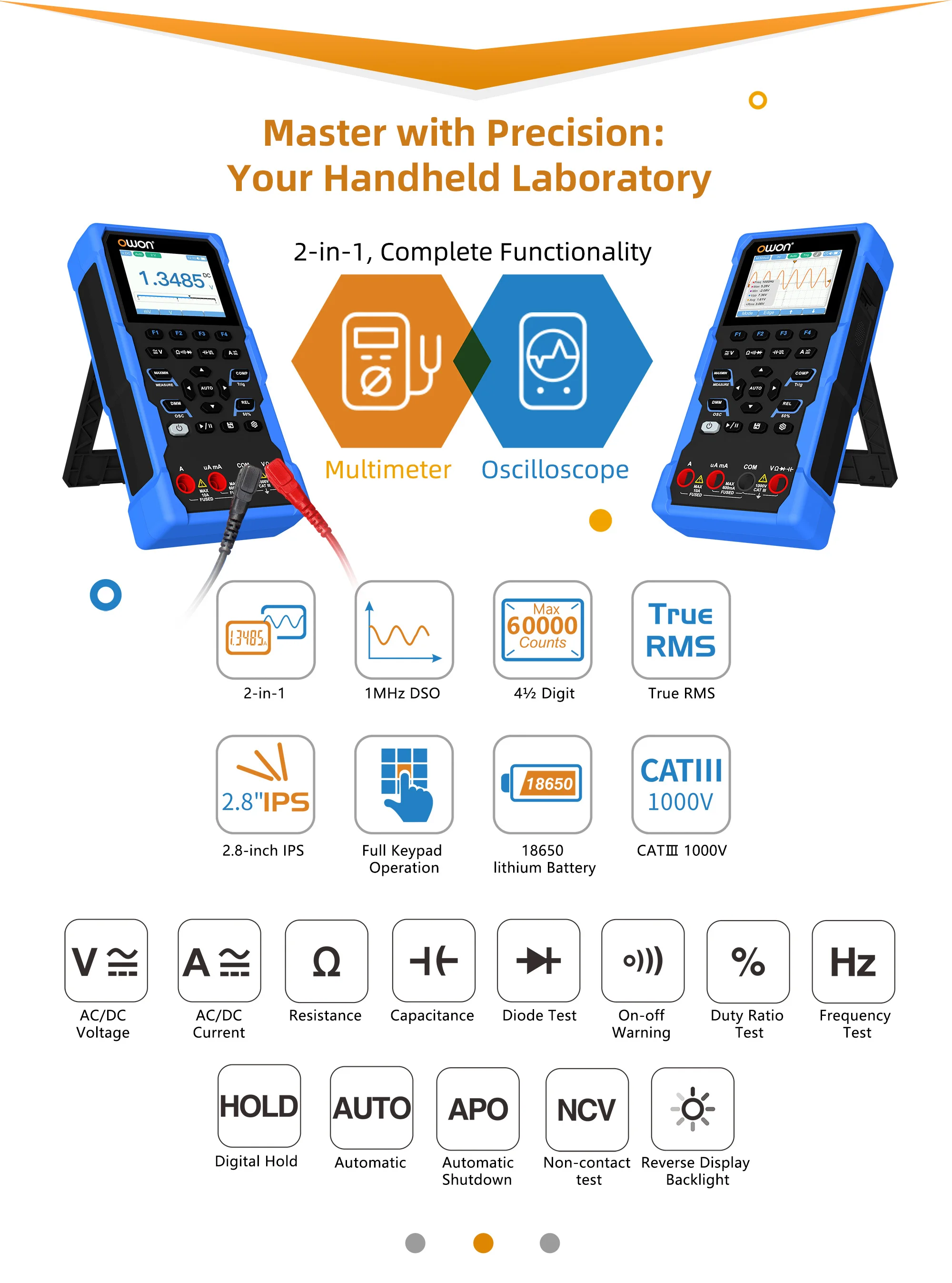

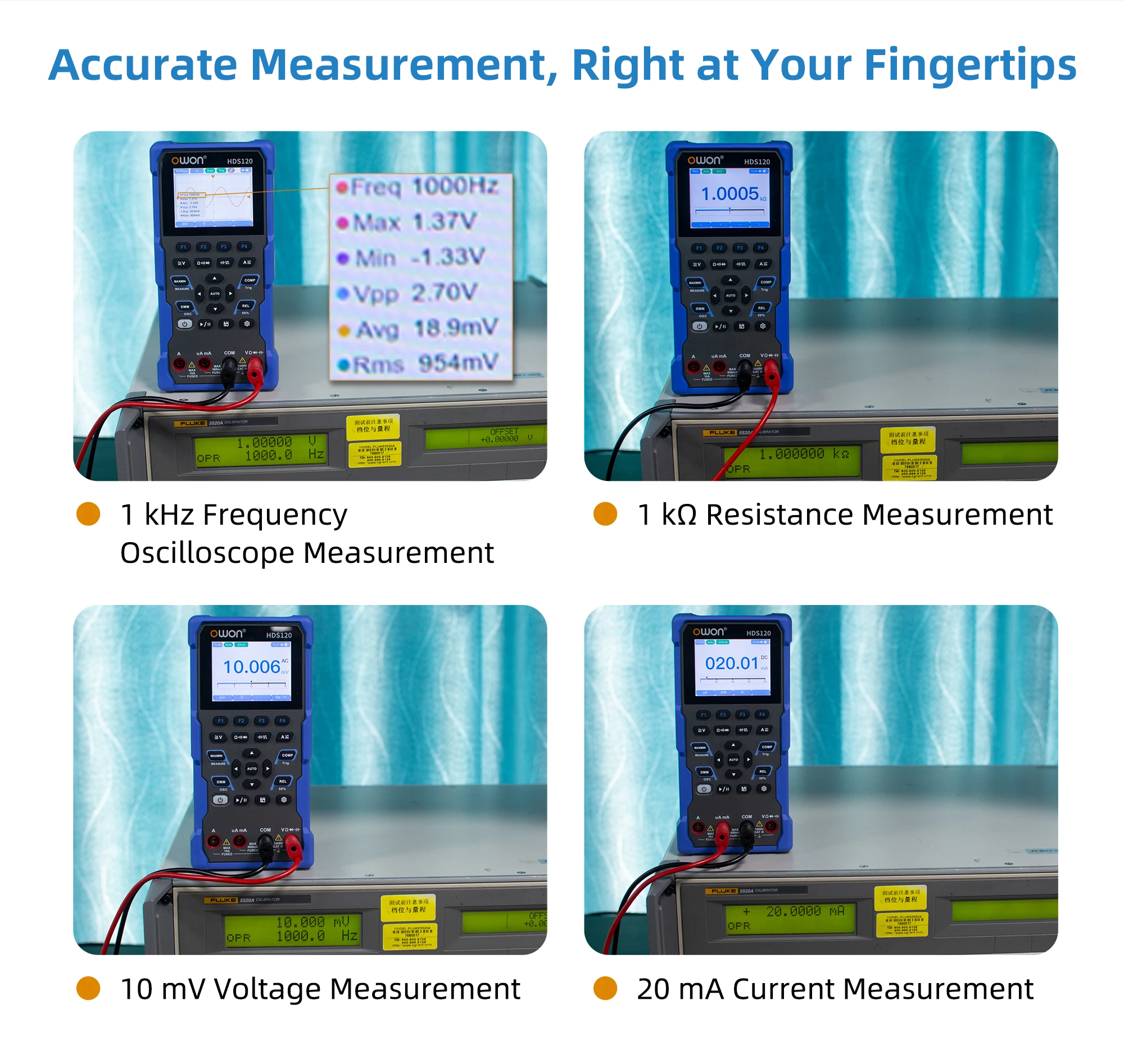

+ Multifunctional measuring instrument: 4.5-digit multimeter + oscilloscope

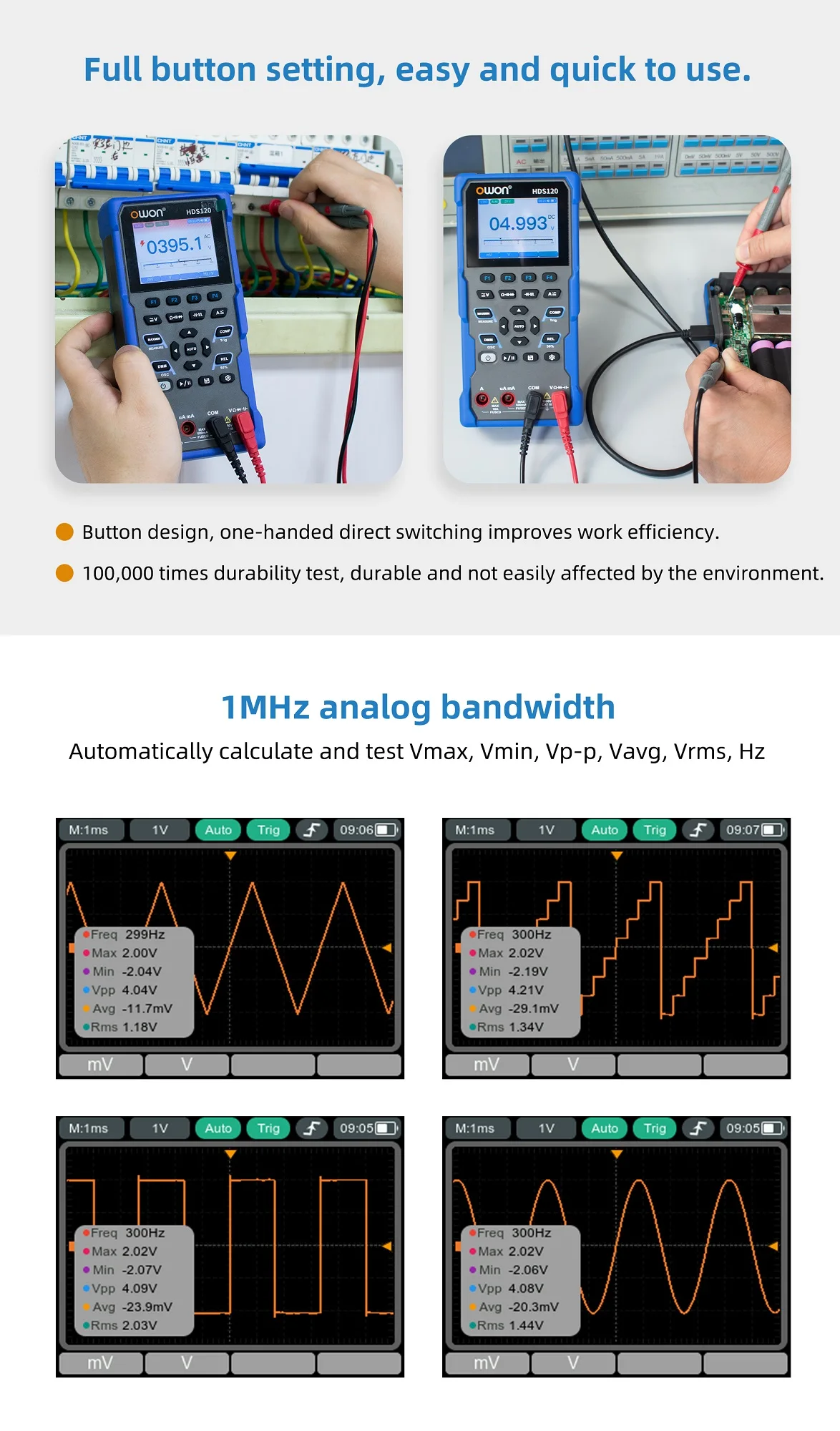

+ Automatic Waveform Measurements: Including Vmax，Vmin，Vp-p，Vavg，Vrms，and frequency.
+ User-Friendly Experience: Full Key Design, Easy Operation, and Extends Device Lifespan

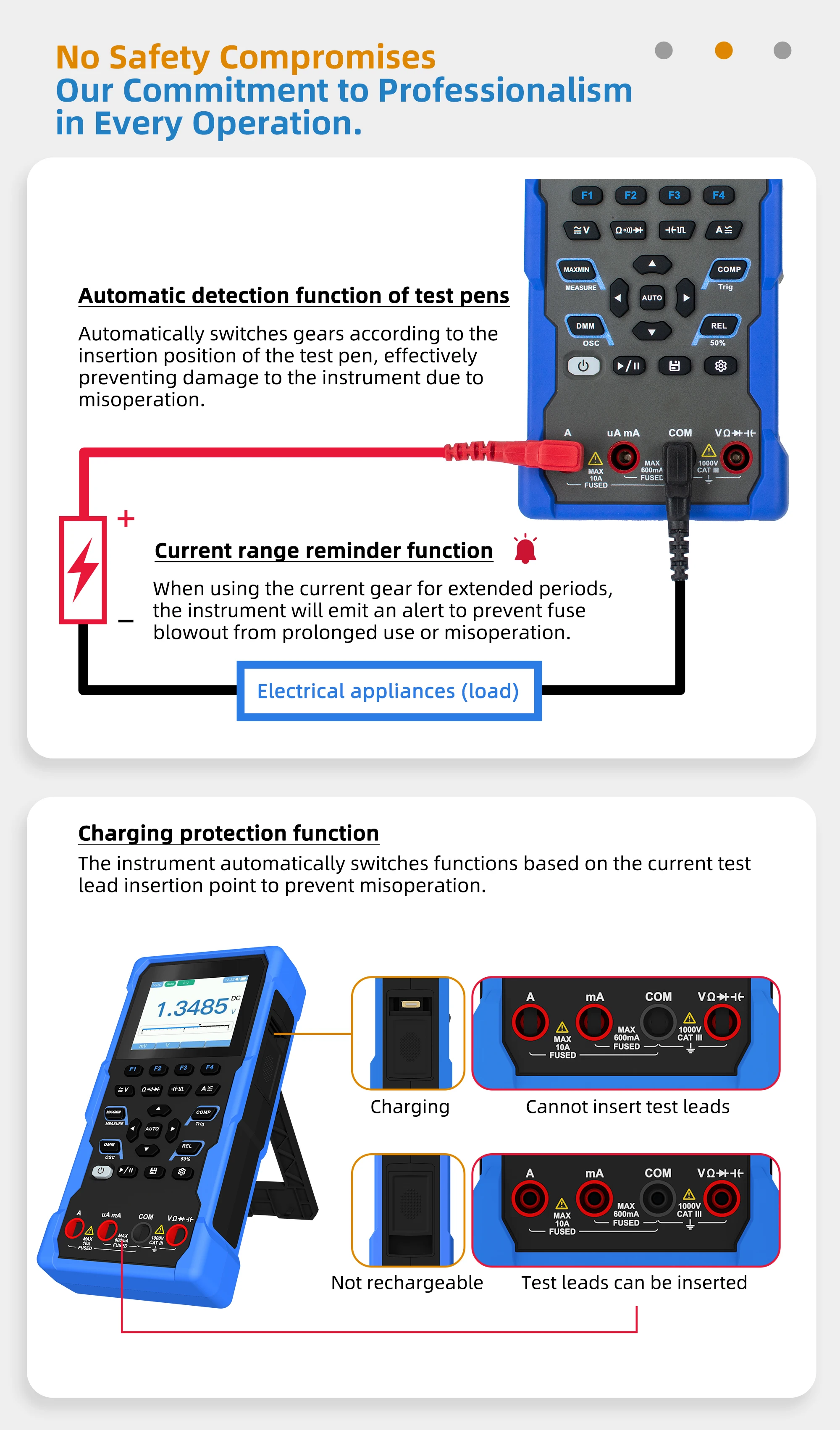

+ Intelligent Probe Detection: Automatically switches measurement values based on the probe's insertion position, effectively preventing damage to the instrument due to incorrect operation.
+ Efficient Energy Management: Powered by 18650 lithium batteries, providing longer usage time, making your measurement tasks more enduring.

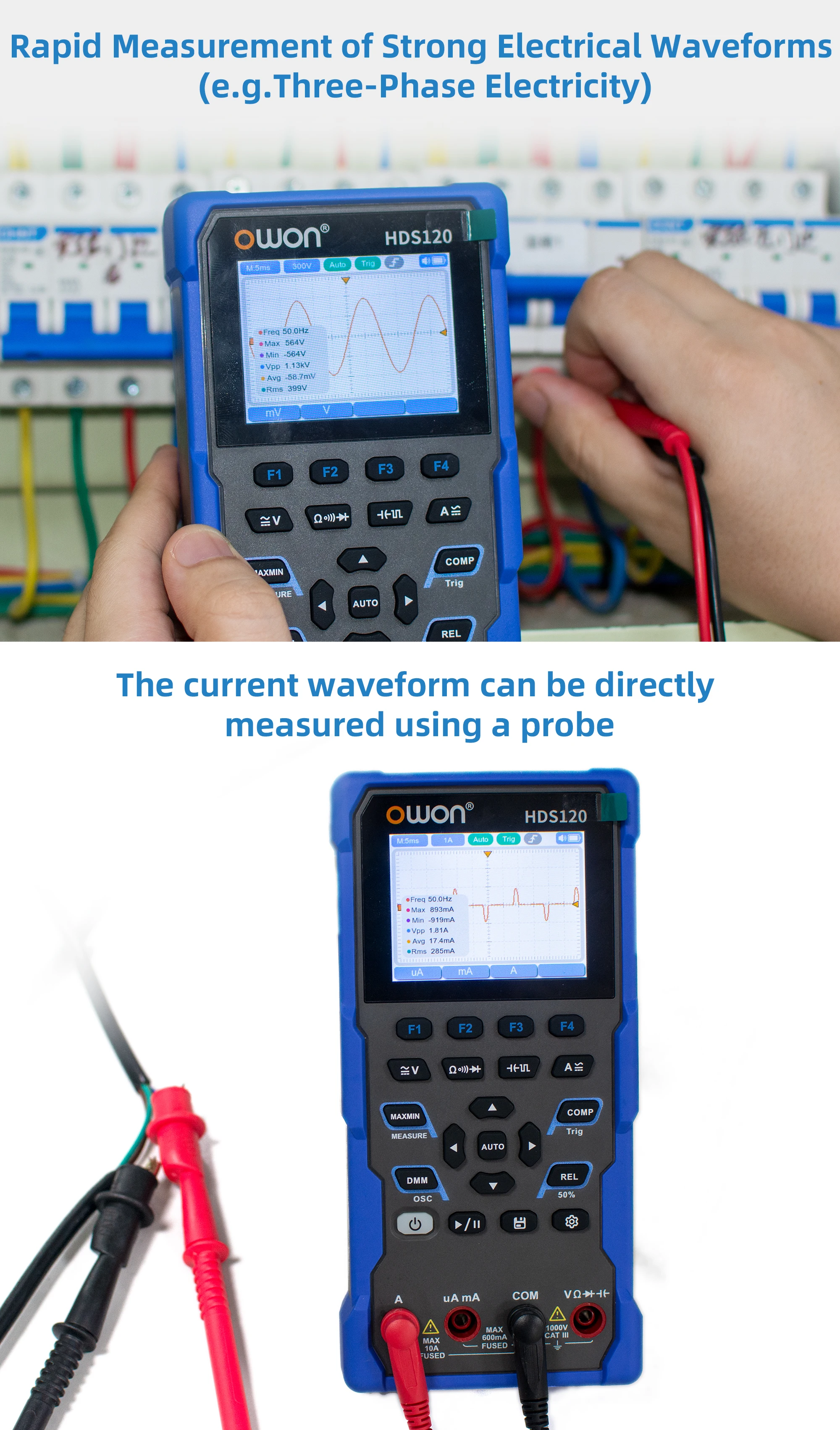

+CATⅢ 1000V standard, capable of directly and safely measuring high-voltage waveforms up to 1000V, expanding the range of applications.

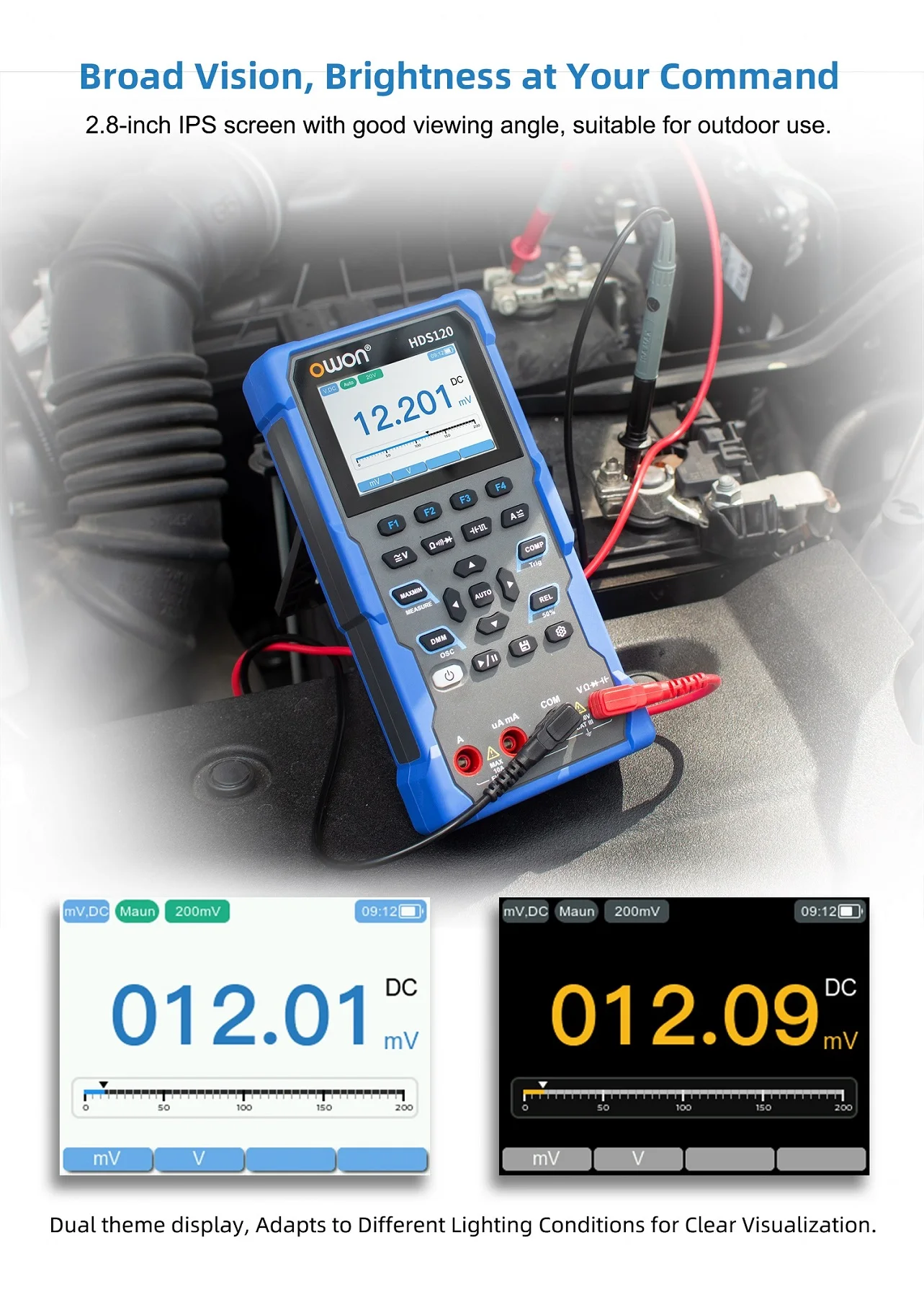

+2.8-inch IPS screen, providing a wide viewing angle and excellent display quality, ensuring clear data reading from any angle.
Parameter comparison
HDS160 | HDS120 | |
CATⅢ1000V | √ | √ |
Counts | 60000 | 20000 |
optimal accuracy (DC) | ± 0.05% +5 | ± 0.1% +5 |
DC voltage | 1000V | 1000V |
ac voltage | 750V | 750V |
ac/dc current | 10A/10A | 10A/10A |
frequency | 60MHz | 20MHz |
Resistance | 60MΩ | 100MΩ |
Capacitance | 60mF | 20mF |
Analog bandwidth | 1MHz (only ACV scale) | |
Voltage vertical range | 30mV~500V/grid | |
Maximum voltage limit | 1000V DC+AC peak value | |
Auto set | Time base / vertical amplitude / trigger value | |
Battery | 18650 3.7V |

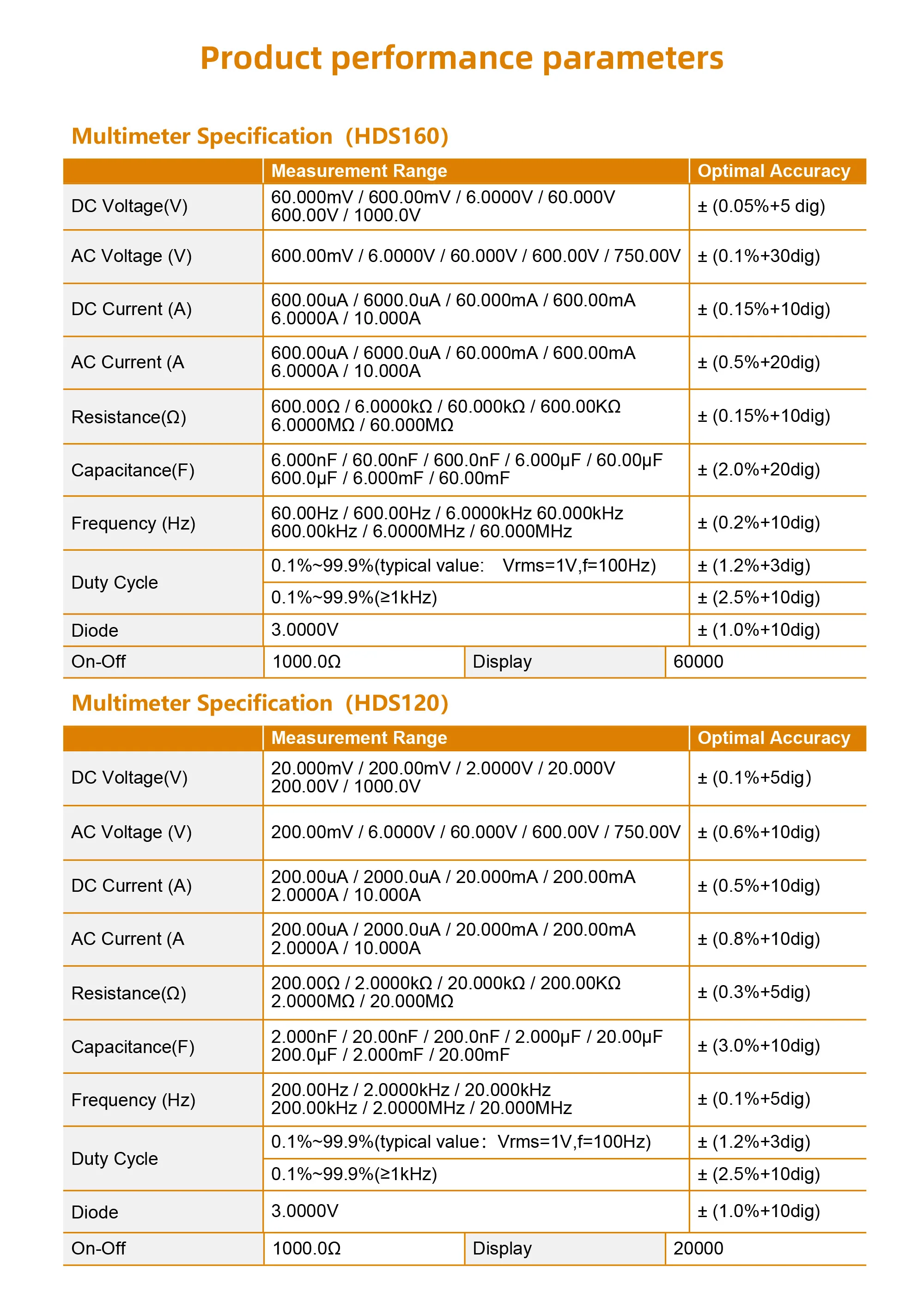

Multimeter Specification
Measurement Range | Accuracy | |
DC Voltage(V) | 20.000mV | ±(0.1%+20 dig) |
200.00mV | ±(0.1%+6 dig) | |
2.0000V/20.000V/200.00V | ±(0.1%+5 dig) | |
1000.0V | ±(0.15%+5 dig) | |
AC Voltage (V) | 20.000mV/200.00mv/2.0000V/20.000V/200.00V | ±(0.6%+10dig) |
750.00V | ±(0.8%+10dig) | |
DC Current (A) | 200.00uA | ±(0.6%+10dig) |
2000.0uA | ±(0.5%+10dig) | |
20.000mA | ±(0.6%+10dig) | |
200.00mA | ±(0.5%+10dig) | |
2.0000A | ±(1.0%+10dig) | |
10.000A | ±(2.0%+10dig) | |
AC Current (A | 200.00uA/2000.0uA | ±(0.8%+10dig) |
20.000mA/200.00mA | ||
2.0000A | ±(1.5%+10dig) | |
10.000A | ±(2.5%+10dig) | |
Resistance(Ω) | 200.00Ω | ±(0.8%+10dig) |
2.0000kΩ | ±(0.3%+5dig) | |
20.000kΩ/200.00kΩ/2.0000MΩ | ±(0.3%+5dig) | |
20.000MΩ | ±(0.5%+5dig) | |
100.00MΩ | ±(5.0%+10dig) | |
Capacitance(F) | 2.000nF | ±(5.0%+10dig) |
20.00nF/200.0nF/2.000μF/20.00μF 200.0μF/2.000mF/20.00mF | ±(3.0%+10dig) | |
Frequency (Hz) | 200.00Hz/2.0000kHz 20.000kHz/200.00kHz/2.0000MHz/20.000MHz | ±(0.1%+5dig) |
Duty Cycle | 0.1%~99.9%(typical value：Vrms=1V,f=100Hz) | ±(1.2%+3dig) |
0.1%~99.9%(≥1kHz) | ±(2.5%+10dig) | |
Diode | 3.0000V | ±(1.0%+10dig) |
On-Off | 1000.0Ω | |
Display | 20000 |

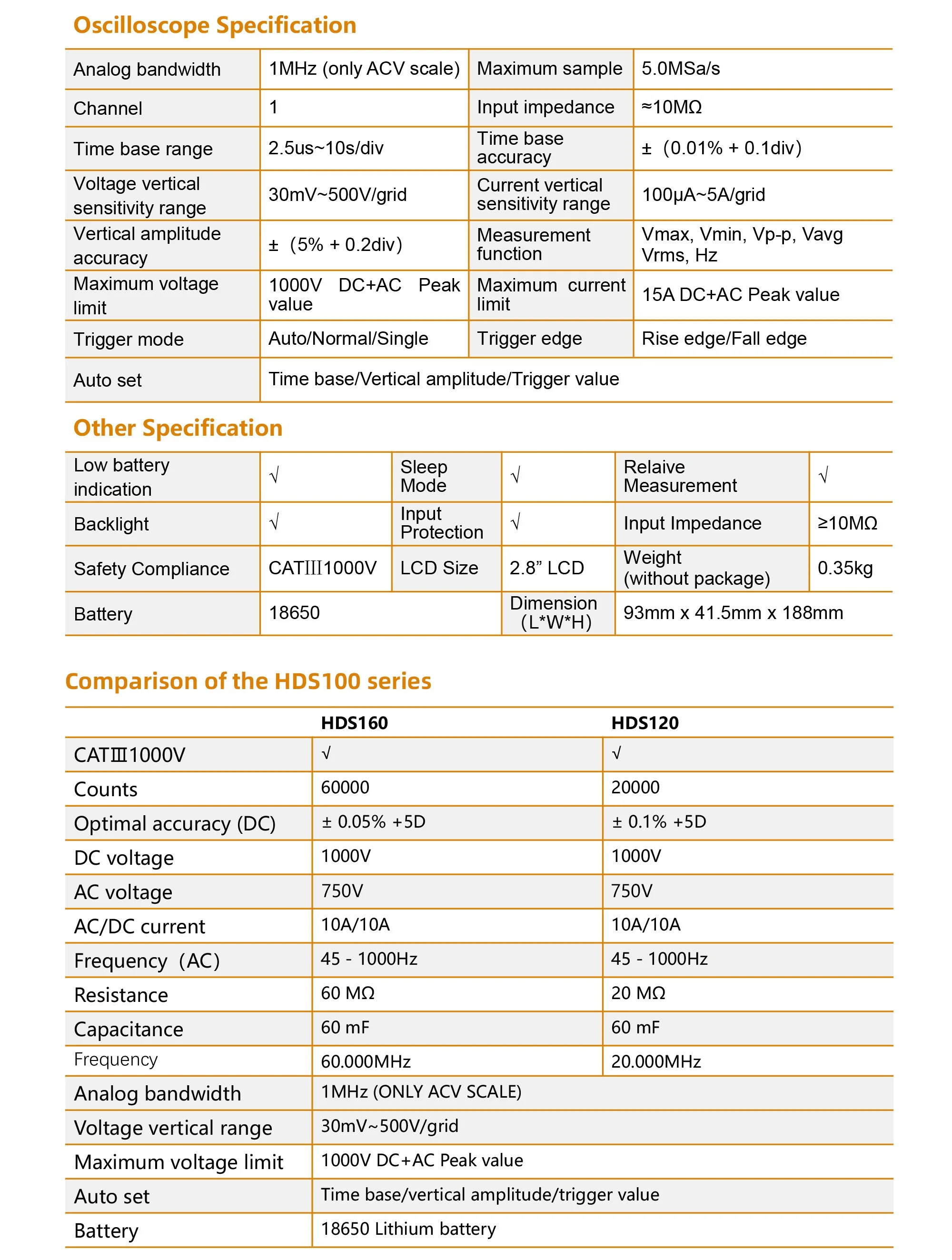

Oscilloscope Specification
Analog bandwidth | 1MHz (only ACV scale) | Maximum sample | 5.0MSa/s |
Channel | 1 | Input impedance | ≈10MΩ |
Time base range | 2.5us~10s/div | Time base accuracy | ±（0.01% + 0.1div） |
Voltage vertical sensitivity range | 30mV~500V/grid | Current vertical sensitivity range | 100μA~5A/grid |
Vertical amplitude accuracy | ±（5% + 0.2div） | Measurement function | Vmax,Vmin,Vp-p,Vavg,Vrms,Hz |
Maximum voltage limit | 1000V DC+AC Peak value | Maximum current limit | 15A DC+AC Peak value |
Trigger mode | Auto/Normal/Single | Trigger edge | Rise edge/Fall edge |
Autoset | Time base/Vertical amplitude/Trigger value |
Other Specification
Low battery indication | √ | Sleep Mode | √ | Relaive Measurement | √ |
Backlight | √ | Input Protection | √ | Input Impedance | ≥10MΩ |
Safety Compliance | CATⅢ1000V | LCD Size | 2.8” LCD | Weight(without package) | 0.35kg |
Battery | 18650 | Dimension（L*W*H） | 93mm x 41.5mm x 188mm |
