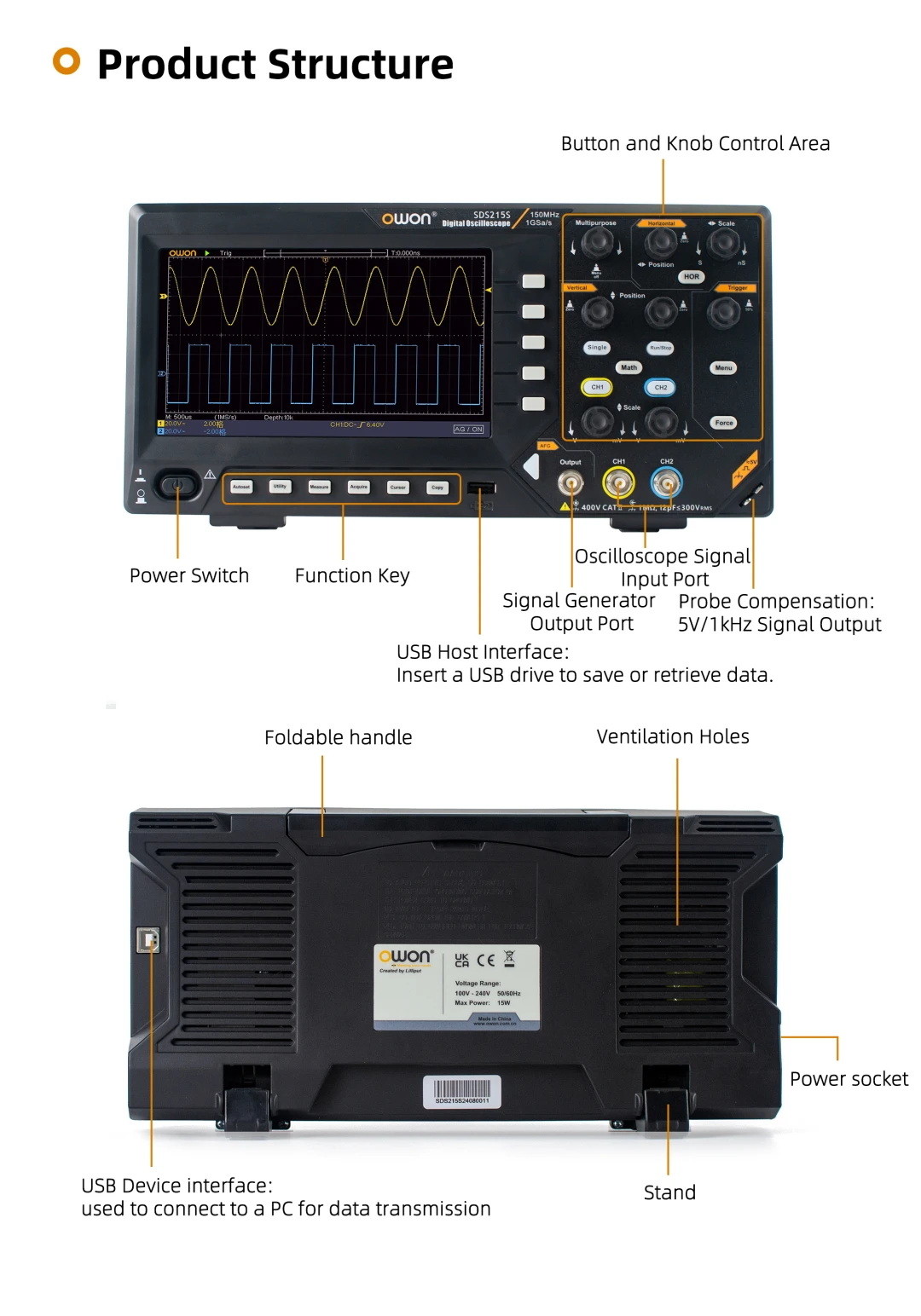

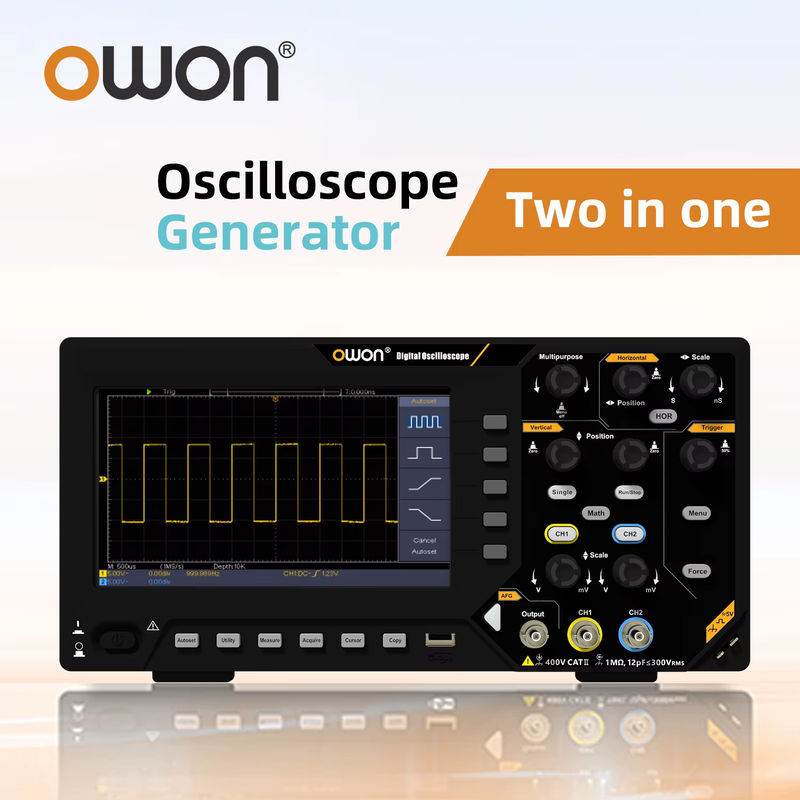

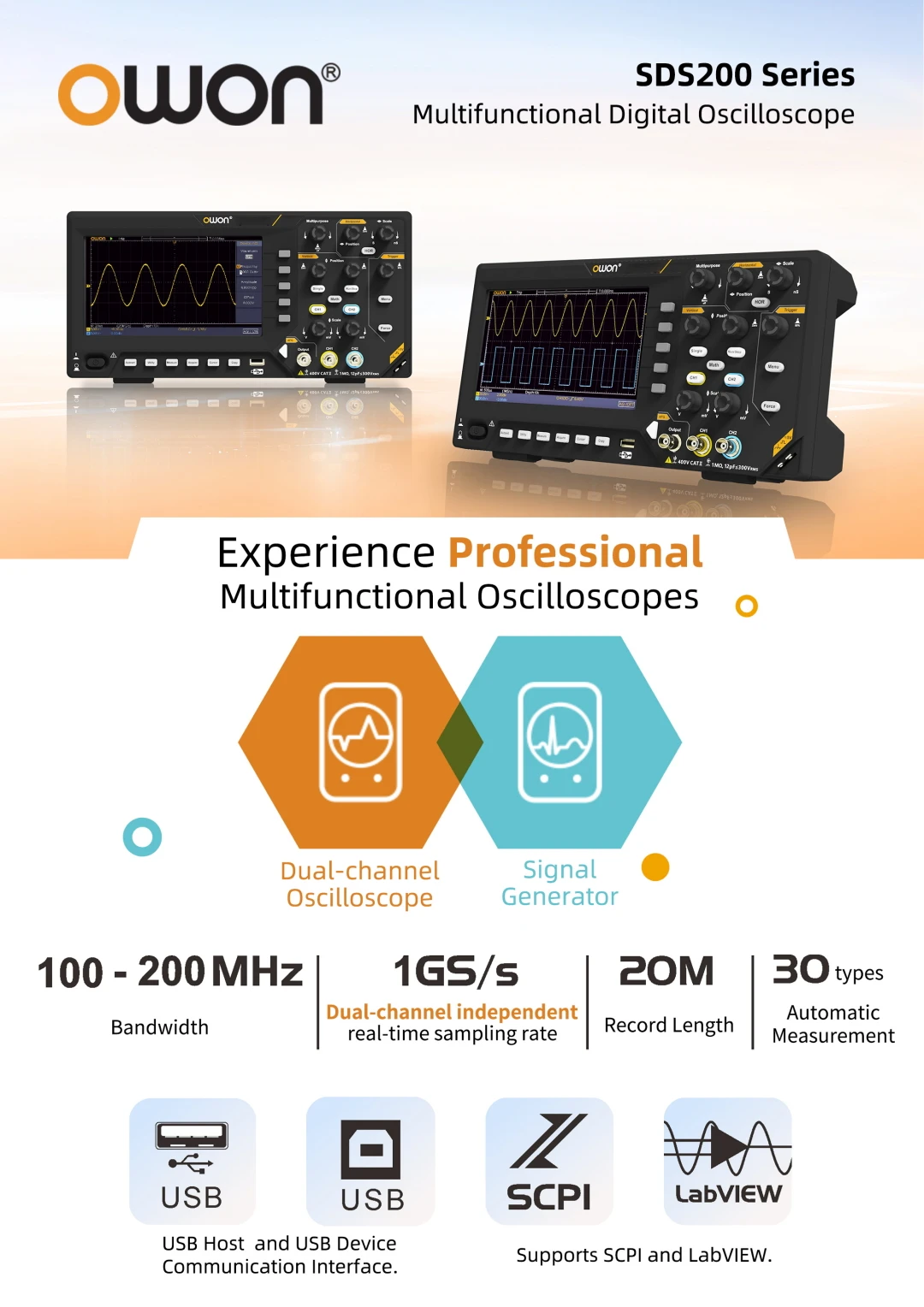

Digital Oscilloscope SDS200 2-channels 100Mhz 150Mhz 200Mhz 1GS/s FFT+ 25MHz 14B

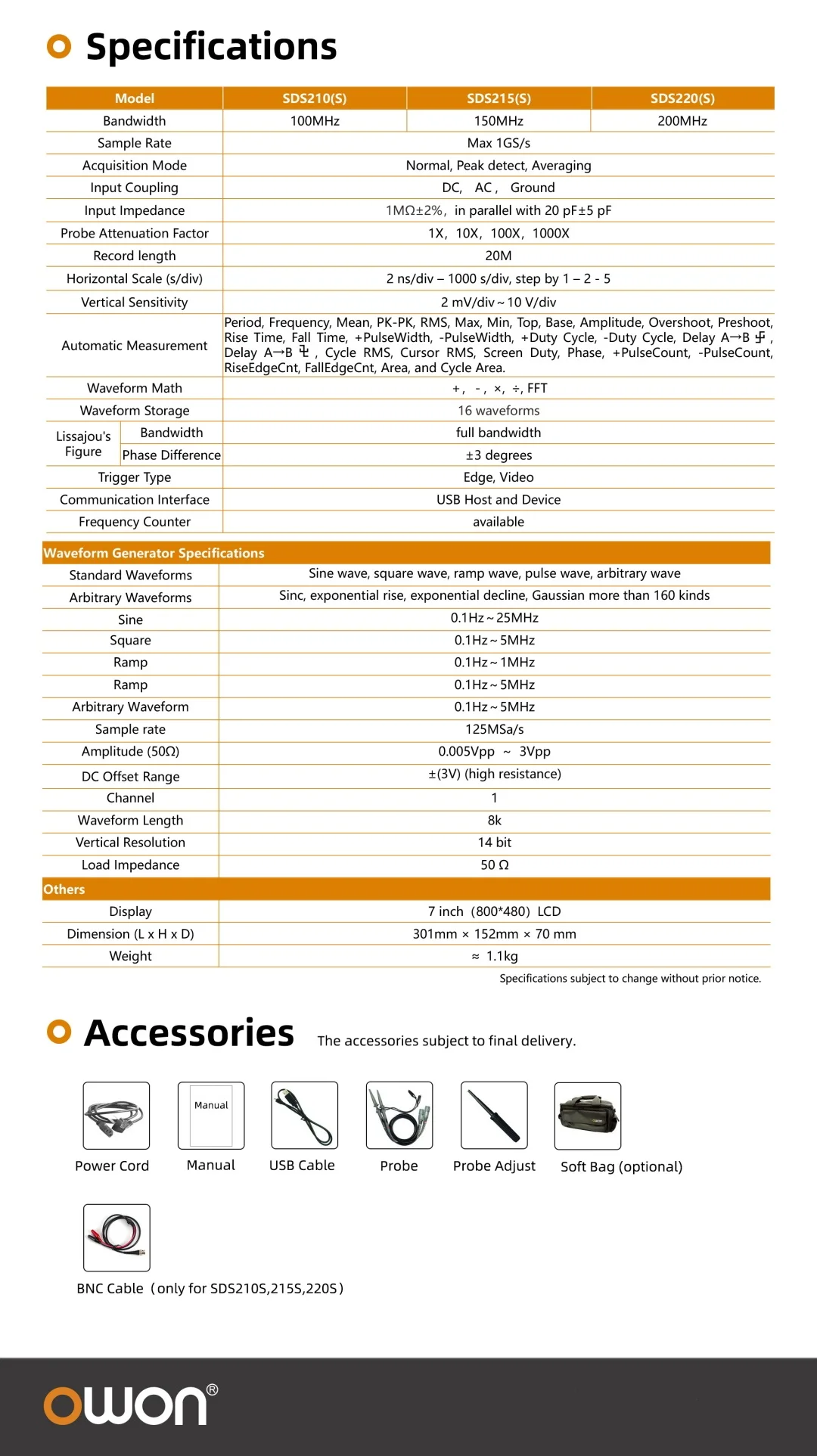

Model

SDS210(S)

SDS215(S)

SDS220(S)

Bandwidth

100MHz

150MHz

200MHz

Channel

2

Sample Rate

Max 1GS/s

Acquisition Mode

Normal, Peak detect, Averaging

Input Coupling

DC, AC , Ground

Input Impedance

1MΩ±2%，in parallel with 20 pF±5 pF

Probe Attenuation Factor

1X，10X，100X，1000X

Max Input Voltage

400V (DC+AC, PK - PK)

Channel Isolation

50 Hz: 100 : 1 10 MHz: 40 : 1

Time delay between channel(typical)

150 ps

Bandwidth limit

20 MHz，full bandwidth

Sampling rate range

0.05 S/s～1 GS/s

Interpolation

(sinx)/x

Record length

20M

Horizontal Scale (s/div)

2 ns/div – 1000 s/div, step by 1 – 2 - 5

Interval (△T) Accuracy

(full bandwidth)

Single：±(1 interval time+100 ppm×reading+0.6 ns);

Average>16：±(1 interval time +100 ppm×reading+0.4 ns)

Sample Rate / Relay Time Accuracy

±100 ppm

Vertical Resolution (A/D)

8 bits

Vertical Sensitivity

2 mV/div～10 V/div

Vertical Range

±1 V (2 mV/div – 100 mV/div); ±60 V (200 mV/div – 10 V/div)

Analog bandwidth

100MHz

150MHz

200MHz

Single bandwidth

Full bandwidth

LF Respond (AC, -3dB)

≥10Hz（In BNC）

Rise time (BNC,Typical)

≤ 3.5 ns

≤ 2.4 ns

≤ 1.75 ns

DC gain accuracy

±3%

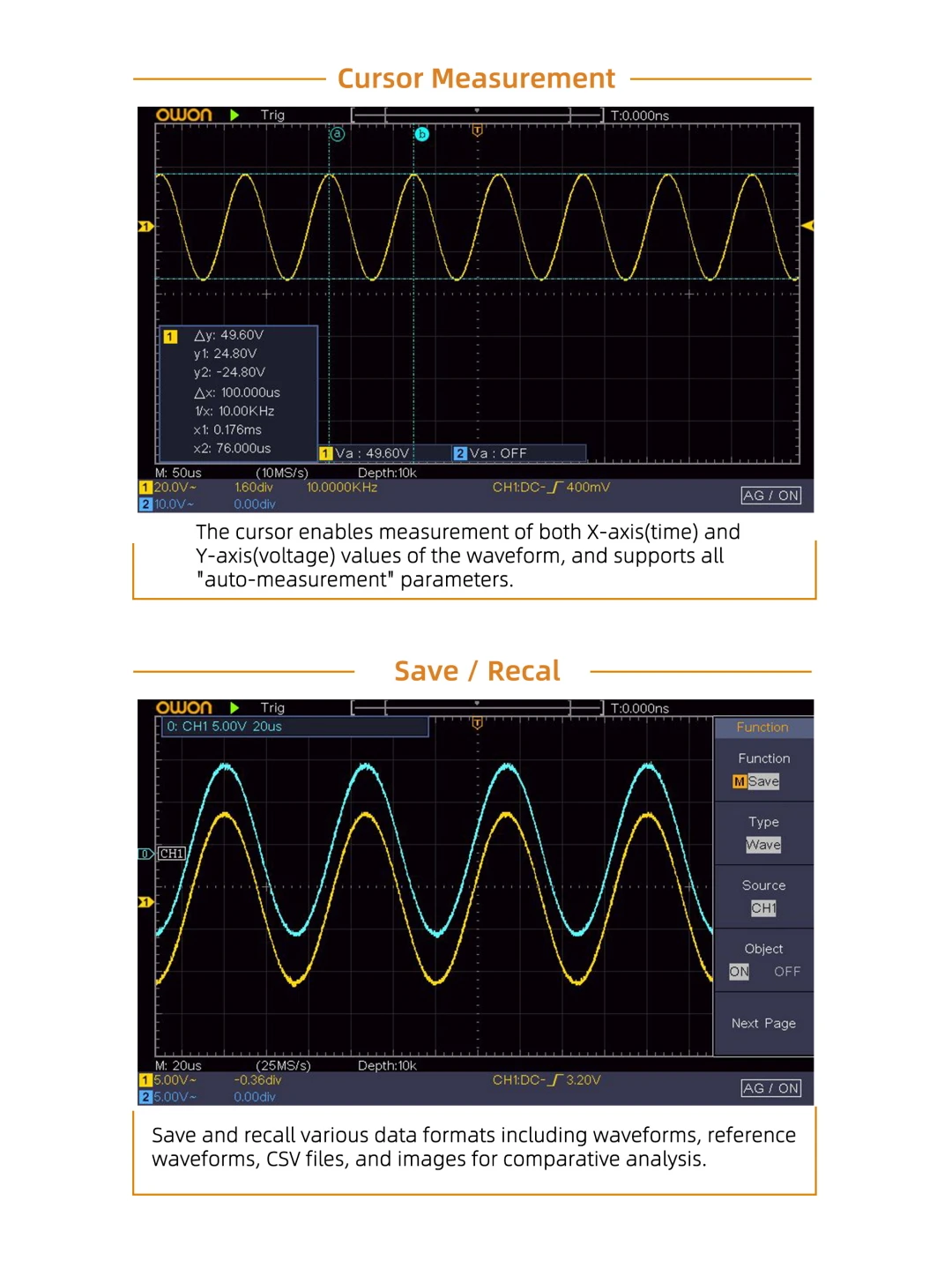

Cursor Measurement

△V and △T between cursors, auto cursor

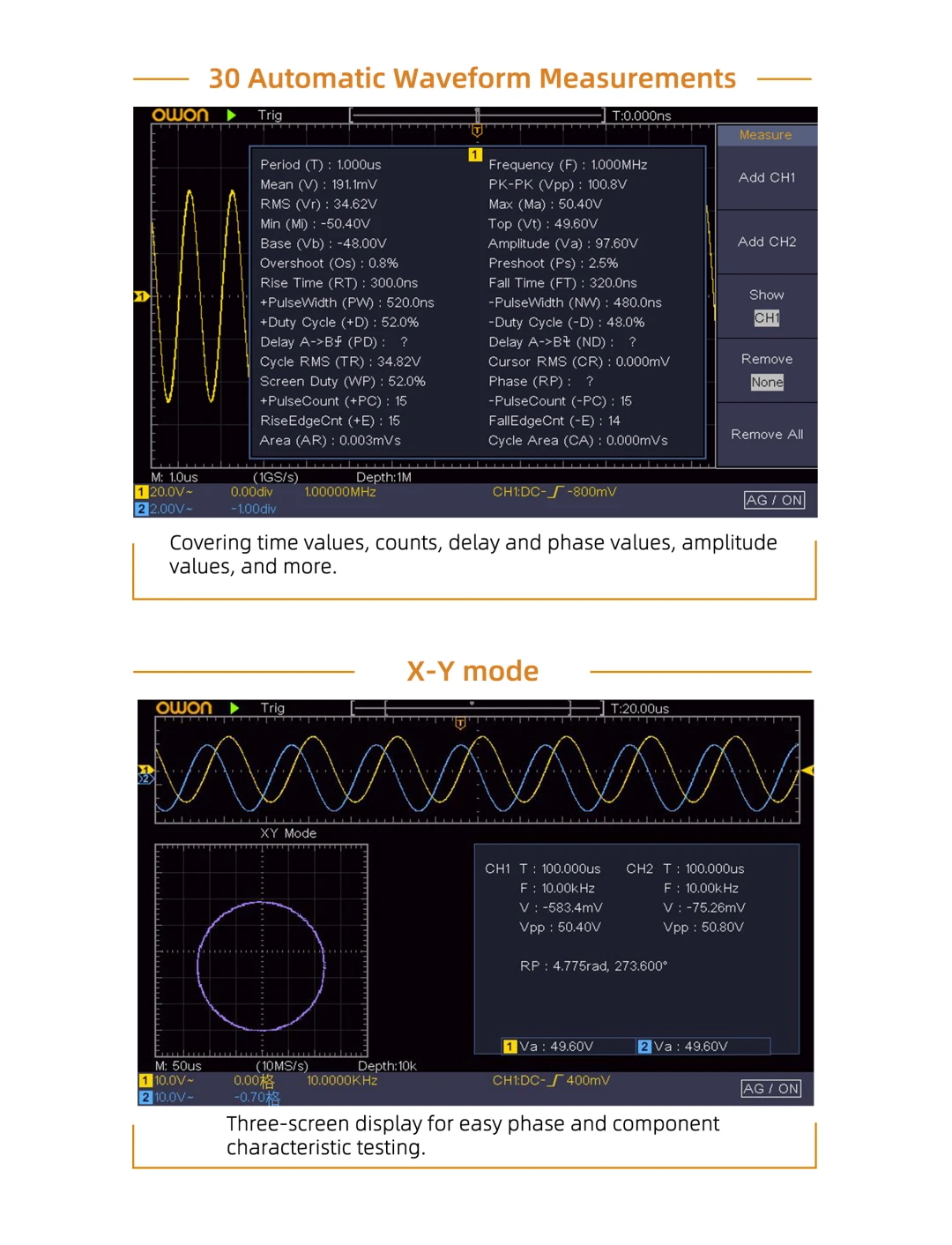

Automatic Measurement

Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot,

Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B,

Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area.

Waveform inverted

Support

Waveform Math

＋, －, ×, ÷, FFT

Waveform Storage

16 waveforms

Lissajou's
Figure

Bandwidth

full bandwidth

Phase Difference

±3 degrees

Trigger Type

Edge, Video

Trigger level range

±4 div from the screen center

Line / Field Frequency (video)

NTSC, PAL and SECAM standard

Interface

USB Host and Device

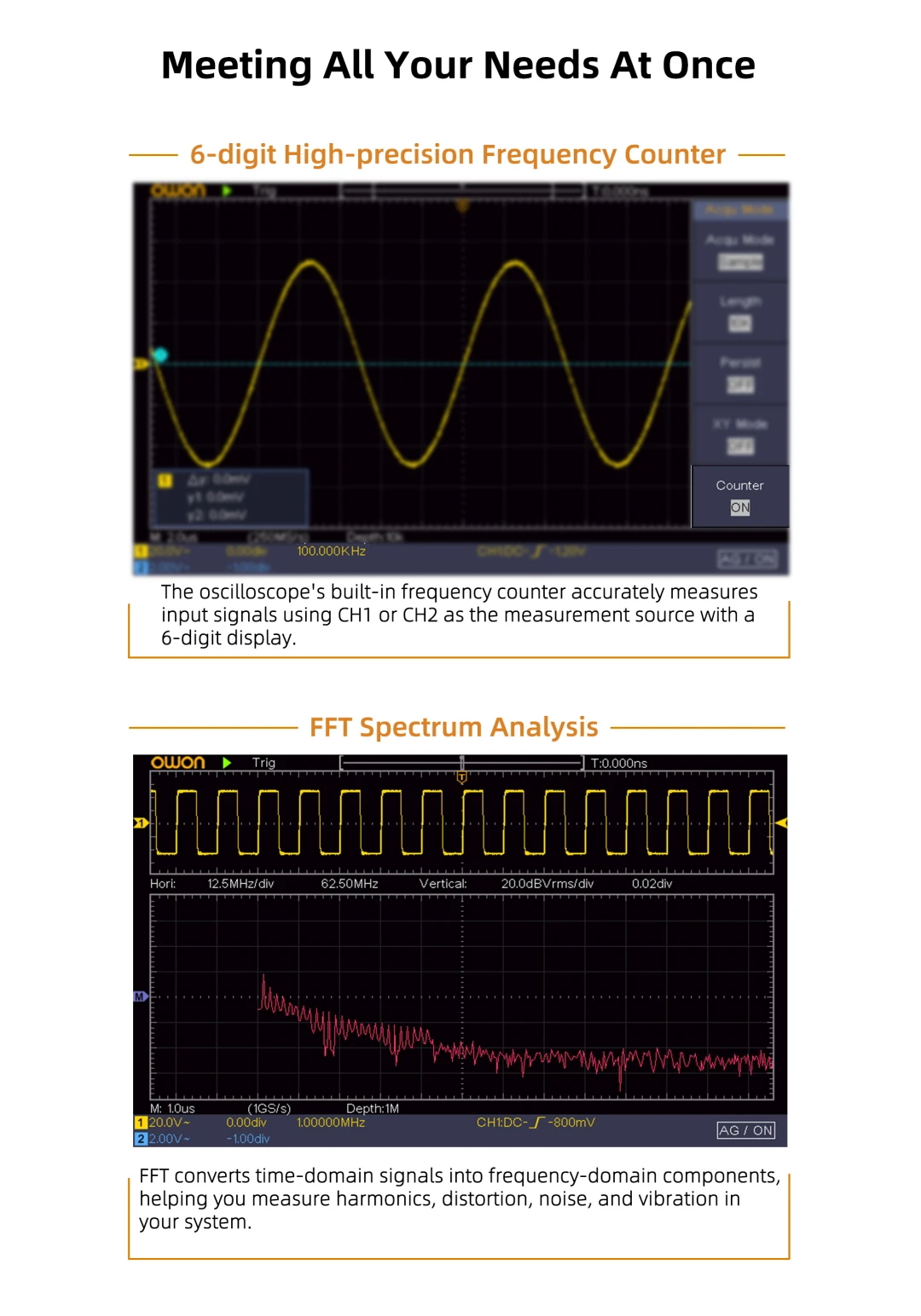

Frequency Counter

available

Waveform Generator Specifications

Standard Waveforms

Sine wave, square wave, ramp wave, pulse wave, arbitrary wave

Arbitrary Waveforms

Sinc, exponential rise, exponential decline, Gaussian more than 160 kinds

Sine

0.1Hz～25MHz

Square

0.1Hz～5MHz

Ramp

0.1Hz～1MHz

Pulse

0.1Hz～5MHz

Arbitrary Waveform

0.1Hz～5MHz

Sample rate

125MSa/s

Amplitude (50Ω)

0.005Vpp ～ 3Vpp

DC Offset Range

±(3V) (high resistance)

Channel

1

Waveform Length

8k

Vertical Resolution

14 bit

Load Impedance

50 Ω

Others

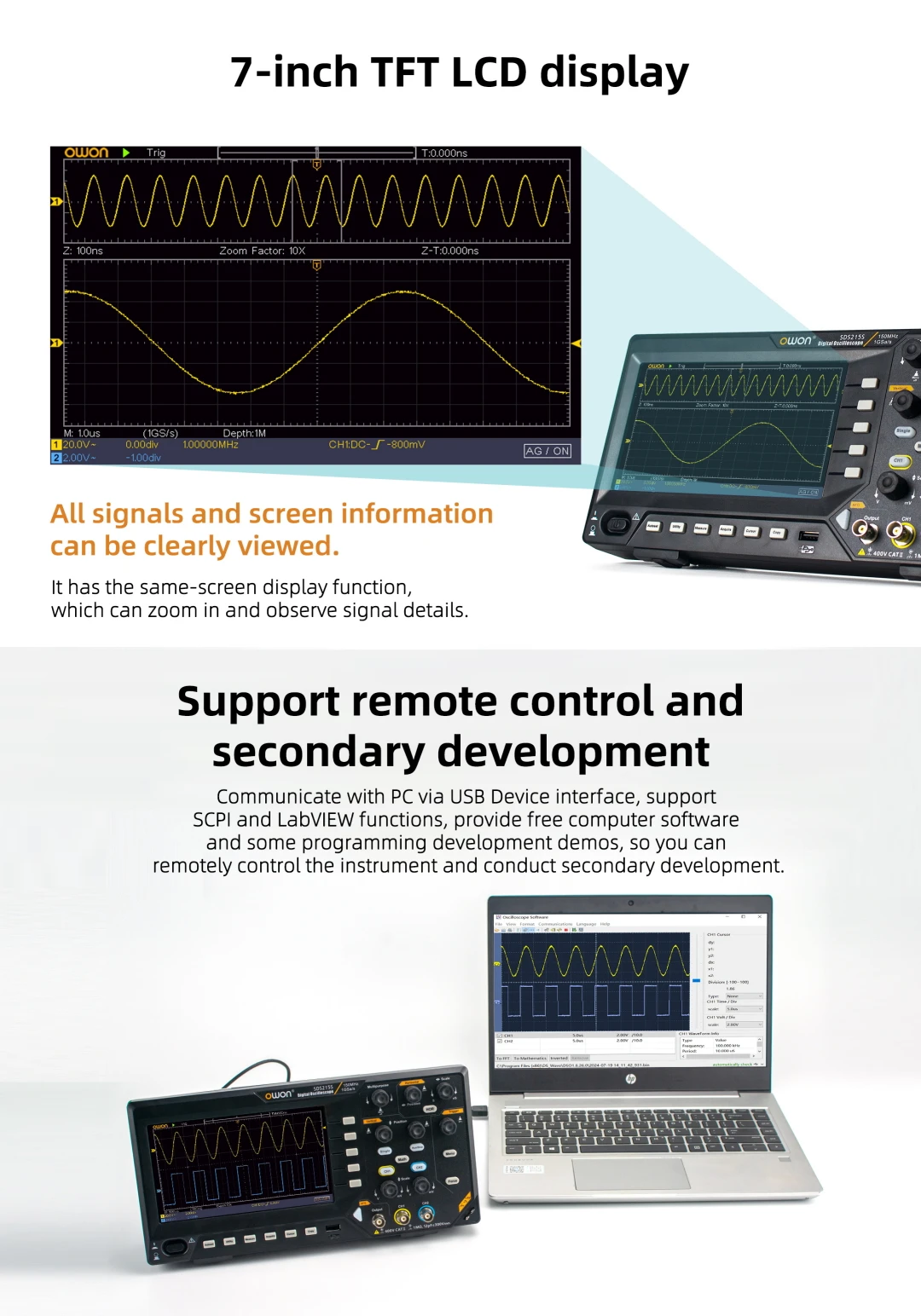

Display

7 inch（800*480）LCD

Power Supply

100 - 240 VACRMS，50/60 Hz，CATⅡ ＜15W

Fuse

2A, T class, 250V

Dimension (L x H x D)

301mm × 152mm × 70 mm

Weight

≈ 1.1kg
