Product Description

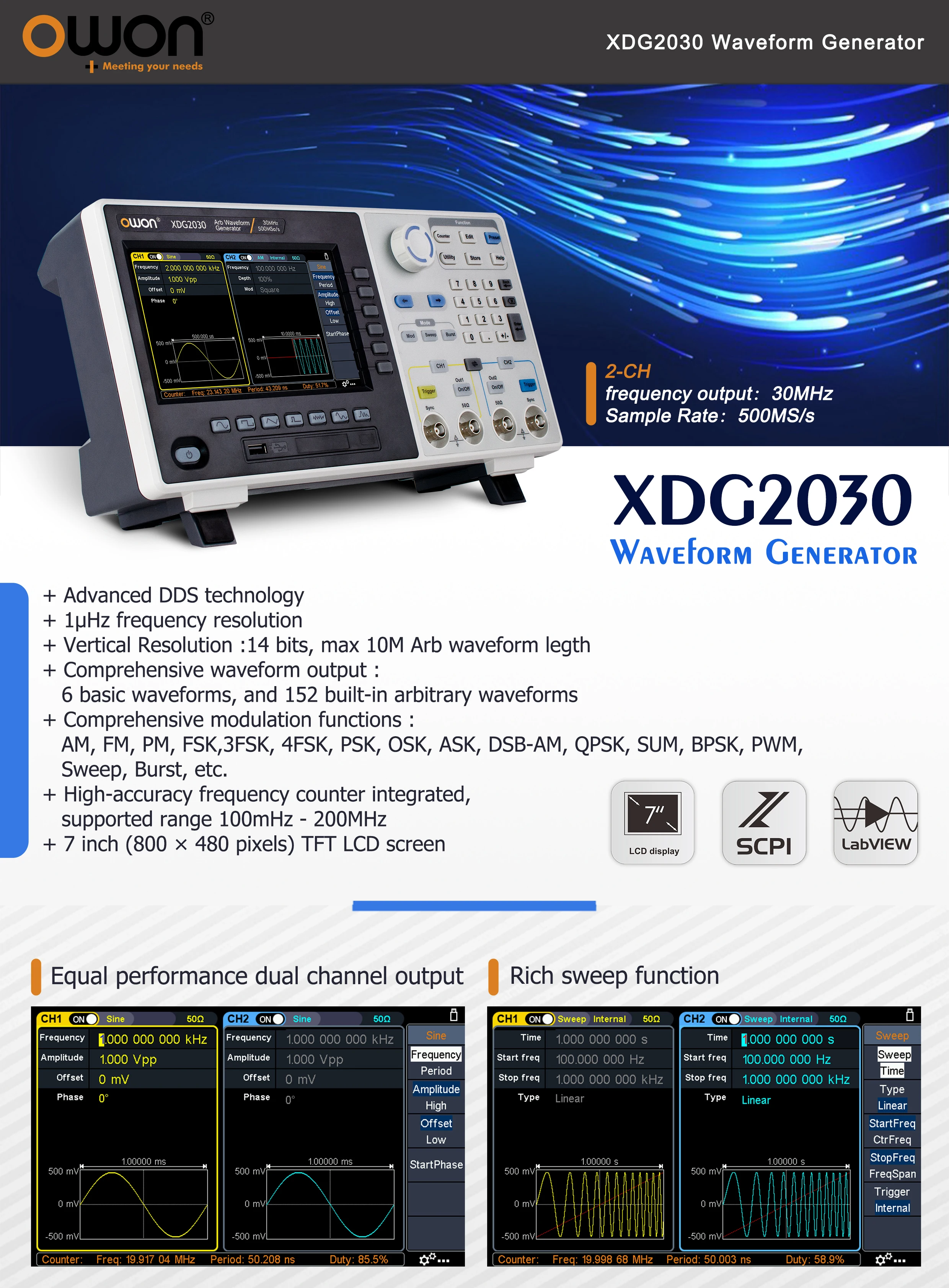

XDG2030 Arbitrary Waveform Signal Generator 30MHz 500MSa/s 2CH 7 inch Multi-Touch Screen 14 bits 10Marb Waveform Length
XDG2030 Arbitrary Waveform Signal Generator 30MHz 500MSa/s 2CH 7 inch Multi-Touch Screen 14 bits 10Marb Waveform Length+ 30MHz frequency output
+ 500MSa/s Sample rate，Vertical resolution 1μHz
+ 14 bits Vertical Resolution，10Marb waveform length
+ Comprehensive waveform output : 6 basic waveforms,
and 150 built-in arbitrary waveforms
+ Comprehensive modulation functions : AM, FM, PM, FSK,
3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, Sweep, and Burst
+ High-accuracy frequency counter integrated, supported range 100mHz - 200MHz
+ SCPI, and LabVIEW supported
+ 7 inch (800 × 480 pixels) multi-touch screen, support

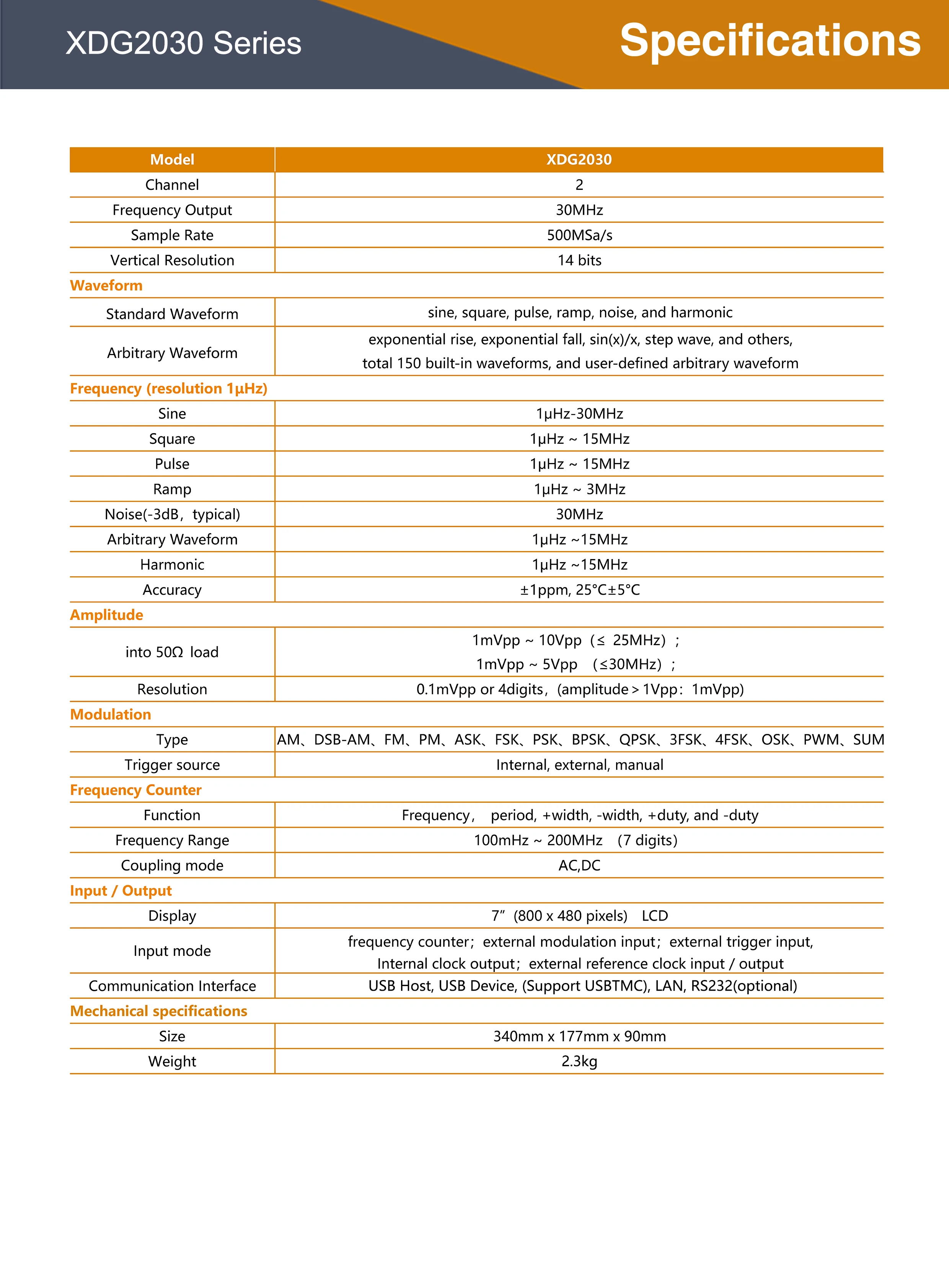

＋Performance Specifications
Model | XDG2030 |
Channel | 2 |
Frequency Output | 30MHz |
Sample Rate | 500MSa/s |
Vertical Resolution | 14 bits |
Waveform | |
Standard Waveform | sine, square, pulse, ramp, noise, and harmonic |
Arbitrary Waveform | exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform |
Frequency (resolution 1μHz) | |
Sine | 1μHz-30MHz |
Square | 1μHz ~ 15MHz |
Pulse | 1μHz ~ 15MHz |
Ramp | 1μHz ~ 3MHz |
Noise(-3dB，typical) | 30MHz |
Arbitrary Waveform | 1μHz ~15MHz |
Harmonic | 1μHz ~15MHz |
Accuracy | ±1ppm, 25°C±5°C |
Amplitude | |
into 50Ω load | 1mVpp ~ 10Vpp（≤ 25MHz）； 1mVpp ~ 5Vpp （≤30MHz）； |
Resolution | 0.1mVpp or 4digits，(amplitude＞1Vpp：1mVpp) |
Modulation | |
Type | AM、DSB-AM、FM、PM、ASK、FSK、PSK、BPSK、QPSK、3FSK、4FSK、OSK、PWM、SUM |
Trigger source | Internal, external, manual |
Frequency Counter | |
Function | Frequency，period, +width, -width, +duty, and -duty |
Frequency Range | 100mHz ~ 200MHz （7 digits） |
Coupling mode | AC,DC |
Input / Output | |
Display | 7”(800 x 480 pixels) LCD |
Input mode | frequency counter；external modulation input；external trigger input, Internal clock output；external reference clock input/output |
CommunicationInterface | USB Host,USB Device,LAN，COM |
Mechanical specifications | |
Size | 340mm x 177mm x 90mm |
Weight | 2.3kg |
Specifications subject to change without prior notice.

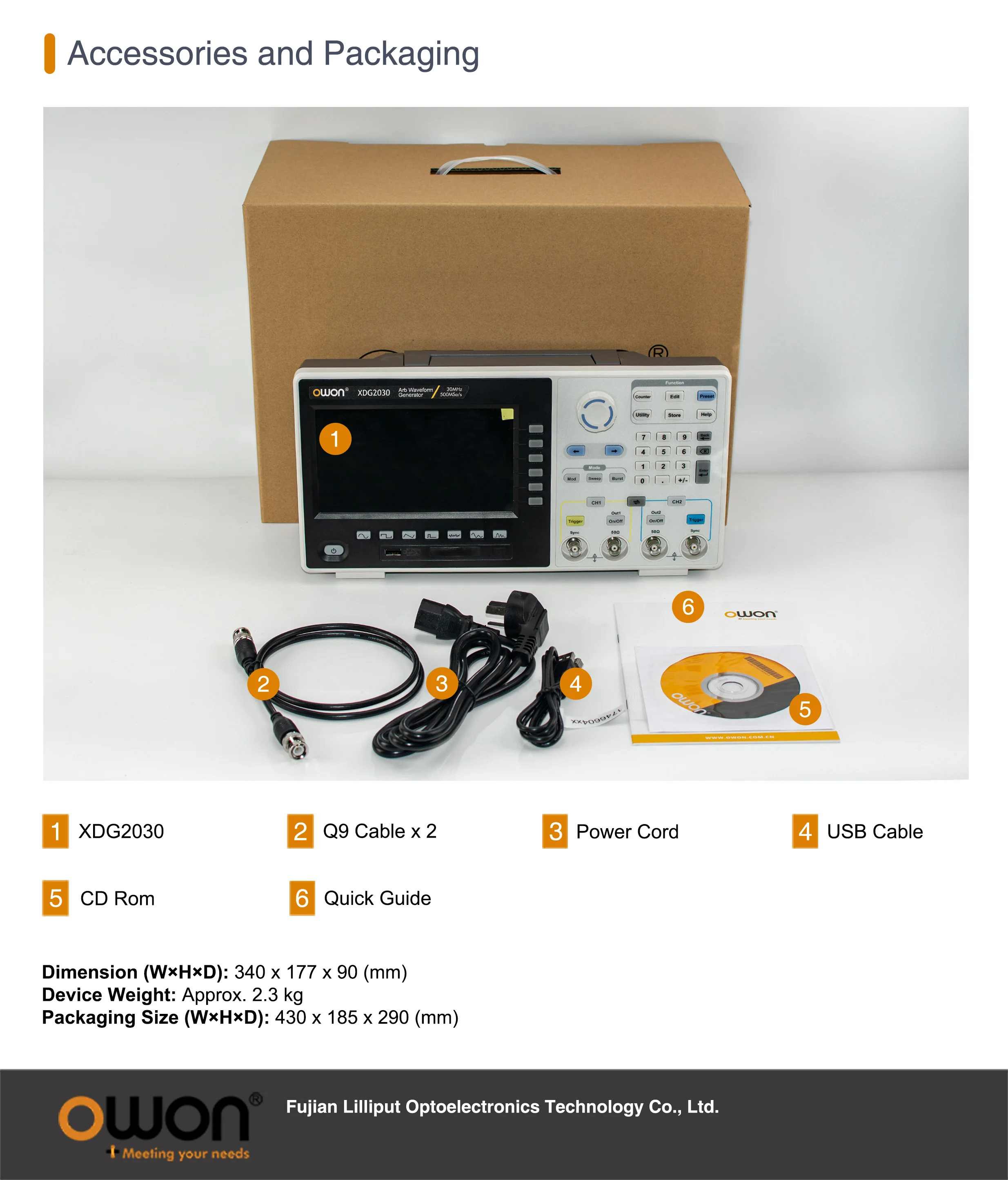

＋The accessories subject to final delivery.
Power Cord CD Rom Manual USB Cable Q9 Cable
