Product Description
SPS3081 SPS6051 Silent Fanless Series Programmable Linear DC Power Supply Digital Switching Regulator 2.8 Inch TFT LCD
SPS3081 SPS6051 Silent Fanless Series Programmable Linear DC Power Supply Digital Switching Regulator 2.8 Inch TFT LCDNew product
OWON SPS3081 SPS6051 Silent Fanless Series Programmable Linear DC Power Supply Digital Switching Regulator 2.8 Inch TFT LCD

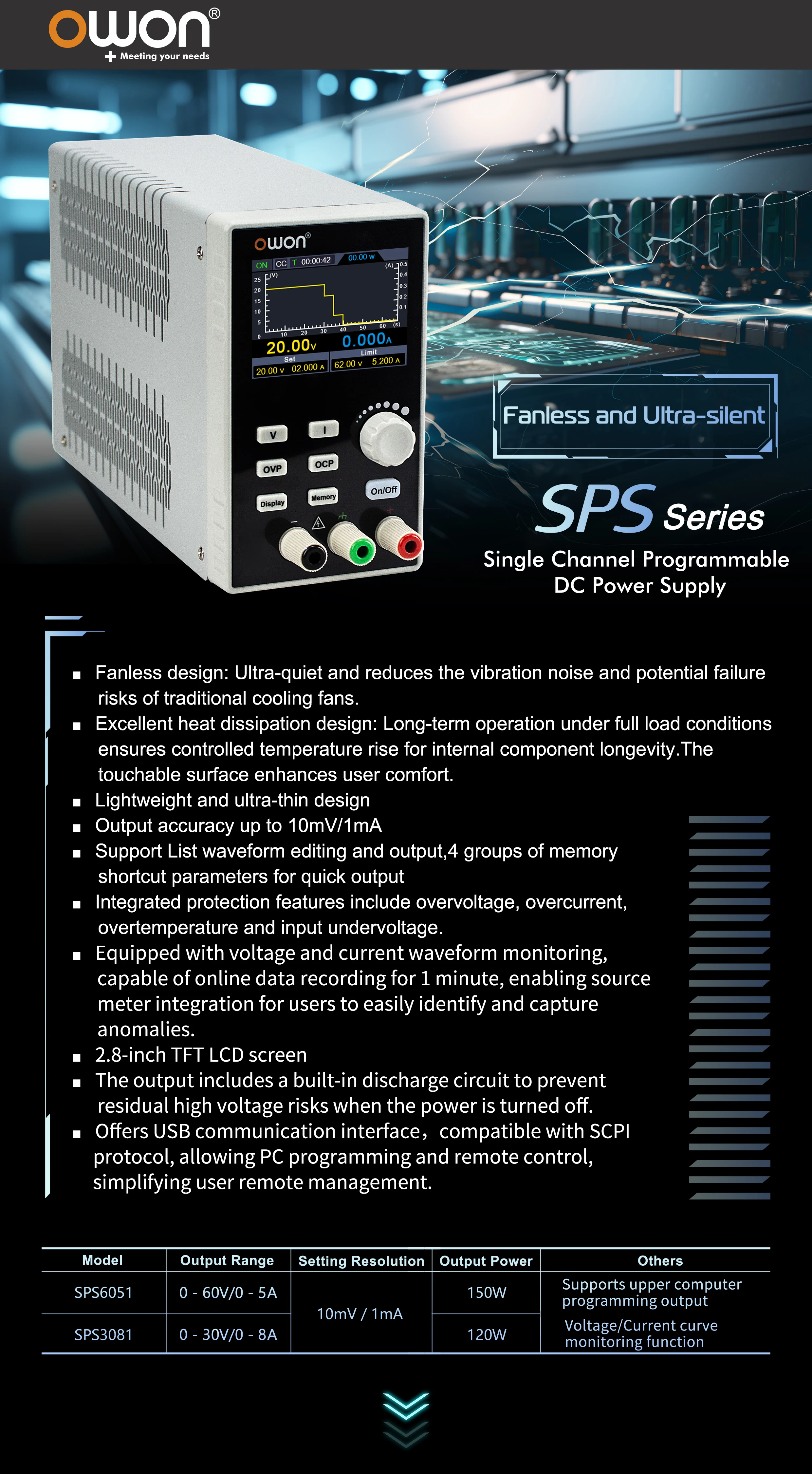

SPS Series Programmable DC power supply

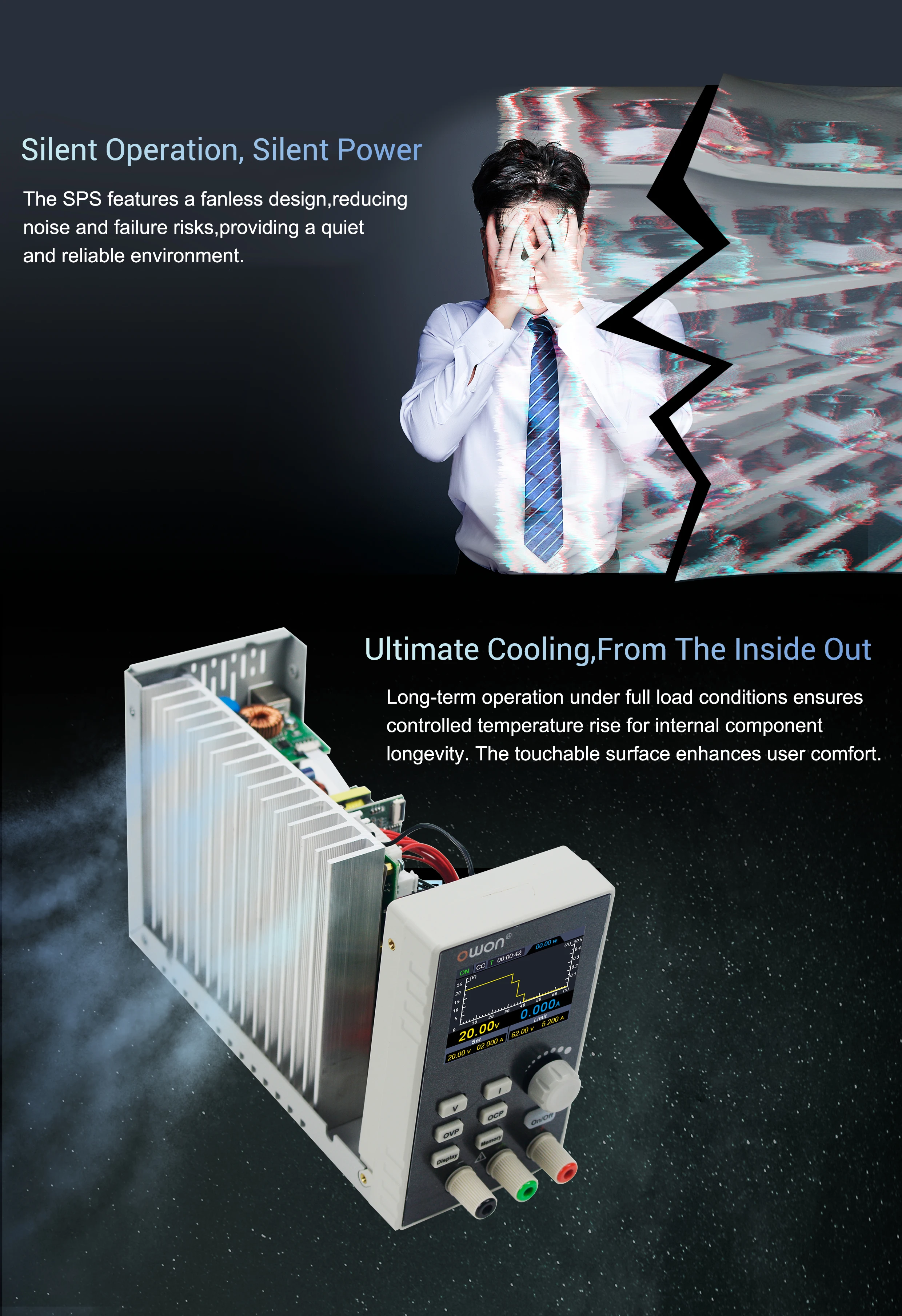

+ Fanless to achieve ultra-quite design
+ Small body for easy carry
+ High resolution: 10mV / 1mA

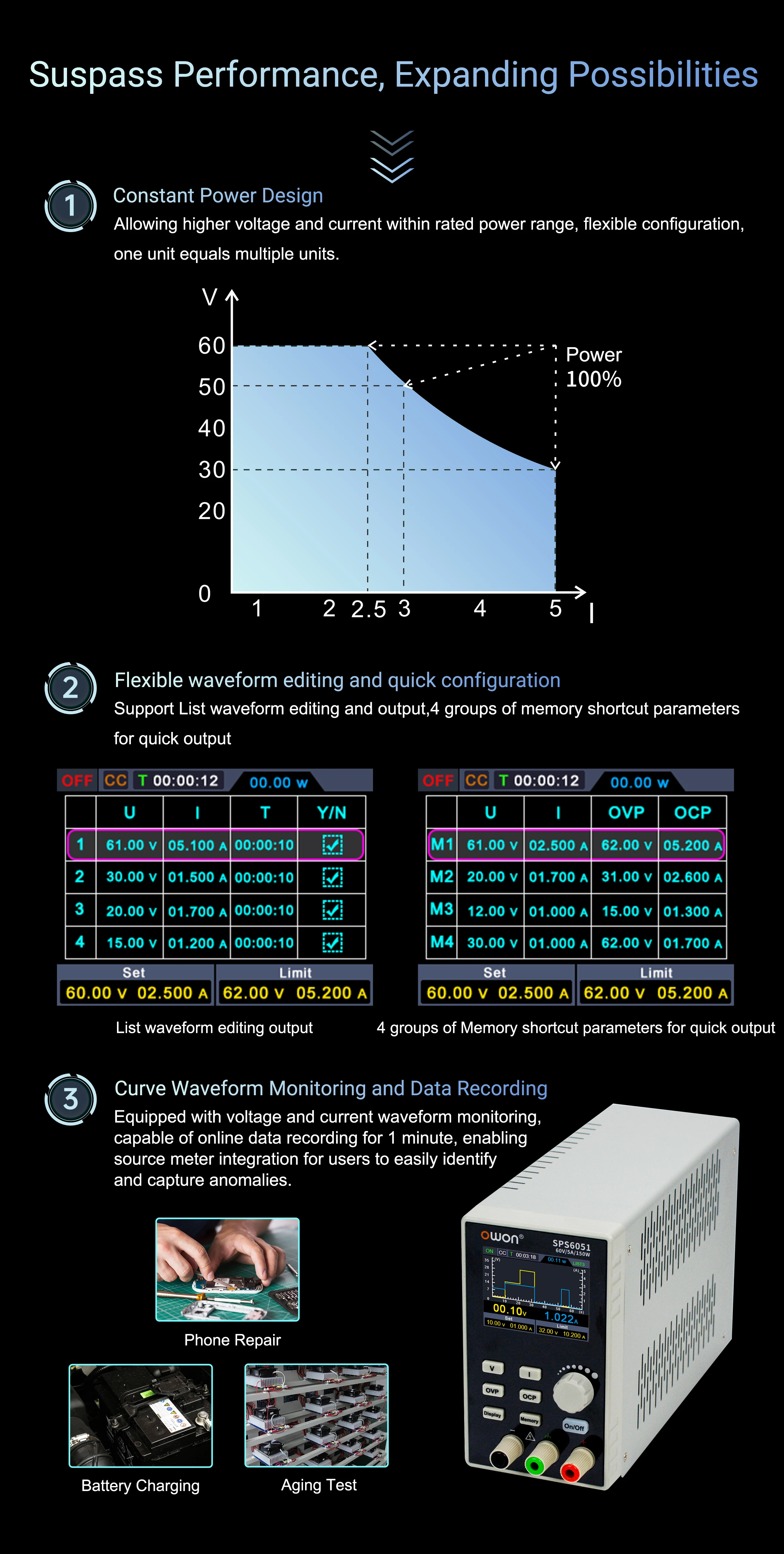

+ List waveform editing output, editable 10 groups of timing output function
+ Low ripple / noise

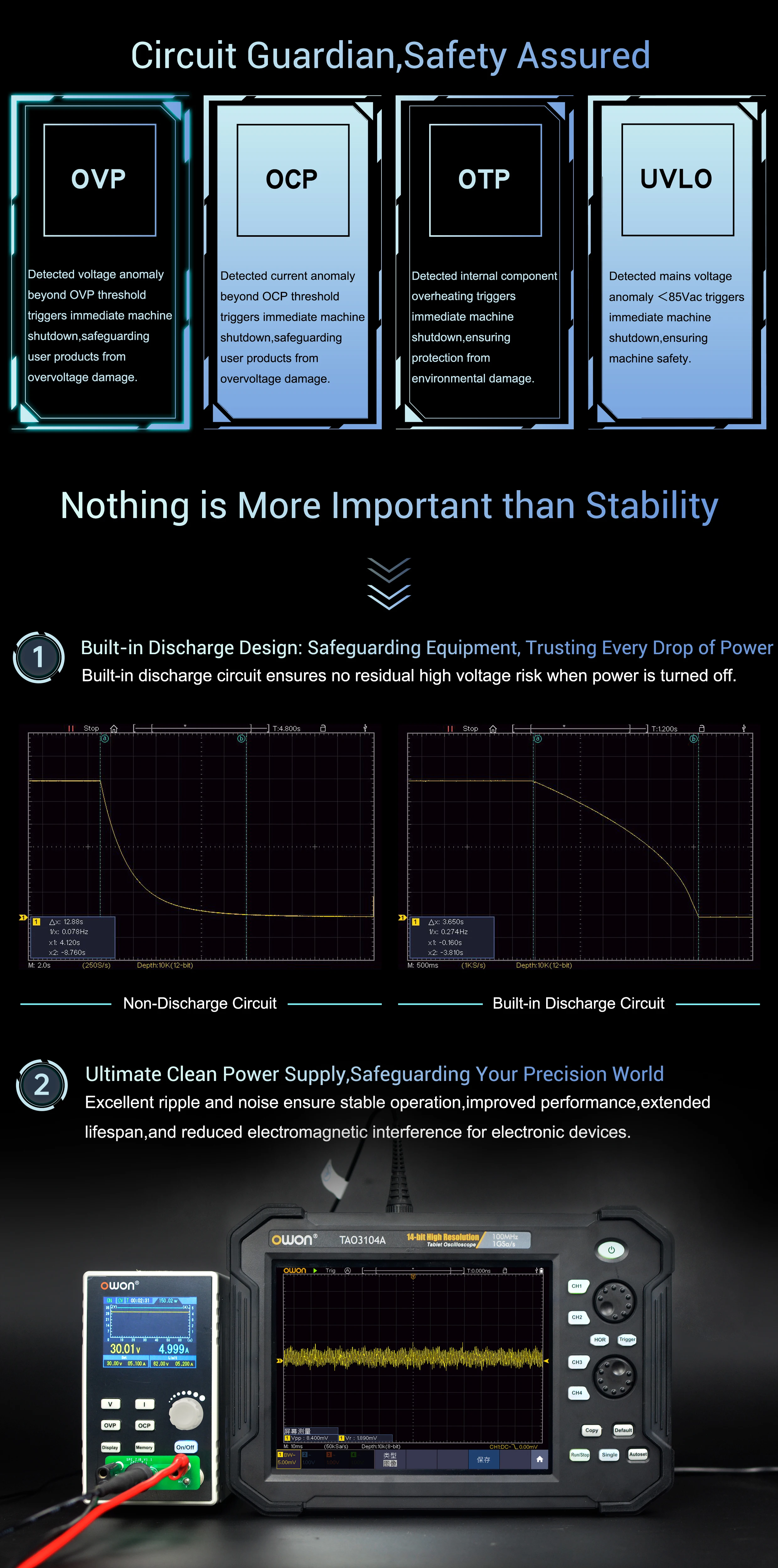

+ Over voltage / over current protection
+ Output voltage and current curve monitoring function
+ 2.8-inch TFT LCD display

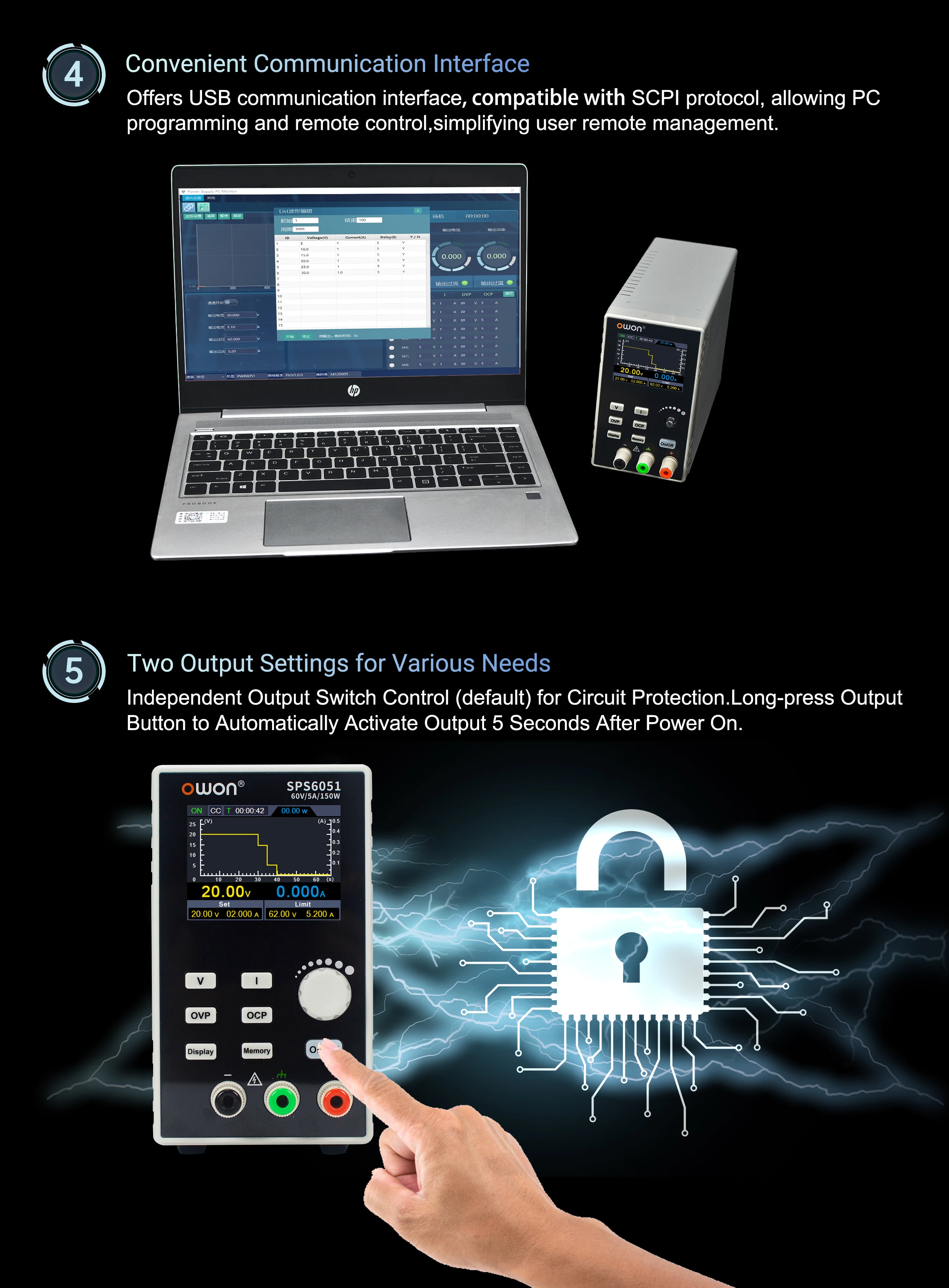

+ USB communication interface, support SCPI

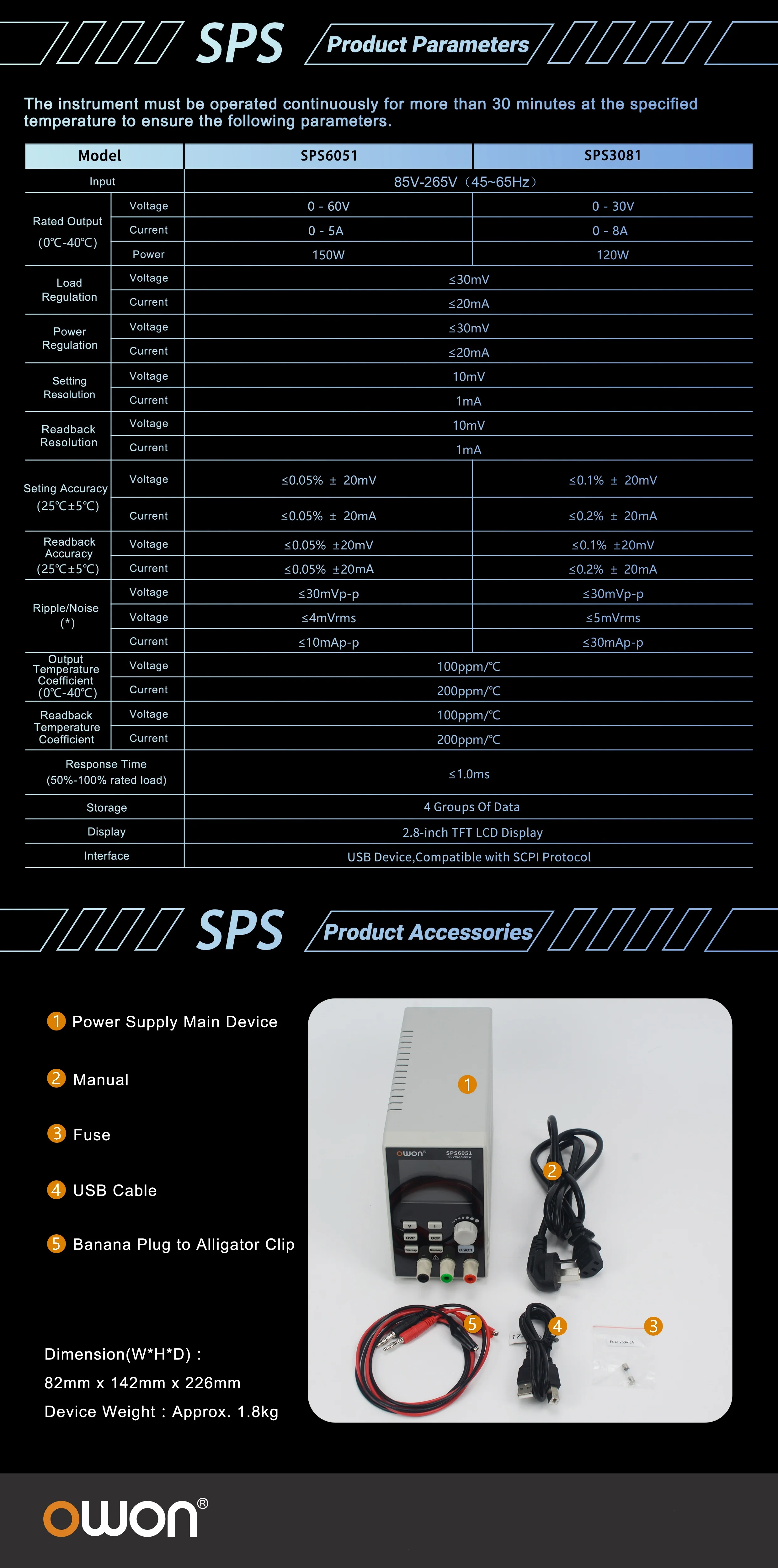

＋Performance Specifications
The instrument must be operated continuously for more than 30 minutes at the specified temperature to ensure the following parameters.
Model | SPS6051 | SPS3081 | |
Rated Output (0℃-40℃) | Voltage | 0 -60V | 0 -30V |
Current | 0 - 5A | 0 - 8A | |
Power | 150W | 120W | |
Load Regulation | Voltage | ≤30mV | |
Current | ≤20mA | ||
Power Regulation | Voltage | ≤30mV | |
Current | ≤20mA | ||
Setting Resolution | Voltage | 10mV | |
Current | 1mA | ||
Readback Resolution | Voltage | 10mV | |
Current | 1mA | ||
SetingAccuracy (25℃±5℃) | Voltage | ≤0.05% ± 20mV | ≤0.1% ± 20mV |
Current | ≤0.05% ± 20mA | ≤0.2% ± 20mA | |
Readback Accuracy (25℃±5℃) | Voltage | ≤0.05% ±20mV | ≤0.1% ±20mV |
Current | ≤0.05% ±20mA | ≤0.2% ± 20mA | |
Ripple/Noise(*) | Voltage | ≤30mVp-p | ≤30mVp-p |
Voltage | ≤4mVrms | ≤5mVrms | |
Current | ≤10mAp-p | ≤30mAp-p | |
Output temperature coefficient (0℃-40℃) | Voltage | 100ppm/℃ | |
Current | 200ppm/℃ | ||
Readback temperature coefficient | Voltage | 100ppm/℃ | |
Current | 200ppm/℃ | ||
Response Time(50%-100% rated load) | ≤1.0ms | ||
Storage | 4 groups of data | ||
Working Temperature | 0-40℃ | ||
Display | 2.8 inch color LCD display | ||
Interface | USB Device | ||
Dimension | 82mm（W）× 142mm（H）×226mm（D） | ||
Weight | Approx. 1.8 kg |
* Noise bandwidth 20MHz, ripple bandwidth 1MHz, connect 10uF electrolytic capacitor in parallel with 0.1uF ceramic capacitor to eht output terminal for testiong
The above parameters are subject to change without further notice, please refer to the website update.
＋AccessoriesThe picture is for reference only, please refer to the actual product
Power CordUser ManualFuse USB Cable Test Leads (optional)
