Product Description
OW18E Digital Multimeter NCV Contactless Voltmeter BLE4.0 Wireless Transmission Support True Root Mean Square Test

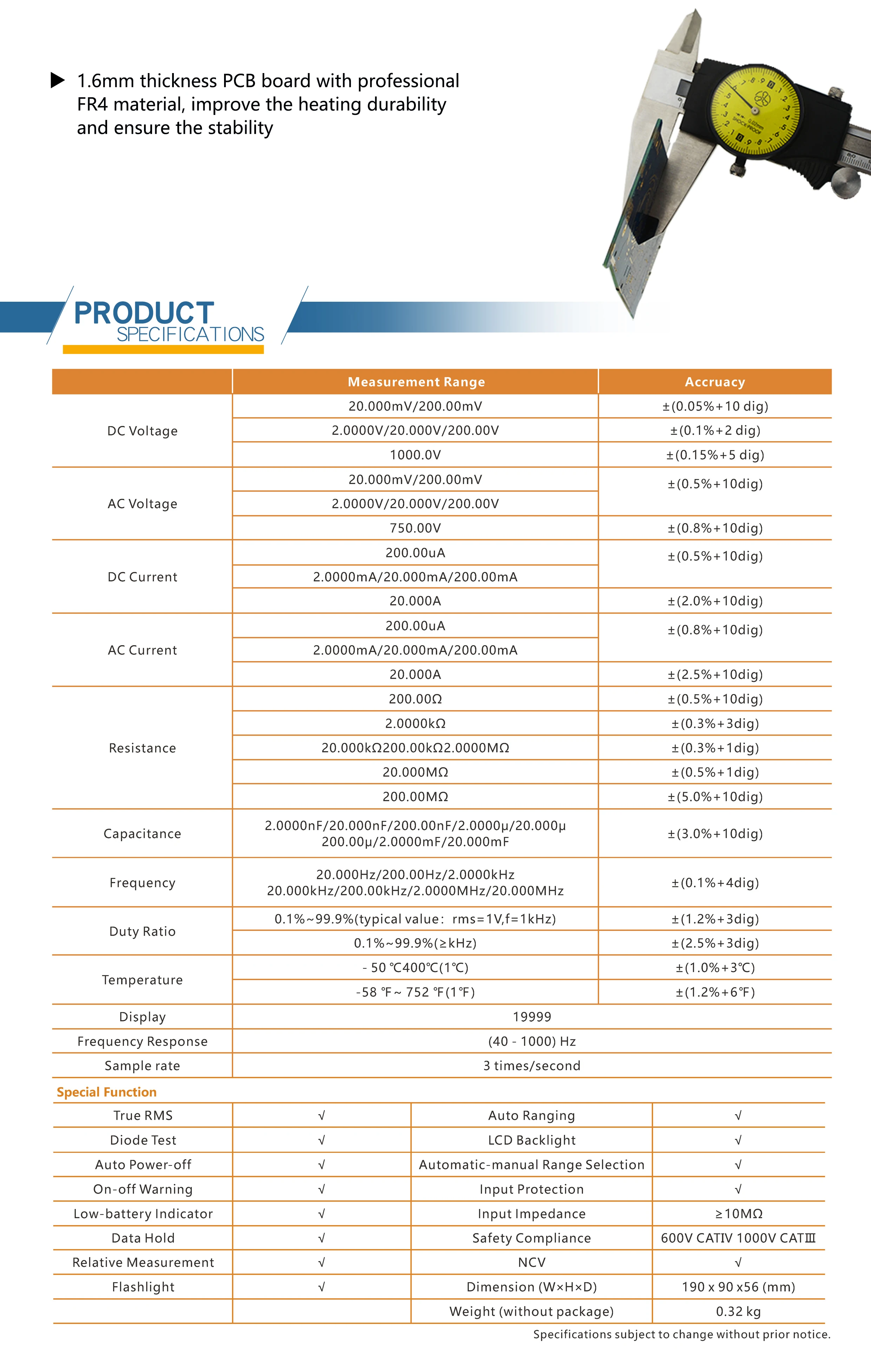

OW18E Digital Multimeter NCV Contactless Voltmeter BLE4.0 Wireless Transmission Support True Root Mean Square Test＋Performance Specifications
Measurement Range | Accruacy | |
DC Voltage | 20.000mV/200.00mV | ±(0.05%+10 dig) |
2.0000V/20.000V/200.00V | ±(0.1%+2 dig) | |
1000.0V | ±(0.15%+5 dig) | |
AC Voltage | 20.000mV/200.00mV | ±(0.5%+10dig) |
2.0000V/20.000V/200.00V | ||
750.00V | ±(0.8%+10dig) | |
DC Current | 200.00uA | ±(0.5%+10dig) |
2.0000mA/20.000mA/200.00mA | ||
20.000A | ±(2.0%+10dig) | |
AC Current | 200.00uA | ±(0.8%+10dig) |
2.0000mA/20.000mA/200.00mA | ||
20.000A | ±(2.5%+10dig) | |
Resistance (Ω) | 200.00Ω | ±(0.5%+10dig) |
2.0000kΩ/ | ±(0.3%+3dig) | |
20.000kΩ/200.00kΩ/2.0000MΩ | ±(0.3%+1dig) | |
20.000MΩ | ±(0.5%+1dig) | |
200.00MΩ | ±(5.0%+10dig) | |
Capacitance (F) | 2.0000nF/20.000nF/200.00nF/2.0000μF/20.000μF 200.00μF/2.0000mF/20.000mF | ±(3.0%+10dig) |
Frequency (Hz) | 200.00Hz/2.0000kHz 20.000kHz/200.00kHz/2.0000MHz/20.000MHz | ±(0.1%+4dig) |
Duty Ratio | 0.1%~99.9%(typical value：Vrms=1V,f=1kHz) | ±(1.2%+3dig) |
0.1%~99.9%(≥1kHz) | ±(2.5%+3dig) | |
Temperature (°C/°F) | - 50 ℃~400℃(0.1℃) | ±(1.0%+3℃) |
-58 ℉ ~ 752 ℉(0.1℉) | ±(1.2%+6℉) | |
Display | 19999 | |
Frequency Response | (40 - 1000) Hz | |
Sample rate for digital data | 3 times/second |

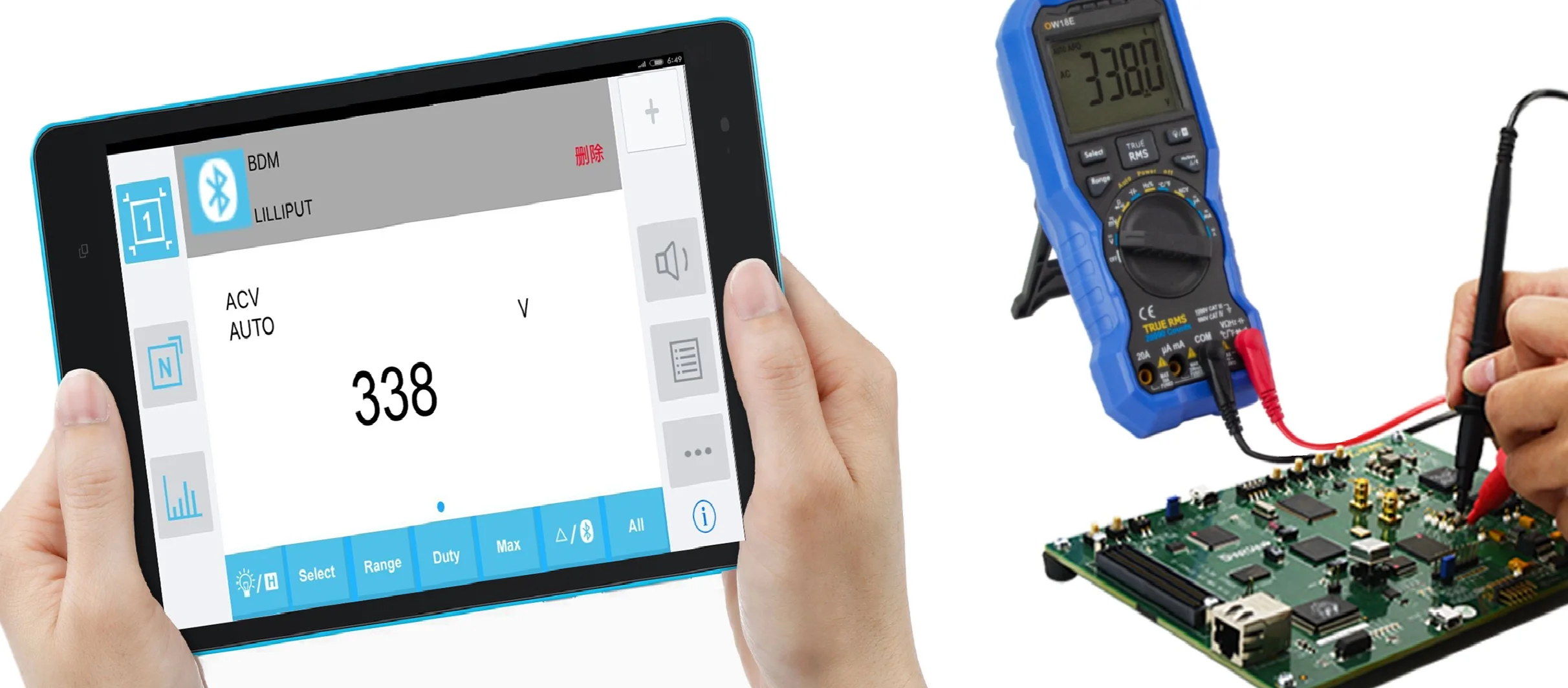

Bluetooth Module | OW18E | Auto Ranging | √ |
True RMS | √ | LCD Backlight | √ |
Diode Test | √ | Automatic-manual Range Selection | √ |
Auto Power-off | √ | Input Protection | √ |
On-off Warning | √ | Input Impedance | ≥10MΩ |
Low-battery Indicator | √ | Safety Compliance | 600V CATⅣ, 1000V CATⅢ |
Data Hold | √ | NCV | √ |
Relative Measurement | √ | Dimension (W×H×D) | 190 x 90 x56 (mm) |
Flashlight | √ - | Weight (without package) | 0.32 kg |
＋
electronic circuit debugging circuit testing design and manufacture
education and training automobile maintenance and testing
＋The accessories subject to final delivery.

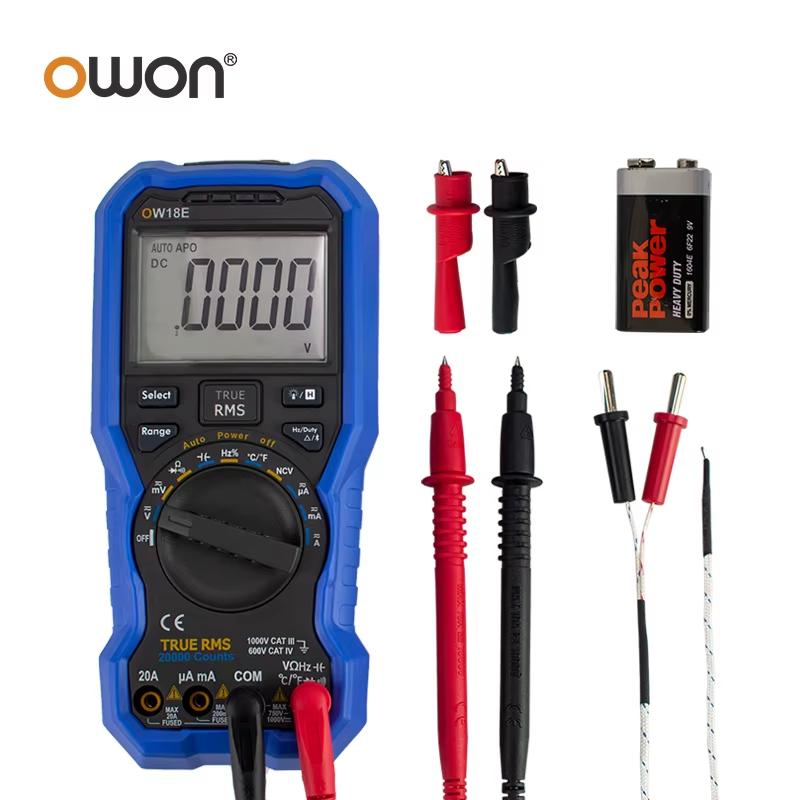

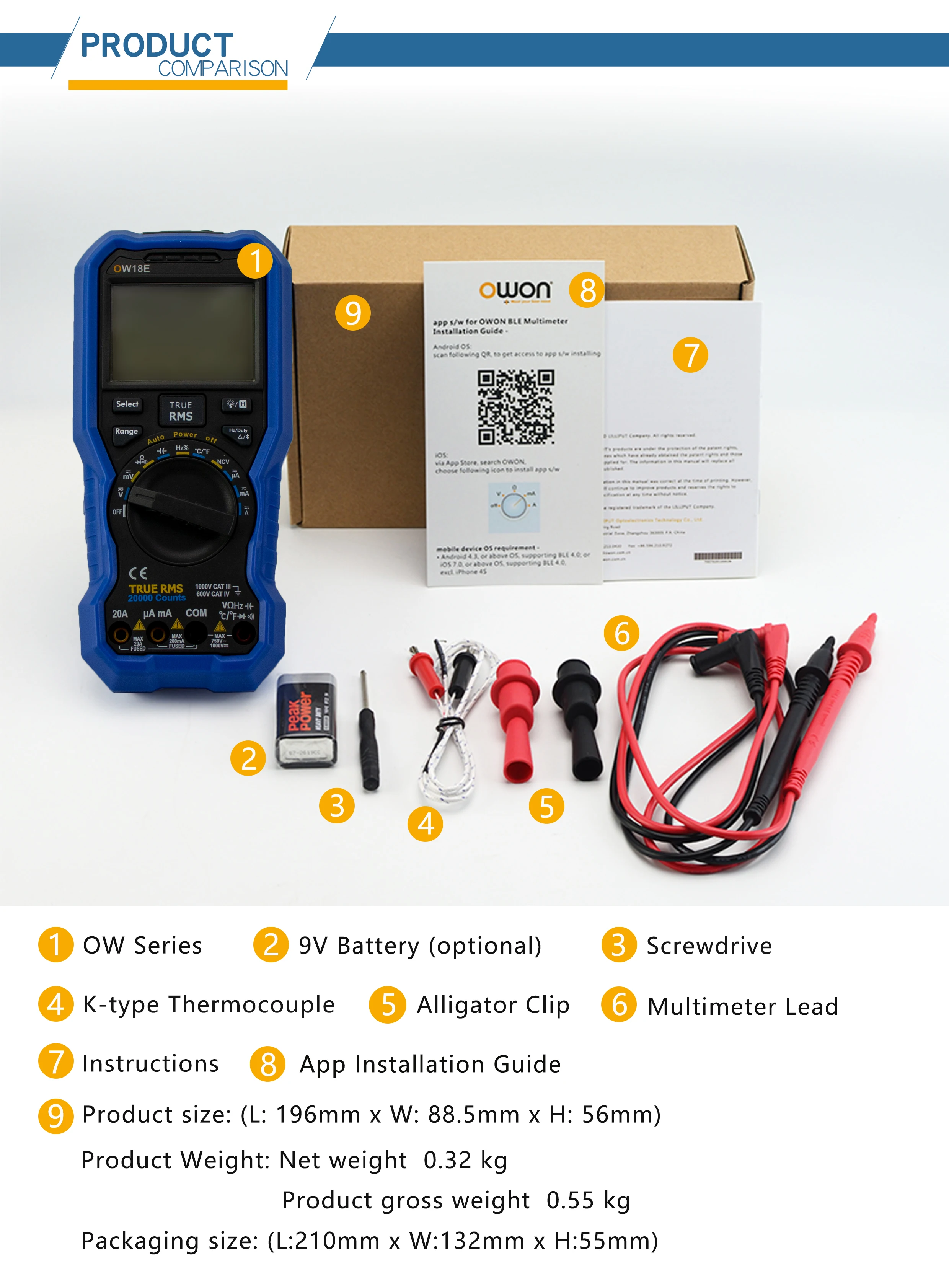

Multimeter K-type Manual Alligator Clip Alligator Clip
Lead Thermocouple （optional） (optional)
