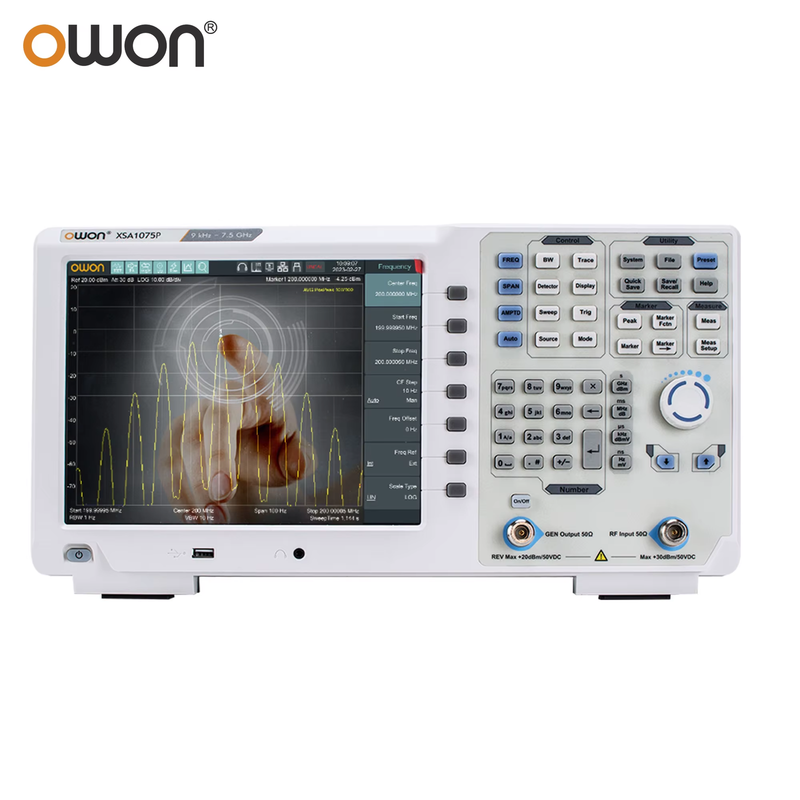

XSA1015P-TG XSA1032P-TG Spectrum Analyzer 9KHz-3.2GHz 1Hz Resolution Multi-touch

Model

XSA1015P(TG)

XSA1032P(TG)

XSA1036P(TG)

XSA1075P(TG)

Frequency

Range

9kHz-1.5GHz

9kHz-3.2GHz

9kHz-3.6GHz

9kHz-7.5 GHz

Resolution

1Hz

Frequency span

Range

0 Hz, 100 Hz to maximum frequency of device

Accuracy

± span /(swept points -1)

Internal reference

Reference frequency

10 MHz

Aging rate

<1ppm/year

Readout

Marker frequency resolution

span/(the number of sweep points -1)

Bandwidth

Resolution bandwidth (-3 dB)

1Hz to 1MHz step by 1-3-5-10

Resolution filter shape factor

<5 nominal(Digital implement, similar to Gauss Pattern)

Accuracy

<5% nominal

Video bandwidth (-3 dB)

10Hz to 3MHz step by 1-3-5-10

Resolution bandwidth

(-6 dB) (EMI optional)

200 Hz, 9 kHz, 120 kHz, 1 MHz

Amplitude Specification

Amplitude and electric level

Amplitude measurement range

(XSA1015P)

DANL to +10 dBm, 100KHz to 10MHz, close the preamplifier

DANL to +20 dBm, 10MHz to max frequency , close the preamplifier

Max input DC voltage

50 VDC

Max. continuous wave RF power

+20 dBm (100 mW), attenuation = 40 dB

Max. damage level

+30 dBm (1W)

Displayed average noise level(DANL)

attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, 20℃ to 30℃, input impendence = 50 Ω

Preamp off

-95 dBm (typical), < -88 dBm ( 9 kHz to 1 MHz)

-140 dBm (typical), <-130dBm (1MHz - 500MHz)

-138 dBm (typical), <-128 dBm (500MHz - 3.2GHz)

-138 dBm (typical), <-128 dBm (500MHz - 3.6GHz)

-134 dBm (typical), <-124 dBm (3.6GHz - 6GHz)

-129 dBm (typical), <-119 dBm (6GHz - 7.5GHz)

Preamp on

-135dBm (typical), <-128 dBm ( 100kHz - 1MHz)

-160 dBm (typical), <-150 dBm (1MHz - 500MHz)

-158 dBm (typical), <-148 dBm(500MHz - 3.2GHz)

-158 dBm (typical), <-148 dBm(500MHz - 3.6GHz)

-154 dBm (typical), <-144 dBm (3.6GHz - 6GHz)(XSA1075P)

-149 dBm (typical), <-139 dBm (6GHz - 7.5GHz)(XSA1075P)

Phase noise ( 20 ℃ to 30 ℃, fc=1 GHz)

Phase noise

<-106 dBc/Hz @10 kHz offset,

<-104 dBc/Hz @100 kHz offset

<-115 dBc/Hz @1 MHz offset

Level display range

level unit

dBm, dBuW, dBpW, dBmV, dBuV, W, V

Number of traces

8

Detectors

Positive-peak, negative-peak, sample, normal, RMS, Average, quasi-peak (with EMI option)

Trace functions

Clear write, Max Hold, Min Hold, View, Blank, Average, Trace math

Frequency response (20℃ to 30℃, 10 dB input attenuation, reference 50 MHz)

Preamp off(fc≥9KHz)

＜0.7dB；

Preamp on(fc≥9KHz)

＜1.0 dB；

Accuracy

RBW Switching Uncertainty

Relative to 10 kHz RBW

＜0.1 dB

Input Attenuation Switching Uncertainty

20℃ to 30℃, fc=50 MHz, Preamplifier Off, 10dB RF attenuation,

input signal 0 - 40 dB＜0.5 dB

Absolute Amplitude Uncertainty

<0.4 dB ( B20℃ to 30℃, fc=50 MHz, peak detector, 10 dB RF attenuation, preamplifier off, input signal level = -10 dBm)

Reference Level Uncertainty

<0.7dB (95% confidence level, S/N > 20 dB, RBW = VBW = 1 kHz, preamplifier off, attenuation = 10 dB

VSWR

input ≥ 10 dB, 300 kHz to max；

<1.8, nominal

Sweep time

Sweep time

SPAN ≥ 100 Hz 10ms to 3000s

zero sweep width 33.33 μs to 3000s

Sweep time uncertainty

SPAN≥ 100 Hz 5%(nominal)

zero sweep(Sweep time >1 ms) 5%(nominal)

Mode

Continue, single

Triggering

Trigger

Free run, video, external

External trigger level

5 V TTL level

Tracking generator (optional)

Output frequency range

100kHz - 1.5GHz

100kHz - 3.2GHz

100kHz - 3.6GHz

100kHz - 7.5GHz

Output power level range

-40 dBm to 0 dBm

Output power level resolution

1dB

Output flatness

±3dB

Tracking generator spurious

Harmonic spurious -20 dBc (Tracking generator output power -10 dBm)

Non-harmonic spurious -20 dBc (Tracking generator output power -10 dBm)

Tracking source to input terminal isolation

-60 dB (Tracking generator output power 0 dBm)

Inputs and Outputs

USB HOST, USB DEVICE, LAN, earphone port, HDMI, External Trigger Input

General technical specification

Display

10.4 inches TFT Touch LCD

Weight (without package)

About 5 kg

Dimension (W × H × D)

375mm*185mm*120mm
