Product Description

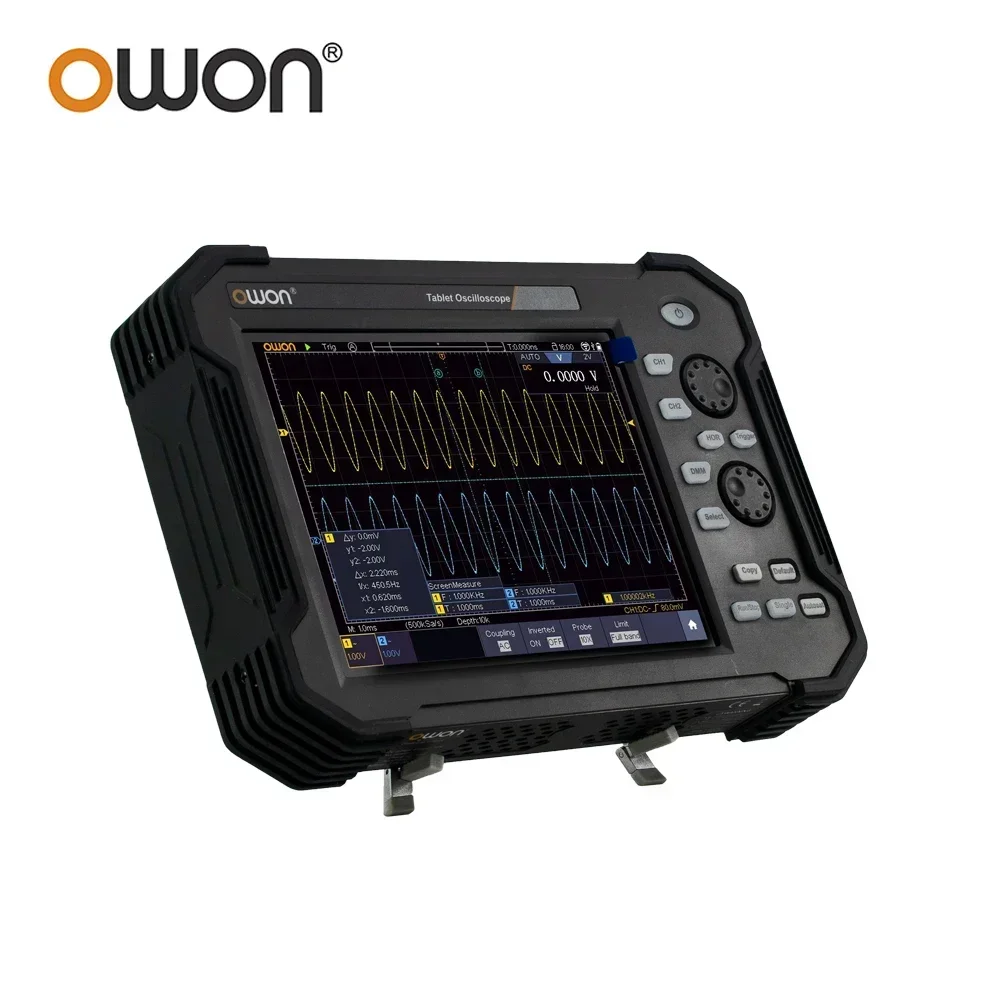

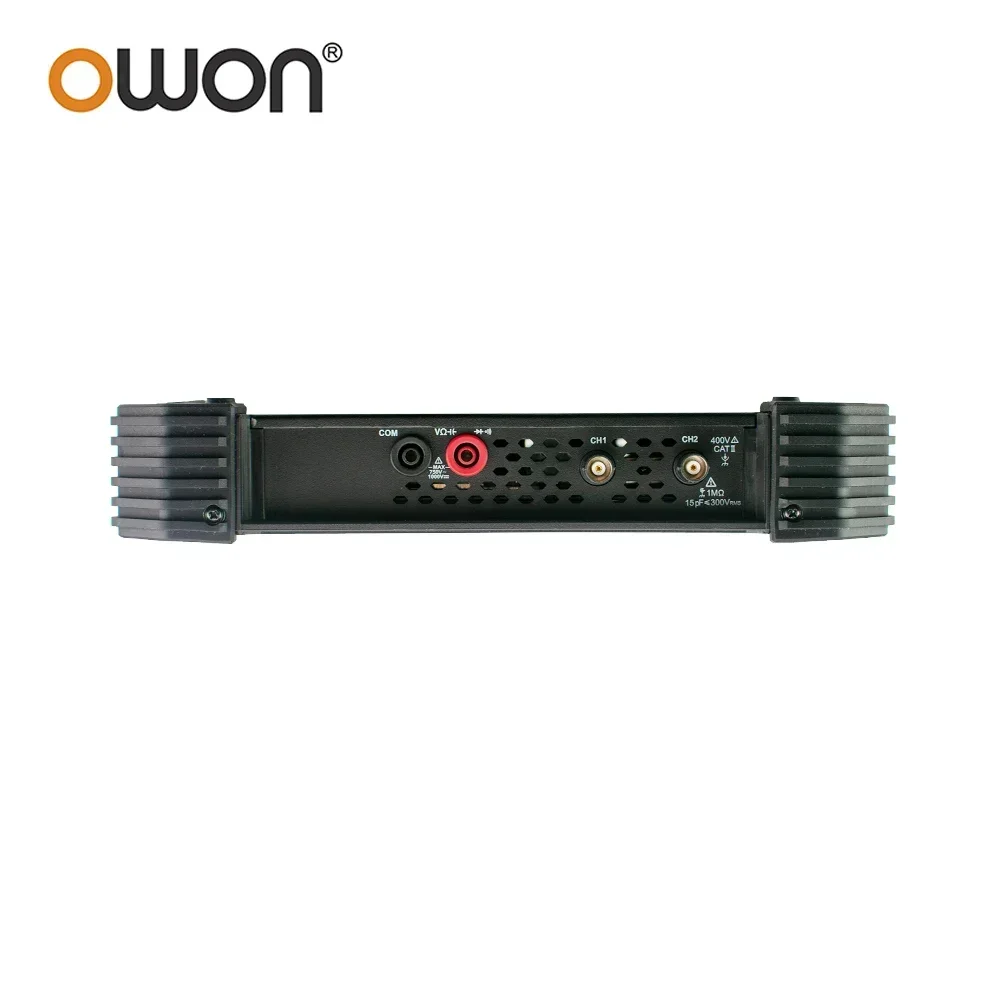

Portable Tablet Digital Oscilloscope 2CH 1GS/s 8 bits TAO3072 TAO3102 14 bits TAO3102A 70/100/120MHz Digital Multimeter

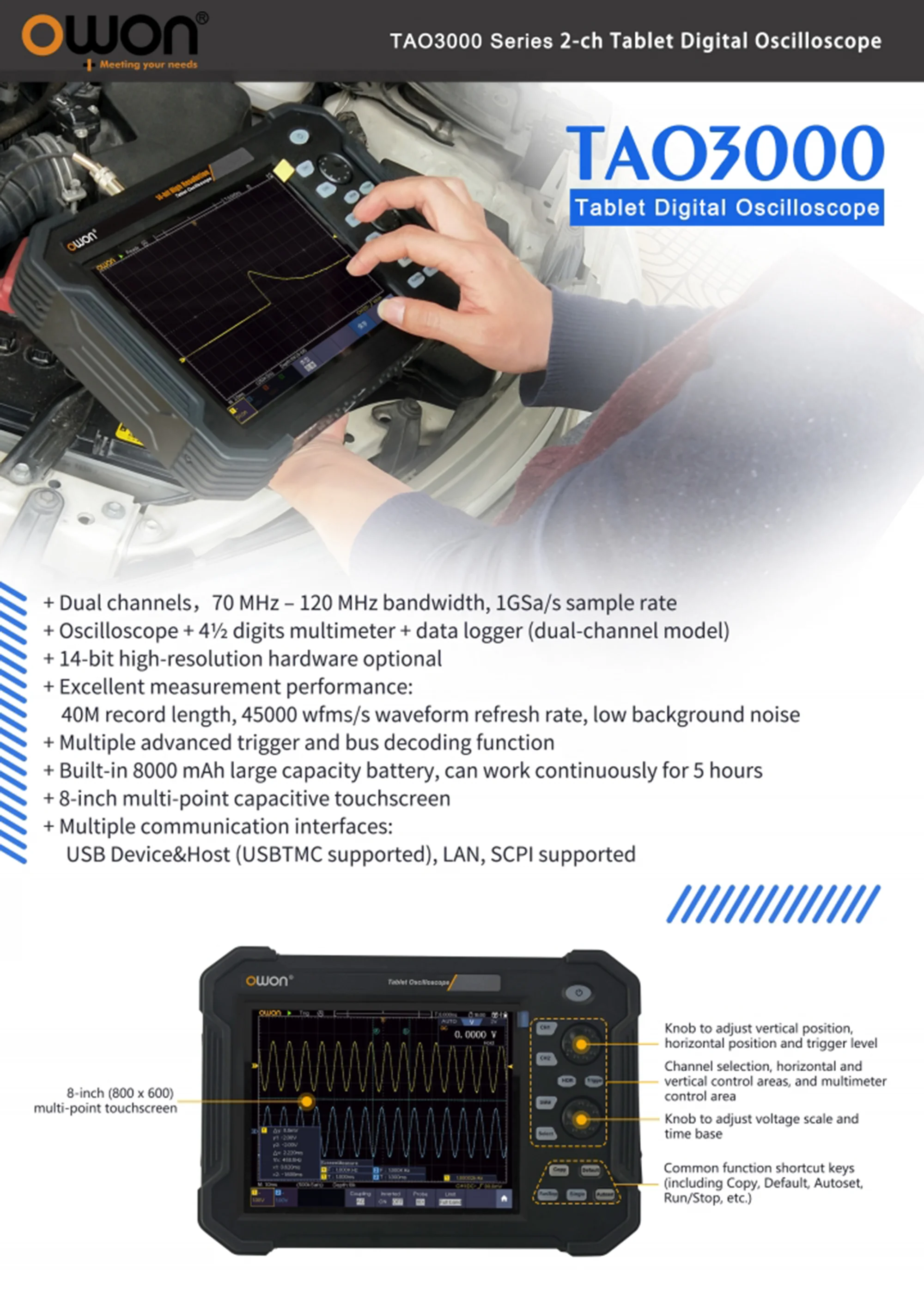

Portable Tablet Digital Oscilloscope 2CH 1GS/s 8 bits TAO3072 TAO3102 14 bits TAO3102A 70/100/120MHz Digital MultimeterTAO3000 Series2CH/4CH Handheld Digital Oscilloscope+ Oscilloscope+Multimeter( 2CH type)
+ Max 120MHz Bandwidth，1GS/s sample rate

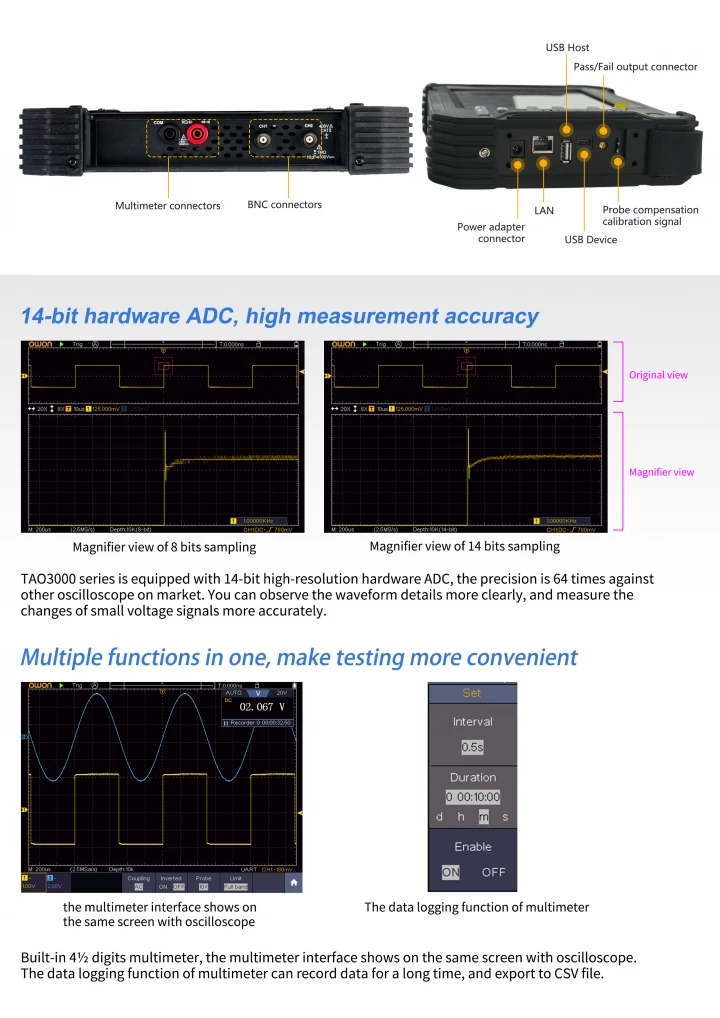

+ 14-bit high resolution ADC
+ 40M record length;45,000 wfms/s waveform refresh rate
+ low back ground noise
+ 8 inch 800 x 600 high resolution LCD, multi-touch screen, more user-friendly operation experience
+ SCPI, and LabVIEW supported
+ multi- trigger, and bus decoding function
+ multi-interface integration - USB host, USB device,LAN,WIFI(optional)

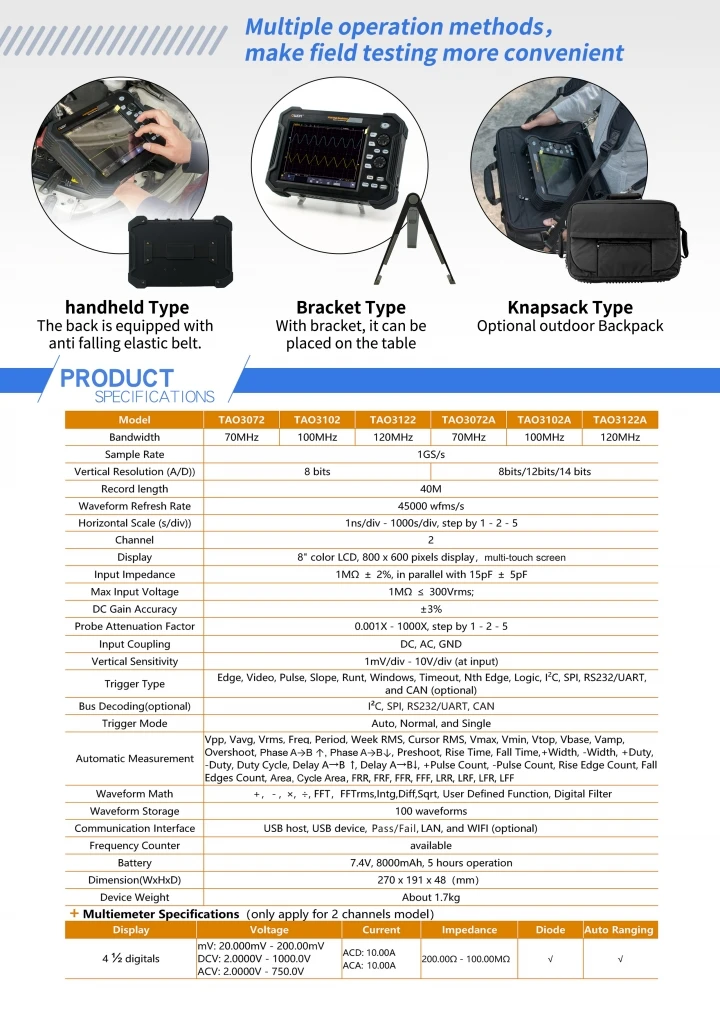

＋Performance Specifications (2 channels model)
Model | TAO3072 | TAO3102 | TAO3122 | TAO3072A | TAO3102A | TAO3122A |
Bandwidth | 70MHz | 100MHz | 120MHz | 70MHz | 100MHz | 120MHz |
Sample Rate | 1GS/s | |||||
Vertical Resolution (A/D)) | 8 bits | 8bits/12bits/14 bits | ||||
Record length | 40M | |||||
Waveform Refresh Rate | 45,000 wfms/s | |||||
Horizontal Scale (s/div)) | 1ns/div - 1000s/div, step by 1 - 2 - 5 | |||||
Channel | 2 | |||||
Display | 8" color LCD, 800 x 600 pixels display，multi-touch screen | |||||
Input Impedance | 1MΩ ± 2%, in parallel with 15pF ± 5pF | |||||
Max Input Voltage | 1MΩ ≤ 300Vrms; | |||||
DC Gain Accuracy | ±3% | |||||
Probe Attenuation Factor | 0.001X - 1000X, step by 1 - 2 - 5 | |||||
Sample Rate / Relay Time Accuracy | ±2.5ppm | |||||
Input Coupling | DC, AC, GND | |||||
Vertical Sensitivity | 1mV/div - 10V/div (at input) | |||||

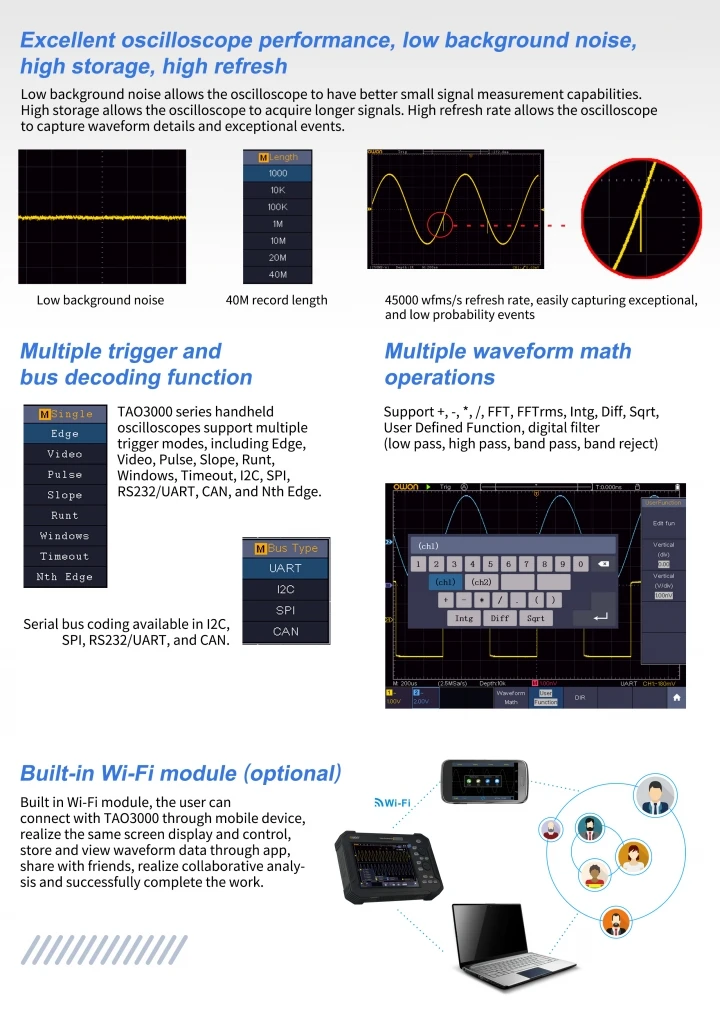

Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional) | |||||
Bus Decoding(optional) | I2C, SPI, RS232, CAN | |||||
Trigger Mode | Auto, Normal, and Single | |||||
Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, PhaseA→B ↑, PhaseA→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area | |||||
Waveform Math | ＋, －, ×, ÷, FFT，FFTrms,Intg,Diff,Sqrt, User Defined Function, Digital Filter | |||||
Waveform Storage | 100 waveforms | |||||
Communication Interface | USB host, USB device, USB port for PictBridge,LAN, and WIFI (optional) | |||||
Frequency Counter | available | |||||
Battery | 7.4V, 8000mAh， 5 hours operation | |||||
Dimension(WxHxD) | 270x191x48（mm） | |||||
Device Weight | About 1.7kg |
＋Multiemeter Specifications（only apply for 2 channels model）
Display | Voltage | Current | Impedance | Diode | Auto Ranging |
41/2 digitals | mV: 20.000mV - 200.00mV DCV: 2.0000V - 1000.0V ACV: 2.0000V - 750.0V | ACD: 10.00A ACA:10.00A | 200.00Ω - 100.00MΩ | √ | √ |

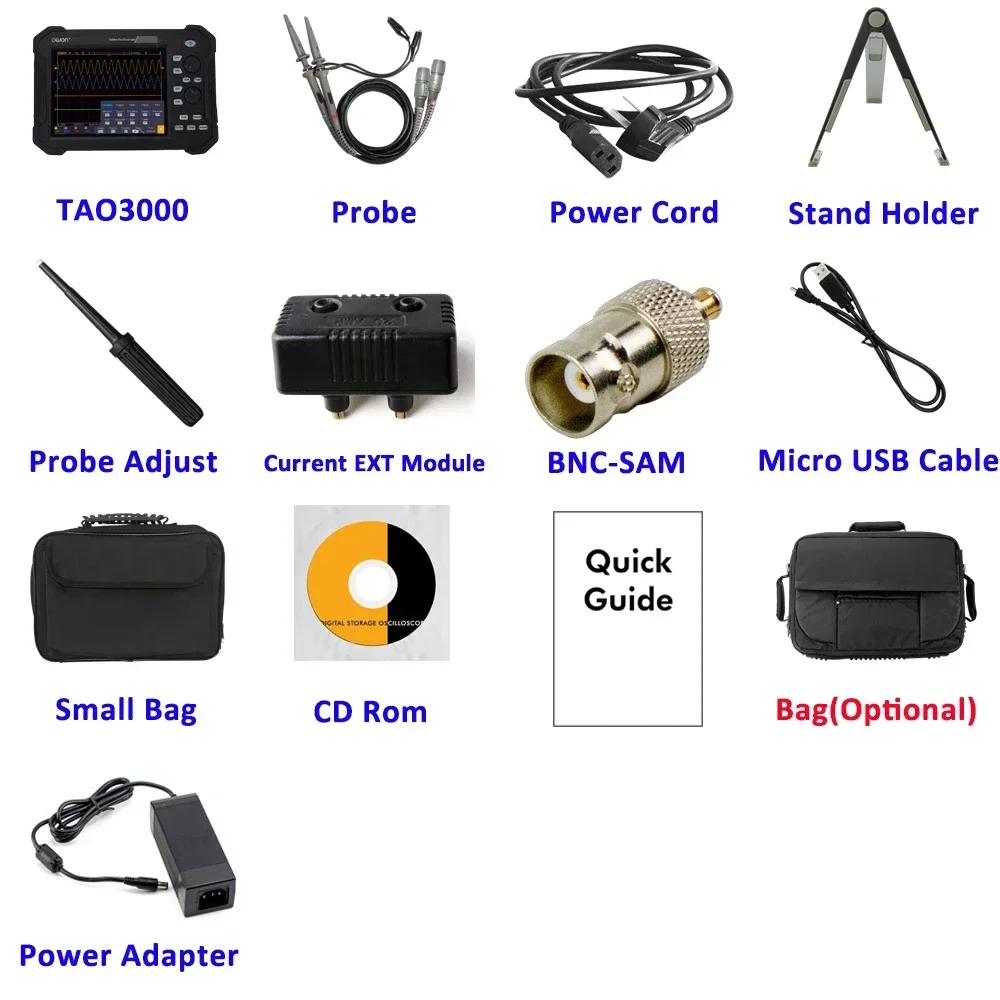

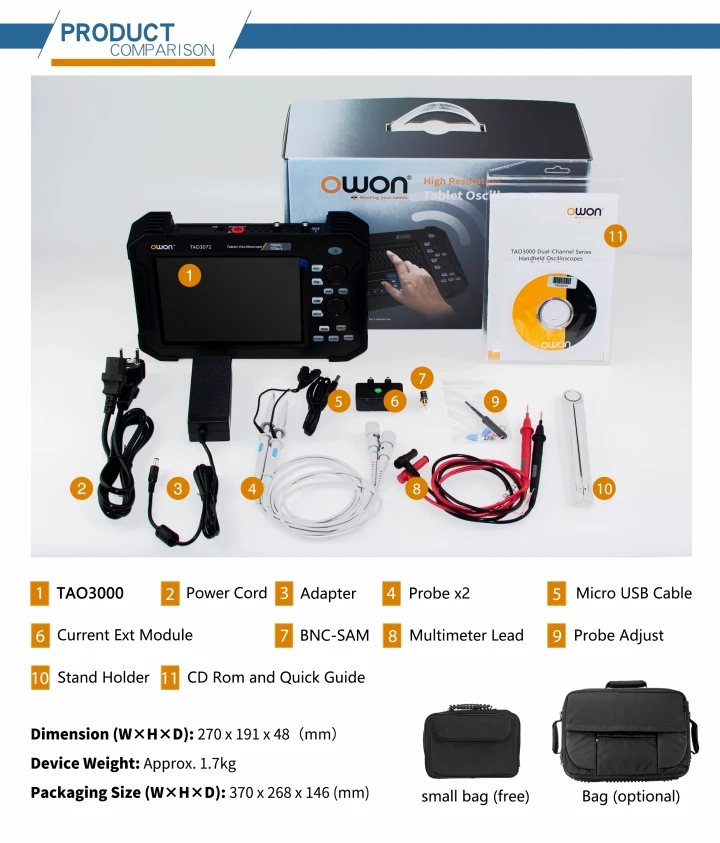

Package Include
1*TAO3000 Machine
2*Passive Probe
1*Stand Holder
1*Current EXT Module
1*BNC-SAM
1*Power Cord
1*Power Adapter
1*Probe Adjust
1*Micro USB Cable
1*Small Bag
1*Driver Disk
1*Quick Guide
