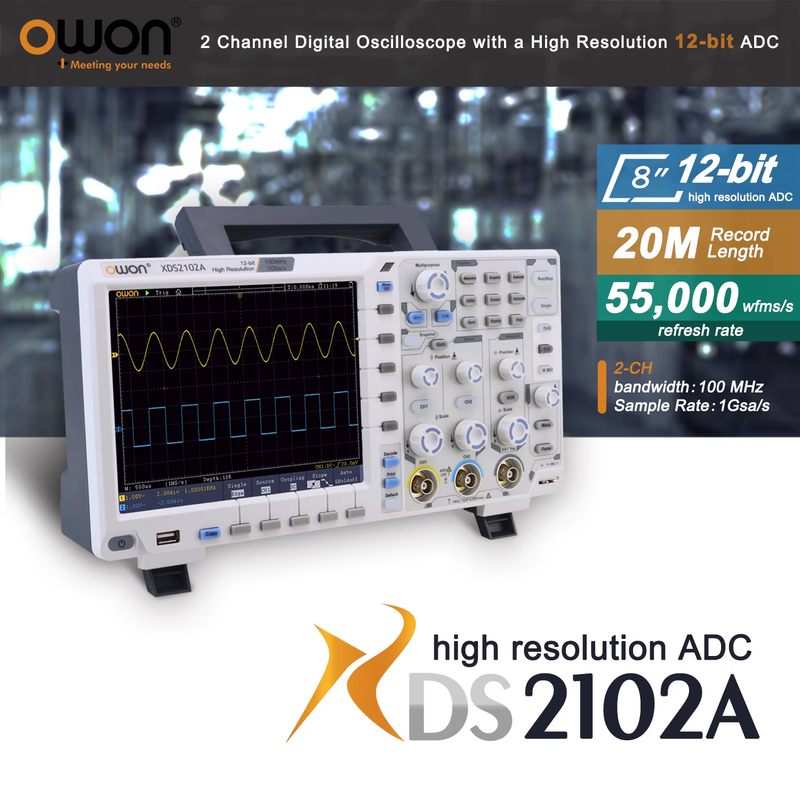

XDS2102A Digital Oscilloscope 100MHz 1GS/s 2 Channels+1External 20M Record Lengt

Model

XDS2102A

Bandwidth

100MHz

Sample Rate

1GS/s (8 bits)

500MS/s (12 bits)

Vertical Resolution (A/D)

12 bits

Record length

20M

Waveform Refresh Rate

55,000 wfms/s

Horizontal Scale (s/div)

2ns/div - 1000s/div, step by 1~2~5

Rise Time (at input, typical)

≤3.5ns

Channel

2 + 1 (external)

Display

8" color LCD, 800 x 600 pixels

Input Impedance

1MΩ ± 2%, in parallel with 15pF ± 5pF

Channel Isolation

50Hz : 100 : 1, 10MHz : 40 : 1

Max Input Voltage

1MΩ ≤ 300Vrms

DC Accuracy

average≥16：±(3% reading + 0.05 div) for △V

Probe Attenuation Factor

0.001X - 1000X, step by 1 - 2 - 5

LF Respond (AC, -3dB)

≥10Hz (at input, AC coupling, -3dB)

Sample Rate / Relay Time Accuracy

±1 ppm（TYP, Ta=+25℃）

Interpolation

sin(x) / x

Interval (△T) Accuracy

(full bandwidth)

Single: ±(1 interval time + 1ppm x reading + 0.6ns);
Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns)

Input Coupling

DC, AC, and GND

Vertical Sensitivity

1mV/div - 10V/div (at input)

Trigger Type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,

and CAN

Bus Decoding

I2C, SPI, RS232, and CAN

Trigger Mode

Auto, Normal, and Single

Vertical Range

±2V ( 1mv/div - 50mv/div), ±20V ( 100mv/div - 1V/div), ±200V (2V/div - 10V/div)

Line / Field Frequency (video)

NTSC, PAL and SECAM standard

Cursor Measurement

△V, and △T between cursors, △V and △T between cursors, and auto- cursors

Automatic Measurement

Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count

Waveform Math

＋, －, ×, ÷, FFT,FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter

(low pass, high pass, band pass, band reject)

Waveform Storage

50 waveforms

Lissajou's
Figure

Bandwidth

full bandwidth

Phase Difference

±3 degrees

Communication Interface

USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)

Frequency Counter

available

Power Supply

100V - 240V AC, 50/60Hz, CAT II

Power Consumption

＜15W

Fuse

2A, T class, 250V

Dimension (W x H x D)

340 x 177 x 90 mm

Weight

2.40 kg
