Product Description
CP024 DC AC Current Probe for Digital Storage Oscilloscope 4A to 400A Bandwidth 200kHz 23mm Jaw Three-Gear Current Clamp

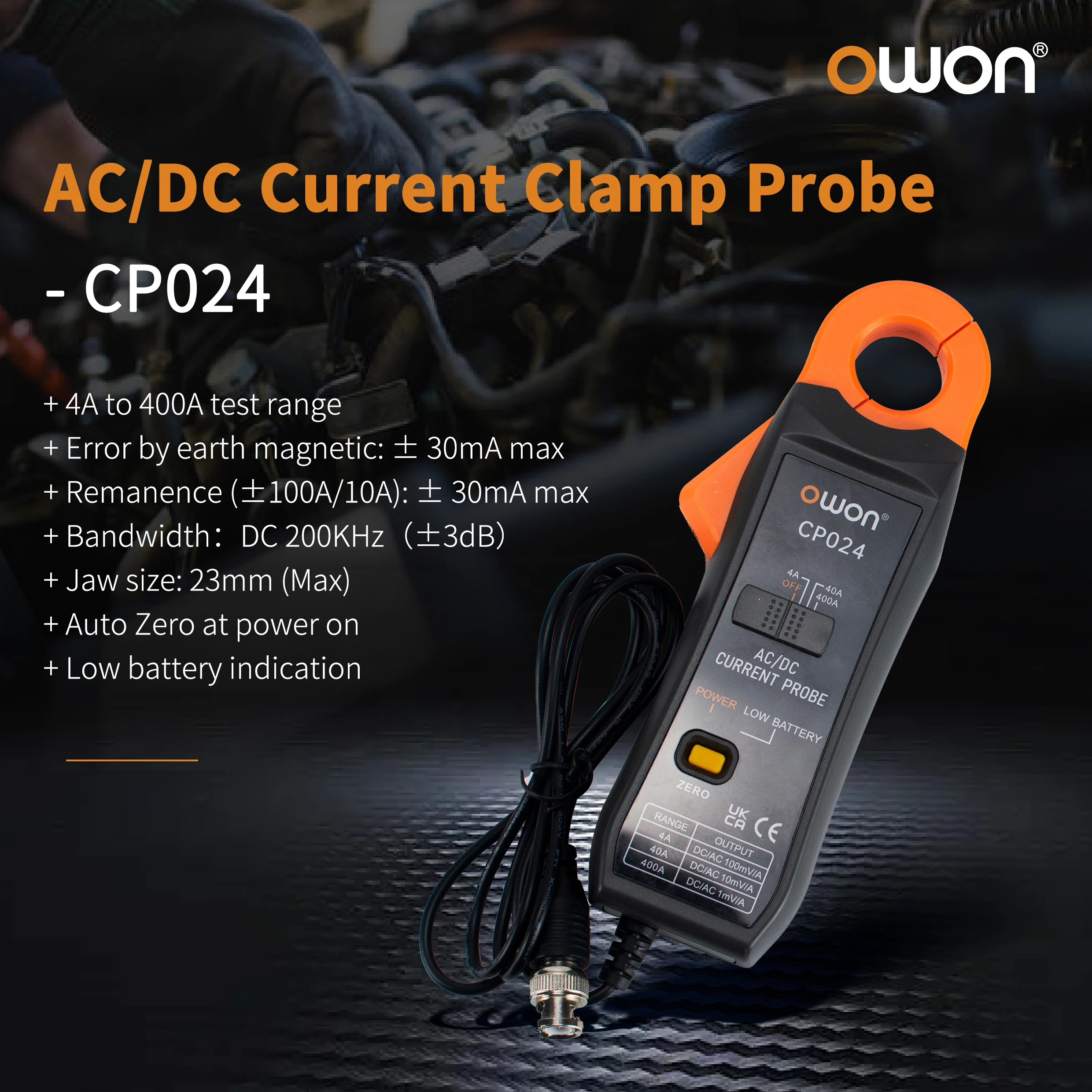

CP024 DC AC Current Probe for Digital Storage Oscilloscope 4A to 400A Bandwidth 200kHz 23mm Jaw Three-Gear Current ClampAC/DC Current Clamp Probe
- CP024
+ 1mA to 400A test range
+ Bandwidth：DC 200KHz（-3dB）
+ Error by earth magnetic: ± 30mA max
+ Remanence (±100AŽ0A): ± 30mA max

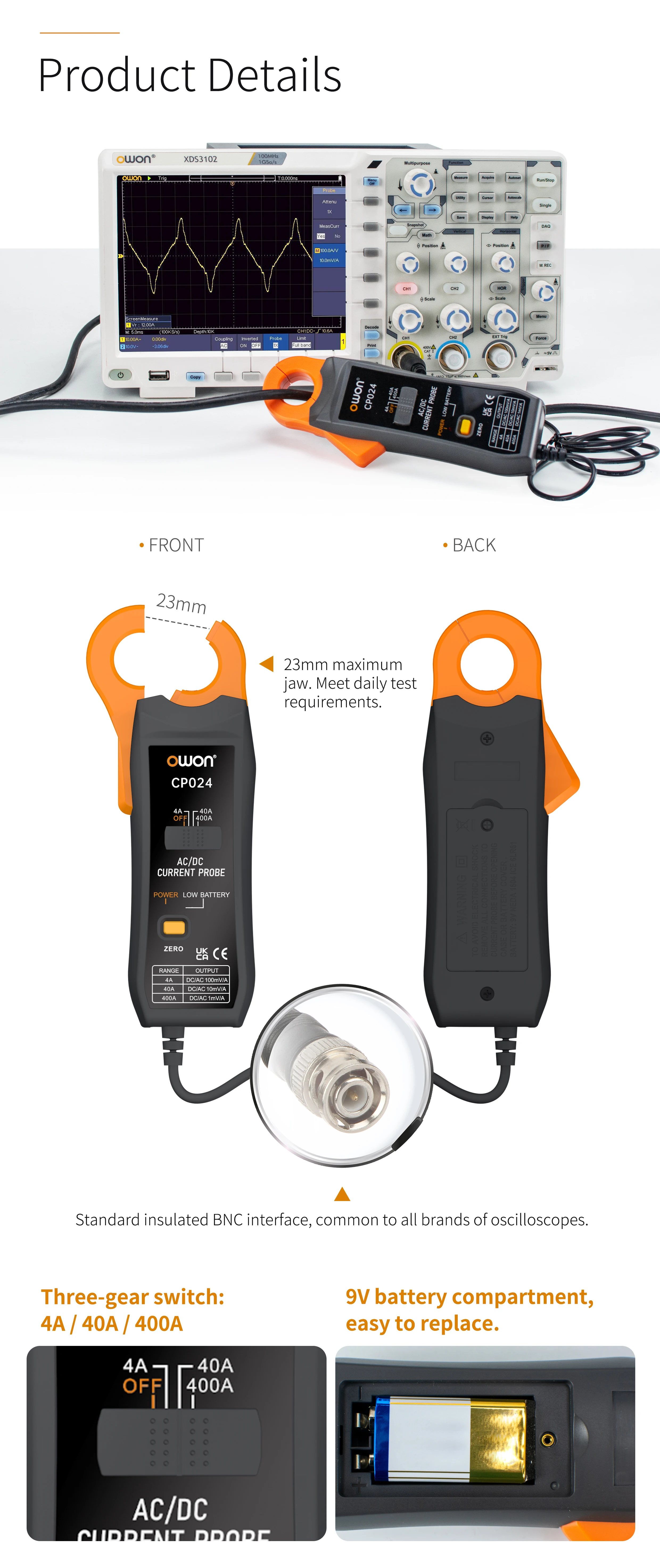

+ Jaw size: 23mm (Max)。
+ Auto Zero at power on
+ Low battery indication

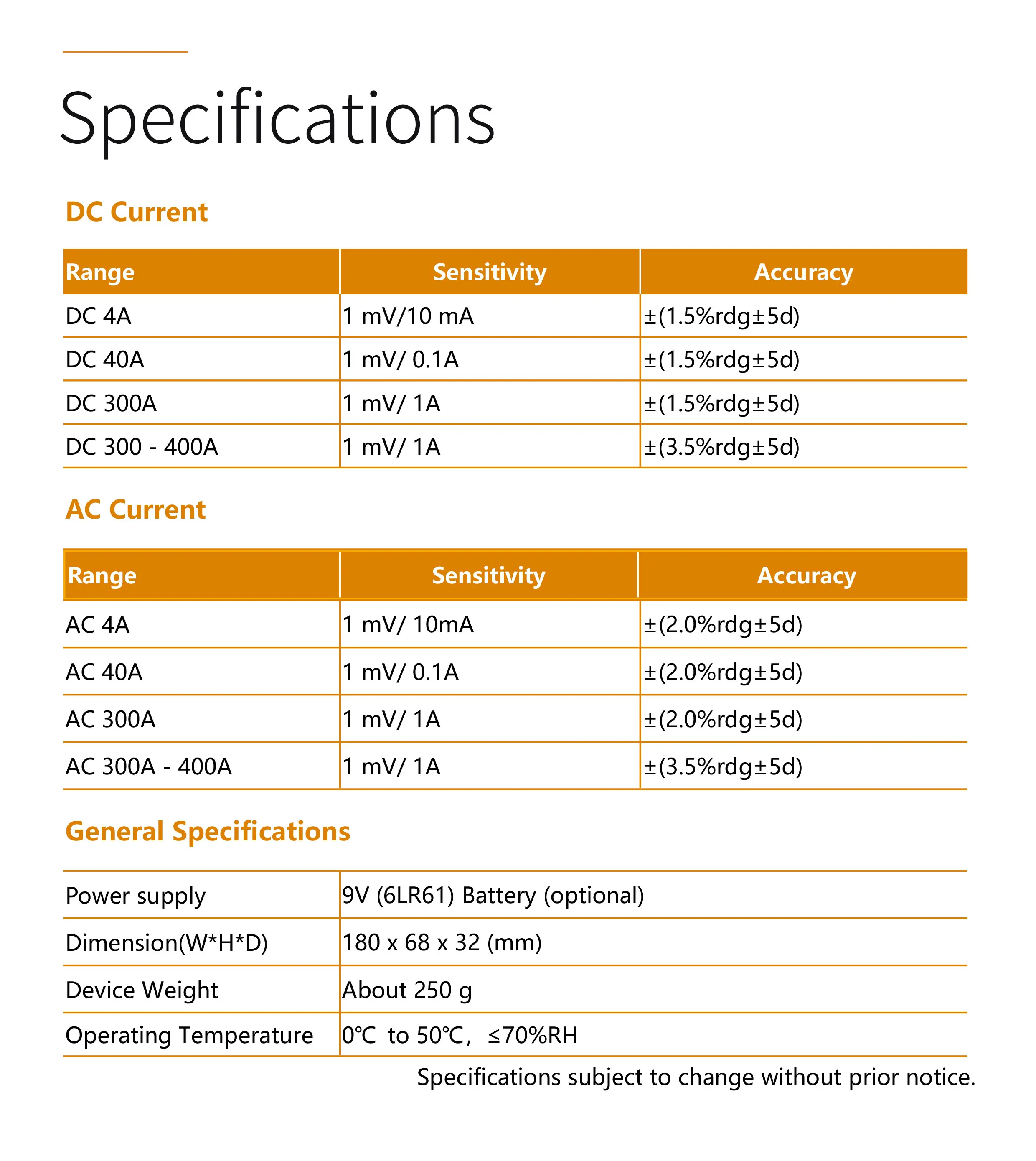

＋Performance Specifications
DC Current
Range | Sensitivity | Accuracy | |
DC 4A | 1 mV/10 m A | ±(1.5%rdg±5d) | |
DC 40A | 1 mV/ 0.1A | ±(1.5%rdg±5d) | |
DC 300A | 1 mV/ 1A | ±(1.5%rdg±5d) | |
DC 300~400A | 1 mV/ 1A | ±(3.0%rdg±5d) | |
AC Current | |||
| |||
AC 4A | 1 mV/ 10mA | ±(2.0%rdg±5d) | |
AC 40A | 1 mV/ 0.1A | ±(2.0%rdg±5d) | |
AC 300A | 1 mV/ 1A | ±(2.0%rdg±5d) | |
AC 300A~400A | 1 mV/ 1A | ±(3.0%rdg±5d) | |
General Specifications | |||
Power supply | 9V (6LR61) Battery | ||
Dimension(W*H*D) | 180 x 68 x 32 (mm) | ||
Device Weight | About 250 g | ||
Operating Temperature | 0℃ to 50℃，≤70%RH |

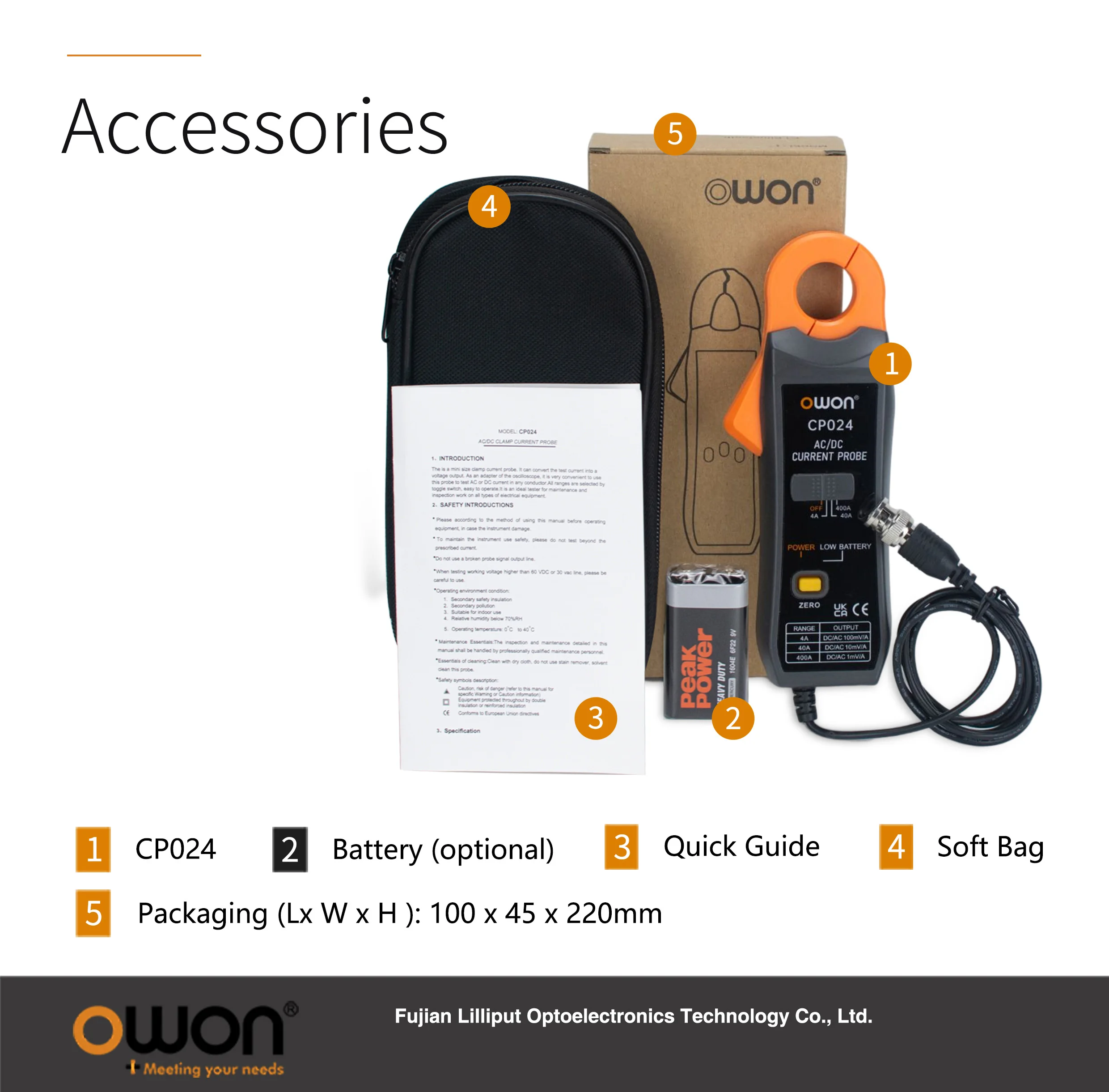

＋The accessories subject to final delivery.
Soft Bag Battery（optional）
