Product Description
VDS6074A VDS6104A 14Bits Virtual PC Digital Oscilloscope 1Gsa/S 100Mhz Bandwidth 4CH Handheld Portable USB Oscilloscopes
VDS6074A VDS6104A 14Bits Virtual PC Digital Oscilloscope 1Gsa/S 100Mhz Bandwidth 4CH Handheld Portable USB OscilloscopesVDS6000Series 4CH PC Oscilloscope

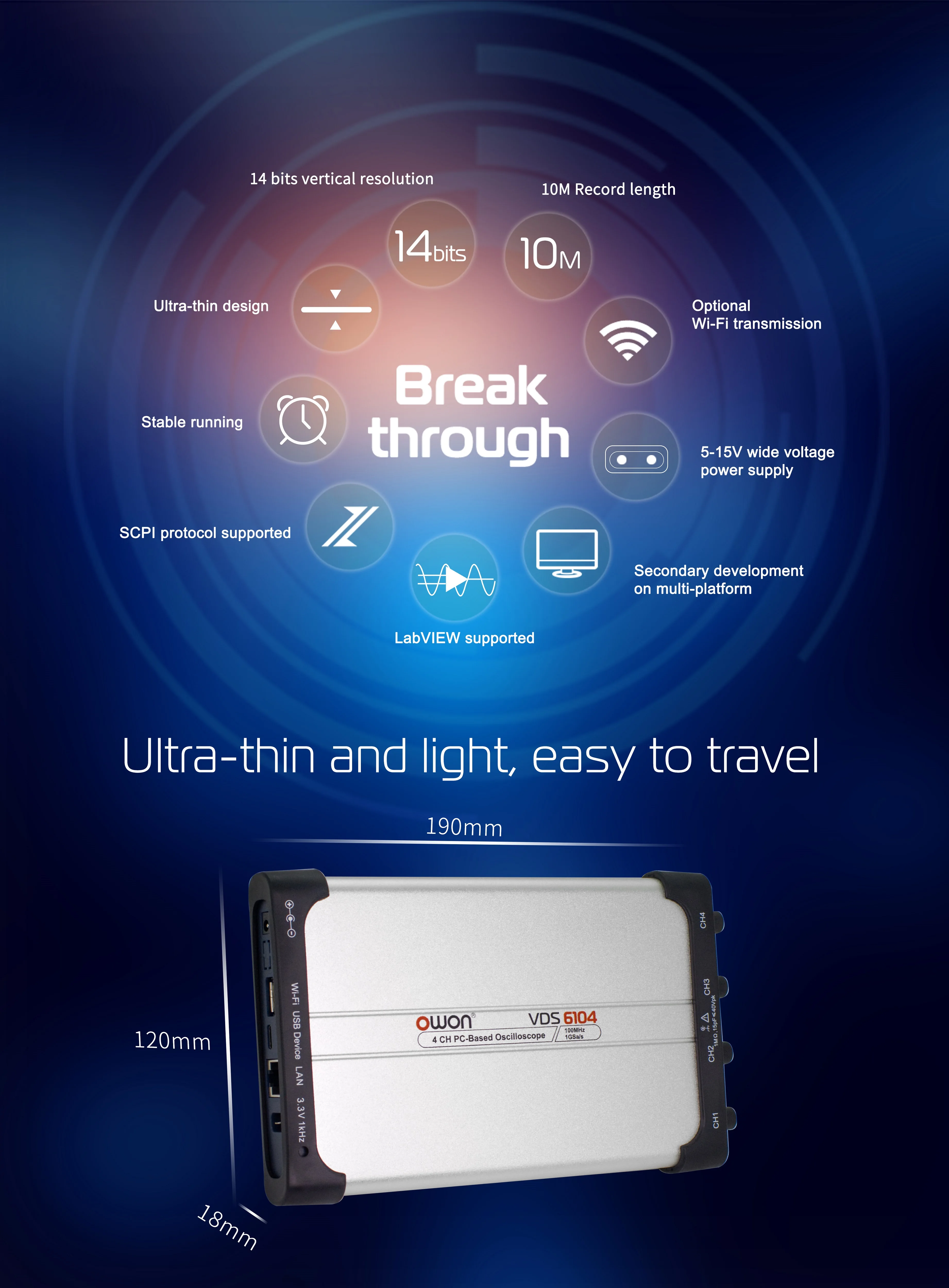

+ 4 channels ultra thin design
+70MHz-100MHz bandwidth, and 1GS/s real-time sample rate

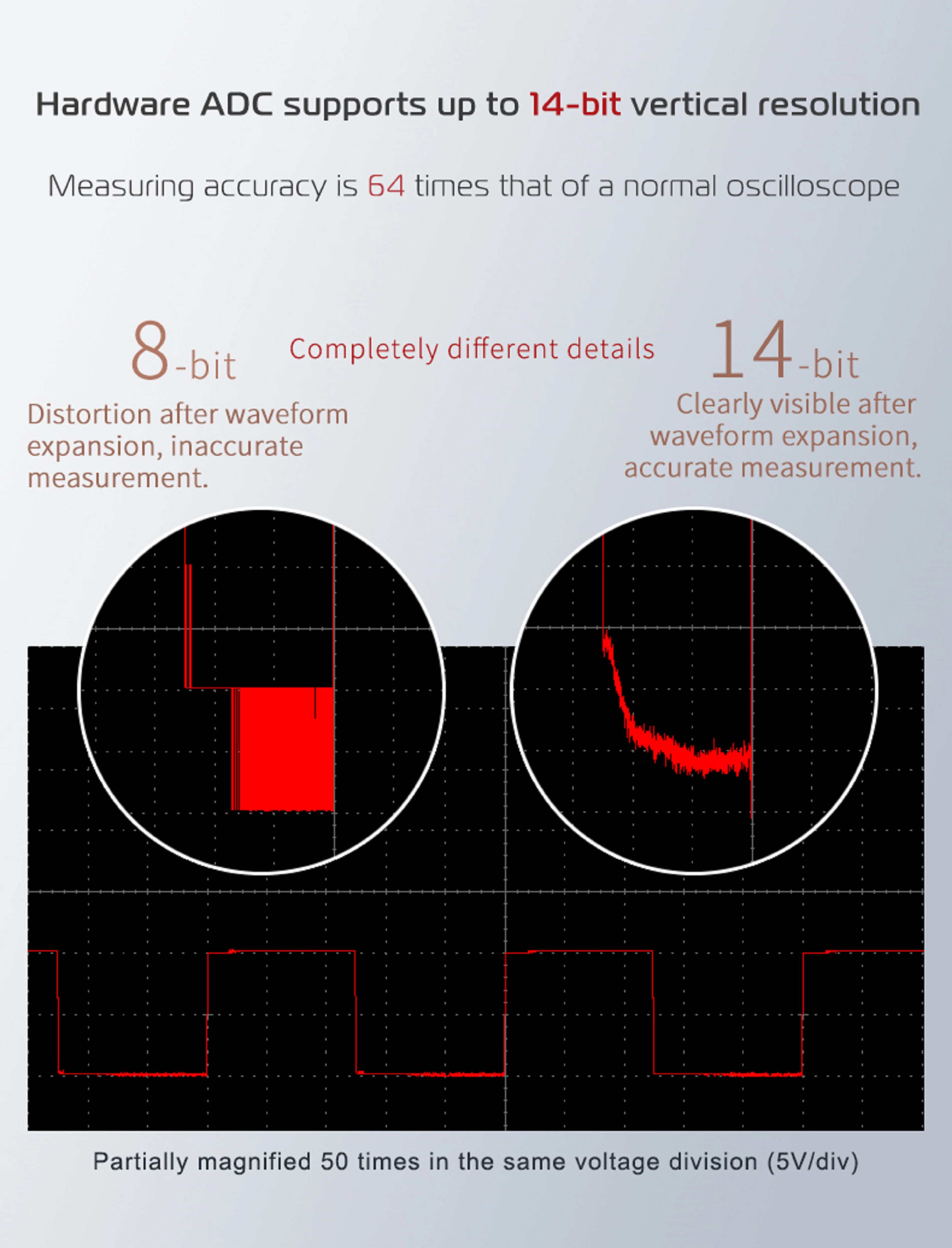

+ Max 10M record length, max 14 bits high resolution ADC
+ SCPI、LABVIEW supported
+ Support the secondary development of windows / Linux / Android / Ios platform
+ USB typ-c power supply, faster data transmission, support 5-15v wide voltage power supply
+ Wi-Fi unlimited transmission, more convenient to use.
(Wi-Fi accessories are required)
+ Support software for Windows and Mac OS

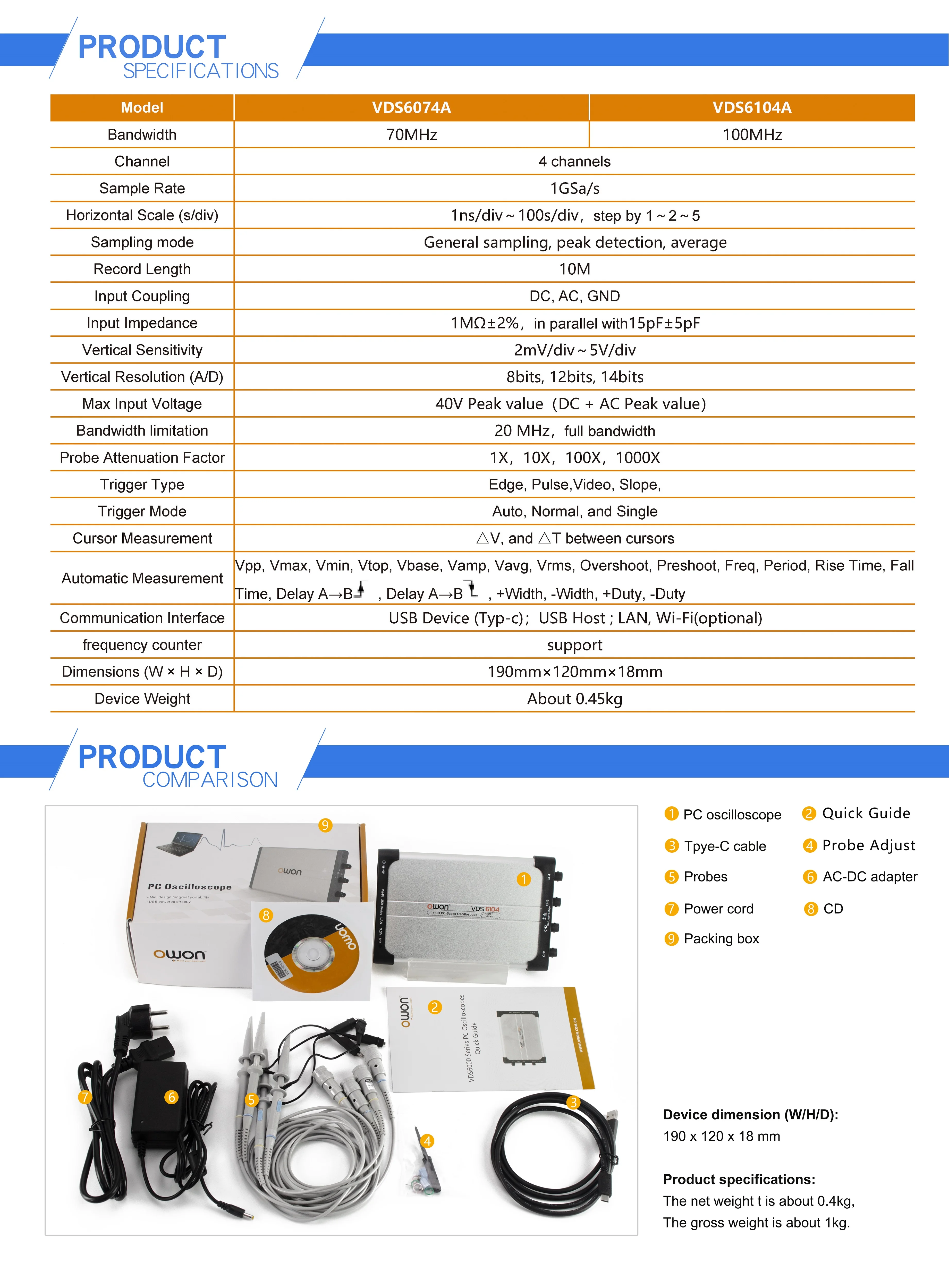

＋Performance Specifications
Model | VDS6074 | VDS6104 | VDS6074A | VDS6104A |
Bandwidth | 70MHz | 100MHz | 70MHz | 100MHz |
Channel | 4 channels | |||
Sample Rate | 1GSa/s | |||
Horizontal Scale (s/div) | 1ns/div～100s/div， step by 1～2～5 | |||
Sampling mode | General sampling, peak detection, average | |||
Record Length | 10M | |||
Input Coupling | DC, AC, GND | |||
Input Impedance | 1MΩ±2%，in parallel with15pF±5pF | |||
Time base accuracy | ±25ppm | |||
Vertical Sensitivity | 2mV/div～5V/div | |||
Vertical Resolution (A/D) | 8bits | 8bits/12bits/14bits | ||
Max Input Voltage | 40V Peak value（DC + AC Peak value） | |||
Bandwidth limitation | 20 MHz，full bandwidth | |||
Probe Attenuation Factor | 1X，10X，100X，1000X | |||
Isolation between channels | 50Hz: 100 : 1，10MHz: 40 : 1 | |||
Interpolation | Sin(x)/x | |||
Single Bandwidth | full bandwidth | |||
Low frequency response (AC coupling, - 3dB) | ≥5Hz（in BNC ） | |||
DC Gain Accuracy | ±3% | ±2% | ||
Trigger Type | Edge, Pulse,Video, Slope, | |||
Line / Field Frequency (video) | NTSC, PAL, and SECAM standard | |||
Trigger Mode | Auto, Normal, and Single | |||
Cursor Measurement | △V, and △T between cursors | |||
Automatic Measurement | Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty | |||
Lissajous Figure | Bandwidth | full bandwidth | ||
Phase Difference | ±3 degrees | |||

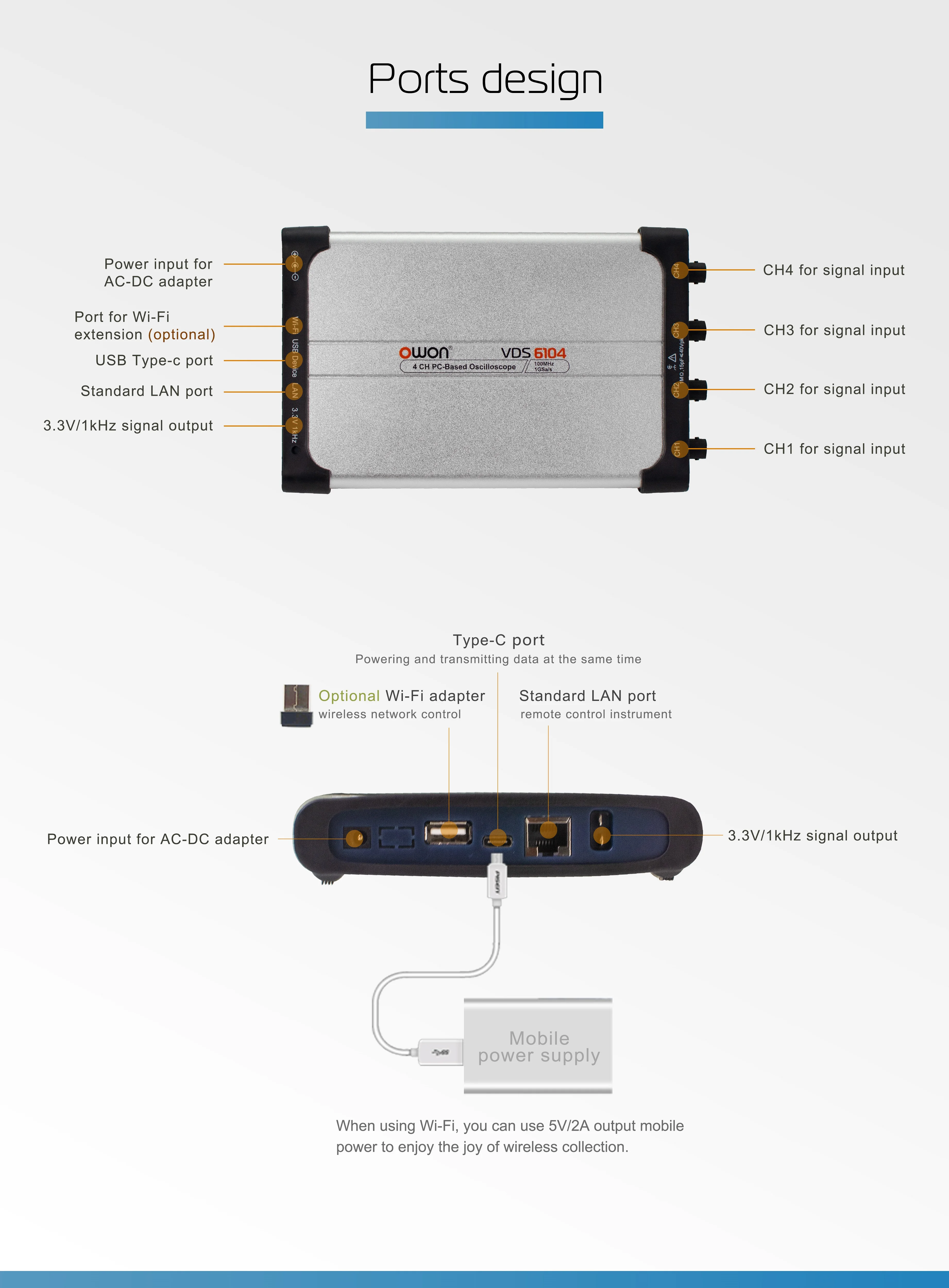

Communication Interface | USB Device (Typ-c)；USB Host ; LAN, Wi-Fi(optional) | |||
frequency counter | support | |||
Dimensions (W × H × D) | 190mm×120mm×18mm | |||
Device Weight | About 0.45kg |
