Product Description

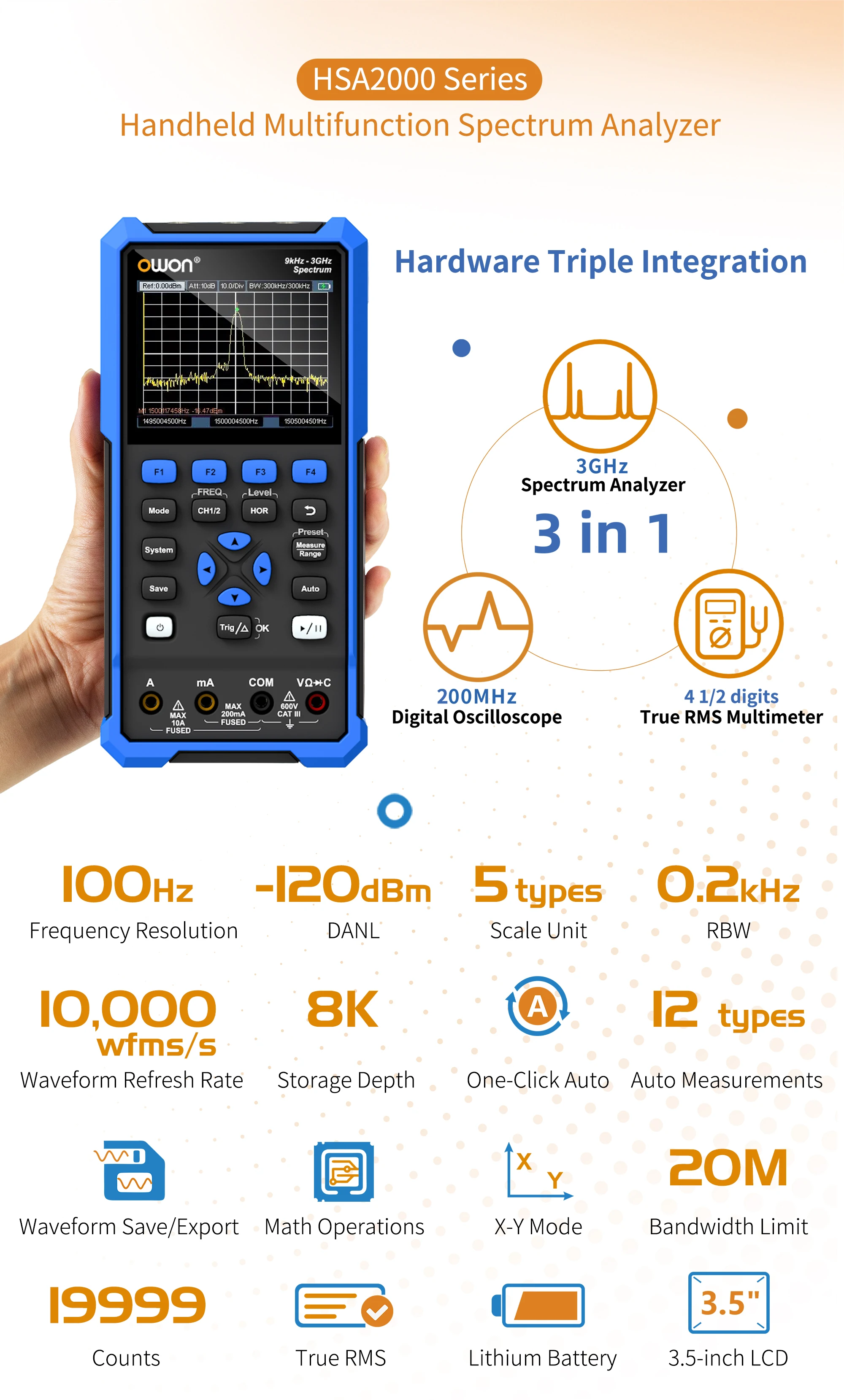

HSA2320 HSA2105 Handheld Spectrum Analyzer, 1.5G/3G Oscilloscope, 50 - 200M Bandwidth Diaital Multimeter, three - in - one

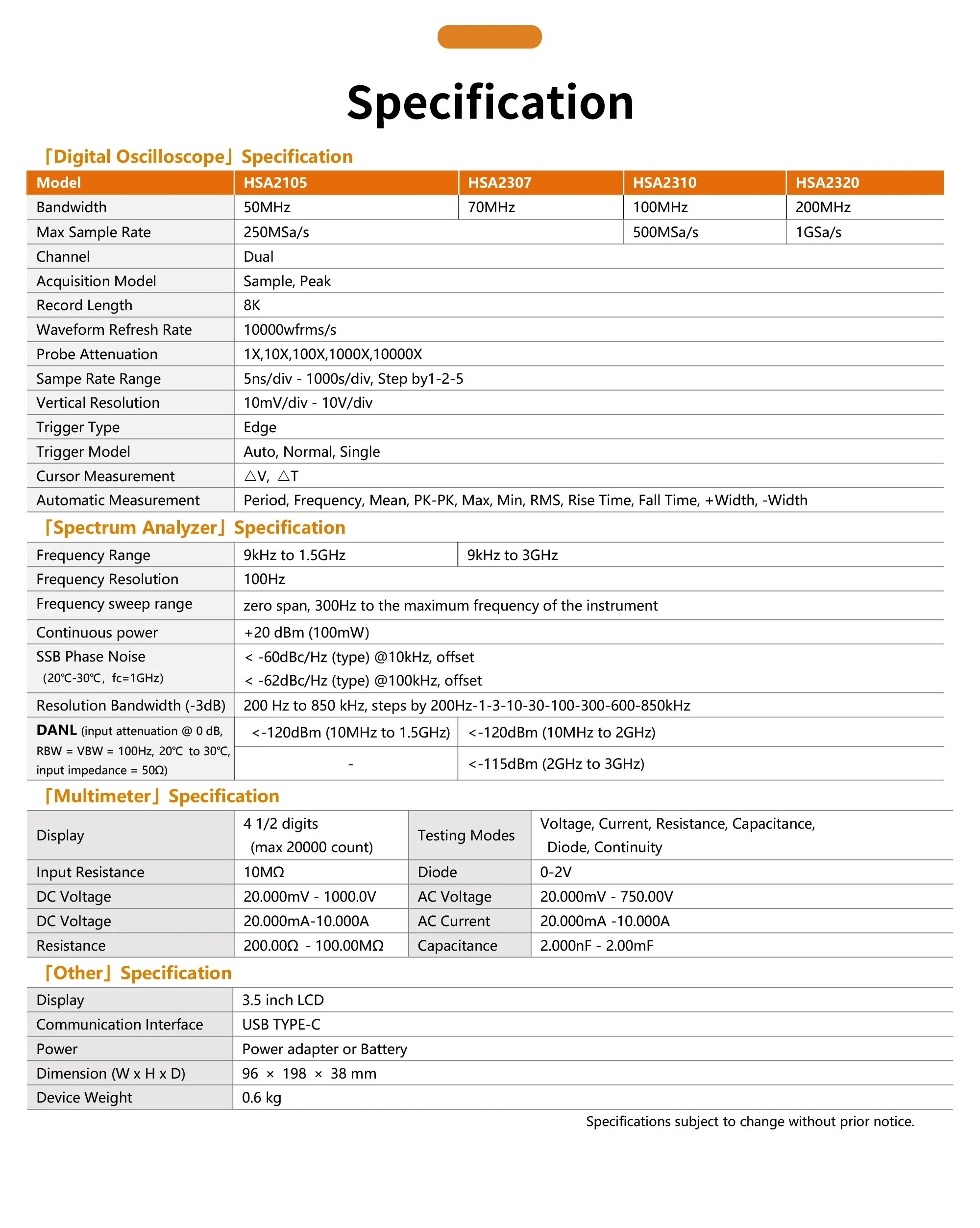

HSA2320 HSA2105 Handheld Spectrum Analyzer, 1.5G/3G Oscilloscope, 50 - 200M Bandwidth Diaital Multimeter, three - in - one「Digital Oscilloscope」Specification

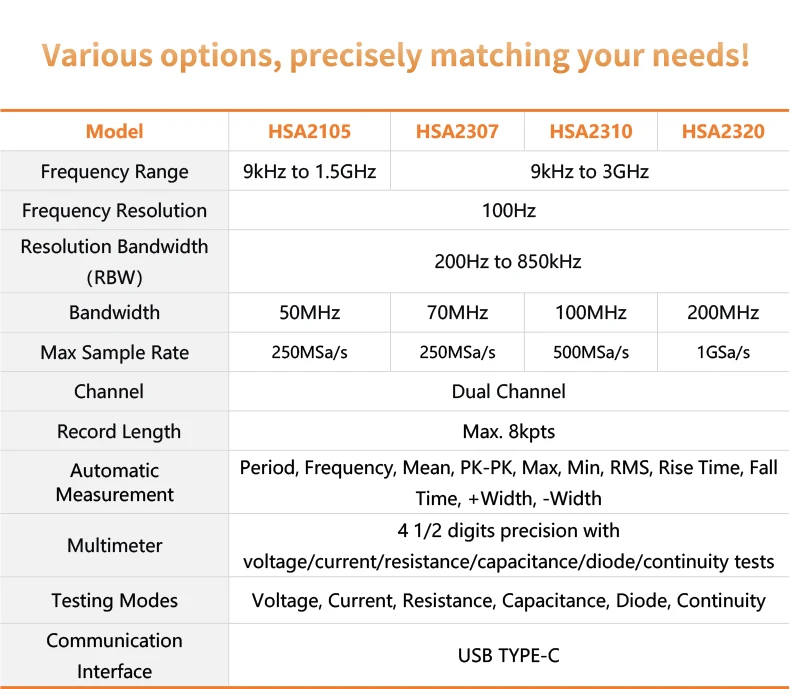

Model | HSA2105 | HSA2307 | HSA2310 | HSA2320 |
Bandwidth | 50MHz | 70MHz | 100MHz | 200MHz |
Max Sample Rate | 250MSa/s | 500MSa/s | 1GSa/s | |
Channel | Dual | |||
Acquisition Model | Sample, Peak | |||
Record Length | 8K | |||
Waveform Refresh Rate | 10000wfrms/s | |||
Probe Attenuation | 1X,10X,100X,1000X,10000X | |||
Sampe Rate Range | 5ns/div - 1000s/div, Step by1-2-5 | |||
Vertical Resolution | 10mV/div - 10V/div | |||
Trigger Type | Edge | |||
Trigger Model | Auto, Normal, Single | |||
Cursor Measurement | △V, △T | |||

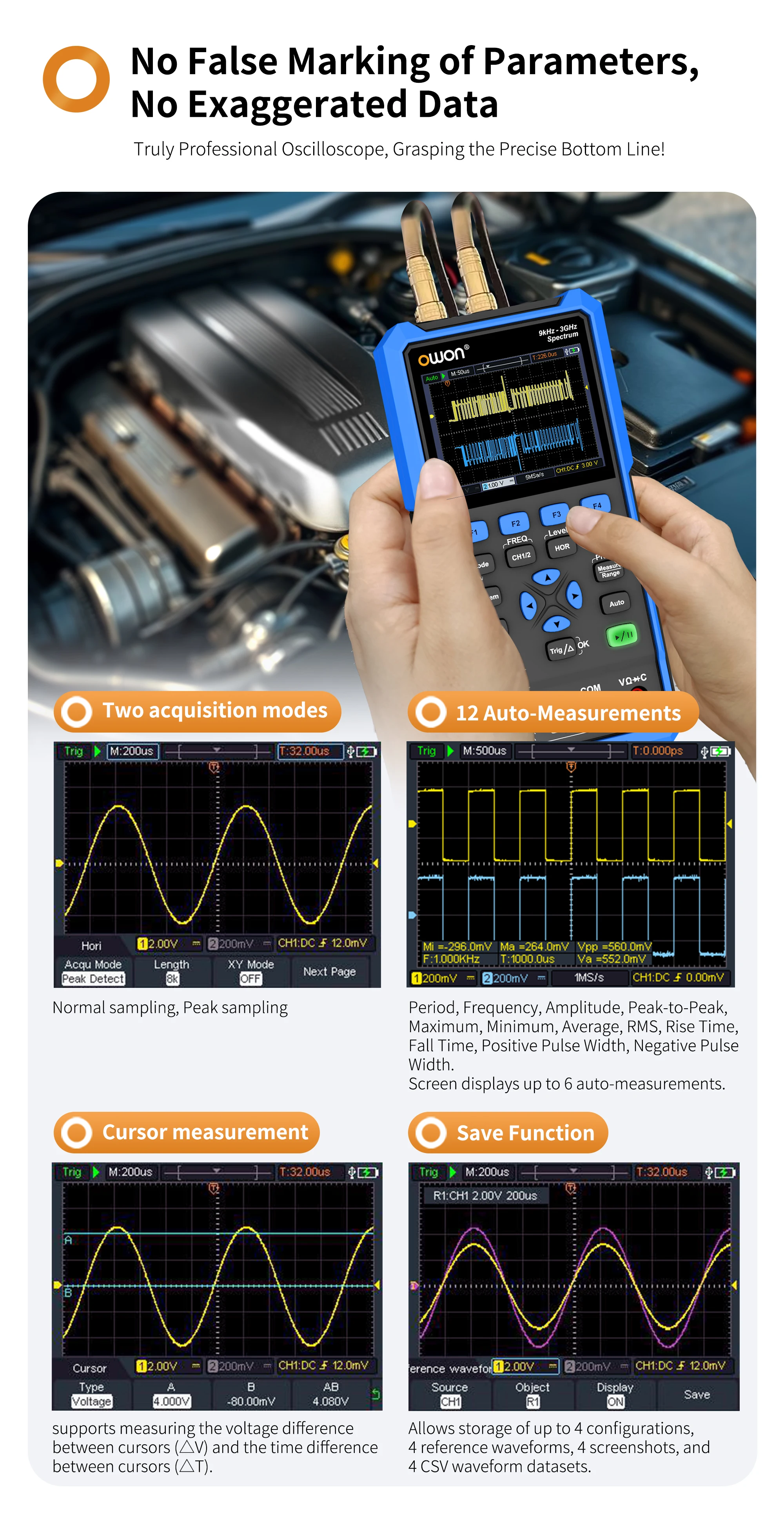

Automatic Measurement | Period, Frequency, Mean, PK-PK, Max, Min, RMS, Rise Time, Fall Time, +Width, -Width |

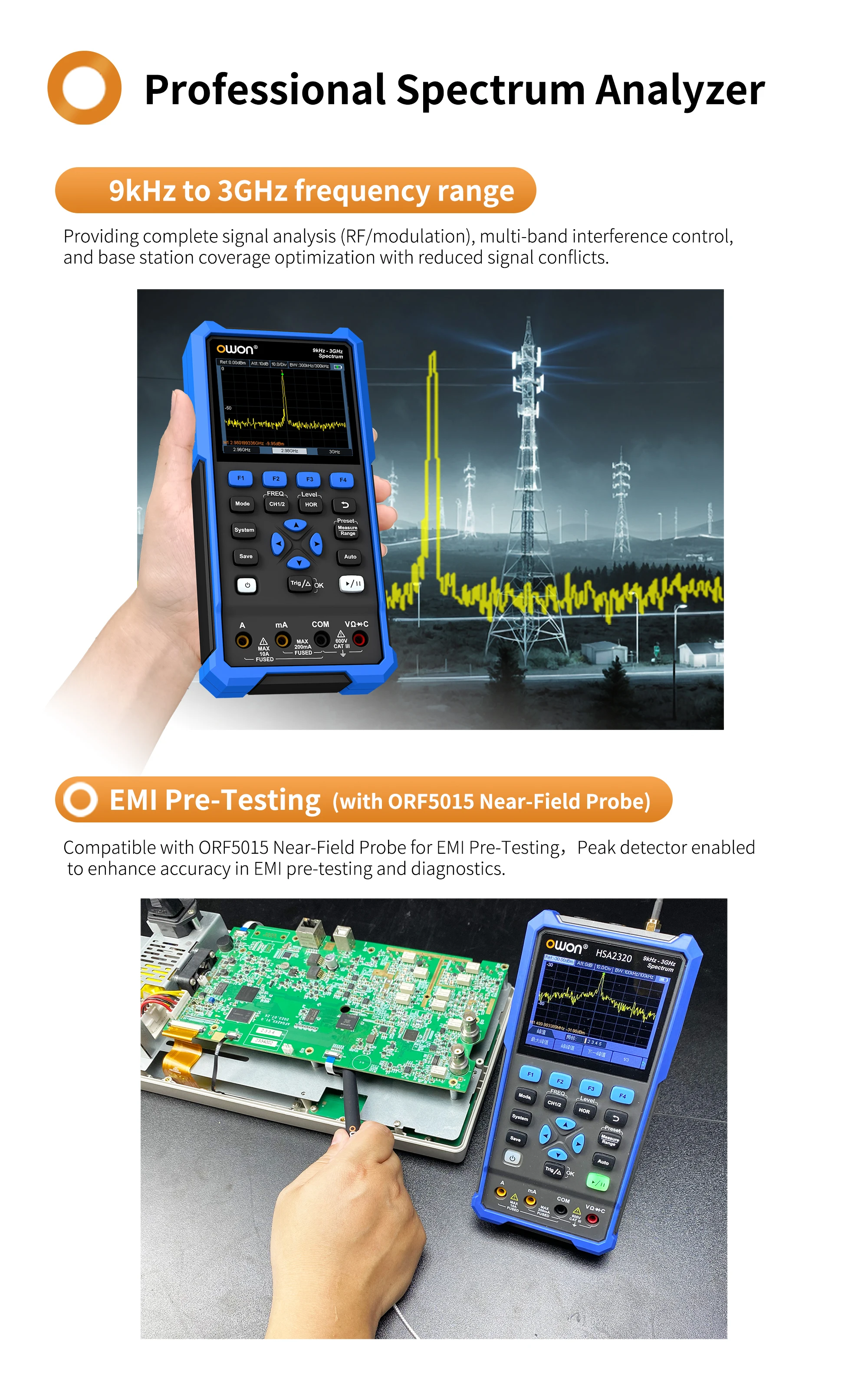

「Spectrum Analyzer」Specification
Frequency Range | 9kHzto 1.5GHz | 9kHzto 3GHz |
Frequency Resolution | 100Hz | |
Frequency sweep range | zero span, 300Hz to the maximum frequency of the instrument | |
Continuouspower | +20 dBm(100mW） | |
SSB Phase Noise （20℃-30℃，fc=1GHz） | < -60dBc/Hz (type) @10kHz, offset < -62dBc/Hz (type) @100kHz, offset | |
Resolution Bandwidth(-3dB) | 200 Hz to 850 kHz, steps by 200Hz-1-3-10-30-100-300-600-850kHz | |
DANL (input attenuation@0 dB,RBW = VBW = 100Hz,20℃ to 30℃, input impedance = 50Ω) | <-120dBm(10MHz to1.5GHz) | <-120dBm(10MHz to2GHz) |
- | <-115dBm(2GHz to3GHz) |

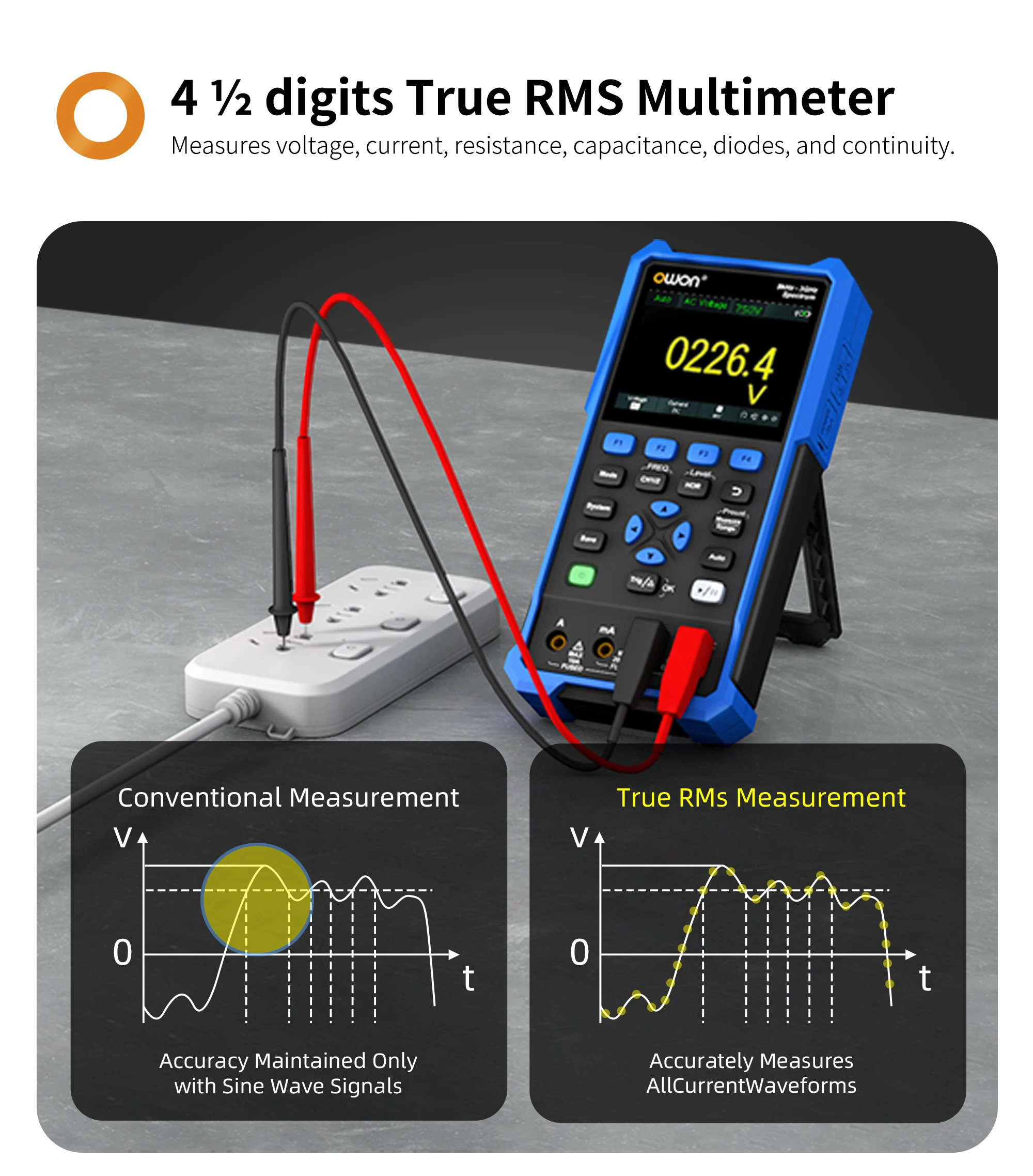

「Multimeter」Specification
Display | 4 1/2 digits (max 20000 count) | Testing Modes | Voltage, Current, Resistance, Capacitance, Diode, Continuity |
Input Resistance | 10MΩ | Diode | 0-2V |
DC Voltage | 20.000mV - 1000.0V | AC Voltage | 20.000mV - 750.00V |
DC Voltage | 20.000mA-10.000A | AC Current | 20.000mA -10.000A |
Resistance | 200.00Ω - 100.00MΩ | Capacitance | 2.000nF - 2.00mF |
「Other」Specification

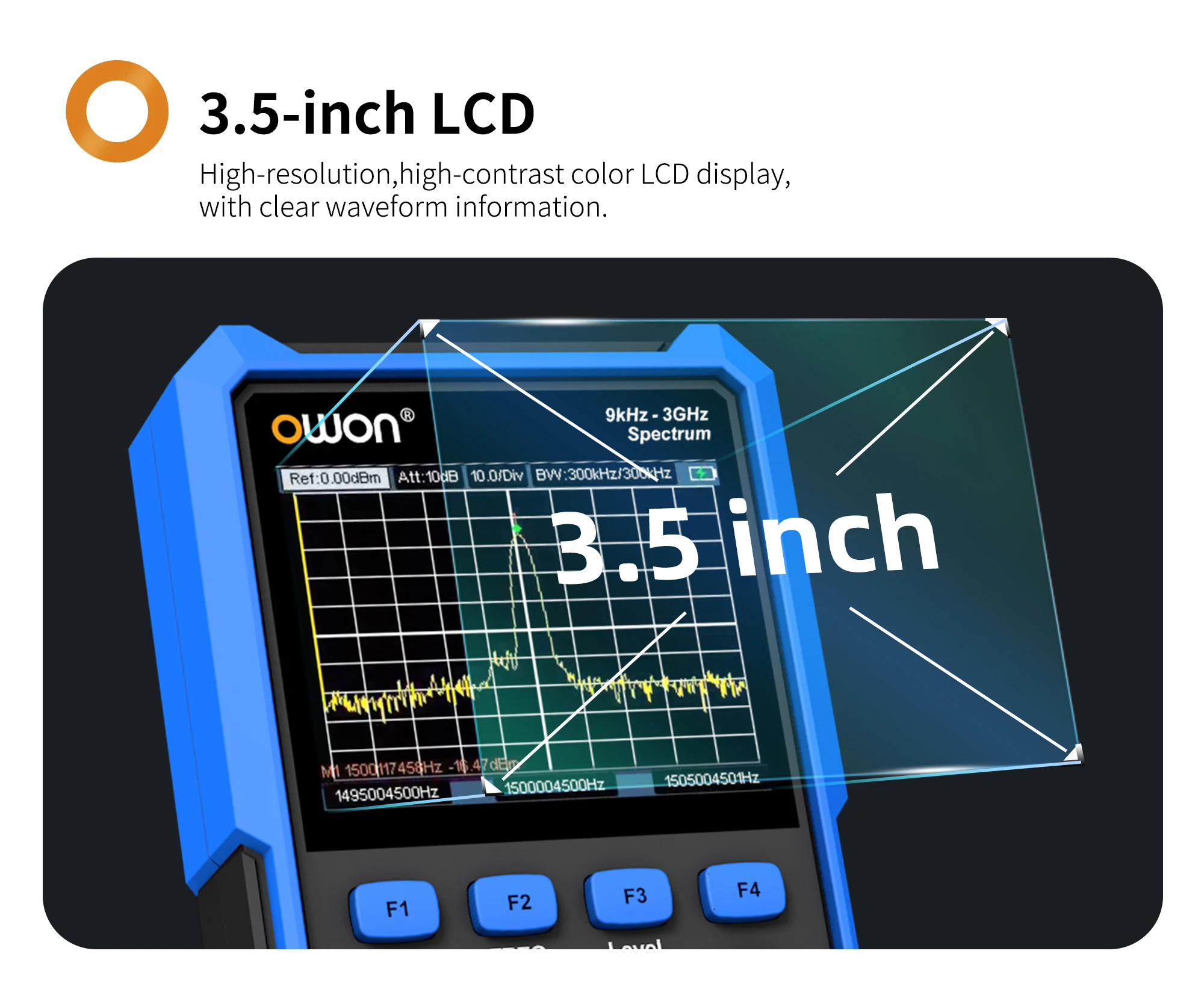

Display | 3.5inch LCD |
Communication Interface | USB TYPE-C |

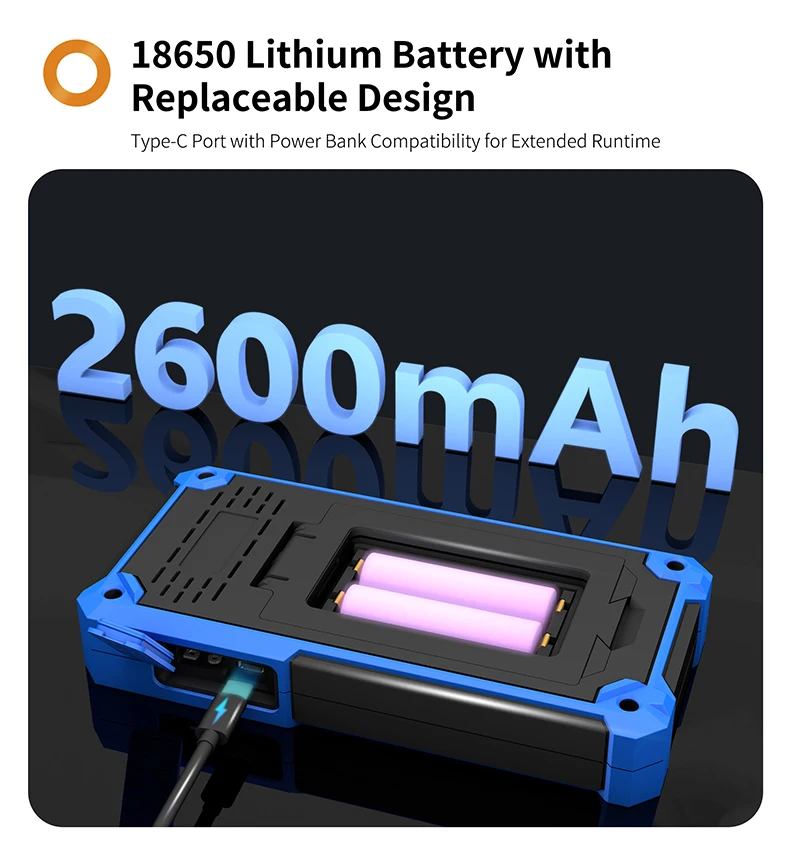

Power | Power adapter or Battery |

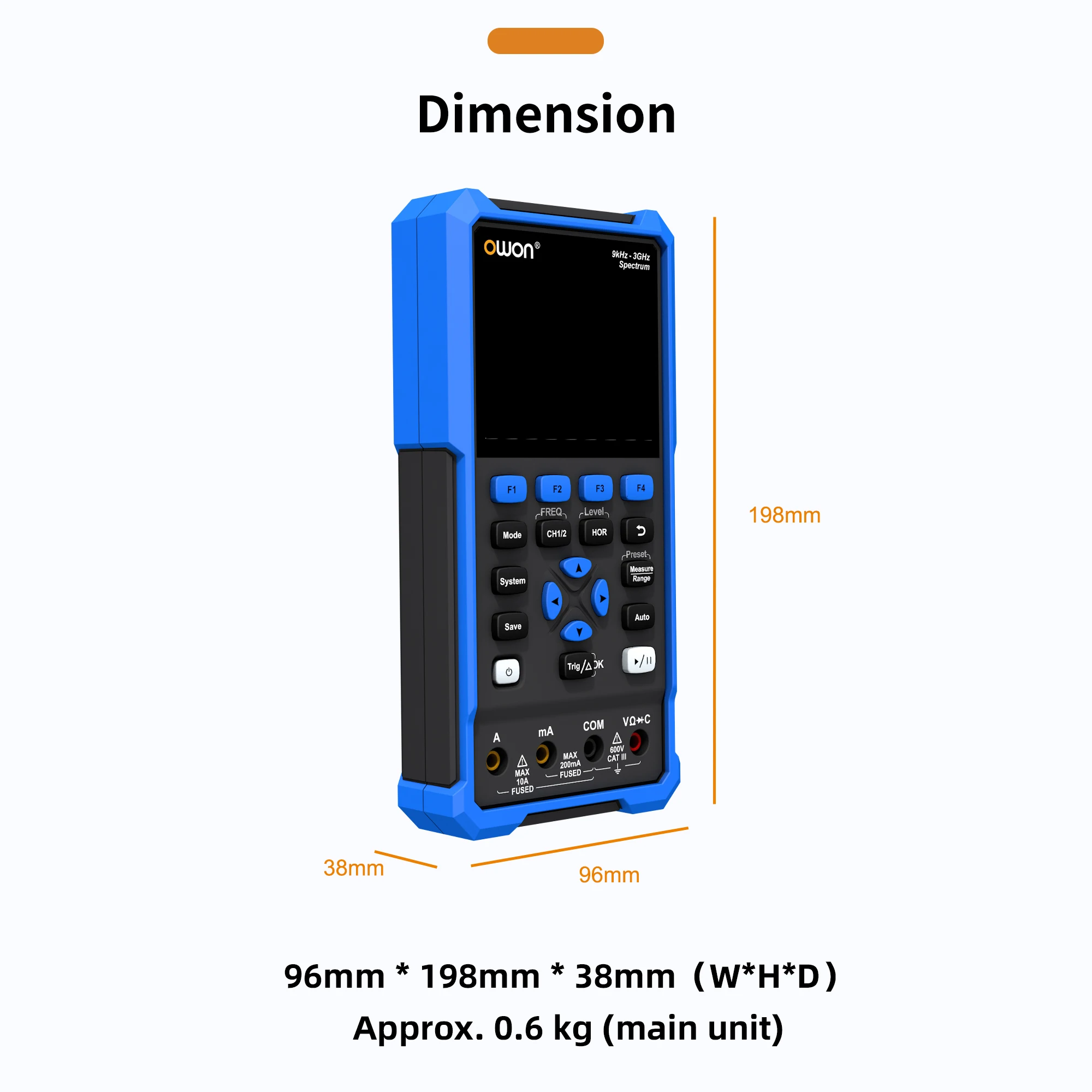

Dimension (W x Hx D) | 96×198 ×38 mm |
Device Weight | 0.6kg |
