Product Description

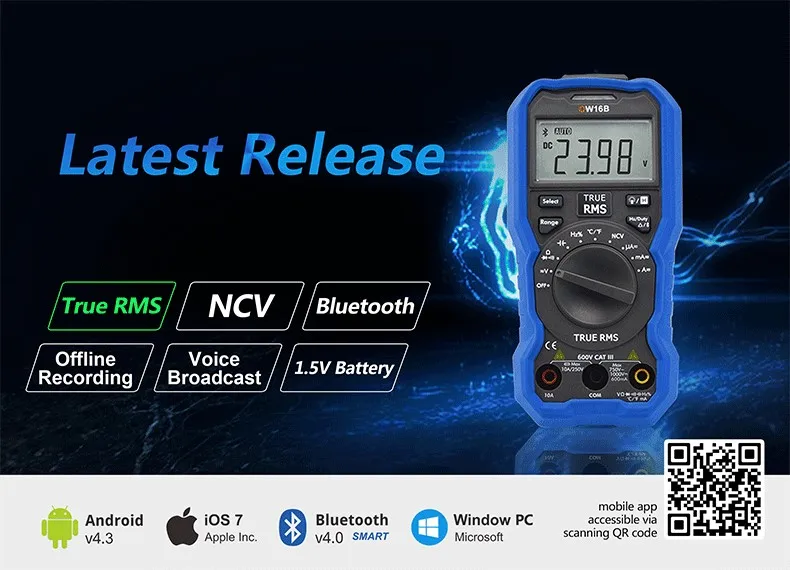

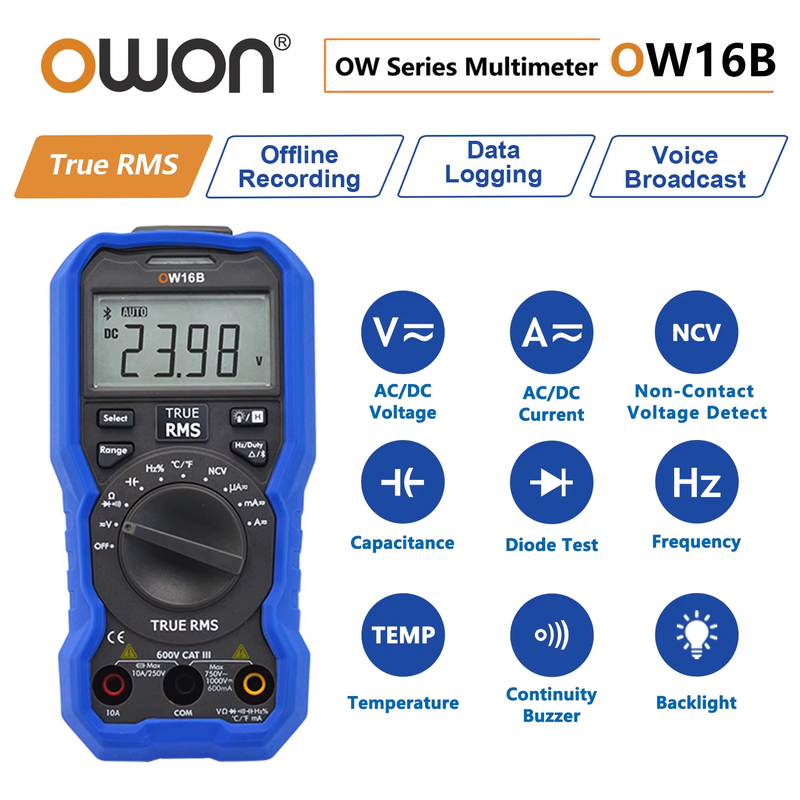

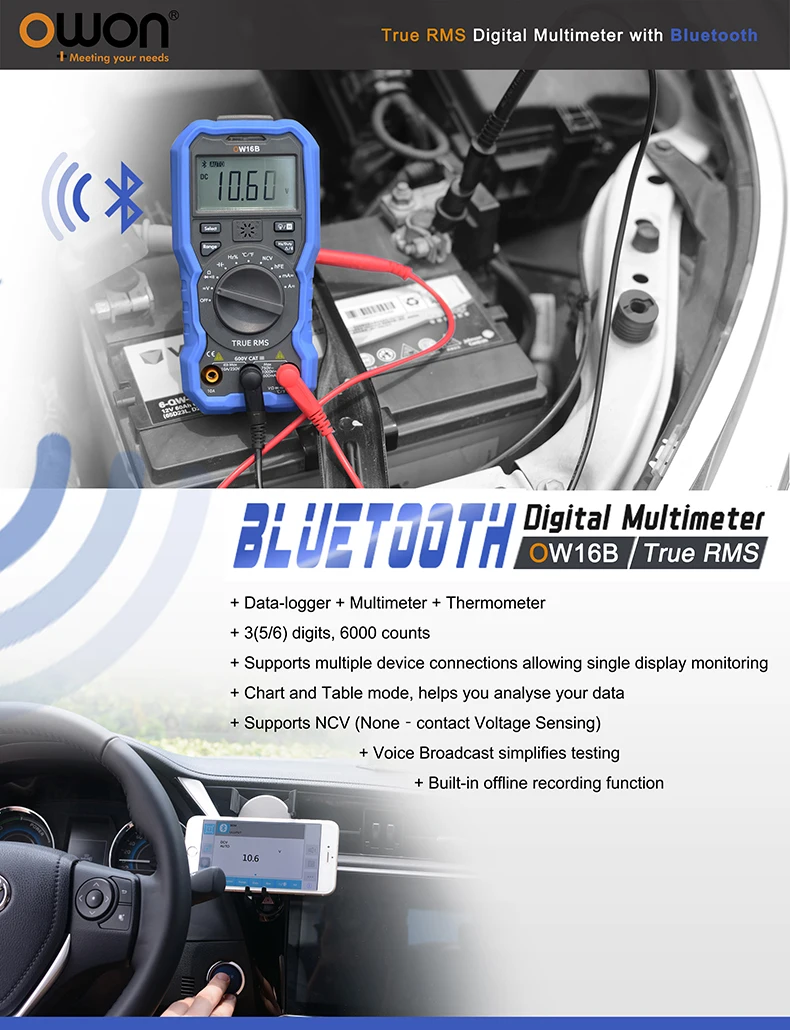

OW16B Multifunctional Digital Multimeter with Bluetooth and NCV True RMS test Backlit Voltage Test Table, Easy to Install
OW16B Multifunctional Digital Multimeter with Bluetooth and NCV True RMS test Backlit Voltage Test Table, Easy to InstallOW16B Bluetooth Digital Multimeter+ 3 5/6 bit resolution
+ Data Logger + Multimeter + Thermometer

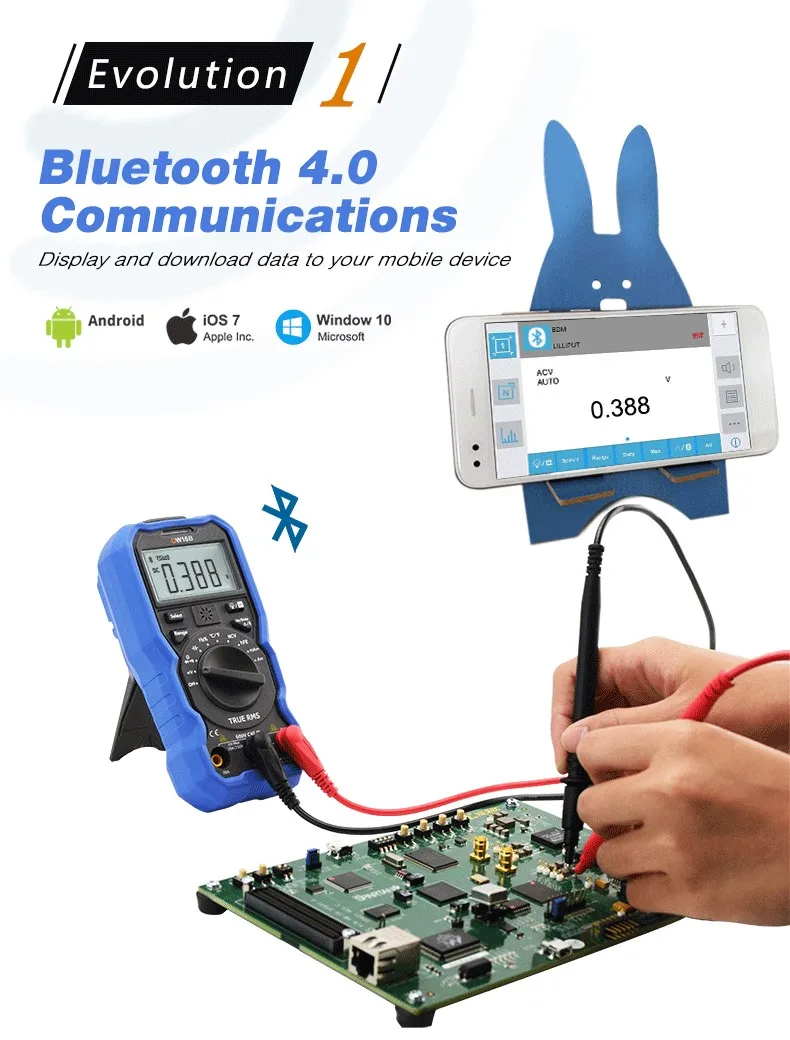

+ BLE 4.0 wireless transmission, more stable, less power consumption

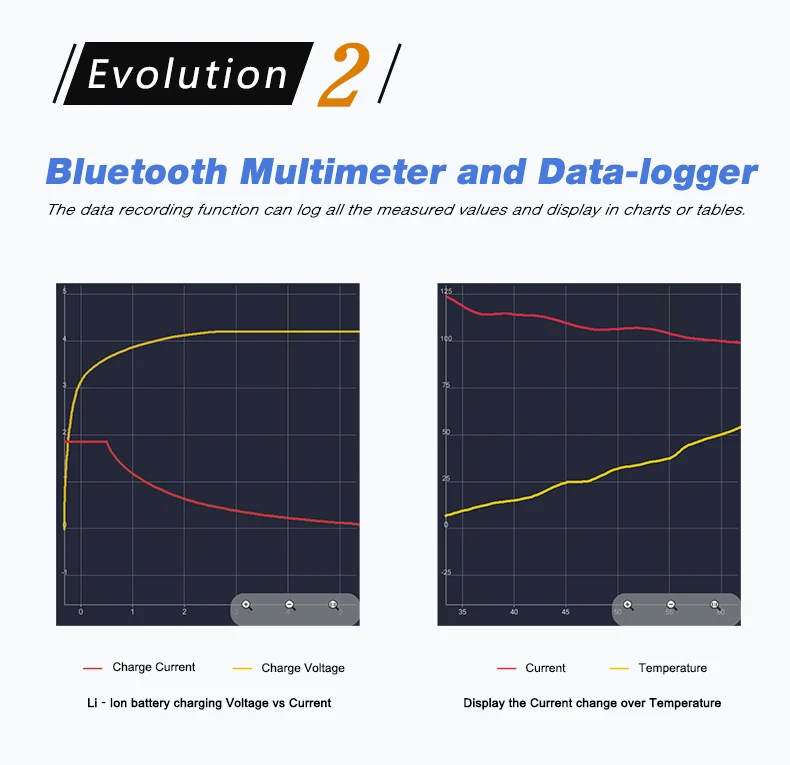

+ Chart and Diagram mode helps to analyze the data tendency
+ Support NCV non-contact voltage sense
+ True RMS test supported
+ Widely supported on Android, iOS and Windows

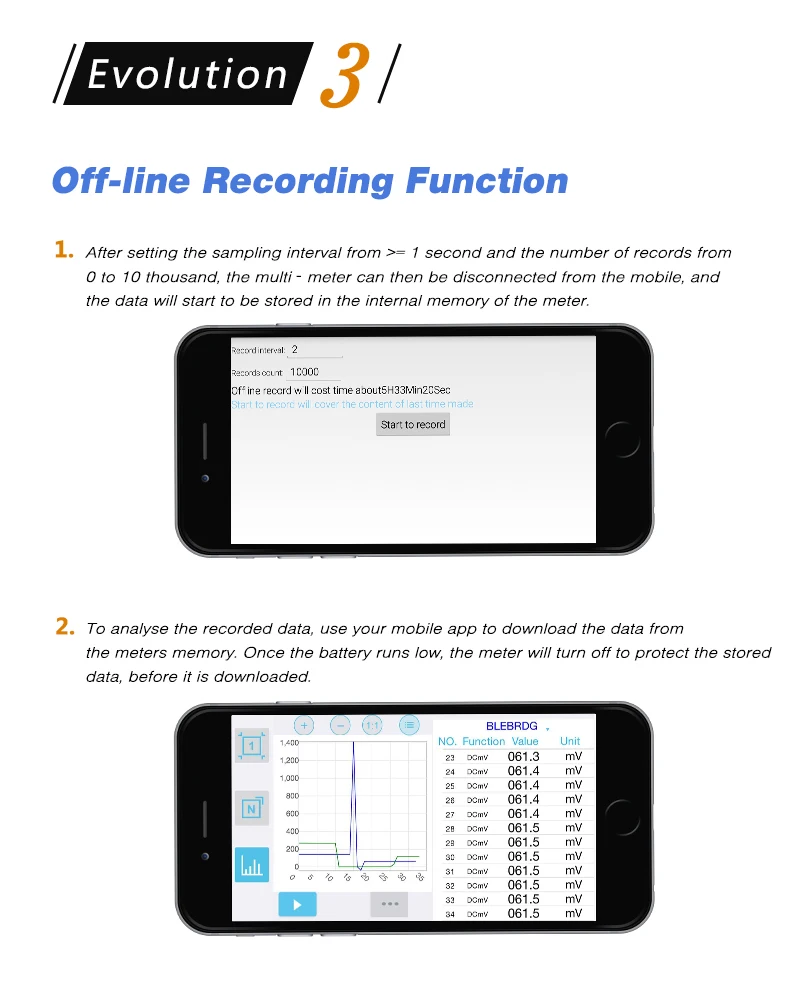

+ Build-in offline record function

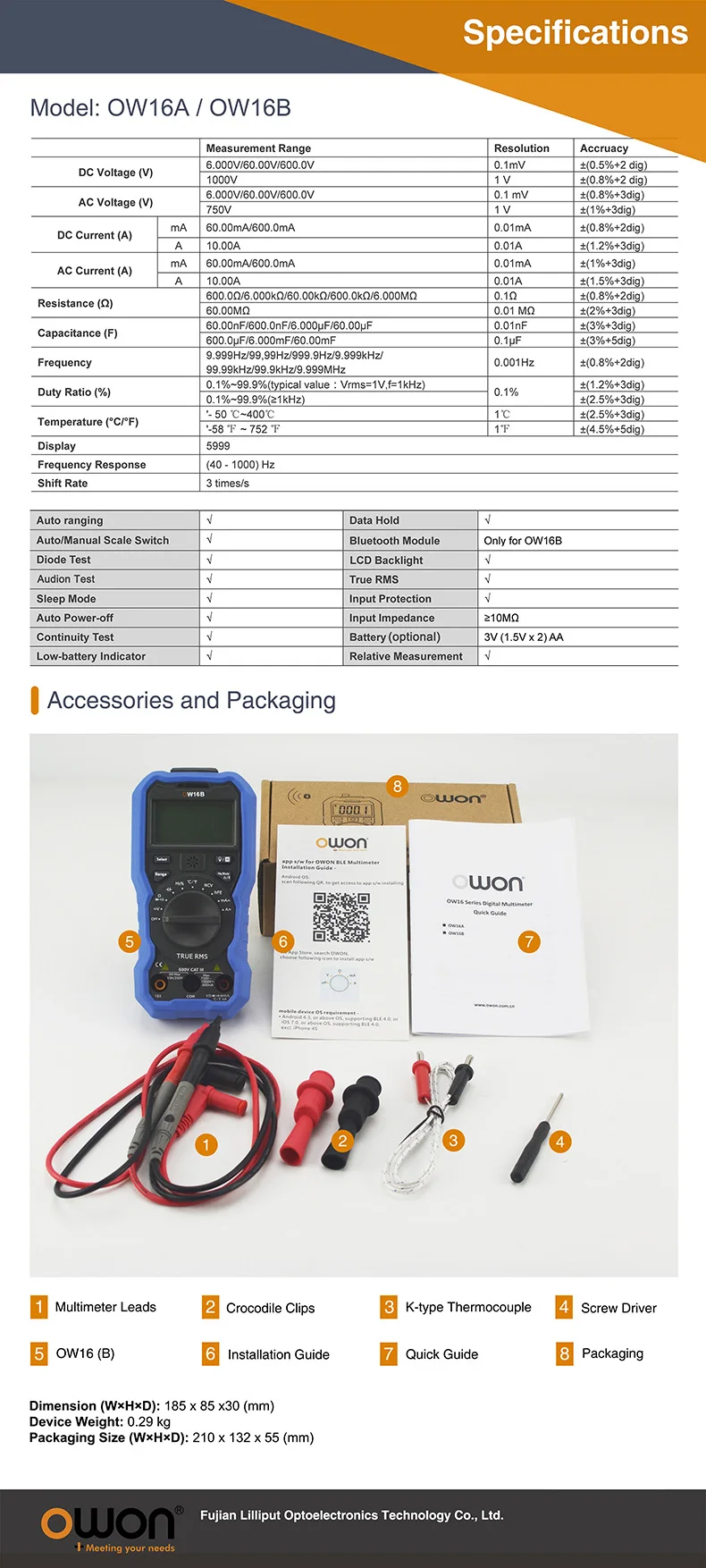

＋Specification model：OW16B
Measurement Range | Resolution | Accruacy | ||
DC Voltage (V) | 600.0mV/6.000V/60.00V/600.0V | 0.1mV | ±(0.5%+2 dig) | |
1000V | 1 V | ±(0.8%+2 dig) | ||
AC Voltage (V) | 600.0mV | 0.1mV | ±(2%+5dig) | |
6.000V/60.00V/600.0V | 1mV | ±(0.8%+3dig) | ||
750V | 1 V | ±(1%+3dig) | ||
DC Current (A) | μA | 600.0μA/6000μA ( EU ) | 0.1μA | ±(0.8%+2dig) |
mA | 60.00mA/600.0mA | 0.01mA | ||
A | 10.00A | 0.01A | ±(1.2%+3dig) | |
AC Current (A) | μA | 600.0μA/6000μA （EU） | 0.1μA | ±(1%+3dig) |
mA | 60.00mA/600.0mA | 0.01mA | ||
A | 10.00A | 0.01A | ±(1.5%+3dig) | |
Resistance (Ω) | 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ | 0.1Ω | ±(0.8%+2dig) | |
60.00MΩ | 0.01 MΩ | ±(2%+3dig) | ||
Capacitance (F) | 60.00nF/600.0nF/6.000μF/60.00μF | 0.01nF | ±(3%+3dig) | |
600.0μF/6.000mF/60.00mF | 0.1μF | ±(3%+5dig) | ||
Frequency | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz | 0.001Hz | ±(0.8%+2dig) | |
Duty Ratio (%) | 0.1%~99.9%(typical value：Vrms=1V,f=1kHz) | 0.1% | ±(1.2%+3dig) | |
0.1%~99.9%(≥1kHz) | ±(2.5%+3dig) | |||
Temperature (°C/°F) | - 50 ℃~400℃ | 1℃ | ±(2.5%+3dig) | |
-58 ℉ ~ 752 ℉ | 1℉ | ±(4.5%+5dig) | ||
Display | 5999 | |||
Frequency Response | (40 - 1000) Hz | |||
Shift Rate | 3 times/s |
Auto ranging | √ | Data Hold | √ |
Auto/Manual Scale Switch | √ | Bluetooth Module | √ |
LCD Backlight | √ | ||
Diode Test | √ | True RMS | √ |
Sleep Mode | √ | Input Protection | √ |
Auto Power-off | √ | Input Impedance | ≥10MΩ |
Continuity Test | √ | Battery | 3V (1.5V x 2) AA |
Low-battery Indicator | √ | Relative Measurement | √ |
＋
electronic circuit debugging circuit testing design and manufacture education and training automobile maintenance and testing
＋The accessories subject to final delivery.

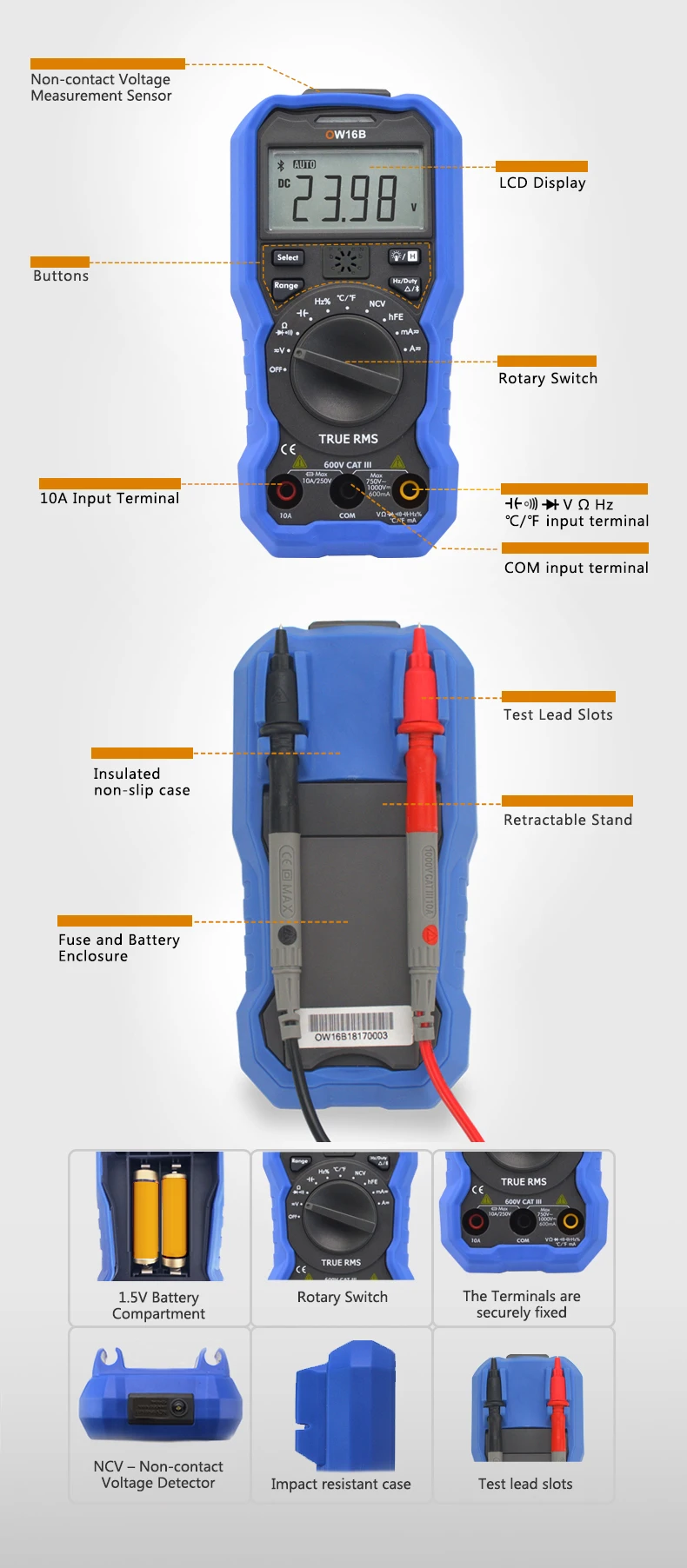

Multimeter Lead K-type Thermocouple Manual Bolt Driver Alligator Clip(optional)
