Product Description

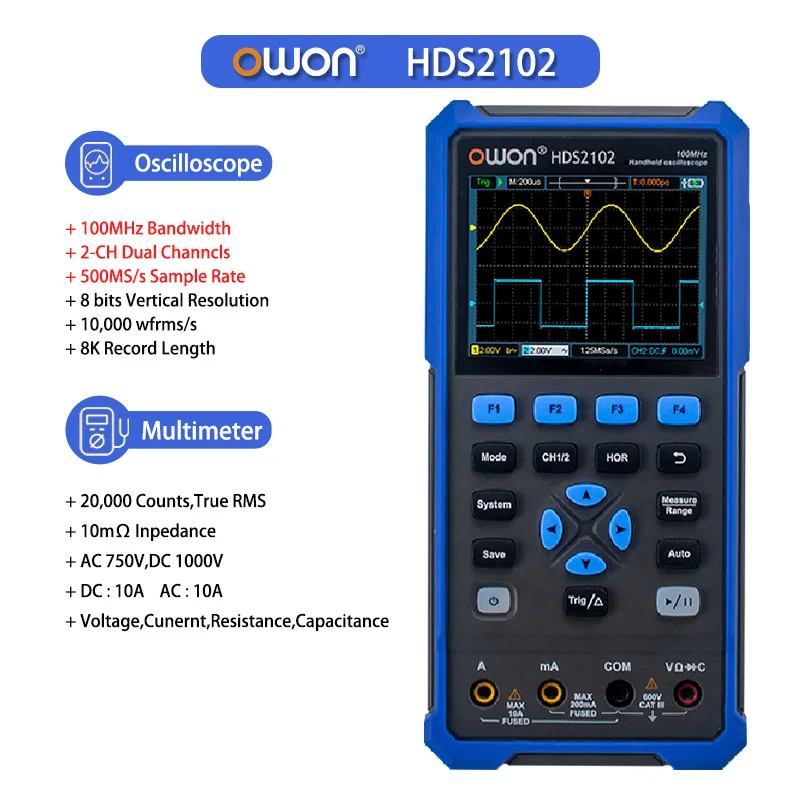

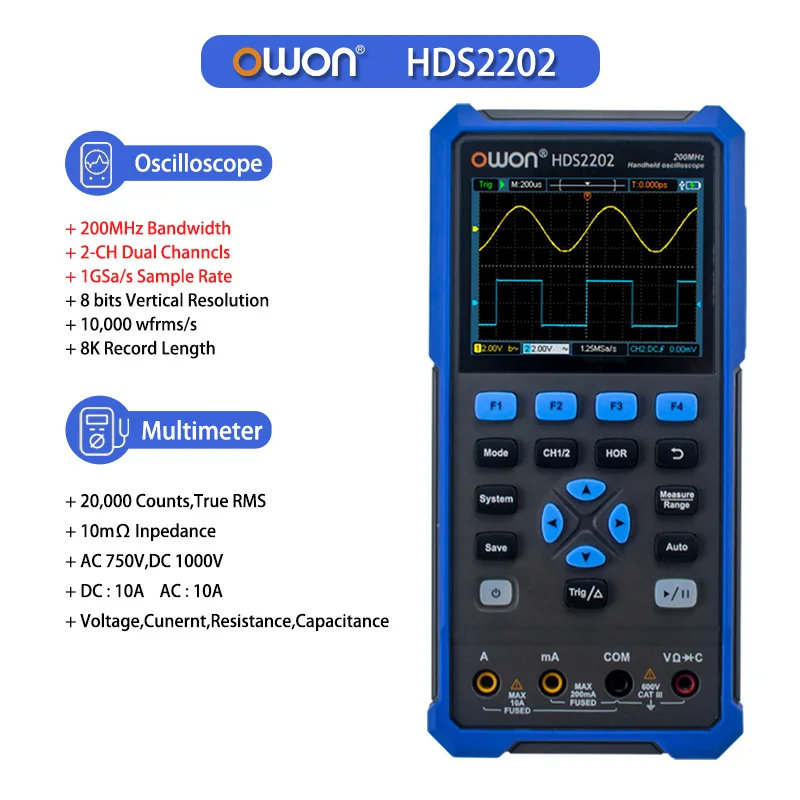

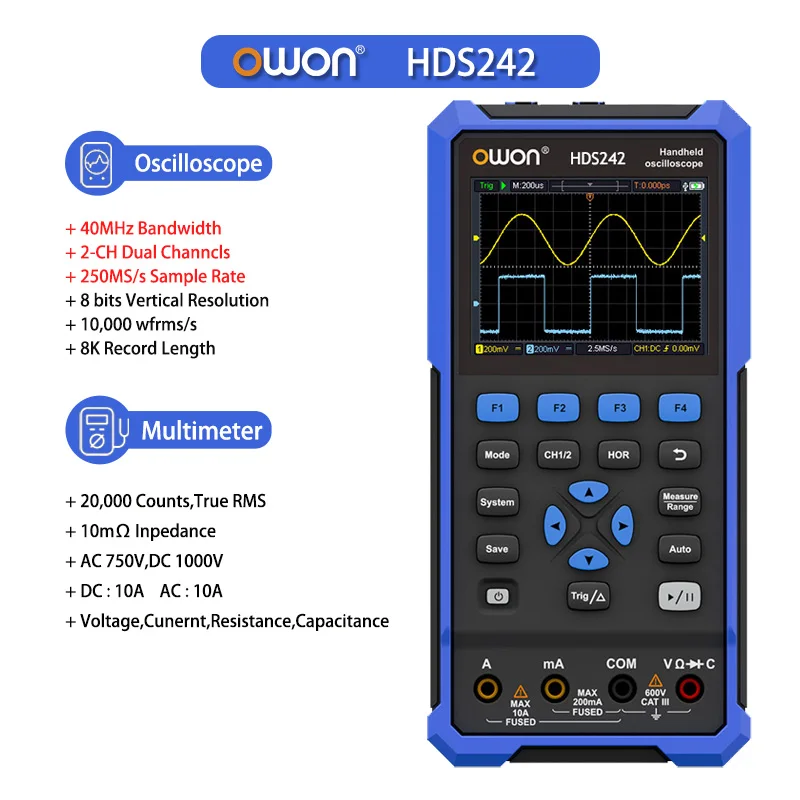

HDS242/HDS272/HDS2102/HDS2202 Multifunctional Handheld Digital Oscilloscope 100MHz 500MSa/s 2Channels Digital Multimeter
HDS242/HDS272/HDS2102/HDS2202 Multifunctional Handheld Digital Oscilloscope 100MHz 500MSa/s 2Channels Digital Multimeter2025 New current measurement function ！「Performance Characteristics」
Model | HDS242 | HDS272 | HDS2102 | HDS242S | HDS272S | HDS2102S |
Bandwidth | 40MHz | 70MHz | 100MHz | 40MHz | 70MHz | 100MHz |
Channel | 2 | 2+1(signal generator) | ||||
Sample rate | 250MSa/s | 500MSa/s | 250MSa/s | 500MSa/s | ||
Acquisition model | Sample, Peak detect | |||||
Record length | 8K | |||||
Display | 3.5 inch LCD | |||||
Waveform refresh rate | 10000 wfrms/s | |||||
Input coupling | DC, AC ,Ground | |||||
Input impedance | 1 MΩ±2%, in parallel with 16 pF±10 pF | |||||
Probe attenuation | 1X,10X,100X,1000X,10000X | |||||
Max. input voltage | 400V (DC+AC, PK - PK) | |||||
Bandwidth limit(typical) | 20MHz / Full bandwidth | |||||
Sampling rate range | 5ns/div~500s/div,step by 1 – 2 - 5 | 2ns/div~1000s/div, step by 1 – 2 - 5 | 5ns/div ~ 500s/div, step by 1 – 2 - 5 | 2ns/div~1000s/div, step by 1 – 2 - 5 | ||
Sensitivity Resolution | 10mV/div~10V/div | |||||
Low Frequency（-3db） | ≥10 Hz (at input, AC coupling) | |||||
Rise time (at input, Typical) | ≤8ns | ≤5ns | ≤3.5ns | ≤8ns | ≤5ns | ≤3.5ns |
Trigger type | Edge | |||||
Trigger model | Auto, Normal, single | |||||
Trigger level range | ±4 div from the screen center | |||||
Automatic measurement | Period, Frequency, Mean, PK-PK, Max, Min，Amplitude | |||||
Cursor measurement | ΔV, ΔT, ΔT&ΔV between cursors,auto cursor | |||||
Communication interface | USB Type-C |
「Digital Multimeter Specification」
Full scale reading | 4digitals（max 20000 count） |
Testing Modes | Voltage, Current, Resistance, Capacitance, Diode ,Continuity |
Maximum Input Voltage | AC 750V， DC 1000V |
Maximum Input Current | DC : 10A AC : 10A |
Diodes Test | 0-2V |
Measurement Range | Accuracy | |
DC Voltage | 200.00mV | ±(0.3%+10 dig) |
2.0000V/20.000V/200.00V | ±(0.3%+5 dig) | |
1000.0V | ||
AC Voltage | 200.00mV/2.0000V/20.000V/200.00V | ±(0.8%+10dig) |
750.00V | ±(1%+10dig) | |
DC Current | 200.00mA | ±(0.8%+10dig) |
10.000A | ±(2.5%+10dig) | |
AC Current | 200.00mA | ±(1%+10dig) |
10.000A | ±(2.8%+10dig) | |
Resistance (Ω) | 200.00Ω/2.0000kΩ/20.000kΩ/200.00kΩ/2.0000MΩ | ±(0.8%+10dig) |
20.000MΩ | ±(1%+3dig) | |
100.00MΩ | ±(5%+10dig) | |
Capacitance (F) | 20.000nF/200.00nF/2.0000μF/20.000μF/200.00μF/2.0000mF | ±(3.0%+10dig) |
Frequency response（Hz） | (40 - 1000) Hz |
「Signal Generator Specification 」(HDS242S & HDS272S & HDS2102SHDS2202S)
Frequency Output | Sine | 0.1Hz~25MHz |
Square | 0.1Hz~5MHz | |
Ramp | 0.1Hz~1MHz | |
Pulse | 0.1Hz~5MHz | |
Arbitrary Waveform | 0.1Hz~5MHz | |
Sample Rate | 125MSa/s | |
Channel | 1 | |
Amplitude | 20mVpp-5Vpp（high impedance），10mVpp-2.5Vpp (50Ω) | |
Waveform length | 8K | |
Vertical resolution | 14bits | |
Load impedance | 50Ω |
＋Accessories (the accessories subject to final delivery)
Power Cord Probe Quick Guide USB Cable Multimeter Lead Probe Adjust Soft Bag BNC plug to alligator clips cable
