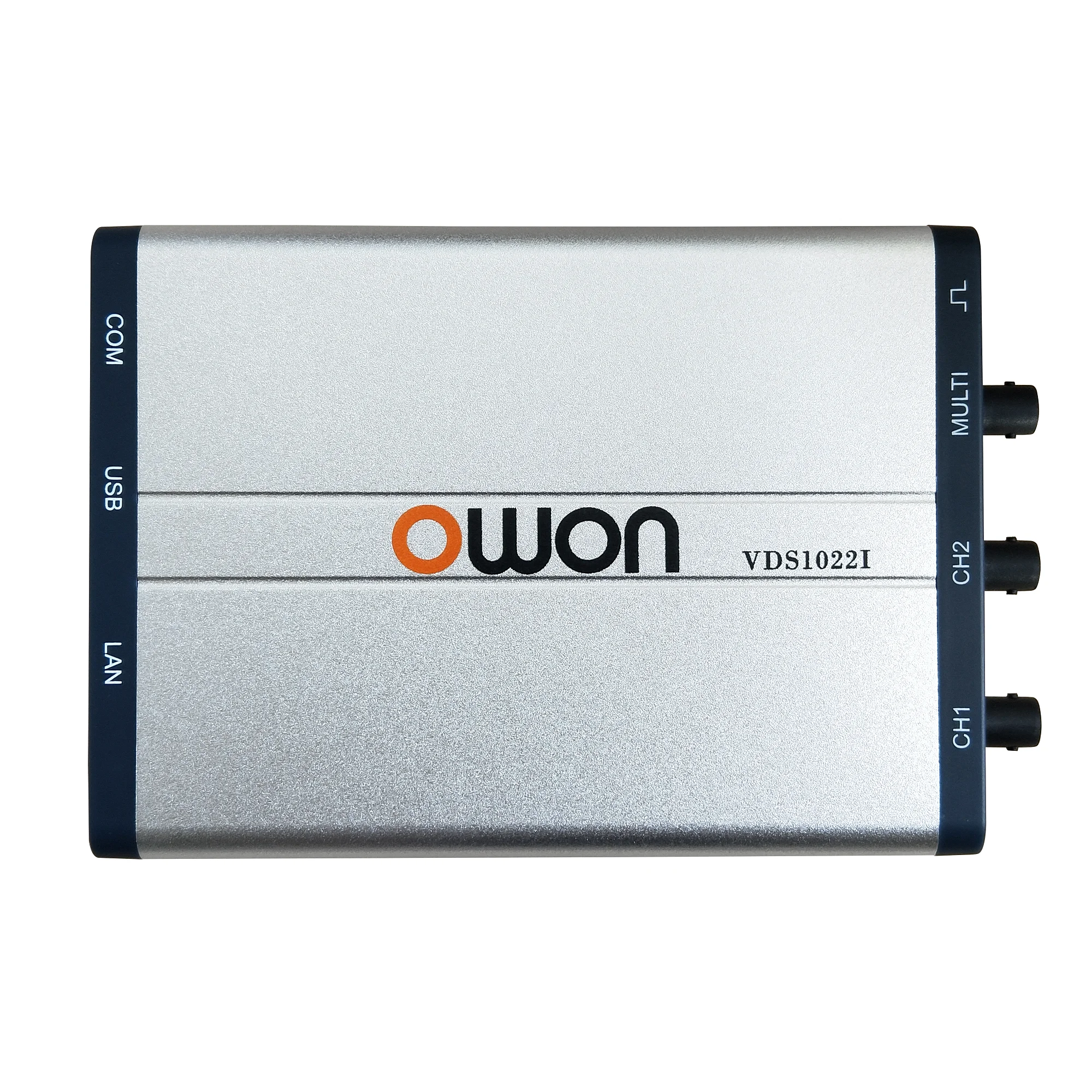

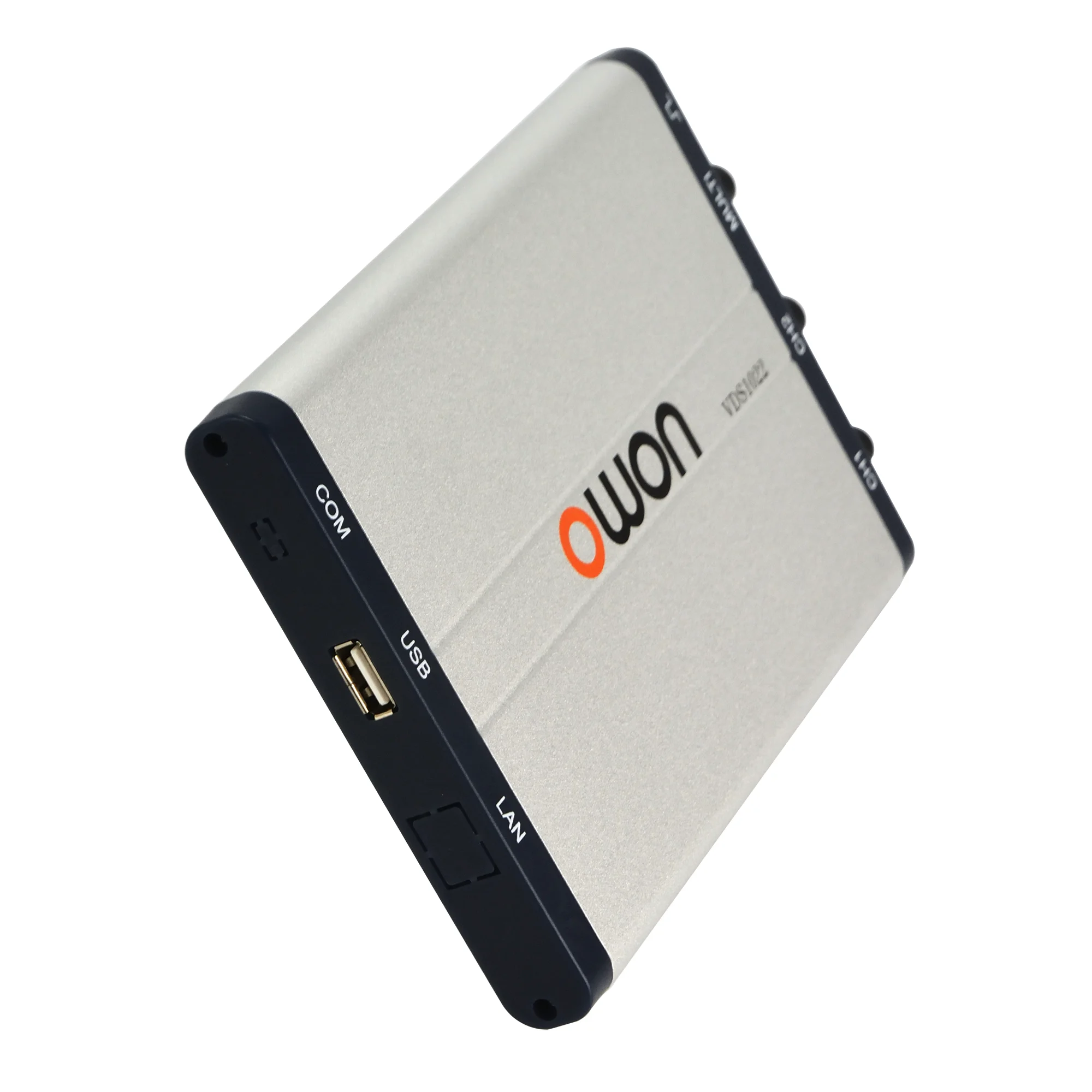

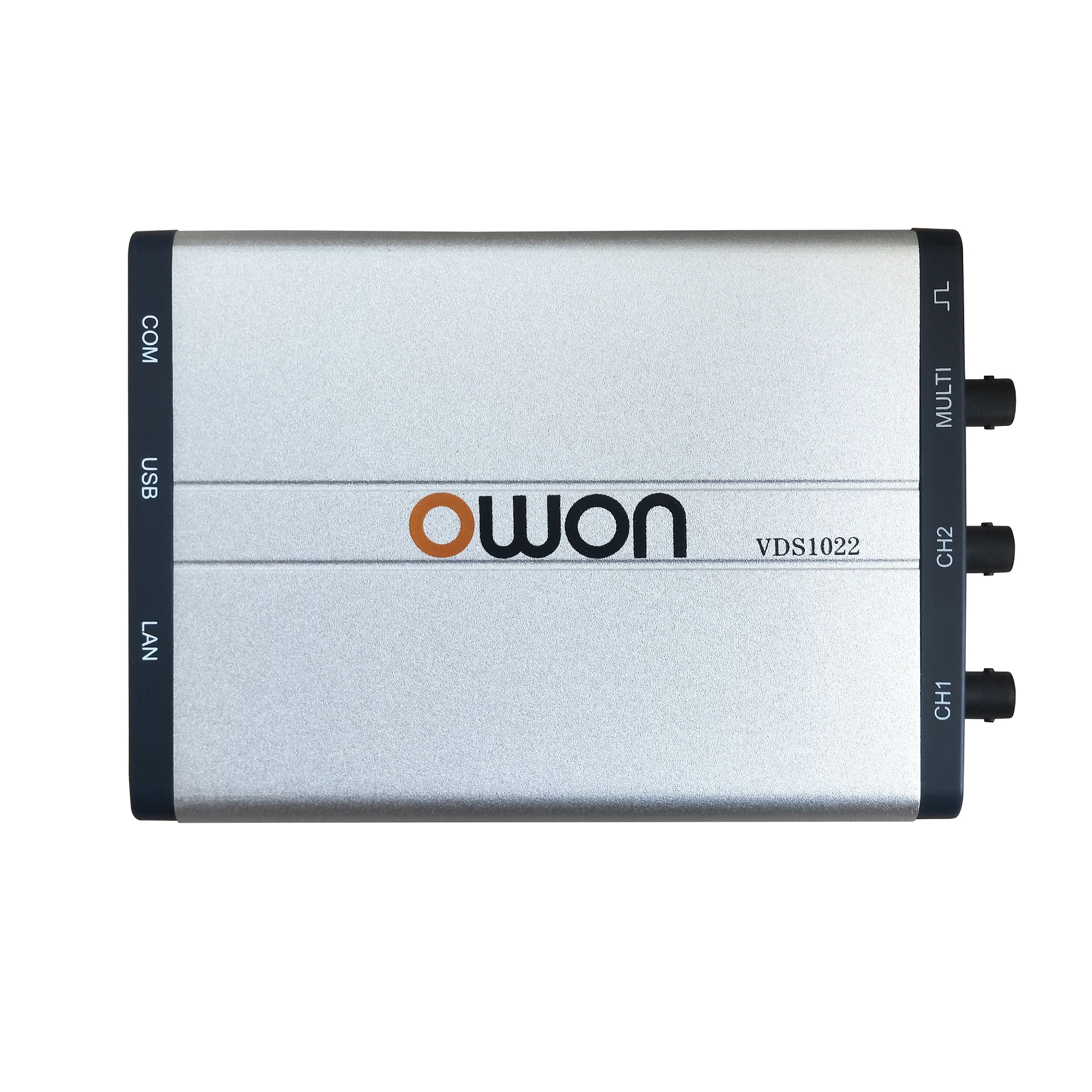

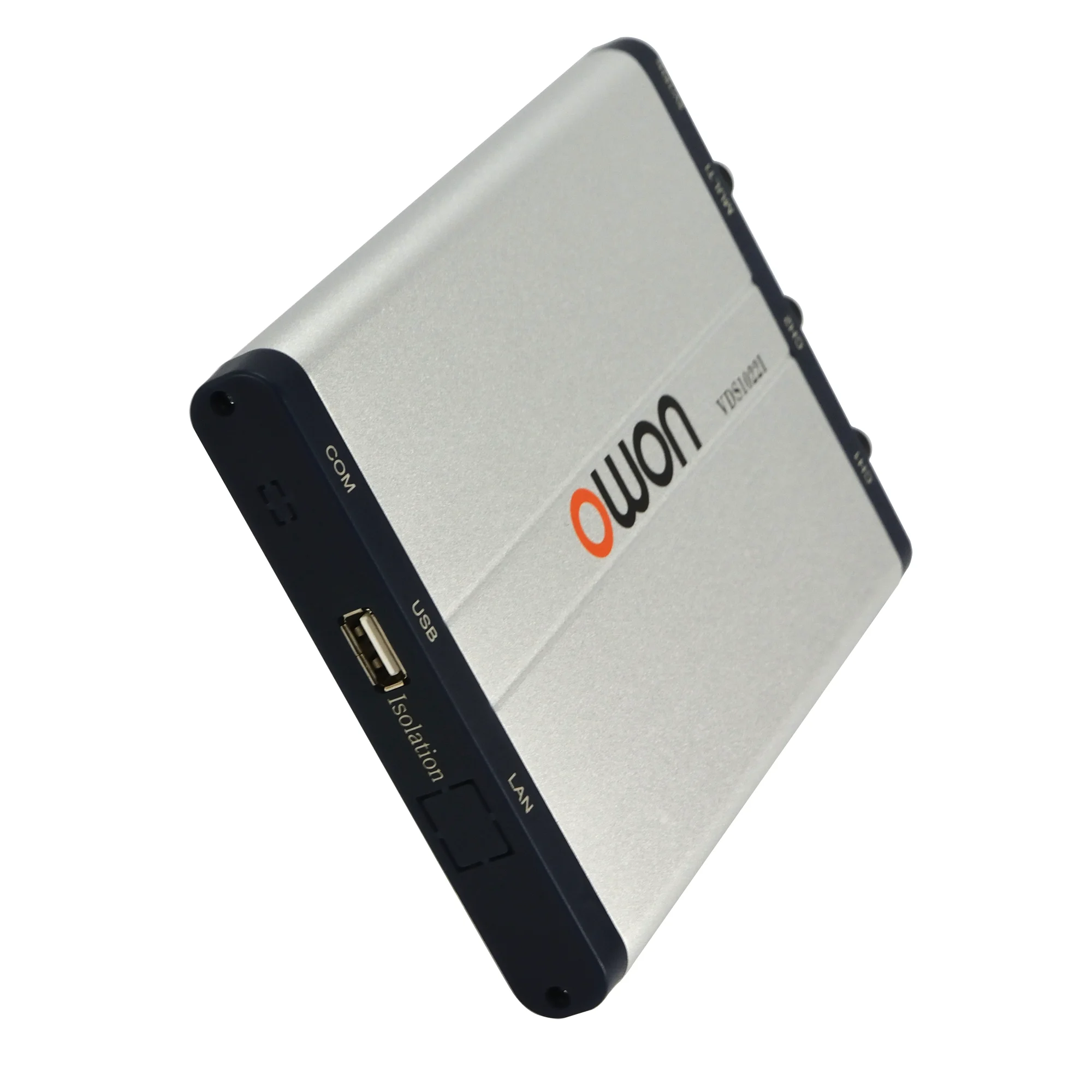

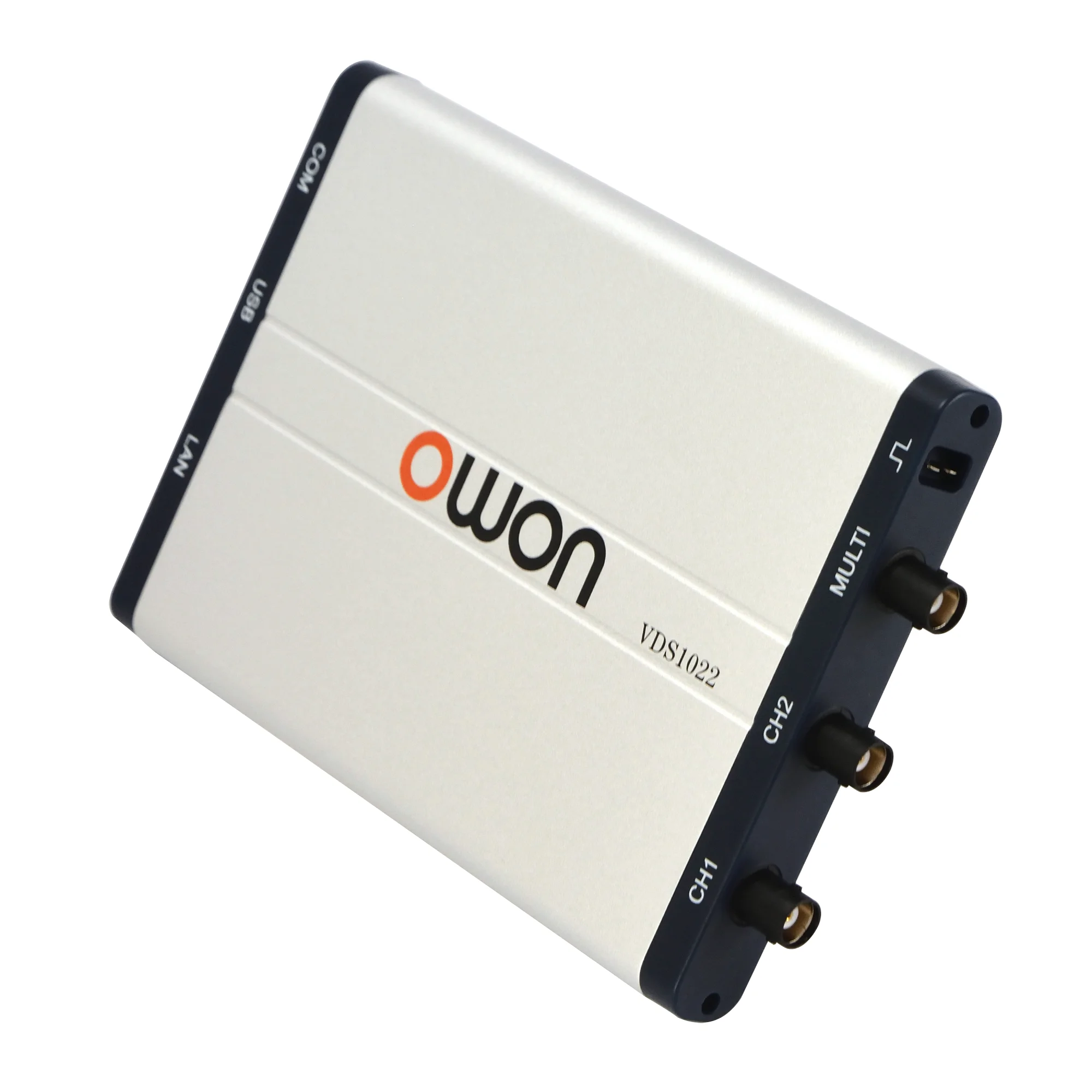

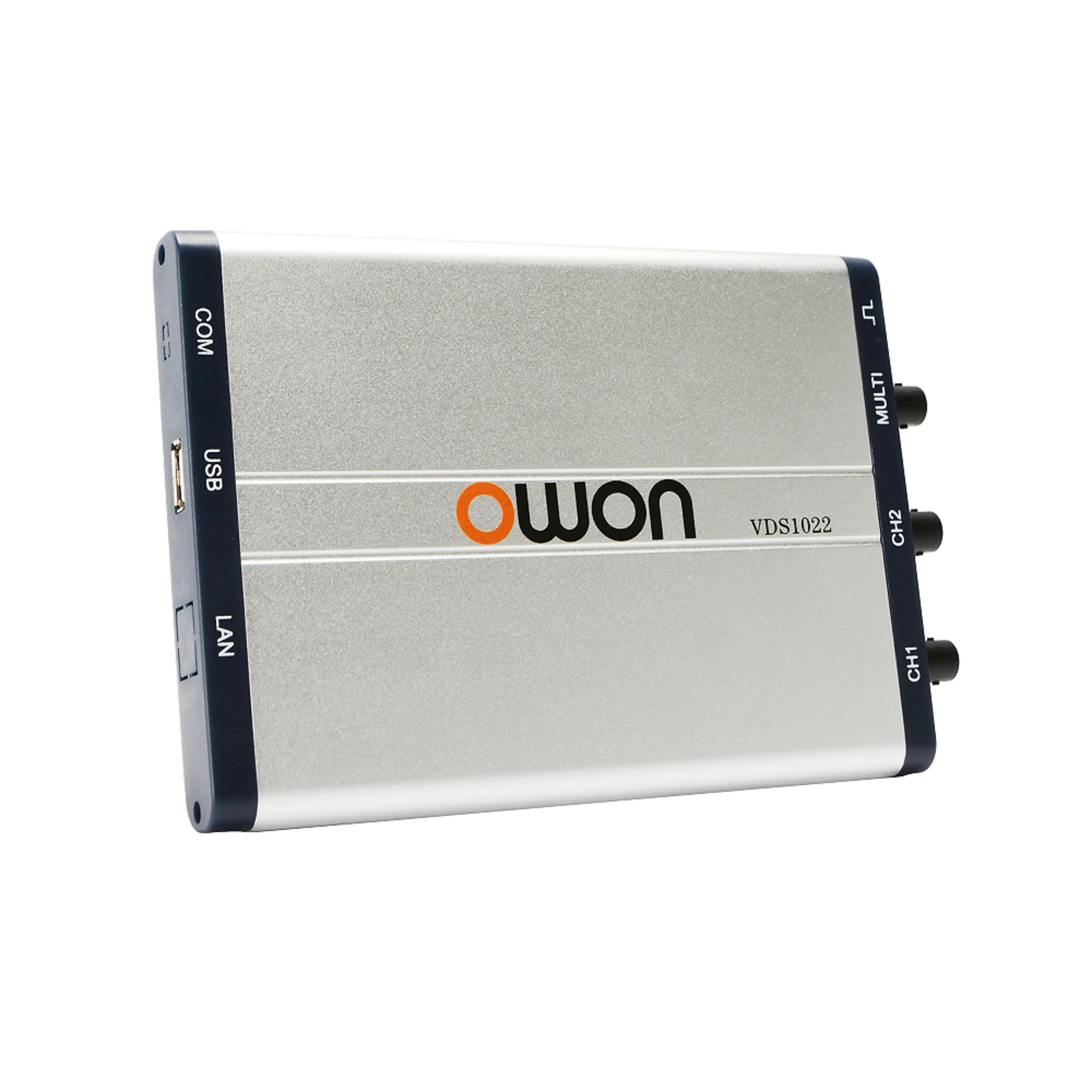

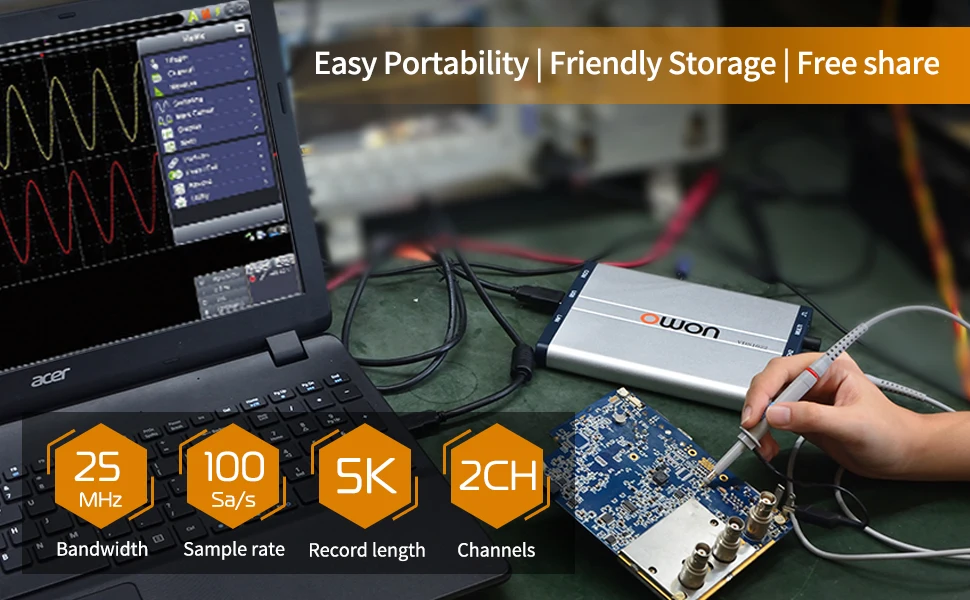

VDS1022(I) PC Digital PC Oscilloscope 25MHz 100MSa/s 2ch+1ch Multi-Trigger Option Ultra-Thin Body Design, Easy Portability
VDS1022(I) PC Digital PC Oscilloscope 25MHz 100MSa/s 2ch+1ch Multi-Trigger Option Ultra-Thin Body Design, Easy PortabilityVDS Series PC Oscilloscope+ Up to 100MHz bandwidth,
and max 1GS/s real-time sample rate
+ 2/4channels
+ Max 10M record length
+ Friendly UI: FFT, or X-Y, and waveform 2 views
displayed on the same screen
+ Multi-trigger option:
edge, video, slope, pulse, and alternate

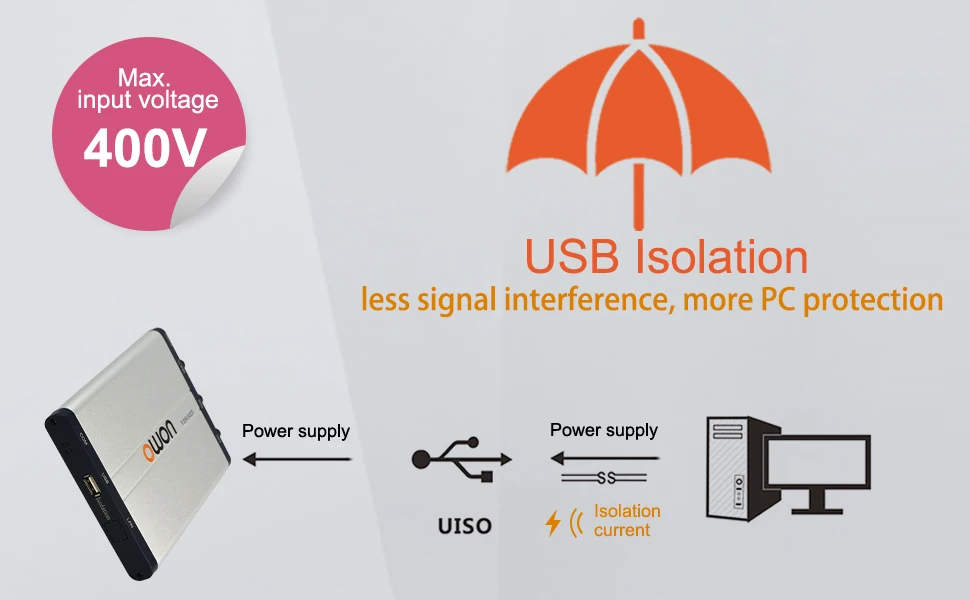

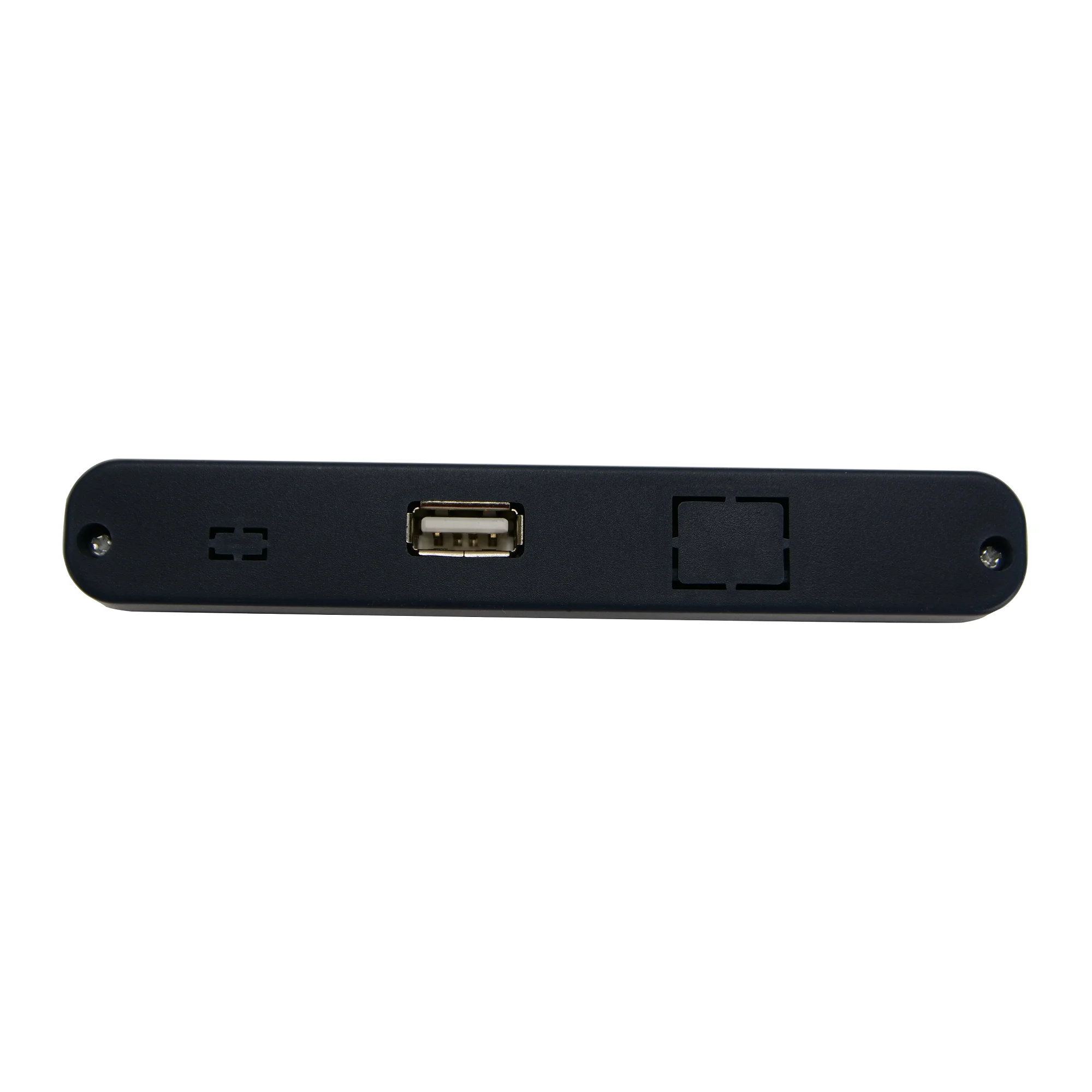

+ USB isolation - less signal interference,
more PC protection
+ USB bus powering, and LAN remote control (optional)
+ Ultra-thin body design, easy portability
+ SCPI supported
+ LabVIEW supported (only in VDS3102, and VDS3104)
＋Performance Specifications

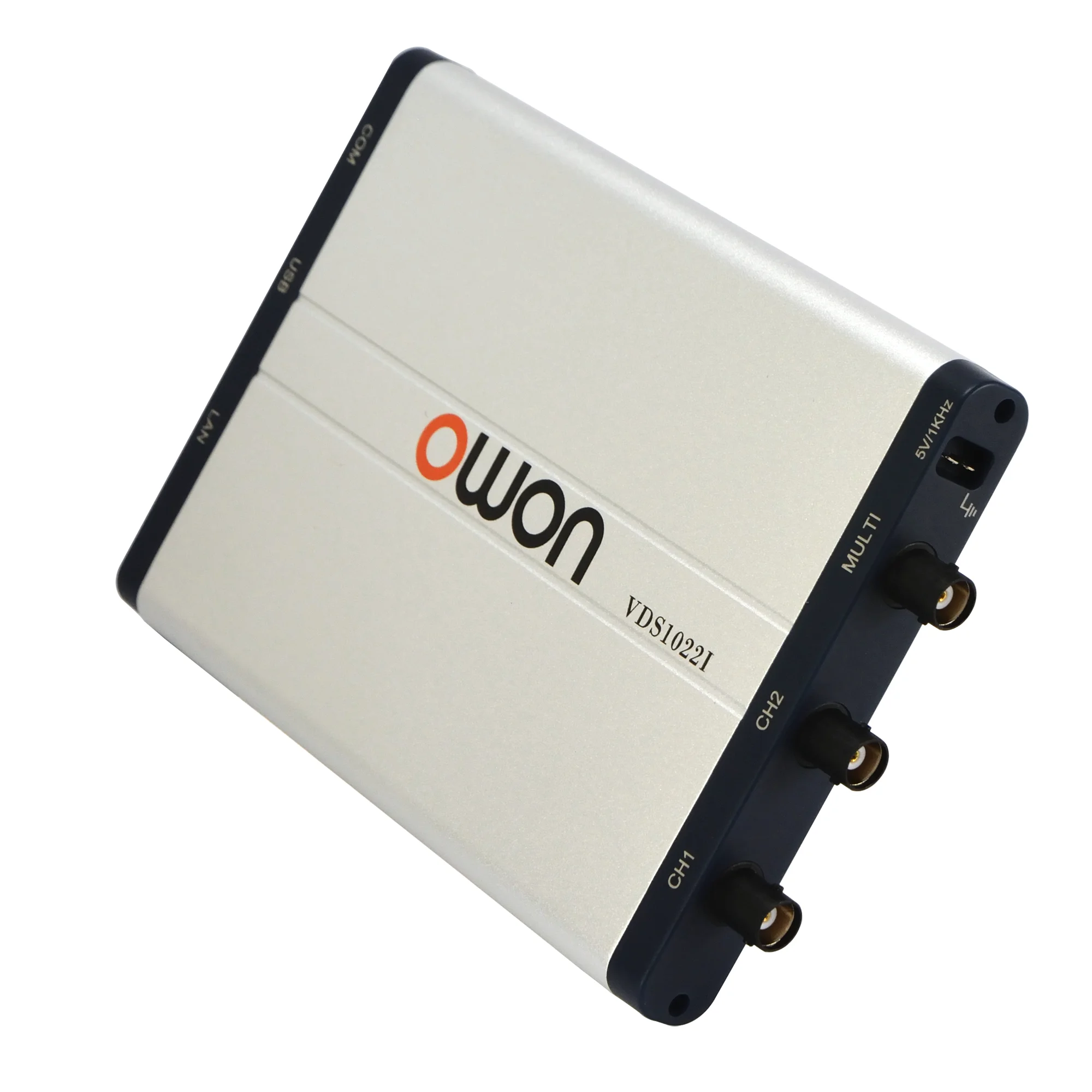

Model | VDS1022I | VDS1022 |
Bandwidth | 25MHZ | |
Channel | 2 channel + multi | |
Sample Rate | 100MSa/s | |
Horizontal Scale (s/div) | 5ns/div～100s/div, step by 1～2～5 | |
Rise Time | ≤14 ns | |
Record Length | 5K | |
Input Coupling | DC, AC, GND | |
Input Impedance | 1MΩ±2%，in parallel with10pF±5pF | |
Channels Isolation | 50Hz : 100 : 1, 10MHz : 40 : 1 | |
Max Input Voltage | 400V (PK - PK) (DC+AC, PK - PK) | 40V (PK - PK) (DC+AC, PK - PK) |
DC Gain Accuracy | ±3% | |
DC Accuracy | Average≥16: ±(3% reading + 0.05div) for △T | |
Probe Attenuation Factor | 1X, 10X, 100X, 1000X | |
LF Respond (AC, -3dB) | ≥5Hz (at input, AC coupling, -3dB) | |
Sampling Rate / Relay Time Accuracy | 150ps | |
Interpolation | sin(x) / x | |
Interval (△T) Accuracy (full bandwidth) | Single: ± (1 interval time + 100ppm × reading + 0.6ns), Average >16: ±(1 interval time + 100ppm × reading + 0.4ns) | |
Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) | |
Vertical Sensitivity | 5mV/div～5V/div | |
Trigger Type | Edge, Pulse, Video, Slope, and Alternate | |
Trigger Mode | Auto, Normal, and Single | |
Trigger Level | ±5 divisions from screen center | |
Acquisition Mode | Sample, Peak Detect, and Average | |
Line / Field Frequency (video) | NTSC, PAL, and SECAM standard | |
Cursor Measurement | △V, and △T between cursors | |

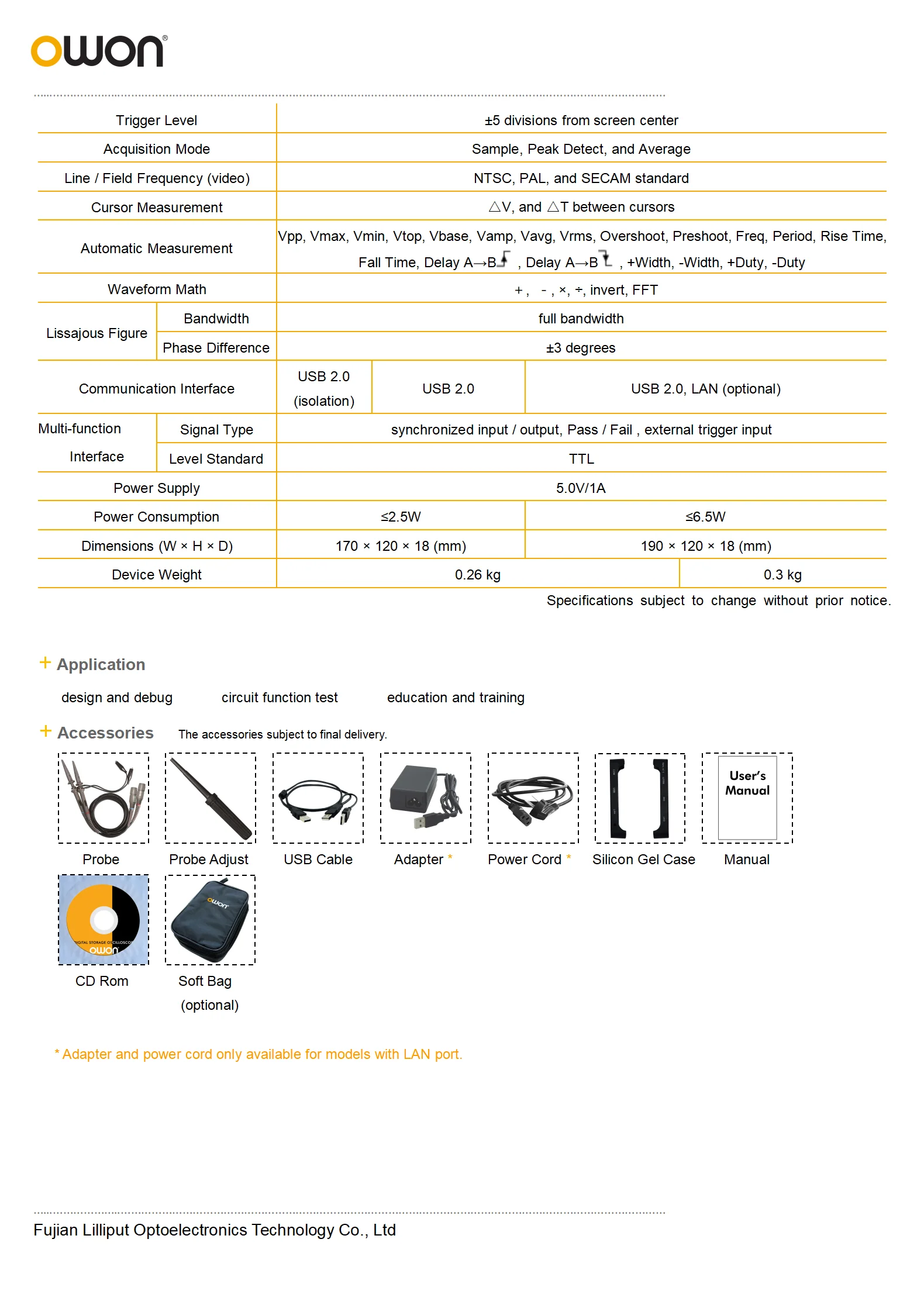

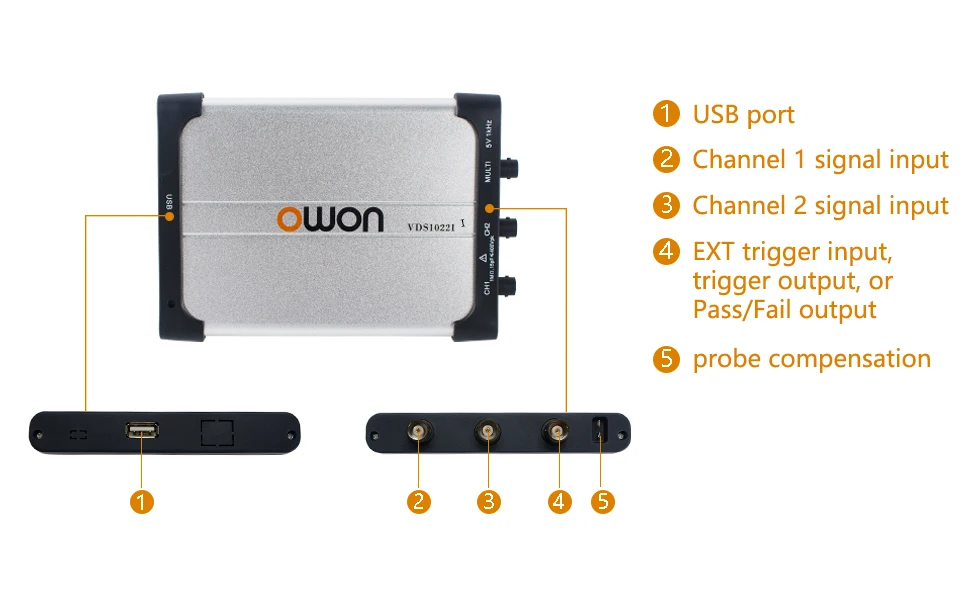

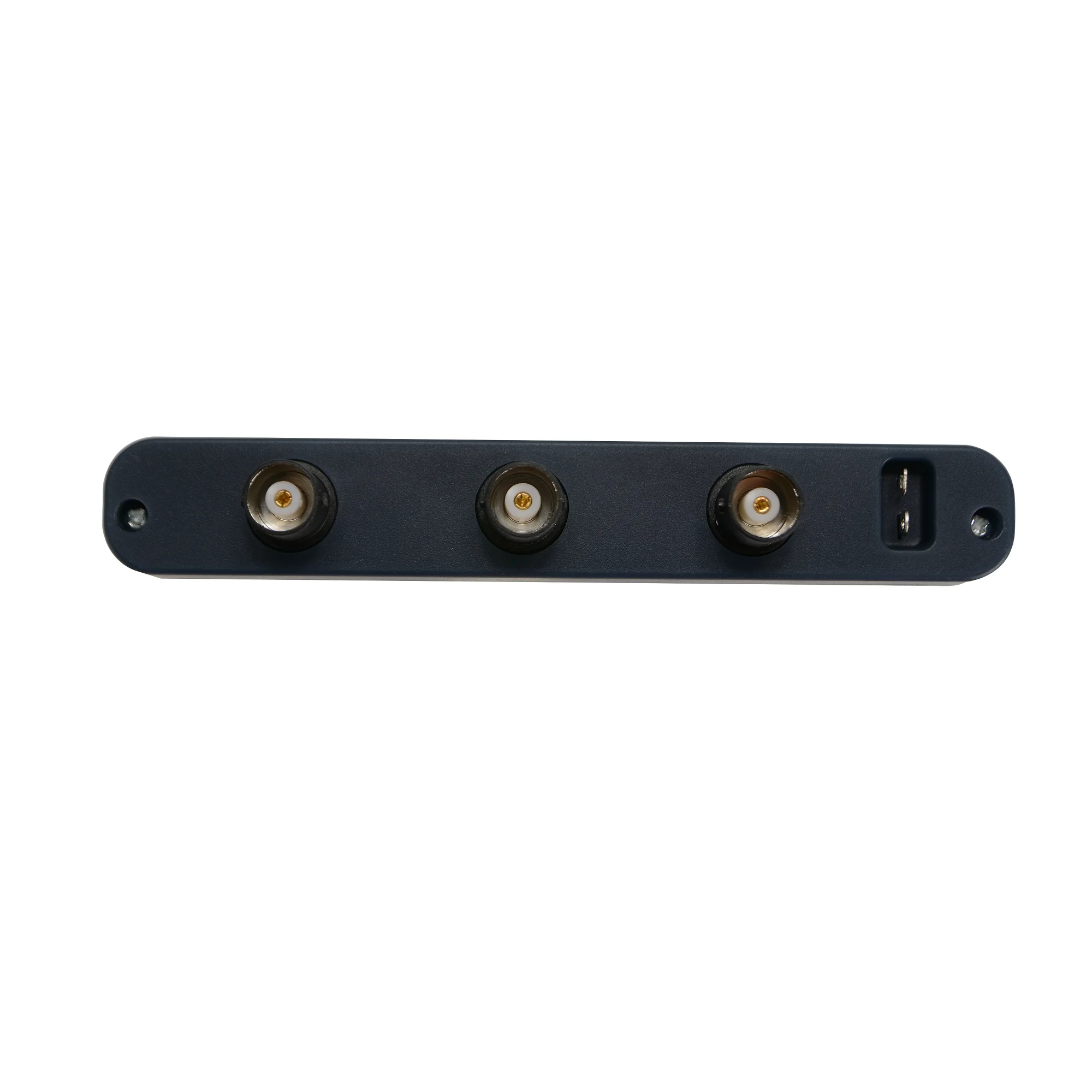

Automatic Measurement | Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty | |
Waveform Math | ＋, －, ×, ÷, invert, FFT | |
Lissajous Figure | Bandwidth | full bandwidth |
Phase Difference | ±3 degrees | |
Communication Interface | USB 2.0 (isolation) | USB 2.0 |
Multi-function Interface | Signal Type | synchronized input / output, Pass / Fail , external trigger input |
Level Standard | TTL | |
Power Supply | 5.0V/1A | |
Power Consumption | ≤2.5W | |

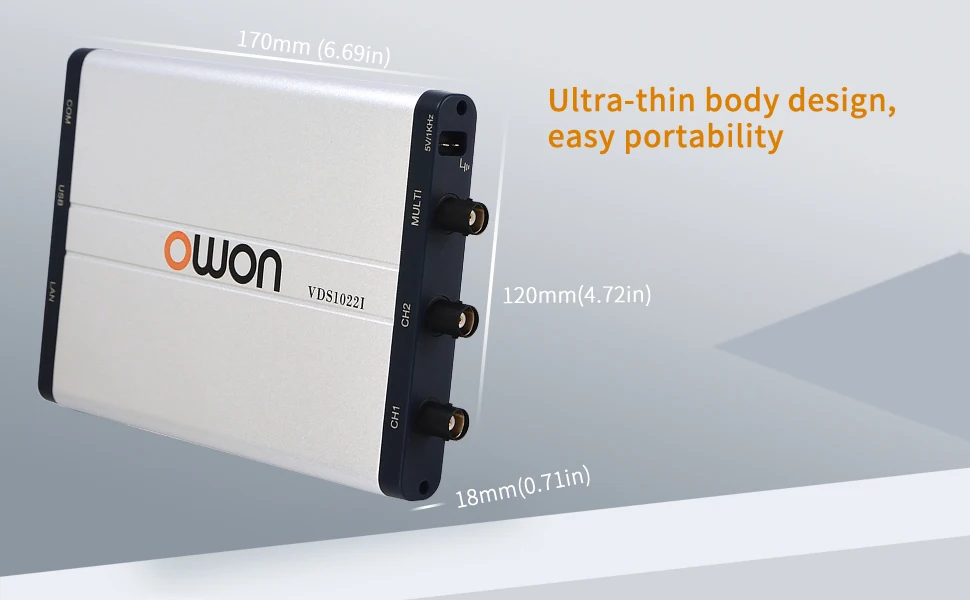

Dimensions (W × H × D) | 170 × 120 × 18 (mm) | |
Device Weight | 0.26 kg |
Specifications subject to change without prior notice.
＋
design and debug circuit function test education and training
＋The accessories subject to final delivery.

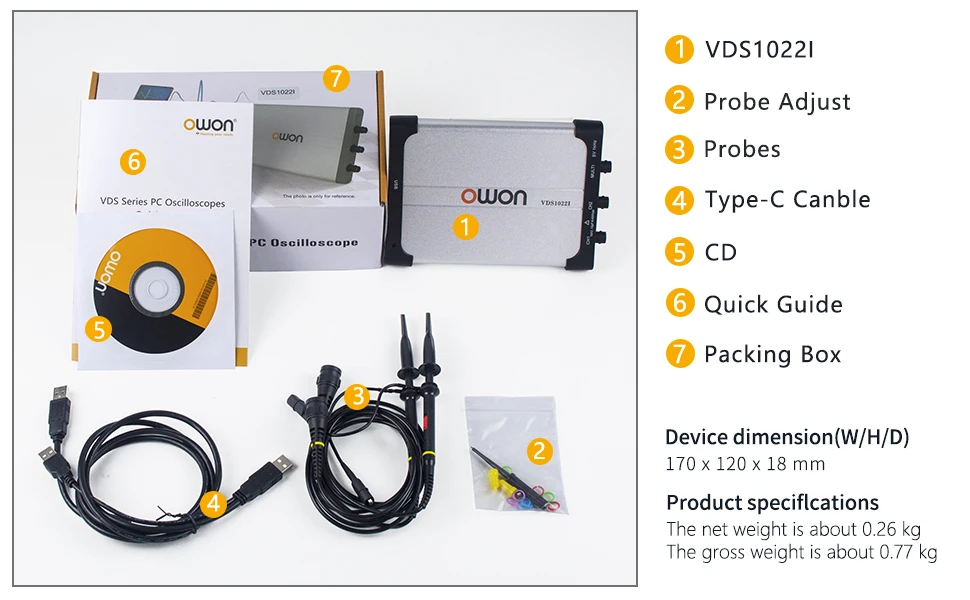

Probe Probe Adjust USB Cable Adapter * Power Cord *Silicon Gel Case Manual CD Rom Soft Bag（optional）
