Product Description
Professional Spectral Light Meter 0-1000000Lux Lux Meter LS330 Luxmeter PPFD CCT UVI CRI Spectrum Curve Lux Tester for Plants
Professional Spectral Light Meter 0-1000000Lux Lux Meter LS330 Luxmeter PPFD CCT UVI CRI Spectrum Curve Lux Tester for PlantsDescription

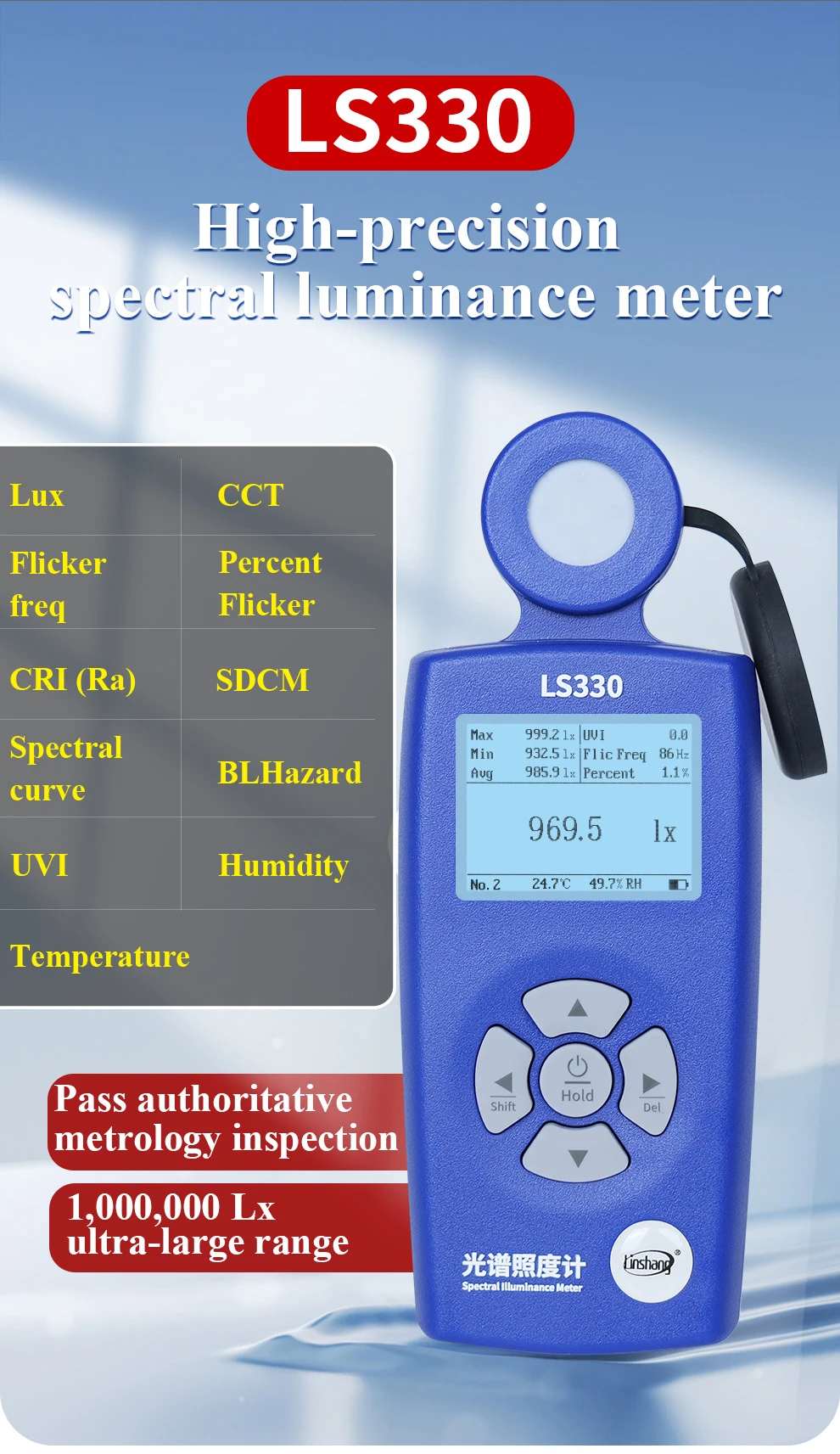

LS330 spectral illuminance meter is a versatile instrument designed with a spectral sensor. The illuminance meter is used for measuring Lux, UV index, flicker frequency, standard deviation of color matching (SDCM), color rendering index (CRI), correlated color temperature (CCT), blue light hazard ratio, temperature, and humidity in various scenarios such as lamps and lanterns lighting, outdoor lighting, greenhouse lighting, and stage lighting. The Lux meter digital also can display the spectral curve, which helps identify the type of lighting fixture.
Specifications
Illuminance Wavelength Range | 400nm ~ 700nm |
Illuminance Wavelength Interval | 10nm |
Illuminance Measurement Range | 0 ~ 1,000,000 Lx |
Illuminance Resolution | 0.1 Lx |
Illuminance Measurement Accuracy | ≤±(3%H + 2 Lx), H is the standard value, calibrated under CIE standard A light source |
Illuminance Unit Options | Lx (default), FC |
Correlated Color Temperature Range | 1000 ~ 100000 K |
UV Index Measurement Range | 0.0 ~ 15.0 |
Flicker Frequency Measurement Range | 10 ~ 500 Hz |
Temperature Measurement Accuracy | ±0.5℃ |
Humidity Measurement Accuracy | ±4%RH |
Response Time | <0.7 seconds |
Test Aperture Diameter | Φ21mm |
Size | 188.5mm × 75.2mm × 30.3mm |
Weight | About 232g (including batteries) |
Display | 240×160 Dot Matrix LCD |
Power Supply | 2 AA Alkaline Batteries |
Operating Environment | Temperature 0 ~ 40℃, Humidity <85%RH |
Features
1.Simple operation, complete functions.
2.1000000 Lx ultra-large range, suitable for various illuminance measurements.
3.Spectral sensor suitable for the human eye spectrum, the spectral response matches the V(λ) function.
4.Flicker measurement can evaluate if lighting pass authoritative metrology inspection.
5.CRI measurement function can assess how well the light source reproduces the true colours of objects.
6.CCT measurement function can identify if the color temperature of lighting meets requirements.
7.It can display spectral curve, identify if the lighting is full-spectrum LED.
8.It can measure UVI, temperature, and humidity, suitable for greenhouse light source detection.

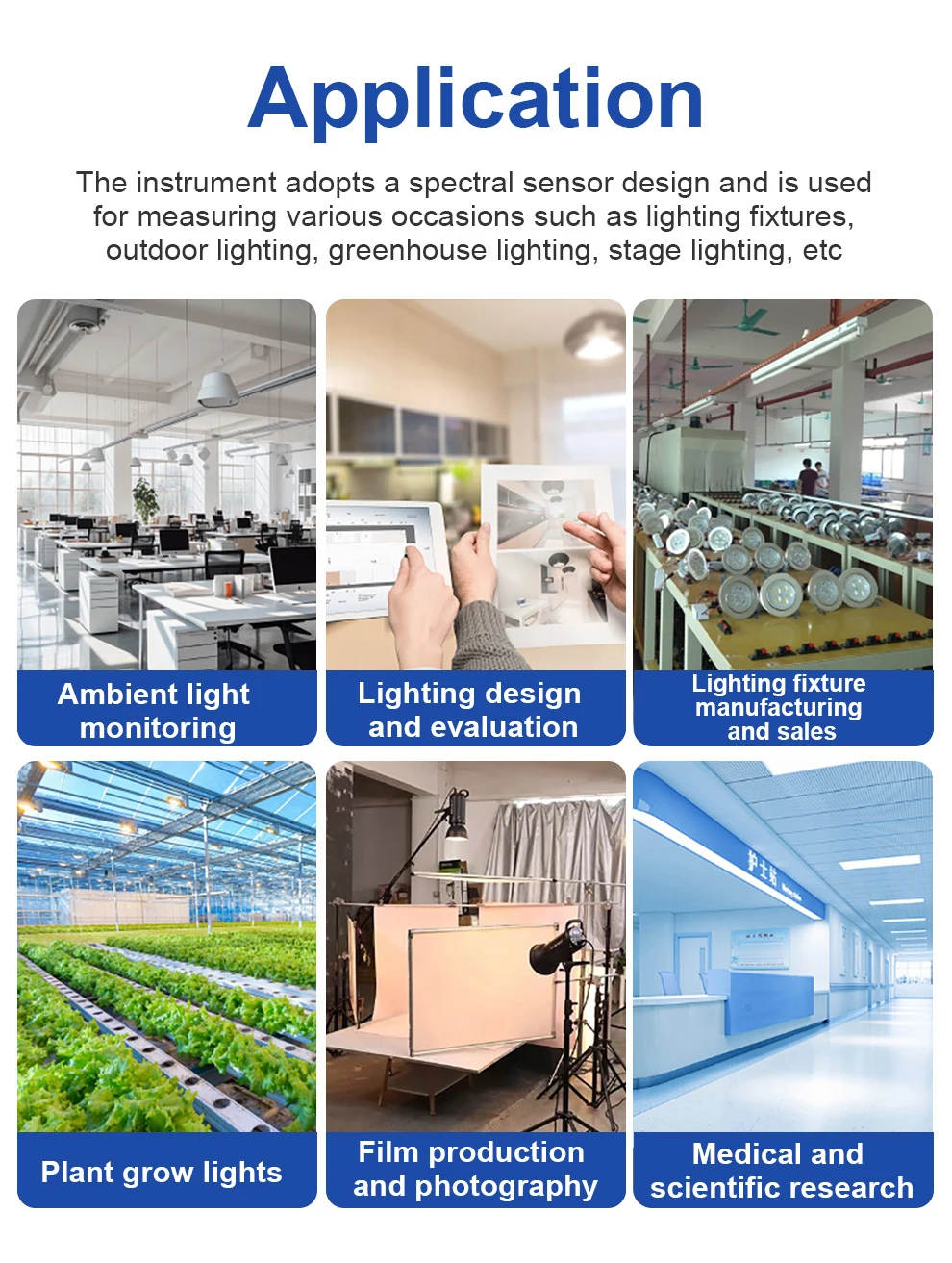

Wide Application
The luminometer adopts a spectral sensor design and is used for measuring various occasions such as lighting fixtures, outdoor lighting, greenhouse lighting, stage lighting, etc..

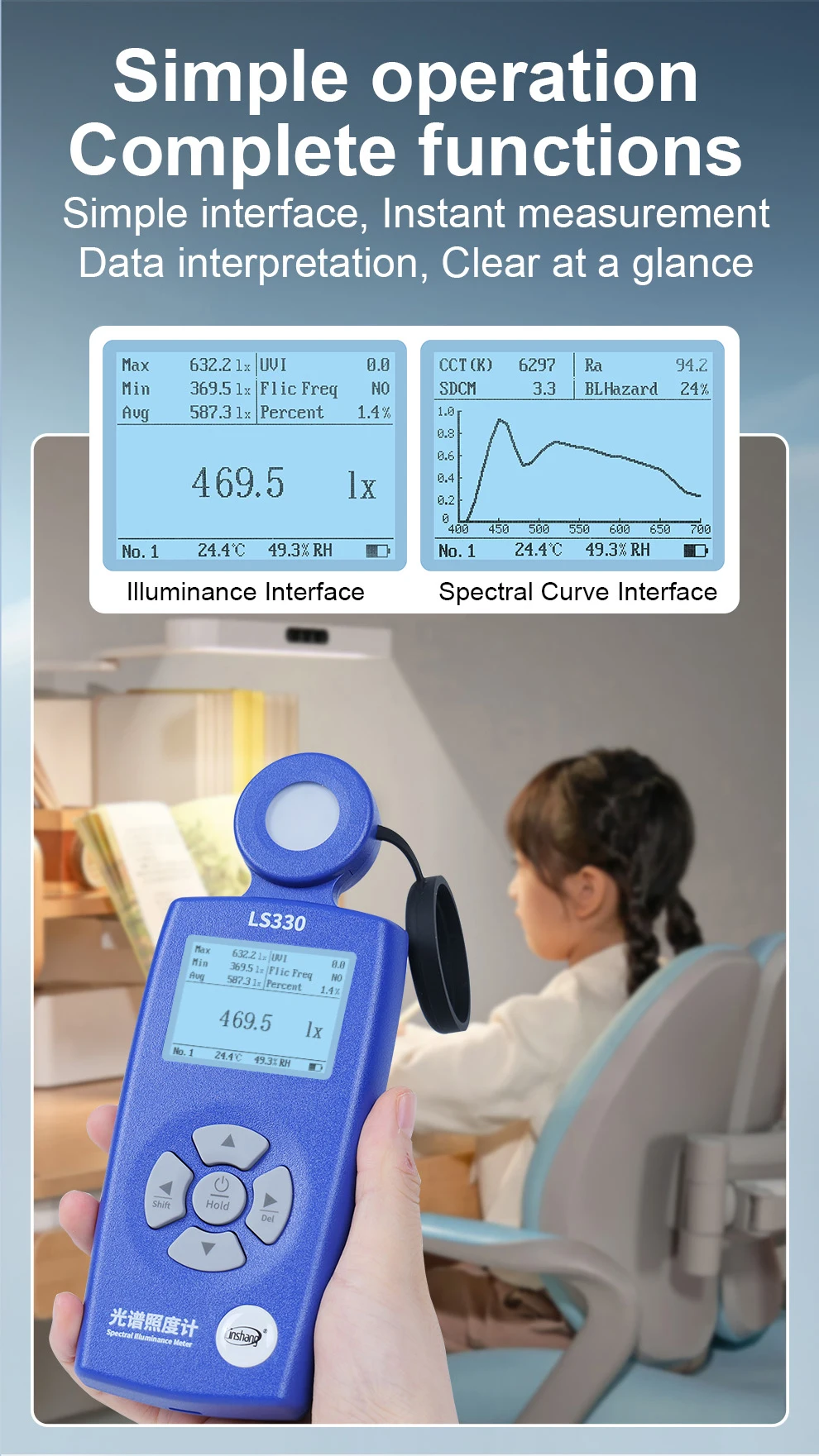

Simple operation
The spectral illuminance meter has completer function with simple interface.

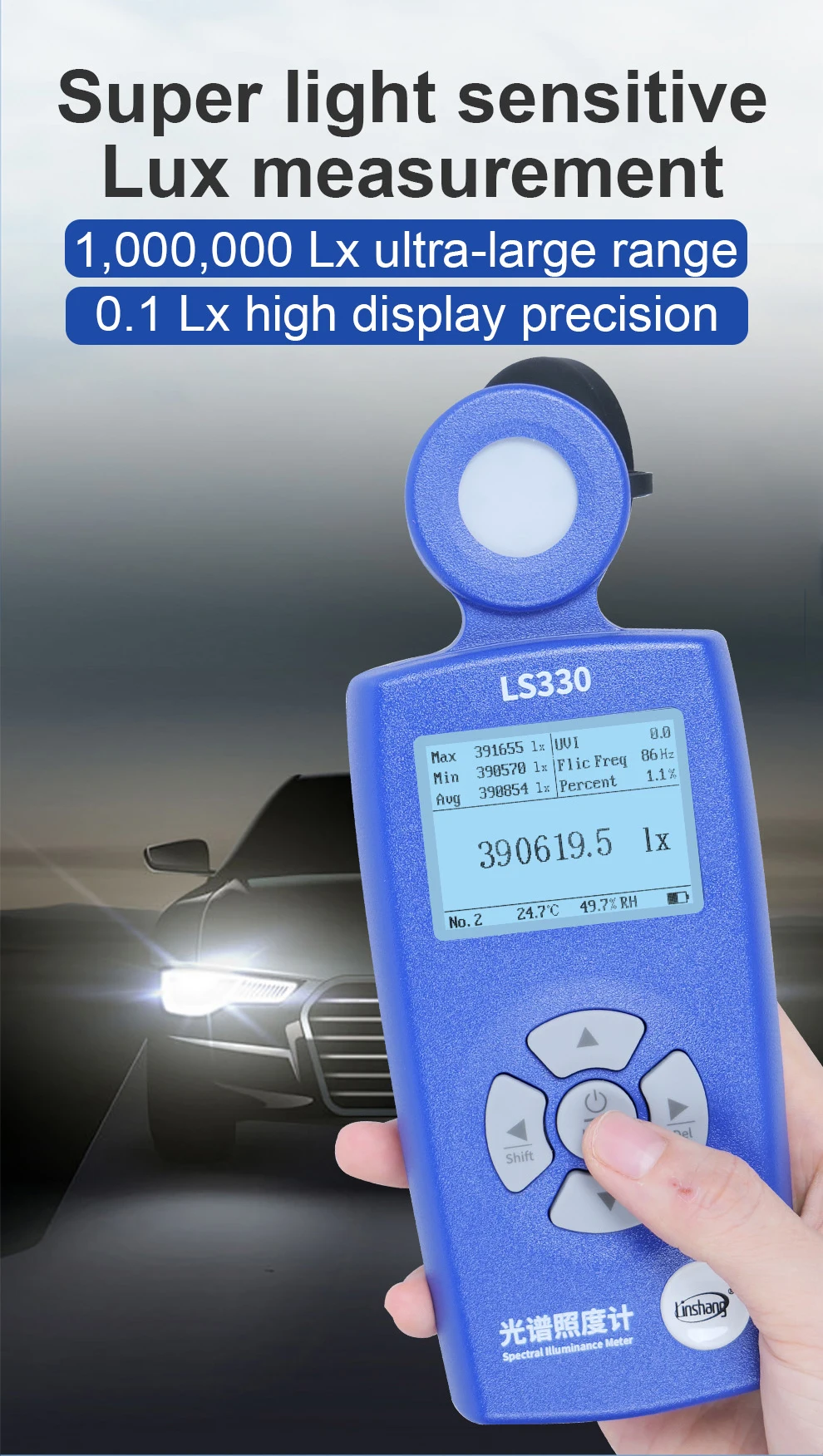

1,000,000 Lux ultra-large range
The Lux meter digital has 1,000,000 Lux ultra-large range with 0.1 Lux resolution

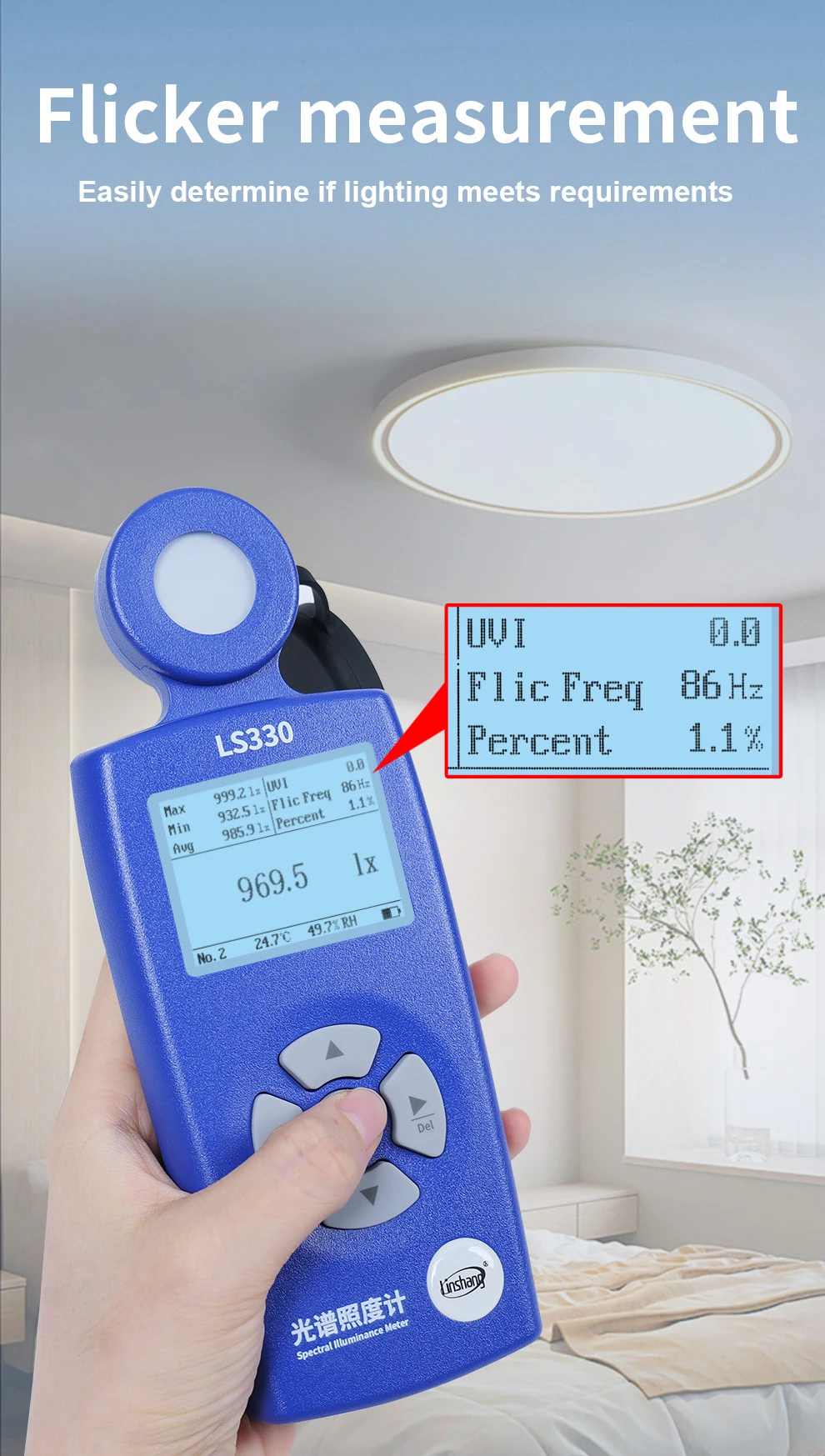

Flicker measurement
The Lux tester can evaluate whether lighting meets requirements based on flicker frequency and percent flicker. This provides reference for sales and R&D of lighting.

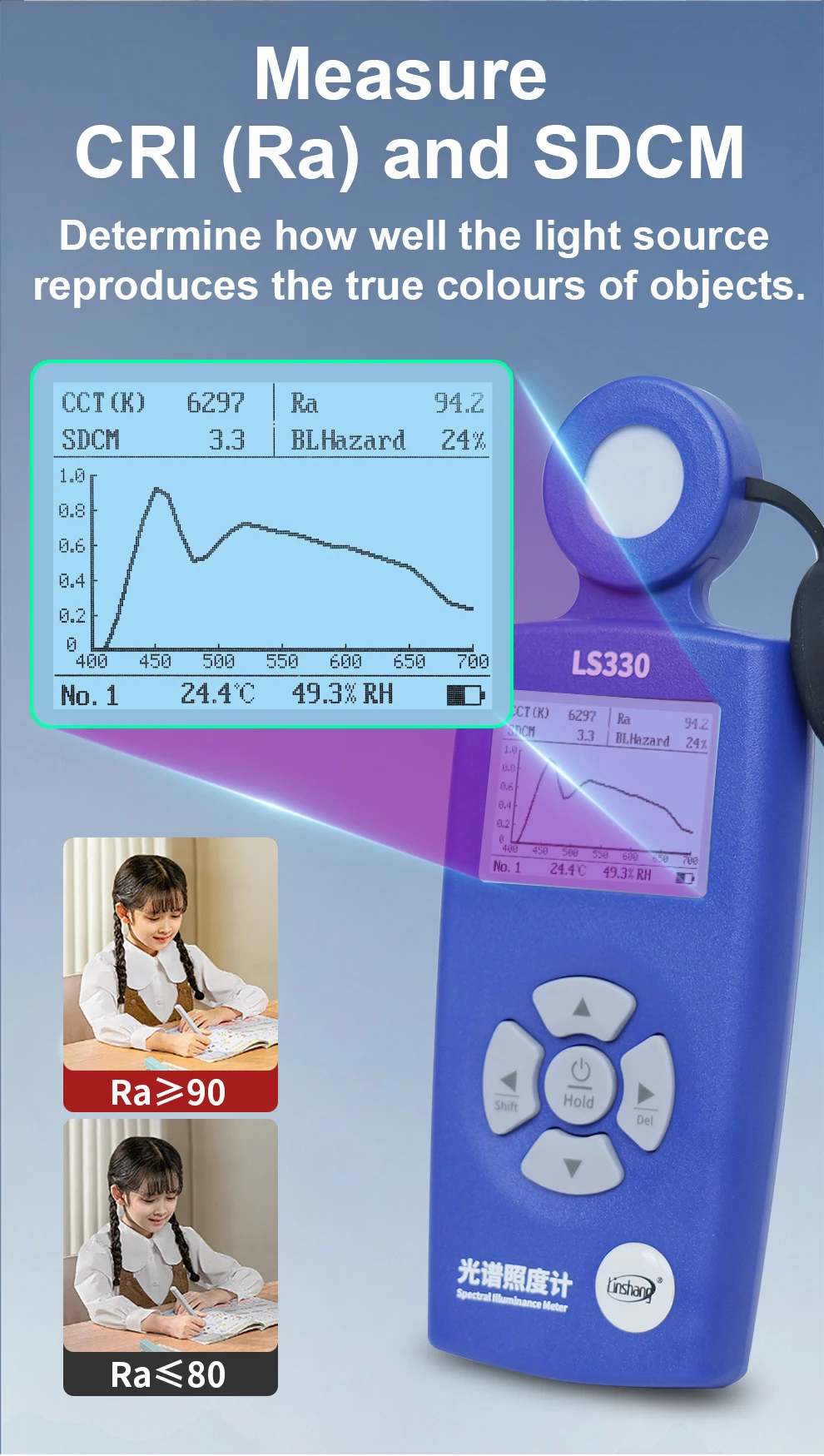

Measure CRI (Ra) and SDCM
The Lux meter can determine how well the light source reproduces the true colors of objects.

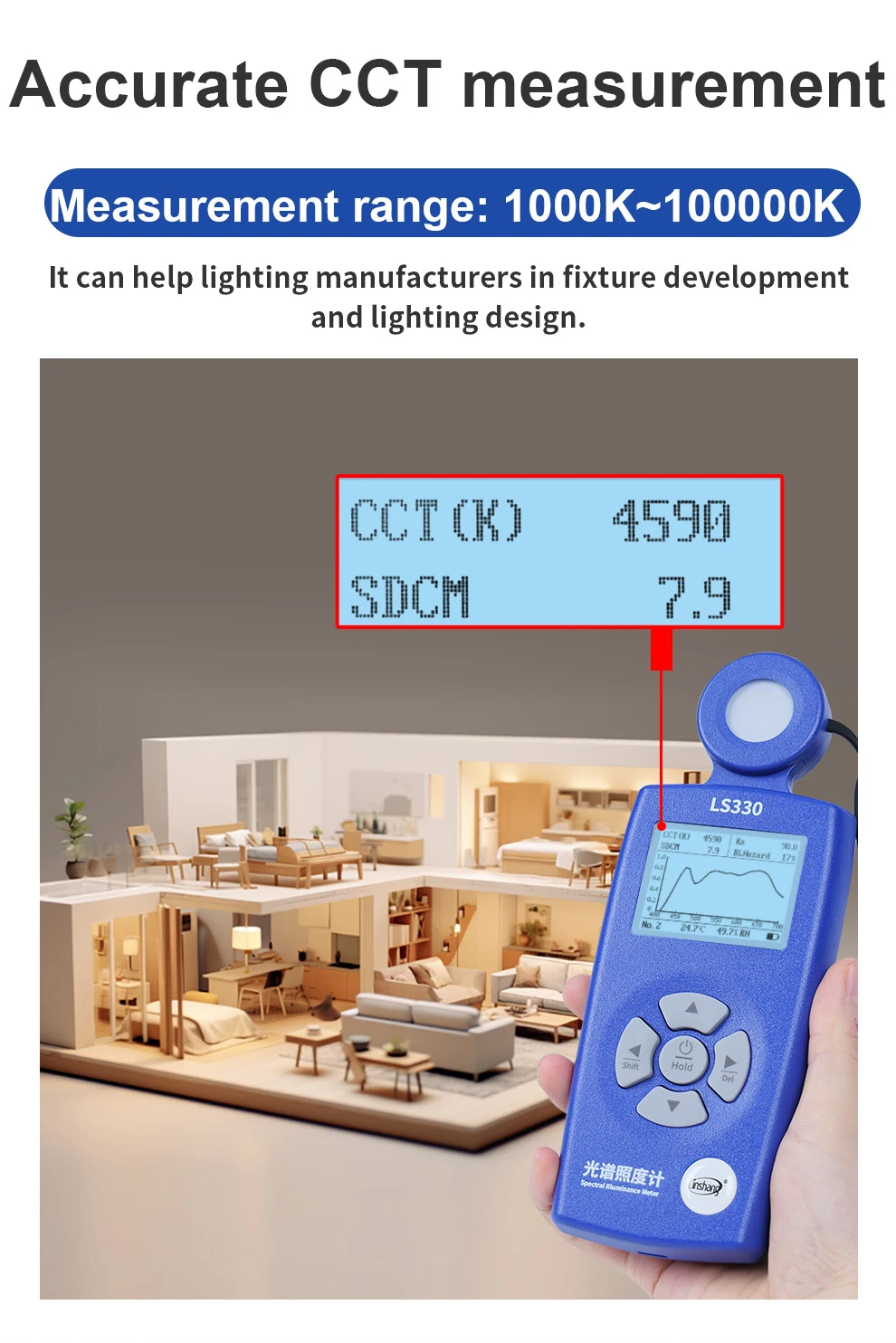

Accurate CCT measurement
The Light meter can help lighting manufacturers in fixture development and lighting design.

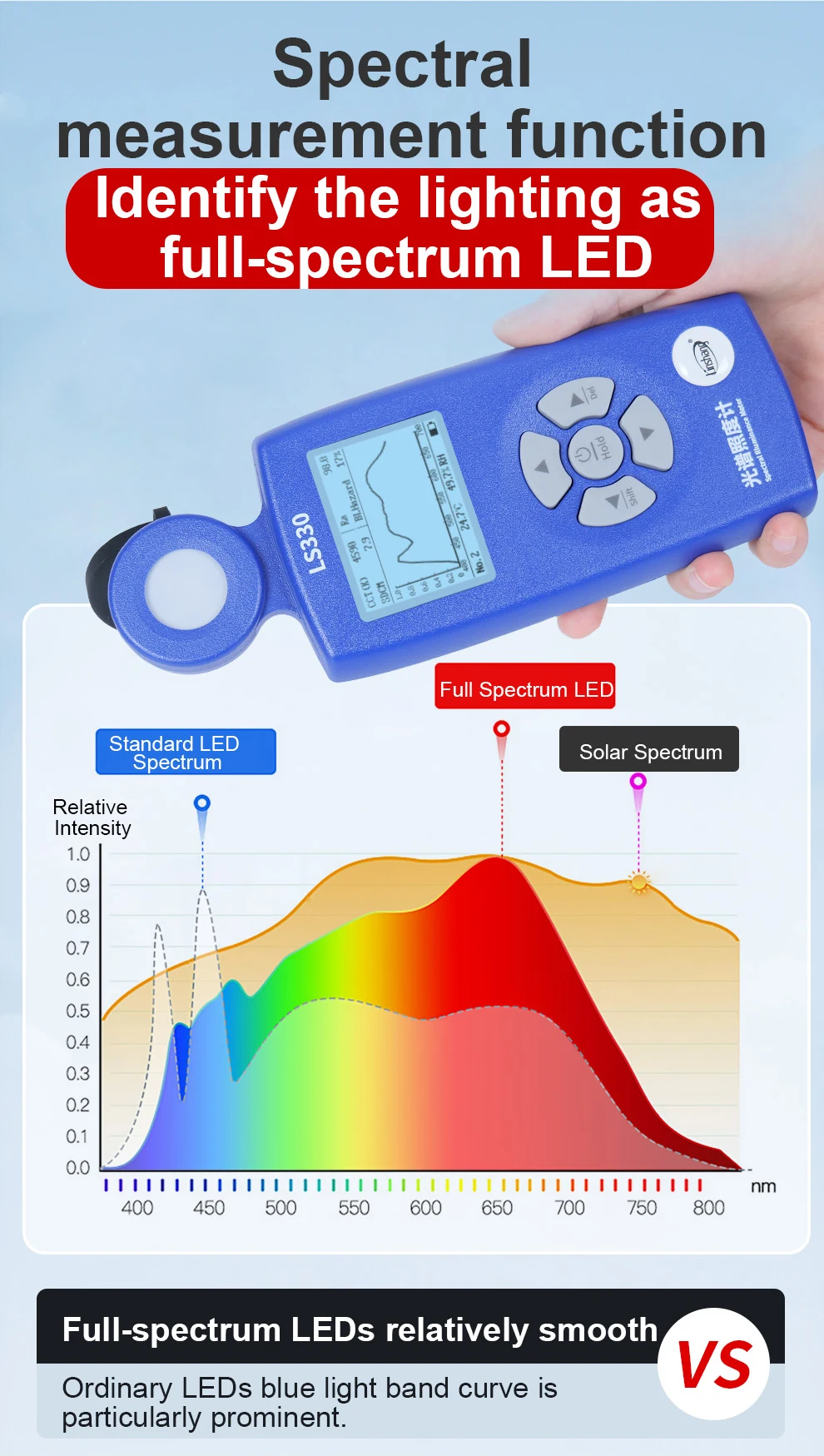

Spectral measurement function
The luminometer can identify the lighting as full-spectrum LED

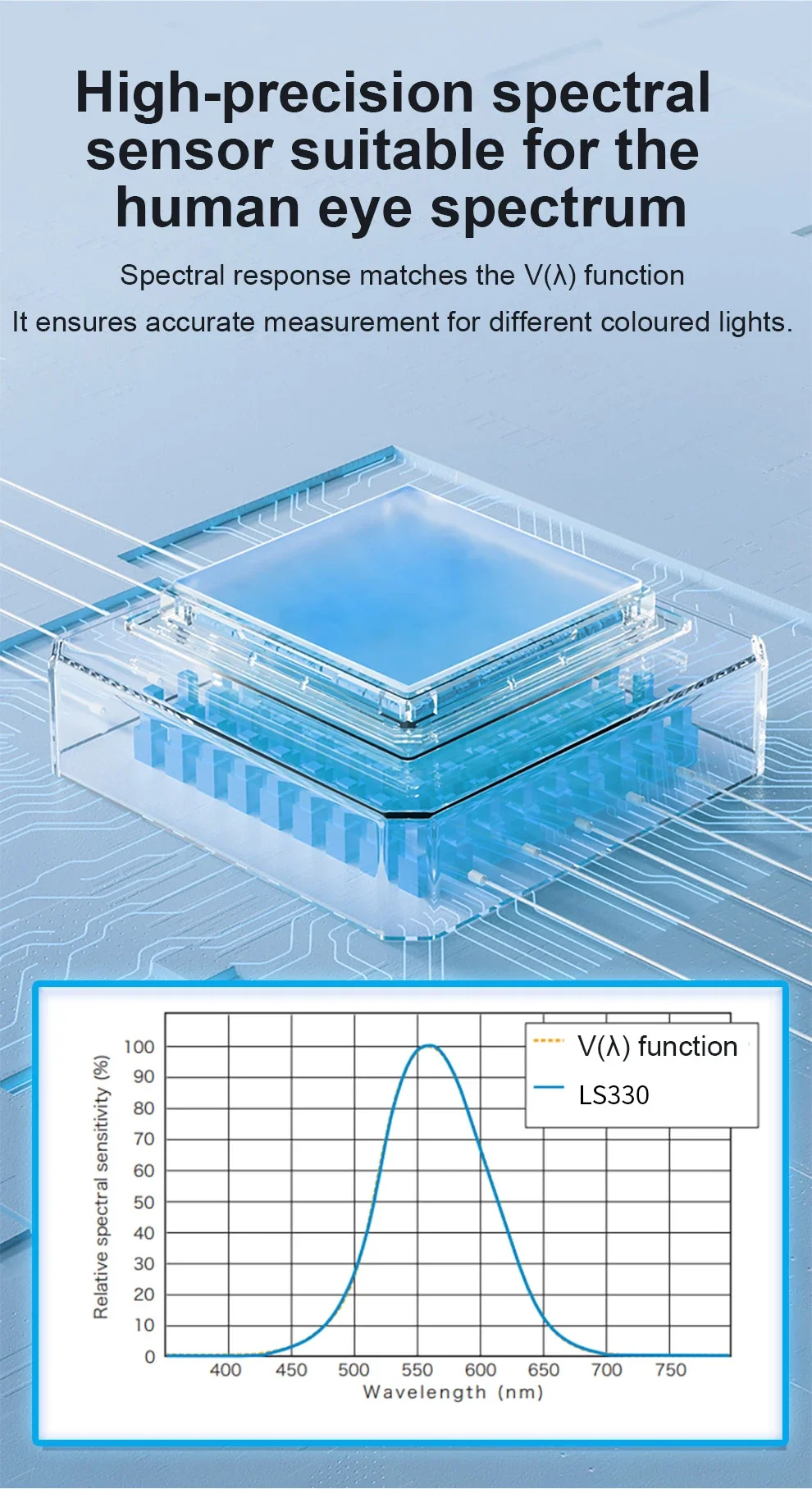

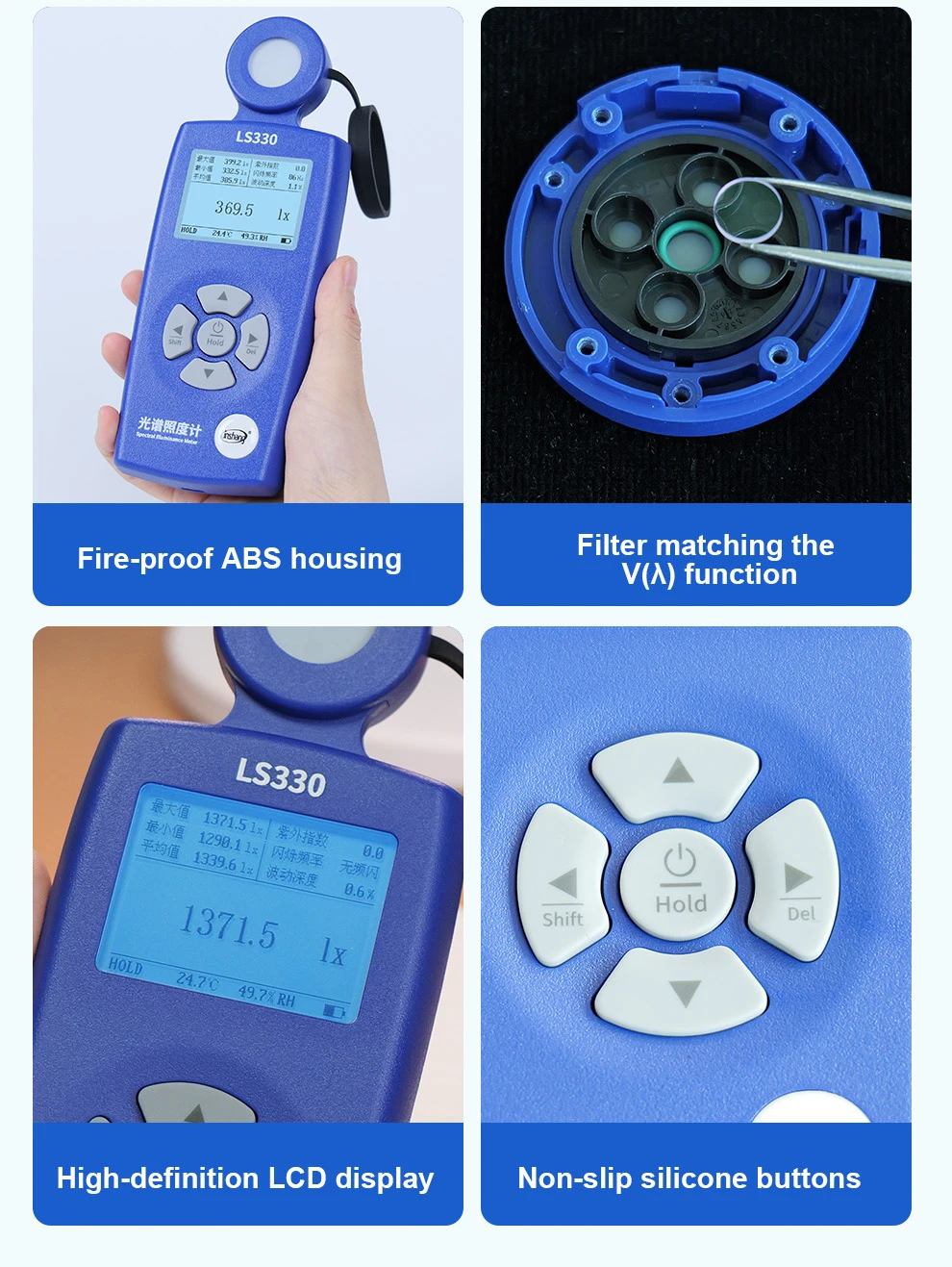

Spectral response matches the V(λ) function
The Lux meter digital ensures accurate measurement for different colored lights.

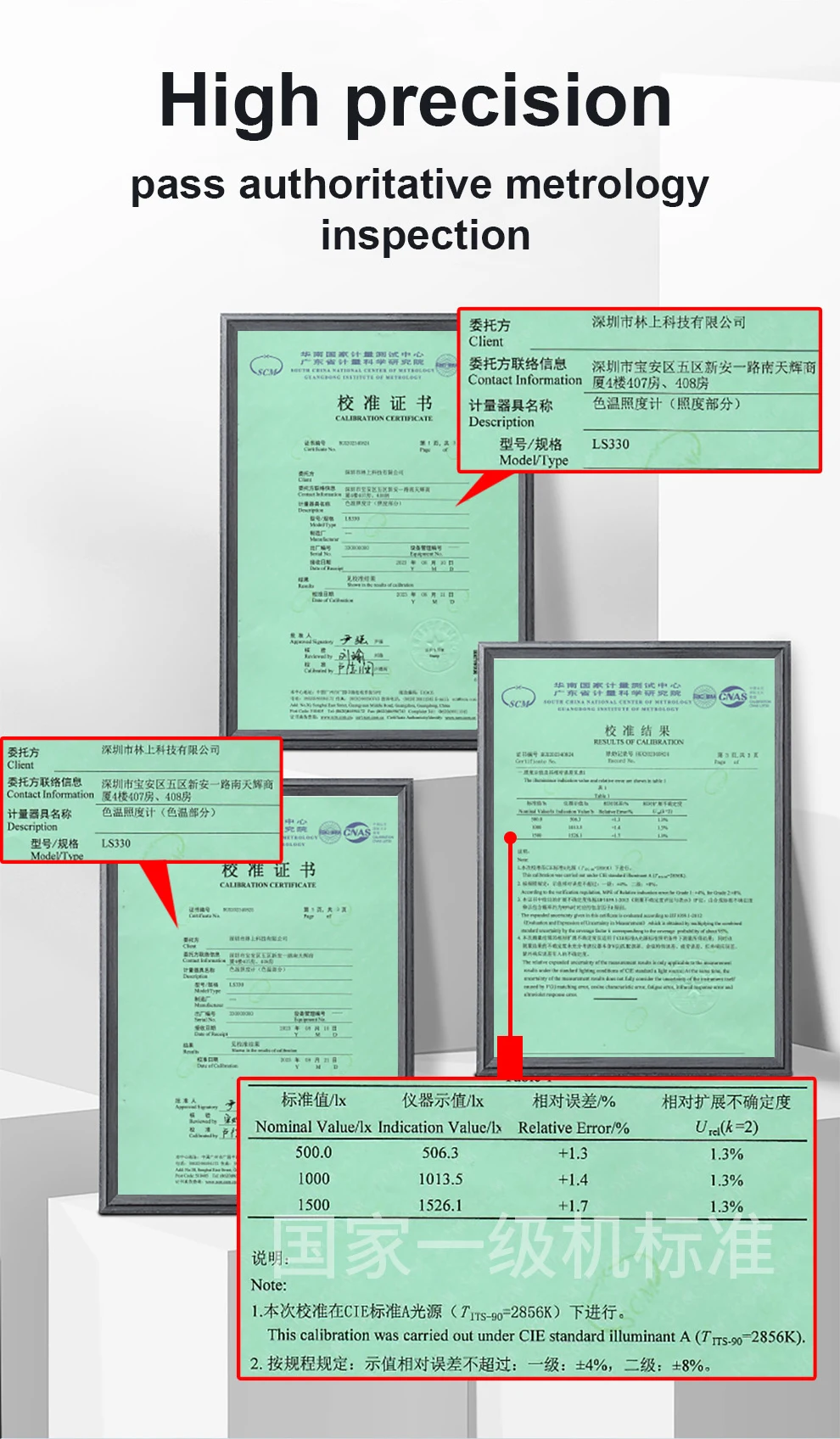

High precision
The Lux meter digital can pass authoritative metrology inspection.

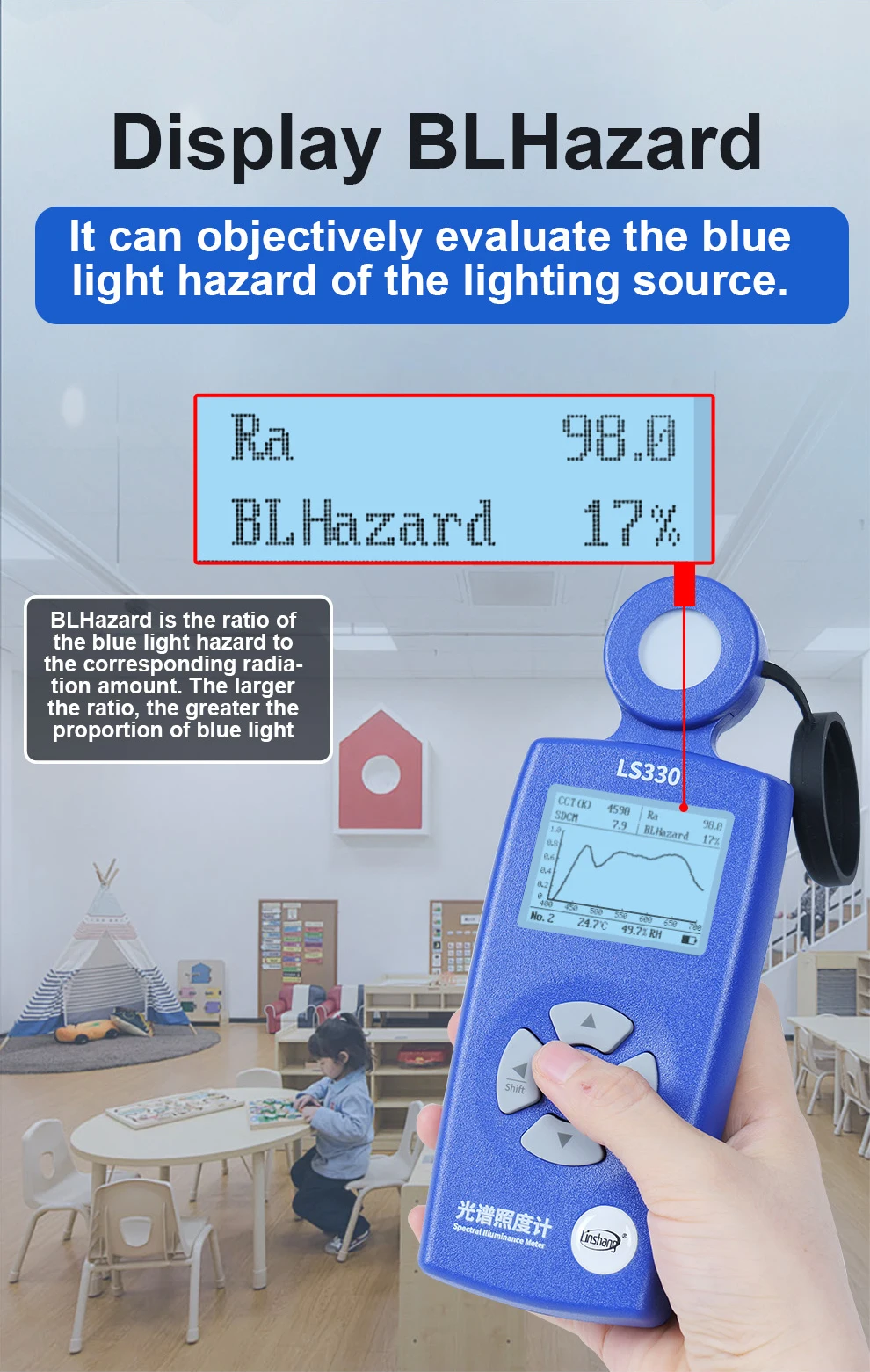

Display BLHazard
The luxometer can objectively evaluate the blue light hazard of the lighting source.
(BLHazard is the ratio of the blue light hazard to the corresponding radiation amount. The larger the ratio, the greater the proportion of blue light.)

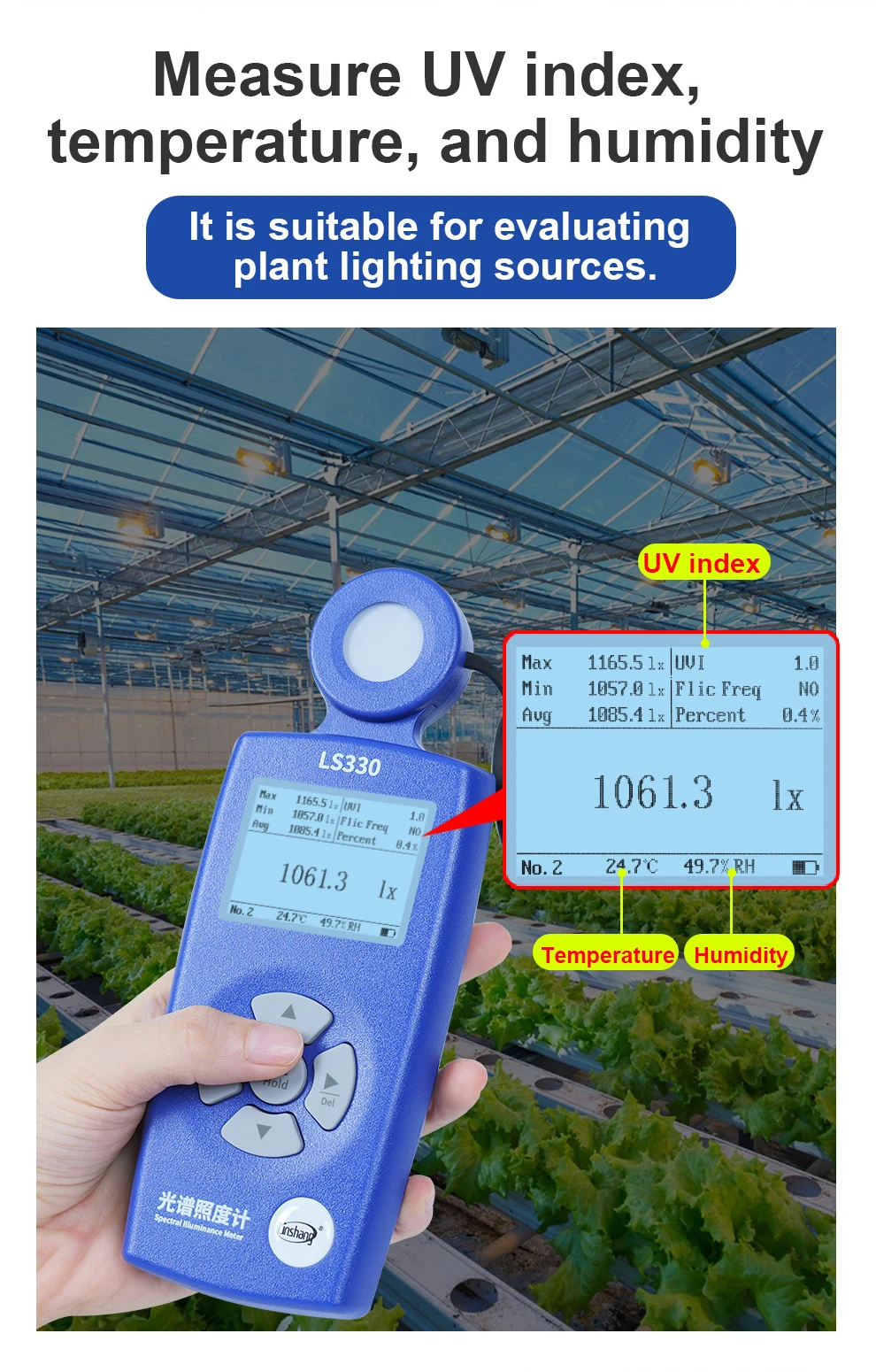

Measure UV index, temperature, and humidity
The Light meter is suitable for evaluating plant lighting sources.

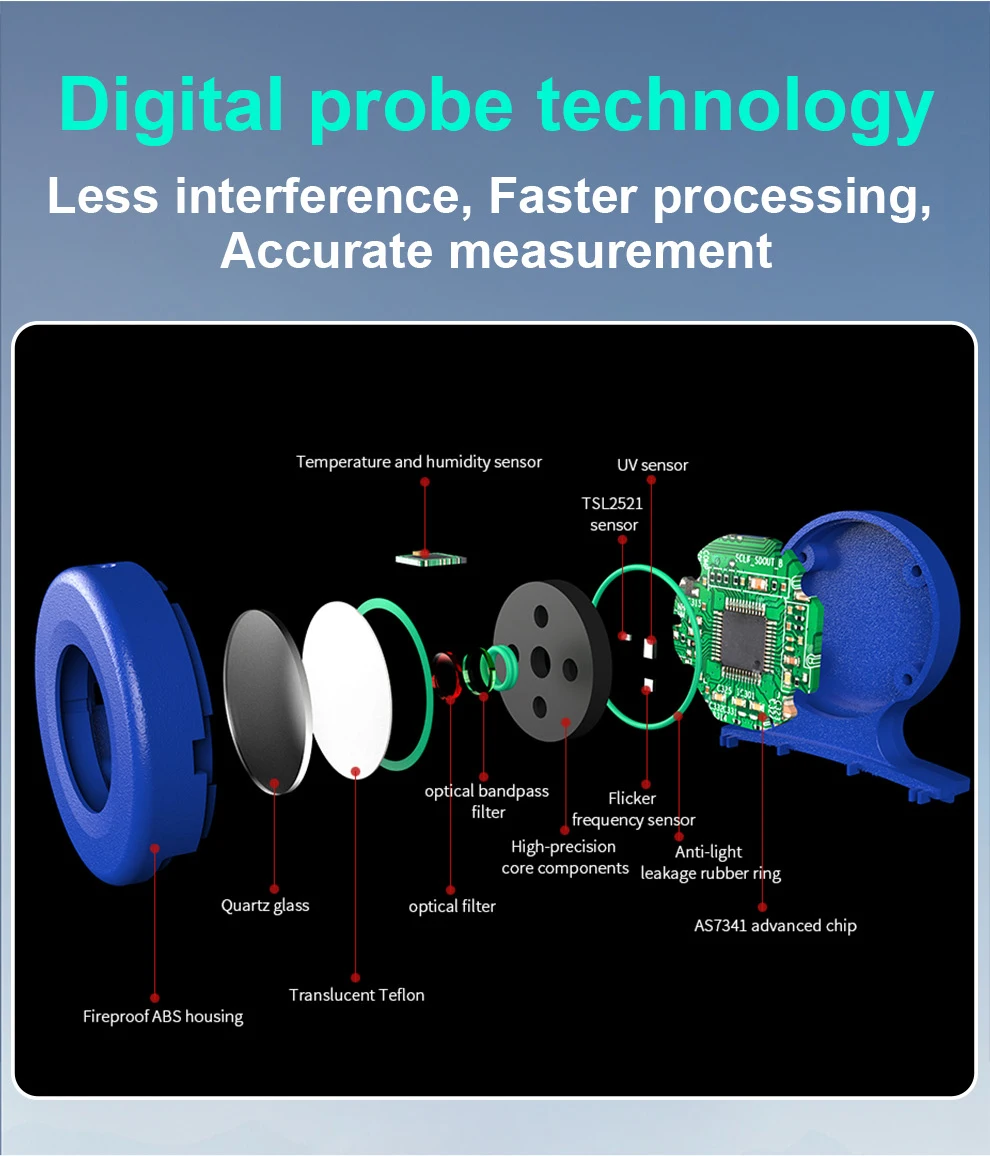

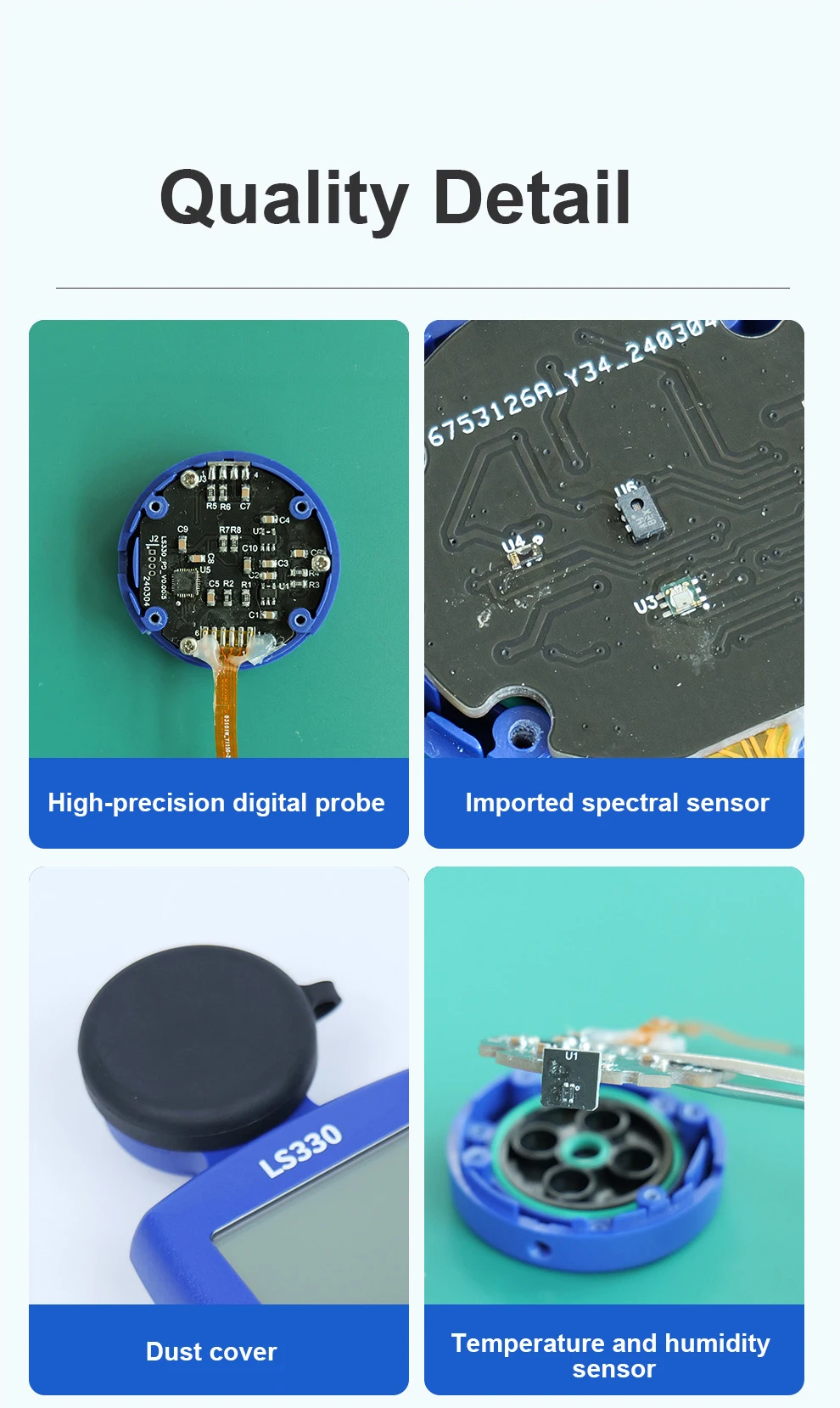

Digital probe technology
The Lux meter digital probe ensure less interference, faster processing and accurate measurement.

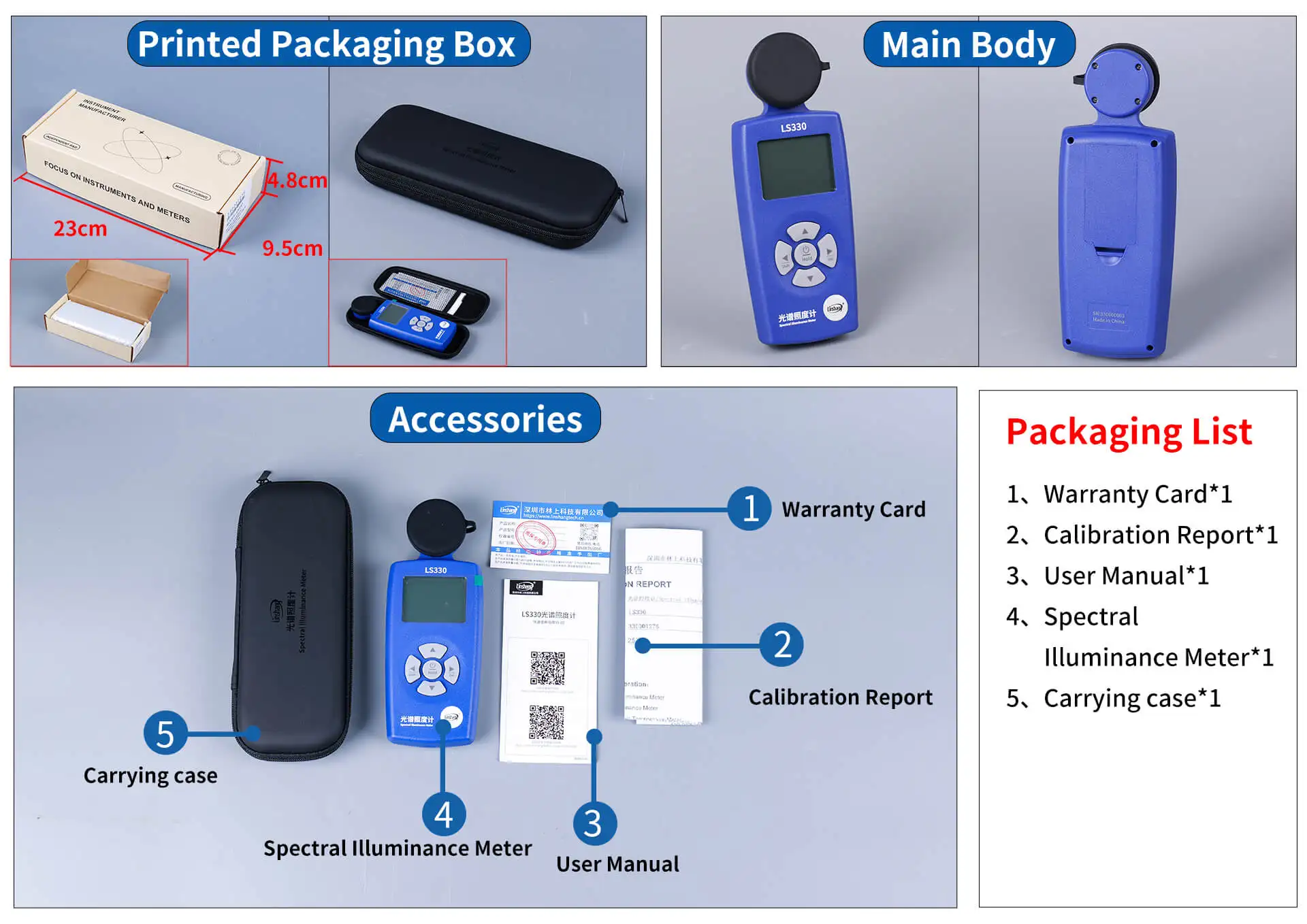

Product details
1.Spectral Illuminance Meter*1
2.User Manual*1
3.Calibration Report*1
4.Certificate/Warranty Card*1
Note
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
Please allow 1-2cm measuring deviation due to manual measurement.
