LS173 Colorimeter Fabric Color Meter LS172 Portable Colorimeters Touch Screen AP

Product Description

Description:

Intelligent touch screen colorimeter with 3.5-inch touch screen can be used separately, easy to operate. Among them, LS172 and LS175 adopt 45°/0° illumination, and LS173 adopts D/8° illumination. Internal integration of multiple standard color charts, can quickly match the measured color to the closest color chart number. The instrument can also be connected to mobile APP via Bluetooth and computer software via USB cable for color sharing, data import and export, report printing, etc. Widely used in paint and coating, ink printing, packaging, leather fabrics, textiles, plastics and other industries.

Specifications:

Illumination light source: Full spectrum LED light source

Measurement conditions: Light source D65, field of view 10°

Measuring time: About 1s

Color spaces: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex

Color difference formulas: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00

Repeatability: Standard deviation ΔE*ab≤0.03(Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration)

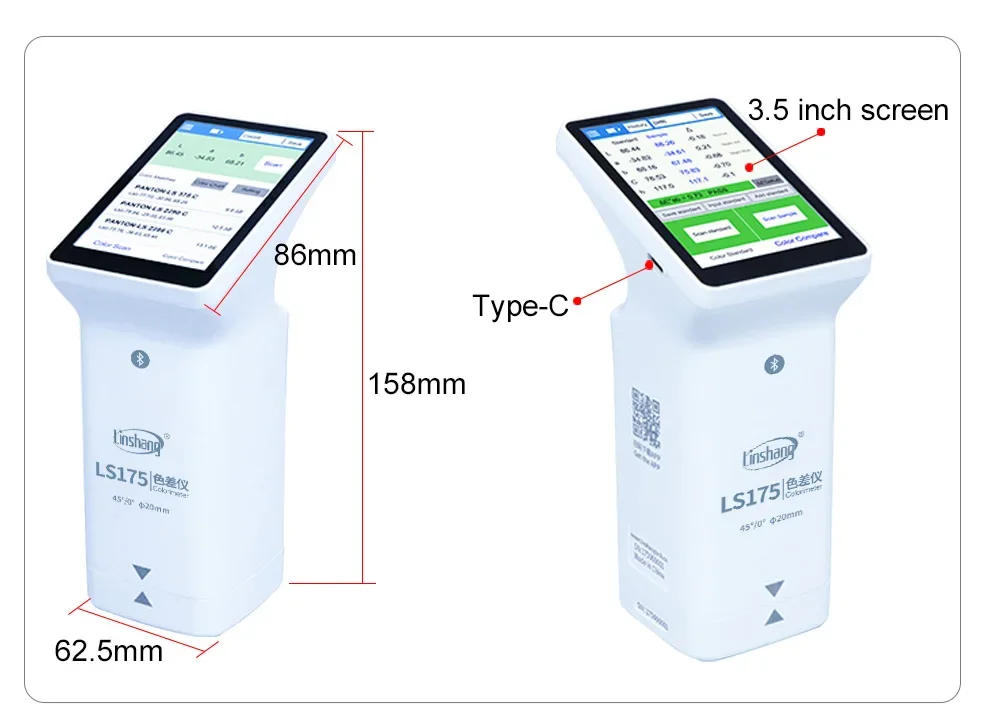

Dimension: 86mm X 62.5mm X 158mm

Weight: 225g

Power supply: Rechargeable lithium battery 3.7V@700mAh,can continuously measure 10,000 times under full charge

Data transmission: USB, Bluetooth

Charging port: USB (Type-C)

Operating temperature: 0~45℃, 0~85%RH (no condensation)

Storing temperature: -25~55℃, 0~85%RH (no condensation)

LS172:

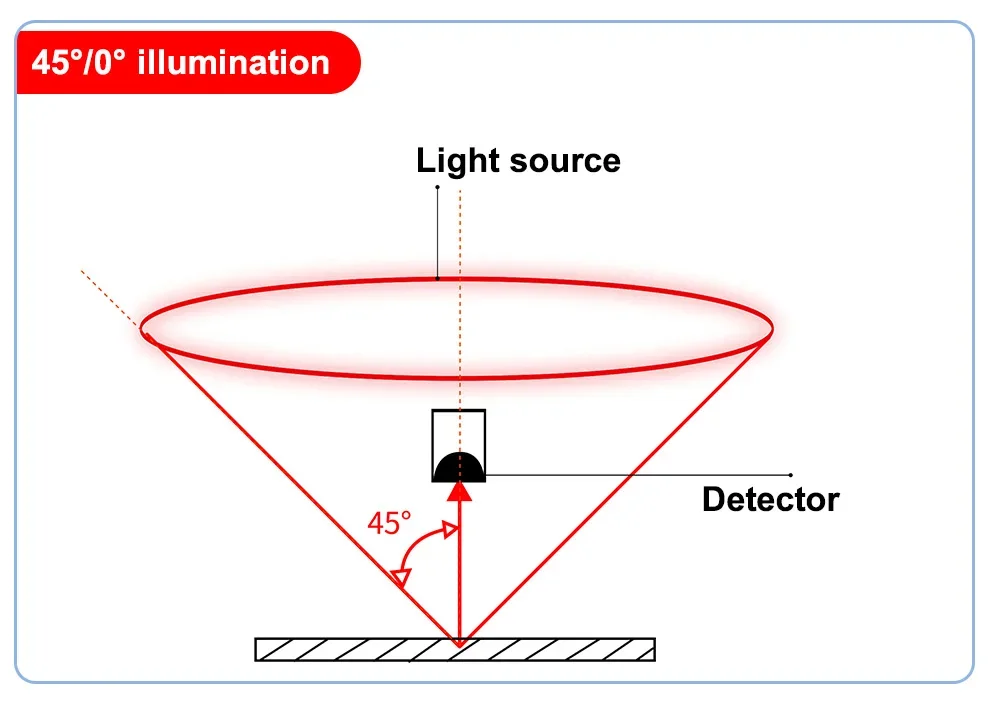

Illumination geometry: 45/0 (45°annular illumination, 0° viewing angle)

Measuring aperture: 8mm

LS173:

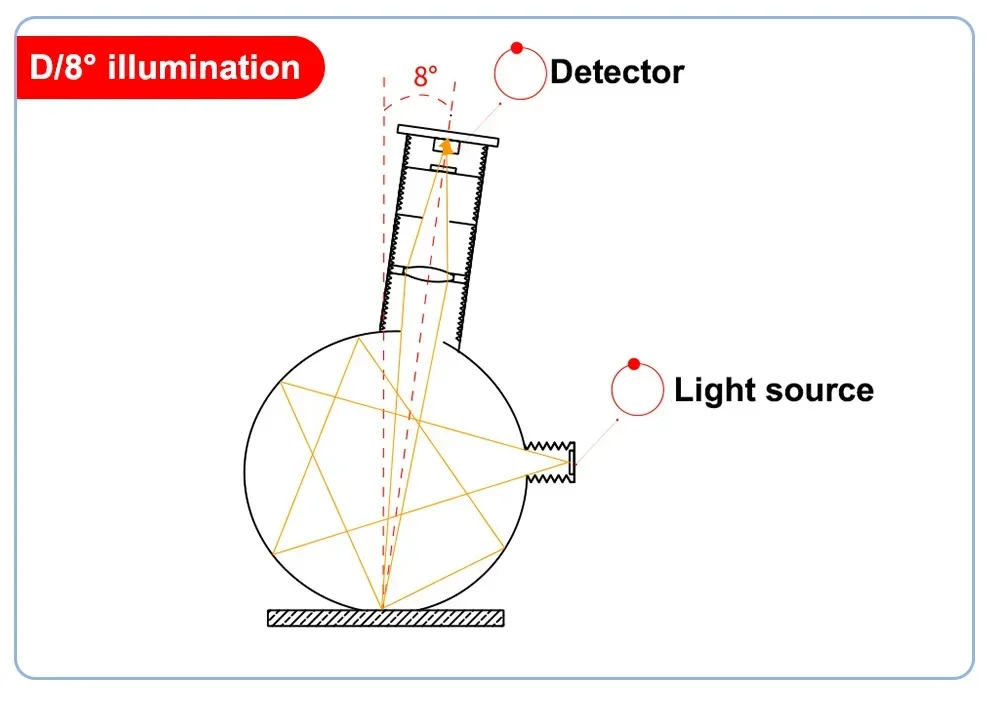

Illumination geometry: D/8, Specular Component Include (SCI)

Measuring aperture: 8mm

LS175:

Illumination geometry: 45/0 (45°annular illumination, 0° viewing angle)

Measuring aperture: 20mm

Instruments selection:

LS172: 45°/0° illumination; Mainly used in printing and packaging industries

LS173: D/8° illumination; Widely used in various industries

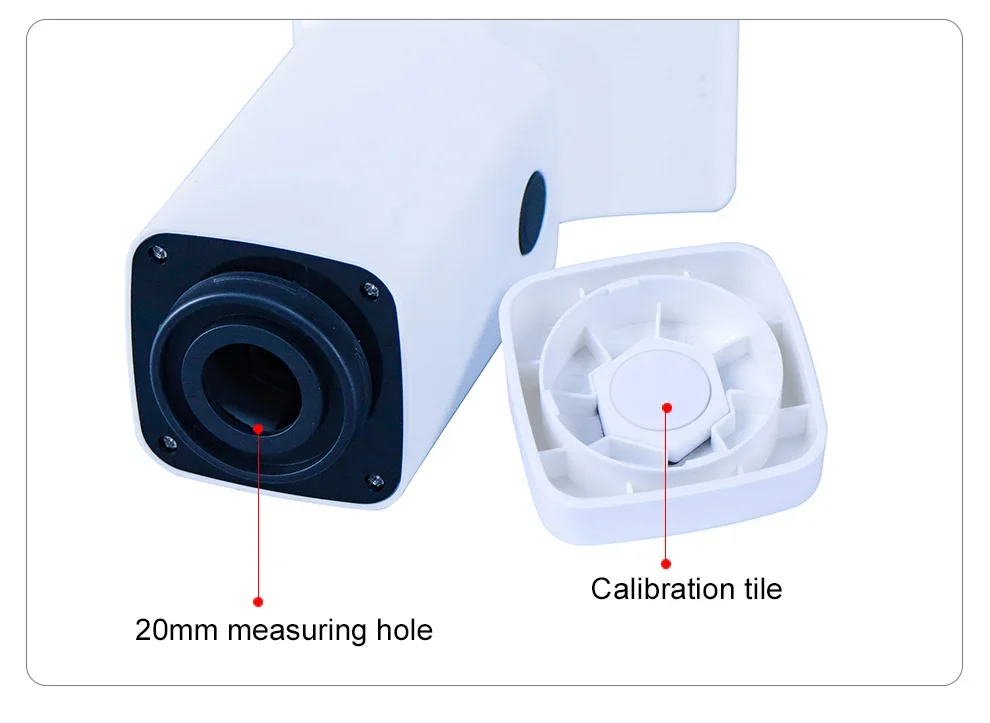

LS175: 45°/0° illumination; 20mm measuring aperture; Applied to textured or rough materials

Features:

1. Adopt 3.5-inch IPS color touch screen, more convenient operation.

2. Different illumination are optional to meet the needs of color measurement and difference in various industries.

3. Built-in electronic color charts (RAL, Pantone, NCS), quickly match the closest 3 color codes.

4. Provides color bias indication for all three Lab color channels to assist in color mixing.

5. Multiple color spaces and color difference formulas, highly matched to industry needs.

6. Equipped with mobile APP and PC software, covering Android, iOS, Windows systems.

7. With QC function, color difference threshold can be customized for batch detection.

8. With CE certificate, to ensure that it can pass the test of the authoritative metrology institute.

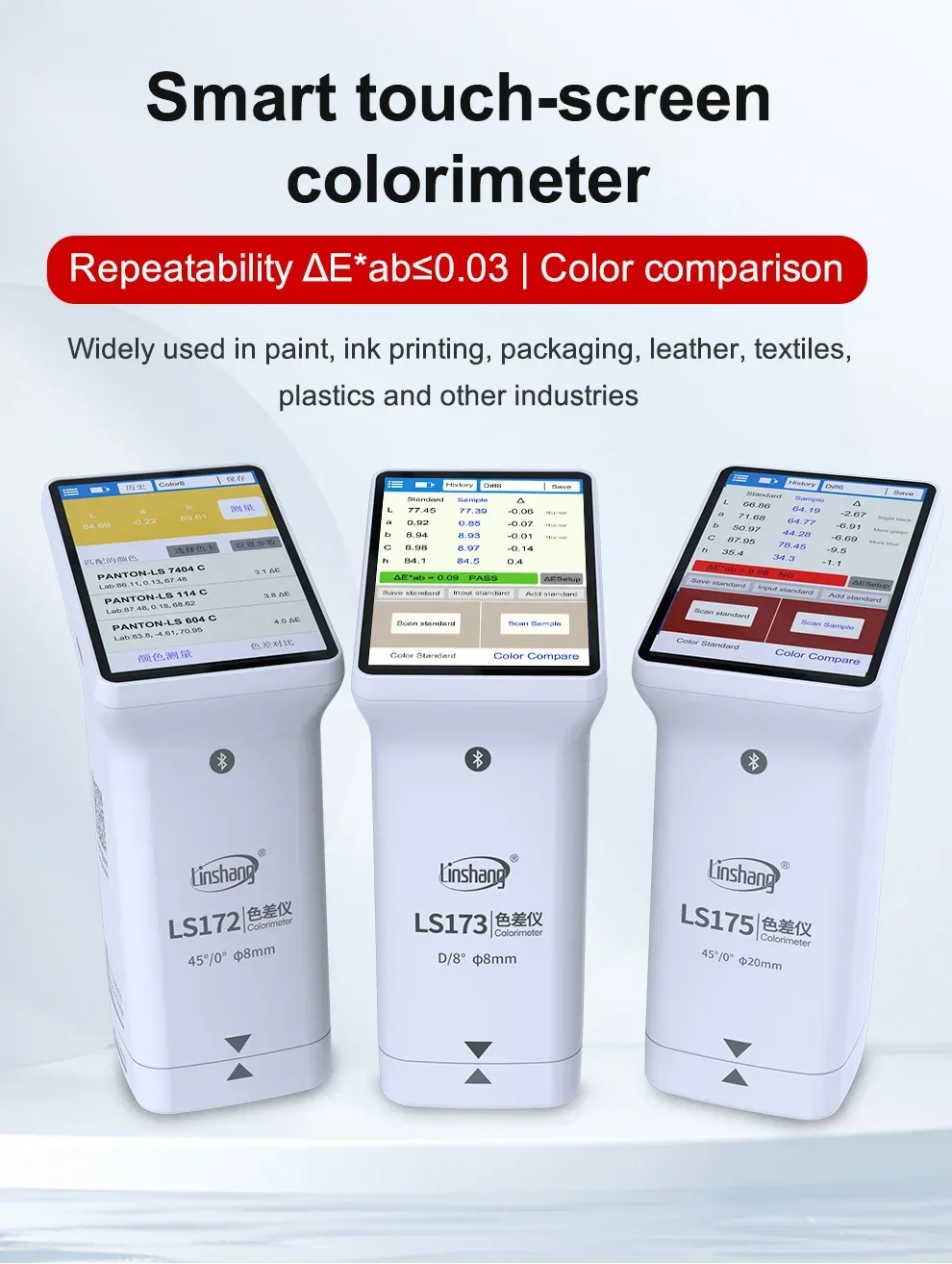

45°/0°and D/8° illumination are optional

LS172 adopts 45°/0° illumination, mainly used in printing and packaging industries

LS173 adopts D/8° illumination, widely used in various industries

LS175 adopts 45°/0° illumination with 20mm measuring aperture, applied to textured or rough materials

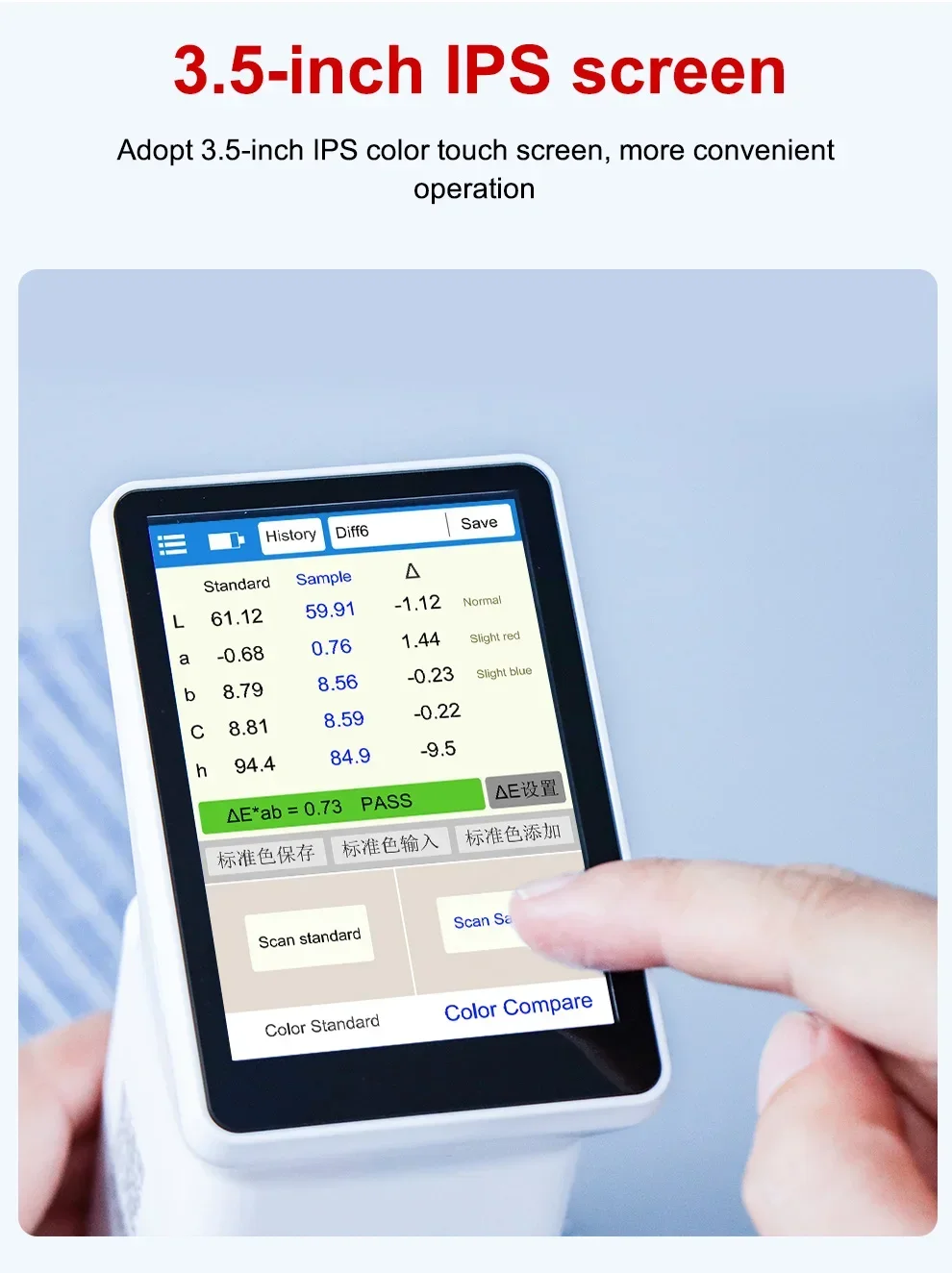

3.5-inch IPS screen

Adopt 3.5-inch IPS color touch screen, more convenient operation.

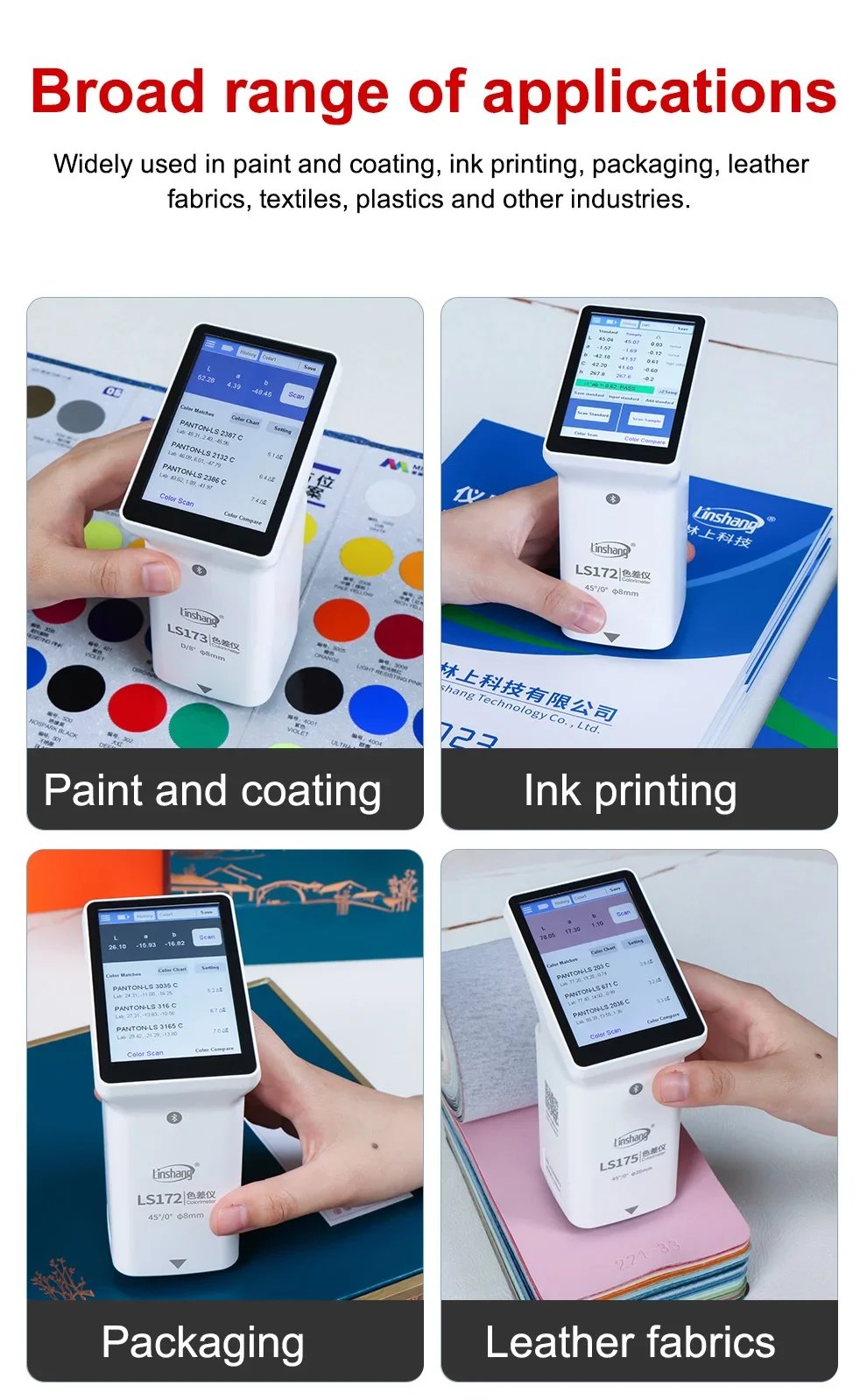

Broad range of applications

Widely used in paint and coating, ink printing, packaging, leather fabrics, textiles, plastics and other industries.

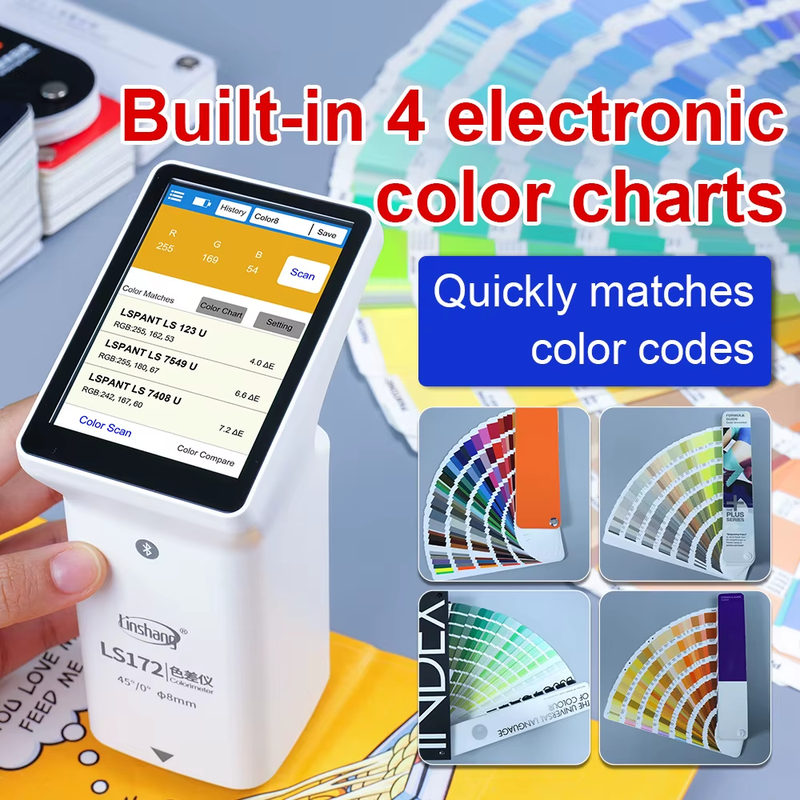

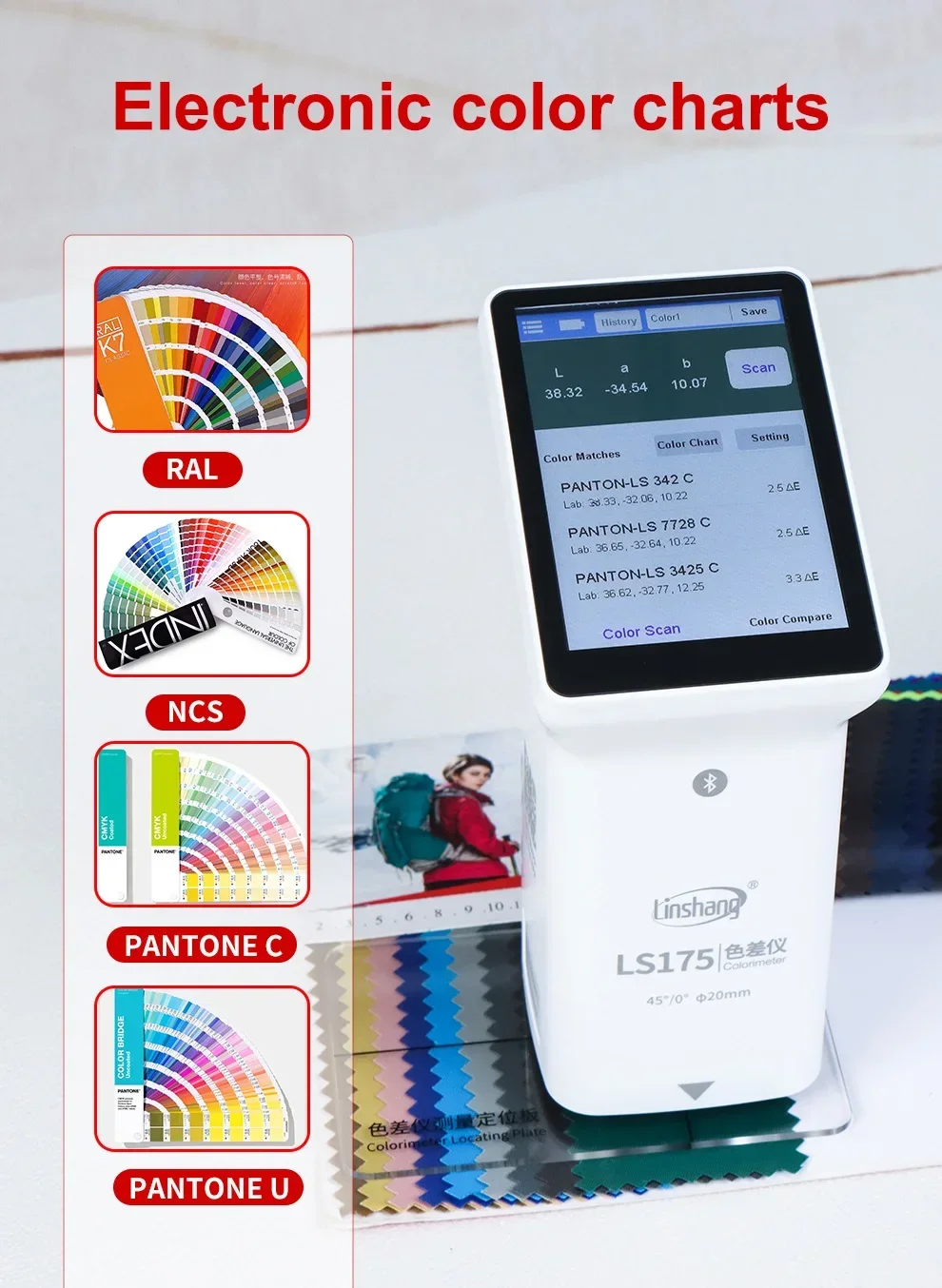

Built-in electronic color charts

Built-in electronic color charts (RAL, Pantone, NCS), quickly match the closest 3 color codes.

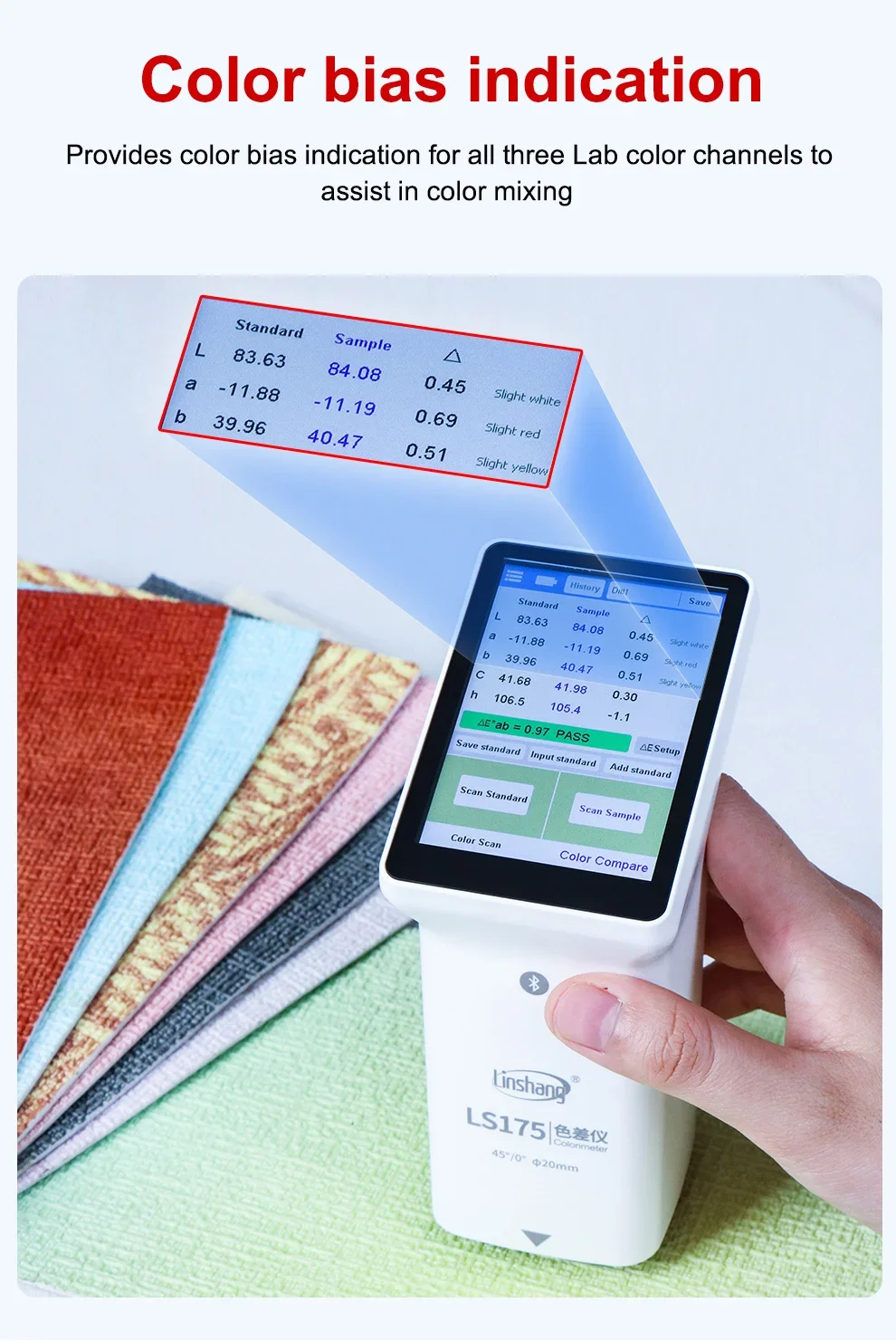

Provides color bias indication

Provides color bias indication for all three Lab color channels to assist in color mixing.

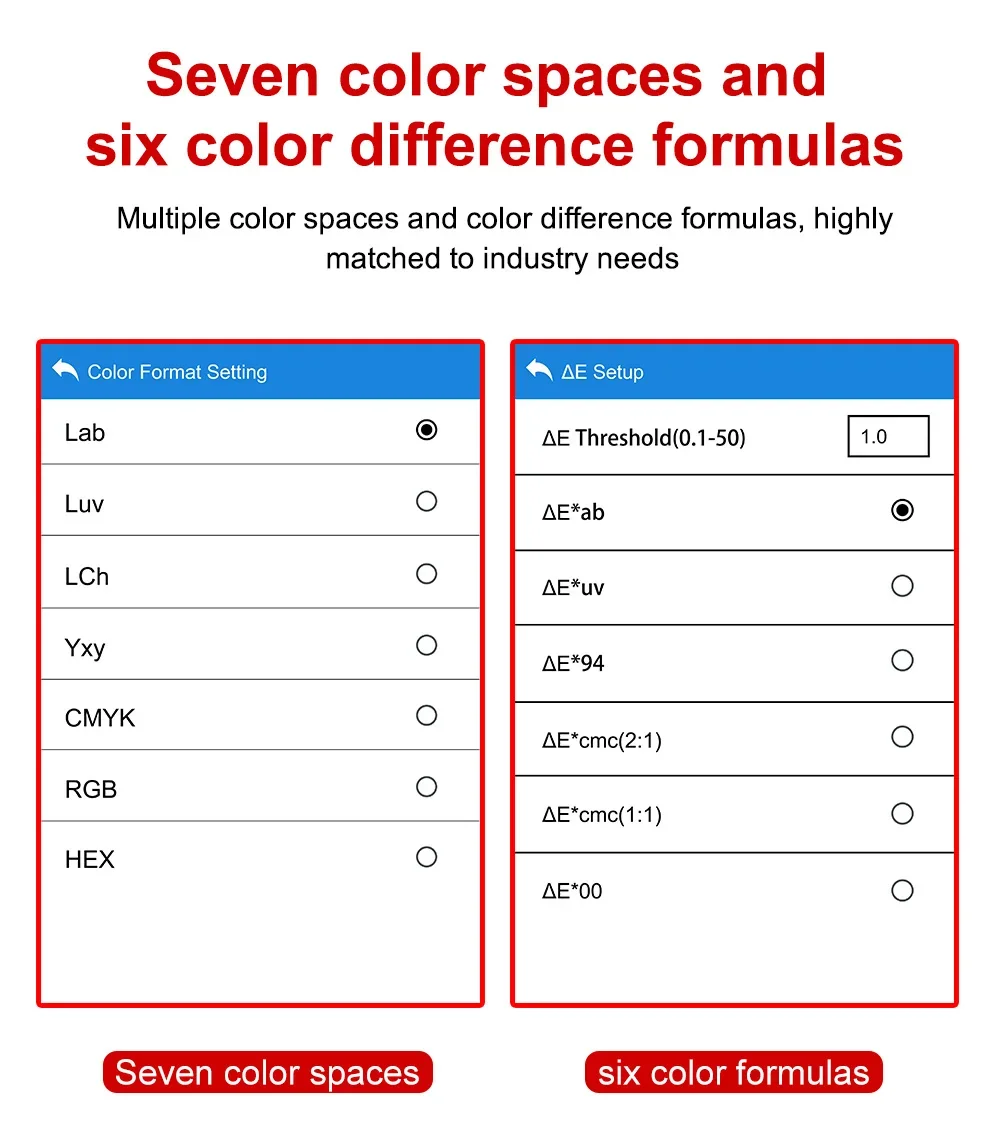

Seven color spaces and six color difference formulas

Multiple color spaces and color difference formulas, highly matched to industry needs.

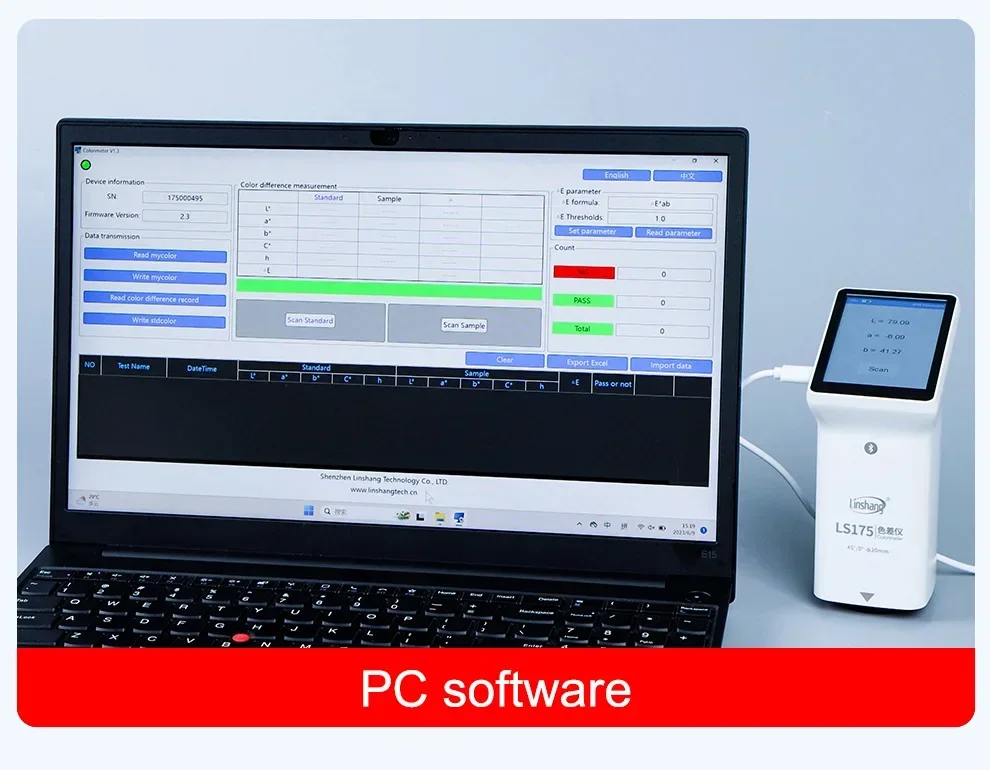

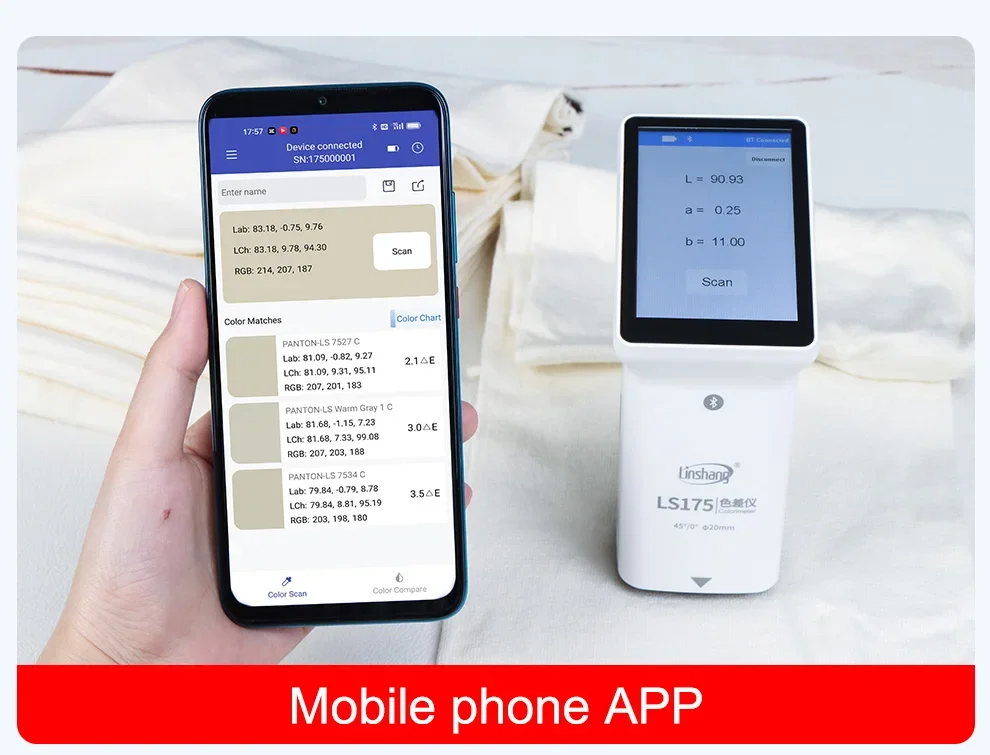

Support APP and PC software

Equipped with mobile APP and PC software, covering Android, iOS, Windows systems.

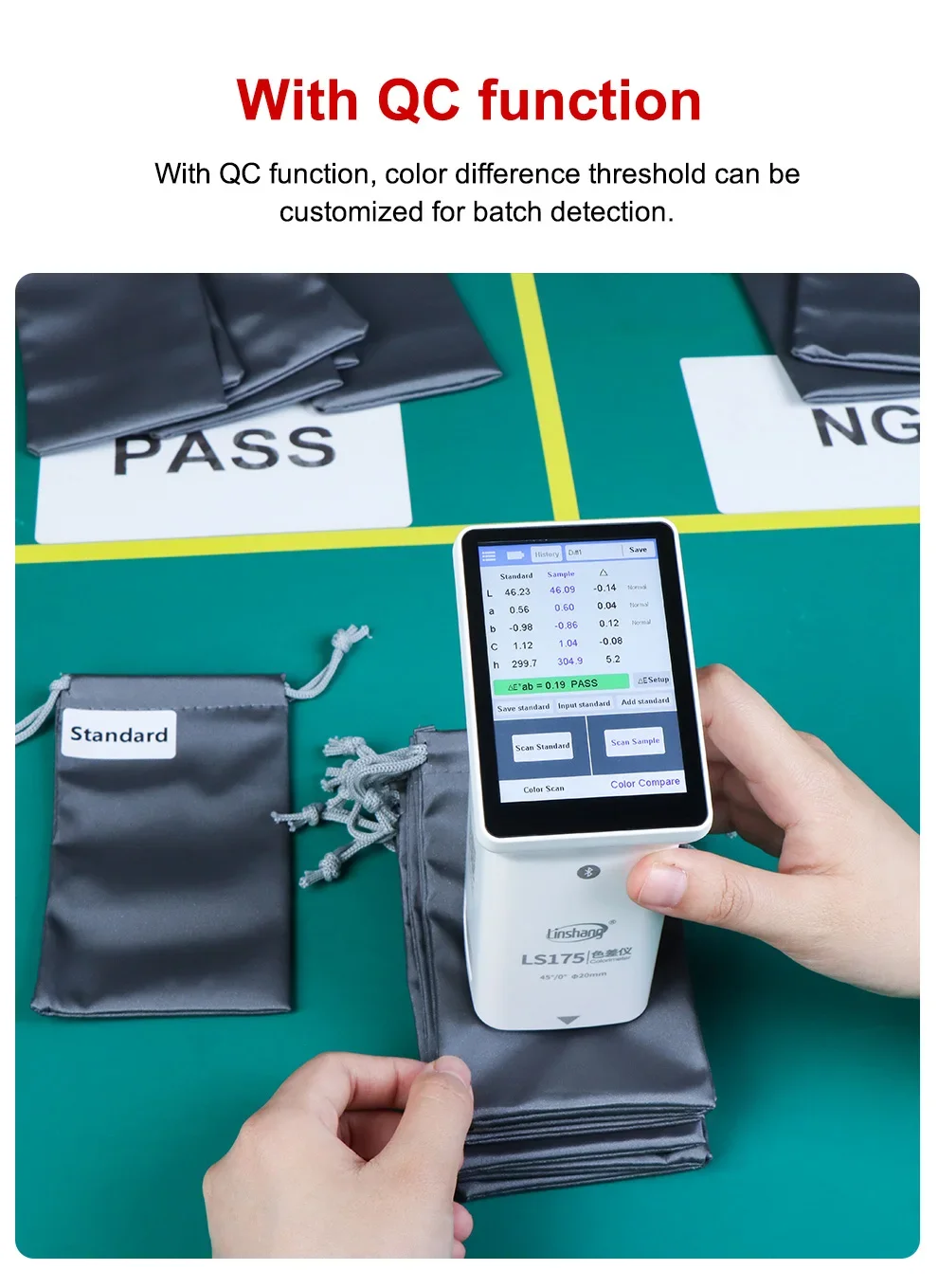

QC mode

With QC function, color difference threshold can be customized for batch detection.

CE certificates

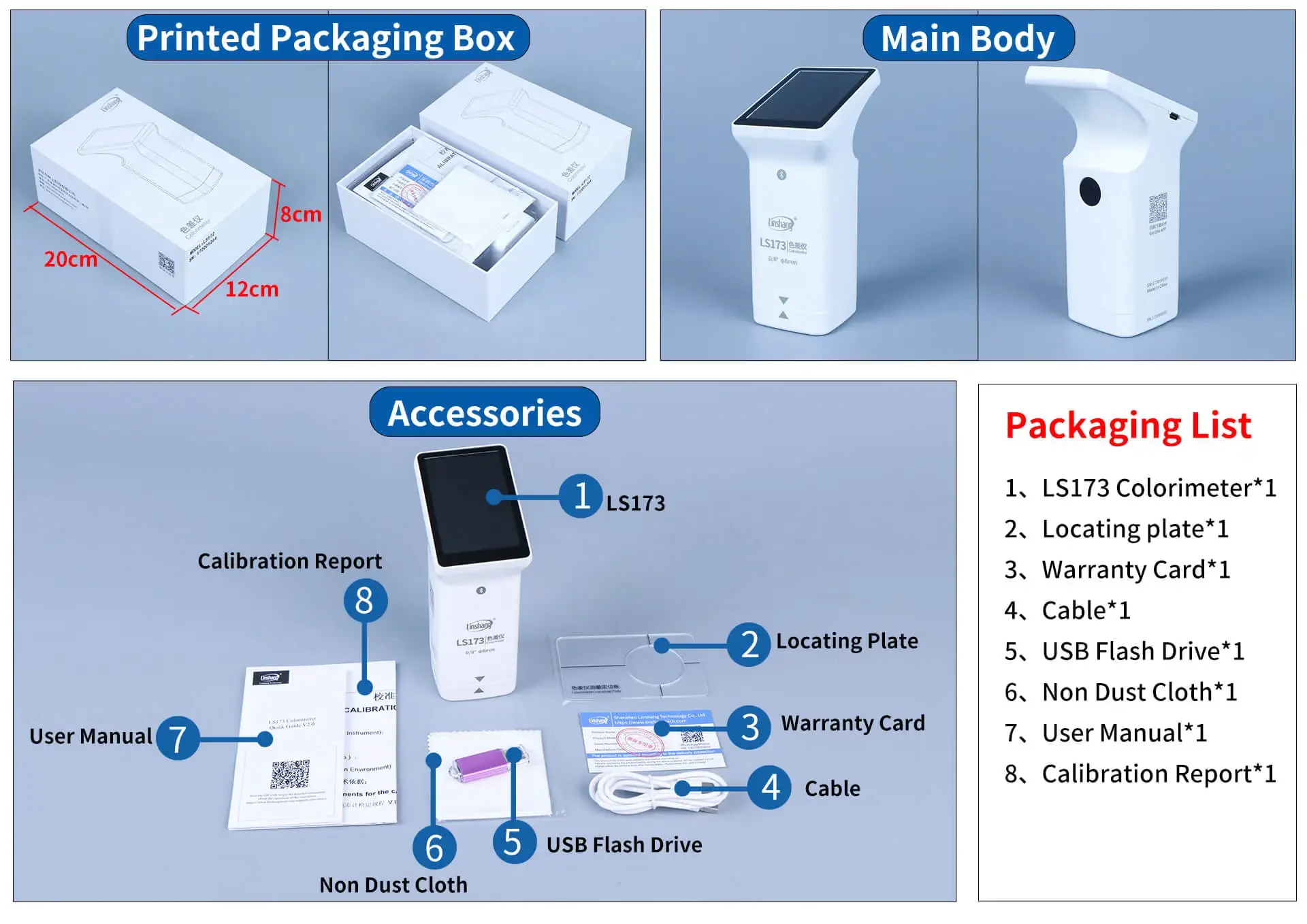

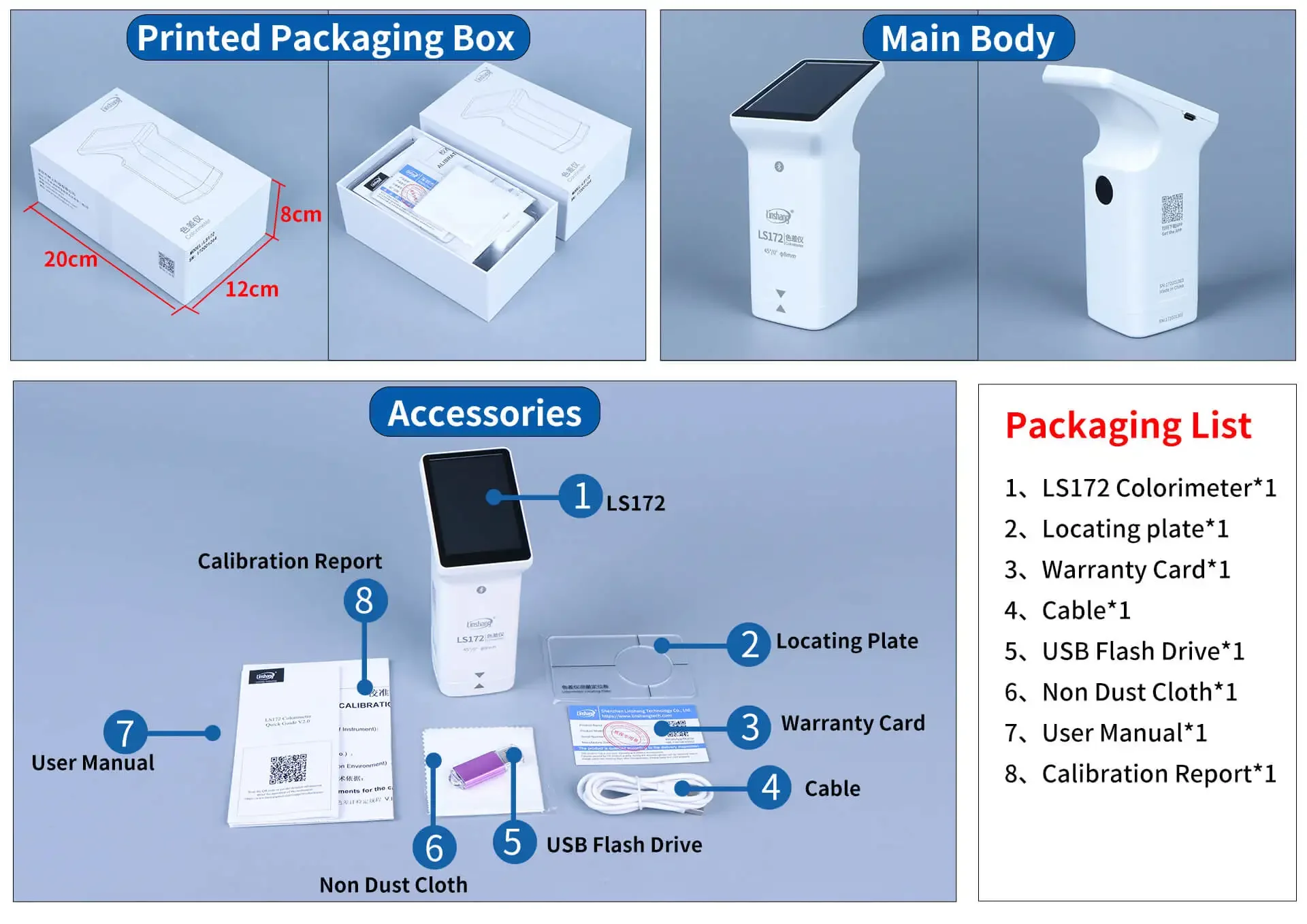

With CE certificate, to ensure that it can pass the test of the authoritative metrology institute.1*Colorimeter

1*USB data cable

1*Cleaning cloth

1*User manual

1*Certificate / Warranty card

1* Locating plate

1* U disk (software)
