M9N M10 GPS With External IST8310 Compass For Pixhawk 2.4.8 PIXRACER R15 RC Quad

Product Description

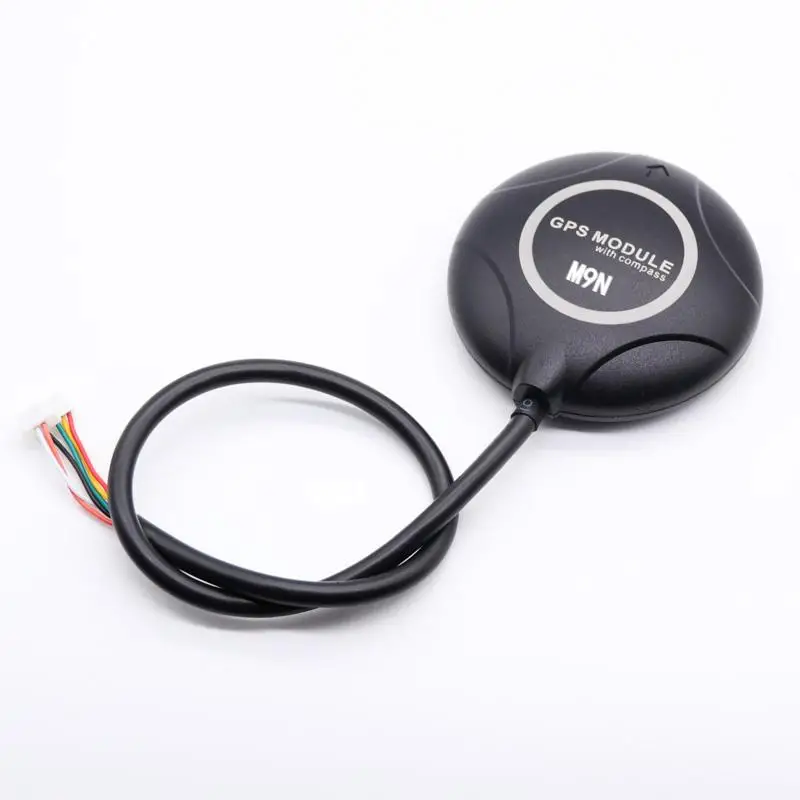

M9N GPS Module With IST8310 Compass

M9N GPS for Pixhawk2.4.8: used for Pixhawk2.4.8

M9N GPS for Pixracer R15:used for Pixracer R15

M9N GPS for Pixhawk 6C :used for PIXHAWK 6C

M9N is a GPS module commonly used in unmanned aerial vehicles, with the following characteristics and applications:

High precision positioning: The M9N adopts advanced GNSS technology, supports multiple satellite navigation systems, and can provide high-precision position positioning information. For unmanned aerial vehicles, it can achieve accurate positioning and navigation.

Multi system support: The M9N supports multiple satellite navigation systems, including GPS, GLONASS, Galileo, BeiDou, etc. This allows drones to receive multiple satellite signals simultaneously, improving positioning accuracy and reliability.

Quick positioning: M9N has fast cold start and hot start times, which can quickly obtain satellite signals and perform positioning, making it crucial for the rapid takeoff and task execution of unmanned aerial vehicles.

Strong anti-interference ability: M9N has excellent anti-interference performance, which can work stably in complex electromagnetic environments and is not susceptible to interference from other electronic devices.

In drone applications, M9N can be used in the following aspects:

Positioning and Navigation: The M9N provides accurate position and speed information to help drones achieve precise navigation and flight control.

Waypoint navigation: By inputting pre-set waypoint information into M9N, unmanned aerial vehicles can automatically fly according to the route, achieving autonomous waypoint navigation tasks.

Multi aircraft collaboration: Multiple drones can use the M9N module for positioning and synchronization to achieve applications such as team collaborative flight and formation flight.

Return to return: The M9N can provide accurate return positioning information, enabling the drone to safely return to the takeoff point or preset return point.

M9N can search for more satellites outdoors with higher accuracy, faster search speed, and better stability.(The specific number of star searches is determined by the environment at that time.)

The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

It also comes with the IST8310 compass.This module ships with a baud rate of 115200 5Hz.

The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Firmware Support for M10 GPS:

• PX4 1.14, ArduPilot 4.3, or newer is required.

•


  Specification

  	M10 GPS	M9N GPS
  GNSS Receiver	Ublox M10	Ublox M9N
  Number of Concurrent GNSS	Up to 4 GNSS	Up to 4 GNSS
  BeiDou	BeiDou
  Galileo	Galileo
  GLONASS	GLONASS
  GPS	GPS
  QZSS	QZSS
  Frequency Band	GPS L1	GPS L1
  Galileo E1	Galileo E1
  GLONASS L1	GLONASS L1
  BeiDou B1	BeiDou B1
  SBAS L1	SBAS L1
  QZSS L1	QZSS L1
  Compass	IST8310	IST8310
  Output Protocol	UBX (U-blox)	UBX (U-blox)
  NMEA	NMEA
  Accuracy	2.0m CEP	1.5m CEP
  Nav. Update Rate	Up to 25 Hz (single GNSS),	Up to 25 Hz (4 concerrent GNSS)
  Up to 10 Hz (4 concurrent GNSS)
  GNSS Augmentation System	EGNOS, GAGAN, MSAS and WAAS	EGNOS, GAGAN, MSAS and WAAS
  QZSS: L1S	QZSS: L1S
  Default Baud Rate	115200	115200
  Input Voltage	4.7-5.2V	4.7-5.2V
  Port Type	JST-GH-6P	JST-GH-6P
  Antenna	25 x 25 x 4 mm ceramic patch antenna	25 x 25 x 4 mm ceramic patch antenna
  Power consumption	Less than 200mA @ 5V	Less than 200mA @ 5V
  Operating Temperature	-40~80C	-40~80C
  Dimension	φ50 x14.4 mm	φ50 x14.4 mm
  Weight	32g	32g
  Cable Length	26cm (42cm cable purchase separately)	26cm (42cm cable purchase separately)
