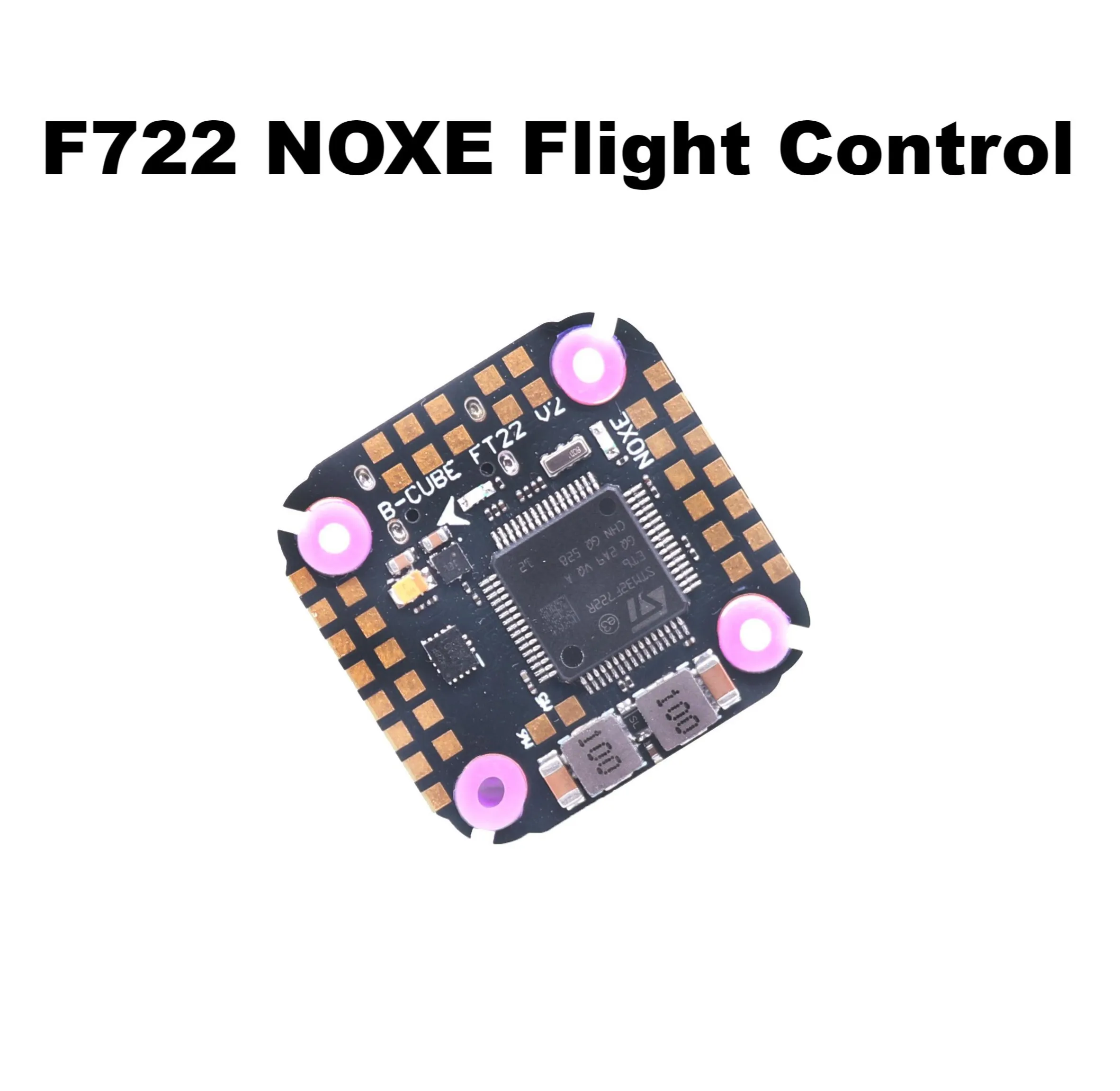

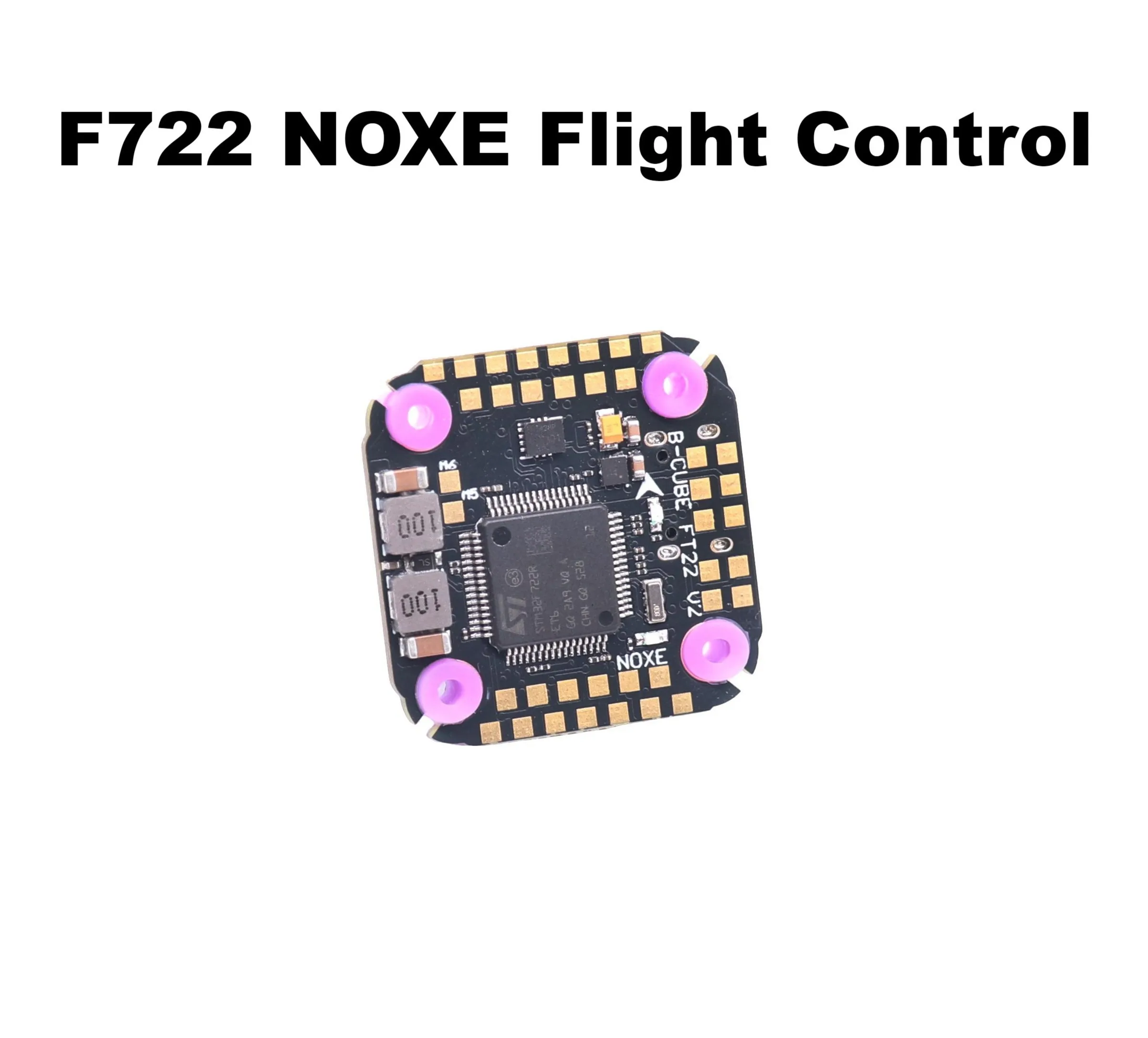

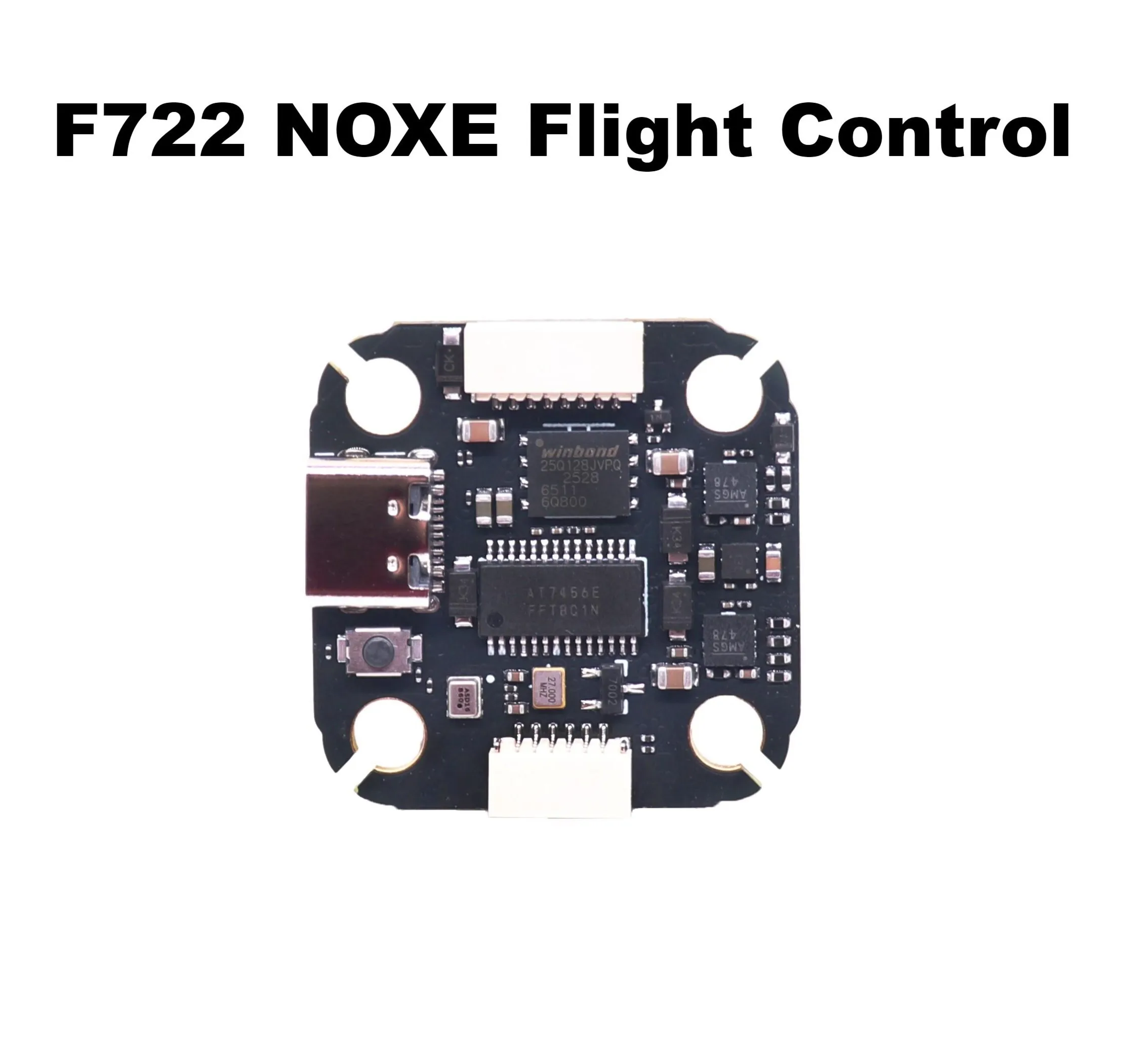

B-CUBE F722 NOXE FC ICM-42688-P 3-6S STM32 TYPE-C For ELRS TBS CRSF SBUS IBUS DS

Product Description

Features:

1. The F722 NOXE is a 3-6S 20x20mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.

2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.

4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.

5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:

F722 NOXE Flight controller baro: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.

Specifications:

Main control: STM32F722RE (216MHZ)
Gyroscope: ICM-42688-P
Barometer: SPL06-01
OSD chip: AT7456E
Black box: 16MB
LED programming: supported
BB sound: supported
Input voltage: 3-6S
I2C interface: supported
BEC: 5V/2.5A
BEC: 10V/2.0A
Camera input: supported
USART: UART1, UART2, UART3, UART4, UART5, UART6
Receiver: ELRS(CRSF),TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
GPS: YES
Compass: YES
HD O3: YES
ESC signal: Dshot150,Dshot300，Dshot600
USB: TYPE-C
Current port: YES
Voltage sensor : YES
DFU button: YES
Weight: 5g
Flight control firmware: betaflight_4.5.2_STM32F7X2_JHEF7DUAL.hex / inav_8.0.1_JHEMCUF722.hex

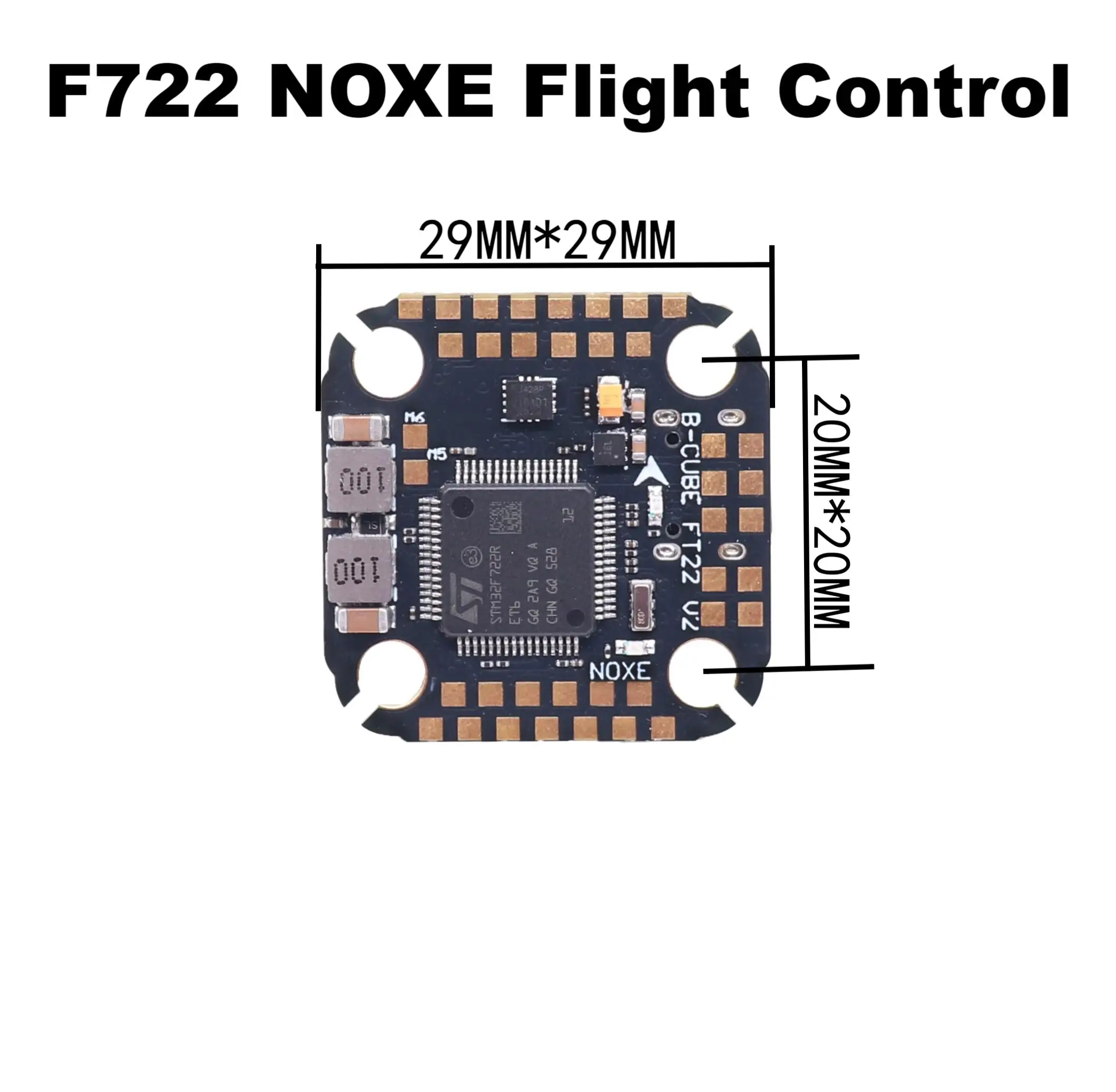

Installation hole spacing:20MM * 20MM * 4MM
Maximum overall size: 29MM * 29MM
