Product Description

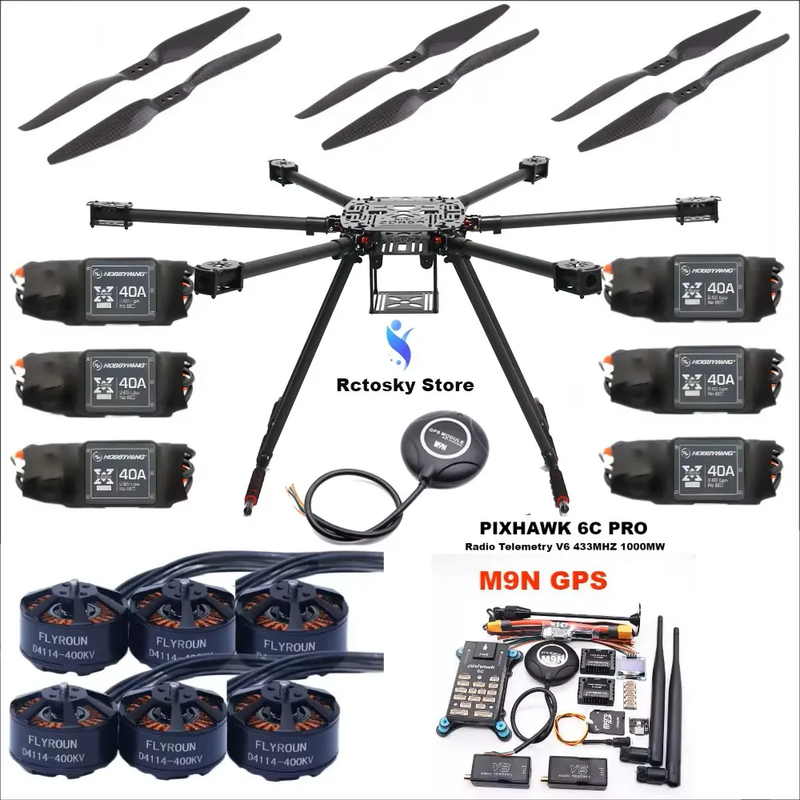

ZD850 Full Carbon Fiber 850mm Hexa-Rotor Frame BLHELI 40A ESC Pixhawk 6C PRO 2.4.8 Flight Comtrol Rado Telemetry V5 Set
ZD850 Full Carbon Fiber 850mm Hexa-Rotor Frame BLHELI 40A ESC Pixhawk 6C PRO 2.4.8 Flight Comtrol Rado Telemetry V5 SetZD850 Full Carbon Fiber ZD 850 Hexa-Rotor Frame Kit Hexacopter Frame Kit with Unflodable Landing Gear for FPVParameters:
- Diagonal wheelbase: 850mm
- Weight: about 1210 g
- Material: full carbon fiber
2.4.8 Package use 3508 380KV Motor, can lift 3KG (use 6S Battery)
6C PRO Package use 4114 400KV Motor, can lift 5KG. (use 6S Battery)
Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight ControllerFeatures:Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;2. 14 PWM / servo output;3. Bus interface (UART, I2C, SPI, CAN);4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;5. Provide automatic and manual modes;6. Provide redundant power input and failover;7. Multicolor LED lights;8. Provide multi-tone buzzer Interface9. Micro SD recording flight data;PIXHAWK 6C PRO
Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case
Technical Specification
Processors & Sensors
FMU Processor: STM32H743
32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAMIO Processor: STM32F103
32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors
Accel/Gyro: ICM-42688-P
Accel/Gyro: BMI055
Mag: IST8310
Barometer: MS5611
3 Pairs 3K Carbon Fiber Propeller 1555 + 6PCS D4114 400KV Motor +

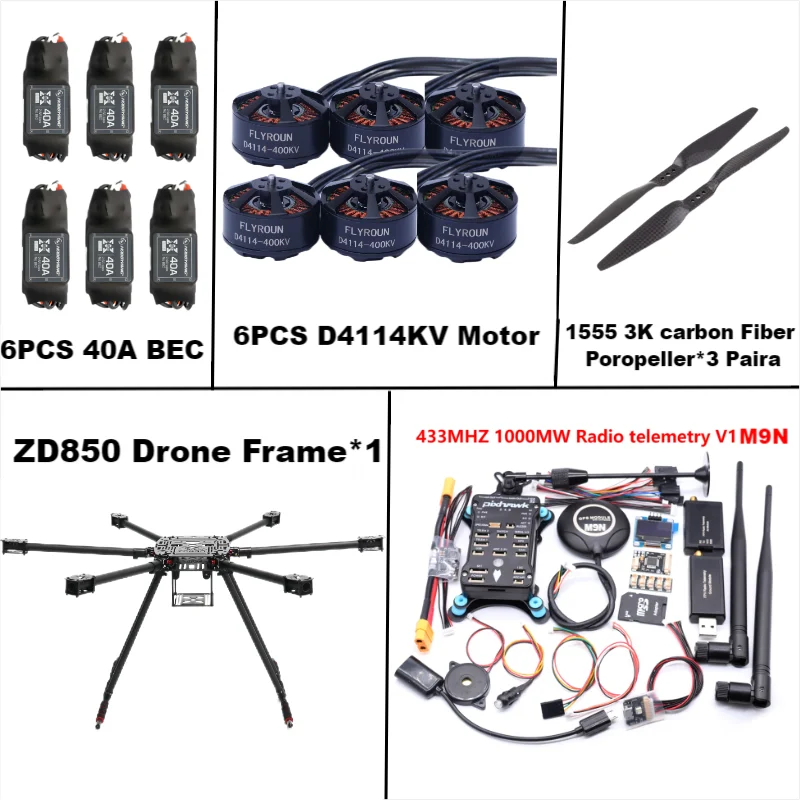

PIXHAWK 2.4.8 Flight Control + 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber + 433MHZ 1000MW 3DR Radio Telemetry V52.4.8 Double M8N Package:ZD850 PRO Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs 3K Carbon Fiber Propeller 1555 + 6PCS D4114 400KV Motor +
PIXHAWK 2.4.8 Flight Control + 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber + M8N GPS+ GPS Holder
433MHZ 1000MW 3DR Radio Telemetry V52.4.8 M9N GPS Package:ZD850 PRO Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs 3K Carbon Fiber Propeller 1555 + 6PCS D4114 400KV Motor+
PIXHAWK 2.4.8 Flight Control + 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M9N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber +
433MHZ 1000MW 3DR Radio Telemetry V52.4.8 M9N Package:ZD850 PRO Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs 3K Carbon Fiber Propeller 1555 +6PCS D4114 400KV Motor+
PIXHAWK 2.4.8 Flight Control + 4G TF Card + Safety Button + Buzzer + PPM Encoder +OLED Module+RGB LED+I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M9N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber + M9N GPS+ GPS Holder
433MHZ 1000MW 3DR Radio Telemetry V5PIXHAWK 6C PRO Package include:6C PRO M8N GPS Package:ZD850 PRO Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs 3K Carbon Fiber Propeller 1555 +6PCS D4114 400KV Motor+
PIXHAWK 6C PRO + 2*PWM Module+I2C Expansion Board + RGB LED Module+
Safety Button+4G TF Card+M8N GPS+GPS Holder+Shock Absorber+PM02Power Module(support 12S) +433MHZ 1000MW 3DR Radio Telemetry V66C PRO Double M8N Package:ZD850 PRO Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs 3K Carbon Fiber Propeller 1555 + 6PCS D4114 400KV Motor+
PIXHAWK 6C PRO + 2*PWM Module+I2C Expansion Board + RGB LED Module+
Safety Button+4G TF Card+M8N GPS+GPS Holder+Shock Absorber+PM02Power Module(support 12S) +M8N GPS+ GPS Holder433MHZ 1000MW 3DR Radio Telemetry V66C PRO M9N GPS Package:ZD850 PRO Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs T-Motor 3K Carbon Fiber Propeller 1555 +6PCS D4114 400KV Motor+
PIXHAWK 6C PRO + 2*PWM Module+I2C Expansion Board + RGB LED Module+
Safety Button+4G TF Card+M9N GPS+GPS Holder+Shock Absorber+PM02Power Module(support 12S) +433MHZ 1000MW 3DR Radio Telemetry V66C PRO Double M9N Package:ZD850 PRO Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs 3K Carbon Fiber Propeller 1555 +6PCS D4114 400KV Motor+
PIXHAWK 6C PRO + 2*PWM Module+I2C Expansion Board + RGB LED Module+
Safety Button+4G TF Card+M9N GPS+GPS Holder+Shock Absorber+PM02Power Module(support 12S) + M9N GPS+ GPS Holder433MHZ 1000MW 3DR Radio Telemetry V6
M9N GPSM9N is a GPS module commonly used in unmanned aerial vehicles, with the following characteristics and applications:
High precision positioning: The M9N adopts advanced GNSS technology, supports multiple satellite navigation systems, and can provide high-precision position positioning information. For unmanned aerial vehicles, it can achieve accurate positioning and navigation.
Multi system support: The M9N supports multiple satellite navigation systems, including GPS, GLONASS, Galileo, BeiDou, etc. This allows drones to receive multiple satellite signals simultaneously, improving positioning accuracy and reliability.
Quick positioning: M9N has fast cold start and hot start times, which can quickly obtain satellite signals and perform positioning, making it crucial for the rapid takeoff and task execution of unmanned aerial vehicles.
M9N can search for more satellites outdoors with higher accuracy, faster search speed, and better stability.(The specific number of star searches is determined by the environment at that time.)

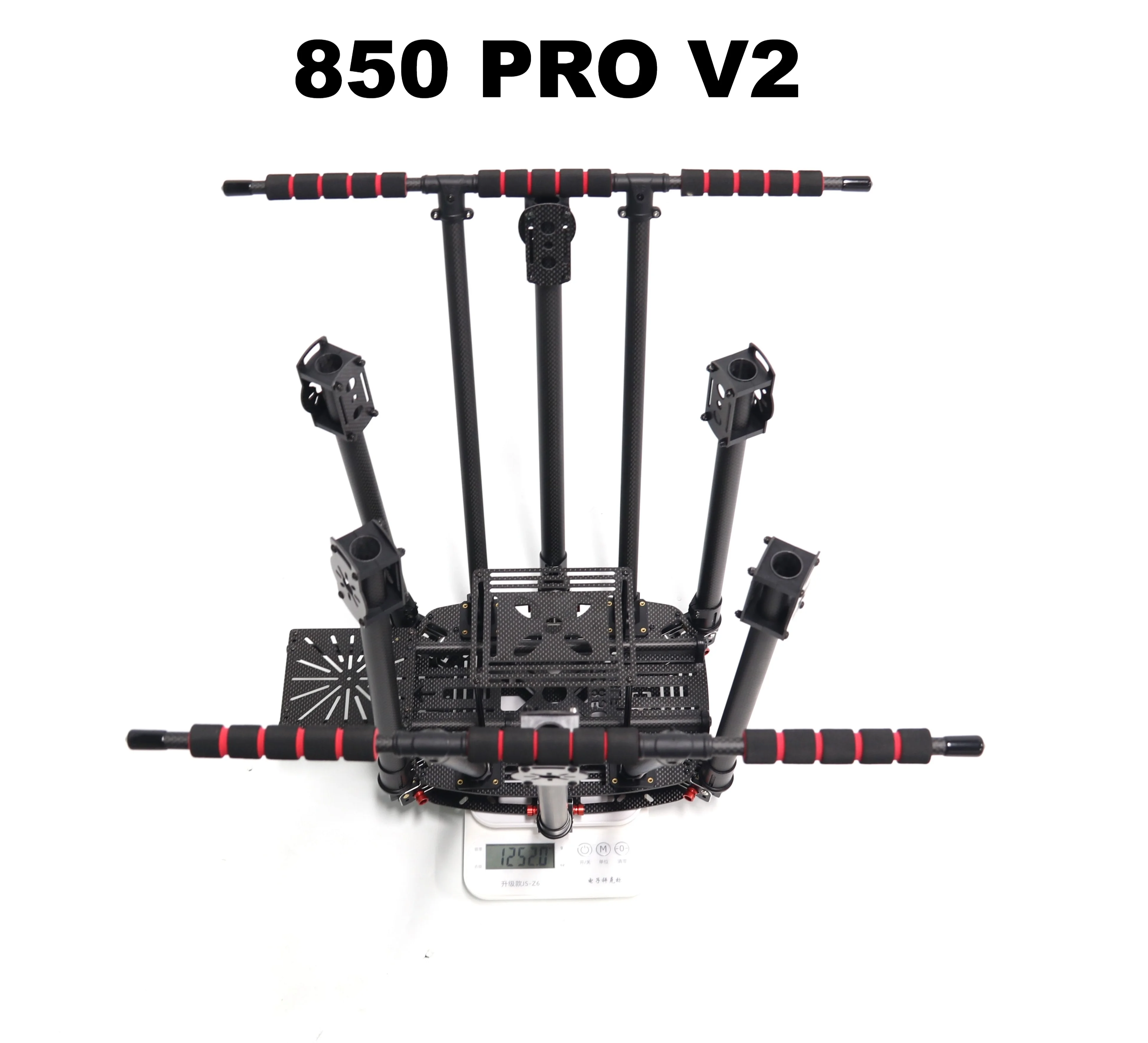

ZD850 PRO Full Carbon Fiber
PIXHAWK 2.4.8 Package:
3 Pairs 3K Carbon Fiber Propeller
The new propeller-type aerial dedicated full carbon paddle paddle-type three-hole installationUsing carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.
Features:
- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;- Firmware was optimized specifically for disc motor, and it has a very good compatibility;- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;- Ultra-low resistance MOSFET, strong flow capacity.
6PCS D4114 400KV Motor
Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.
OLED Module can display some message.
