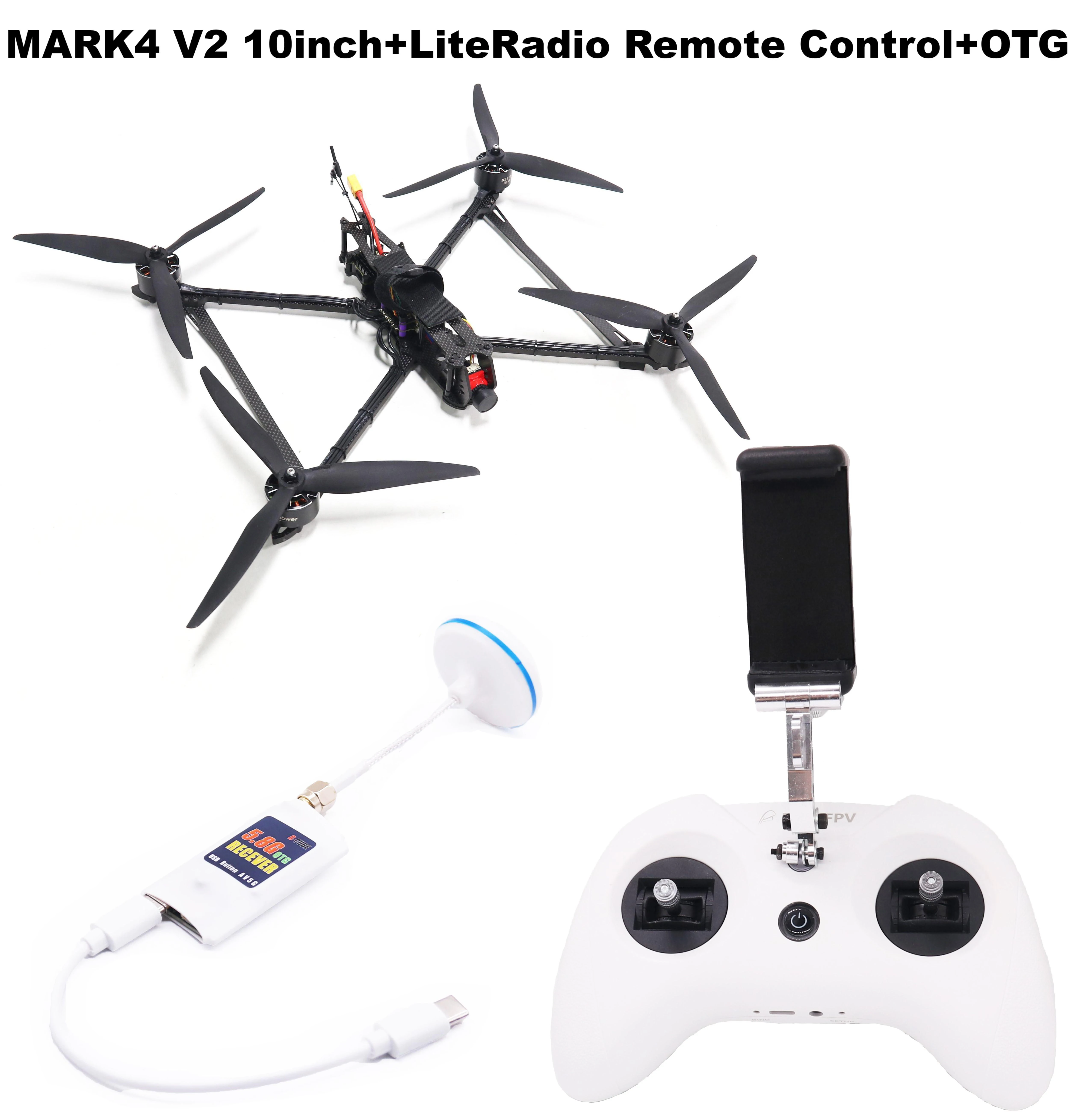

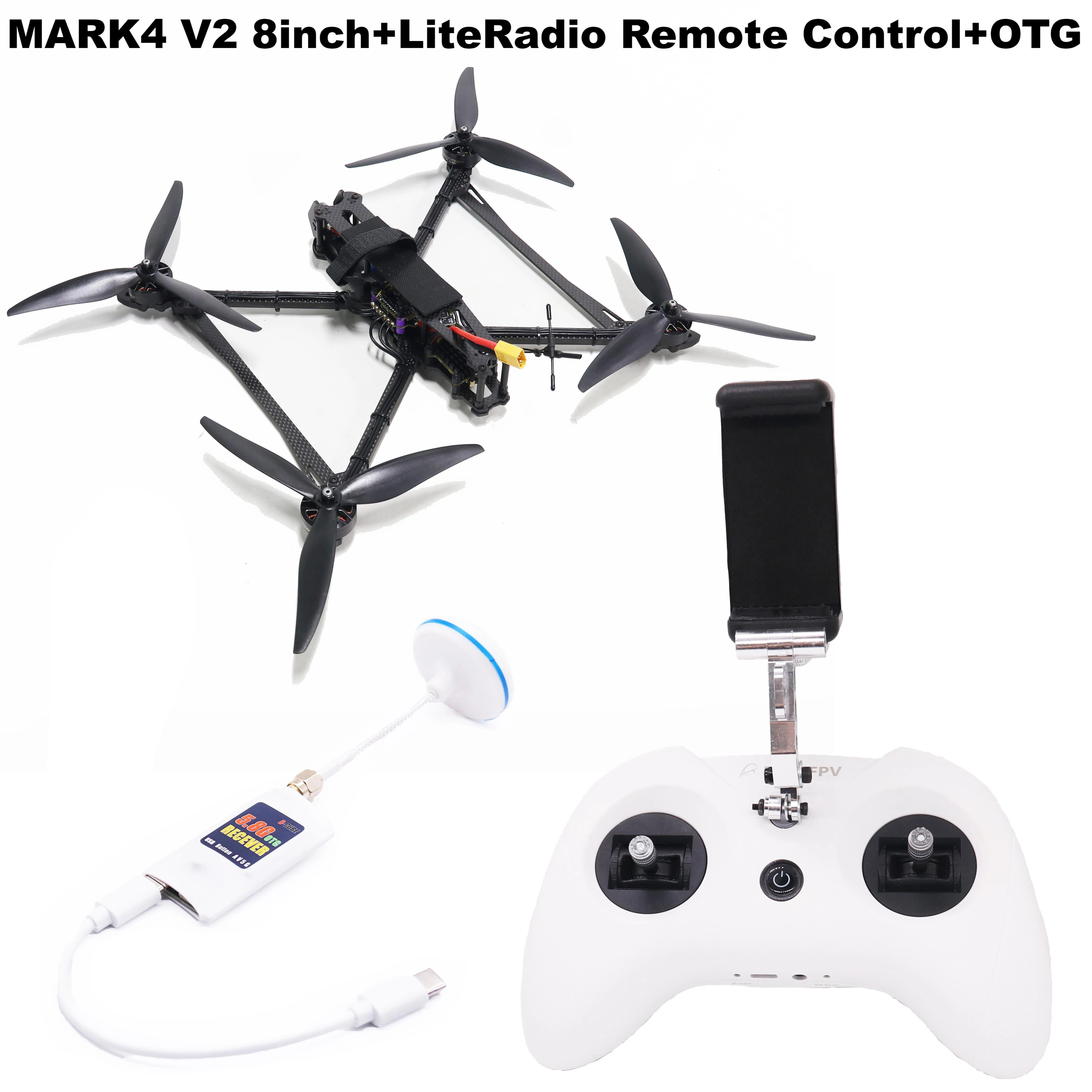

B-CUBE 7/8/9/10inch Frame V2 CRSF Remote ExpressLRS Flight Control 45/60A 4INI E

Product Description

Flight It Directly!

All accessories have been welded, Assembly completed.The flight controller has been calibrated, using INAV firmware . Once you receive it, you can fly directly without calibrating. Due to transportation logistics not allowing batteries, you will need one lithium battery. It is recommended to use a 3S-4S 5200ma XT60 battery.

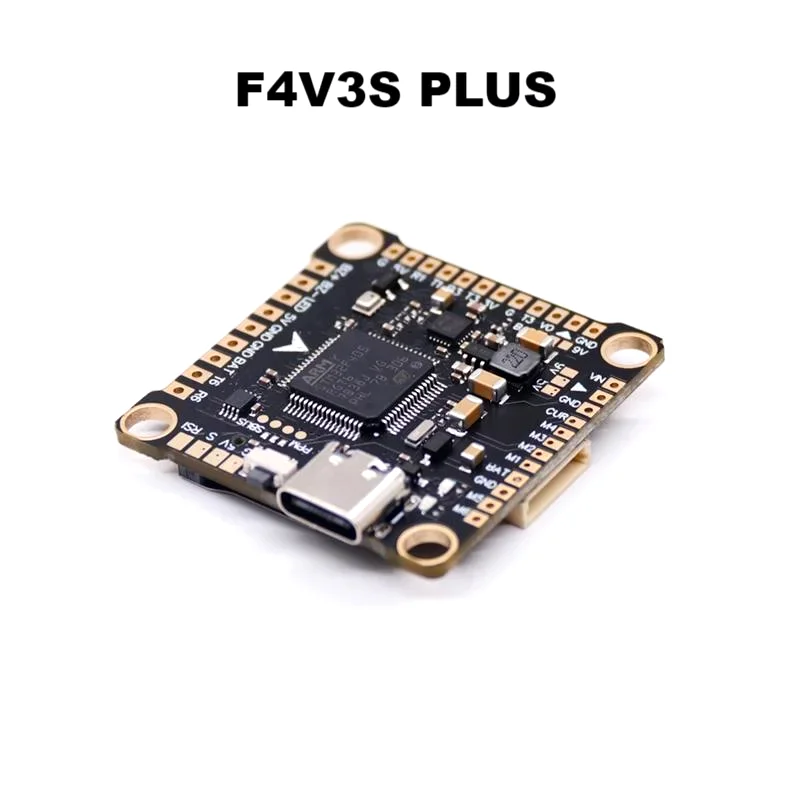

F4V3S PLUS Flight Controller

F4V3S Flight Controller Item Specifics:
Product Name: F4 Flight Controller Board
Material: Electronic component
Standard Board Size: about 36x36mm
Standard Size of Mount Hole: 30.5x30.5mm

Features:
-STM32 F405 MCU
-Dshot support
-Drag and Drop OSD configured via Betaflight Configurator
-Smartaudio v2 support Tune your PID's and configure the omnibus F C from your Transmitter
-MPU6500 6 axis SPI Gyro & Accelerometer (show as MPU6500 at inav-configurator if upload INAV firmware)
-SBUS/PPM AND Spketrum dsm-x Ports
-SD card blackbox
-Baro(BMP280)
-5V 3A SBEC
-On-board Video Filter(only can supply 5V to VTX and Camera)
-SmartAudio V2 via tx6 on J10
-4×3 pin ESC pin layout
-IR pins for lap timing transponder

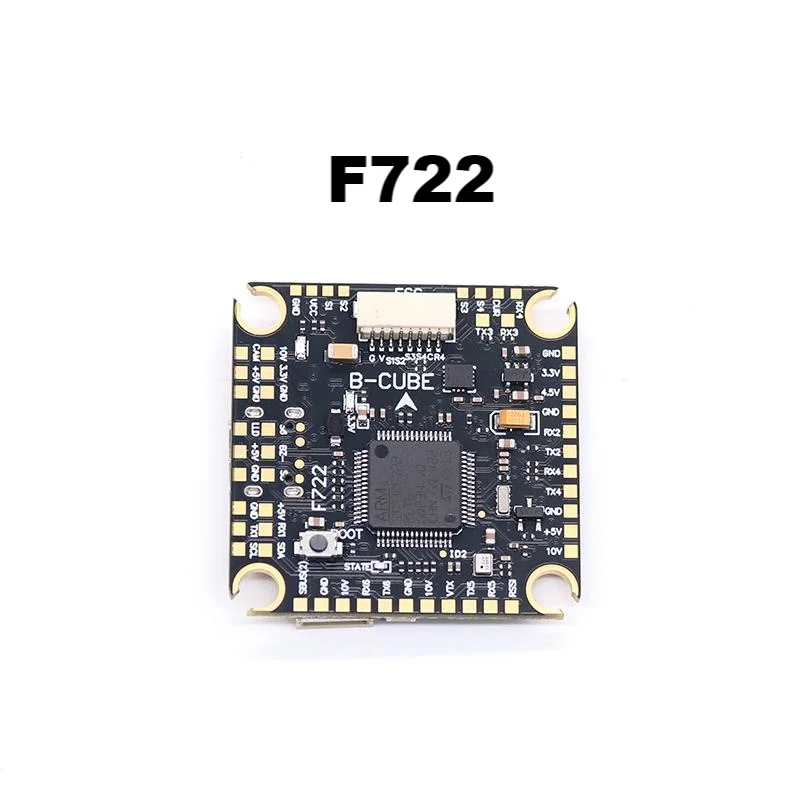

B-CUBE F722 Flight Controller

Features:
1. The F722is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:
F722 Flight controllerbaro: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.

Specifications:
(Model): F722 Flight Controller
(MCU) STM32F722RET6
(IMU) ICM-42688-P/Gyro/Accel
(OSD): AT7456E
(Baro) SPL06-001
(Blackbox): 16MB
(Input voltage): 3-8S Lipo(11.4-36V)
5V-BEC: 5V/2.5A ±0.1V
10V-BEC: 10V/2A(USER1)
IO2: USER2
(Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX
UART: UART1/2/3/4/5/6
IIC: 12C1
Led Strip:YES
(Buzzer): 5V
(ESCsignal): Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600
USB: TYPE-C
(Current port): YES
(Voltage sensor) YES
DFU (DFU button): YES
(Firmware): Betaflight 4.3.1 JHEF7DUAL.HEX , inav_7.1.0_JHEMCUF722.hex
(Size): 36*36MM
(Mounting Hole) 30.5*30.5*4MM
(Weight) 8.8g

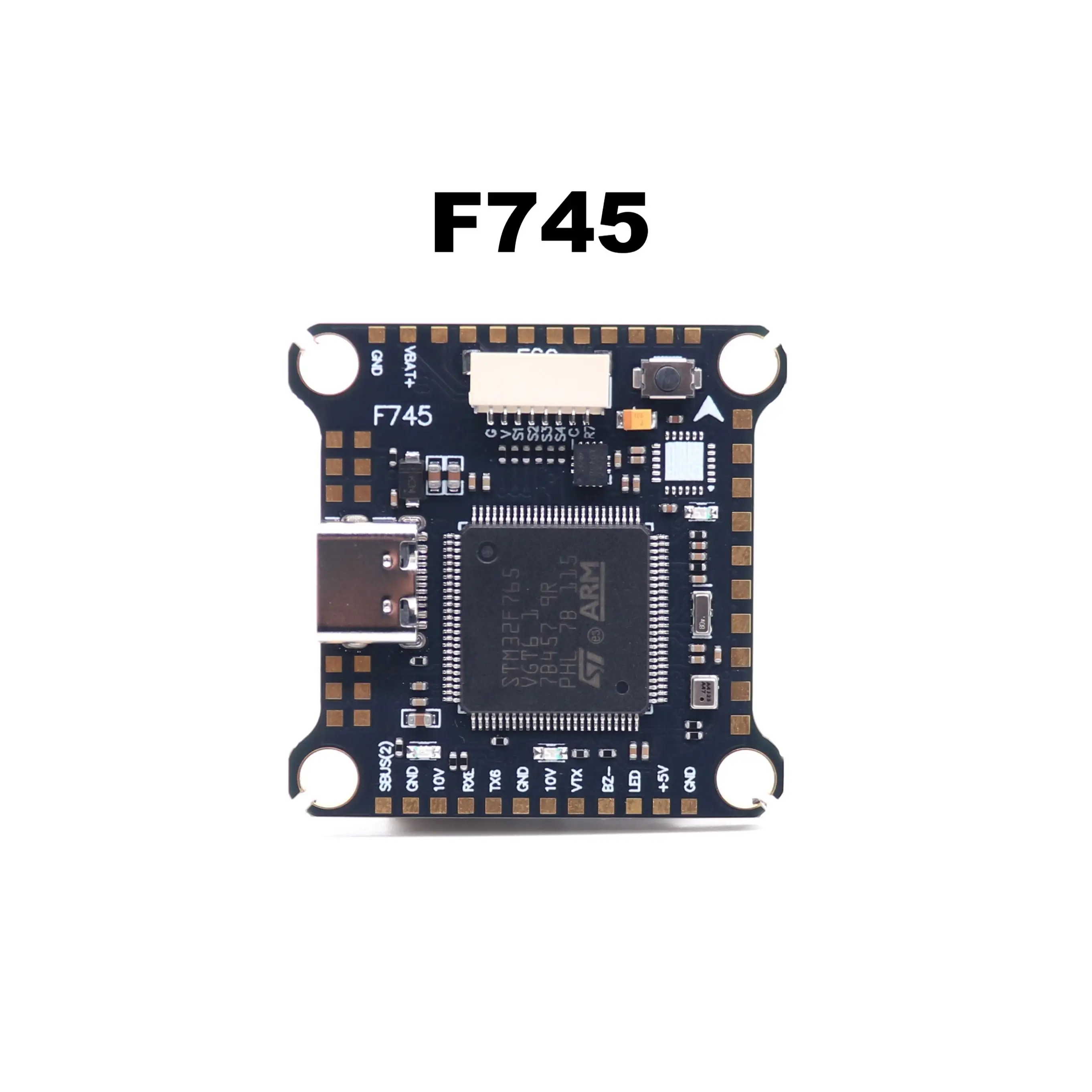

B-CUBE F745 V2 Flight Controller

Features:
1. The F745 V2 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:

F745 V2 is a major upgrade, offering enhanced performance and precision. It features a CPU upgrade from STM32F745VG to STM32F746VG, boosting processing power for faster response and improved flight stability. The IMU has been upgraded from MPU6000 to ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, V2 delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.

Specifications:

• Chip:STM32F746VG(216MHZ)

• Gyro:ICM-42688-P

• Barometer:DPS310

• OSD Chip:AT7456E

• Black box:16MM

• LED Program:Support

• BB buzzer:Support

• Input voltage:3-6S

• I2C Connector:Support

• BEC:5V/2.5A

• BEC:10V/2.0A

• Cam Input:Support

• USART:UART1,UART2.UART3.UART4.UART6.UART7

• Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX

• GPS:YES

• COMPASS:YES

• HD O3:YES

• ESC Signal:Dshoot150.Dshot300,Dshot600

• USB:TYPE-C

• Current Port:Yes.

• Voltage Sensor:Yes

• DFU Button:YES

• FC firmware:betaflight_4.4.2_JHEF745V2.HEX / inav_8.0.0_JHEMCUF745.HEX

• Install hole:30.5*30.5*4MM

• Board size:36*36MM

• Weight:7.5g

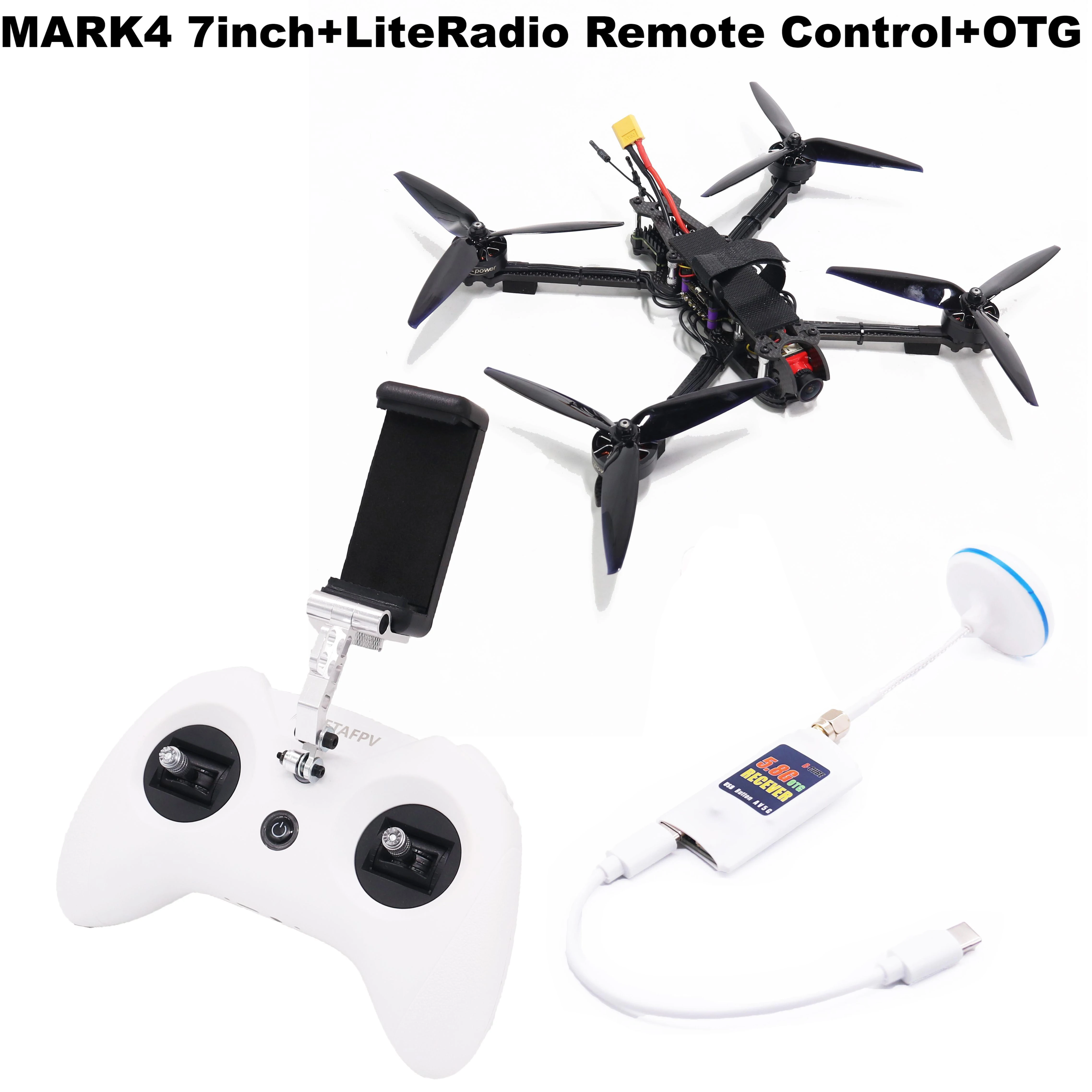

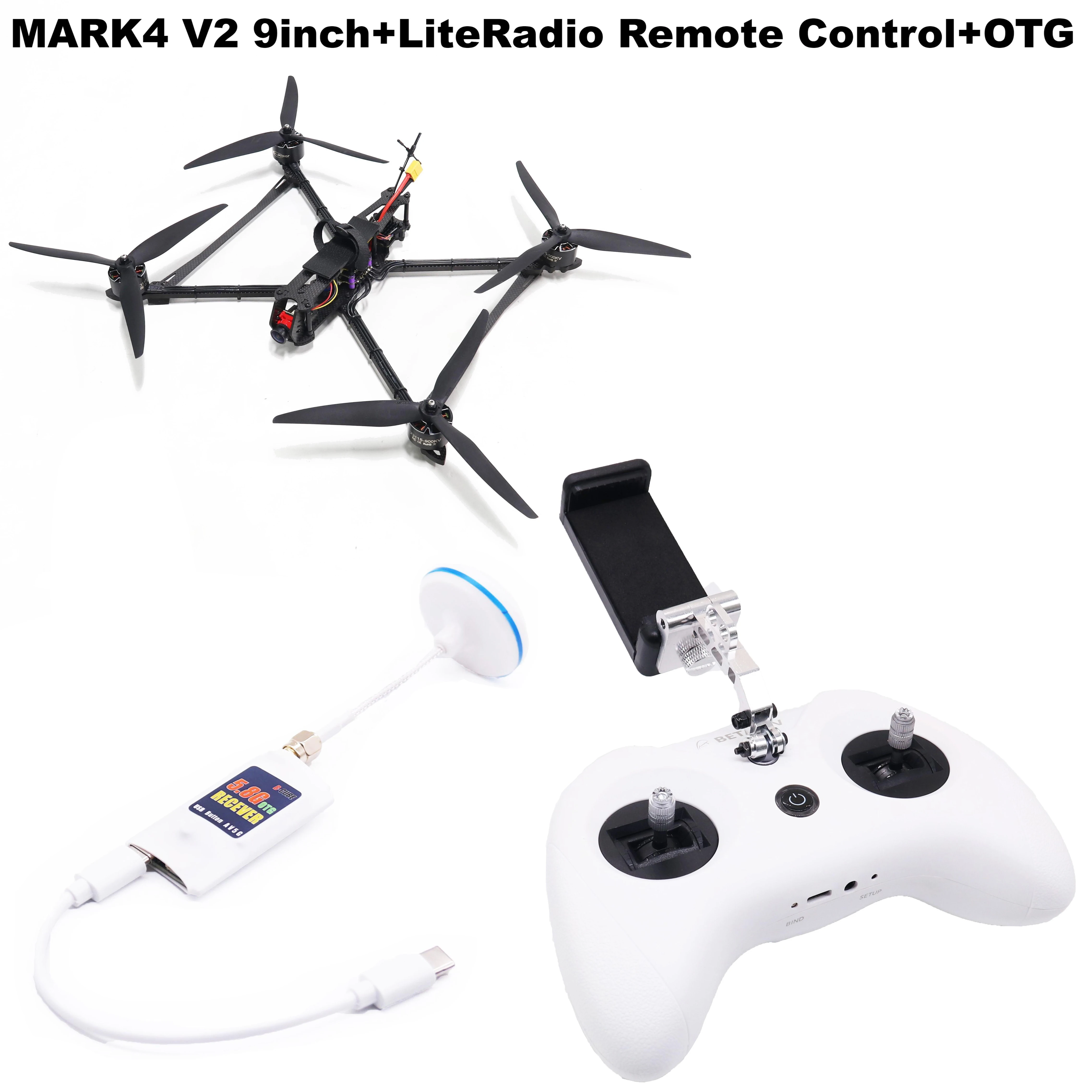

LiteRadio 3 Radio Transmitter

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.

• 8 channels in total.

• USB Joystick support for most practice simulators.

• Nano module bay for external TX module.

• Newly designed joystick gimbal for longer usage life.

• Support BETAFPV Configurator for updating, configuring, and tuning.

• Provide ExpressLRS 2.4G protocol version .

• Built-in 2000mAh battery and USB charge supported.

•

BLHELI_S 45A /60A 4IN1 3-6S Brushless ESC

VTX1000 1W Video Transmitter

VTX1600 1.6W Video Transmitter

VTX2500 2.5W Video Transmitter

Description:

Model: MINI MS-1672 FPV cameras

Sensor: 1/1/8 "CMOS D1080H

Horizontal resolution: 2000TVL

Horizontal field of view: 165

Lens: 2.1mm lens

Video format: NTC&PAL (adjustable)

Image scale: 4:3&16:9 (automatic recognition)

Wide Dynamic Range: Super WDR

Noise reduction: 3DNR

Low illumination: 0.001LUX

Video output: CVBS

Day and night: external/internal/black and white/color

Language: (English/Chinese/Traditional Chinese/pyccnna)

ESOABIK/TTASSNO/FRABCAUS/

POSDIM/PORTUGUES/Japanese

Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000

Wide voltage input: 5-36V

Working temperature: -20-60

Weight: 110g

Dimensions: 19 19 19mm

Resolution: 960 * 1080

Feature:

Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.

Package included:

1 x Upgraded Mista FPV Camera

2807 1300KV Motor
