APEX 5inch FPV Drone Frame Kit Carbon Fiber Racing Drone Quadcopter Freestyle IN

Product Description

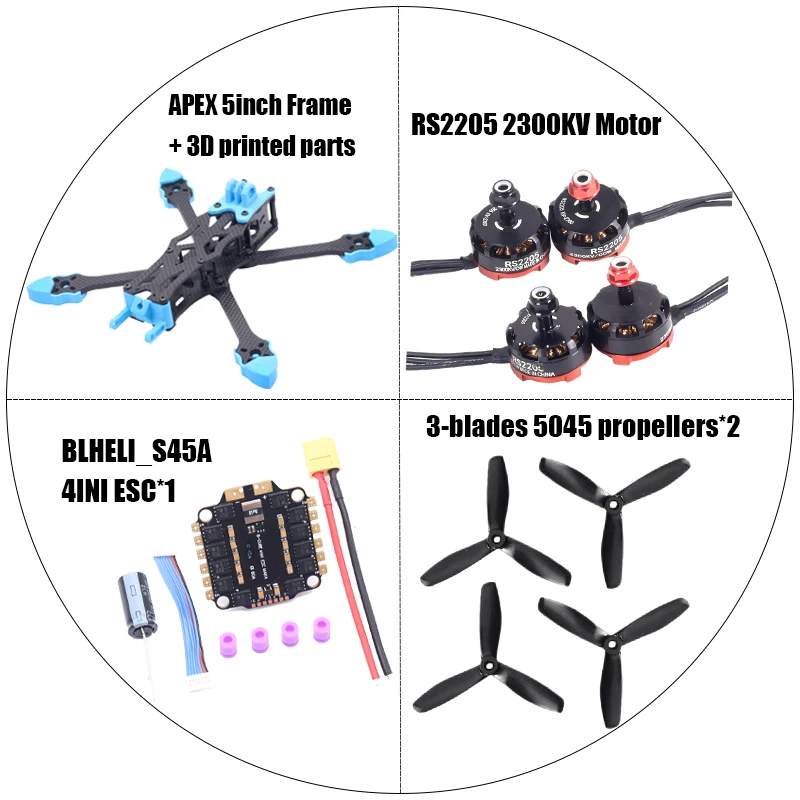

APEX 5inch Frame

Wheelbase: 215mm (4inch)
Weight: Approximately 115g (including printed copies)
Thickness: Bottom plate 3.0mm, upper plate 2.0mm, arm 5.0mm
Paddle: 5-inch paddle
Flight control hole spacing: 30.6 * 30.6mm (M3)
Hole spacing for image transmission: 20 * 20mm (M2)
Camera installation width: 19mm
Motor installation hole positions: 9 * 9mm (M2) and 12mm * 12mm (M2)
Battery: 3S/4S 2600mAh
3D print(should choose with 3D Print):
1 camera brackets,
4 arm tripod,
1 antenna pedestal,
Print color: Blue TPU

Recommended configuration:

Motor: 2205 2300KV motor
ESC: B-CUBE 4IN1-30MM 45A
Battery: 3S-4S
Paddle: 5045
Image transfer: B-CUBE VTX1000

BLHELI_S 45A 4IN1 3-6S Brushless ESC

BLHELI_S 45A 4IN1 3-6S Brushless ESC

Size: 41*39.5*5mm

Hole distance: 30.5*30.5/5mm

Weight: 13g

Input voltage: LIPO 2-6S

Continuous current: 45A

Maximum current: 50A (10 seconds)

Processor: EFM8BB21F16G

Firmware: BLS J_H_30_REV16_7

Drive signal support: DShot300-600/Multishot/Oneshot/PWM

Current sensor: Support

FVT LITTLEBEE Little bee BLHeli-s20A ESC:
1: initial tension: 2-4 s lipo
2: NO BEC
3: continue current: 20A, burst current: 25A up to 10S
4: size: 23.5 * 12mm.
5: weight: 4g (include power and signal wire)
6: Support Muted mode, Oneshot125, Oneshot42 and Multshot and DSHOT
7: Main IC: SILABS EFM8BB21F16, MCU run 48MHz
8: MOS: Both low and high side fets are Nfets
9: switching speed is very fast, it has dedicated driver chip
10: BLHeli S Bootloader & Firmware

RS2205 2300kv Motor:
Model: RS2205-2300
Framework: 12N14P
No. of Cells: 3 - 4S
Length:31.7mm
Shaft: M5
KV: 2300
Max Thrust: 1024g
Diameter: 27.9mm
Propeller Suggested: HQ 5045 BN
Weight: 30g
Features:
1. Race Spec Performances
2. High Strength N52 Neodyum Magnets
3. Active Cooling Fins Greatly Reduce Motor Temeratures
4. Low CG, Light Weight Design
5. Japanese Bearing For Performances
6. Enchance Anti Off U Ring For Safety & Stablility
7. Dual Lock CW / CCW Locknuts3-blades 5045 propellers*2
