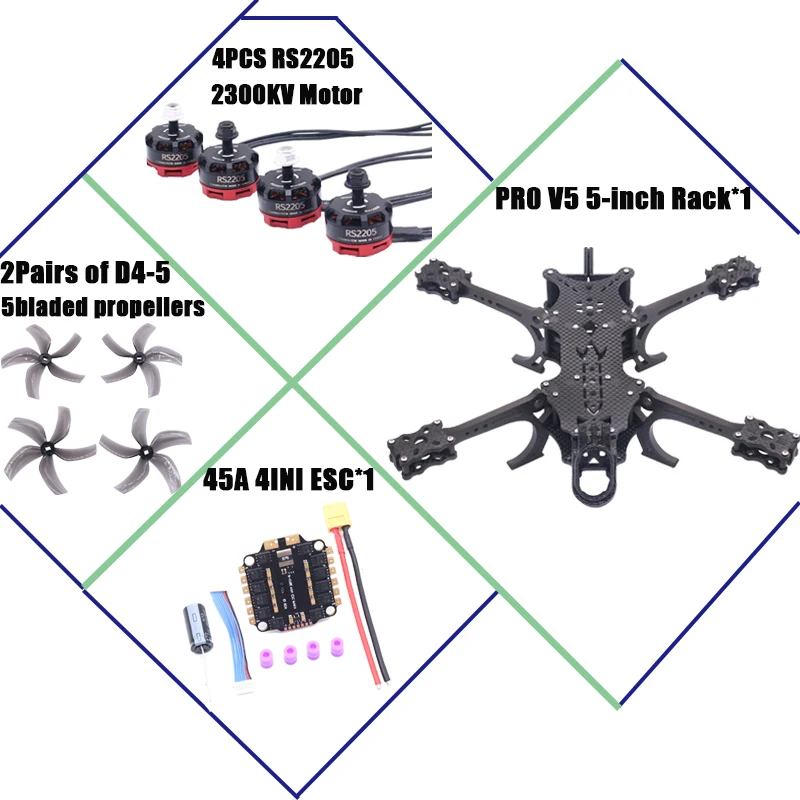

B-CUBE PRO V5 5inch FPV Drone Frame Kit Carbon Fiber Racing Quadcopter Freestyle

Product Description

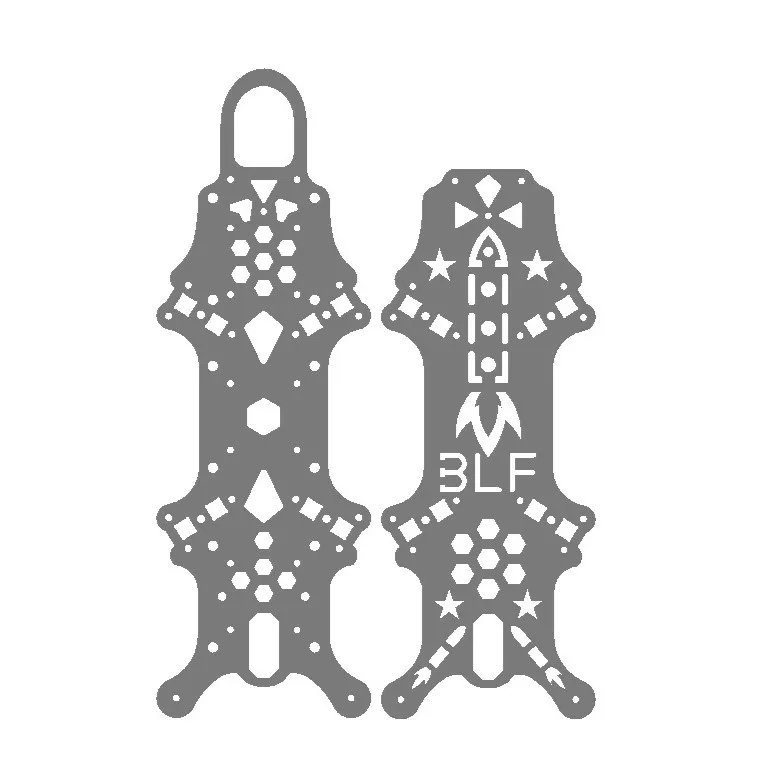

PRO V5 5-inch Rack

Product parameters:
Wheelbase: 260mm (5inch)
Weight: Approximately 163g (including printed copies)
Thickness: Bottom plate 2.5mm, upper plate 2.0mm, arm 5.0mm
Paddle: 5-inch paddle
Flight control hole spacing: 30.6 * 30.6mm (M3)，20 * 20mm (M2)
Hole spacing for image transmission: 30.6 * 30.6mm (M3),20 * 20mm (M2)
Camera installation width: 19mm
Motor installation hole positions: 9 * 9mm (M2) and 12mm * 12mm (M2)
Battery: 3S/4S 5200mAh
3D print:
1 camera brackets,
1 antenna pedestal,
Print color: Black TPU

Recommended configuration:
Motor: 2205 2300KV motor
ESC: B-CUBE 4IN1-30MM or 20MM 45A
Battery: 3S-4S
Paddle: 5045
Image transfer: B-CUBE VTX800 VTX1000 VTX1600 VTX2500

BLHELI_S 45A 4IN1 3-6S Brushless ESC

BLHELI_S 45A 4IN1 3-6S Brushless ESC

Size: 41*39.5*5mm

Hole distance: 30.5*30.5/5mm

Weight: 13g

Input voltage: LIPO 2-6S

Continuous current: 45A

Maximum current: 50A (10 seconds)

Processor: EFM8BB21F16G

Firmware: BLS J_H_30_REV16_7

Drive signal support: DShot300-600/Multishot/Oneshot/PWM

Current sensor: Support

The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision

RS2205 2300kv Motor:
Model: RS2205-2300
Framework: 12N14P
No. of Cells: 3 - 4S
Length:31.7mm
Shaft: M5
KV: 2300
Max Thrust: 1024g
Diameter: 27.9mm
Propeller Suggested: HQ 5045 BN
Weight: 30g
Features:
1. Race Spec Performances
2. High Strength N52 Neodyum Magnets
3. Active Cooling Fins Greatly Reduce Motor Temeratures
4. Low CG, Light Weight Design
5. Japanese Bearing For Performances
6. Enchance Anti Off U Ring For Safety & Stablility
7. Dual Lock CW / CCW Locknuts

Gemfan D4-5Size: 4 inches

Pitch: 3.8 inches

Weight: 5.5g

Aperture: M5

Color: Midnight Grey

Recommended motor: 24082506

Takeoff weight: 600g

Packaging method: 2CW+2CCW

Material: PC

Features:

Suitable for 4-inch culvert machines

Can provide high tensile strength

The noise of the propeller blade is low
