Product Description

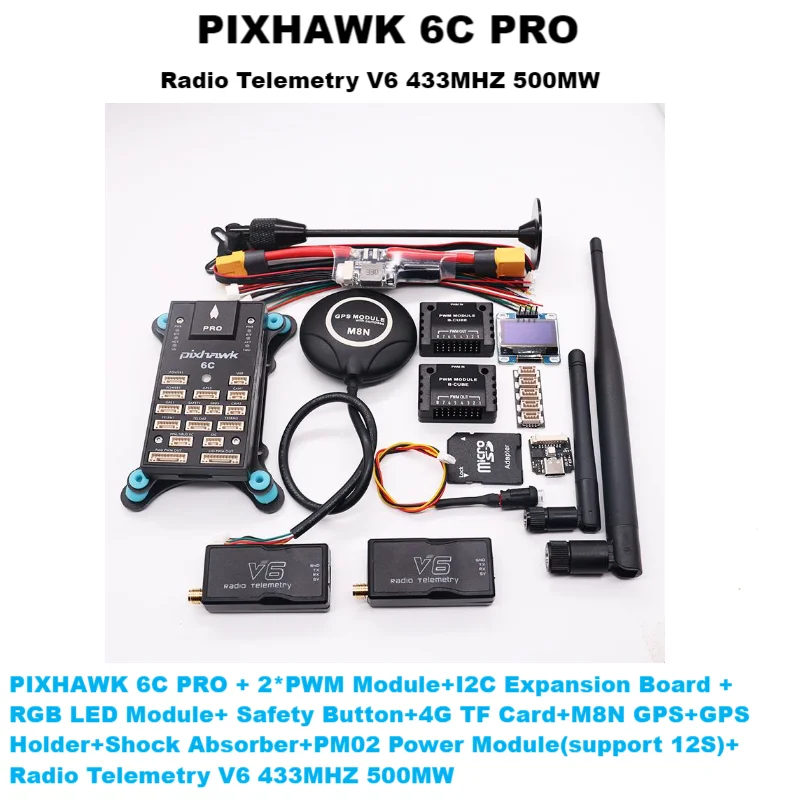

PIXHAWK 6C PRO FMUV6C Ardupilot PX4 32 Bit Flight Controller Autopilot with 4G SD Safety Built-in Buzzer Radio Telmetry V6 500MW
PIXHAWK 6C PRO FMUV6C Ardupilot PX4 32 Bit Flight Controller Autopilot with 4G SD Safety Built-in Buzzer Radio Telmetry V6 500MWPIXHAWK 6C PRO
The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.
The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.
The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.
The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.
Key Design Points
High performance STM32H743 Processor with more computing power & RAM
Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case
New cost-effective design with low-profile form factor
Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
Technical Specification
Processors & Sensors
FMU Processor: STM32H743
32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAMIO Processor: STM32F103
32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors
Accel/Gyro: ICM-42688-P
Accel/Gyro: BMI055
Mag: IST8310
Barometer: MS5611
Electrical data
Voltage Ratings:
Max input voltage: 6V
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~36V
Current Ratings:
TELEM1 Max output current limiter: 1.5A
All other port combined output current limiter: 1.5A
Mechanical data
Dimensions: 85 * 45 * 10 mm
Weight (Plastic Case) : 33g
