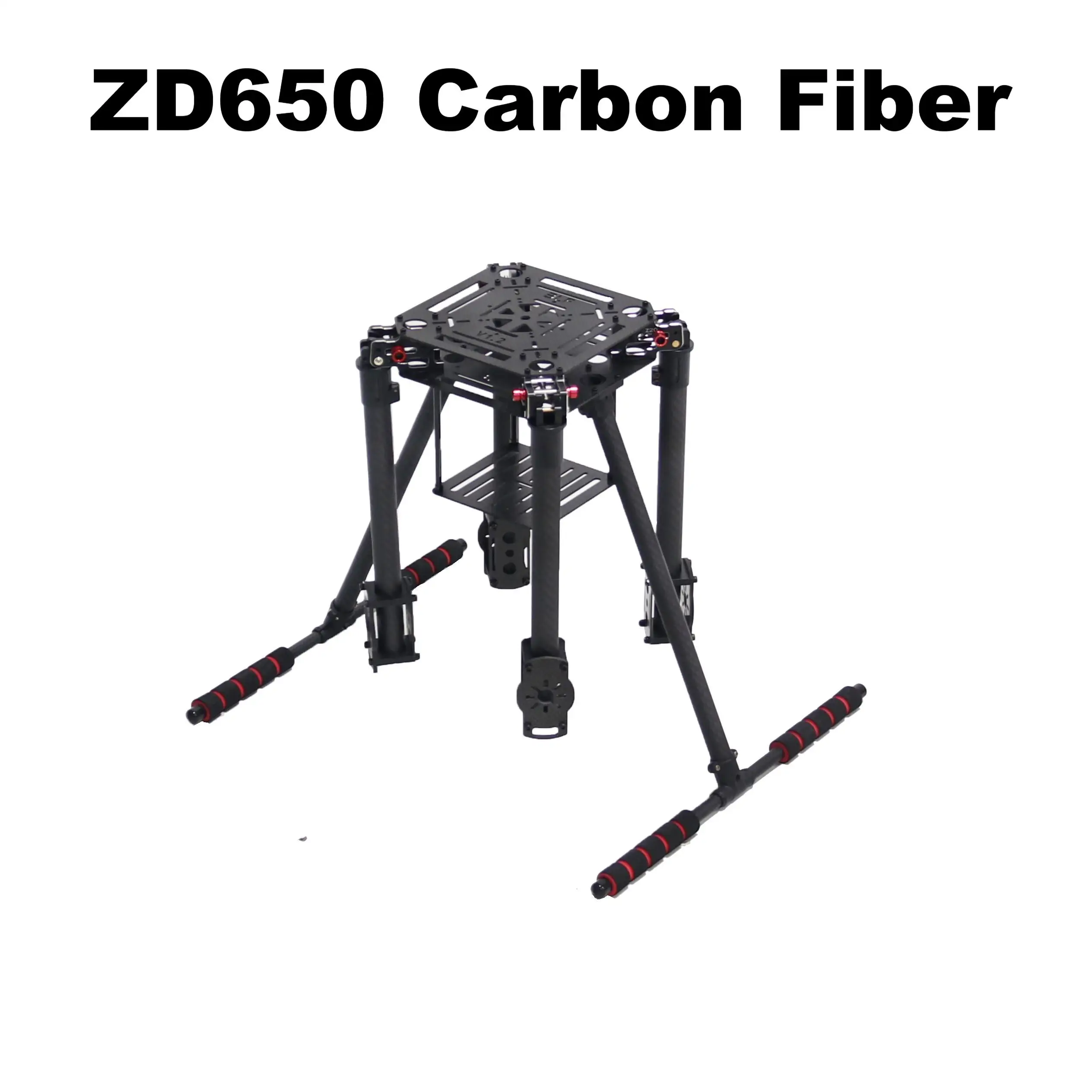

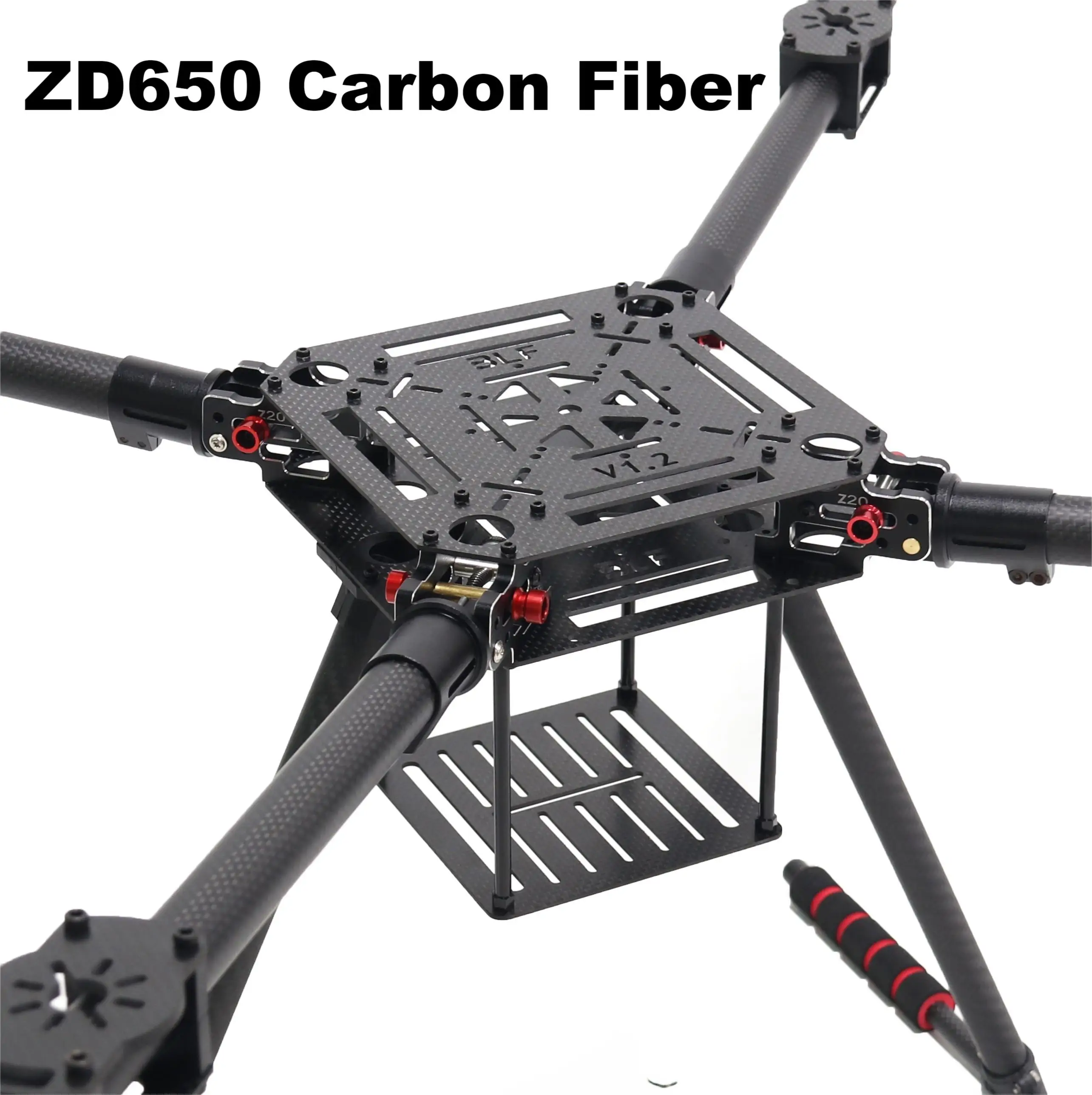

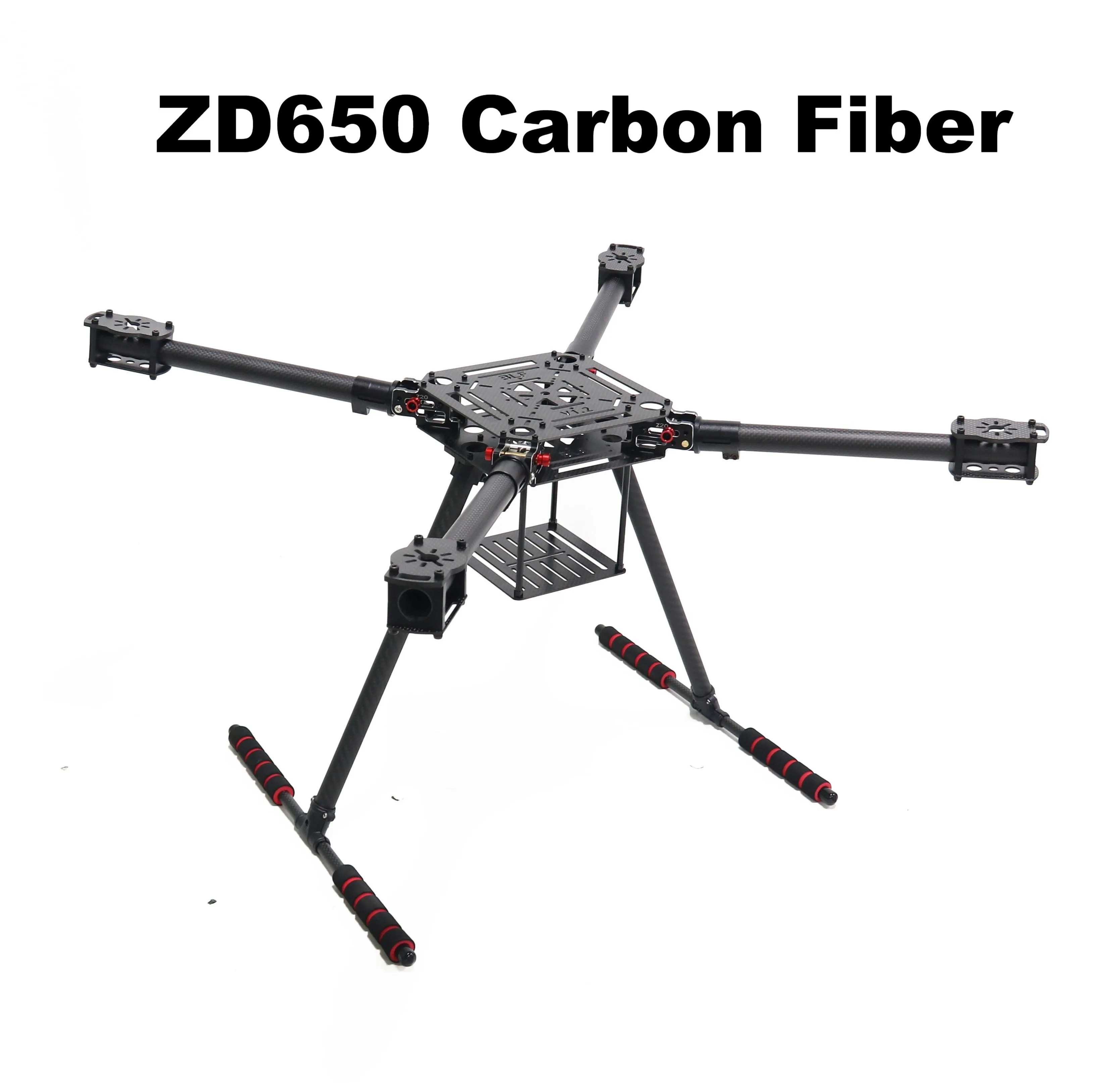

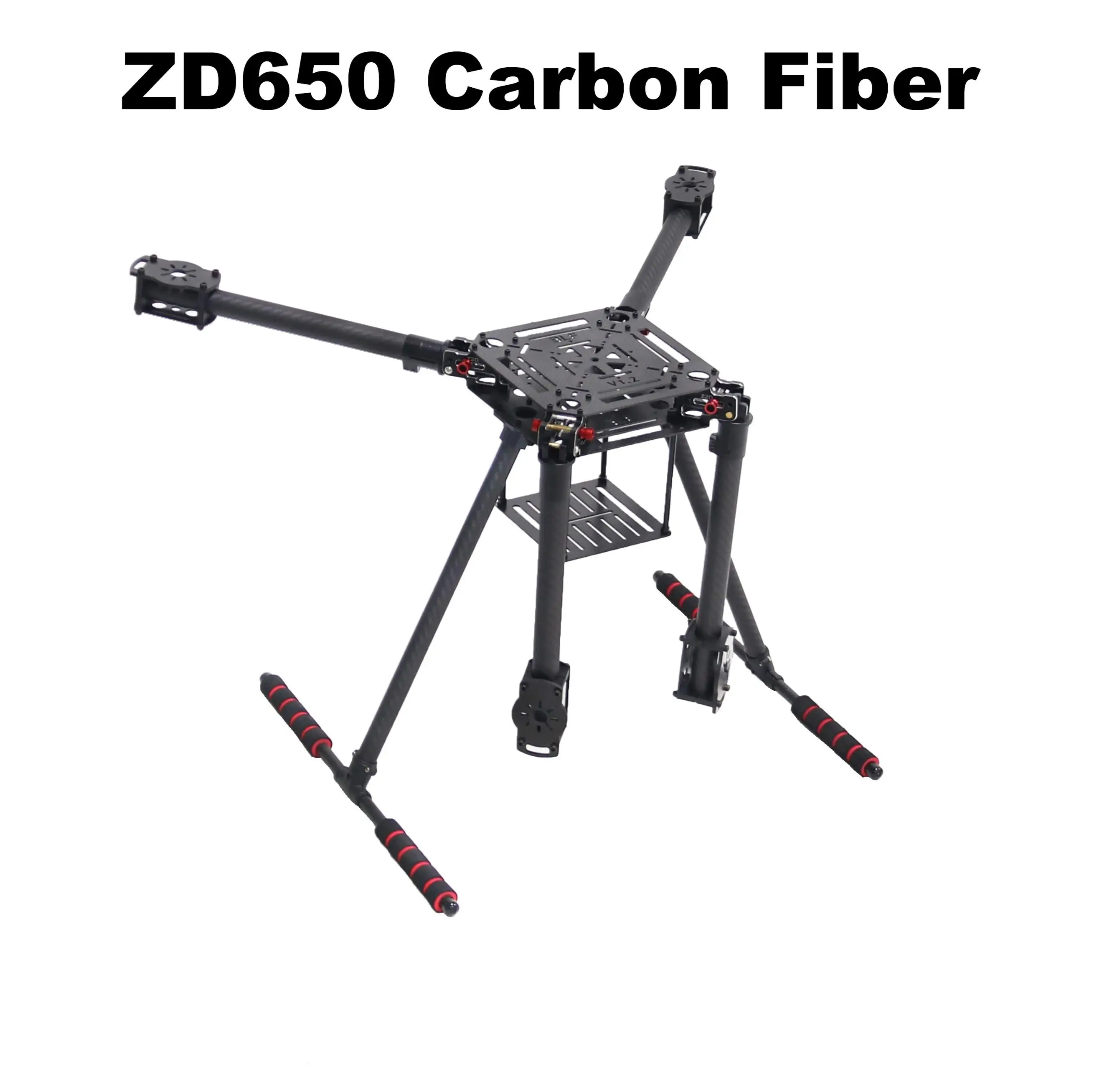

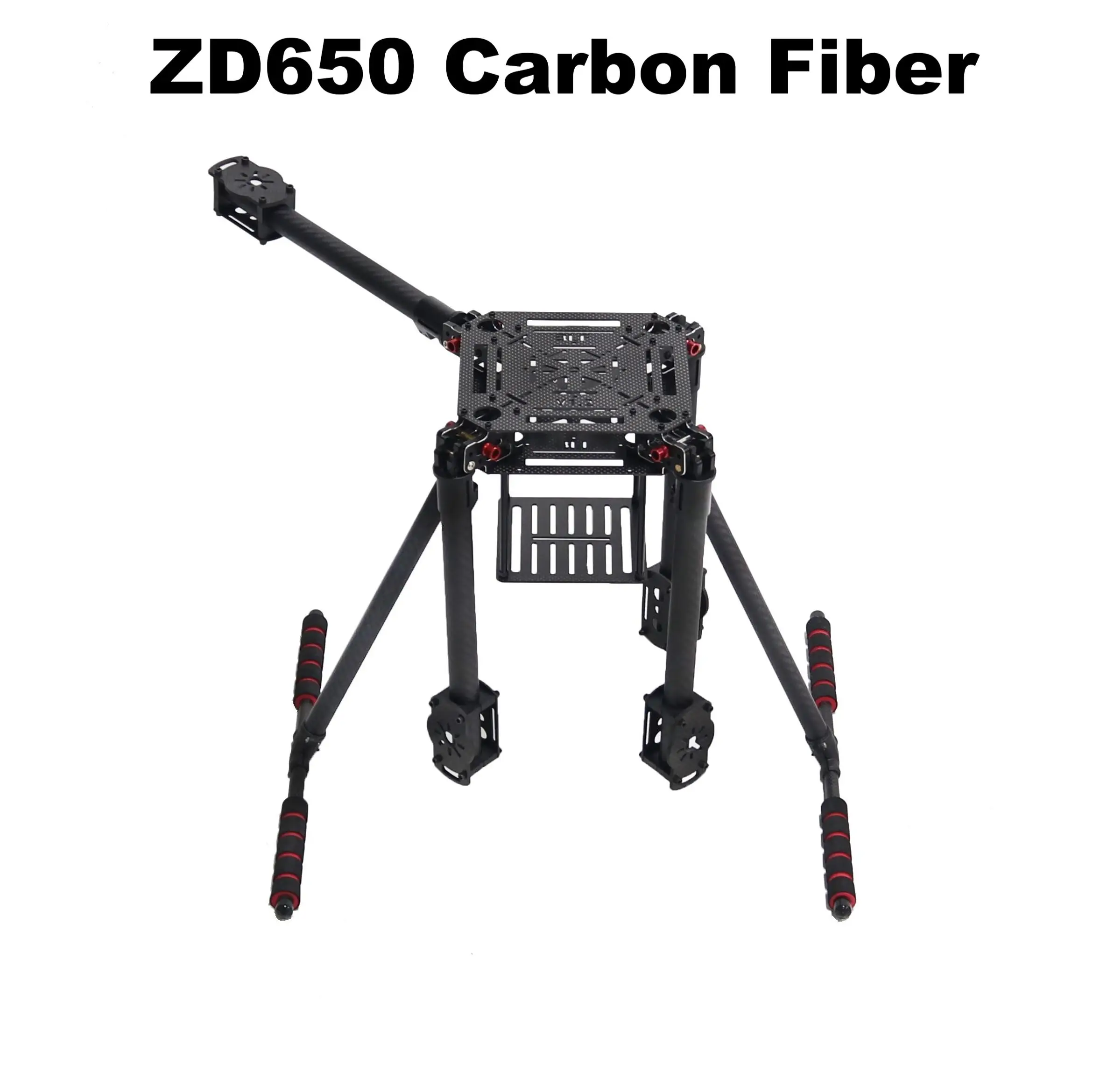

Name: ZD650 650mm Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Ski
Brand: Prime Living
SKU: H-168322507583
Price: 736.99 CAD
Availability: InStock

Product Description

ZD650 650mm Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Skid Motor ESC 40A

Carbon Fiber 650 Frame

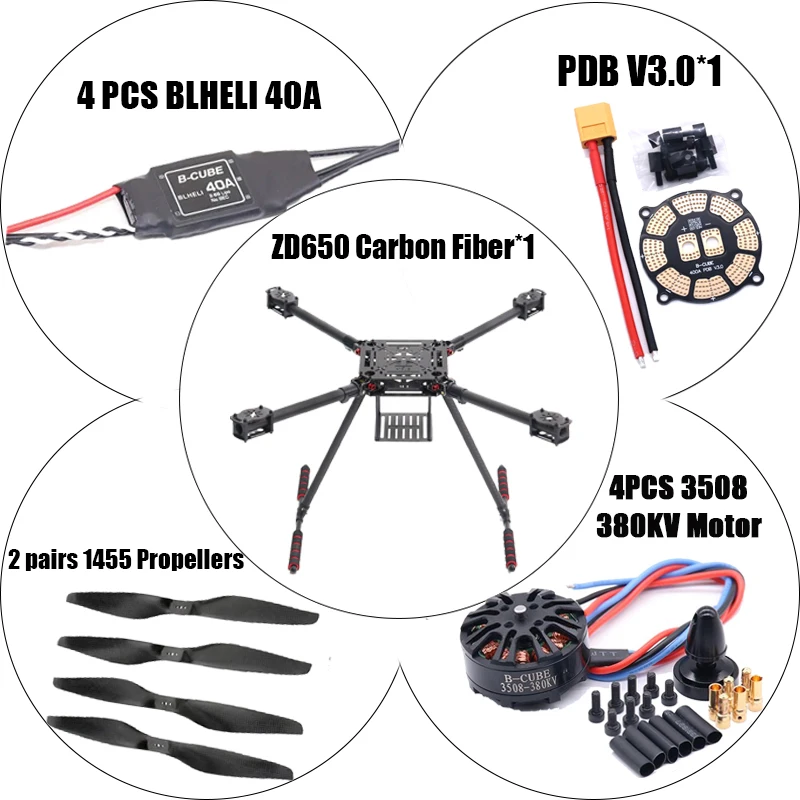

F650 Frame+ 4 PCS BLHELI 40A +2 pairs self-locking 1455 Propellers +4 PCS 3508 380KV Motor + PDB V3.0

ZD650 650mm Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Ski

Carbon Fiber 650 Fram

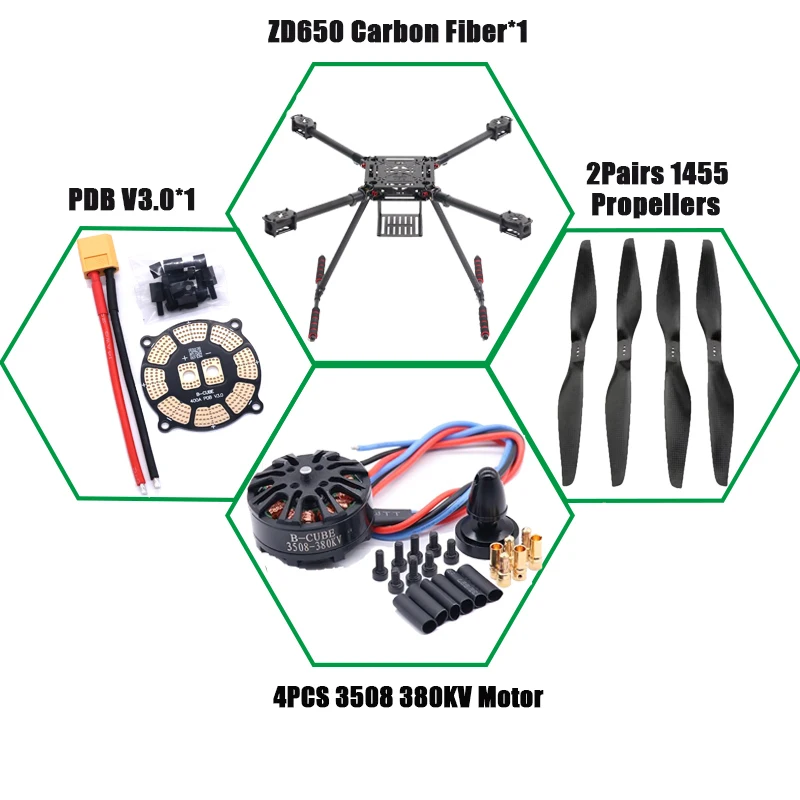

F650 Frame+2 pairs self-locking 1455 Propellers +4 PCS 3508 380KV Motor + PDB V3.0

ZD650 650mm Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Ski

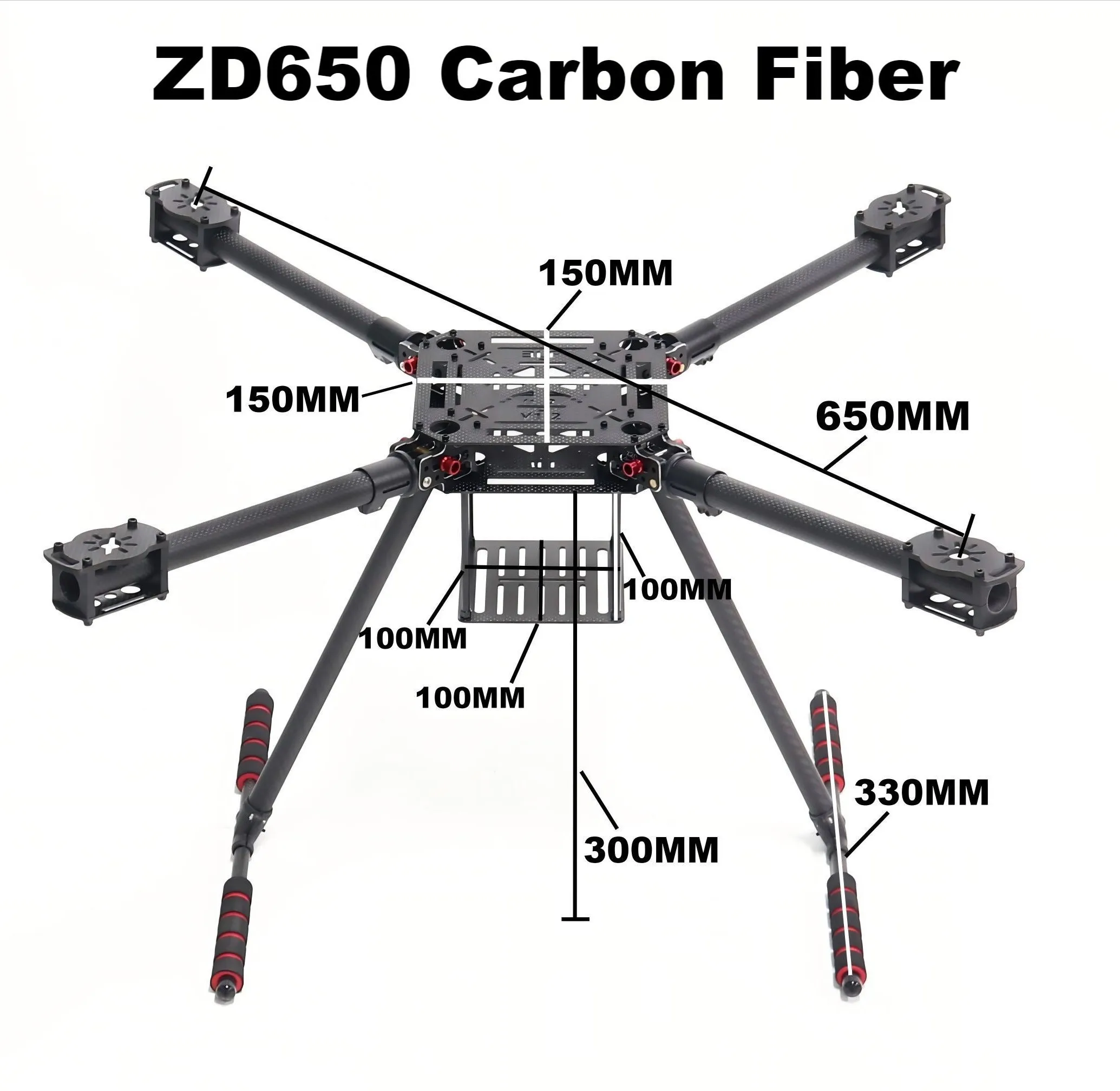

ZD650 Carbon FiberParameters:

- Diagonal wheelbase: 650mm

- Landing gear height: 300mm

- Weight: 689 ±2 g

- Material of the main board : 3k full carbon fiber

- thickness of the main board : 1.5mm

- Arm diameter: 20MM

Recommended configuration: (Not inlcuded)

- Motor: 3508/D4114

- Prop: 14-16 inch CW CCW

- ESC: 40A (2-6S)

- Flight control:PIXHAWK Fightl Control

- Battery: 4-6S Lipo

Package includes:

- Carbon Fiber Quadcopter frame kits with Landing Gear x 1 (just a frmae kit, not assembled)

(note: the color of the landing gear pad is differenct because of the different prodcution batch, send the color at random)

ZD650 650mm Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Ski

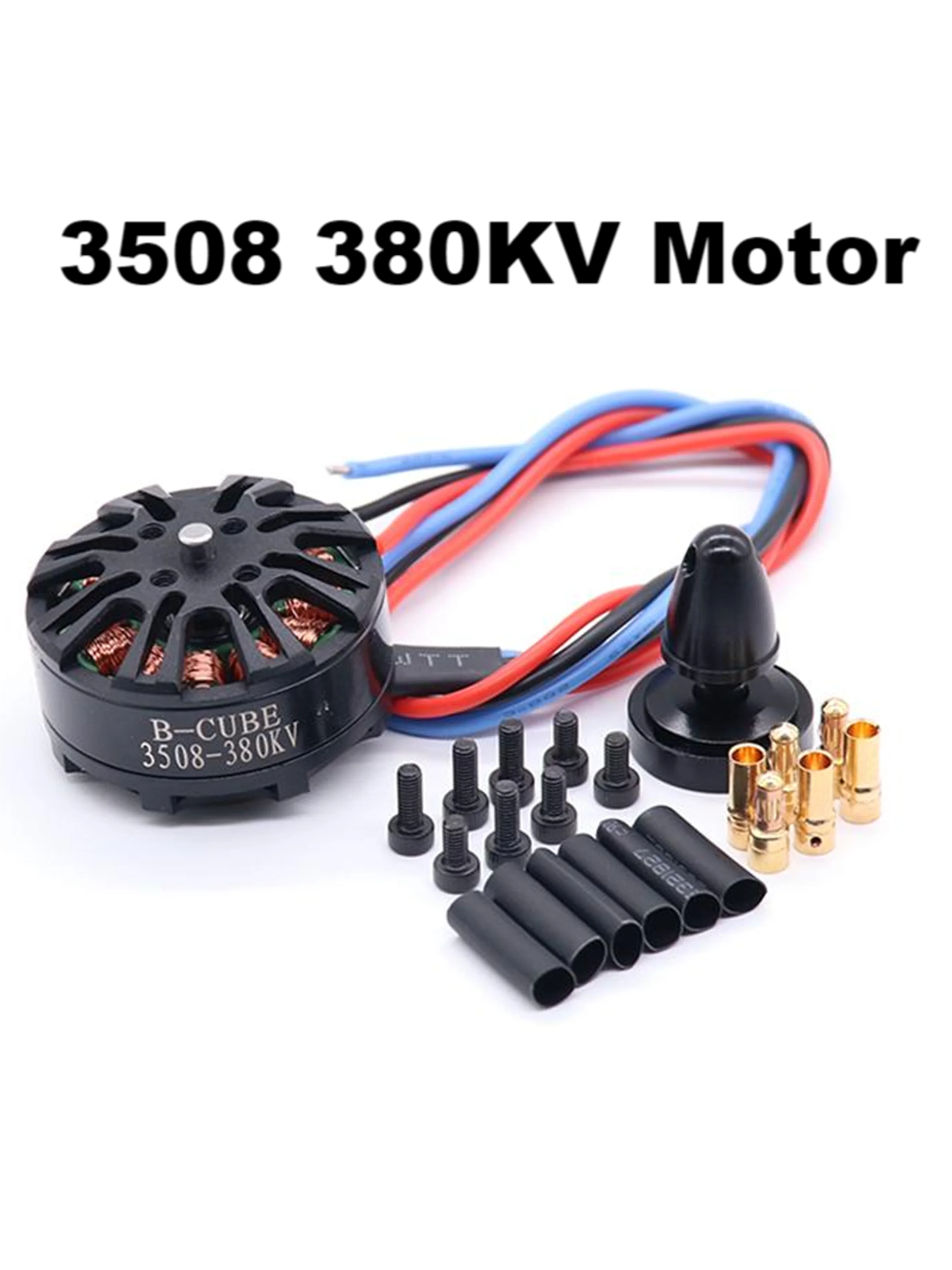

4PCS 3508 380KV Motor

Color Classification:Black
Motor Technical Parameters:

KV Value:KV380
Model:MX3508
Motor Diameter:42mm
Motor Length (No Shaft):24mm
Stator Diameter:35mm
Stator Length:8mm
Shaft Diameter:4mm
Weight:90g
Recommended Battery:4-6 Cells
Idle Current:0.3A
Top Mounting Hole:12mm x 12mm
Bottom Mounting Hole:25mm x 25mm

Suitable for:

Quadcopters
Hexacopters
Octocopters
Agricultural drones (plant protection machines)

Regarding Dynamic Balance:

We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.

Note:No 3-socket pad is provided. Please refer to the diagram for specific components.

MX3508 Motor Features:

Flat design
Multiple slot extreme outer brushless motor
High torque and efficiency
Competitive price
Compatible with most market-leading drone frames (with multiple mounting holes)
Aesthetically pleasing design

Propeller Installation:

We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.

Motor Dynamic Test Results:

Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.

ZD650 650mm Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Ski

ZD650 650mm Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Ski 4PCS BLHELI 40A

Features:

- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;- Firmware was optimized specifically for disc motor, and it has a very good compatibility;- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;- Ultra-low resistance MOSFET, strong flow capacity.

ZD650 650mm Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Ski

2Pairs T-Motor 3K Carbon Fiber Propeller 1455

The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installationUsing carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.

PDB V3.0Product Name:High-current ESC Power Distribution Board PDB V3.0

Number of Supported ESCs:8

Maximum Current Capacity:400A

Copper Thickness:7 oz

Weight:8.4g

Dimensions:Diameter 50mm, Mounting Hole Pattern 38mm

Screw Hole Size:M3

The upgraded V3.0 version has been improved based on the original design:

Copper thickness increased from 6 oz to 7 oz.

Output pad spacing enlarged to preent soldering errors.

Main current pad area enlarged.

Dimensions and mounting hole pattern remain unchanged. ZD650 650mm Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Ski
