Product Description

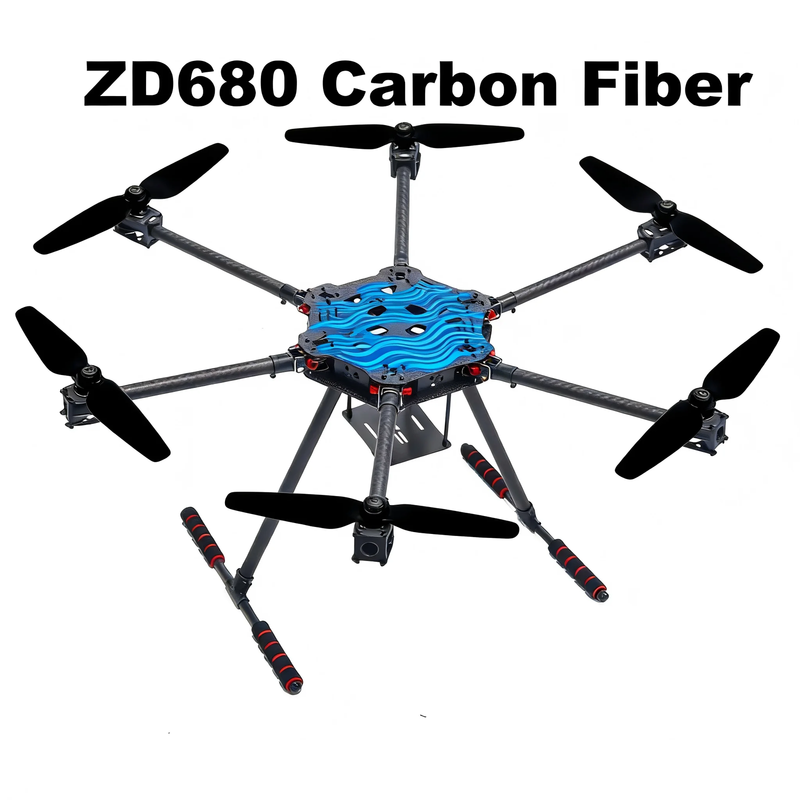

ZD680 PRO M10 Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit PIXHAWK with Unflodable Landing Gear
ZD680 PRO M10 Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit PIXHAWK with Unflodable Landing GearPIXHAWK PROPixhawk PRO support the latest official ardupilot firmware and PX4 firmware.1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;2. 14 PWM / servo output;3. Bus interface (UART, I2C, SPI, CAN);4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;5. Provide automatic and manual modes;6. Provide redundant power input and failover;7. Multicolor LED lights;8. Provide multi-tone buzzer Interface9. Micro SD recording flight data;Specifications:Interface1 .5 high voltage compatible UART 1, 2 with hardware flow control2. 2 CAN3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input4.Futaba SBUS compatible inputs and outputs5.PPM Signal Input6.RSSI (PWM or voltage) Input7.I2C8.SPI9.3.3 and 6.6VADC input10. External MICRO USB InterfaceSimple Package:
ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK PRO(white or black shell)+M10 GPS+3DR Power Module+ GPS Holder + Shock Absorber+Safety Button And Buzze+3Line(4PGH1.25,6PGH1.25,2.54Pin)Standard Package:
ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK PRO(white or black shell)+PPM Encoder+I2C Expansion Boar+M10 GPS+3DR Power Module +GPS Holder+Shock Absorber+Safety Button And Buzzer+3Line(4P GH1.25,6PGH1.25,2.54Pin
High Package:
ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK PRO(white or black shell)+PPM Encoder+I2C Expansion Boar+RGB LED+OLED Screen+M10 GPS+3DR Power Module+ GPS Holder+ Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)
433/915MHZ 100MW :
ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M10 GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry V5
433/915MHZ 500MW :
ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M10 GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry V5
433/915MHZ 1000MW :
ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M10 GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry V5
F680
M10 GPS Module With IST8310 Compass
M10 GPS for Pixhawk2.4.8: used for Pixhawk2.4.8
M10 GPS for Pixracer R15:used for Pixracer R15
M10 GPS for Pixhawk 6C :used for PIXHAWK 6C
The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.
It also comes with the IST8310 compass.This module ships with a baud rate of 115200 5Hz.
The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
Firmware Support for M10 GPS:
PX4 1.14, ArduPilot 4.3, or newer is required
Features:
- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;- Firmware was optimized specifically for disc motor, and it has a very good compatibility;- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;- Ultra-low resistance MOSFET, strong flow capacity.
Brand:B-CUBE
Color Classification:Black
Motor Technical Parameters:
KV Value:KV380
Model:MX3508
Motor Diameter:42mm
Motor Length (No Shaft):24mm
Stator Diameter:35mm
Stator Length:8mm
Shaft Diameter:4mm
Weight:90g
Recommended Battery:3-6 Cells
Idle Current:0.3A
Top Mounting Hole:12mm x 12mm
Bottom Mounting Hole:25mm x 25mm
Suitable for:
Quadcopters
Hexacopters
Octocopters
Agricultural drones (plant protection machines)
Regarding Dynamic Balance:
We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.
Note:No 3-socket pad is provided. Please refer to the diagram for specific components.
MX3508 Motor Features:
Flat design
Multiple slot extreme outer brushless motor
High torque and efficiency
Competitive price
Compatible with most market-leading drone frames (with multiple mounting holes)
Aesthetically pleasing design
Propeller Installation:
We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.
Motor Dynamic Test Results:
Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.
OLED Module can display some message.
3 Pairs T-Motor 3K Carbon Fiber Propeller 1255
The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installationUsing carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.
Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.
