Product Description

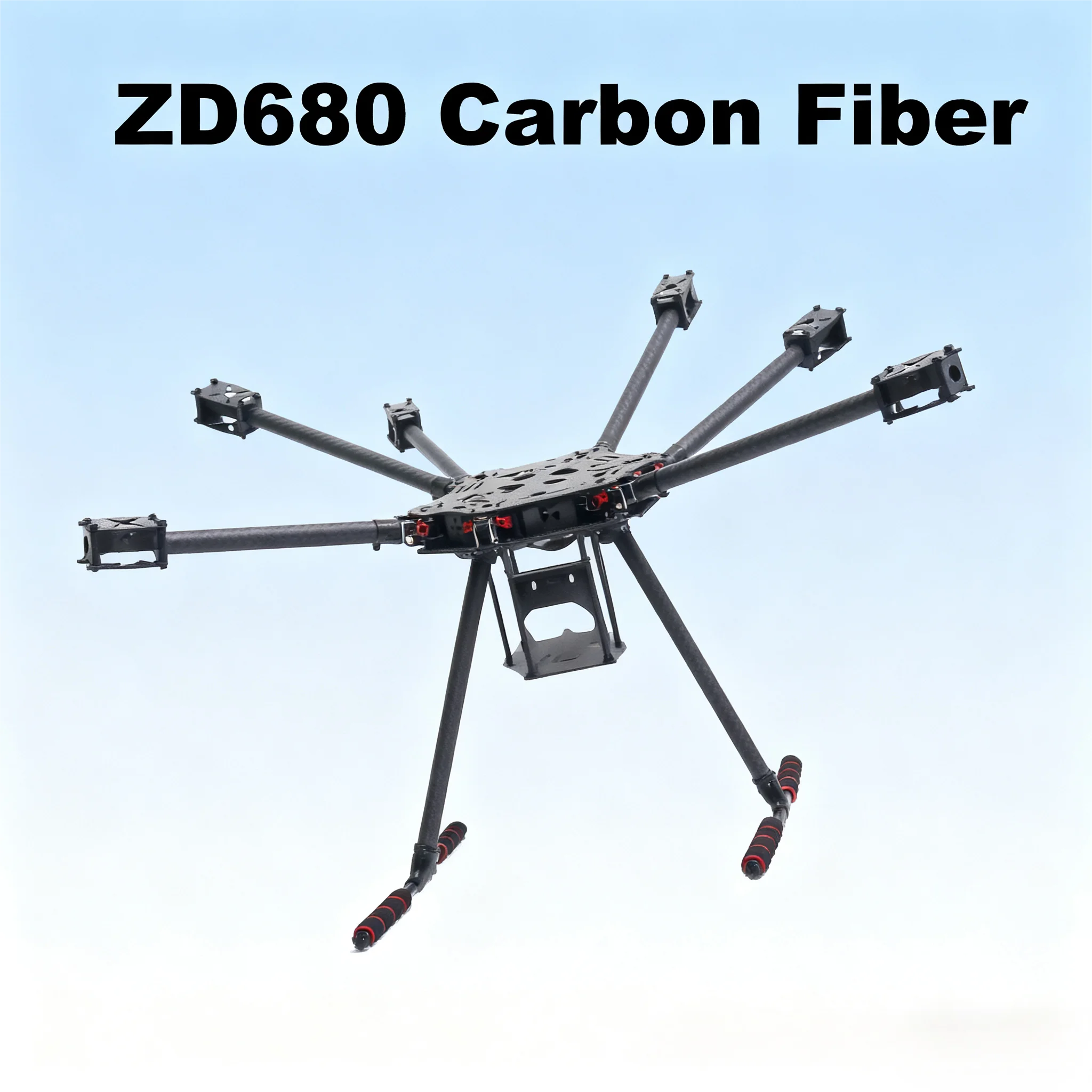

ZD680 6C PRO M9N Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit PIXHAWK with Unflodable Landing Gear
ZD680 6C PRO M9N Full Carbon Fiber Hexa-Rotor Foldable Arm Hexacopter Frame Kit PIXHAWK with Unflodable Landing GearPIXHAWK 6C PRO
Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case
Technical Specification
Processors & Sensors
FMU Processor: STM32H743
32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
IO Processor: STM32F103
32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors
Accel/Gyro: ICM-42688-P
Accel/Gyro: BMI055
Mag: IST8310
Barometer: MS5611
Simple Package:
3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK 6C PRO + 2*PWM Module+Safety Button+4G TF Card + M9N GPS + GPS Holder+Shock Absorber+PM02 V3.2 Power Module(support 12s)High Package:
3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK 6C PRO+2*PWM Module+I2C Expansion Board+RGB LED Module+ Safety Button+4G TF Card + M9N GPS+GPS Holder+Shock Absorber+PM02 V3.2 Power Module(support 12S)
433MHZ 100MW :
3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK 6C PRO + 2*PWM Module + Safety Button + 4G TF Card + M9N GPS + GPS Holder + Shock Absorber + PM02 V3.2 Power Module (support 12S) + Radio Telemetry V6 433MHZ 100MW
433MHZ 500MW :
3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK 6C PRO + 2*PWM Module + Safety Button + 4G TF Card + M9N GPS + GPS Holder + Shock Absorber + PM02 V3.2 Power Module (support 12S) + Radio Telemetry V6 433MHZ 500MW
433MHZ 1000MW :
3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK 6C PRO+2*PWM Module+ Safety Button+4G TF Card M9N GPS+GPS Holder+Shock Absorber+PM02 V3.2 Power Module (support 12S)+Radio Telemetry V6 433MHZ 1000MW
915MHZ 100MW
ZD680 Full Carbon Fiber+ 6 pcs BLHELI 40A Brushless ESC+3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK 6C PRO+2*PWM Module+ Safety Button+4G TF Card M9N GPS+GPS Holder+Shock Absorber+PM02 V3.2 Power Module (support 12S)+Radio Telemetry V6 915MHZ 100MW
915MHZ 500MW:
3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK 6C PRO+2*PWM Module+ Safety Button+4G TF Card M9N GPS+GPS Holder+Shock Absorber+PM02 V3.2 Power Module (support 12S)+Radio Telemetry V6 915MHZ 500MW
915MHZ 1000MW :
3 Pairs 3K Carbon Fiber Propeller 1255 + 6 PCS 3508 380KV Motor +
PIXHAWK 6C PRO+2*PWM Module+ Safety Button+4G TF Card M9N GPS+GPS Holder+Shock Absorber+PM02 V3.2 Power Module (support 12S)+Radio Telemetry V6 915MHZ 1000MW
F680 Full Carbon Fiber Hexacopter Frame Kit - Ideal for FPV Enthusiasts
Built from premium full carbon fiber, the F680 hexacopter frame kit weighs just 1210g, delivering a lightweight yet robust foundation for FPV adventures. With foldable landing gear, it’s designed for portability and convenience.
Specifications:
Diagonal Wheelbase: 680mm
Weight: ~1210g
Material: Full Carbon Fiber
Recommended Setup:
Motors: 3508 380KV
ESCs: 40A
Propellers: 12-inch (1255)
Battery: 4S-6S
Flight Controller: PIXHAWK
This combo ensures powerful performance and precise control for any flight style.
Whether you’re capturing stunning aerial footage or racing through FPV courses, the F680 is your perfect DIY hexacopter base. Order now and elevate your flying game!
Package Includes:
1 Unassembled F680 Full Carbon Fiber Frame
OLED Module can display some message.
Radio telemetry can be used for wireless communication between pixhawk and computer or mobile phone.
3508 380KV Motor
Brand:B-CUBE
Color Classification:Black
Motor Technical Parameters:
KV Value:KV380
Model:MX3508
Motor Diameter:42mm
Motor Length (No Shaft):24mm
Stator Diameter:35mm
Stator Length:8mm
Shaft Diameter:4mm
Weight:90g
Recommended Battery:3-6 Cells
Idle Current:0.3A
Top Mounting Hole:12mm x 12mm
Bottom Mounting Hole:25mm x 25mm
Suitable for:
Quadcopters
Hexacopters
Octocopters
Agricultural drones (plant protection machines)
Regarding Dynamic Balance:
We will test each motor before shipping to ensure it meets our factory standards. So, you don't need to worry about dynamic balance.
Note:No 3-socket pad is provided. Please refer to the diagram for specific components.
MX3508 Motor Features:
Flat design
Multiple slot extreme outer brushless motor
High torque and efficiency
Competitive price
Compatible with most market-leading drone frames (with multiple mounting holes)
Aesthetically pleasing design
Propeller Installation:
We use a hub-less propeller installation method, which provides more stability. The carbon propellers are installed without using propeller clamps, ensuring better protection and preventing damage.
Motor Dynamic Test Results:
Our motors have been tested by multiple professional drone photographers and videographers, and they all received excellent feedback.
Features:
- Using Multicopter special program, fast throttle response,surpasses all kinds of open source software;- Firmware was optimized specifically for disc motor, and it has a very good compatibility;- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);- Using MOSFET special driver IC, its performance and stability far surpass the driving circuit with discrete components built;- Ultra-low resistance MOSFET, strong flow capacity.
3 Pairs T-Motor 3K Carbon Fiber Propeller 1255
The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installationUsing carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.
