Terminal Block, Rail Type Voltage Terminal, Rail Combined Terminal Block

Product Description

• Housing of high quality insulating material：This product is made of high temperature resistant and flame-retardant material. It has good electrical and mechanical properties, as well as the ability to withstand adverse weather conditions.All the live parts are installed in the insulating parts, and the operator's hands cannot touch the live parts after they are assembled into a row to ensure personal safety.
• High quality conductive sheet:The conductive sheet is made of pure copper, which can fully ensure excellent contact performance and minimal contact resistance .At the same time, the standard size can be used with confidence.
• The installation structure is reasonably designed: No additional spring clamp is required. It can be conveniently installed on the guide rail just by using reasonable design structure and plastic elasticity.It is more reliable and flexible when used.It can be bent repeatedly without deformation . The clamp foot is thick enough, and the card guide rail is firm.
• Product suite group：Including one guide rail, two center link strip, one side plug-in, two marker strips, two grounding terminals,two baffles,four marking clips,four universal fasteners for guide rails，and red, yellow, blue, black, green, gray six colors of terminal blocks, five for each color, a total of 30 pieces,16 needle tube terminal lugs in red and blue,a total of 32pcs.
• Wiring mode:Strip the insulation layer of the wire with wire stripper, insert the cold pressed terminal, press the cold pressed terminal with wire crimper insert a slotted screwdriver and rotate it anticlockwise to rotate the wire crimping frame to the bottom, insert the wire into the depth of the terminal hole, rotate it clockwise to clamp the wire, and then take out the screwdriver.

Description:

• The product is made of high-quality insulating materials and pure copper, which is flexible and convenient to use, and can ensure the personal safety of operators.Also the product set can greatly meet your needs.

Features:

• High quality materials can resist bad weather.
• The reasonable design structure makes the operation convenient and also ensures the personal safety of the staff.
• Super value sets can greatly meet your needs.

Specification:

• Material：High quality insulating materials and pure copper conductive sheet.
• Colour:Red, yellow, blue, black, green, gray
• Model:UK2.5B
• Wire range: Flexible wire:0.2-0.5 Hard wire:0.2-4
• Current:32A
• Voltage: 690V
• Terminal size:6.2mm*42.5mm*40.5mm Track length :32cm

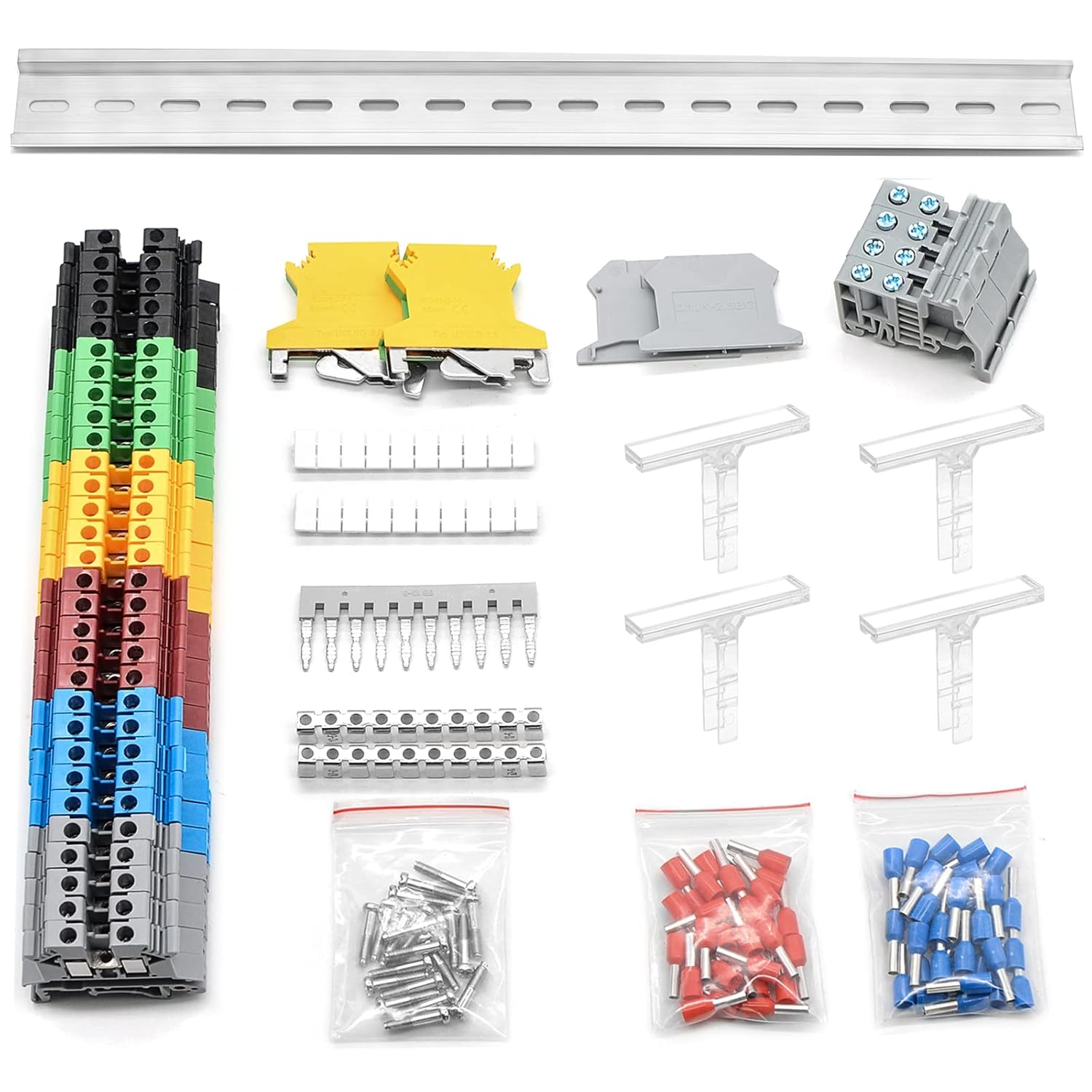

• Package includes:
• Guide rail 32cm 1pcs
• Center link strip 2pcs
• Side plug-in 1pcs
• Marker strip 2pcs
• Grounding terminal 2pcs
• End cover 2pcs
• Fasteners for guide rails 4pcs
• Marking clip 4pcs
• Terminal red*5, yellow*5, blue*5, black*5, green*5, gray*5 total 30pcs
• Needle tube terminal lugs: red*16 blue*16 total:32pcs
