Product Description

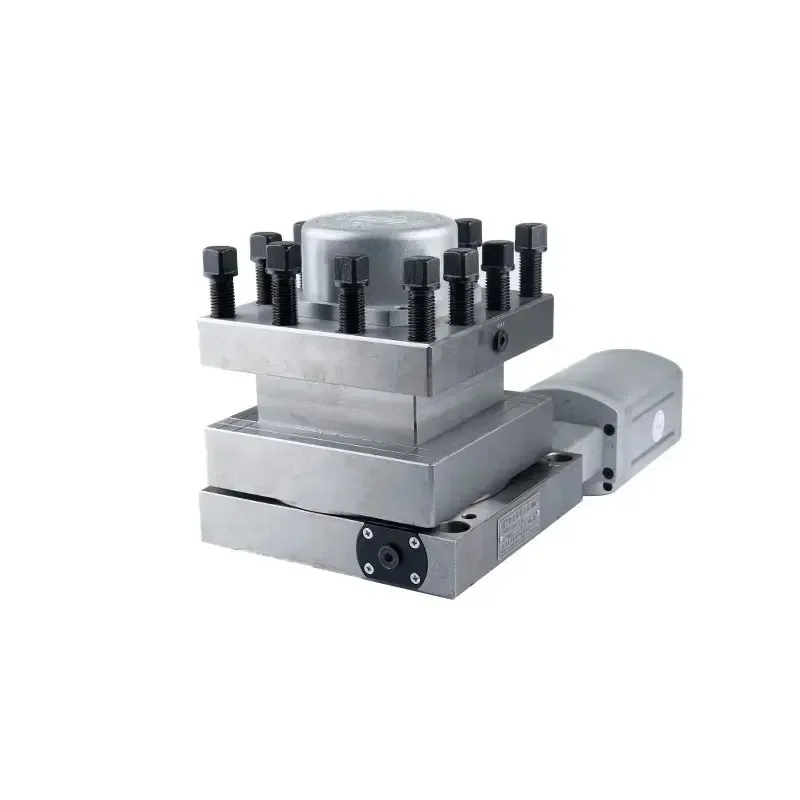

21162 series cnc 4 position electric turret for variable speed turret milling machine
21162 series cnc 4 position electric turret for variable speed turret milling machine
| Parts List of HAK21 Series Turret | |||
| NO. | Name of parts | Material | Remark |
| 1 | Motor | 380V | |
| 2 | Coupling(right) | 45 | |
| 3 | Connecting seat | 45 | |
| 4 | Coupling(left) | 45 | |
| 5 | Bearing | Deep groove ball bearing | |
| 6 | Worm | 45 | |
| 7 | Adjustable pad | 45 | |
| 8 | Bearing | Deep groove ball bearing | |
| 9 | Cover of bearing | 45 | |
| 10 | Plug | 45 | |
| 11 | Main shaft | 45 | |
| 12 | Bearing | Thrust ball bearing | |
| Please inquire for more details |
