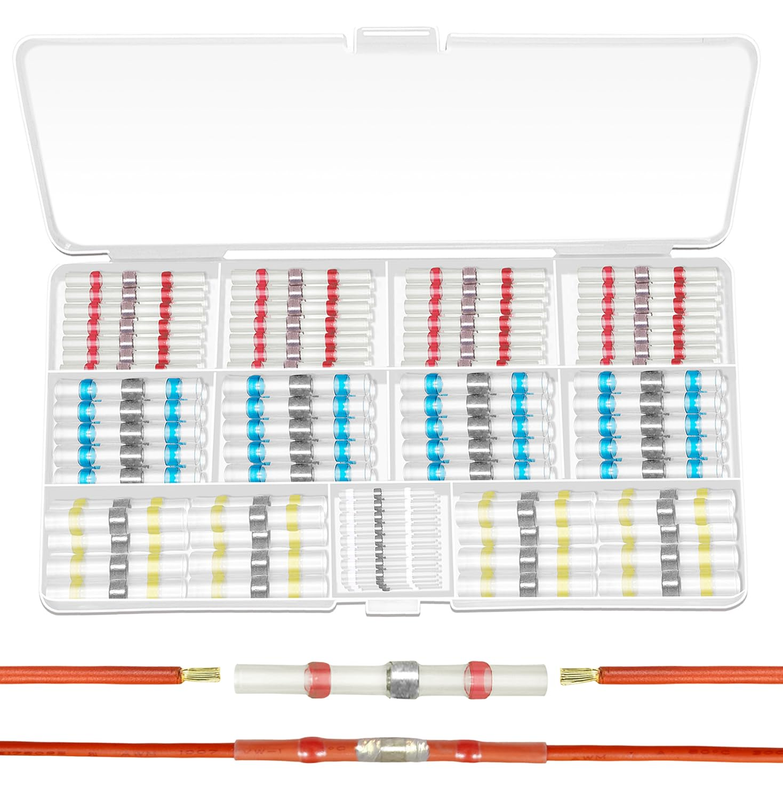

210PCS Solder Seal Wire Connectors Kit, Heat Shrink Butt Terminals, Butt Splice

Product Description

• No need to crimp, just one step connection, easy to use. DO NOT use a lighter or fire to apply heat.
• Clear adhesive-lined polyolefin shrink tubing, the color remains after heating and shrinking - allows visual inspection for the connection.
• The heat shrink tubing is adhesive lined to prevent water from penetrating, making them ideal for marine and off-road applications.
• Widely used for Motorcycle, Automotive, Marine, Electronics, Home and Outdoor applications.
• All packed in a plastic container for easy organization and storage.

Product Description

Constantly improving and innovation，provide cost-effective products to meet the needs of customers.

Shrinkage Ratio: 3:1

Minimum Shrink Temperature: 80°C

Minimum Temperature for Solder Ring to Melt: 111˚C - 138°C

Dielectric Strength: 1kv

Waterproof Level: IP67

Tips: For better results, we sugget use a 1500W heat gun , the temperature about:400-600℃ (752-1112°F).

26-24 AWG (White) : Diameter: 1.5mm , Length: 26mm. Wire Range: 0.3-0.5mm²

22-18 AWG (Red) : Diameter: 3mm , Length: 40mm. Wire Range: 0.5-1.0mm²

16-14 AWG (Blue) : Diameter: 5mm , Length: 40mm. Wire Range: 1.0-2.5mm²

12-10 AWG (Yellow) : Diameter: 6.0mm , Length: 40mm. Wire Range: 4.0-6.0mm²

IP67 Waterproof Solder Seal Process. The heat shrink tubing is adhesive lined to prevent water from penetrating, making them ideal for marine and off-road applications.

Clear adhesive-lined polyolefin shrink tubing, the color remains after heating and shrinking - allows visual inspection for the connection.

Our solder seal connectors provide superior electrical current flow and tensile strength. Widely used for Motorcycle, Automotive, Marine, Electronics, Home and Outdoor applications.

Strip the wire away from the insulation and insert the wires into a properly sized connector.

Twist the exposed wires together, slide the connector to the bare wires.

Use the heat gun to heat the connector from low temperature to high temperature until it shrinks to the wire tightly. DONE!
