Product Description
Copper Heat Exchanger E****mizer Coil for Split-Flow Recirculation Chiller Cooling Core Component with Pump Tube
Copper Heat Exchanger E****mizer Coil for Split-Flow Recirculation Chiller Cooling Core Component with Pump TubeProducts Description
| Product name | Enthalpy-adding Heat Exchanger |
| Type | R series enthalpy-adding |
| Model number | RAK06-CMF-Z |
| Heating capacity | 18kw |
| Cooling capacity | 14kw |
| Water flow | 2.75m^3/h |
| Use as | Condenser,Evaporator |
Product Introduction :
Enthalpy-adding is Optional additional structure in tube-in-shell heat exchanger. All of our tube-in-shell heat exchanger products can be added this structure. Enthalpy-adding Heat Exchanger integrates the economizer into the heat exchanger, which significantly improves the heat transfer efficiency of the heat exchanger at low temperature(Below-10). The integrated design allows customers to reduce the volume of equipment and production costs without additional configuration of the economizer.Product Features :
• Enthalpy-adding structure can Considerably improve the heating efficiency at low temperature condition.• Due to the integrated design, heat exchange equipment can be made smaller and cheaper• It is Optional additional structure of all of our tube in shell heat exchanger products.
Product list :
All of tube-in-shell heat exchanger| product | Common Version Heat Exchanger | R series Heat Exchanger |
| Compact Version Heat Exchanger | Double Wall Tube Heat Exchanger | |
| Multitube Heat Exchanger |

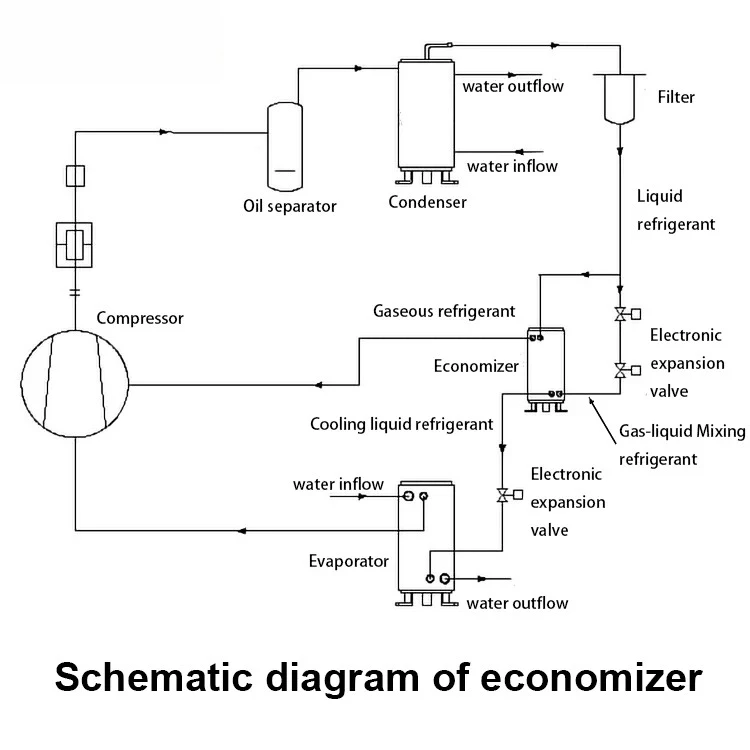

Principle of economizer :
High-pressure liquid refrigerant from condenser is divided into two parts. One part of refrigerant absorbs heat through throttling expansion and becomes two-phase (gaseous and liquid) fluid with low temperature and pressure.Two-phase fluid exchanges heat with another part of liquid refrigerant through economizer, so that the other part of refrigerant can get lower temperature. Two-phase fluid becomes gas and enters the compressor to continue cycle. The other part of low temperature liquid directly enters the evaporator for refrigeration .

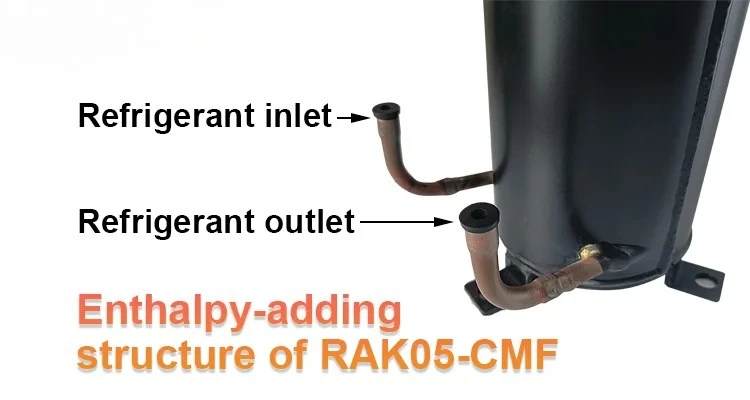

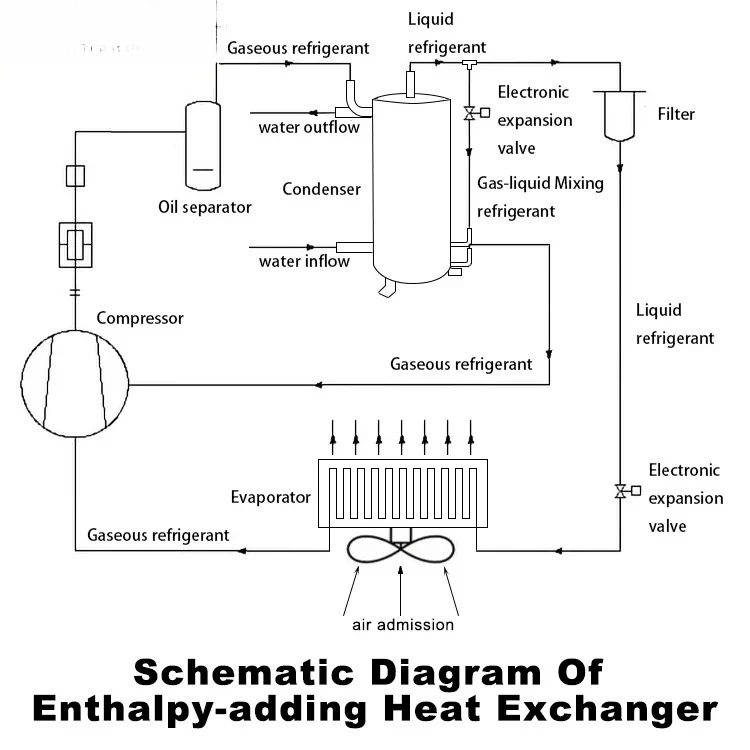

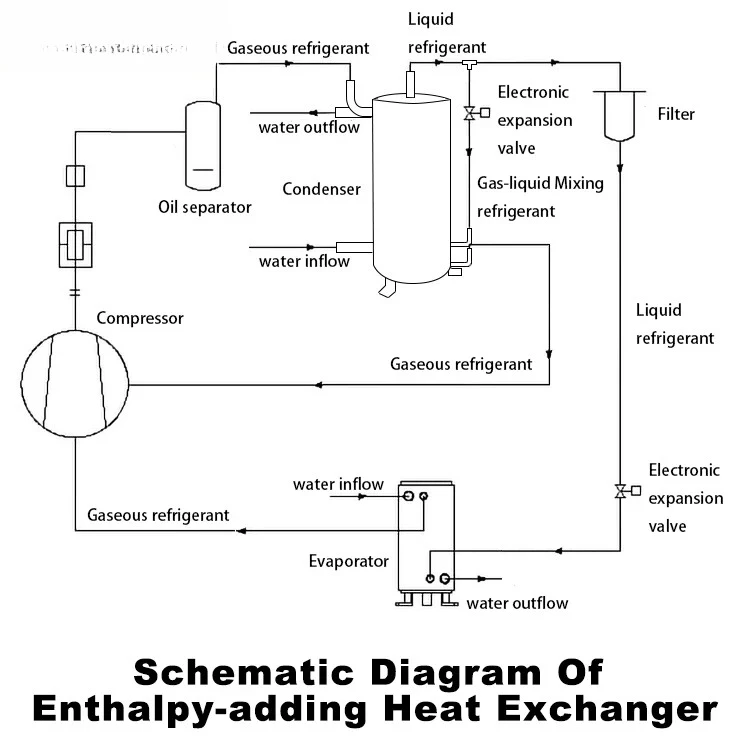

Principle of enthalpy-adding heat exchanger :
Enthalpy-adding structure is an economizer integrated in the heat exchanger, Enthalpy-adding heat exchanger is usually used as condenser. This structure can significantly improve the heat exchange efficiency at low temperature(Below-10 of them).Details Images
