Pixhawk PX4 PRO White Shell PIX 32 Bit Flight Controller Autopilot with 4G SD R

Product Description

The product has passed strict CE certification. If you need a PDF or more complete test certificate, please leave a message.

PRO Simple :

PIXHAWK PRO ++Safety Button And Buzzer+13Line(4PGH1.25,6PGH1.25,2.54Pin)

PRO Standard :

PIXHAWK PRO +PPM+I2C+Safety Button And Buzzer+13Line(4PGH1.25,6PGH1.25,2.54Pin)

PRO High :

PIXHAWK PRO +PPM+I2C+RGB LED+OLED Safety Button And Buzzer+13Line(4PGH1.25,6PGH1.25,2.54Pin)

Simple package:

PIXHAWK PRO +M8N/M9N/M10 GPS+3DR Power Module+ GPS Holde + Shock Absorber+ Shock AbsorberSafety Button And Buzze+3Line(4PGH1.25,6PGH1.25,2.54Pin)

Standard package:

PIXHAWK PRO +PPM+I2C+M8N/M9N/M10 GPS+3DR Power Module GPs Holder+ shock Absorber+ Shock Absorber+Safety Button And Buzzer+3Line(4P GH1.25,6PGH1.25,2.54Pin)

High package:

PIXHAWK PRO+PPM+I2C+RGB LED+OLED+M8N/M9N/M10 GPS+3DR Power Module+ GPS Holder+ Shock Absorber+Shock Absorber+Safety Button And Buzzer+3Line(4PGH1.25,6PGH1.25,2.54Pin)

433/915MHZ 100MW :

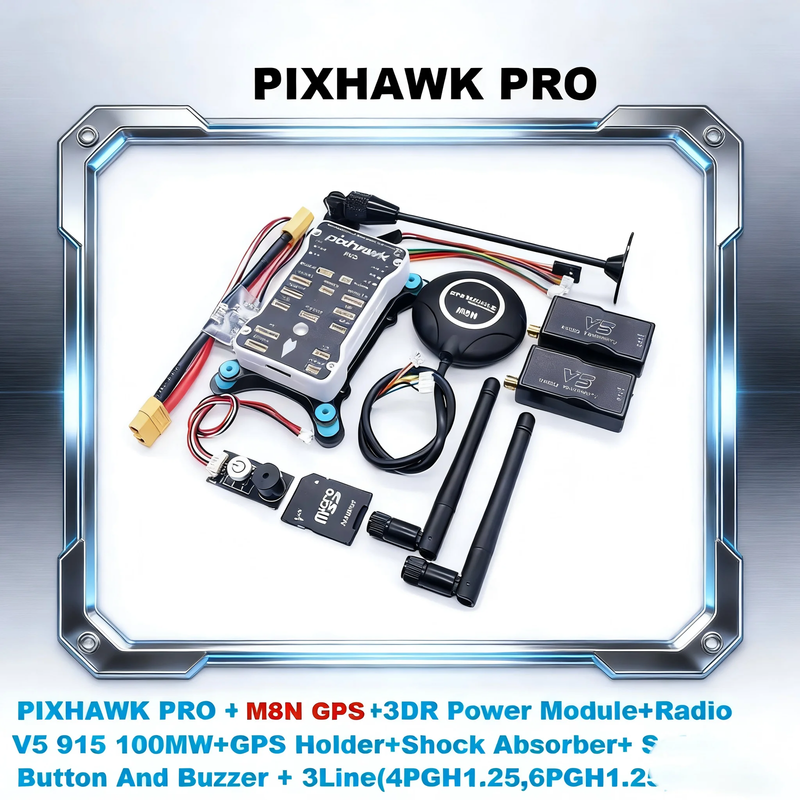

PIXHAWK PRO+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M8N/M9N/M10 GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433/915MHZ 100MW Radio telemetry

433/915MHZ 500MW :

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M8N/M9N/M10 GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 500MW Radio telemetry

433/915MHZ 1000MW :

PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) +M8N/M9N/M10 GPS+ GPS Holder+ 3DR Power Module+Shock Absorber+433/915MHZ 1000MW Radio telemetry

If the package includes the 3DR Power Module, the current hardware of the 3DR Power Module has been fully upgraded. Previously, it only supported a maximum of 6S, but now it supports a maximum of 12S. By default, XT60 plug is sent. If XT90 plug is required, please leave a message.

M9N GPS Module

M9N is a GPS module commonly used in unmanned aerial vehicles, with the following characteristics and applications:

High precision positioning: The M9N adopts advanced GNSS technology, supports multiple satellite navigation systems, and can provide high-precision position positioning information. For unmanned aerial vehicles, it can achieve accurate positioning and navigation.

Multi system support: The M9N supports multiple satellite navigation systems, including GPS, GLONASS, Galileo, BeiDou, etc. This allows drones to receive multiple satellite signals simultaneously, improving positioning accuracy and reliability.

Quick positioning: M9N has fast cold start and hot start times, which can quickly obtain satellite signals and perform positioning, making it crucial for the rapid takeoff and task execution of unmanned aerial vehicles.

M9N can search for more satellites outdoors with higher accuracy, faster search speed, and better stability.(The specific number of star searches is determined by the environment at that time.)

The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

It also comes with the IST8310 compass.This module ships with a baud rate of 115200 5Hz.

The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Firmware Support for M10 GPS:

• PX4 1.14, ArduPilot 4.3, or newer is required.

•


  Specification

  	M10 GPS	M9N GPS
  GNSS Receiver	Ublox M10	Ublox M9N
  Number of Concurrent GNSS	Up to 4 GNSS	Up to 4 GNSS
  BeiDou	BeiDou
  Galileo	Galileo
  GLONASS	GLONASS
  GPS	GPS
  QZSS	QZSS
  Frequency Band	GPS L1	GPS L1
  Galileo E1	Galileo E1
  GLONASS L1	GLONASS L1
  BeiDou B1	BeiDou B1
  SBAS L1	SBAS L1
  QZSS L1	QZSS L1
  Compass	IST8310	IST8310
  Output Protocol	UBX (U-blox)	UBX (U-blox)
  NMEA	NMEA
  Accuracy	2.0m CEP	1.5m CEP
  Nav. Update Rate	Up to 25 Hz (single GNSS),	Up to 25 Hz (4 concerrent GNSS)
  Up to 10 Hz (4 concurrent GNSS)
  GNSS Augmentation System	EGNOS, GAGAN, MSAS and WAAS	EGNOS, GAGAN, MSAS and WAAS
  QZSS: L1S	QZSS: L1S
  Default Baud Rate	115200	115200
  Input Voltage	4.7-5.2V	4.7-5.2V
  Port Type	JST-GH-6P	JST-GH-6P
  Antenna	25 x 25 x 4 mm ceramic patch antenna	25 x 25 x 4 mm ceramic patch antenna
  Power consumption	Less than 200mA @ 5V	Less than 200mA @ 5V
  Operating Temperature	-40~80C	-40~80C
  Dimension	φ50 x14.4 mm	φ50 x14.4 mm
  Weight	32g	32g
  Cable Length	26cm (42cm cable purchase separately)	26cm (42cm cable purchase separately)
