Product Description
ZD650 PRO 650mm Ardupilot Pixhawk Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Skid Motor ESC 40A
ZD650 PRO 650mm Ardupilot Pixhawk Carbon fiber Quadcopter Frame FPV Quad with Carbon Fiber Landing Skid Motor ESC 40APixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;2. 14 PWM / servo output;3. Bus interface (UART, I2C, SPI, CAN);4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;5. Provide automatic and manual modes;6. Provide redundant power input and failover;7. Multicolor LED lights;8. Provide multi-tone buzzer Interface9. Micro SD recording flight data;Specifications:Interface1 .5 high voltage compatible UART 1, 2 with hardware flow control2. 2 CAN3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input4.Futaba SBUS compatible inputs and outputs5.PPM Signal Input6.RSSI (PWM or voltage) Input7.I2C8.SPI9.3.3 and 6.6VADC input10. External MICRO USB InterfaceSimple Package:

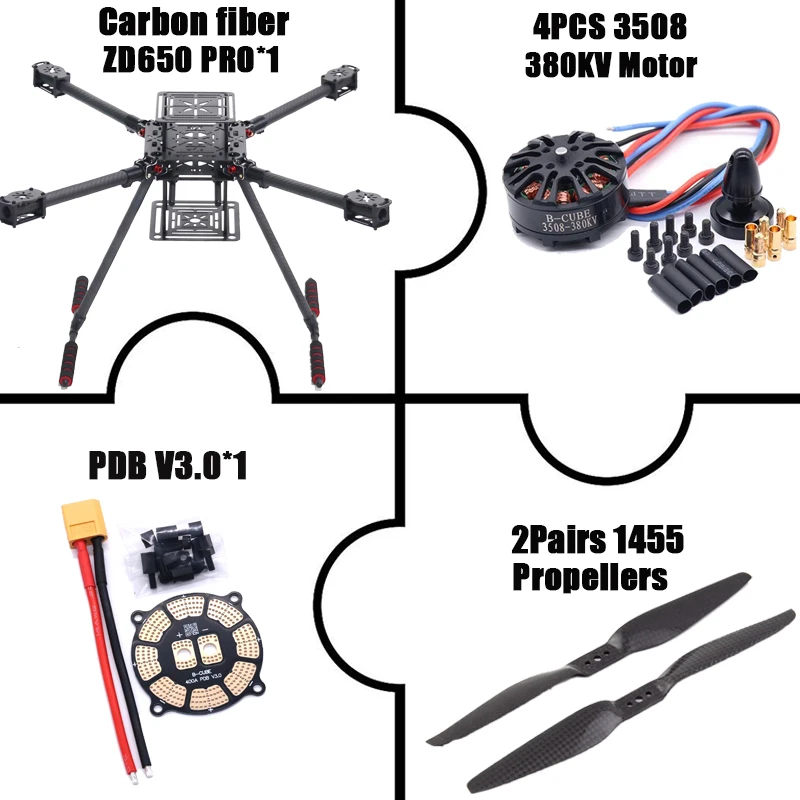

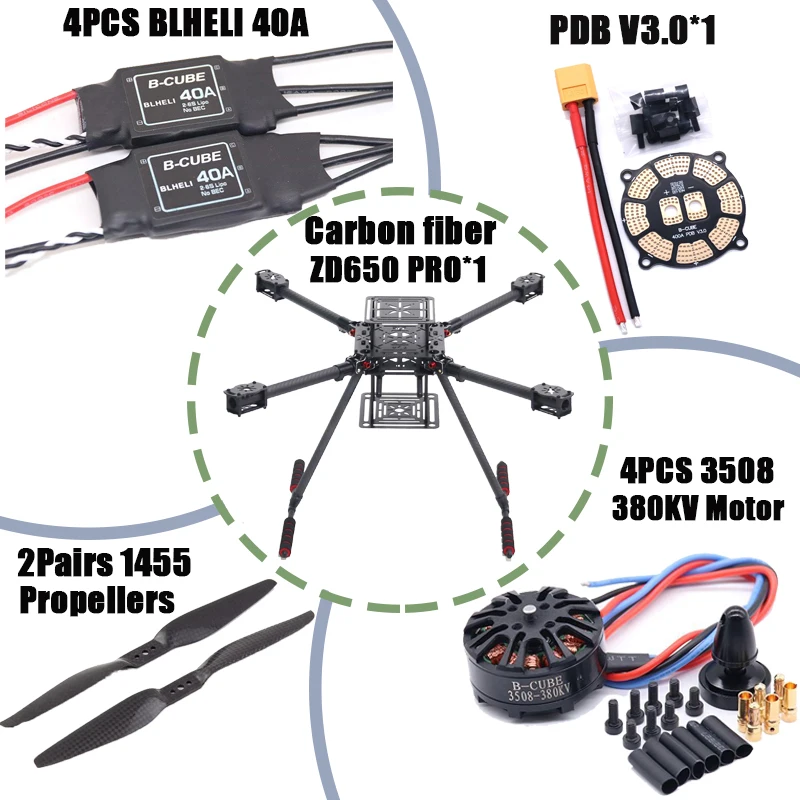

Carbon fiber ZD650 PRO + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+3DR Power Module+ Shock Absorber+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
High Package:
Carbon fiber ZD650 PRO + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber
+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
433MHZ 100MW V5:
Carbon fiber ZD650 PRO + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V5
+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
433MHZ 1000MW :
Carbon fiber ZD650 PRO + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+3DR Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
PIXHAWK PRO
Features:
Pixhawk PRO support the latest official ardupilot firmware and PX4 firmware.
1. The advanced 32-bit ARM CortexM4 high-performance processors(2MB flash), can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
10.TYPE-C USB port
11.GH1.25 port
Specifications:
Interface
1.5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External TYPEC USB Interface
Simple Package:
Carbon fiber ZD650 PRO + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
High Package:
Carbon fiber ZD650 PRO + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
433MHZ 100MW :
Carbon fiber ZD650 PRO + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
433MHZ 1000MW :
Carbon fiber ZD650 PRO + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0
PIXHAWK PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+3DR Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry V5+3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)
PIXHAWK 6C PRO
The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.Key Design PointsHigh performance STM32H743 Processor with more computing power & RAMBuild-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic CaseNew cost-effective design with low-profile form factorNewly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readingsIMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUsTechnical SpecificationProcessors & SensorsFMU Processor: STM32H74332 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAMIO Processor: STM32F10332 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAMOn-board sensorsAccel/Gyro: ICM-42688-PAccel/Gyro: BMI055Mag: IST8310Barometer: MS5611Electrical dataVoltage Ratings:Max input voltage: 6VUSB Power Input: 4.75~5.25VServo Rail Input: 0~36VCurrent Ratings:TELEM1 Max output current limiter: 1.5AAll other port combined output current limiter: 1.5AMechanical dataDimensions: 85 * 45 * 10 mmWeight (Plastic Case) : 33gSimple Package:Carbon fiber ZD650 PRO + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer +M8N GPS+GPS Holder+PM02 Power Module+ Shock AbsorberHigh Package:Carbon fiber ZD650 PRO + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+I2C Expansion Board+ RGB Led + OLED Screen+M8N GPS+GPS Holder+PM02 Power Module+ Shock Absorber433MHZ 100MW :Carbon fiber ZD650 PRO + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+M8N GPS+ GPS Holder+ PM02 Power Module+ Shock Absorber+433MHZ 100MW Radio telemetry V6433MHZ 1000MW :Carbon fiber ZD650 PRO + 4 PCS BLHELI 40A + 2 pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor + PDB V3.0PIXHAWK 6C PRO(white or black shell)+ 4G TF Card + Safety Button + Buzzer+I2C Expansion Board+ RGB LED + OLED Screen+M8N GPS+ GPS Holder+PM02 Power Module+Shock Absorber+433MHZ 1000MW Radio telemetry V6
650 PRO Motor:Carbon fiber ZD650 PRO+ 2 Pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor+ PDB V3.0
650 PRO Motor ESC:Carbon fiber ZD650 PRO+ 2 Pairs self-locking 1455 Propellers + 4 PCS 3508 380KV Motor+4 PCS BLHELI 40A+PDB V3.0
M8N GPS:

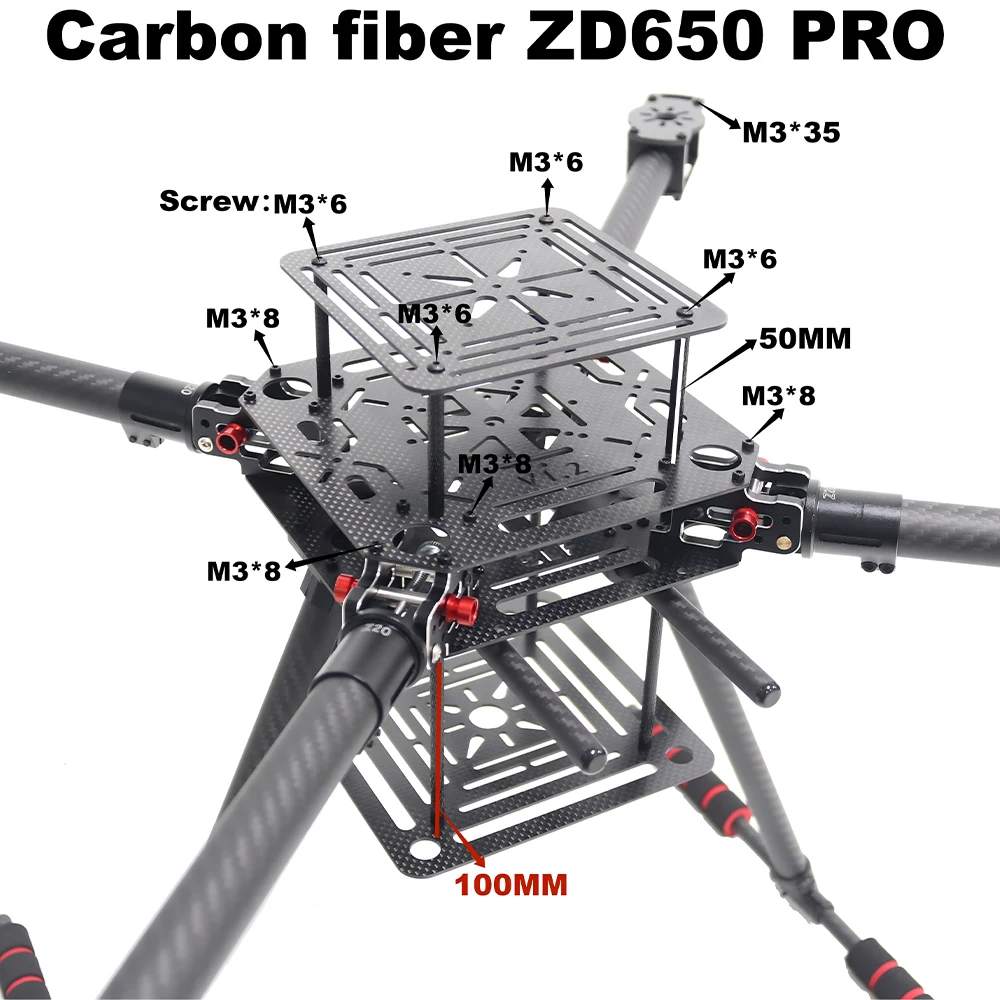

Carbon fiber ZD650 PRO
Parameters:
Diagonal wheelbase: 650mm
Landing gear height: 330mm
Weight: 620 ±2 g
Battery compartment size: 100MM * 100MM
Motherboard size: 150MM * 150MM
Top board size: 80MM * 80MM
Material of the main board : 3k full carbon fiber
thickness of the main board : 1.5mm
Arm diameter: 20MM
Recommended configuration: (Not inlcuded)Motor: 3508
Prop: 12-14 inch CW CCW
ESC: 40A(2-6s)
Flight control: Pixhawk opensource flight control
Battery: 4-6S Lipo
Package includes:
Carbon Fiber Quadcopter frame kits with Landing Gear x 1 (just a frmae kit, not assembled)
4PCS 3508 380KV Motor
1.Connect OLED to I2C port of Pixhawk
2.Upload ardupilot firmware, at least 3.5 version, below 3.5 version will not be display.
3.Use Mission Planner to modify parameters NTF_DISPLAY_TYPE to 1. After modify, remember to click “Write Params” button.
4.Now the OLED is only supported for ardupilot firmware,can not be supported PX4 firmware
5. Reboot the board.
4PCS BLHELI 40A
Features:
2Pairs T-Motor 3K Carbon Fiber Propeller 1455
The new T-motor propeller-type aerial dedicated full carbon paddle paddle-type three-hole installationUsing carbon content of 100% pure imported Toray carbon fiber 3K woven, high temperature and pressure precast precision machining, hardness higher than conventional products market.
Number of Supported ESCs:8
Maximum Current Capacity:400A
Copper Thickness:7 oz
Weight:8.4g
Dimensions:Diameter 50mm, Mounting Hole Pattern 38mm
Screw Hole Size:M3
The upgraded V3.0 version has been improved based on the original design:
Copper thickness increased from 6 oz to 7 oz.
Output pad spacing enlarged to preent soldering errors.
Main current pad area enlarged.
Dimensions and mounting hole pattern remain unchanged.
