Product Description
F4V3S PLUS F722 F745 H743 Flight Control 45/60A 4INI ESC Rack Drone FPV Racing Drone Quadcopter Freestyle LED
F4V3S PLUS F722 F745 H743 Flight Control 45/60A 4INI ESC Rack Drone FPV Racing Drone Quadcopter Freestyle LEDF4V3S Flight Controller
F4V3S Flight Controller Item Specifics:
Product Name: F4 Flight Controller Board
Material: Electronic component
Standard Board Size: about 36x36mm
Standard Size of Mount Hole: 30.5x30.5mm
Features:
-STM32 F405 MCU
-Dshot support
-Drag and Drop OSD configured via Betaflight Configurator
-Smartaudio v2 support Tune your PID's and configure the omnibus F C from your Transmitter
-MPU6500 6 axis SPI Gyro & Accelerometer (show as MPU6500 at inav-configurator if upload INAV firmware)
-SBUS/PPM AND Spketrum dsm-x Ports
-SD card blackbox
-Baro(BMP280)
-5V 3A SBEC
-On-board Video Filter(only can supply 5V to VTX and Camera)
-SmartAudio V2 via tx6 on J10
-4×3 pin ESC pin layout
-IR pins for lap timing transponder
Note : F4V3S PLUS uses a TYPE-C USB port. Please ensure that you have a TYPEC USB cable that can communicate normally. Some USB cables can only be charged and cannot communicate data with flight control. If the USB cable you use cannot recognize the flight control USB port, it indicates that your USB cable cannot communicate with data normally. We upload firmware to the flight control through USB and conduct testing, so it can be very guaranteed that the USB port of the flight control is normal.
If you are unable to confirm if your USB cable is communicating properly, please purchase one.
Specification:
Item name: F4V3S PLUS Flight Controller
Firmware:OMNIBUSF4SD(AIRB)
USB Port: TYPE-C
Size: 36x36mm
Mounting holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
MPU6500 6 axis SPI gyro & accelerometer
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
5V3A 9V3A BEC
On-board video filters
Properties:
measured.
Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you'll be tuning PIDS with your transmitter and tear it to the track in no time!
Note ： F4V3S PLUS supports cleanflight ,betaflight and INAV firmware.
B-CUBE F722 Flight Controller
Features:
1. The F722is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.
Descriptions:
F722 Flight controllerbaro: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.
Specifications:
(Model): F722 Flight Controller
(MCU) STM32F722RET6
(IMU) ICM-42688-P/Gyro/Accel
(OSD): AT7456E
(Baro) SPL06-001
(Blackbox): 16MB
(Input voltage): 3-8S Lipo(11.4-36V)
5V-BEC: 5V/2.5A ±0.1V
10V-BEC: 10V/2A(USER1)
IO2: USER2
(Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX
UART: UART1/2/3/4/5/6
IIC: 12C1
Led Strip:YES
(Buzzer): 5V
(ESCsignal): Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600
USB: TYPE-C
(Current port): YES
(Voltage sensor) YES
DFU (DFU button): YES
(Firmware): Betaflight 4.3.1 JHEF7DUAL.HE, inav_7.1.0_JHEMCUF722.hex
(Size): 36*36MM
(Mounting Hole) 30.5*30.5*4MM
(Weight) 8.8g
B-CUBE F745 V2 Flight Controller
Features:
1. The F745 V2 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.
Descriptions:
F745 V2 is a major upgrade, offering enhanced performance and precision. It features a CPU upgrade from STM32F745VG to STM32F746VG, boosting processing power for faster response and improved flight stability. The IMU has been upgraded from MPU6000 to ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, V2 delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.
Specifications:
Chip:STM32F746VG(216MHZ)
Gyro:ICM-42688-P
Barometer:DPS310
OSD Chip:AT7456E
Black box:16MM
LED Program:Support
BB buzzer:Support
Input voltage:3-6S
I2C Connector:Support
BEC:5V/2.5A
BEC:10V/2.0A
Cam Input:Support
USART:UART1,UART2.UART3.UART4.UART6.UART7
Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
GPS:YES
COMPASS:YES
HD O3:YES
ESC Signal:Dshoot150.Dshot300,Dshot600
USB:TYPE-C
Current Port:Yes.
Voltage Sensor:Yes
DFU Button:YES
FC firmware:betaflight_4.4.2_JHEF745V2.HEX / inav_8.0.0_JHEMCUF745.HEX
Install hole:30.5*30.5*4MM
Board size:36*36MM
Weight:7.5g

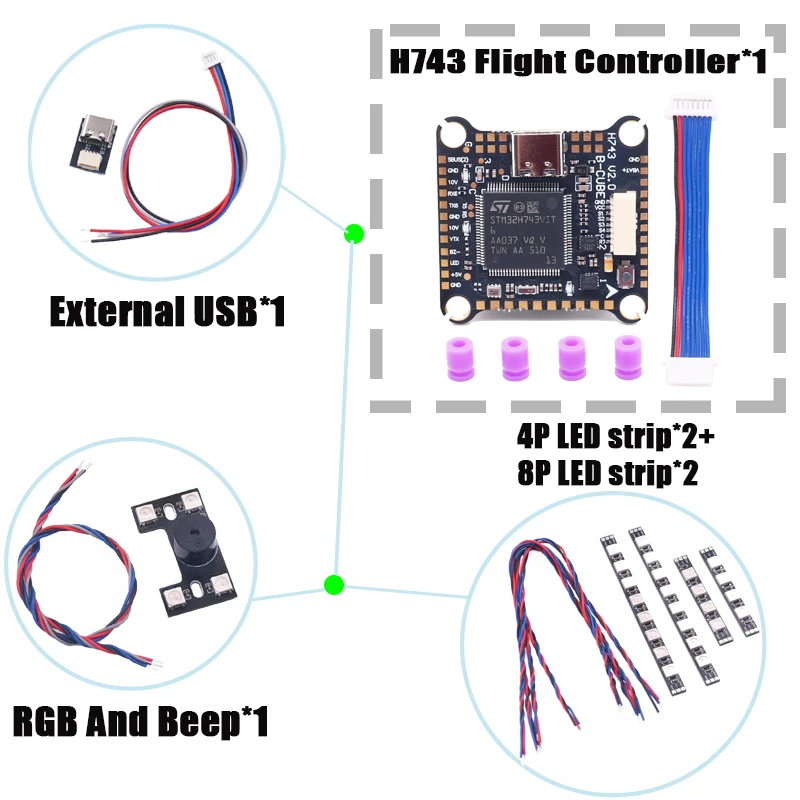

B-CUBE H743 Flight Controller
Features:
1. The H743 is a 3-6S 36x36mm mini flight controller with a 128MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.
Descriptions:
H743 is a major upgrade, offering enhanced performance and precision.Boosting processing power for faster response and improved flight stability. The IMU has been upgraded todouble ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, H743delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.
Specifications:
l Chip:STM32H743VIT6(480MHZ)
l Gyro:ICM-42688-P*2
l Barometer:DPS310
l OSD Chip:AT7456E
l Black box:128MM
l LED Program:Support
l BB buzzer:Support
l Input voltage:3-6S
l I2C Connector:Support
l BEC:5V/2.5A
l BEC:10V/2.0A
l Cam Input:Support
l USART:UART1,UART2.UART3.UART4.UART6.UART7
l Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
l GPS:YES
l COMPASS:YES
l HD O3:YES
l ESC Signal:Dshoot150.Dshot300,Dshot600
l USB:TYPE-C
l Current Port:Yes.
l Voltage Sensor:Yes
l Firmware: cleanflight/betaflight/inav/ardupilot
l FC firmware:betaflight_4.5.2_STM32H743_JHEH743_HD.hex/ inav_8.0.1_JHEMCUH743HD.hex / arducopter4.6_with_bl.hex
l Install hole:30.5*30.5*4MM
l Board size:36*36MM
l Weight:7.9g
F722 NOXE Flight Control
Features:
The F722 NOXE is a 3-6S 20x20mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.
Descriptions:
F722 NOXE Flight controller baro: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.
Specifications:
Main control: STM32F722RE (216MHZ)
Gyroscope: ICM-42688-P
Barometer: SPL06-01
OSD chip: AT7456E
Black box: 16MB
LED programming: supported
BB sound: supported
Input voltage: 3-6S
I2C interface: supported
BEC: 5V/2.5A
BEC: 10V/2.0A
Camera input: supported
USART: UART1, UART2, UART3, UART4, UART5, UART6
Receiver: ELRS(CRSF),TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
GPS: YES
Compass: YES
HD O3: YES
ESC signal: Dshot150,Dshot300，Dshot600
USB: TYPE-C
Current port: YES
Voltage sensor : YES
DFU button: YES
Weight: 5g
Flight control firmware: betaflight_4.5.2_STM32F7X2_JHEF7DUAL.hex / inav_8.0.1_JHEMCUF722.hex
Installation hole spacing:20MM * 20MM * 4MM
Maximum overall size: 29MM * 29MM

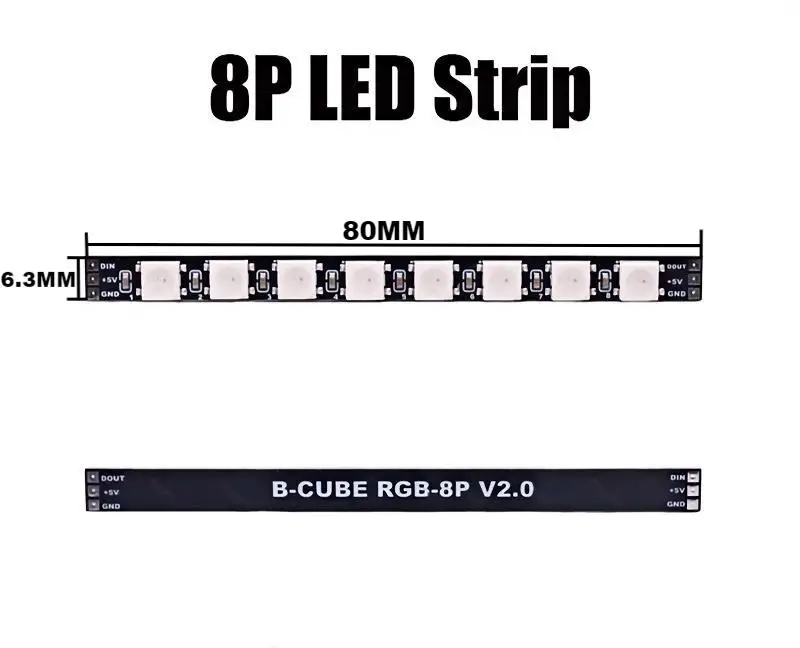

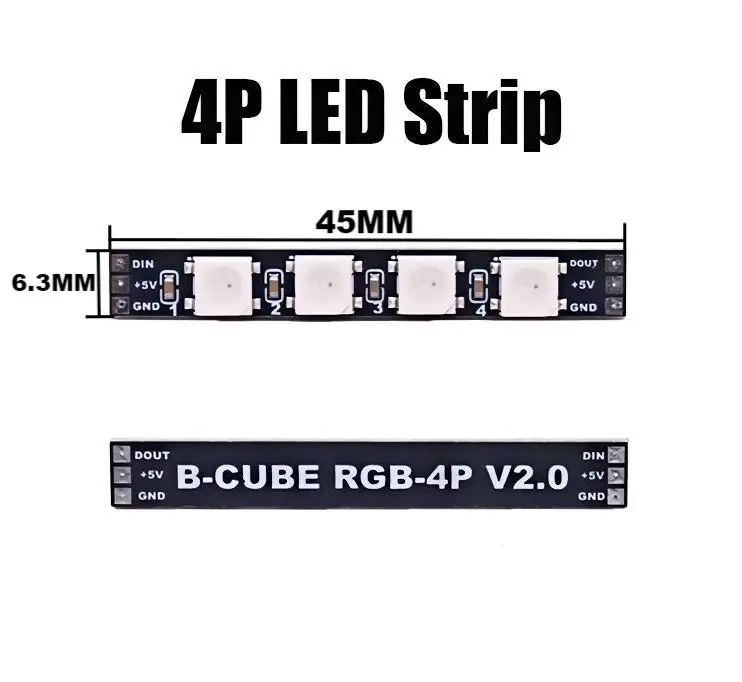

4P/8P LED Strip
BLHELI_S 60A 4IN1 3-6S Brushless ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 60A
Maximum current: 70A (5 seconds)
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PWM
Current sensor: Support
The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision
VTX1000 1W Video Transmitter

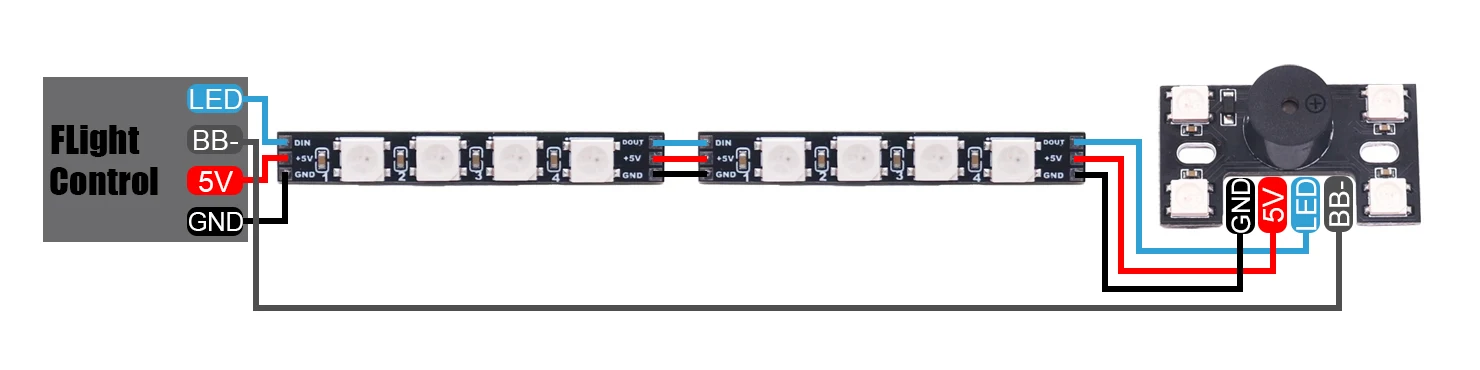

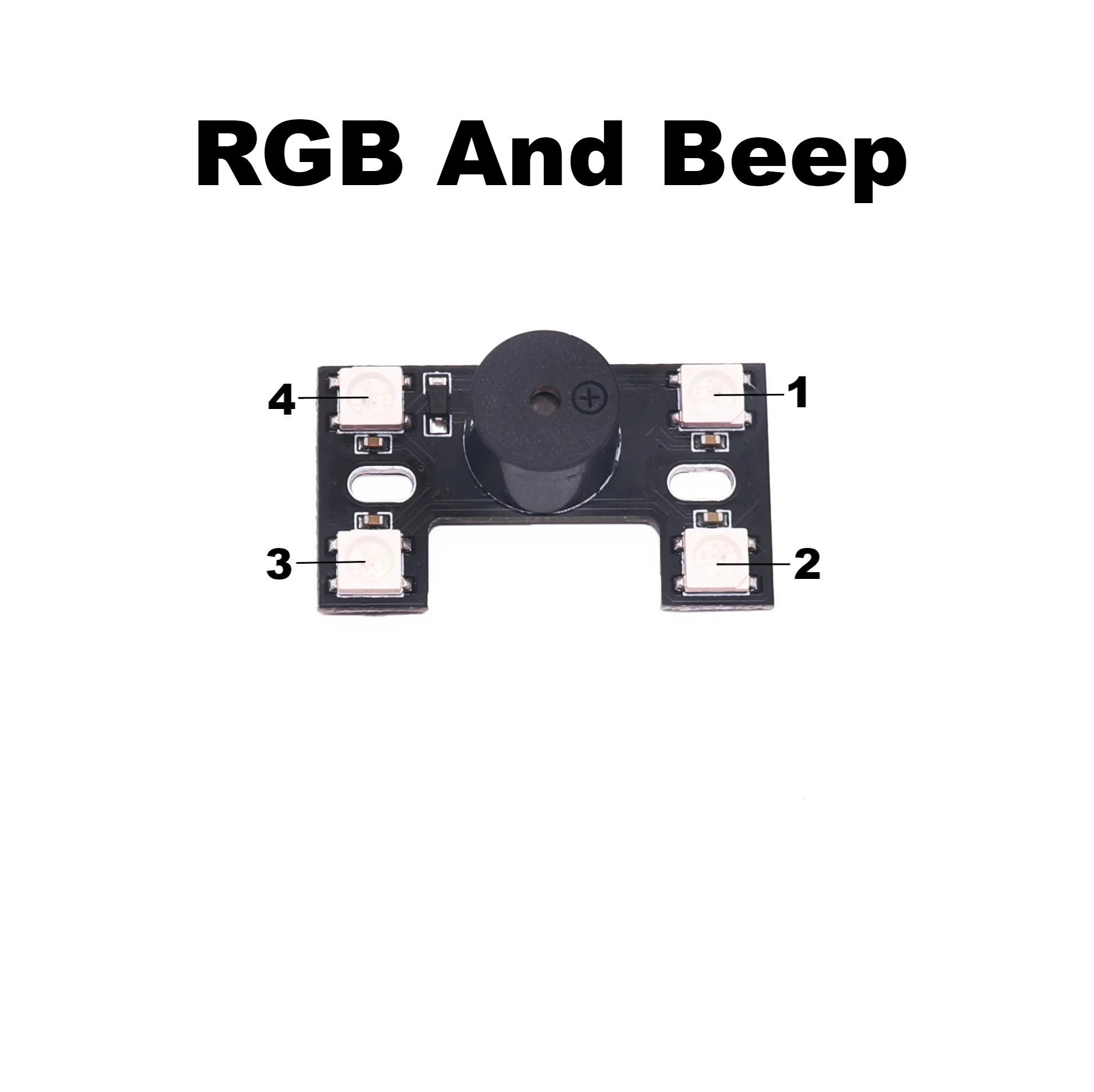

RGB And Beep
Support flight control such as for NAZE32/F3/F4/F7.
Adopt four WS2812B LED lamp beads with integrated loud buzzer.
Cooperate with flight control, can display various color and flashing suitable for tail light of classical crossing aircraft.
CF-BF flight control support for CC3D, Naze32, SPRachingF3, F4, F7 and other flight control with CleanFlight and BetaFlight firmware.

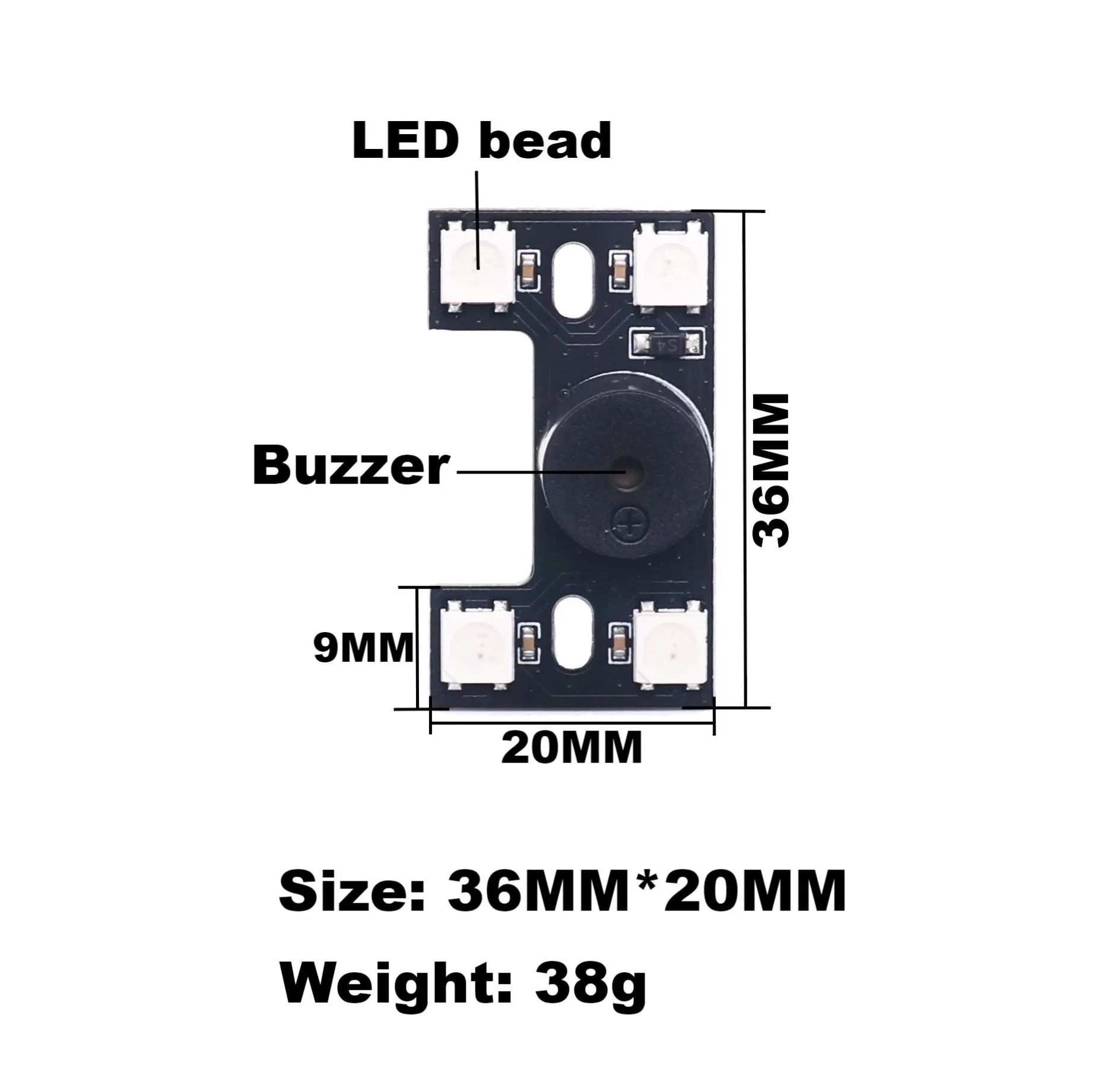

Specifications:
Item Name: LED Tail Light with Buzzer
Material: ABS
Length: about 36mm/1.42inch
Applicable Models: Suitable for F3 F4 F7 CC3D NAZE32 Flight Control FPV-Drones
Working-voltage: DC4.5~5.2V
Package Includes:
1Pc LED Tail Light with Buzzer
External USB
Description:
Model: MINI MS-1672 FPV cameras
Sensor: 1/1/8 "CMOS D1080H
Horizontal resolution: 2000TVL
Horizontal field of view: 165
Lens: 2.1mm lens
Video format: NTC&PAL (adjustable)
Image scale: 4:3&16:9 (automatic recognition)
Wide Dynamic Range: Super WDR
Noise reduction: 3DNR
Low illumination: 0.001LUX
Video output: CVBS
Day and night: external/internal/black and white/color
Language: (English/Chinese/Traditional Chinese/pyccnna)
ESOABIK/TTASSNO/FRABCAUS/
POSDIM/PORTUGUES/Japanese
Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000
Wide voltage input: 5-36V
Working temperature: -20-60
Weight: 110g
Dimensions: 19 * 19 * 19mm
Resolution: 960 * 1080
Feature:
Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.
Package included:
1 x Upgraded Mista FPV Camera
