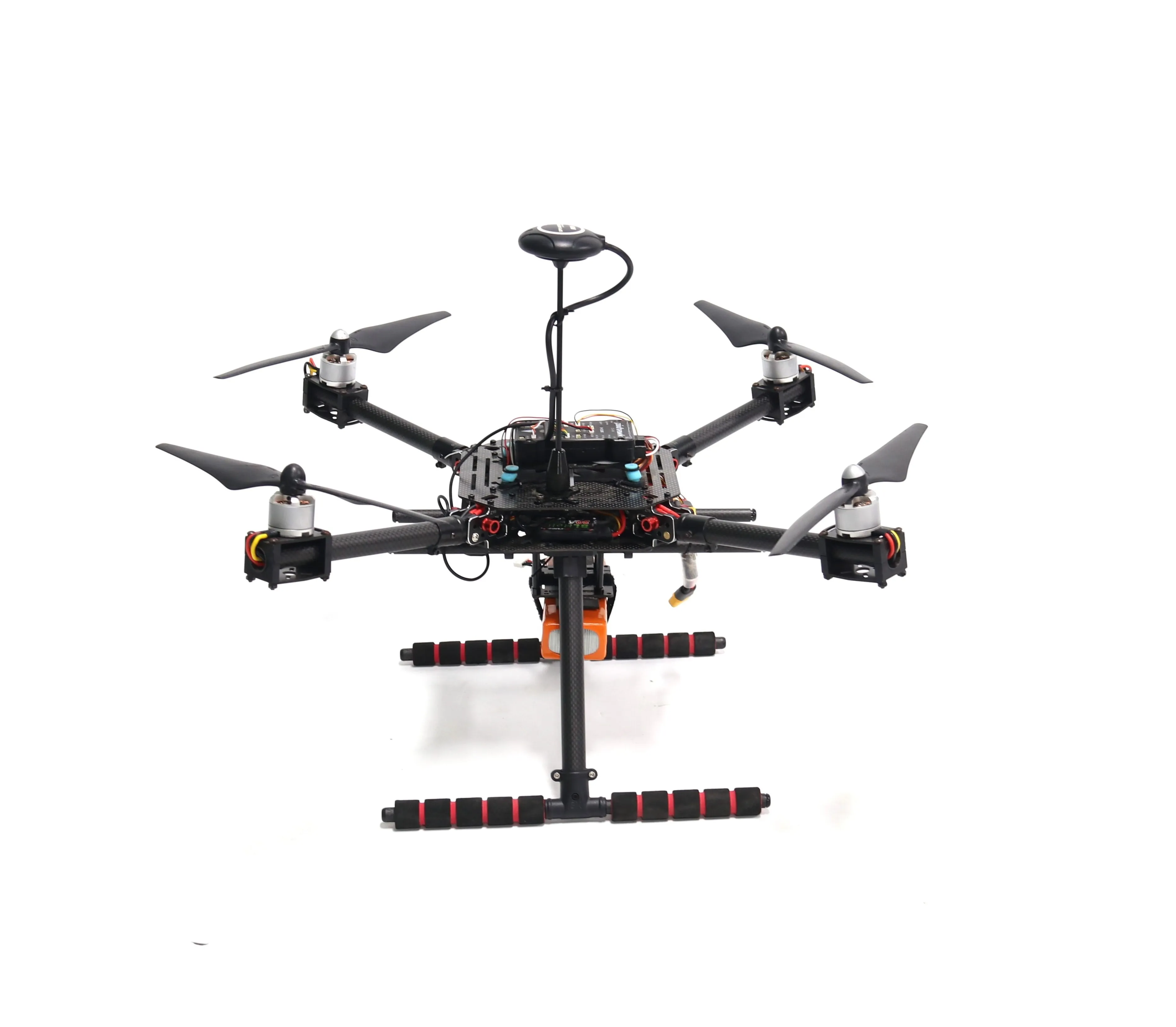

PIXHAWK 6C PRO Flight Control M9N Carbon Fiber 450 Frame Kit Ardupilot 100MW Rad

Product Description

PIXHAWK 6C PRO

The Pixhawk® 6C PRO is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot® pre-installed. STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6C PRO's H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

The Pixhawk 6C PRO includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.

The Pixhawk® 6C PRO is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.

Key Design Points

• High performance STM32H743 Processor with more computing power & RAM

• Build-in Buzzer,Build-in RGB LED,support Independent external Safety Button,With Plastic Case

• New cost-effective design with low-profile form factor

• Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings

• IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

Technical Specification

Processors & Sensors

• FMU Processor: STM32H743
  32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM

• IO Processor: STM32F103
  32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM

On-board sensors

• Accel/Gyro: ICM-42688-P

• Accel/Gyro: BMI055

• Mag: IST8310

• Barometer: MS5611

Electrical data

Voltage Ratings:

• Max input voltage: 6V

• USB Power Input: 4.75~5.25V

• Servo Rail Input: 0~36V

Current Ratings:

• TELEM1 Max output current limiter: 1.5A

• All other port combined output current limiter: 1.5A

Mechanical data

• Dimensions: 85 * 45 * 10 mm

• Weight (Plastic Case) : 33g

Simple package:

F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor+

PIXHAWK 6C PRO +M9N GPS+3DR Power Module+ GPS Holde + Shock Absorber+ Safety Button And 2*PWM 4G TF CARD+3Line(4PGH1.25,6PGH1.25,2.54Pin)

High package:

F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor+

PIXHAWK 6C PRO+2*PPM+I2C+RGB LED+OLED+M9N GPS+3DR Power Module+ GPS Holder+ Shock Absorber+4G TF CAR+Safety Button+3Line(4PGH1.25,6PGH1.25,2.54Pin)

F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor+

F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor+

F450+4 PCS BLHELI 30A +4 pairs 1045 Propellers +4 PCS 2212 920KV motor+

Frame 450:

1045 Propellers

This article explains how to connect the ESCs, motors and propellers to a autopilot. The Pixhawk is used as an example but other autopilots are connected in a similar way.

Connect the power (+), ground (-), and signal (s) wires for each ESC to the autopilots main output pins by motor number. Find your frame type below to determine the assigned order of the motors.

Legend for motor-order diagrams

Quadcopter

Recognizing clockwise and counterclockwise propellers
