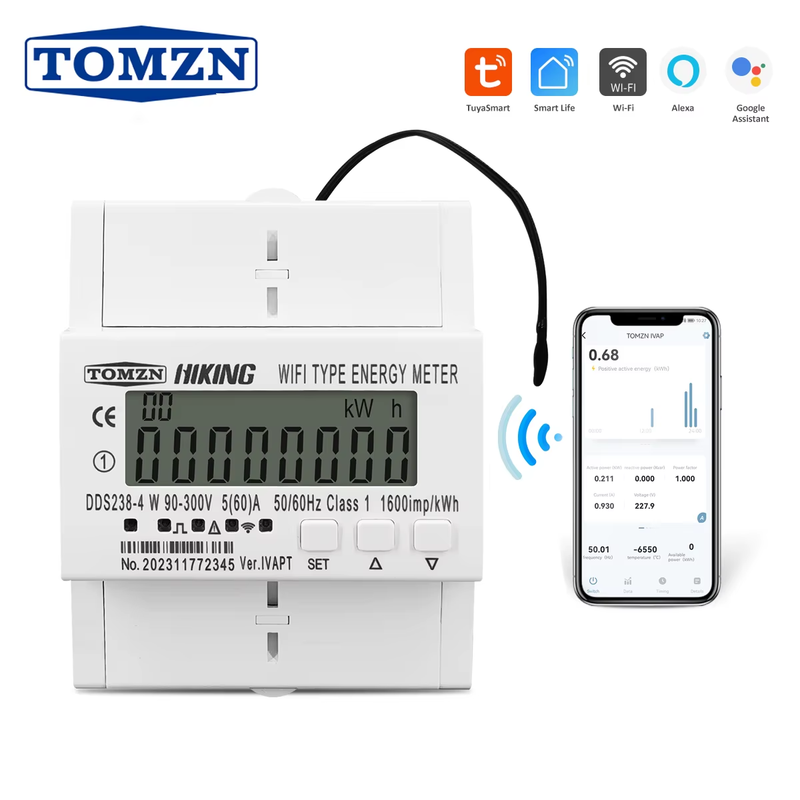

60A 90-300V TUYA WIFI Smart Leakage Energy Meter kWh Temperature Circuit Breaker

Product Description

General Description
WIFI IVAPT type multi-function protective smart energy meter is designed to measuresingle phase two wire AC active energy and variable parameter. The meter have RS485communication port and WIFl communication, it can use APP for remote reading andcontrol on/off. All of its functions comply with the relative technical requirement for class1 single phase watt hour meter in lEC62053-21 and its data communication rules obey therequirement of MODBUS-RTU and WIFI 802.1 1b/g/n.It is a long life meter with theadvantage of high stability , high over load capability , low power loss and small volume.
The meter should be installed in suitable environment with ambient temperature rangebetween -25℃~+70'C,the relative humidity less than 75% and temperature limits betweenand-40℃~+70℃. ​ The meter is manufactured complying with international standard lEC62052-11 on“ Electricity metering equipment (AC) General requirements tests and test conditions ”and 1EC62053-21 on “ Static meters for active energy (classes 1 and 2)”.

Function
1. Measuring positive & negative active energy with negative energy accumulated into ​positive energy

2. The meter display total active energy, positive active energy , negative active energy , ​total reactive energy , balance active energy

​3. The meter also display real voltage , real current , real active power , real power ​factor , real frequency

4. Pulse LED indicates working of meter

5. It can control on/off by hand when fast push the button 3 times quickly under prepay ​ment function close

6. Measuring active energy without calibration under long term operation

7. Display step by step with button

​8. APP can display total active energy, positive active energy , negative active energy ​and real parameter and remote control on/off.

​9. Hour/Day/Month/Year history active energy consumption tracking by APP, and also ​can output excel records by email.

​10. It has overvoltage and undervoltage protection , it can set value from APP .Each ​protection function can be opened/closed as customer requirement

​11. It has overload protection ,it can set value from APP

12. Voice control on/off function

13. Alarm event records and on/off operation records on APP

14. Prepayment function, if balance energy used up. It will cut off automatic. This ​function can be opened/closed by APP

15. Energy data can store on memory chip when power off, it also still measure energy ​when lose WIFI connection and it will update the energy on APP when connect WIFI ​again

16. It has timing control function , it can set value from APP

17. It can reset the active energy to zero from APP

18. It have active power/temperature 15minutes interval curve only one day

19. It have energy consumption cost and carbon emission on APP

20. It suit for solar power generation using , Import energy and export energy display ​separately on APP and RMS active power will display positive and negative symbols ​on APP

21. RS485 communication port and WIFI communication ​22. It has electric leakage protection ,it can set value from APP(it need special order)

Technical Parameters
1.Rate frequency: 50 or 60 Hz

2.Rated current: 5(60)A (Min measure 20mA)

3.Rate voltage: 120V/220V/230V/240V(90~300V)

4.Normal voltage range: 90%Un~110%Un

5.Limits voltage range: 70%Un~120%Un

6.kWh Accuracy: Class 1

7.R.M.S accuracy: Class 0.5(current/voltage/active power/reactive power)

8.Temperature: ±3℃

9.Pulse constant: See meter

10.RS485 port: MODBUS-RTU protocol,1200~9600bps,None parity ,default 9600bps

11.WIFI: 802.11b/g/n ,only support 2.4GHz network , not support 5GHz network
