Product Description
1. NOTE

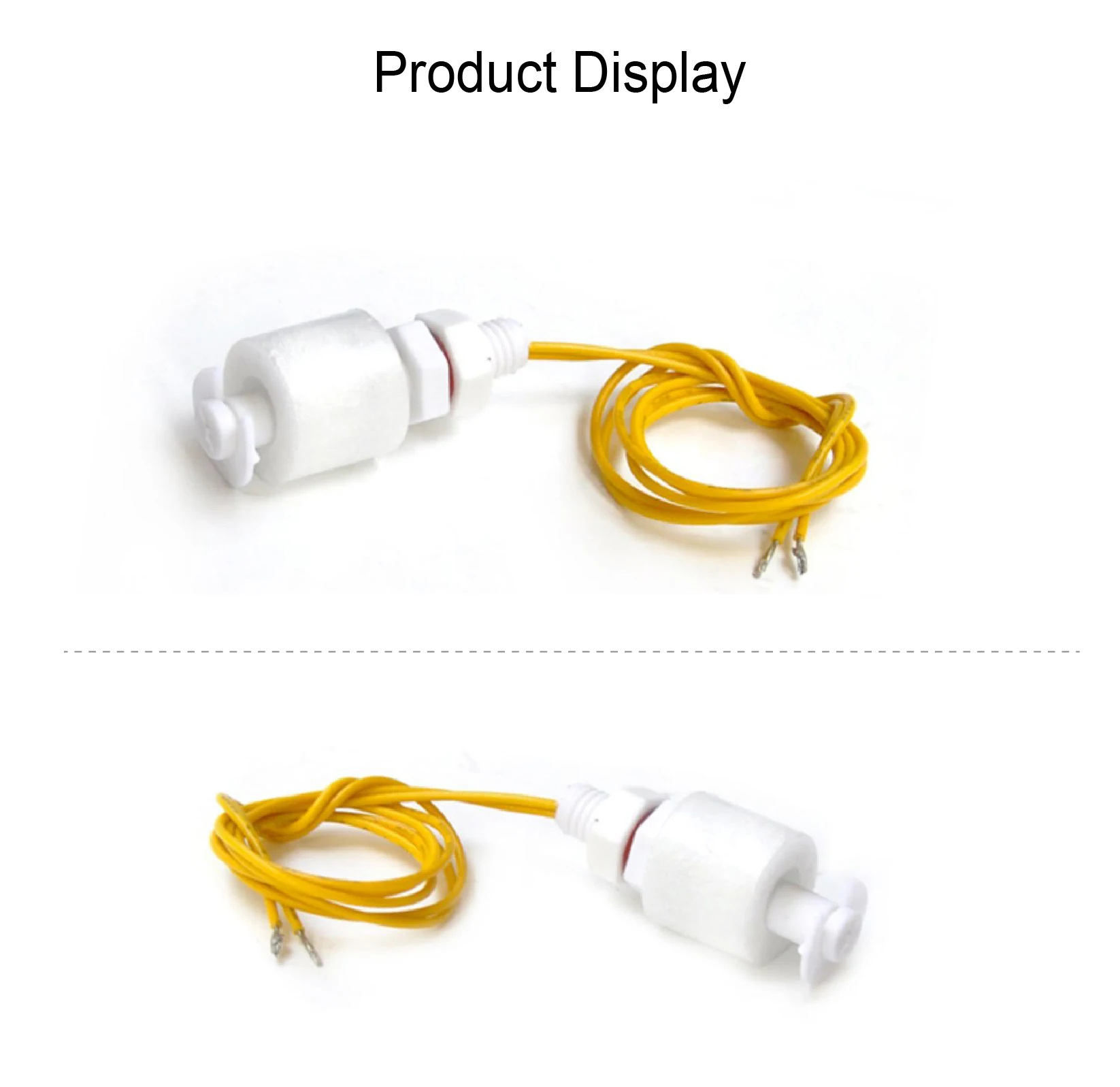

This PP Float Level Switch is designed for precise liquid level measurement across a wide range of applications.

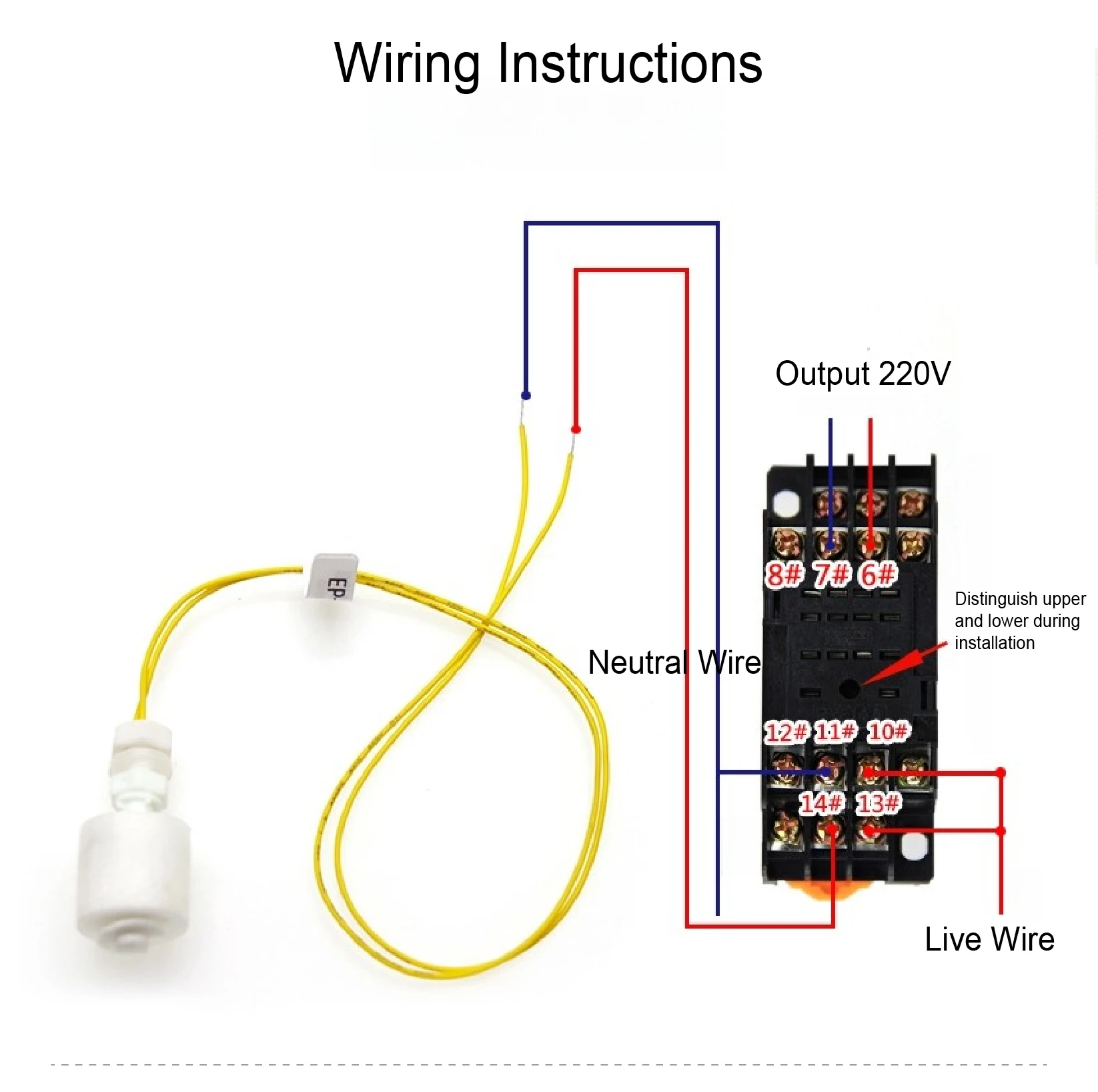

Important: The float switch cannot directly control solenoid valves, high-power relays, or AC contactors. A small relay (e.g., HH54P) is required for proper operation.
The float position is fixed and cannot be adjusted.
Retaining clips at both ends restrict movement. Even if the retaining clips are adjusted, the reed switch contacts inside cannot be repositioned.
Order Information:
Please select Single Float or Double Float as needed.
Confirm the Voltage: 0-110V, 0-220V

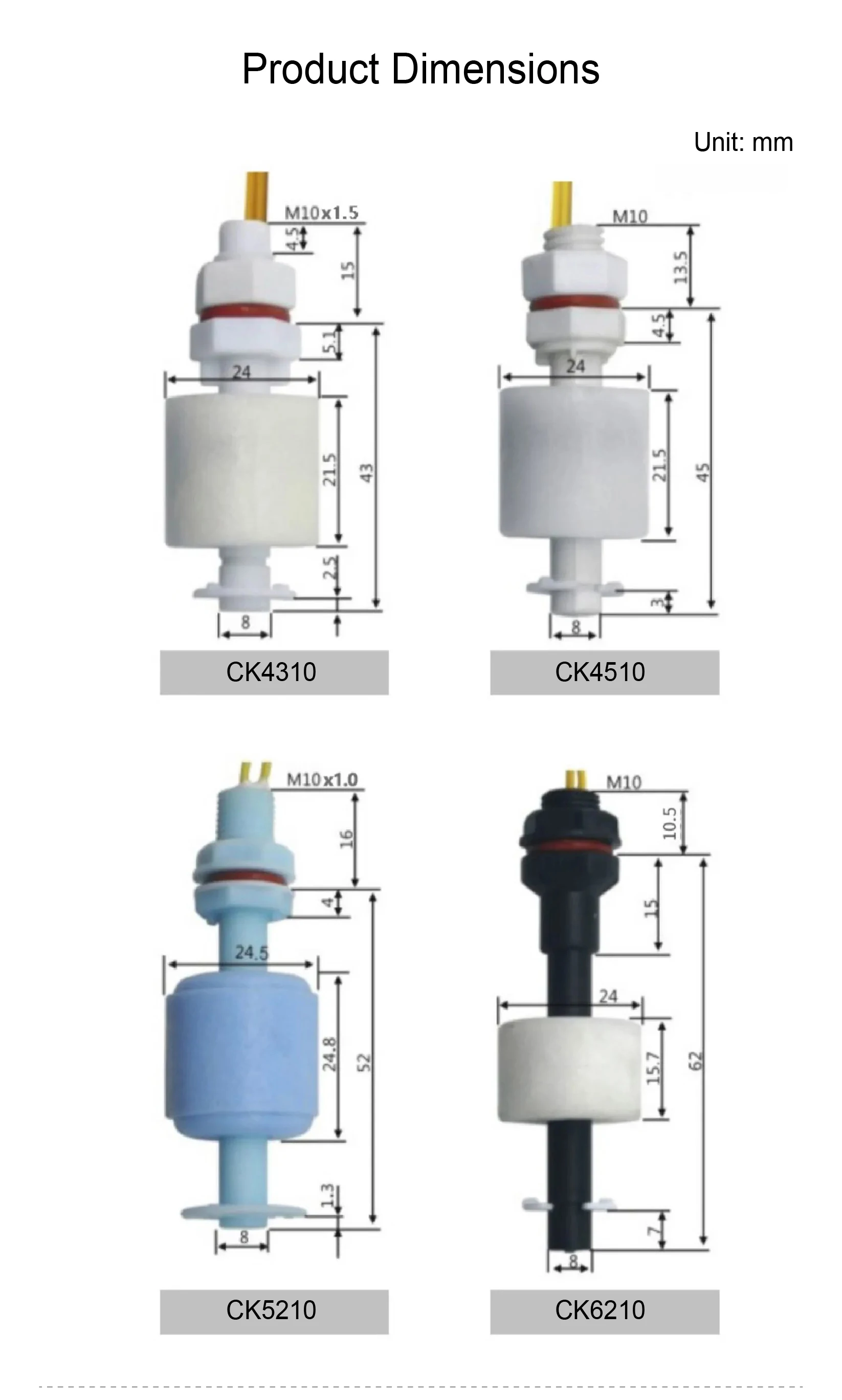

Confirm the Thread Size: M8*1.25, M10*1.5 (Customizable)

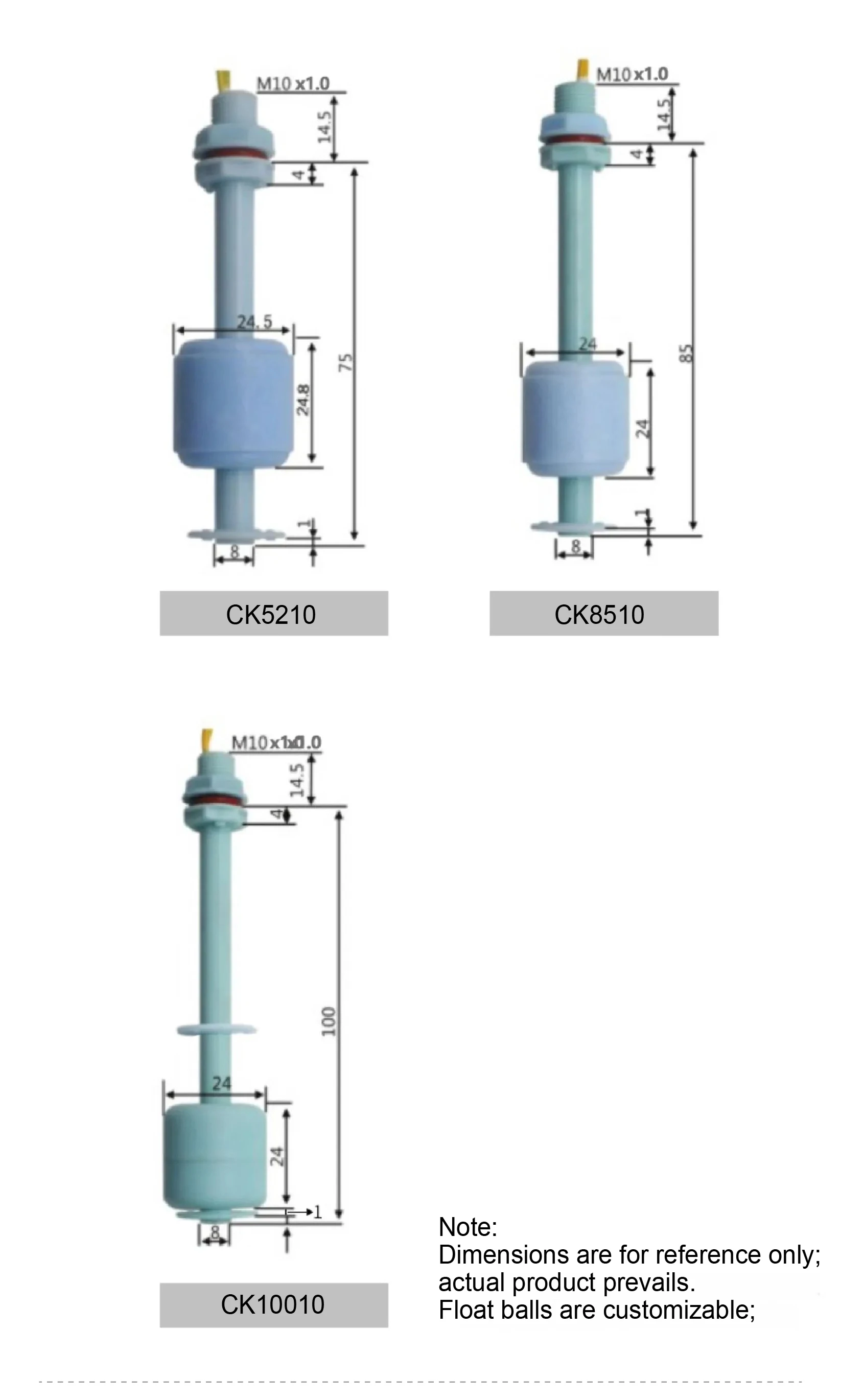

Confirm the Rod Length: Customizable（eg 0-300mm,0-600mm,0-900mm,0-1200mm）
This product is custom-made and can be tailored to your required length. If you need a length over 800mm, please contact us for product and shipping cost quotations.

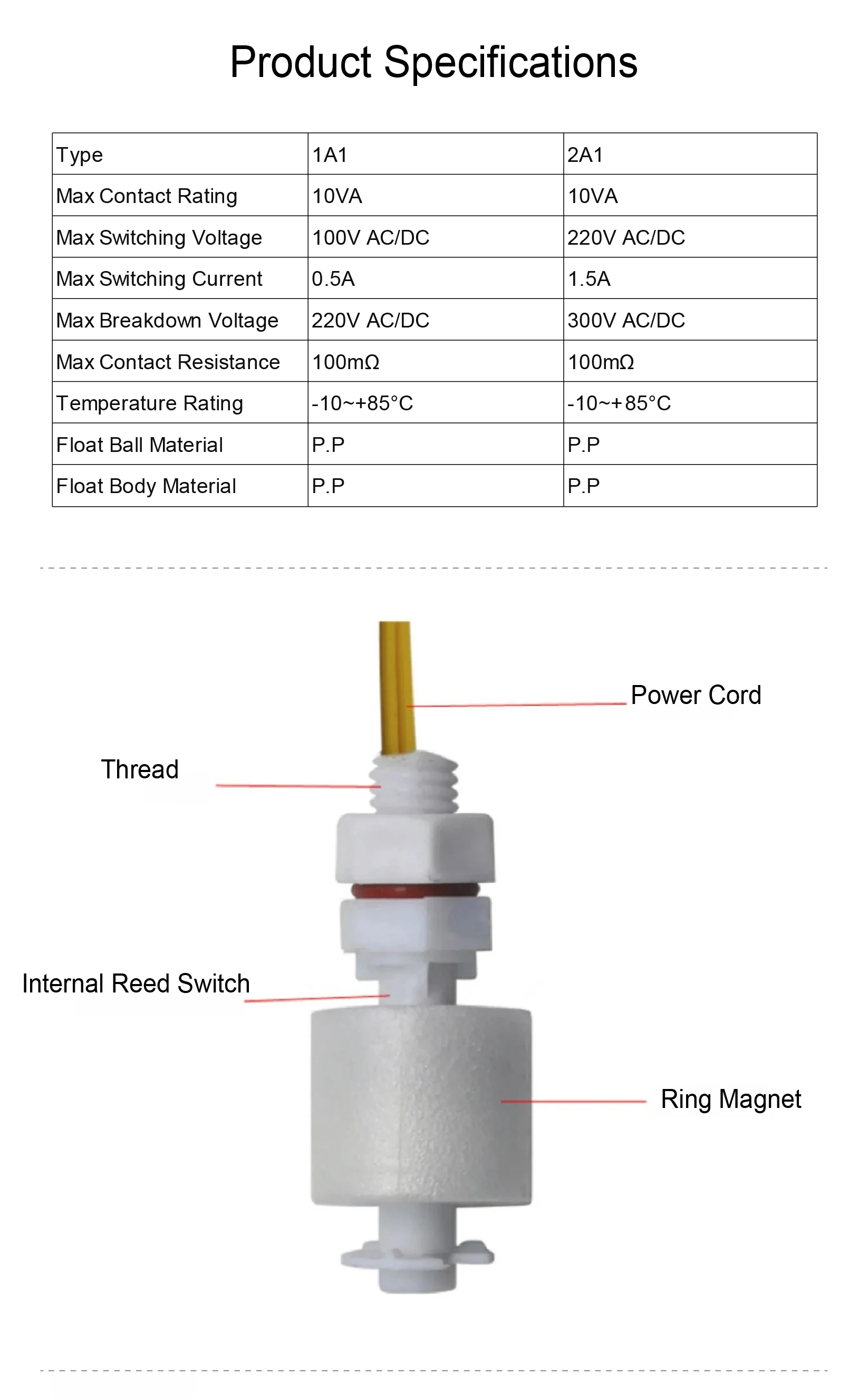

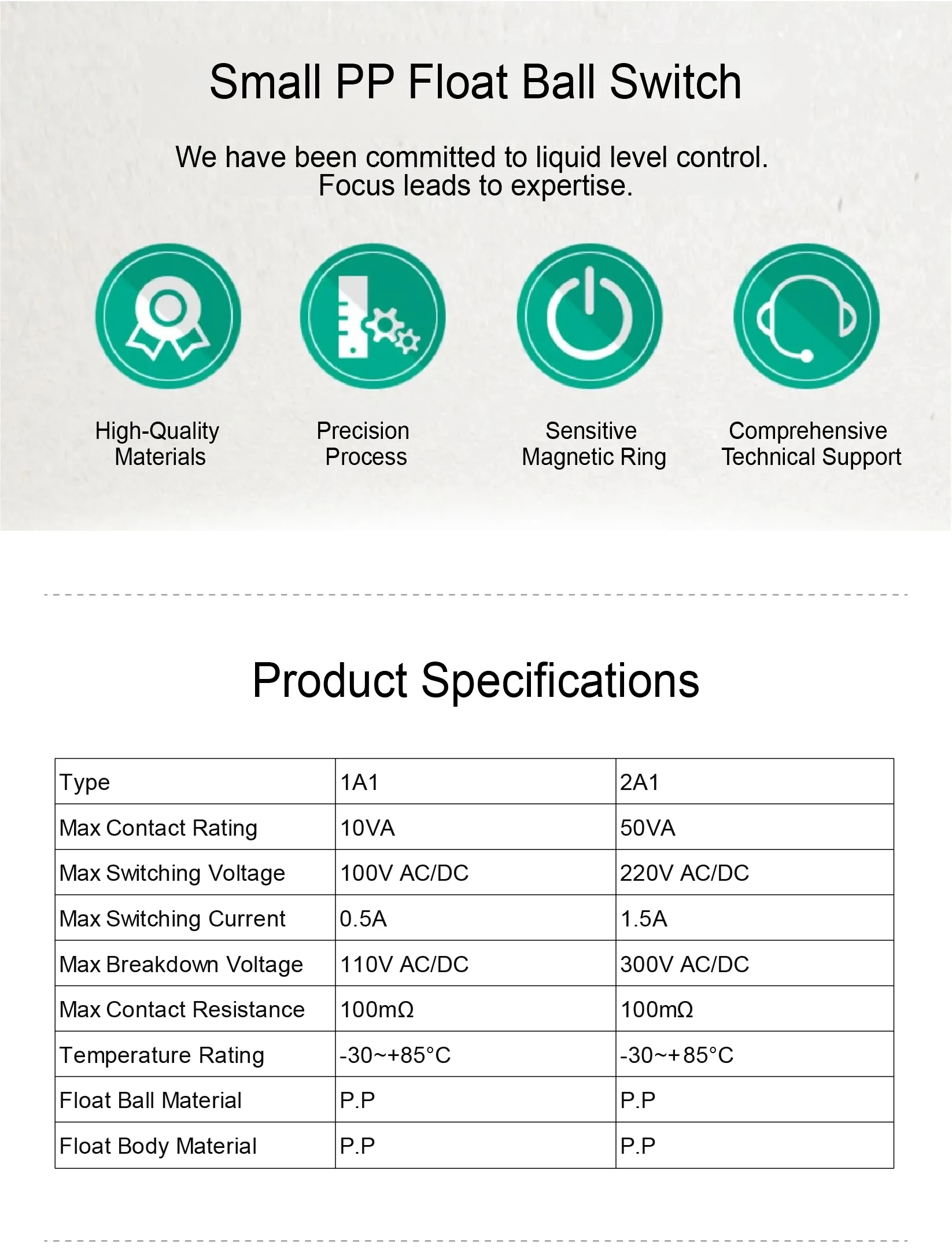

2. PARAMETERS
Type | Low Pressure | High Pressure |
Max Power | 10W | 50W |
Max Switch Voltage | 110V DC | 220V AC |
Max Switch Current | 0.5A | 0.5A |
Min Breakdown Voltage | 220V DC | 300V AC |
Max Load Current | 0.5A | 1A |
Max Contact Resistance | 100MΩ | 100MΩ |
Temperature Range | -20°C ~ +60°C | -50°C ~ +90°C |
Float Material | PP | PP |
3. APPLICATION
Ideal for monitoring liquid levels in tanks and industrial equipment.
Suitable for acidic, alkaline, and other harsh environments.
Compatible with various relay systems for efficient control.
4. FEATURES
Made of durable polypropylene (PP), resistant to corrosion and high temperatures.

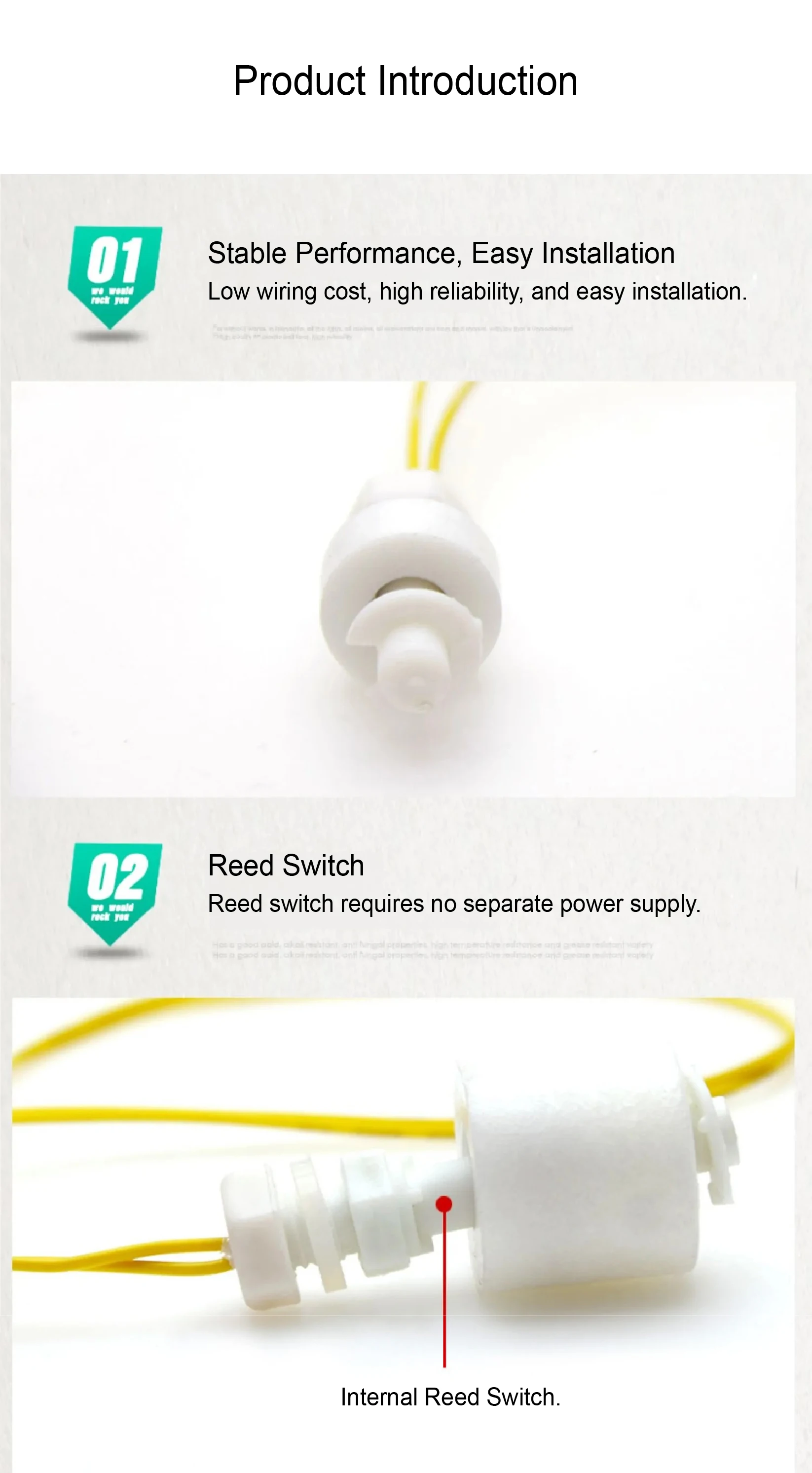

Uses a magnetic reed switch, offering stable and precise performance.

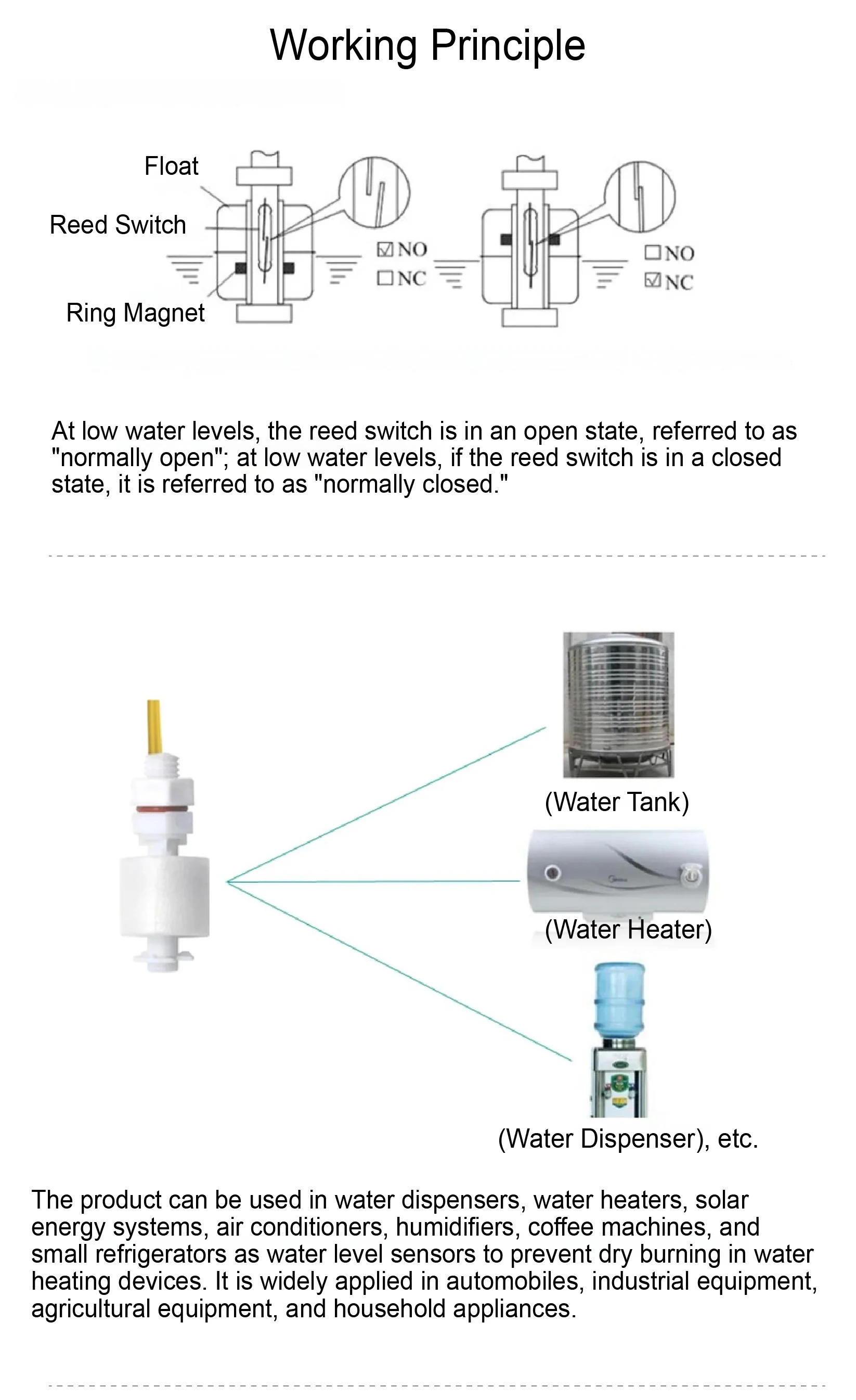

Operates on the principle of magnet sensing for reliable switching.
Customizable specifications available for specific applications.

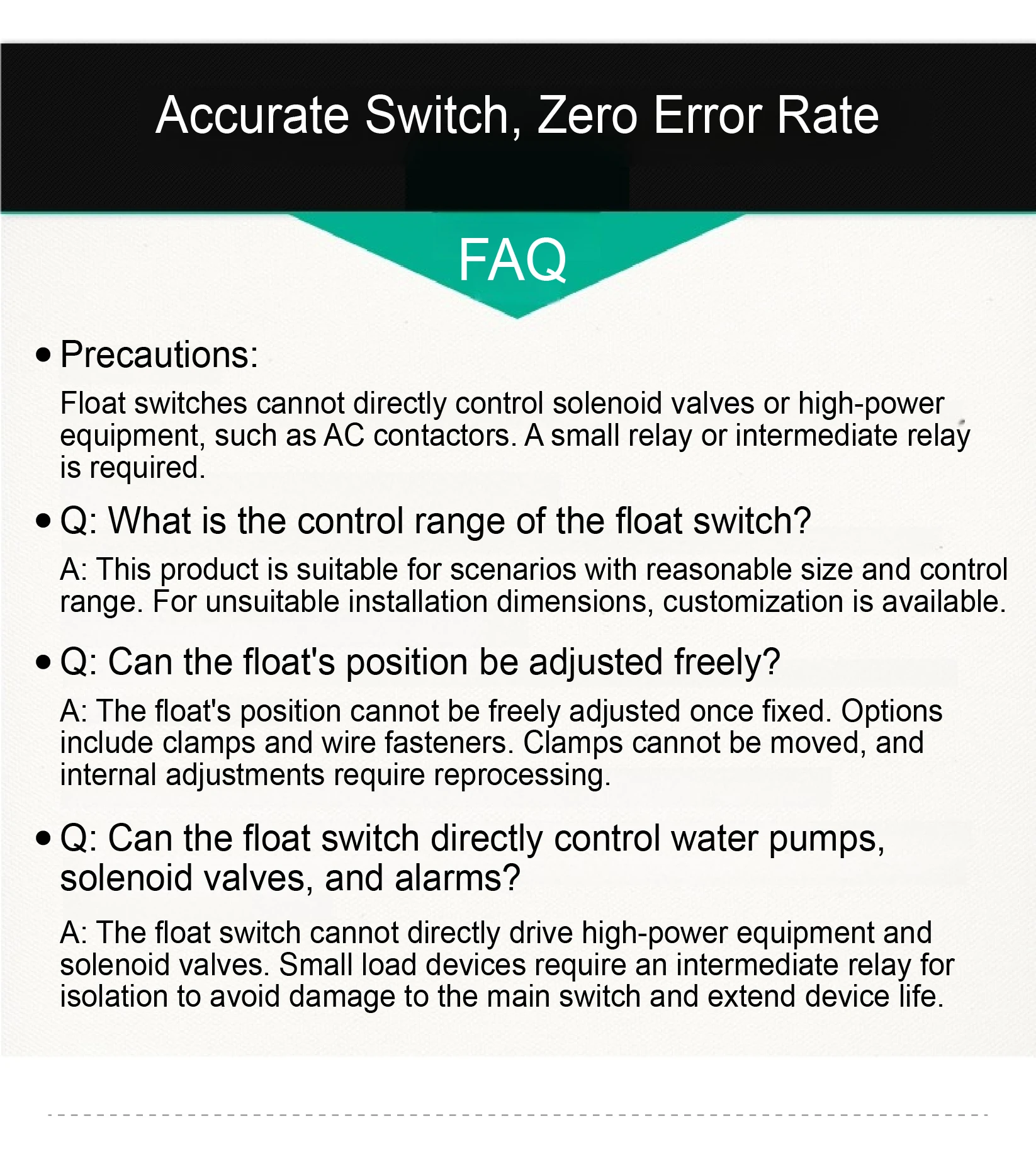

5. FAQ
Q1: Can the float position be adjusted?
A1: No, the float position is fixed by circlips. Moving them will not affect the internal reed switch.
Q2: Can the float switch directly control water pumps or solenoid valves?
A2: No, the reed switch contacts have a small current capacity. A small relay or AC contactor is needed based on the load type.
Q3:Can the float switch length and thread be customized?
A3:Yes, provide detailed dimensions before ordering, and contact us for customization.
