Product Description
1.NOTE:
Due to page limitations, some configurations may not be listed. Please contact us for special requests.
Port Specifications: Hose barb or threaded connection
Flow Rate: Up to 12 L/min
Max Head: 6 meters
Power Supply: DC 12V or 24V
Temperature Resistance: ≤90°C

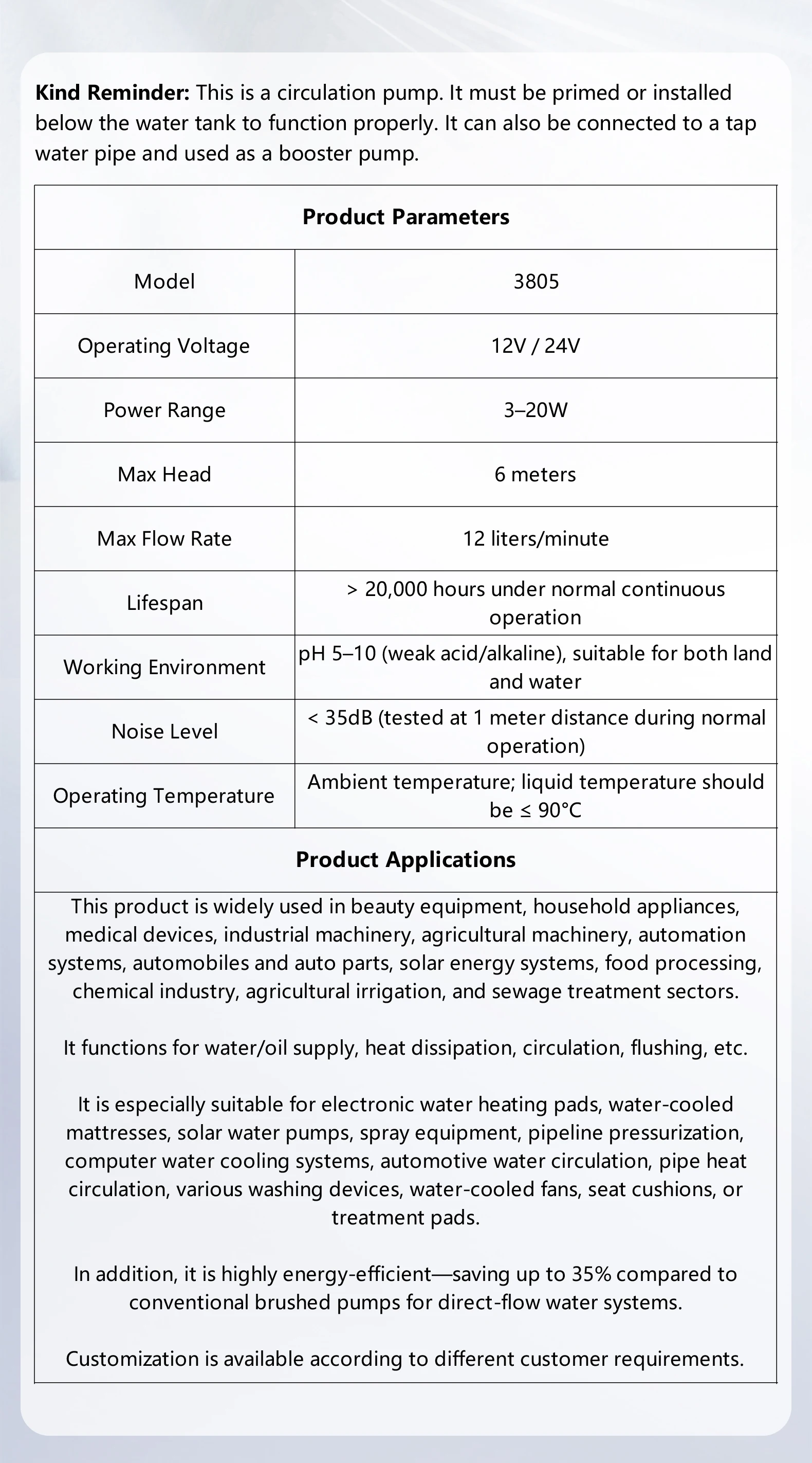

2.Parameters
Parameter | Value |
Model | 3805 |
Operating Voltage | 12V / 24V |
Power Range | 3–20W |
Max Head | 6 meters |
Max Flow Rate | 12 L/min |
Lifespan | > 20,000 hours continuous use |
Operating Environment | pH 5–10 (mild acid/base) |
Noise Level | ≤ 35 dB @ 1m |
Media Temperature | ≤ 90°C |
3.Features

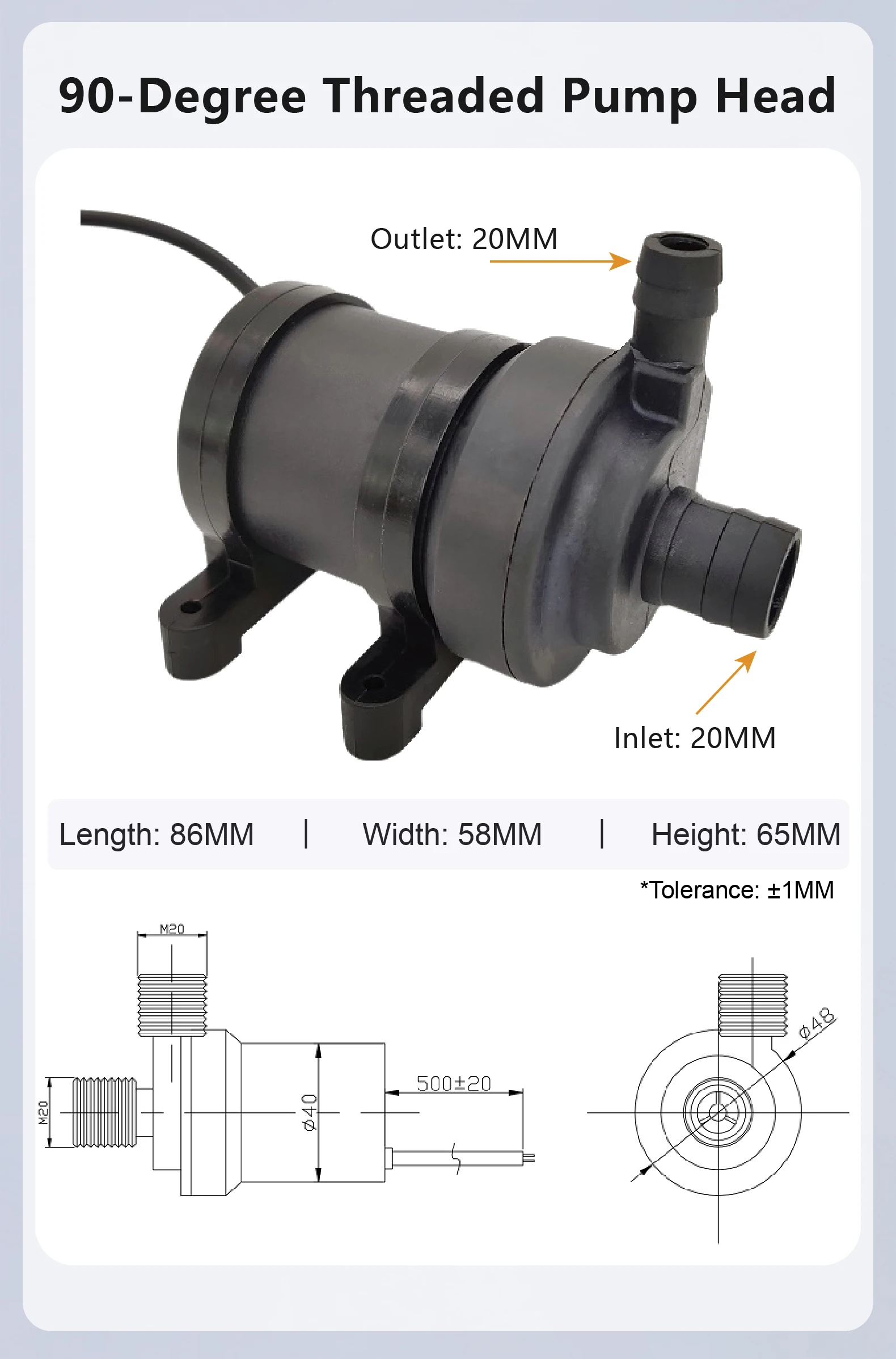

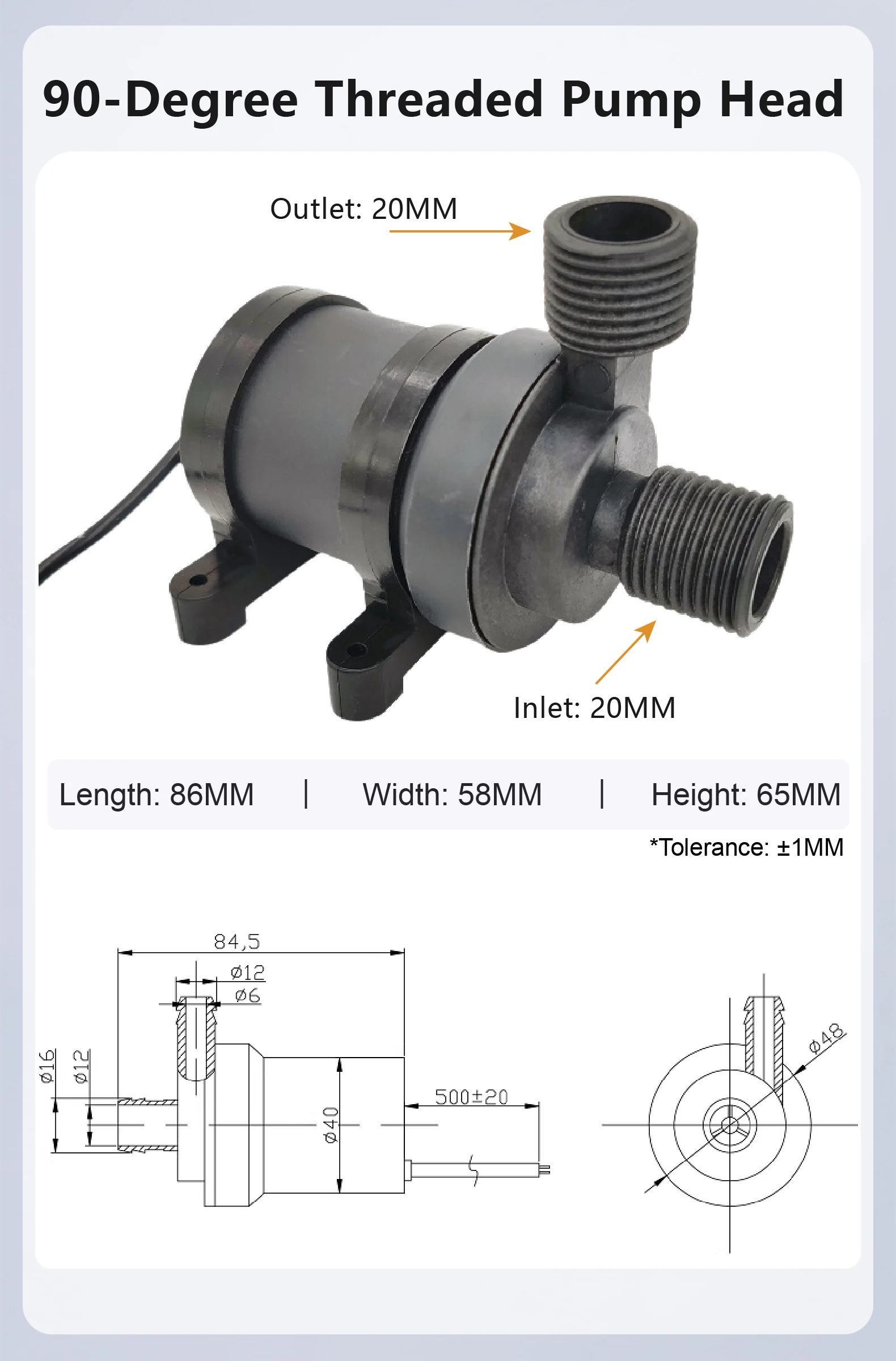

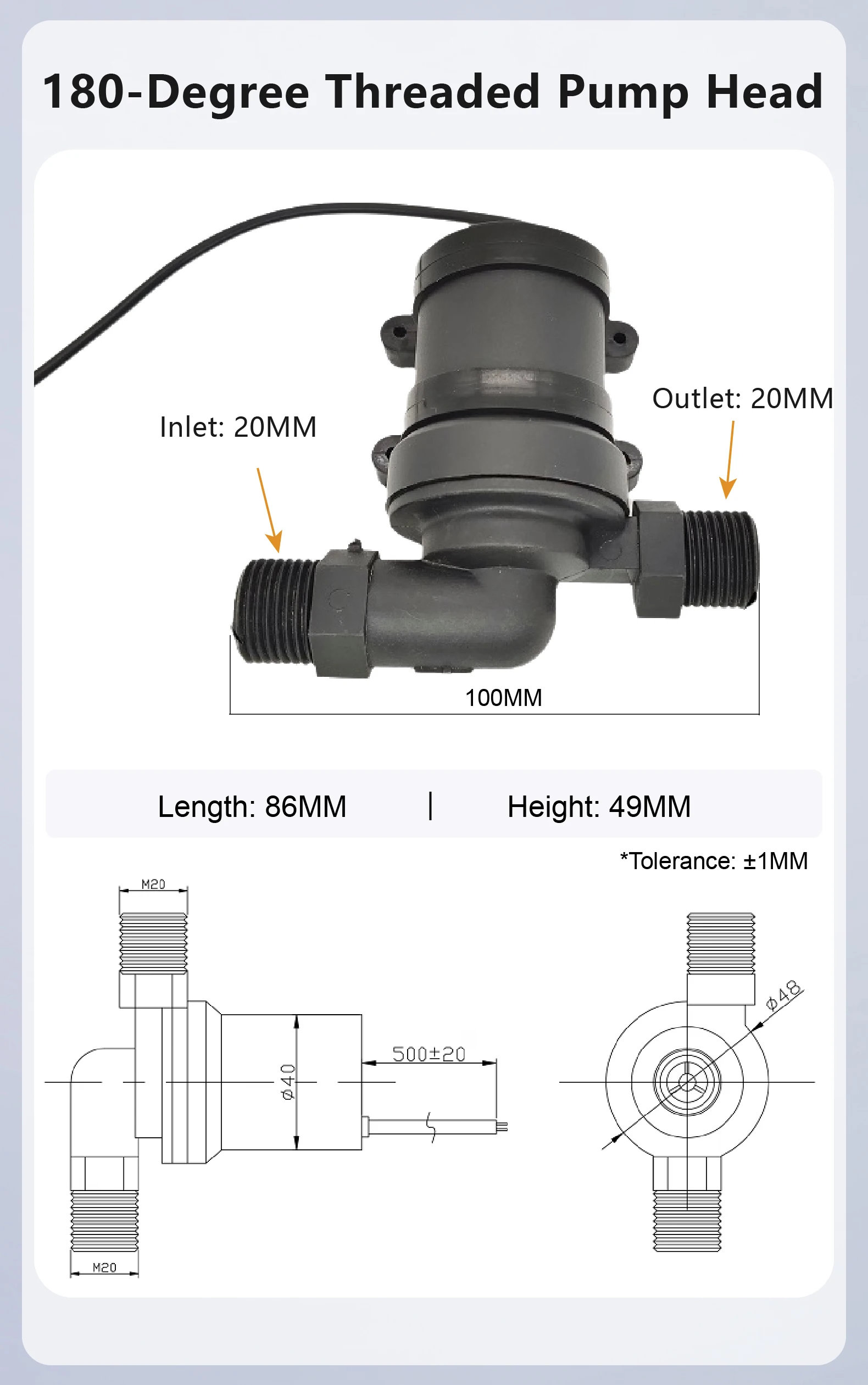

Multiple Pump Head Options– Includes 90° hose, 90° threaded, and 180° threaded options for versatile piping.
Quiet Operation– Ultra-low noise level of ≤35 dB ensures silent performance.
Long Service Life– Designed to operate continuously for over 20,000 hours.
Wide Compatibility– Suitable for water, mild acid/alkaline solutions, and other liquids.
Energy Saving– Consumes 35% less power than standard brushed DC pumps.
4.Applications
Widely used in beauty equipment, medical devices, home appliances, and automotive systems.
Ideal for water circulation, cooling, washing, and pressure boosting.
Especially fit for mini water chillers, heated cushions, solar water pumps, PC cooling, and smart toilets.
5.FAQs
Q1: Can this pump be connected directly to a tap water line?
A1: Yes, it can be used as a booster pump for household water supply.
Q2: Does it need to be installed below the water tank?
A2: Yes, for best performance, install it lower than the tank or ensure the pump is primed.
Q3: Is it customizable for different applications?
A3: Yes, OEM customization is available based on your requirements.
