Product Description
1.NOTE:
Default Configuration:
Normally Closed (NC) by default.
Can be manually adjusted to Normally Open (NO) using the included instructions.
Maximum Power: 50VA
Maximum Switching Voltage: 220V AC/DC
Maximum Switching Current: 1.5A
Maximum Breakdown Voltage: 300V AC/DC
Maximum Contact Resistance: 100mΩ
Temperature Range: -30~+120°C
Float Material: SU304 Stainless Steel
Body Material: SU304 Stainless Steel
Special Requests:
For additional configurations or specific requirements, please contact us or leave a note during checkout.

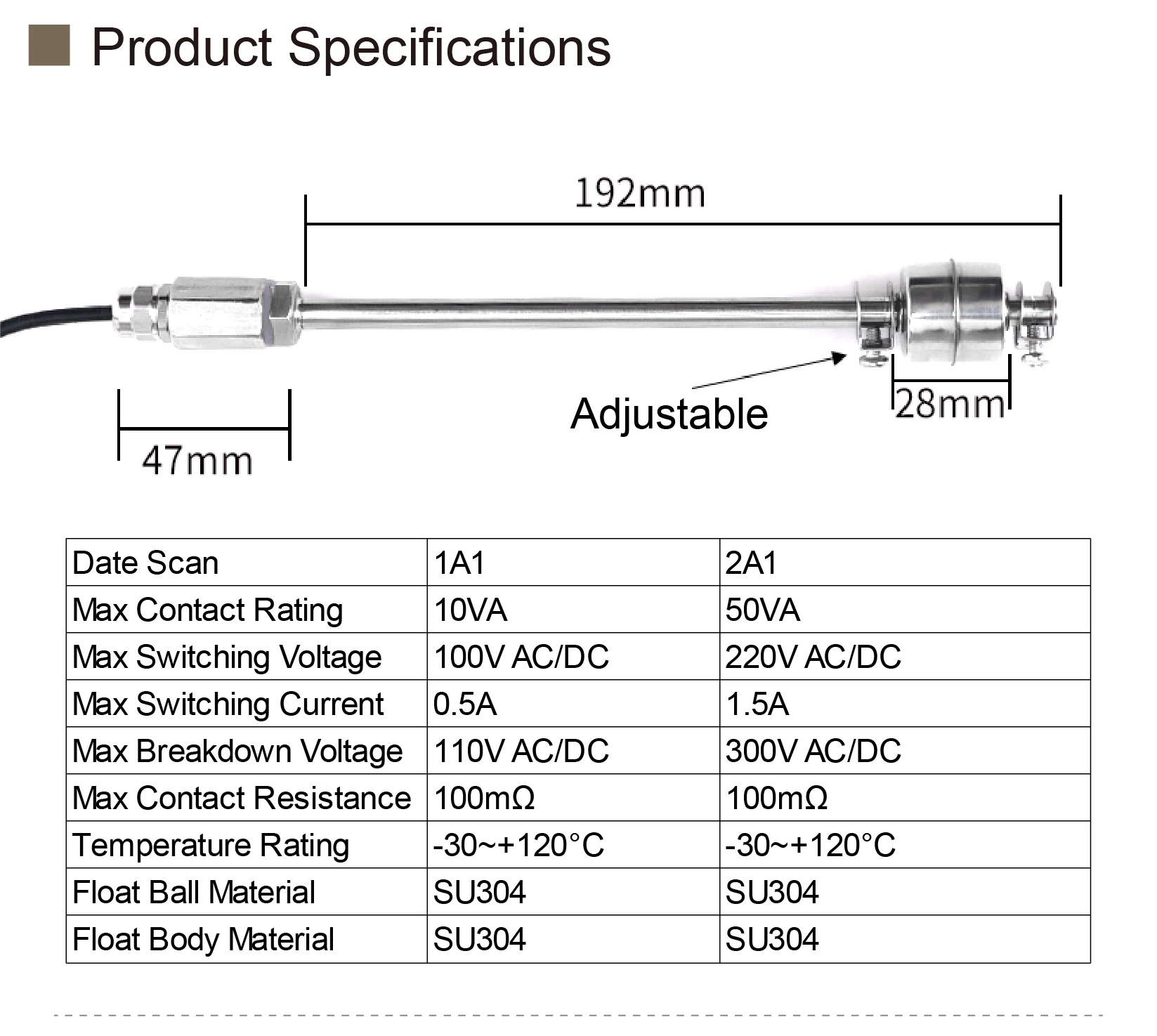

2.Parameters
Parameter | 2A1 | |
Maximum Power | 50VA | |
Max Switching Voltage | 220V AC/DC | |
Max Switching Current | 1.5A | |
Max Breakdown Voltage | 300V AC/DC | |
Max Contact Resistance | 100mΩ | |
Temperature Range | -30~+120°℃ | |
Float Material | SU304 | |
Body Material | SU304 |

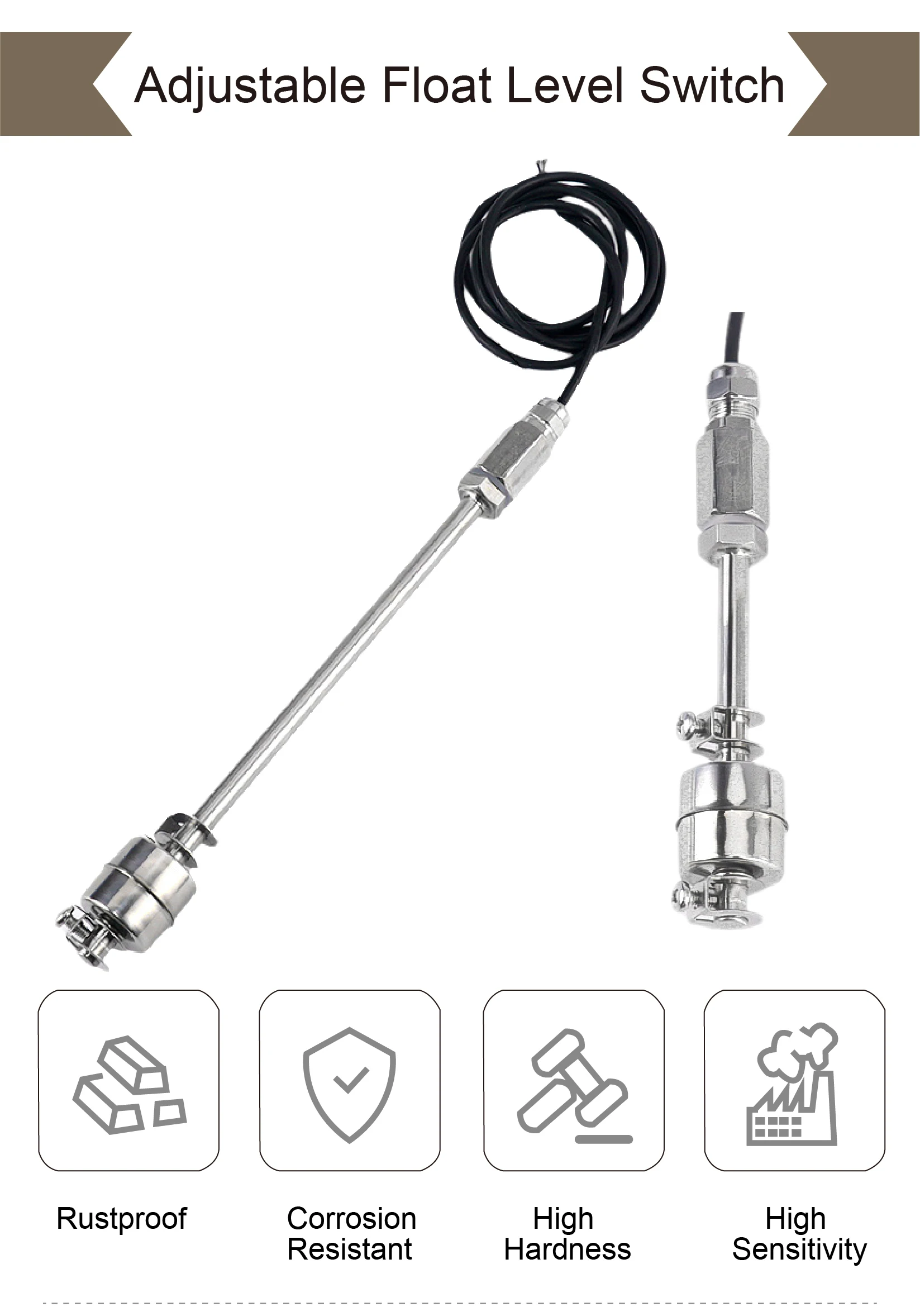

3.Features

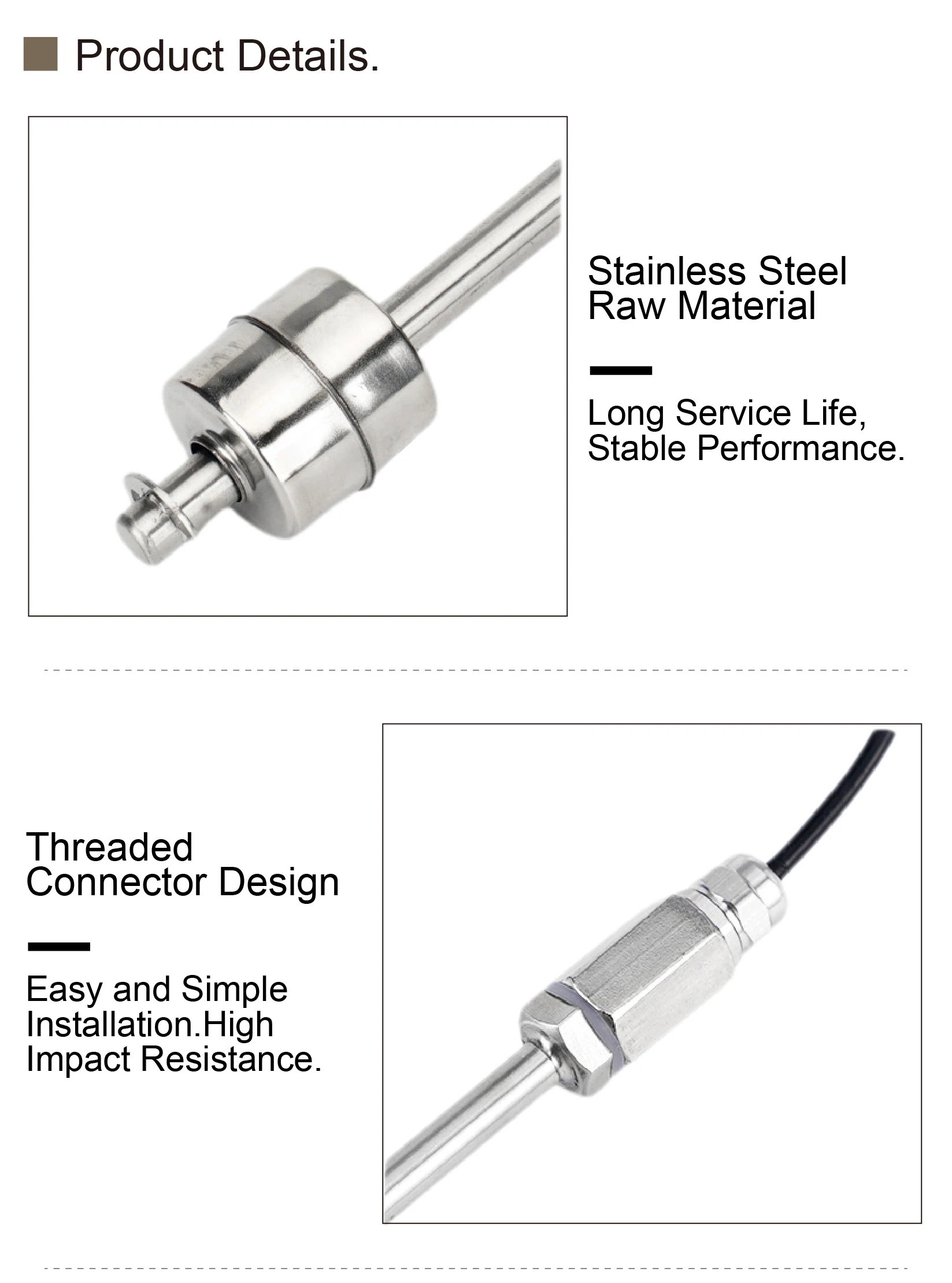

High Impact Resistance and Durability: Made of stainless steel with long service life and stable performance.
Easy Installation: Threaded joint design for quick and convenient setup.

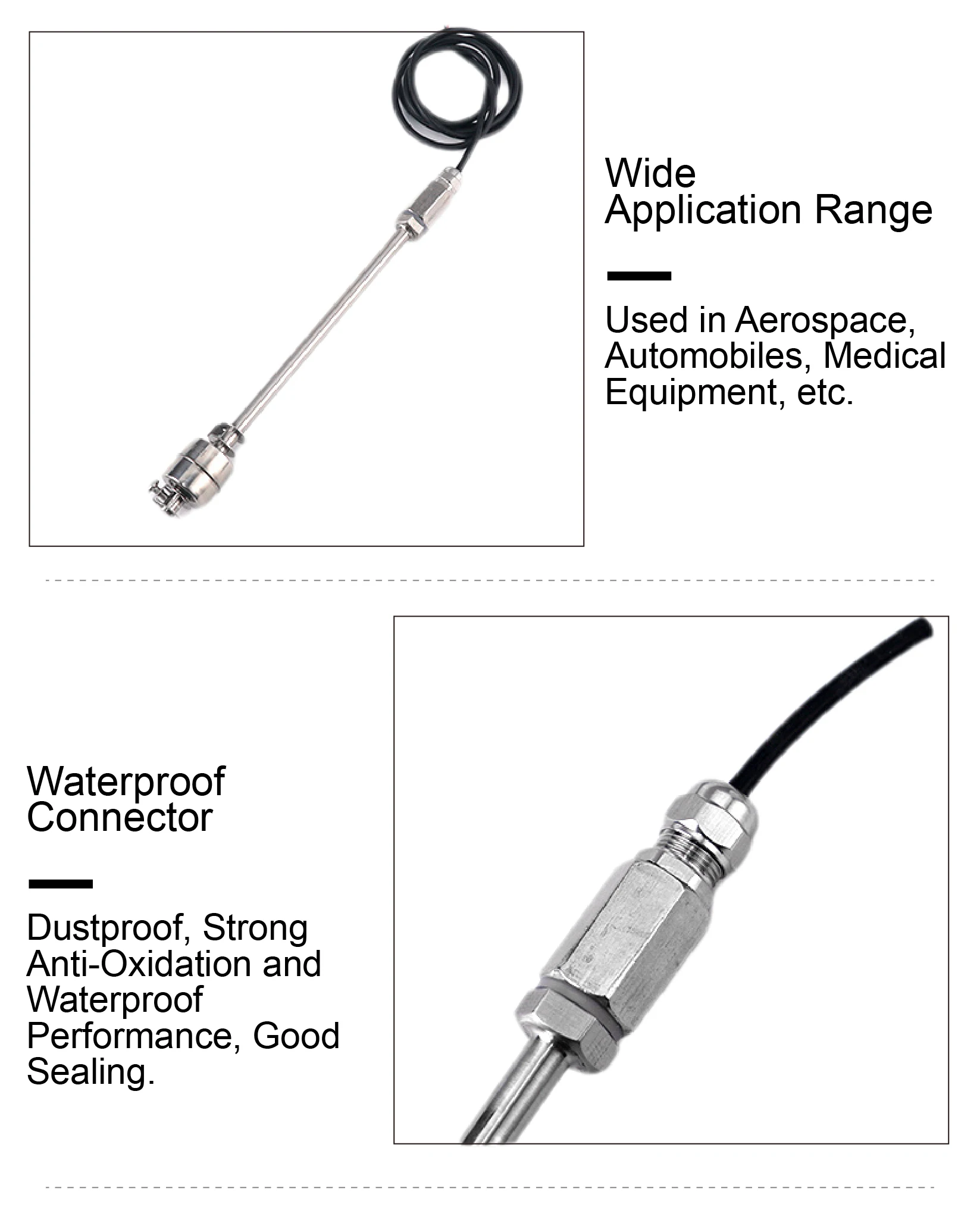

Wide Application Range: Suitable for aerospace, automotive, medical equipment, and more.
Excellent Waterproof and Sealing Performance: Dustproof, oxidation-resistant, and strong waterproof capability.
Adjustable Normally Open/Closed Function: Manually switchable between normally open and normally closed (default: normally closed).

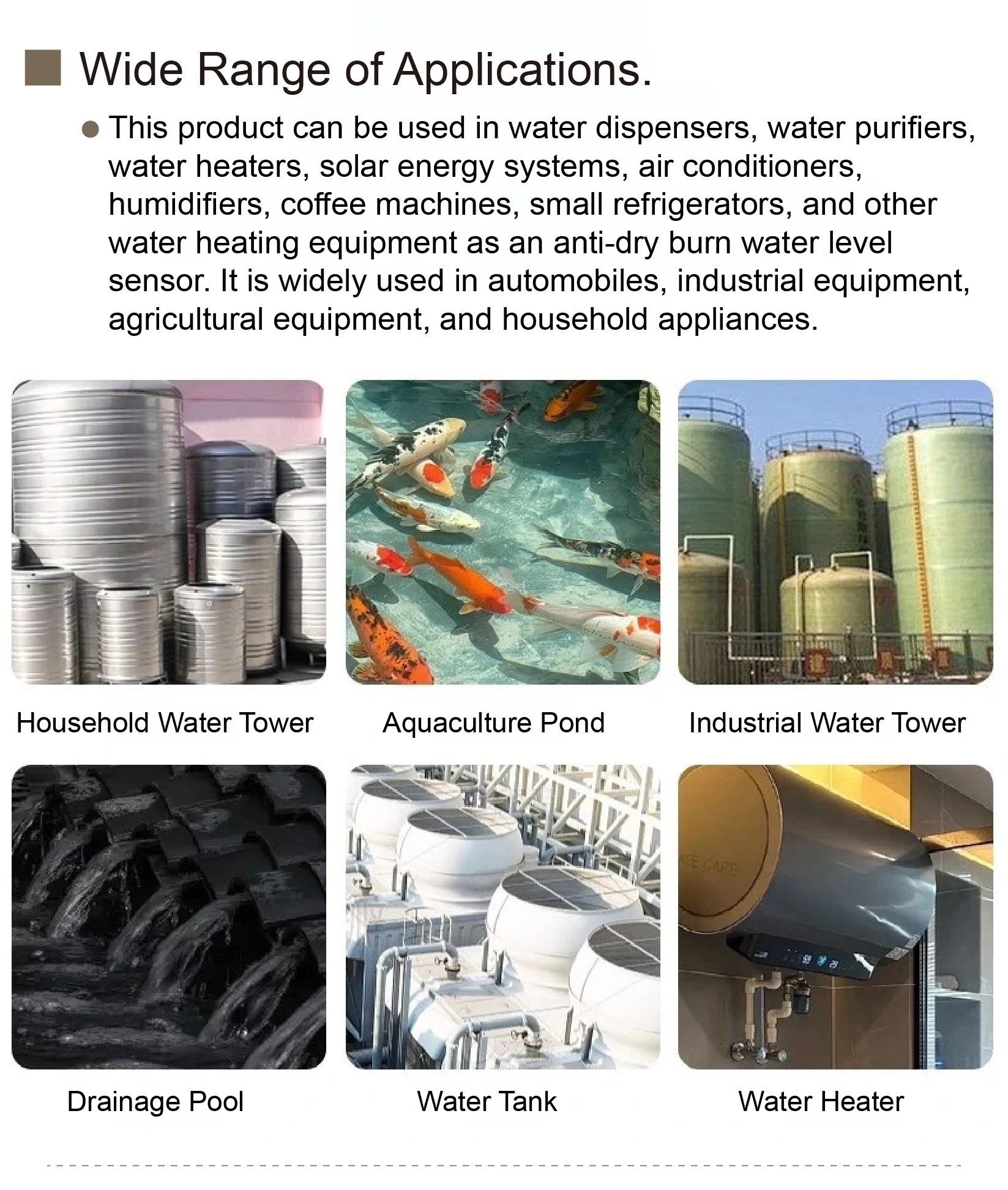

4.Applications
Water Heating Equipment: Ideal for water dispensers, water purifiers, water heaters, solar systems, humidifiers, and more.
Household Appliances: Used in coffee machines, small refrigerators, and anti-dry burning water level sensors.
Industrial and Automotive Equipment: Widely used in industrial devices, automotive, agricultural, and aerospace equipment.
5.FAQs

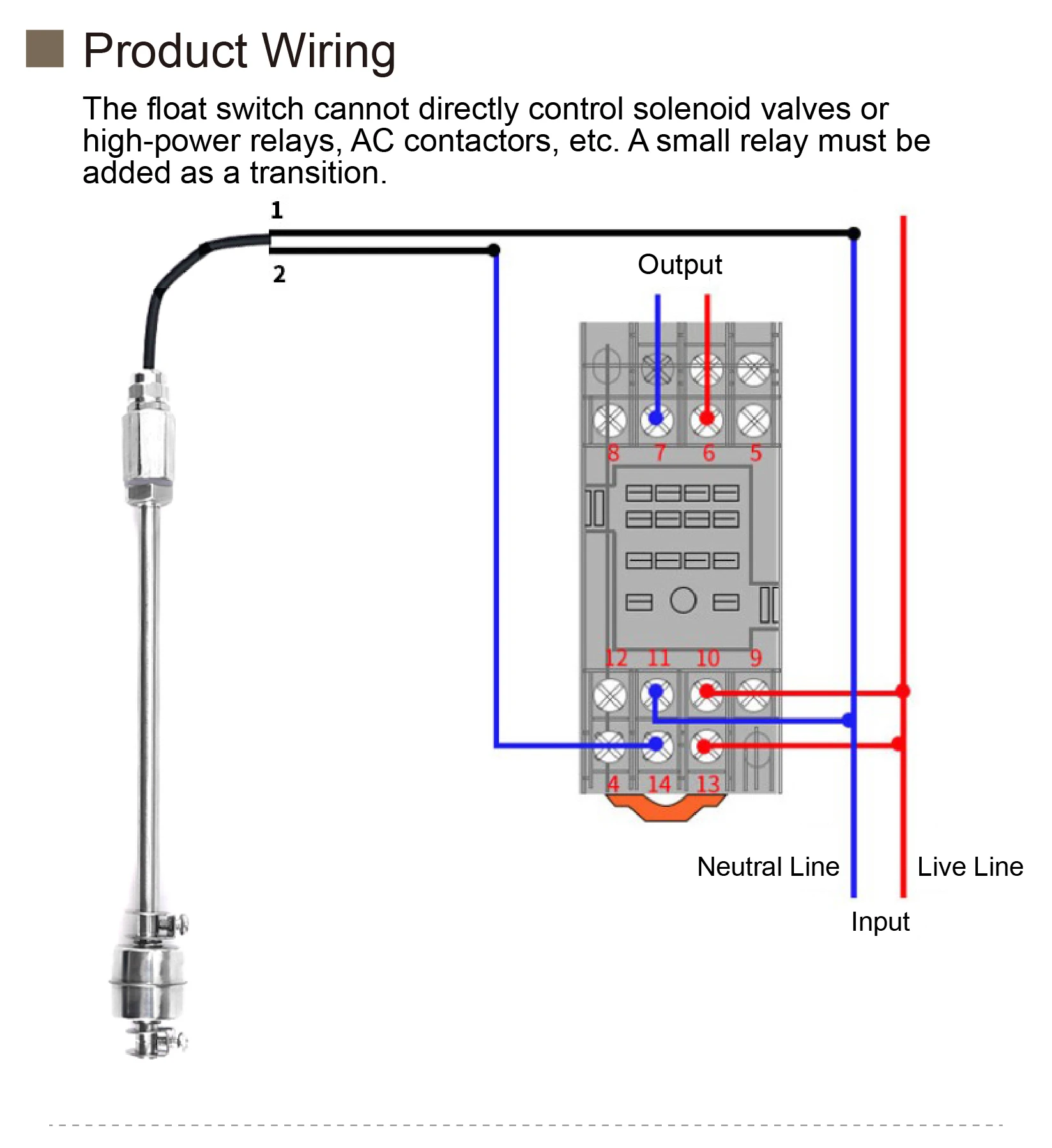

Can the float switch directly control high-power relays or solenoids?
No, a small relay is required as an intermediary.

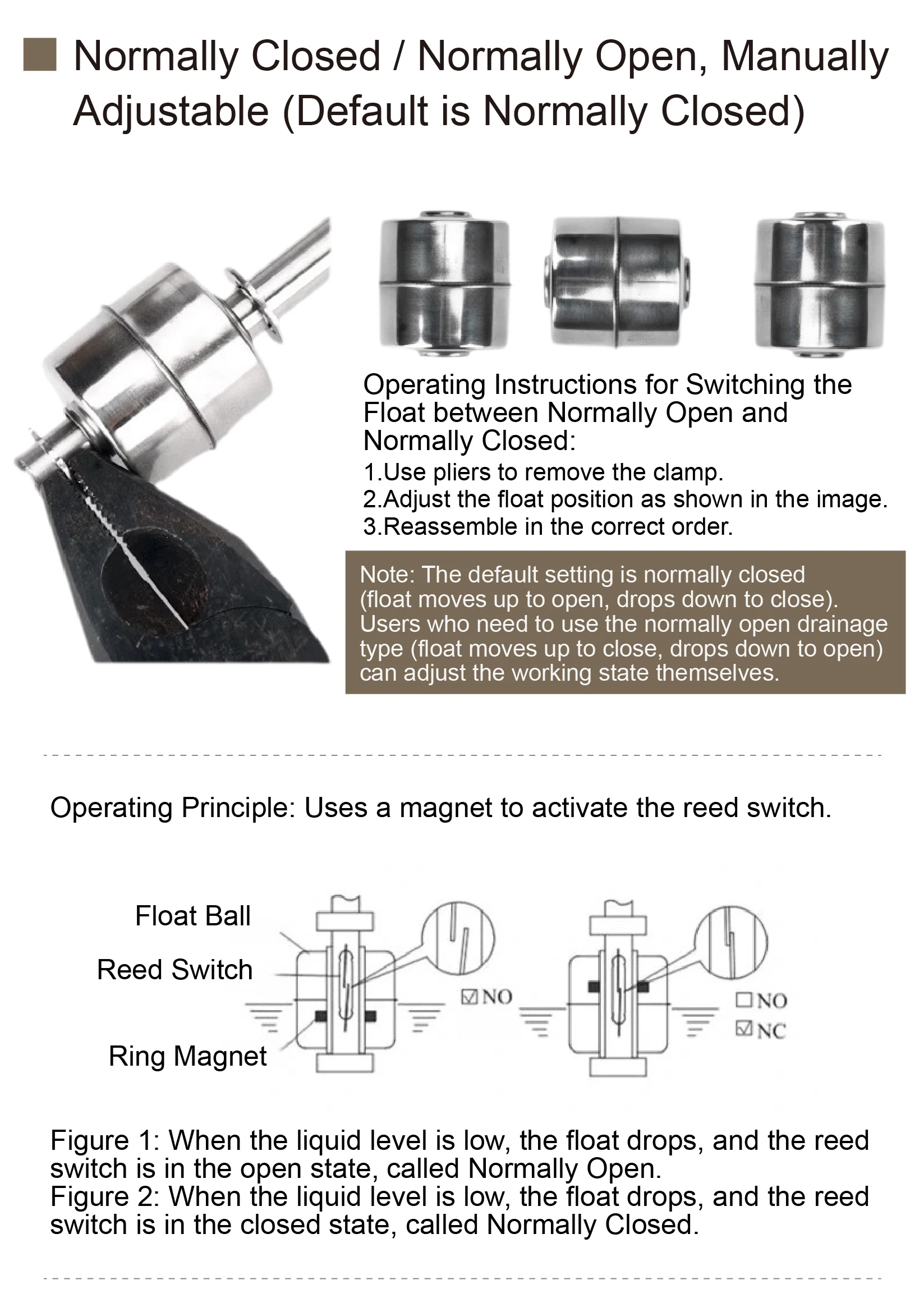

How to adjust the normally open/closed state of the float?
Use pliers to remove the circlip, adjust the float position, and reassemble accordingly.
What is the working principle of the float switch?
It uses a magnet to activate a reed switch. When the liquid level is low, the float drops, causing the reed switch to open (normally open) or close (normally closed).
