Product Description
1. NOTE
Due to page limitations, some configurations may not be listed. Please contact us or leave a note during checkout for special requests.
Default Configuration Includes:
Type: K-type

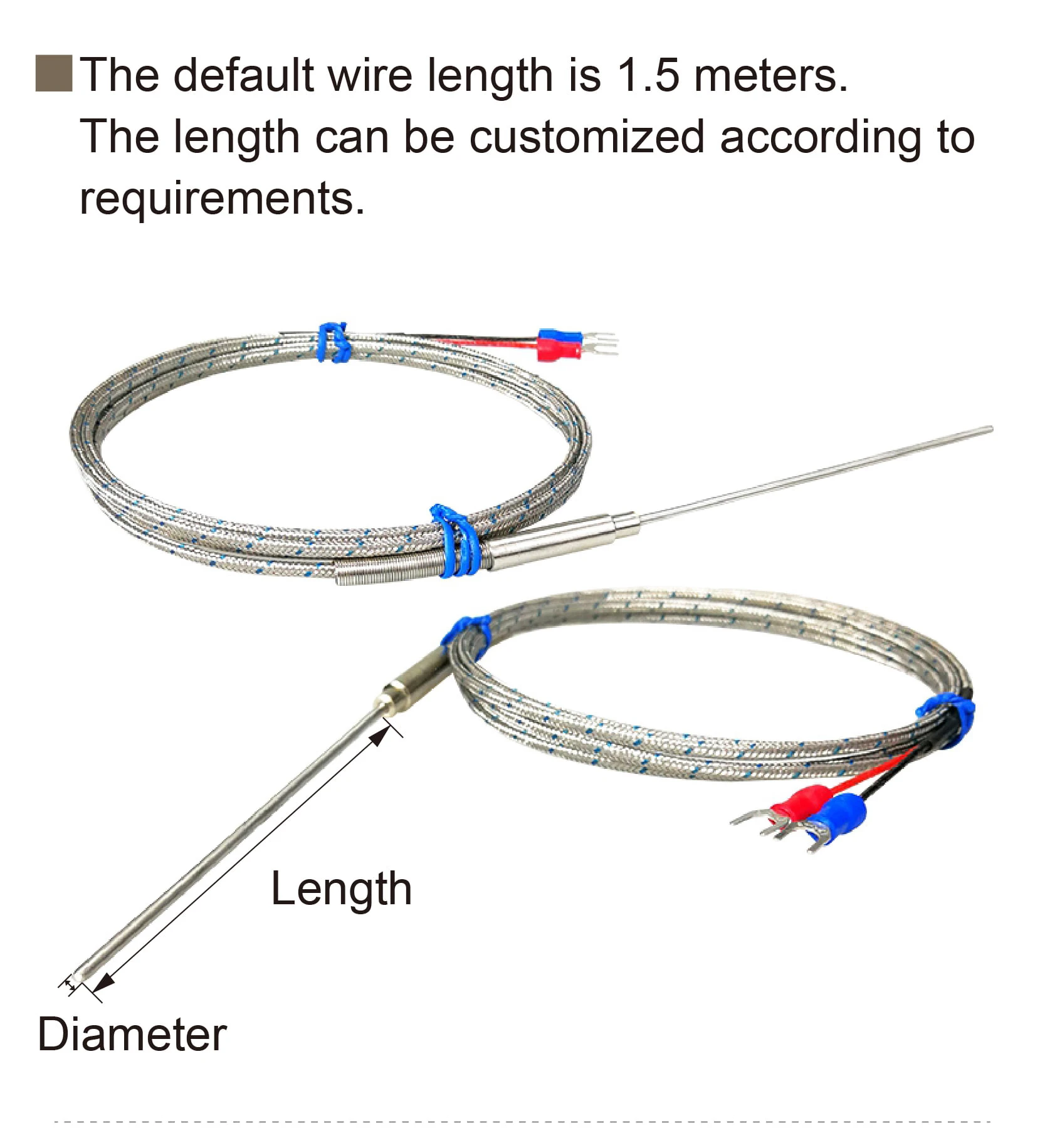

Cable Length: 1.5m
Probe Diameter: 3–6mm (Optional)
Probe Length: 100mm, 200mm, 300mm (Optional)
Material: 304 Stainless Steel
Temperature Range: 0–800°C
Installation Method: Bare Probe (No Fixed Installation)
Terminal: U-shaped Terminal
Wiring Type: 2-wire
Optional Configurations Include:
Sensor Type: E/J/T/Pt100
Cable Length: Customizable (e.g., 2m, 5m, 10m)

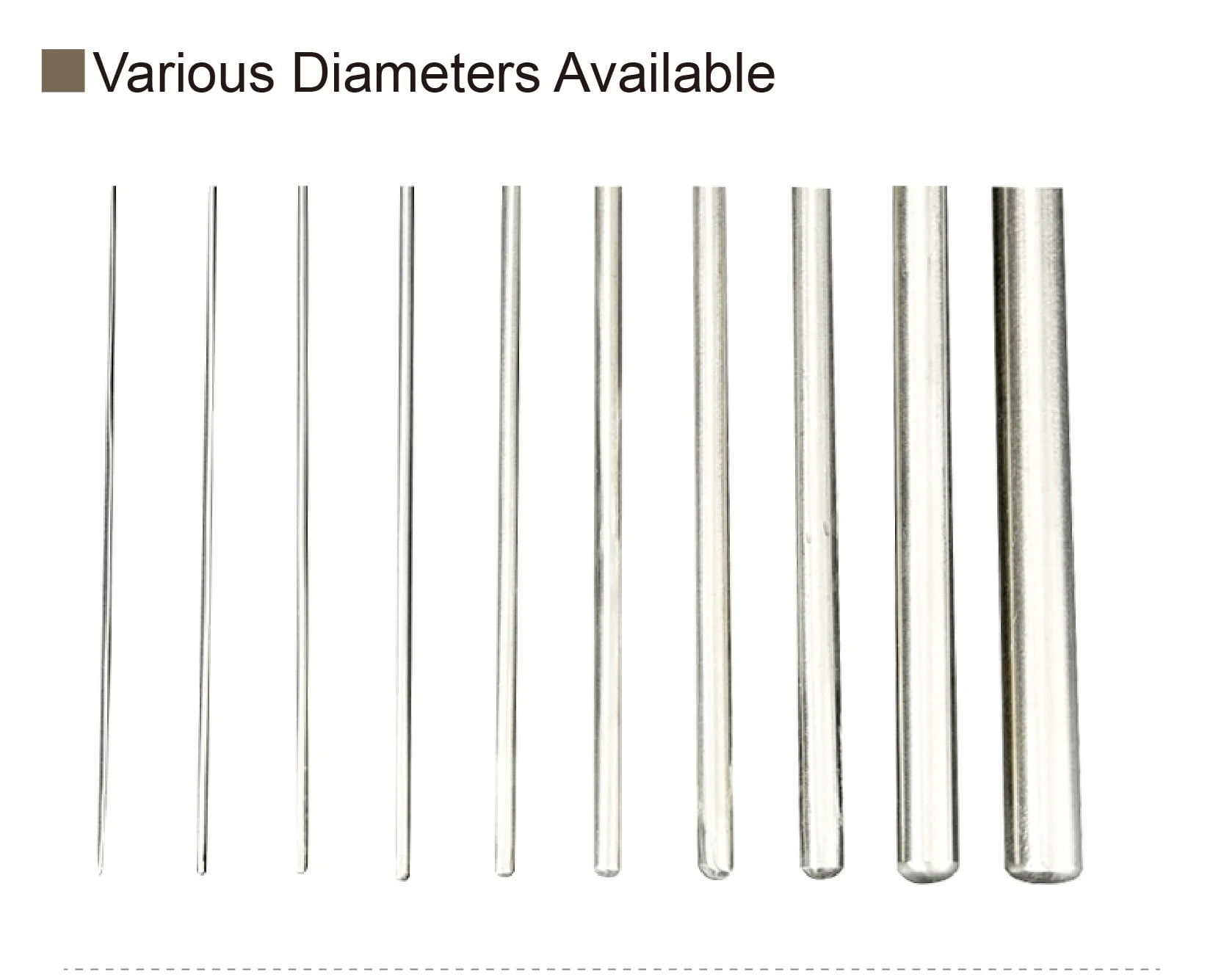

Probe Diameter: Customizable (e.g., 3mm, 4mm, 5mm, 6mm, 8mm, 10mm)
Probe Length: Customizable (e.g., 100mm, 200mm, 300mm, 500mm, etc.)
Temperature Range: 0–800°C (Default) / For 1000°C and above, select 2520 or 3039 high-temperature material (Larger probe diameters offer higher temperature resistance)
Material: 304, 316, 2520, 3039 Stainless Steel

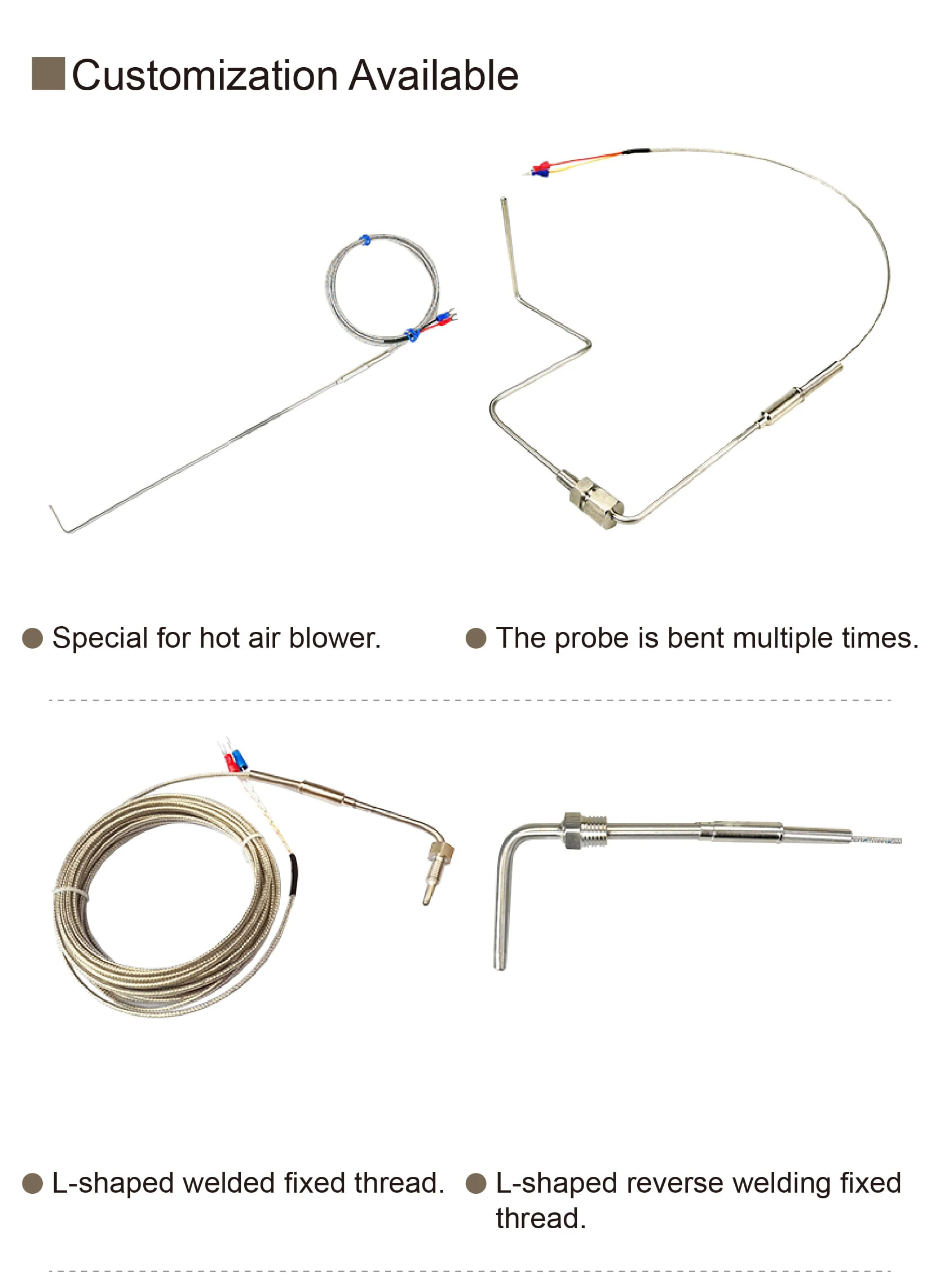

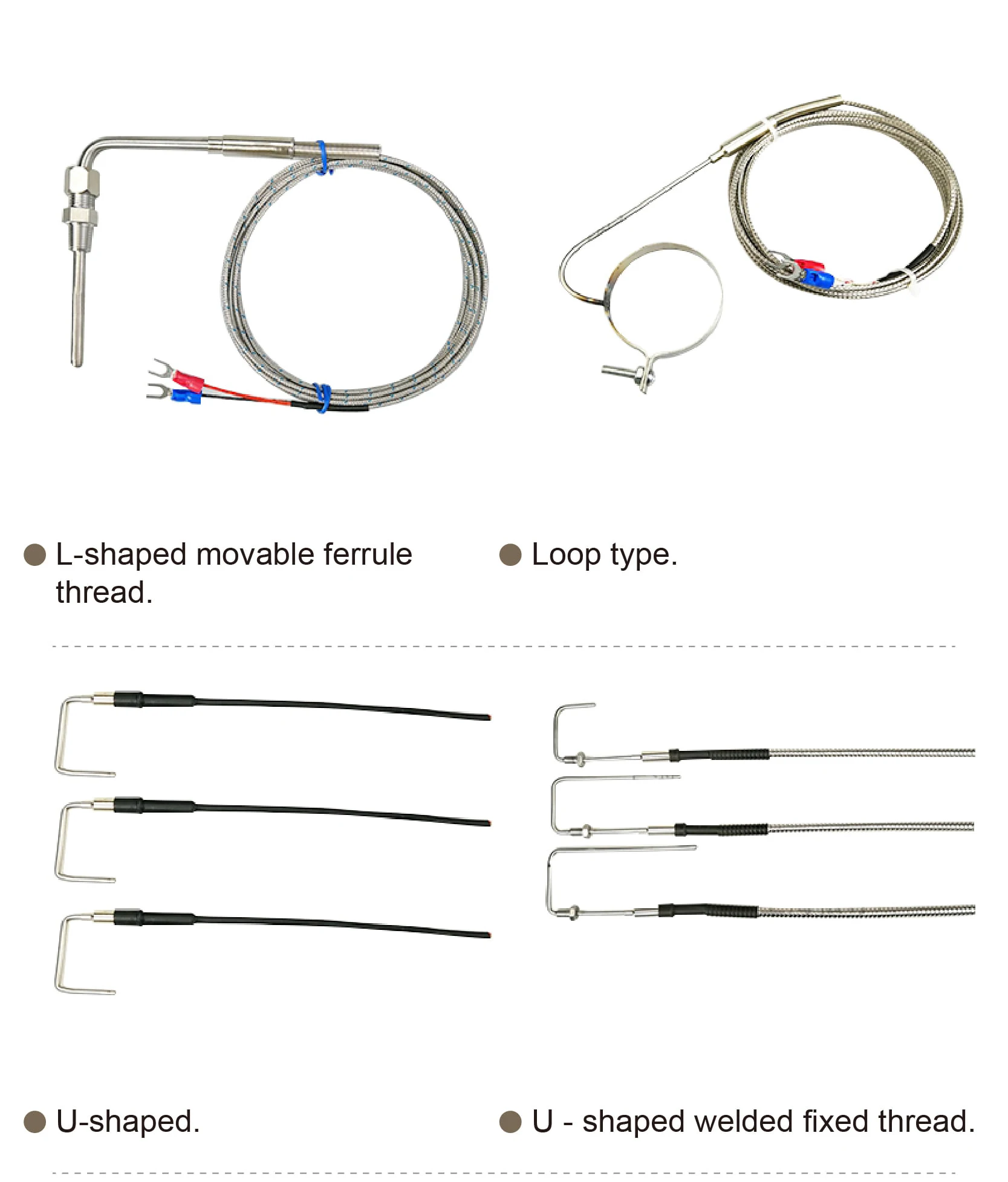

Installation Method: Bare Probe (No Fixed Installation), Welded Fixed Threads, Active Threads, Active Flanges, Sanitary Blind Flanges

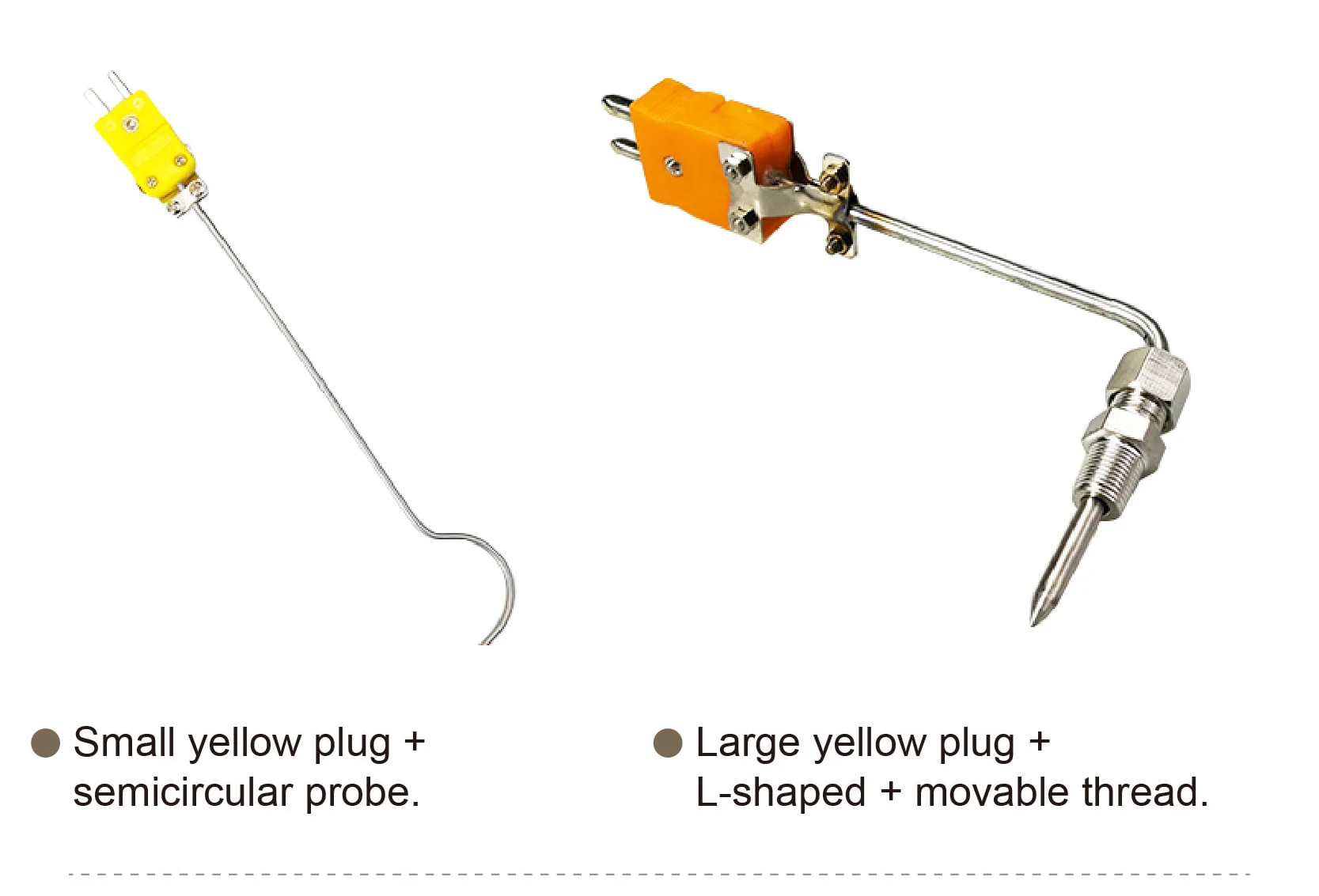

Terminal Connectors: Omega Mini Yellow Plug, Aviation Plug, Pin Plug
For customization, please contact us.
2. PARAMETERS
Specification | Details |
Thermocouple Type | K, Customizable: E/J/T/Pt100 |
Cable Length | 1.5m, Customizable to any length |
Probe Diameter | 3mm, Options: 0.5mm to 10mm |
Probe Length | 100mm, Customizable to any length |
Material | 304 Stainless Steel, Options: 316/2520/3039 |
Temperature Range | 0~800°C, Up to 1000°C with high-temp materials |
Installation Method | Bare Rod (No fixed installation), Options: Welded fixed threads, active threads, flanges, sanitary blind flanges |
3. APPLICATIONS

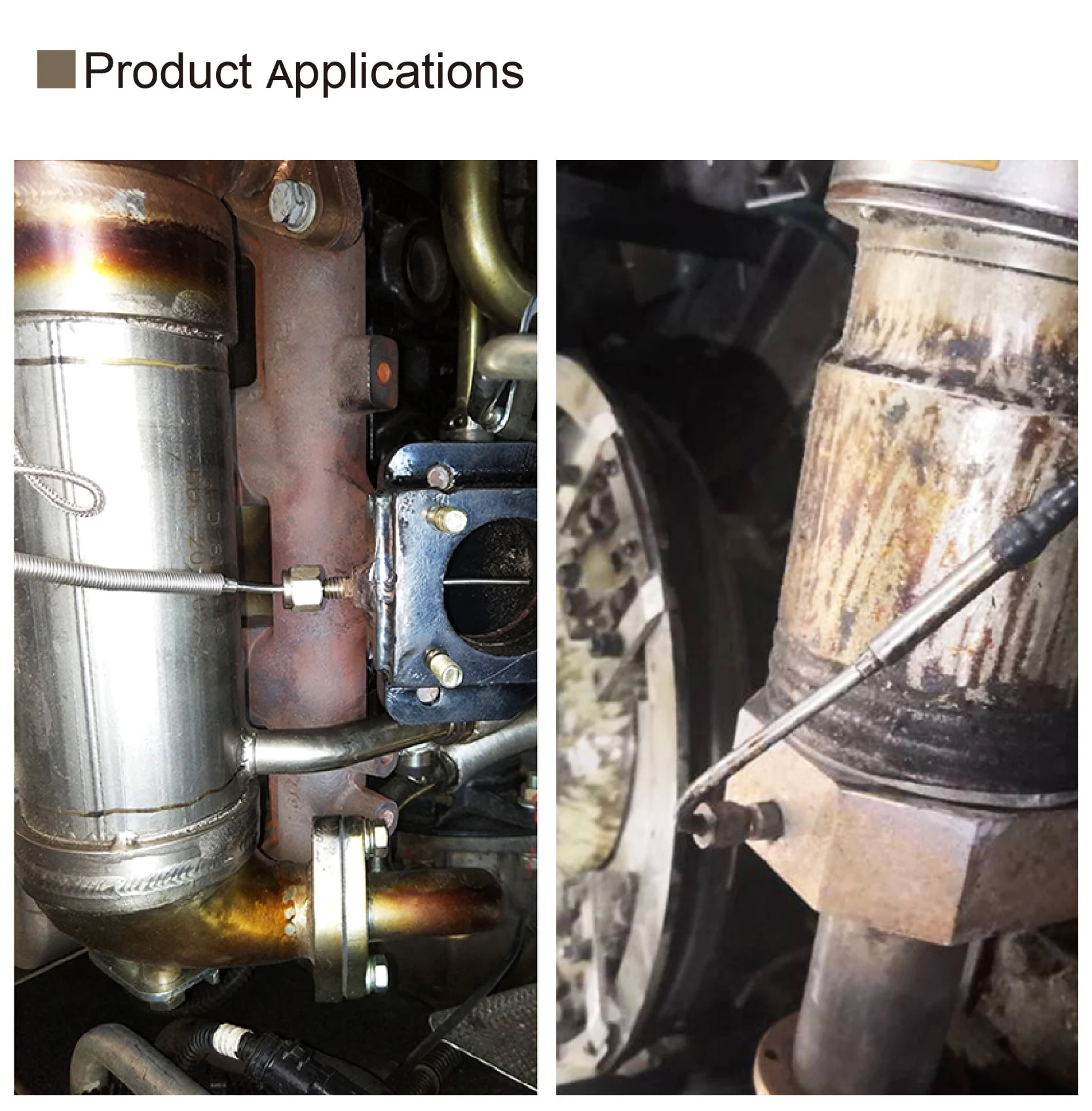

Industrial temperature monitoring and control.
Suitable for environments requiring high precision and durability.
Can be customized for use in specialized settings, including high-temperature or corrosive conditions.
4. FEATURES
Fast response time and high accuracy with advanced grounding options.

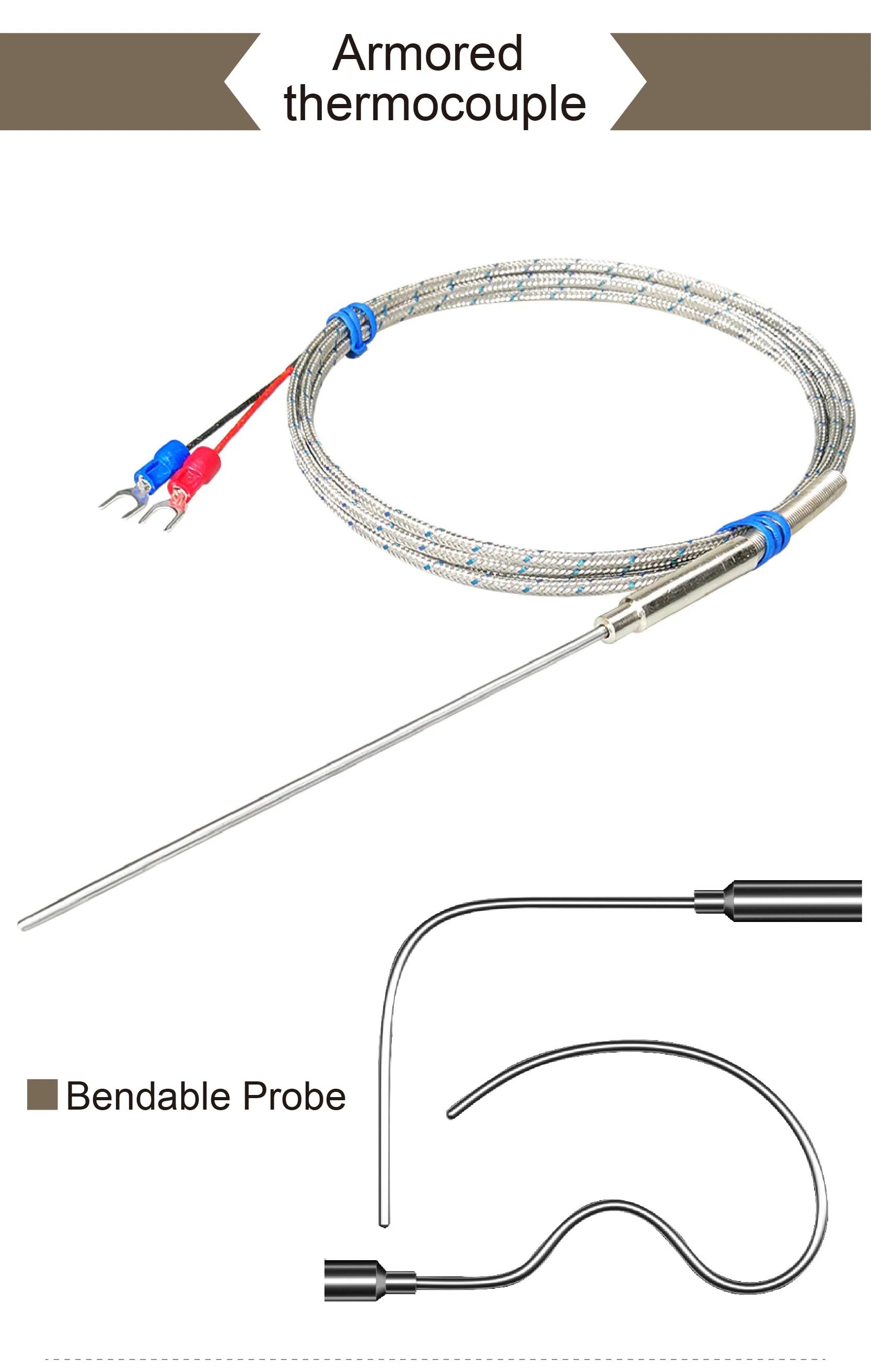

Durable stainless-steel shield for long-term reliability.
Versatile installation methods for flexible applications.
Factory-direct pricing for superior cost-effectiveness.
5. FAQ
Q1: Can I customize the cable length or probe dimensions?
A: Yes, please provide the specific requirements when placing your order.
Q2: What is the maximum temperature this thermocouple can measure?
A: The standard model measures up to 800°C. For higher temperatures, please opt for specialized materials.
Q3: Which thermocouple type is suitable for my application?
A: Contact us for guidance based on your specific environment and measurement needs.
