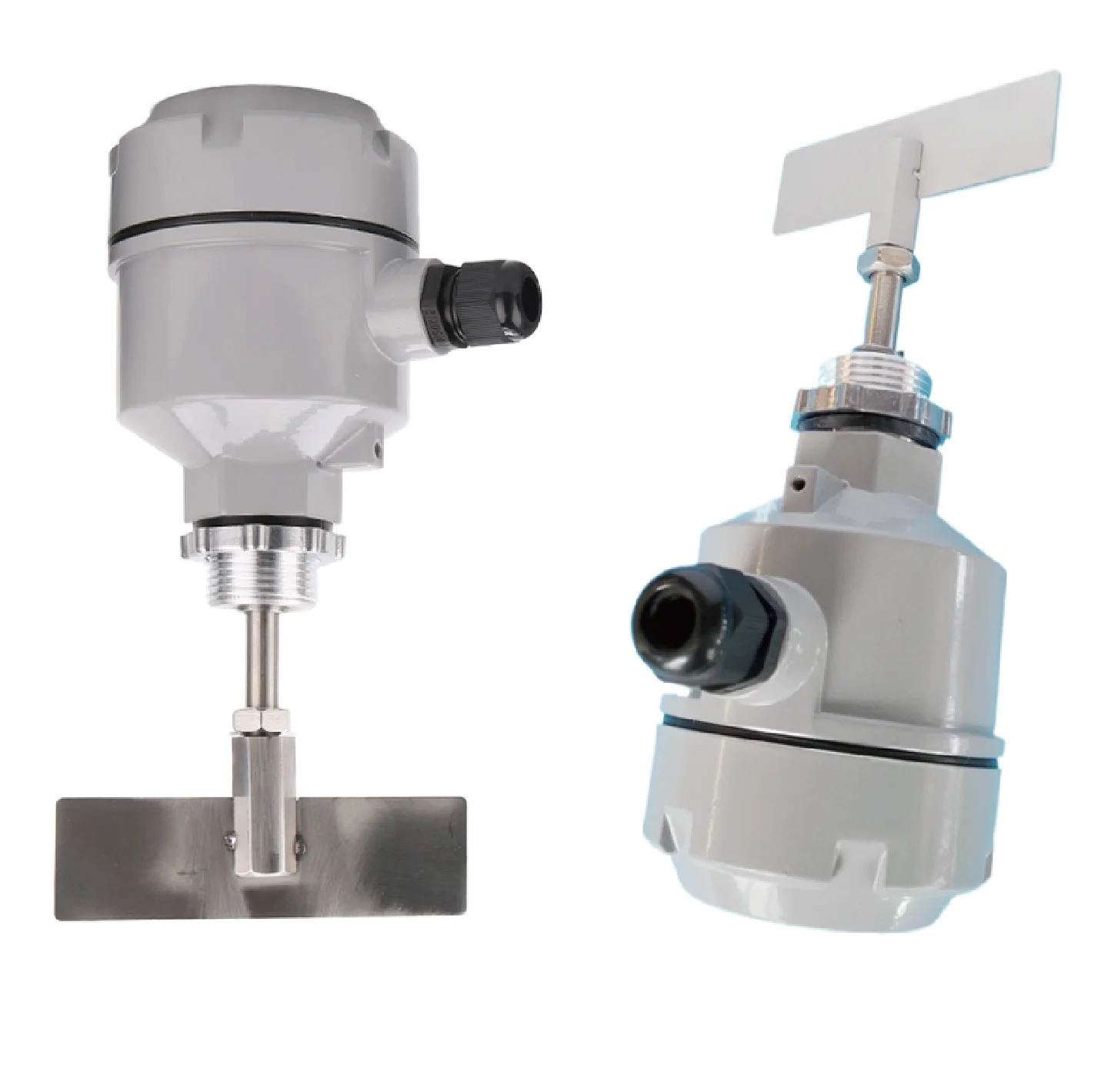

Rotary Paddle Level Switch 24V 110V 220V Powder Hopper Silo Bin Level Sensor Sol

Product Description

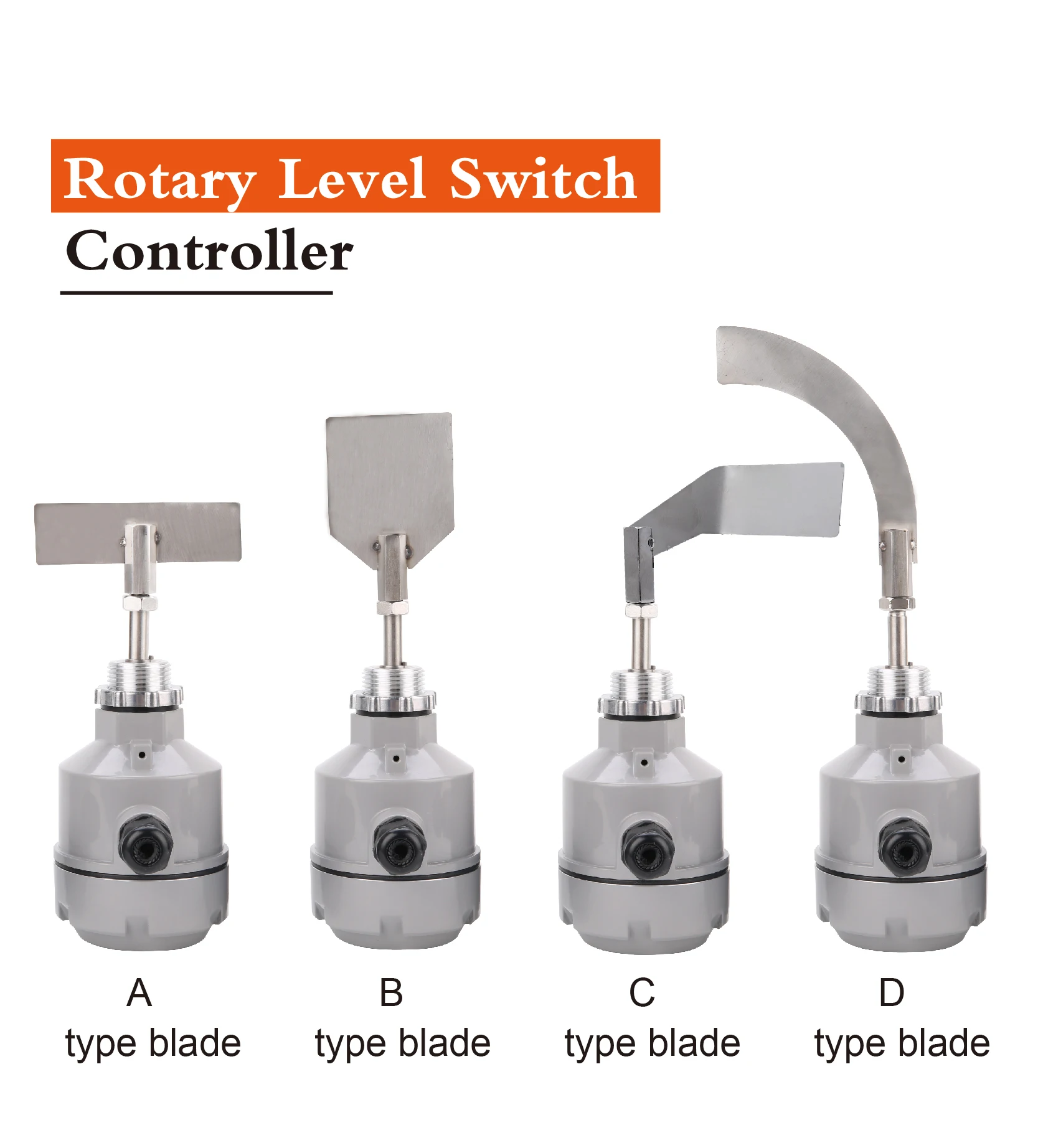

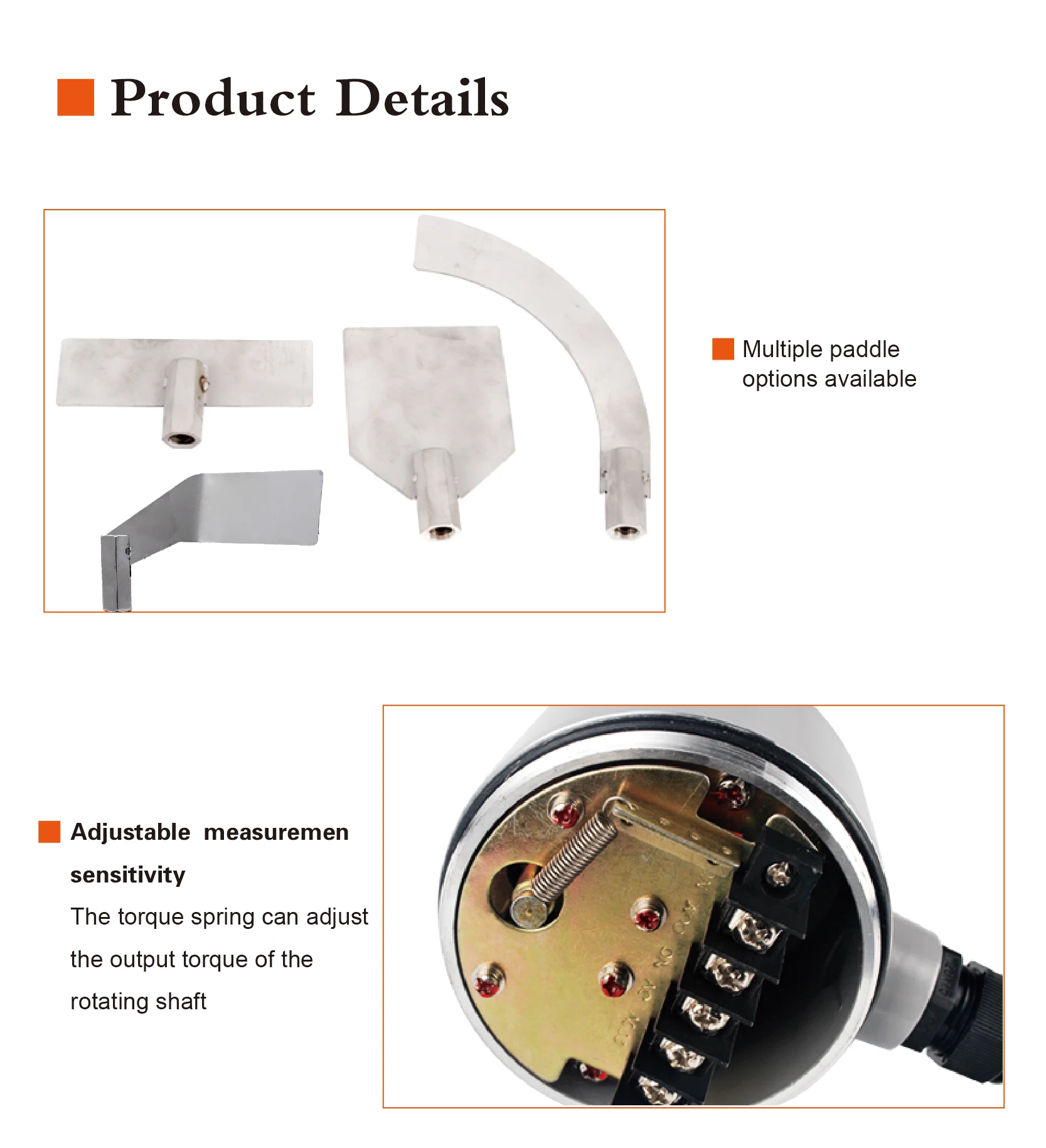

Our default configuration: Power supply: AC220V, Connection type: G1 thread, Paddle type: Selectable as per requirement, Paddle and probe material: 304 stainless steel, Temperature tolerance range: -20 to 80°C.

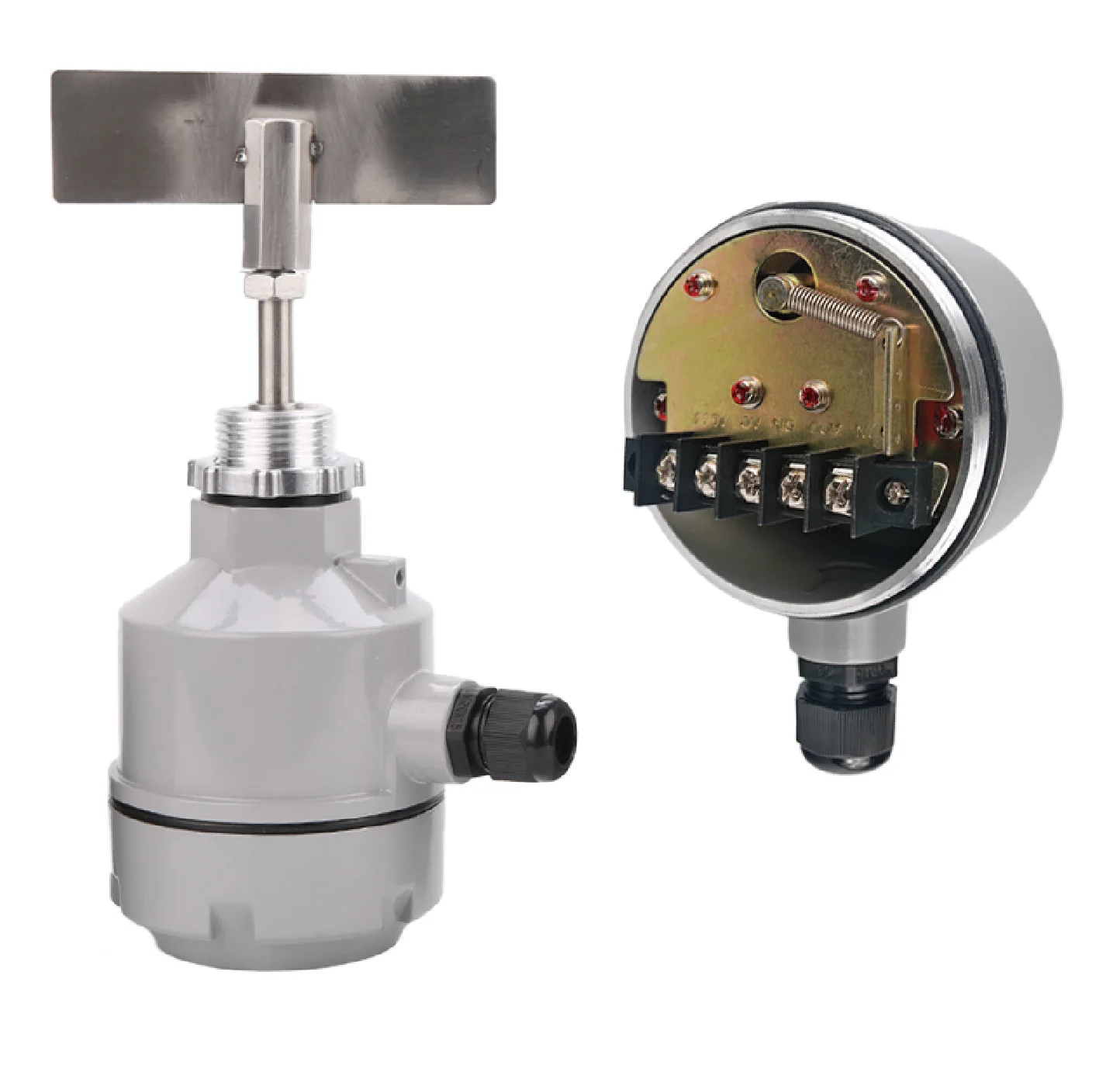

Rotary Level Switch uses a drive shaft connected to a clutch. When not in contact with,he material, the motor keeps running normally, and when the blade touches the material,it forms a resistance to prevent the rotating mechanism from rotating. Under the action of resistance contact break， cut off the motor power to stop the electrode rotation, and output a contact signal. When the material drops the blade resistance disappears, the

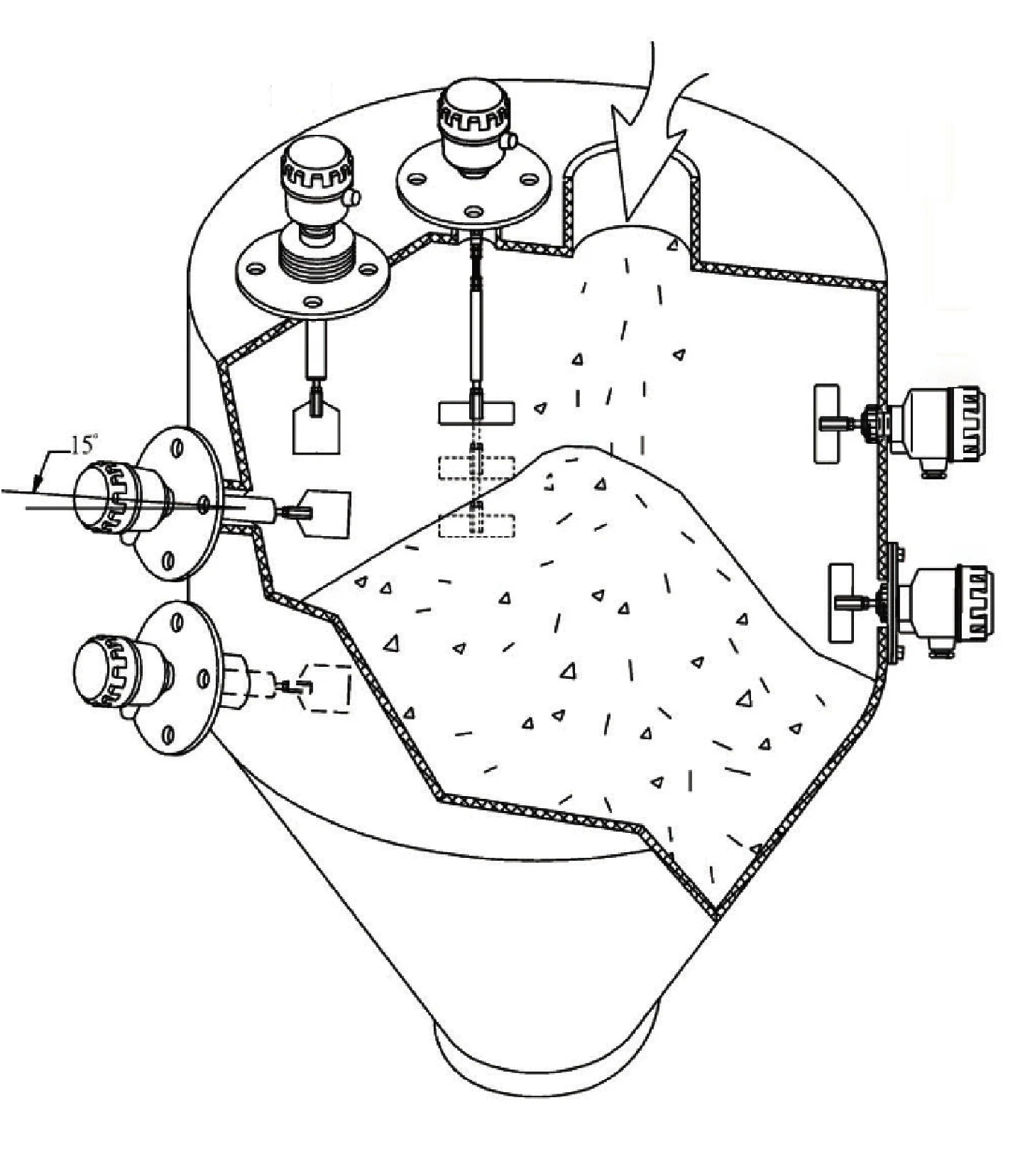

motor resumes rotation. Rotary Level Switch is specially designed to monitor the level of solids in silos， containers and chutes, and to reduce overflow, material waste and downtime by preventing silo overflow chute blockage and silo emptying.

Parameters:

1. Power supply: 220VAC(Default), 110VAC, 24VDC, 24VAC

2. Power consumption: 4W

3. Contact capacity: 5A/250VAC SPDT

4. blade speed: 1r.p.m. (rpm)

5. Torque: (0.5~1)kgcm

6. Material density: ≥0.4 g/cm

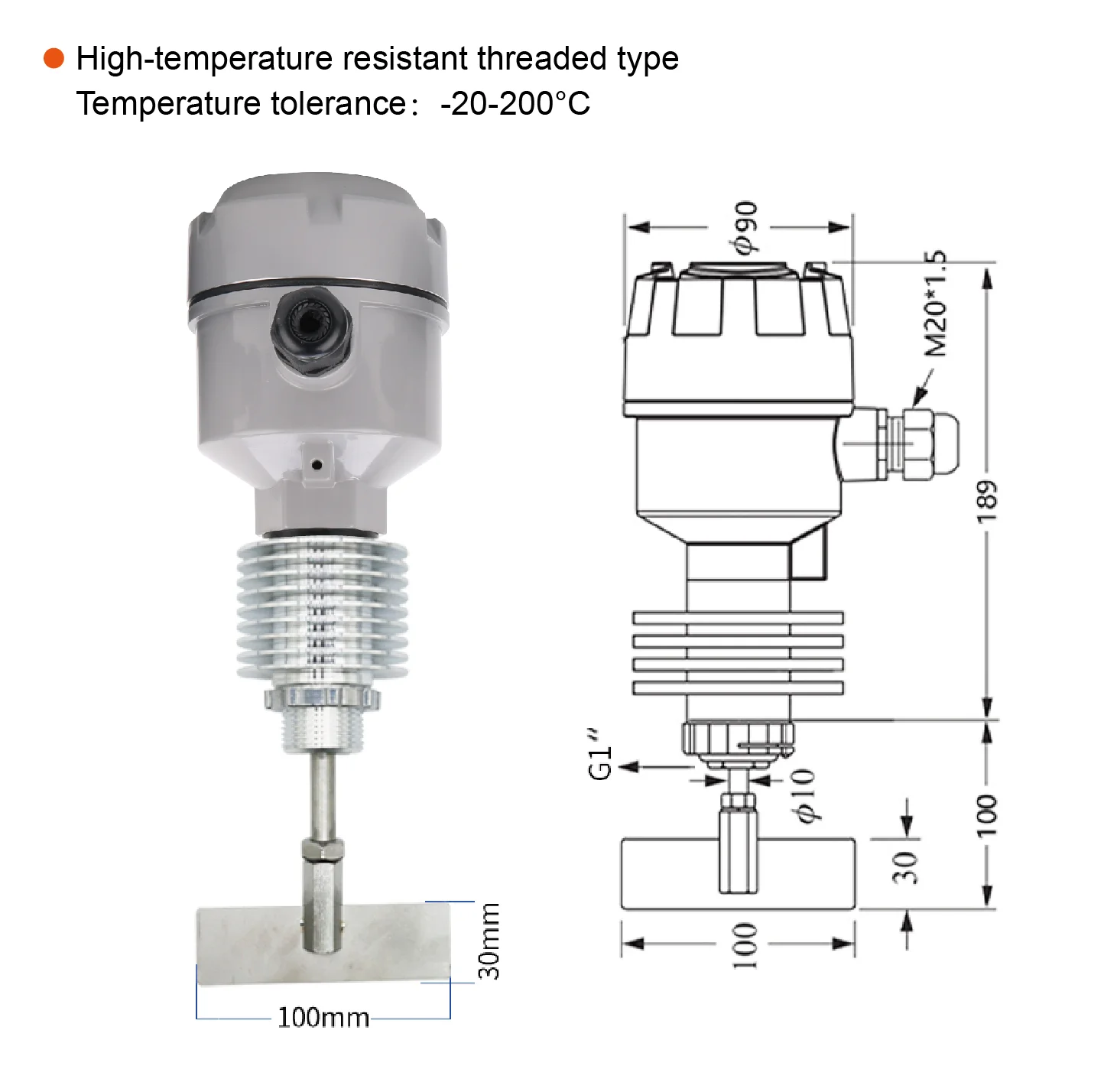

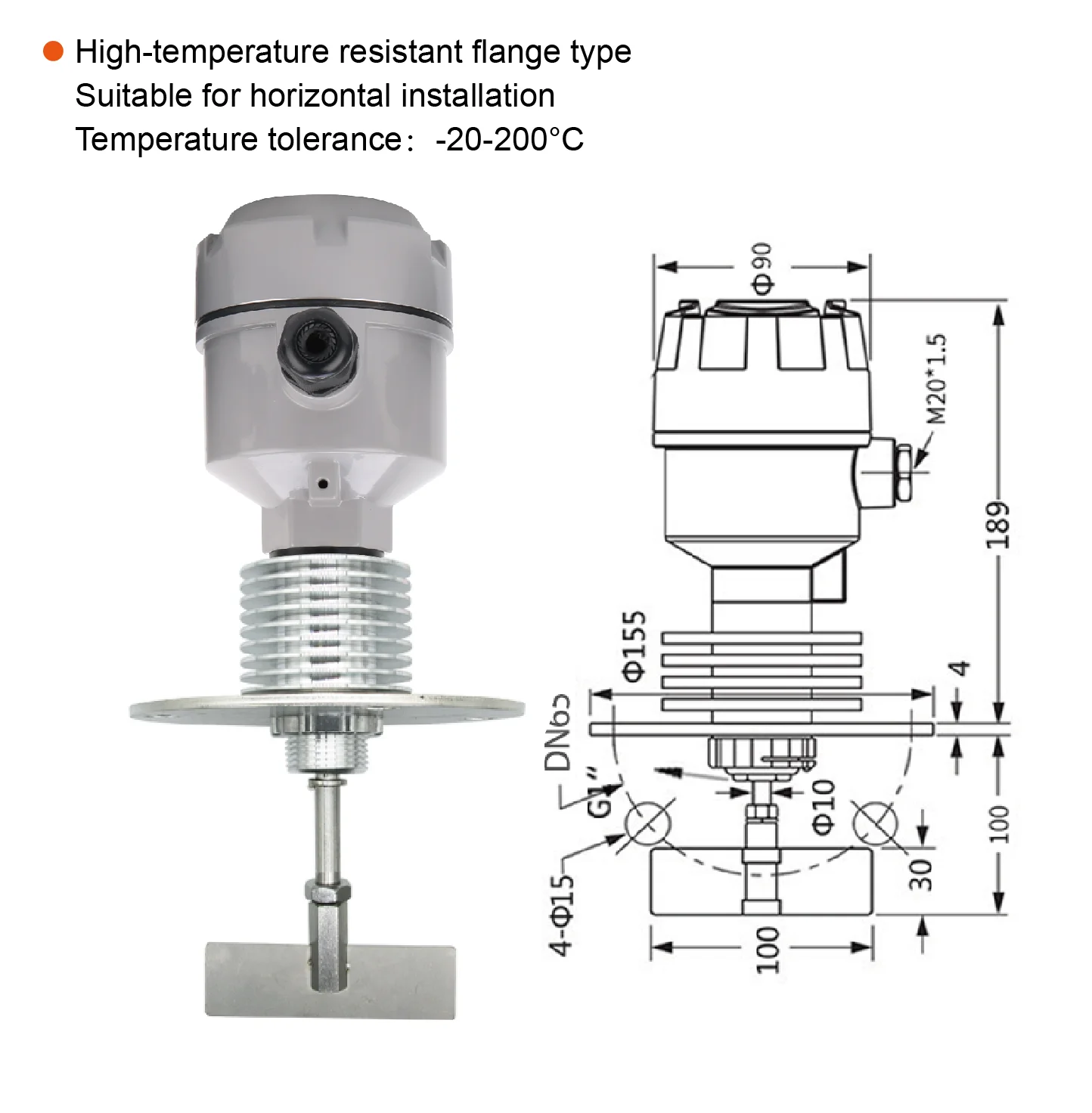

7. Working temperature: (-20~80)°C (the highest temperature can reach 300°C subject to customization)

8. Insulation resistance: ≥100MQ (500VDC)

9. Dielectric strength: 1500VAC×1min

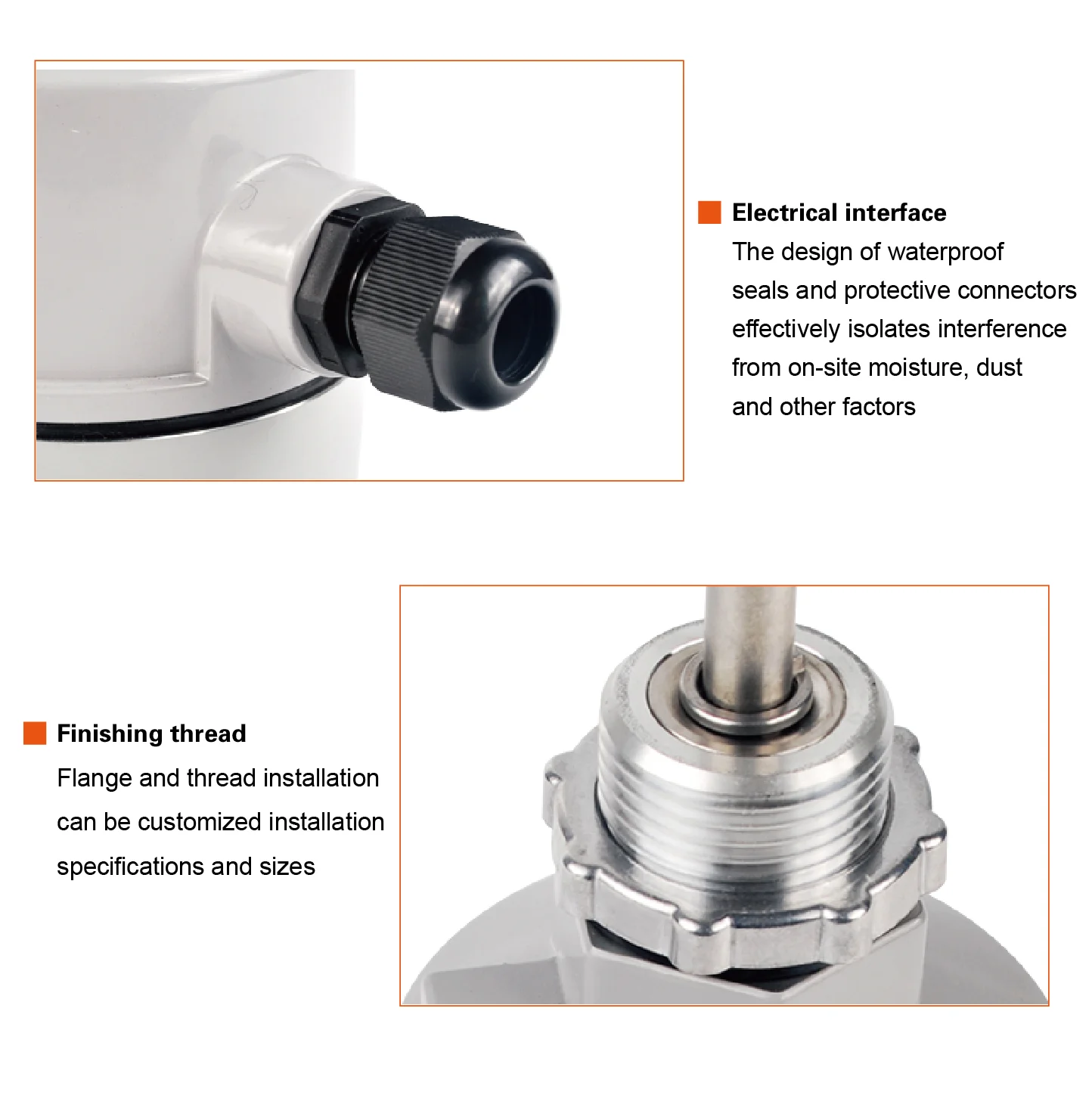

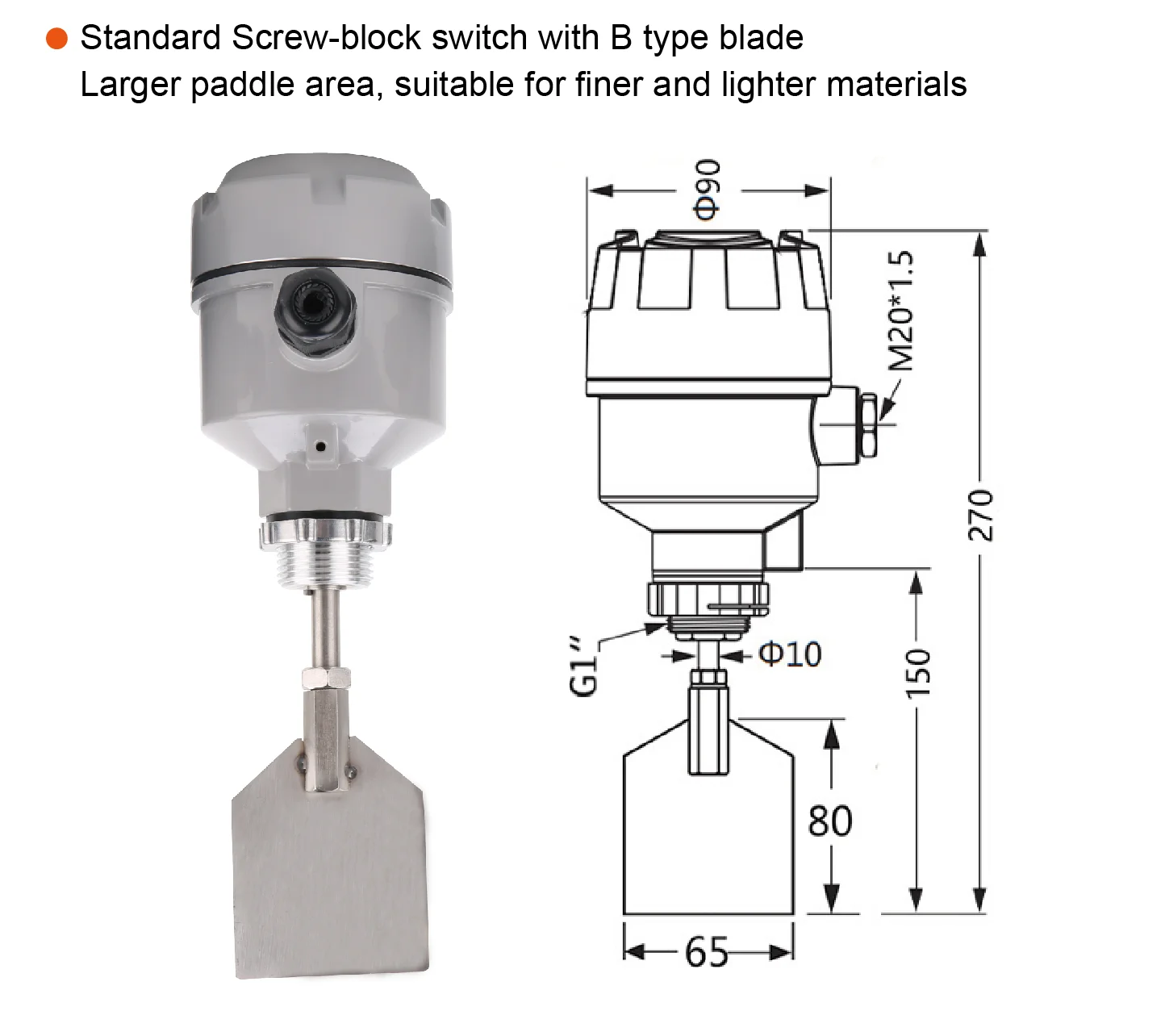

10.Electrical Interface: M20×1.5

5、FAQ

Q1: What are the applications of a Rotary Paddle Level Switch?
A1: Rotary Paddle Level Switches are widely used in industries for monitoring bulk solids, including materials such as powders, granules, and grains. They are commonly used in silos, hoppers, and storage tanks to detect material presence and prevent overfilling or emptying.

Q2: How does the Rotary Paddle Level Switch work?
A2: The switch operates by rotating a paddle within the material. When the material level reaches the paddle, the resistance caused by the solid substance halts the rotation, triggering a signal for level detection.

Q3: What materials are compatible with the Rotary Paddle Level Switch?
A3: This switch is suitable for various dry bulk materials, including powders, small particles, and non-cohesive granular solids. It is ideal for non-corrosive and free-flowing materials.

Q4: Can the Rotary Paddle Level Switch be customized?

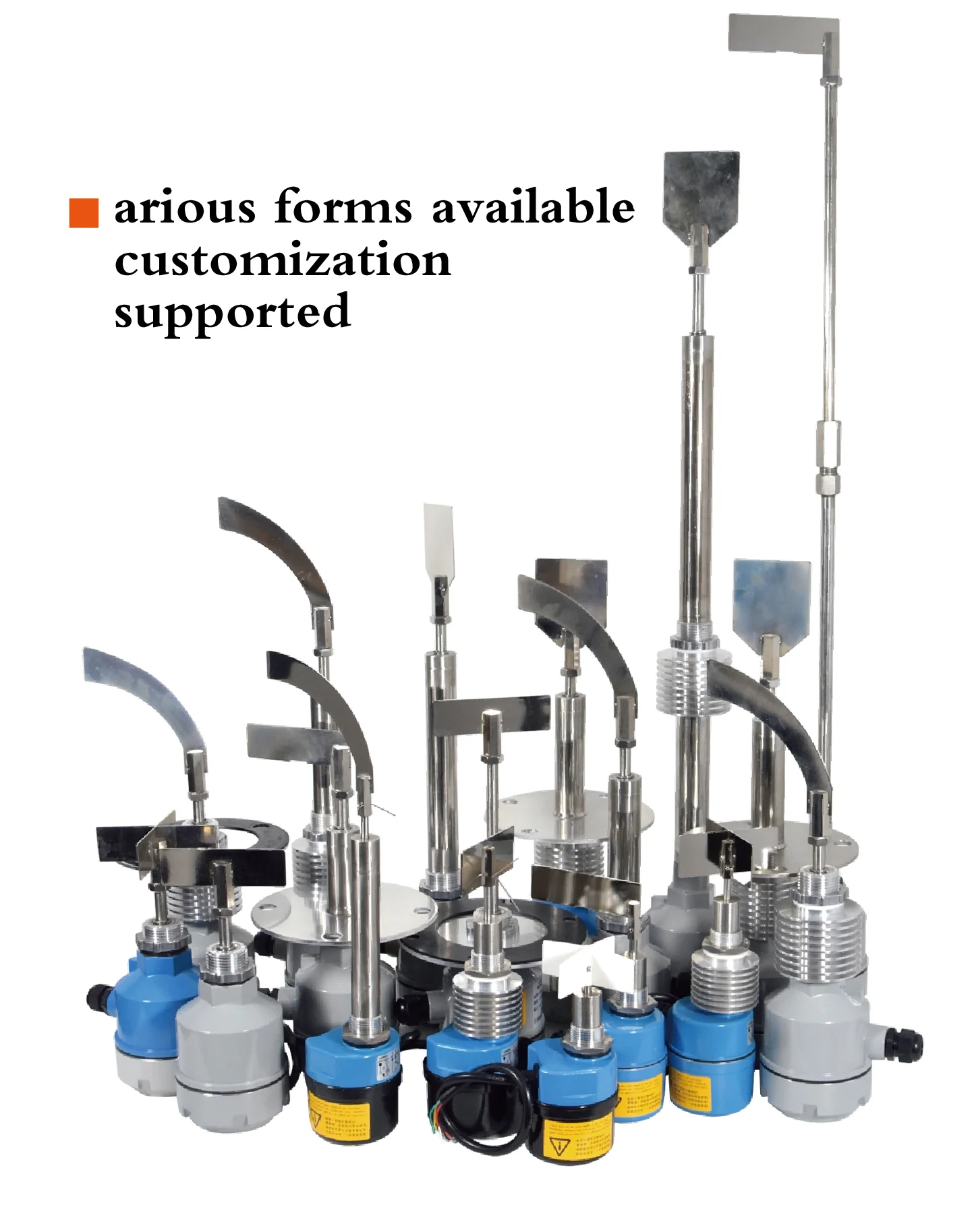

A4: Yes, customization is available for paddle size, material, and installation types to ensure compatibility with specific materials and application environments. Please contact us for more details.
