Product Description
1. NOTE
Due to page limitations, some specifications may not be fully detailed. Please contact us for any specific requirements.

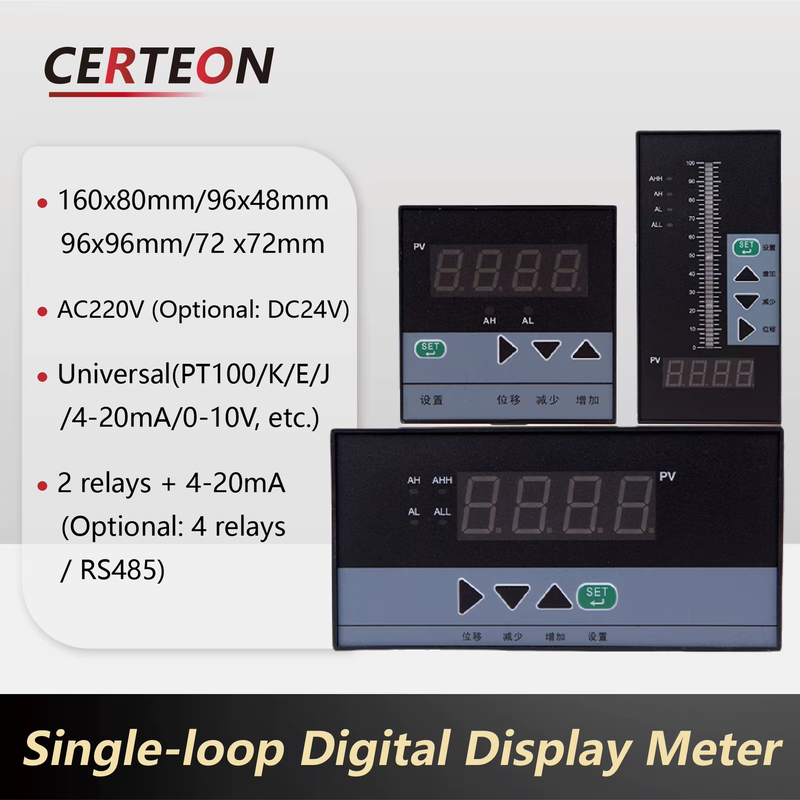

·Model: Single-loop Digital Display Controller

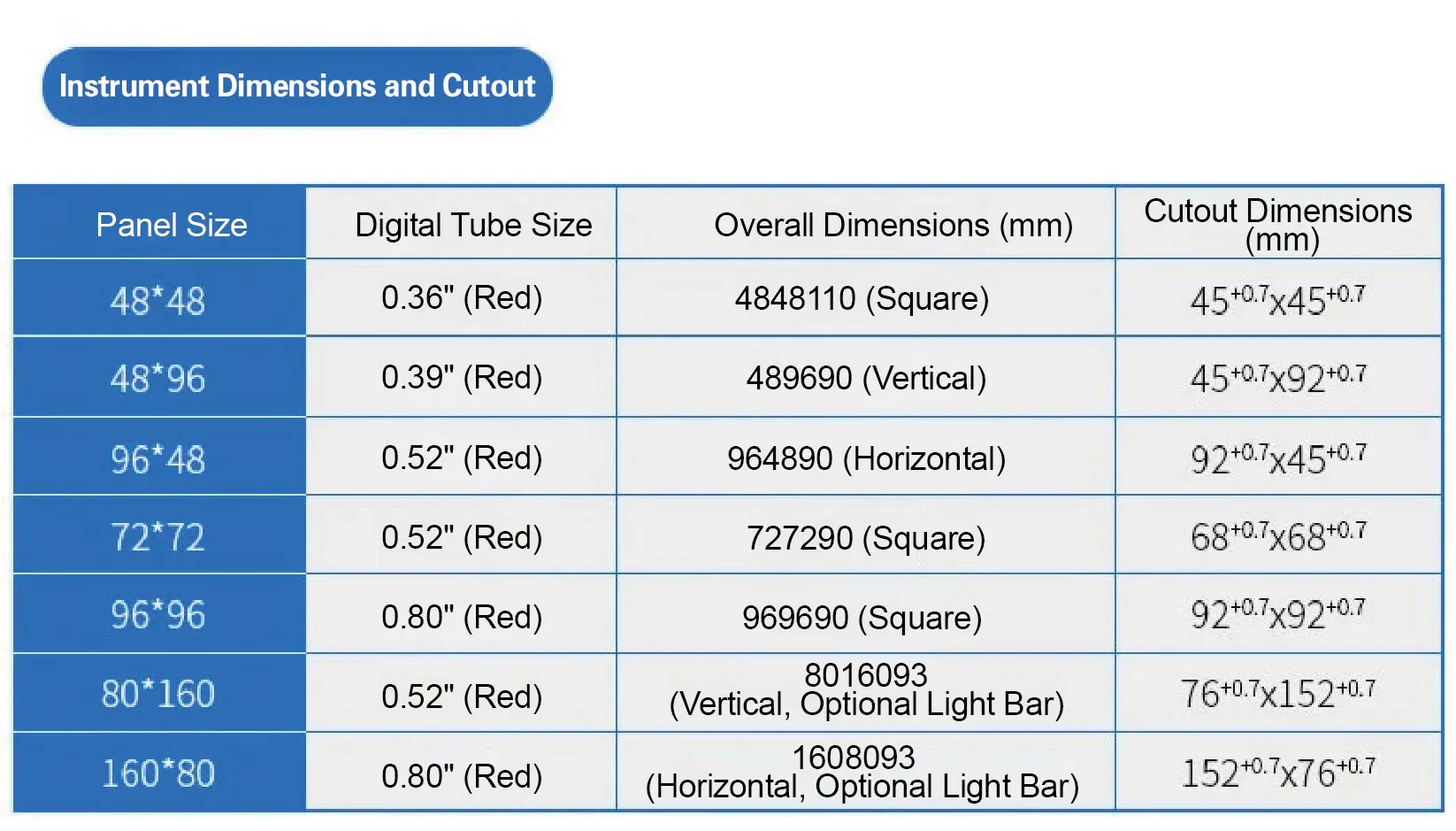

·Panel Size: 160×80mm / 96×48mm / 96×96mm / 72×72mm (Choose One)
·Power Supply: AC220V / DC24V (Optional)
·Input: Universal (PT100 / K / E / J / 4-20mA / 0-10V etc.)
·Output: 2 Relays + 4-20mA
·Display Range: -999~9999
·Accuracy: 0.5%
·Display: LED Digital Tube

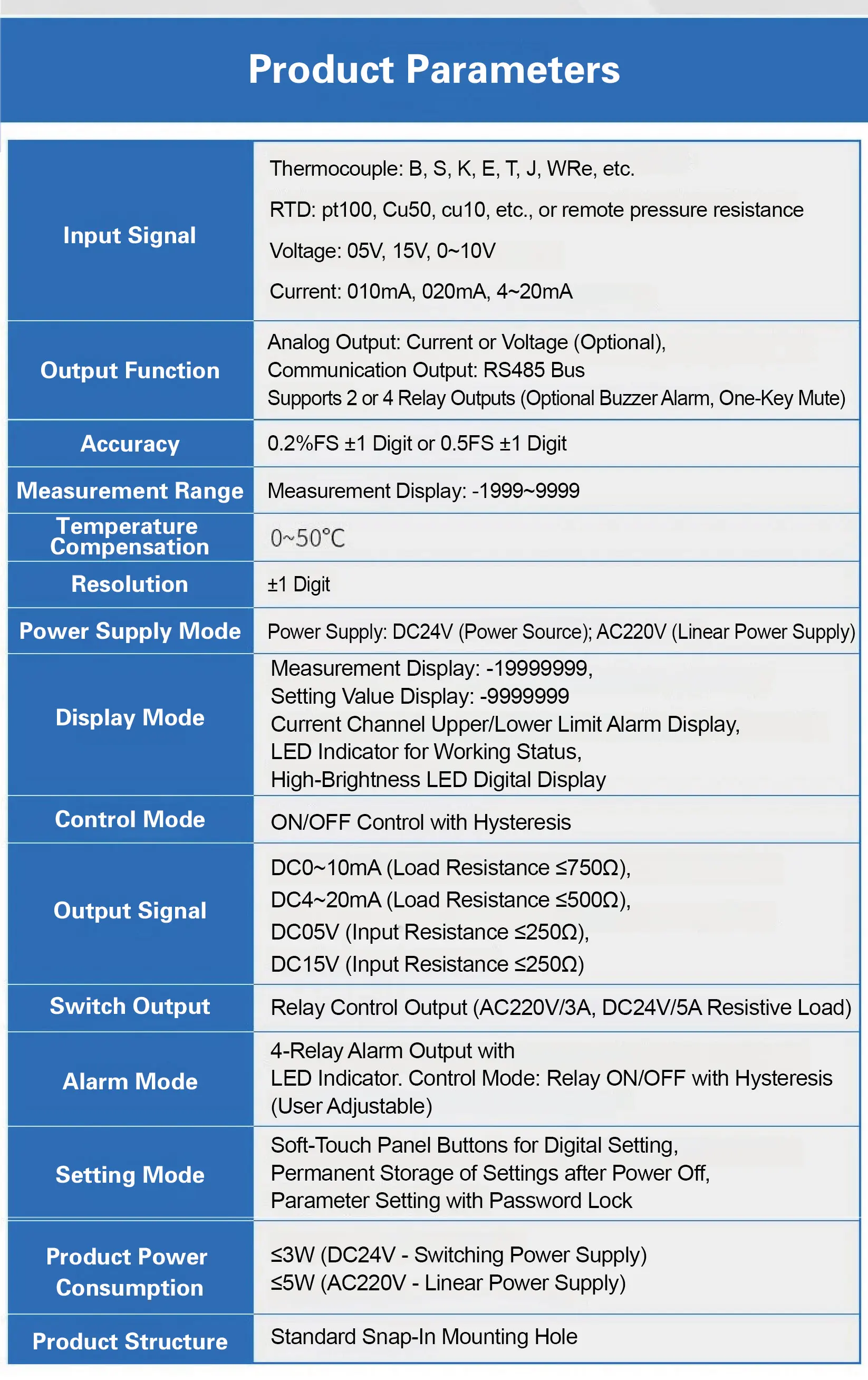

2.Parameters
|
3.Feature
Multi-Signal Compatibility– Supports thermocouples, RTDs, voltage, and current inputs for versatile applications.
High Precision Control– Achieves ±0.2%FS accuracy with automatic temperature compensation.
LED Digital Display– Clear real-time readings with optional bar graph indicator for intuitive monitoring.
Multiple Output Options– Includes relay and analog signal outputs for flexible control.
Intelligent Communication– RS485 nterface enables seamless integration with industrial systems.
User-Friendly Operation– Easy parameter setup with digital keypad and permanent memory storage.
4. Application
Industrial Automation– Process control for temperature, pressure, and humidity.
Manufacturing– Used in plastic molding, metal processing, and packaging machines.
HVAC Systems– Ensures precise environmental temperature and humidity control.
Water Treatment– Monitors and controls liquid levels in industrial water processing.
Energy Sector– Utilized in power plants and renewable energy systems.
5.FAQ
Q:Is this controller compatible with PLC systems?
A：Yes, it supports RS485 communication and analog output, making it compatible with most PLCs.
Q：Does it support multi-channel input?
A：This model supports single-loop input, but we offer multi-channel models as well.
