Product Description
1. NOTE
Due to page limitations, some configurations may not be listed. If you have special requirements, please contact us。
The default configuration includes:
· Sensor: Pt100 (default）
· Wire Type: High-Temperature Wire (-50-420℃）, Non-waterproof cable
· Probe Diameter:4mm,5mm,6mm (opt)
· Probe Length:50mm,100mm (opt)
· Wire Length: 1.5m

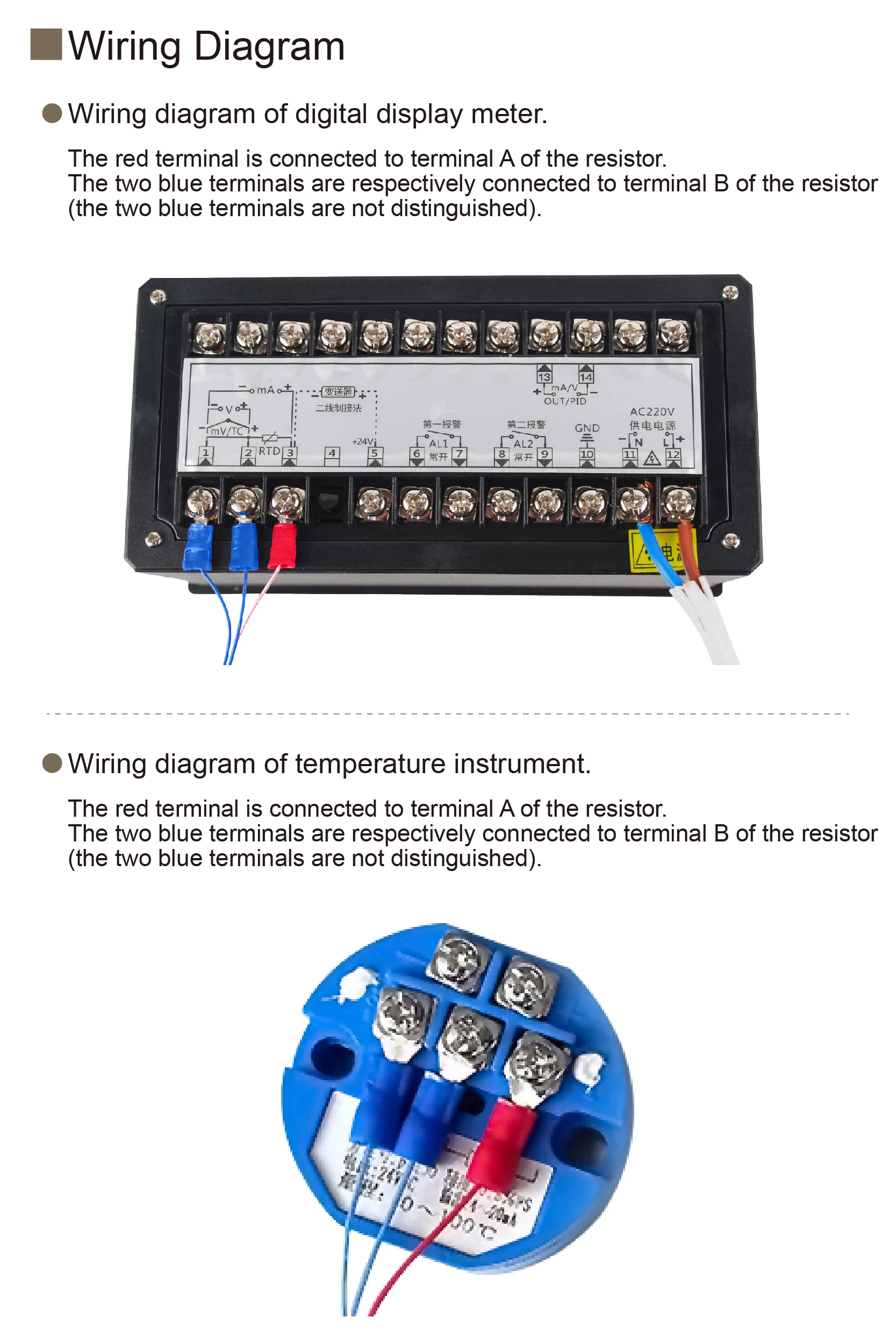

· Connection Terminal: U-shaped Terminal，3-wire system
Customizable Options:
Sensor：PT100（-50-200℃，Waterproof Wire）/Pt1000/K/E
Probe Diameter: 4mm, 5mm, 8mm, 10mm (customizable)
Probe Length: 30mm, 50mm, 100mm, 150mm (custom length available)
Cable Length: 2m, 3m, 5m, 10m, etc.

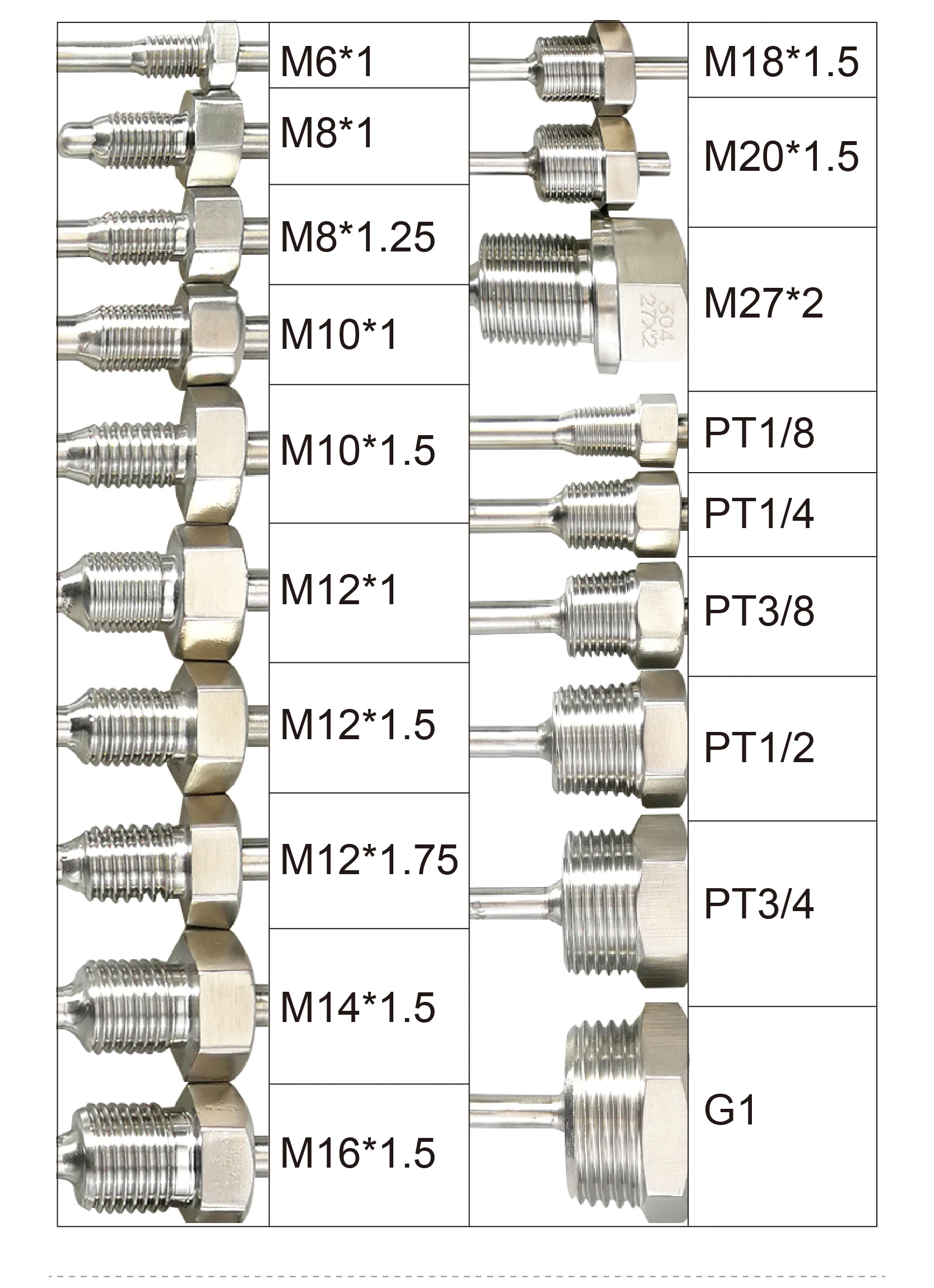

Threaded Connection: M12*1.75, M14*1.5, M16*1.5, M18*1.5, M20*1.5, M27*2, M6*1, M8*1, M8*1.25, M10*1, M10*1.5, M12*1, M12*1.5
Pipe Threads: PT1/8, PT1/4, PT3/8, PT1/2, PT3/4, 1-inch thread
Terminal Options: Pin terminals, aviation plug, XH series, quick connectors
Installation Note:

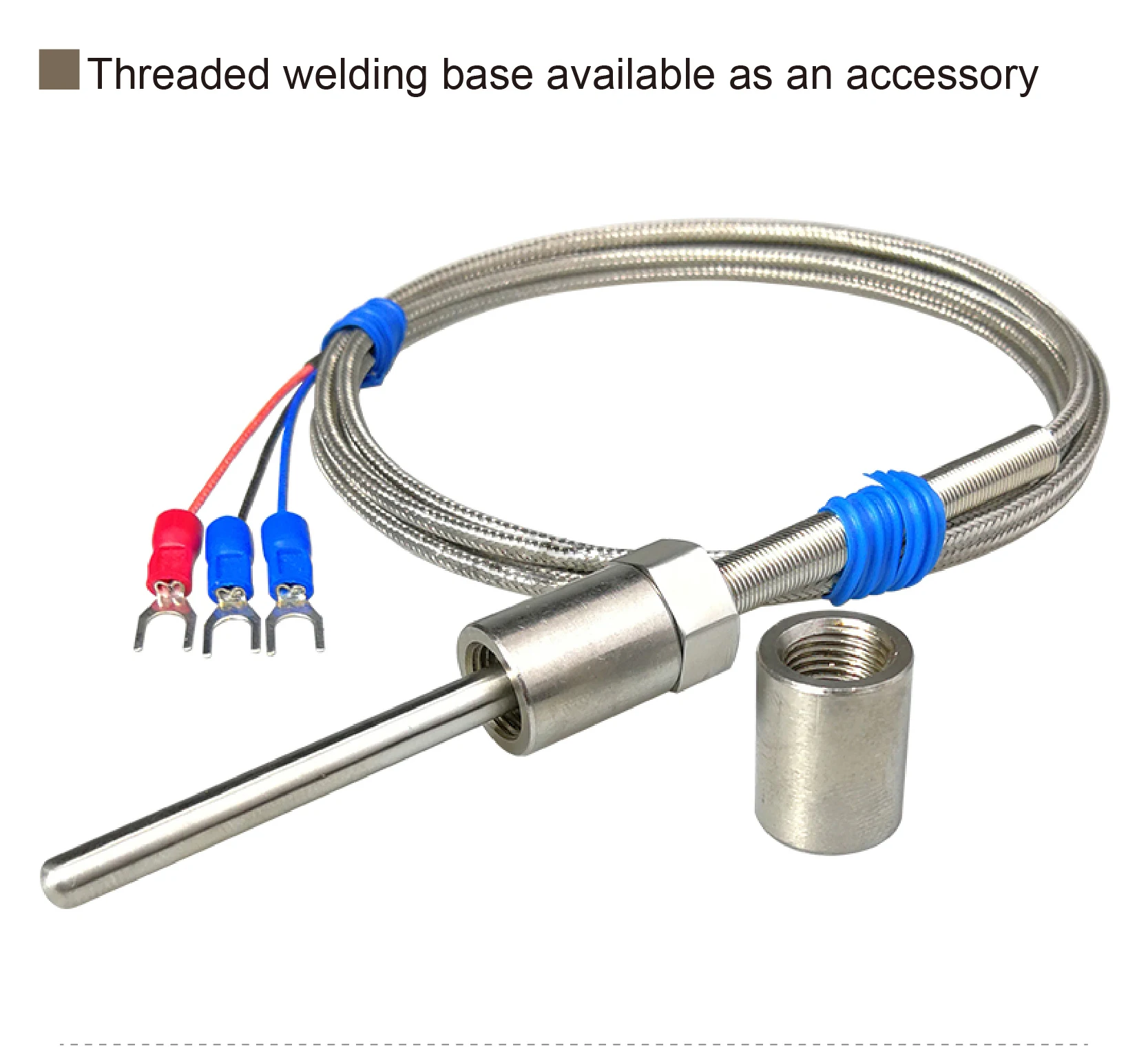

Installation requires a stainless steel welded base (not included by default). If needed, please contact customer service.

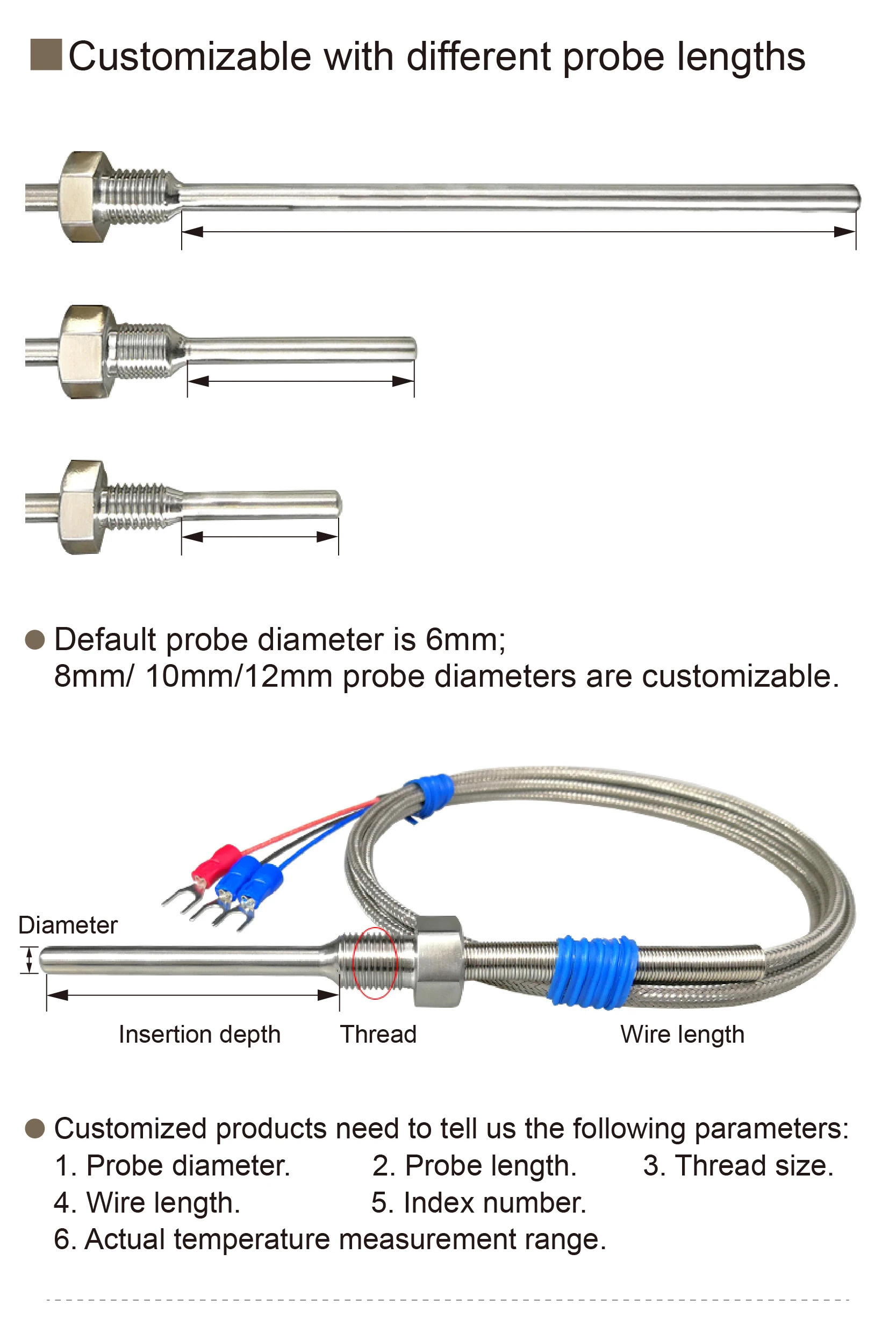

For customized products, please provide the following parameters:
① Probe Diameter
② Probe Length
③ Thread Size
④ Wire Length
⑤ Graduation Number
⑥ Actual Temperature Measurement Range
Important Reminder:
Customized products require parameter confirmation before placing an order. Please contact customer service.

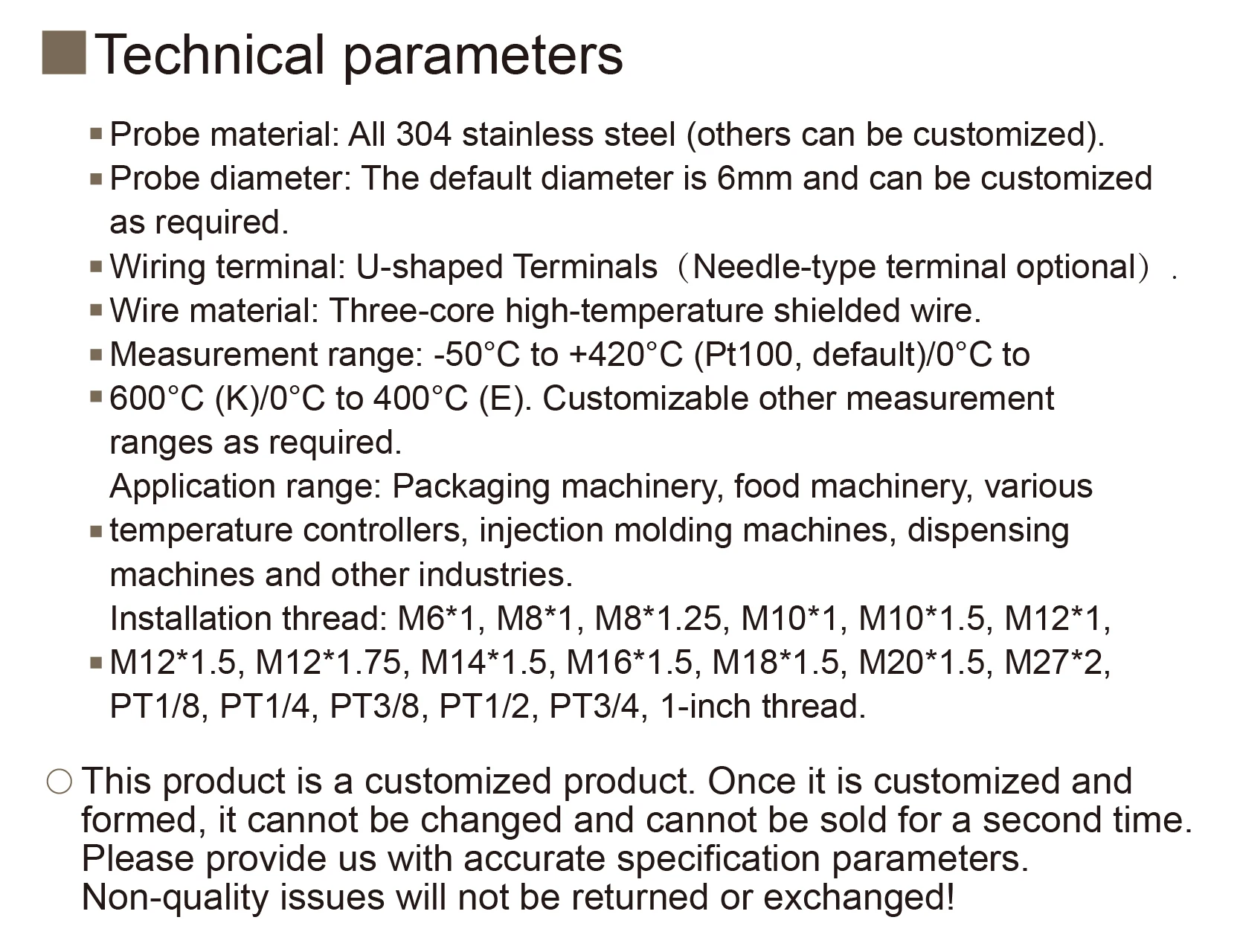

2.Parameters
Parameter | Specification |

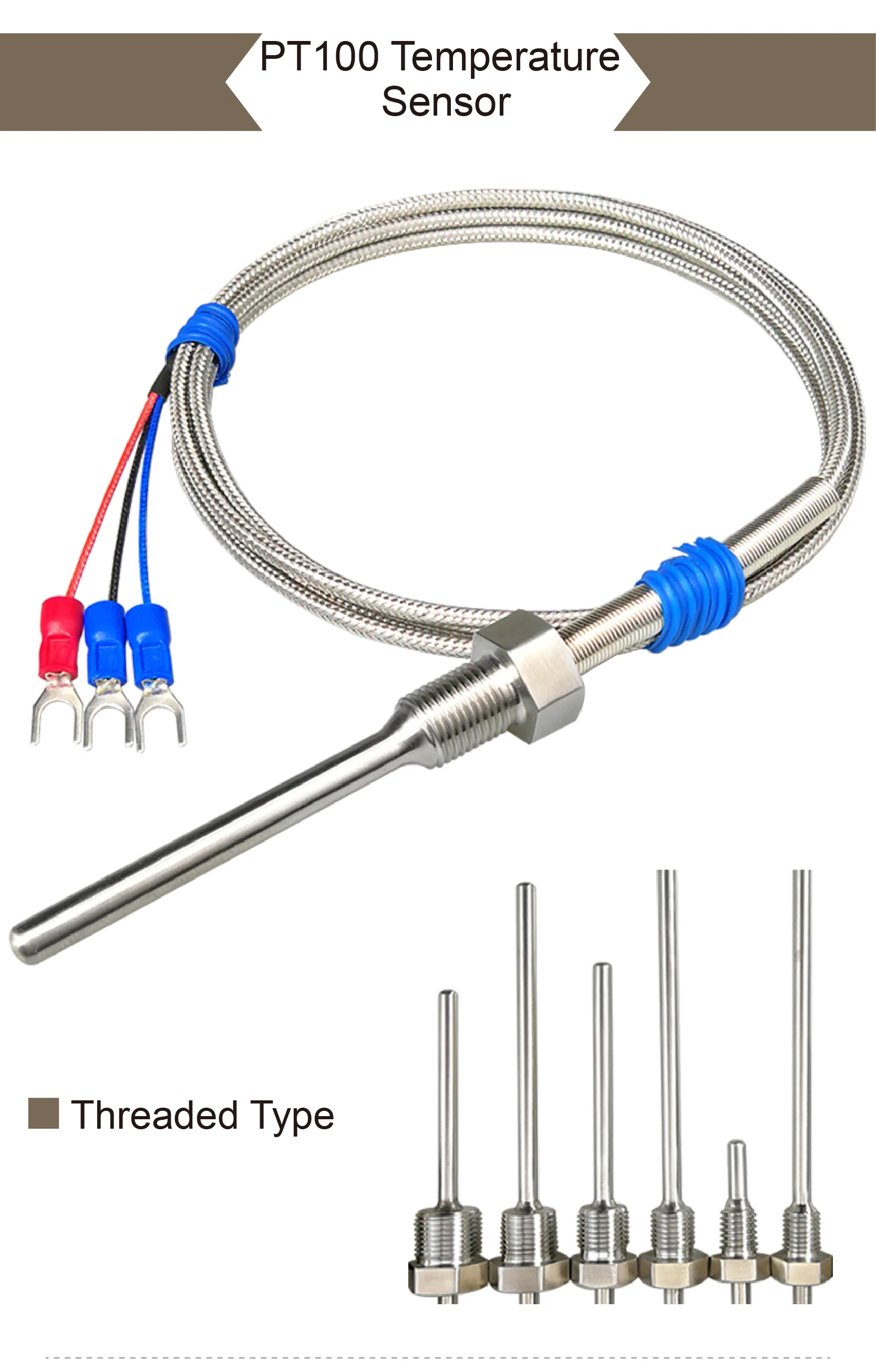

Product Name | PT100 TemperatureSensor |
Probe Material | 304 Stainless Steel (Customizable) |
Sensing Element | Pt100 (Default)/Pt1000/K/E |
Probe Diameter | 6mm (Default, customizable) |
Probe Length | 10mm, 50mm, 100mm (Customizable) |
Cable Length | 1.5m (Default, customizable) |
Cable Type | High-temp or Waterproof |
Temperature Range | -50-420℃ (Pt100, default),0-600℃（K）/0-400℃（E） |
Installation Thread | M6*1、M8*1、M8*1.25、M10*1、M10*1.5、M12*1、M12*1.5 PT1/8、PT1/4、PT3/8、PT1/2、PT3/4、PT 1 etc. |
3.Features
High Durability：Made of 304 stainless steel for long-lasting performance in harsh environments.
Customizable Specifications：Fully customizable probe length, diameter, thread size, and cable type to meet specific needs.
Wide Measurement Range：Supports temperatures from -50℃ to 420℃ for Pt100 sensors, with extended ranges for other types.
Versatile Compatibility：Suitable for machinery like packaging, injection molding, and temperature control systems.

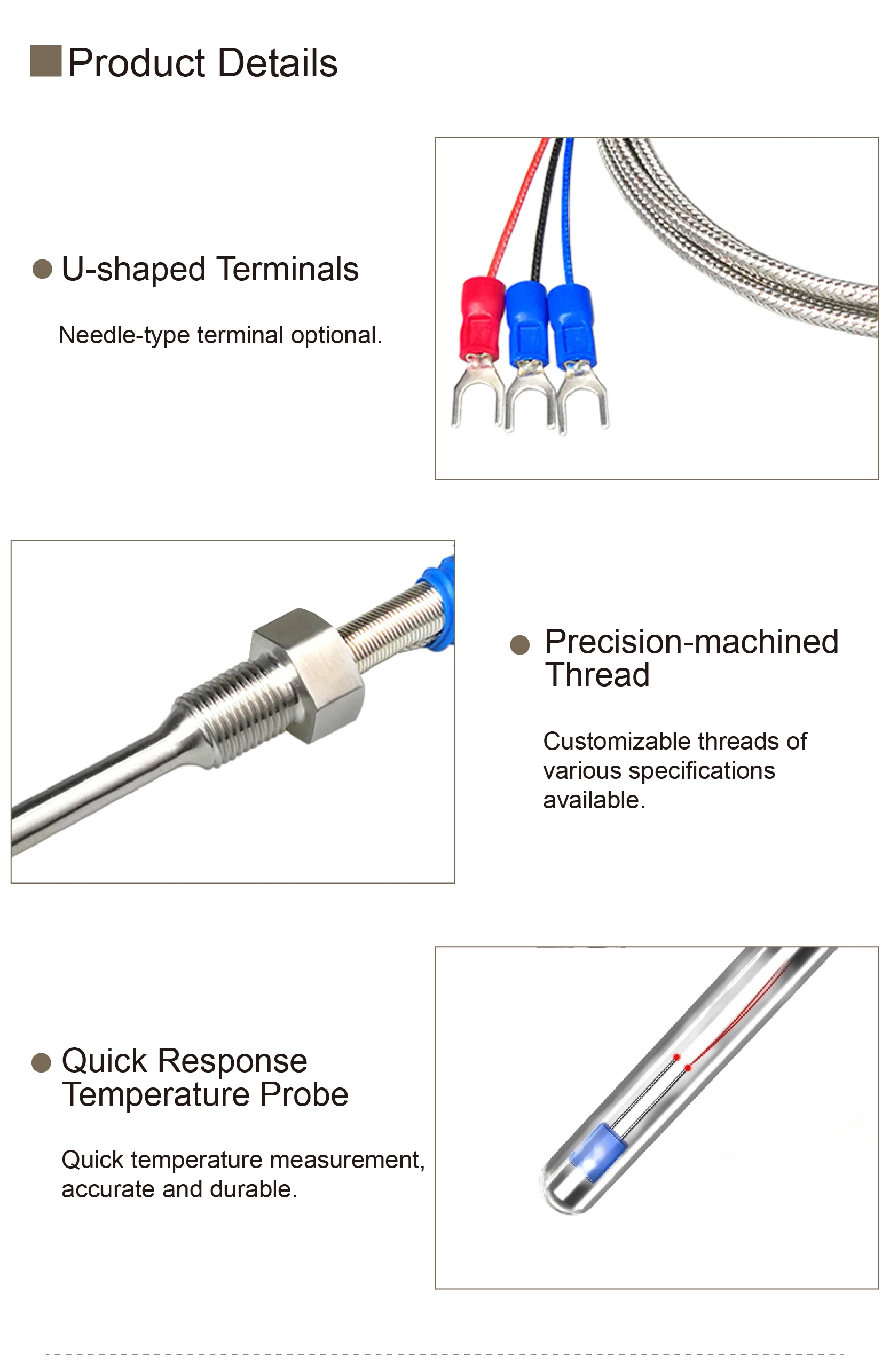

Multiple Connection Options：Includes U-type terminals, aviation plugs, and more for versatile connection setups.

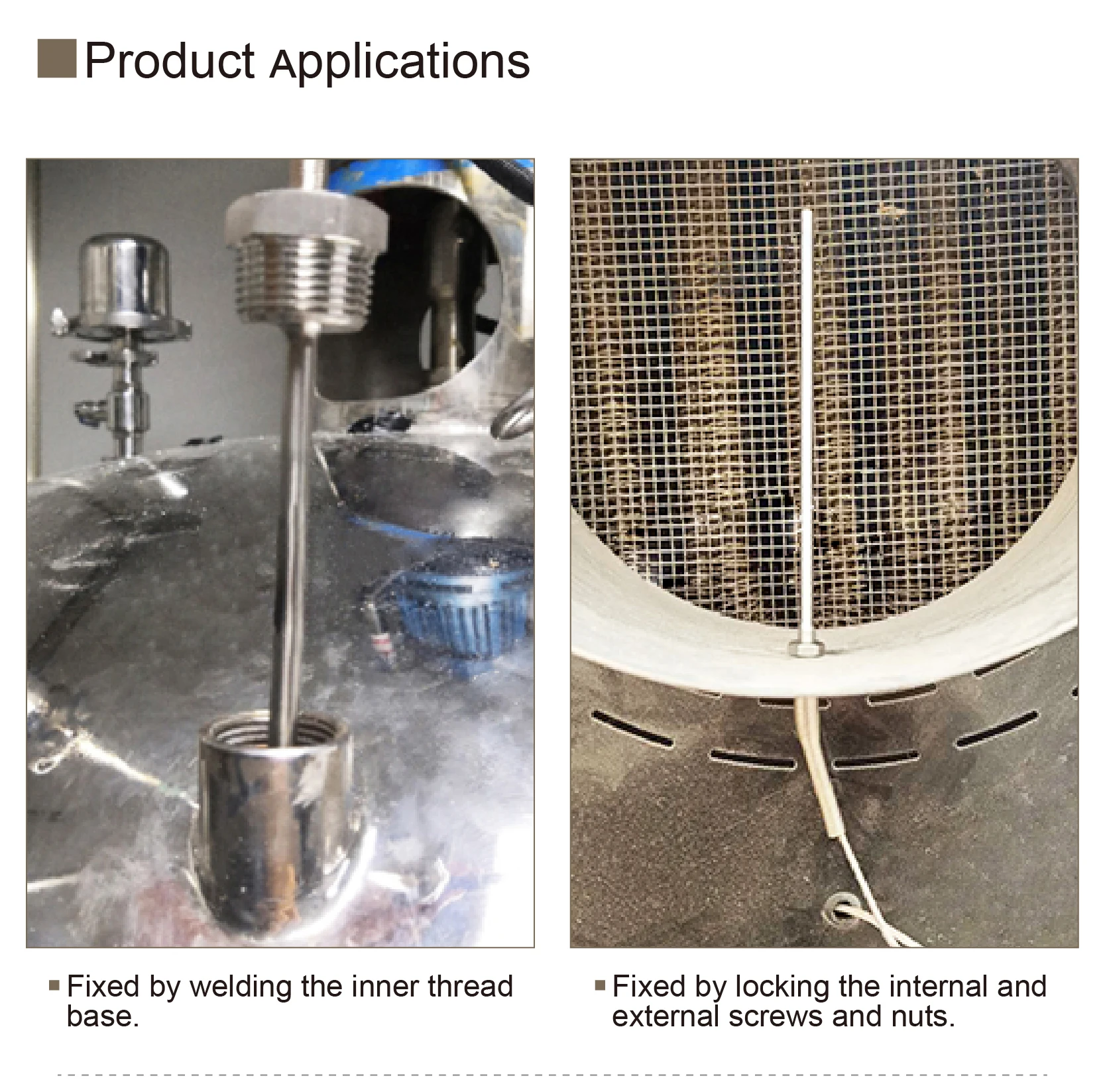

4.Applications
Packaging machines
Injection molding equipment
Temperature control systems
Food processing machinery
5.FAQs
Q1:How do I customize the sensor?
A1:Please provide the probe diameter, length, thread size, cable length, and required temperature range.
Q2:What cable type should I choose?
A2:Use high-temp cables for temperatures up to 420℃ or waterproof cables for wet environments up to 200℃.
Q3:Does it include a mounting base?
A3:The default package does not include a base. Contact us for stainless steel base options.
