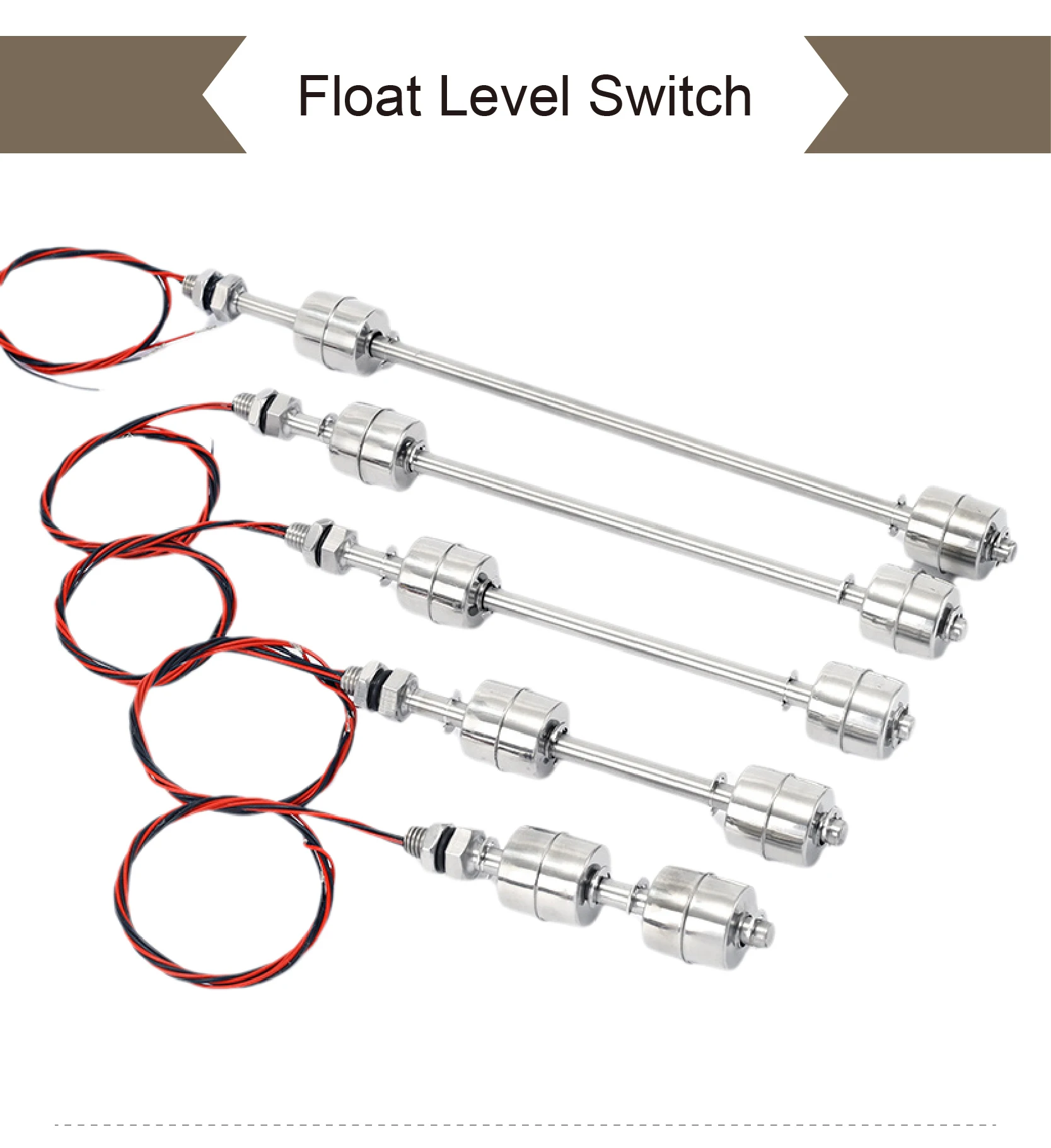

304 SS Double Ball Float Level Switch Liquid Level Controller High Low Water Lev

Product Description

1.NOTE

The default configuration includes ：

· Float Ball:Dual float ball

· Float Ball Size: 28*28mm

· Material: 304 stainless steel

· Switch Voltage:220VAC

· Probe Diameter: 8mm

· Probe Length:0-500MM

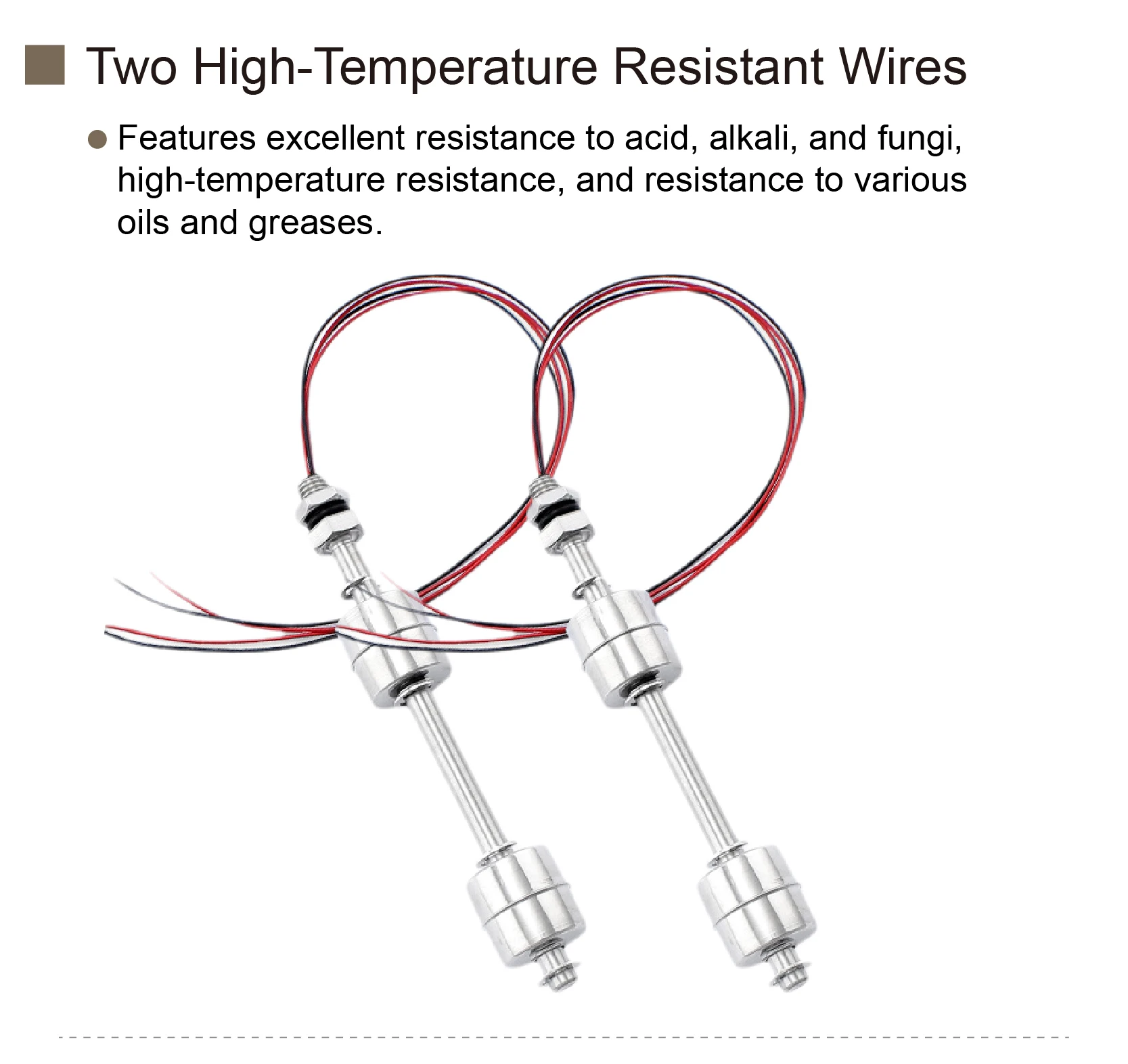

· Cable Length:400mm

· Connection: M10*1.5 thread

· Operating Temperature: -40°C to 120°C

· Function: Normally Closed（Def）

Due to page limitations, some configurations may not be listed.

Optional configurations include:

· Rod Length: Customizable (e.g., 300mm, 500mm, 800mm) This product is custom-made and can be tailored to your required length. If you need a custom length, please contact us for product and shipping cost quotations.

· Cable Length: Customizable (e.g., 0.5m, 1m, 2m, 5m)

· Connection: Thread customization available (e.g., M12*1.5, M14*1.5, etc.)

· Material: Customizable to 316L

· Float Ball Position and Function: Normally Open (NO) or Normally Closed (NC) customizable

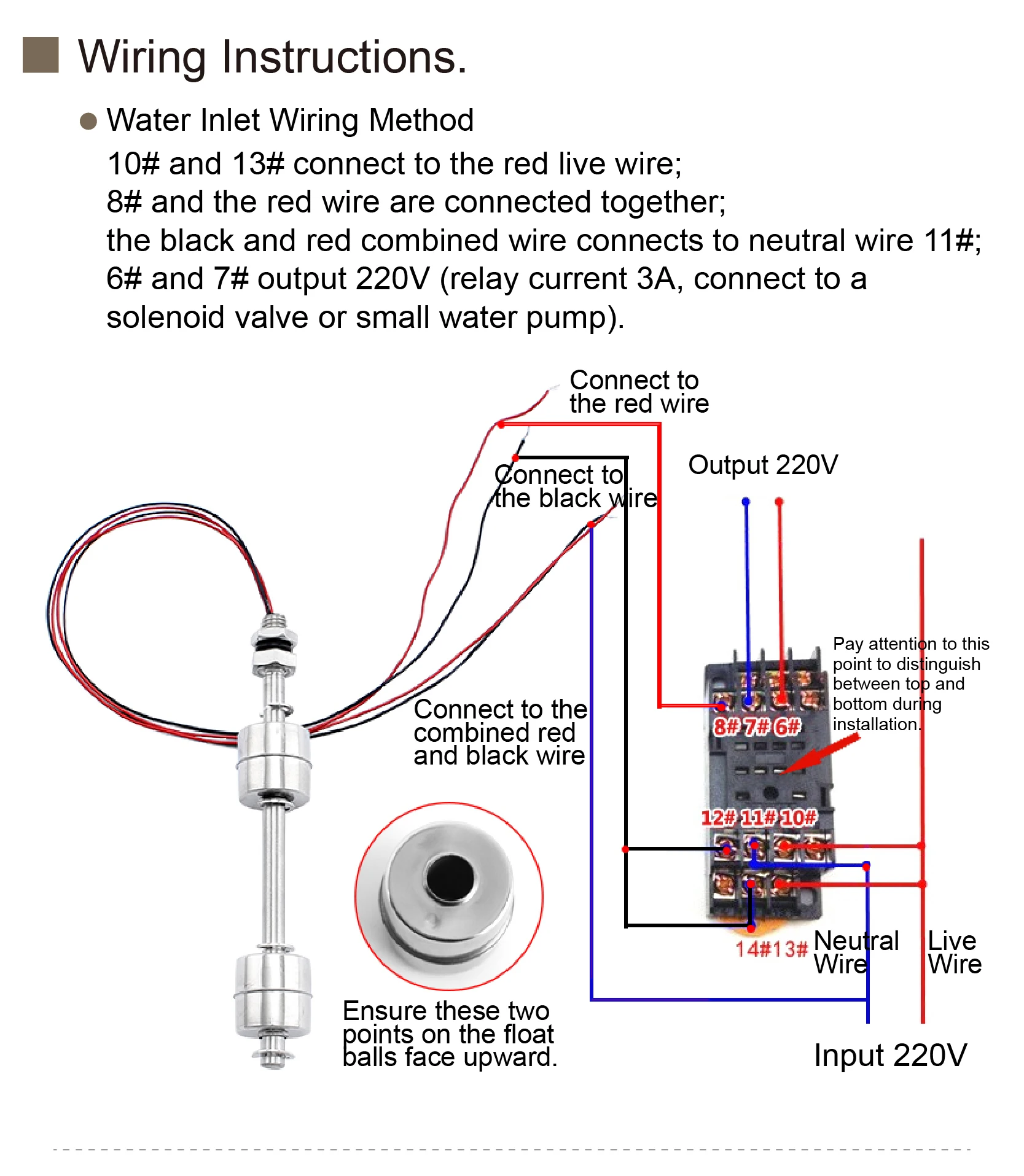

Important: The float switch cannot directly control solenoid valves, high-power relays, or AC contactors. A small relay (e.g., HH54P) is required for proper operation.

The float position is fixed and cannot be adjusted. Retaining clips at both ends restrict movement, and adjustments will not change the position of the internal reed switch contacts.

Before placing an order, please confirm the material (SS304/316L), rod length, and voltage requirements.For further customization, please contact us.

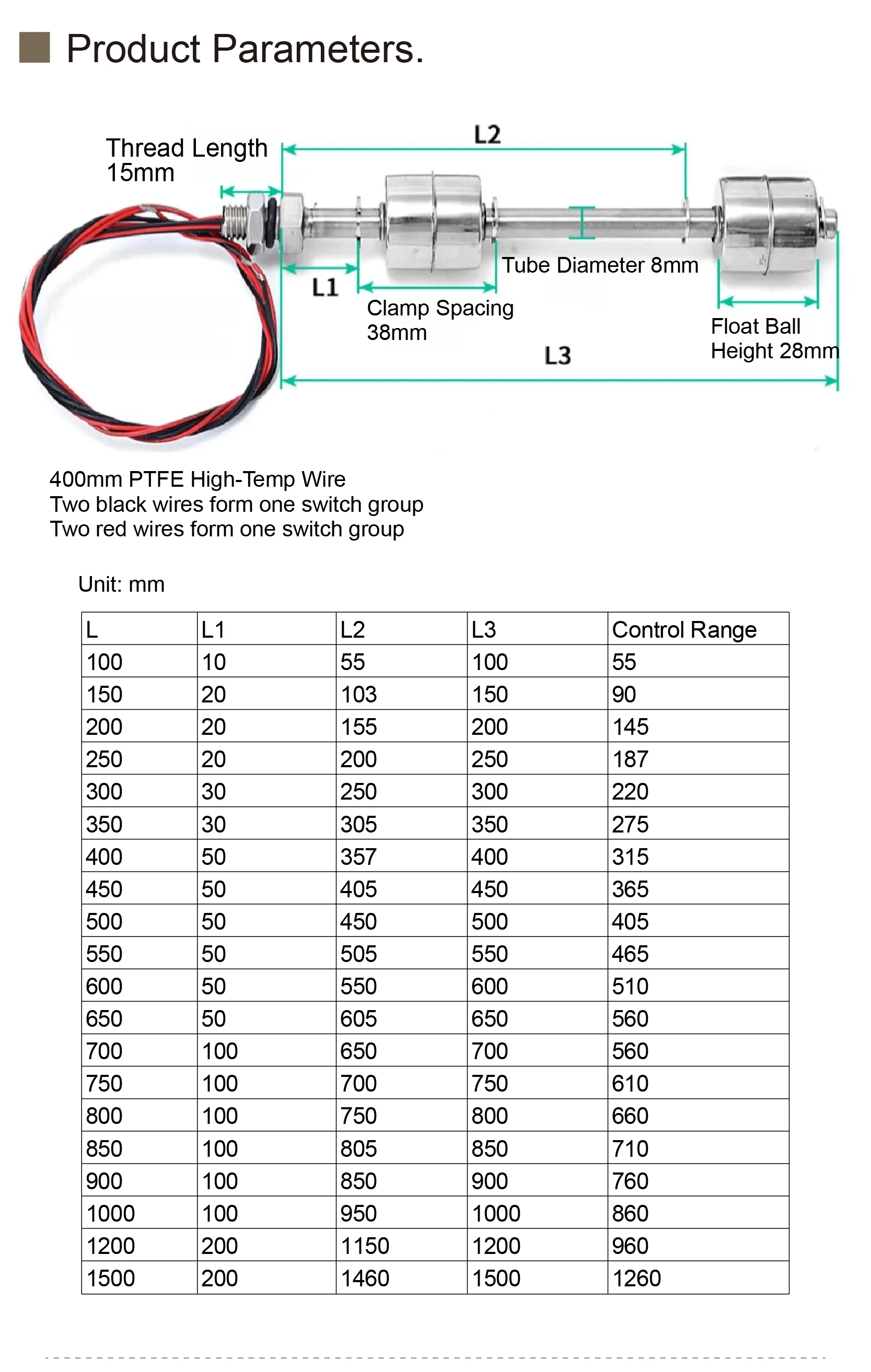

2.Parameters

3.Features

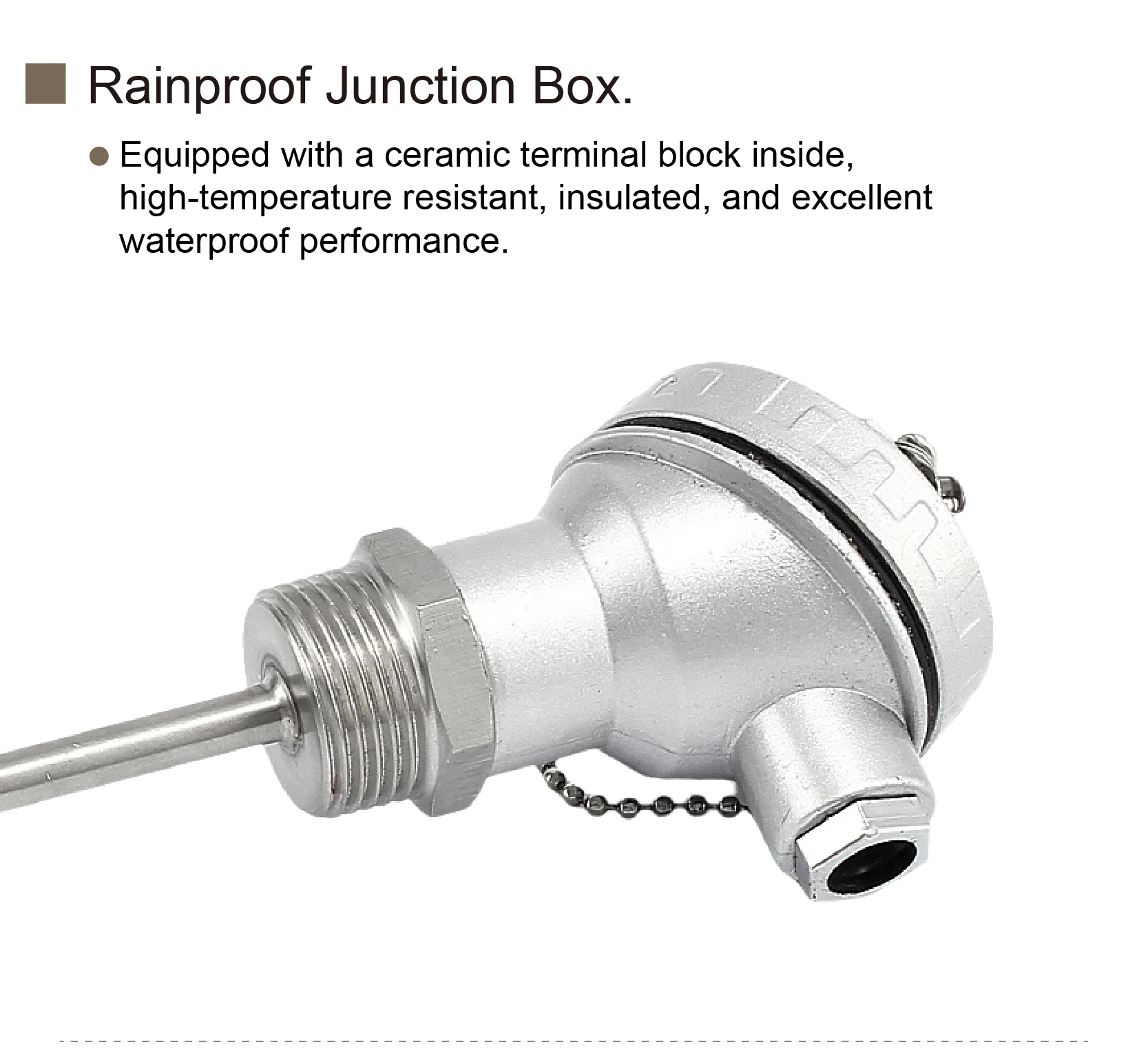

Rainproof Junction Box：

Features a ceramic terminal block with high-temperature resistance and excellent insulation properties.

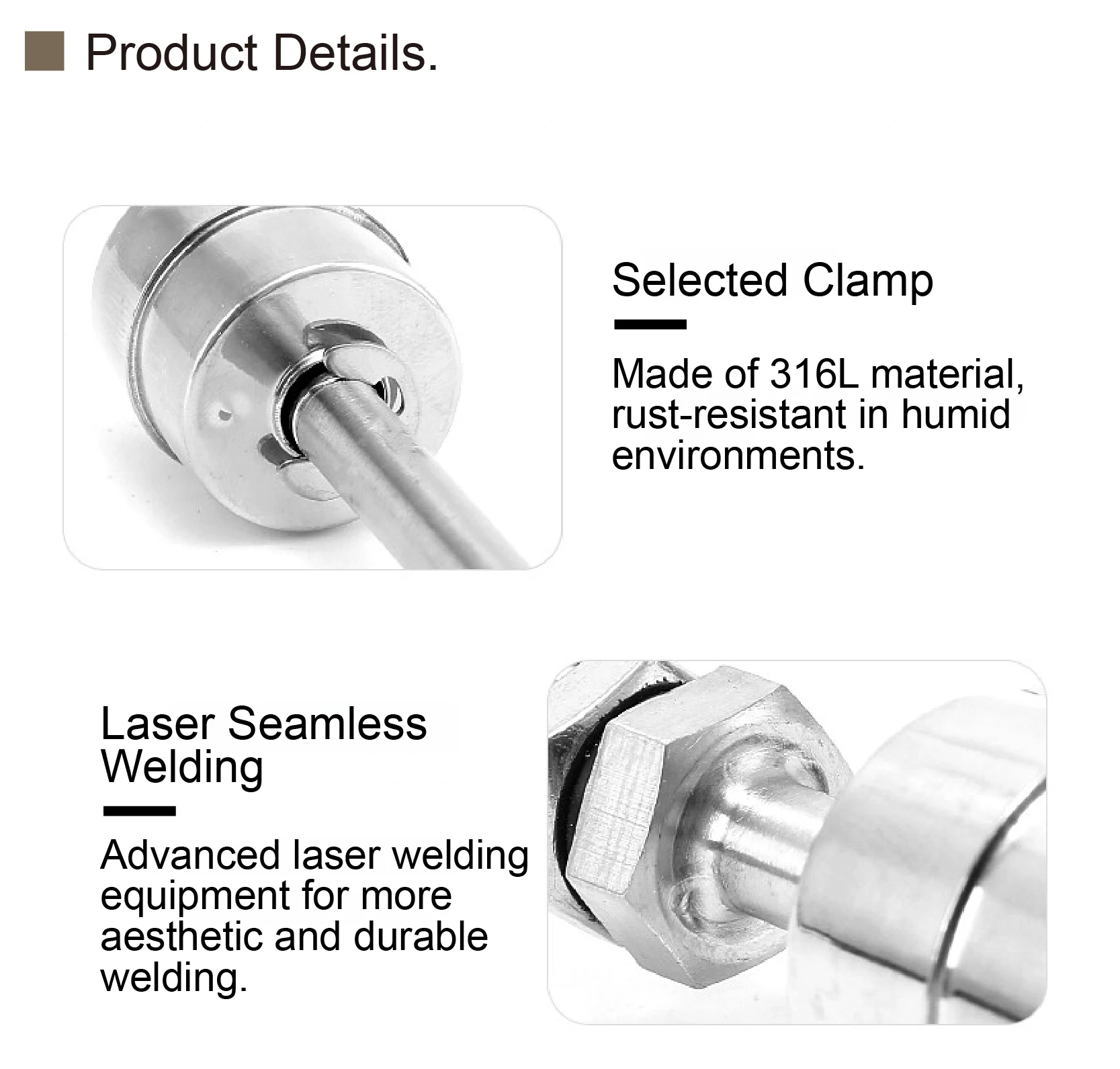

Premium Retaining Rings：

Crafted from 316L stainless steel for rust resistance and durability in humid environments.

Advanced laser welding ensures a seamless, sturdy, and visually appealing finish.

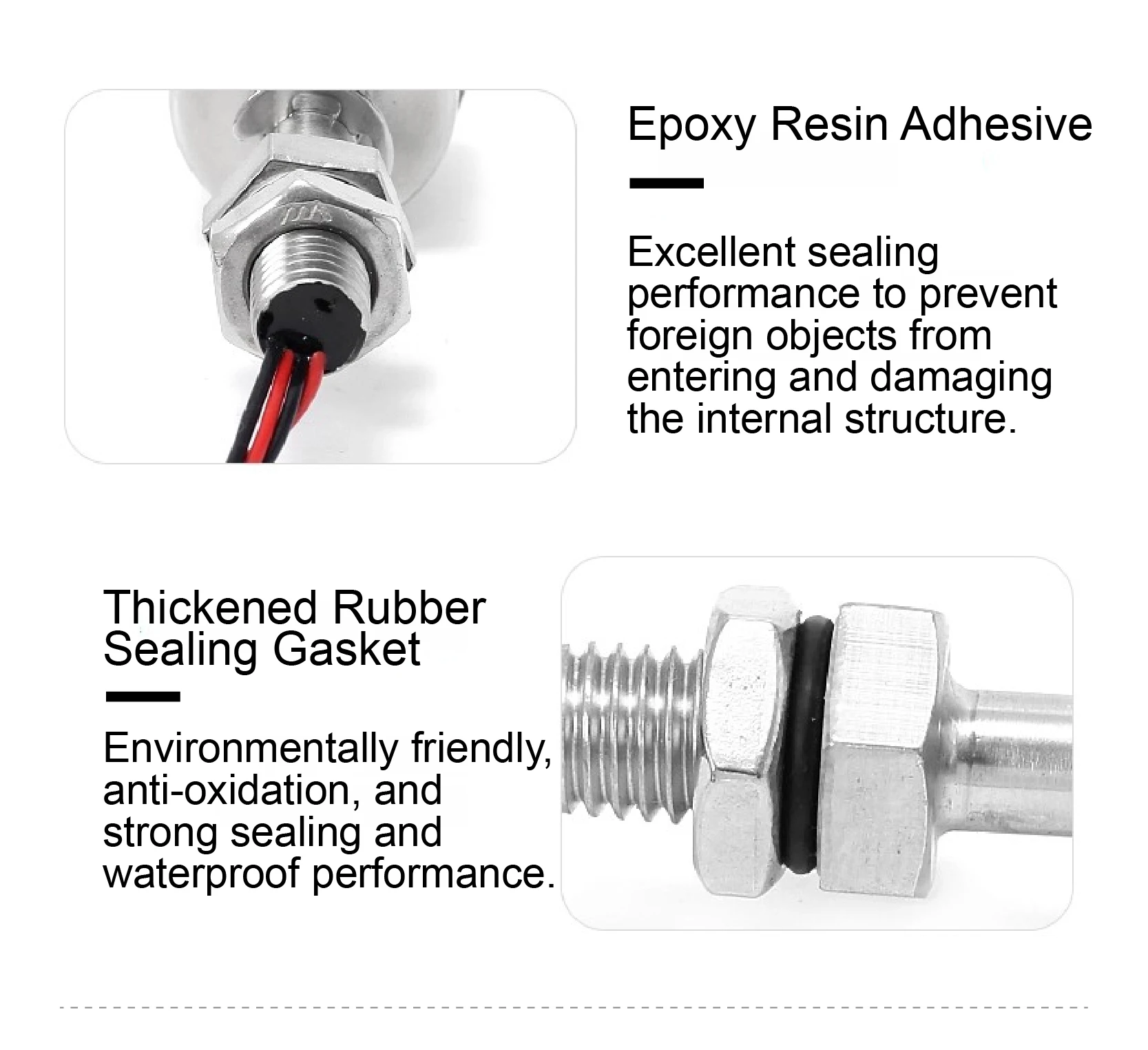

Epoxy Resin Adhesive：

Provides superior sealing to protect internal components from external debris.

Thickened Rubber Gasket：

Eco-friendly, oxidation-resistant, and enhances waterproofing performance.

4.Applications

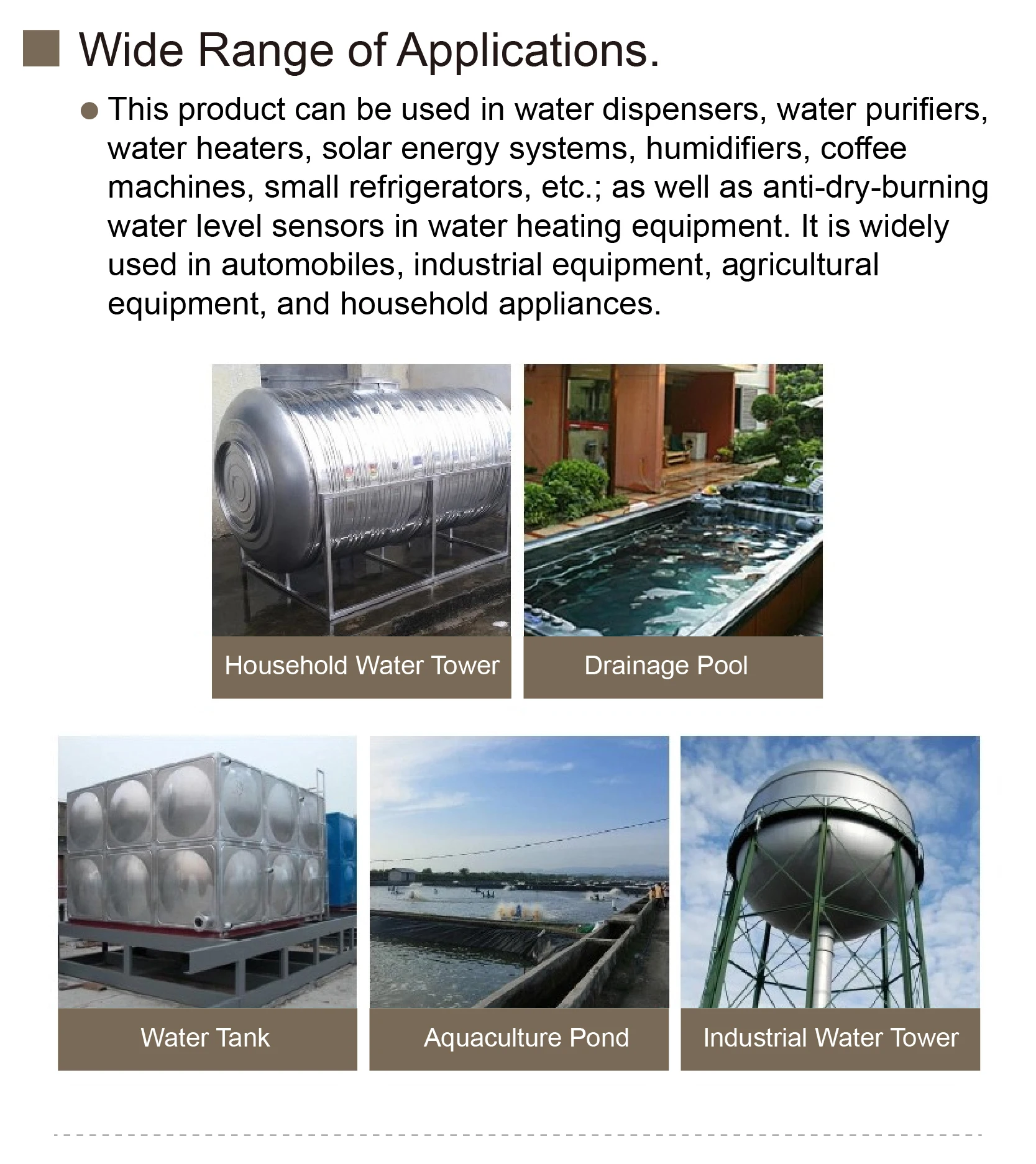

Suitable for water heaters, solar systems, air conditioners, humidifiers, coffee machines, small refrigerators, and water heating appliances.

Widely used in automotive, industrial, agricultural equipment, and household appliances.

5.FAQs

Q1：Can the float switch position be adjusted?
A1:No, the float position is fixed and limited by retaining rings. Adjusting the rings will not change its position because the internal reed switch contact is immovable.

Q2:Can the float switch directly control pumps, solenoids, or alarms?
A2:No, as the reed switch has a low current capacity. A small relay is needed to control solenoids or alarms, and an additional contactor should be used for pumps depending on their power.

Q3:Can the switch range be customized?
A3:Yes, custom sizes and ranges are available on request. No minimum order quantity is required.
