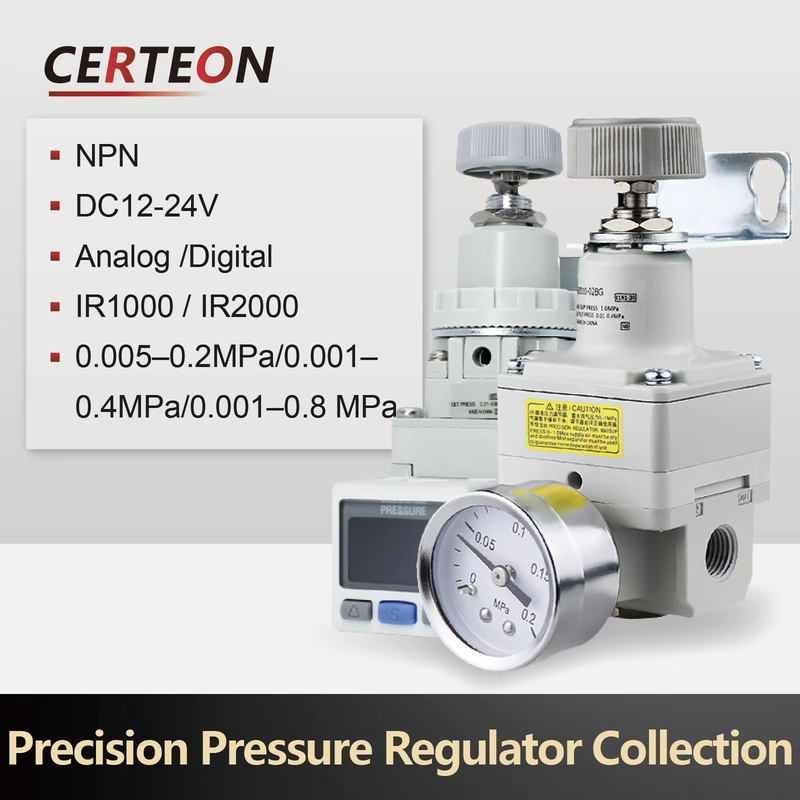

Product Description
1.NOTE:
This precision pressure regulator ensures stable and accurate air pressure control, ideal for laboratory, medical, and industrial applications.
Default Parameters:
Type: Analog Pointer / LCD Digital Display
Analog Pointer:No power supply required, no output
LCD Digital Display:DC12-24V,NPN Output
· Adjustable Pressure Ranges:
IR1000: 0.005 - 0.2 MPa
IR1010: 0.01 - 0.4 MPa
IR1020: 0.01 - 0.8 MPa
IR2000: 0.005 - 0.2 MPa
IR2010: 0.01 - 0.4 MPa
IR2020: 0.01 - 0.8 MPa
· Max Supply Pressure: 1.0 MPa
· Operating Temperature: -5 ~ 60°C (non-freezing)
Customizable Options:
· Digital Pressure Display: Requires DC12-24V power (sold separately)
· Custom Fittings: Thread size and connection type available upon request
· Mounting Brackets: Additional support for specific installations
Important Notice:
Some configurations may not be listed. For special requirements, please contact us. Ensure compatibility before purchase.
If the online shipping cost appears high, and you plan to purchase in bulk or large-sized items, we can
offer more cost-effective shipping options and routes. Please contact us for detailed arrangements.
2.Parameters
Model | IR1000 Series | IR2000 Series |
Pressure Range | 0.005-0.8 MPa | 0.005-0.8 MPa |
Port Size | 1/8" | 1/4" |
Gauge Port Size | 1/8" | 1/8" |
Max Supply Pressure | 1.0 MPa | 1.0 MPa |
Min Supply Pressure | Set pressure +0.05 MPa | Set pressure +0.05 MPa |
Air Consumption | ≤4.4L/min (ANR) | ≤4.4L/min (ANR) |
Operating Temperature | -5~60°C (No freezing) | -5~60°C (No freezing) |
Sensitivity | ≤ 0.2% F.S. | ≤ 0.2% F.S. |
Repeatability | ±0.5% F.S. | ±0.5% F.S. |
3.Features
High Precision Control (±0.5%) – Ensures precise and stable pressure adjustment.
Millisecond Response Time – Adapts to frequent pressure changes with ease.
Dynamic Pressure Compensation – Maintains stable output pressure without fluctuations.
Durable Construction – Made from corrosion-resistant aluminum alloy.
NBR Diaphragm – Highly resistant to aging and wear.
Anti-Slip Handwheel – High-strength, wear-resistant, and ergonomic design.
Easy-to-Read Pressure Gauge – Provides accurate and responsive pressure readings.
4.Applications
Industrial Automation – Ensures precise pressure control for manufacturing lines.
Laboratory Equipment – Ideal for ultra-precise pressure adjustments.
Medical Devices – Provides stable micro-pressure regulation.
Precision Instruments – Supports delicate and high-accuracy operations.
5.FAQs
Q1: How to replace the digital pressure gauge?
A1: Follow these steps:
1. Locate the rear connector on the digital gauge.
2. Align and insert the pins correctly.
3. Connect the three wires to a DC 12~24V power source.
4. Power on to activate the display (Power supply not included).
