Product Description

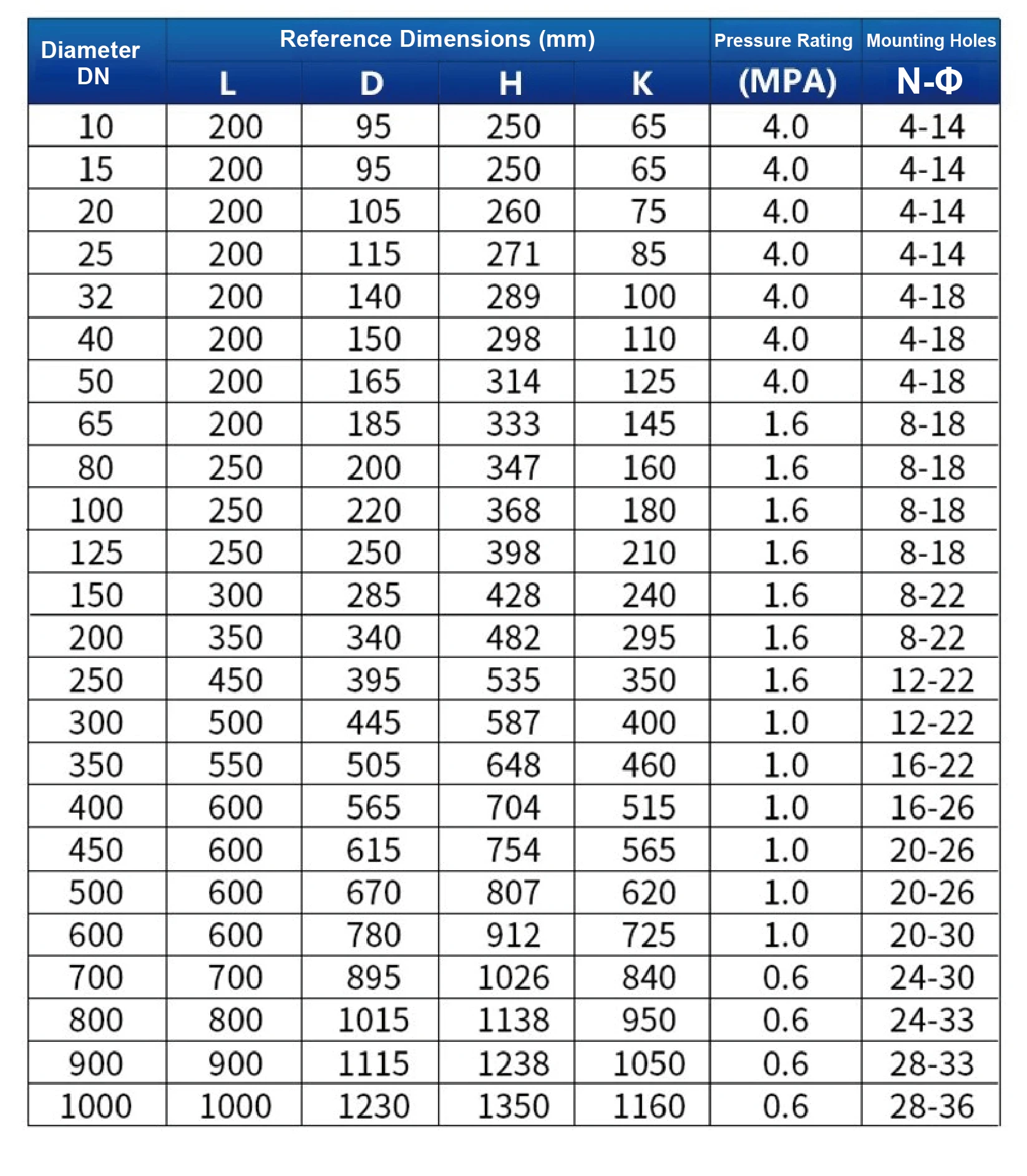

The default flange connection standard is DIN/EN1092-1-2018 (German/European standard). Please refer to the dimension chart on the product details page for specific flange sizes.
If you require customized flanges in other standards such as ANSI/ASME (American standard), JIS (Japanese standard), BS (British standard), or GOST (Russian standard), please contact us.
1.NOTE:
Due to the SKU quantity limitation, not all flowmeter sizes are listed. If you need other sizes, please contact us.
Please confirm application details before ordering: medium, power supply, flow range, and output signal.
Default power: AC220V or DC24V (choose one for wiring).
Standard size: DN10–DN65.
Default lining: PTFE (Teflon).
Electrode material: 316 stainless steel.
Connection: Flange type.
Max temperature: 120°C.
Max pressure: 1.6MPa.
Output signals: Pulse + 4-20mA + RS485.
Accuracy: 0.5%.
For DN65 and above, default lining is rubber.
Customizable Options:
Power Supply: Lithium battery or DC12V.
Display Style: Lorca head, split-type electromagnetic, insertion-type (available for DN200 and above).
Lining Materials: Rubber, F4, PTFE, F46, FEP, ETFE, PO, PPS.
Electrode Materials: HC, HB, Titanium (Ti), Tantalum (Ta), Platinum (Pt).
For more configuration guidance, please refer to the material selection table or contact us.

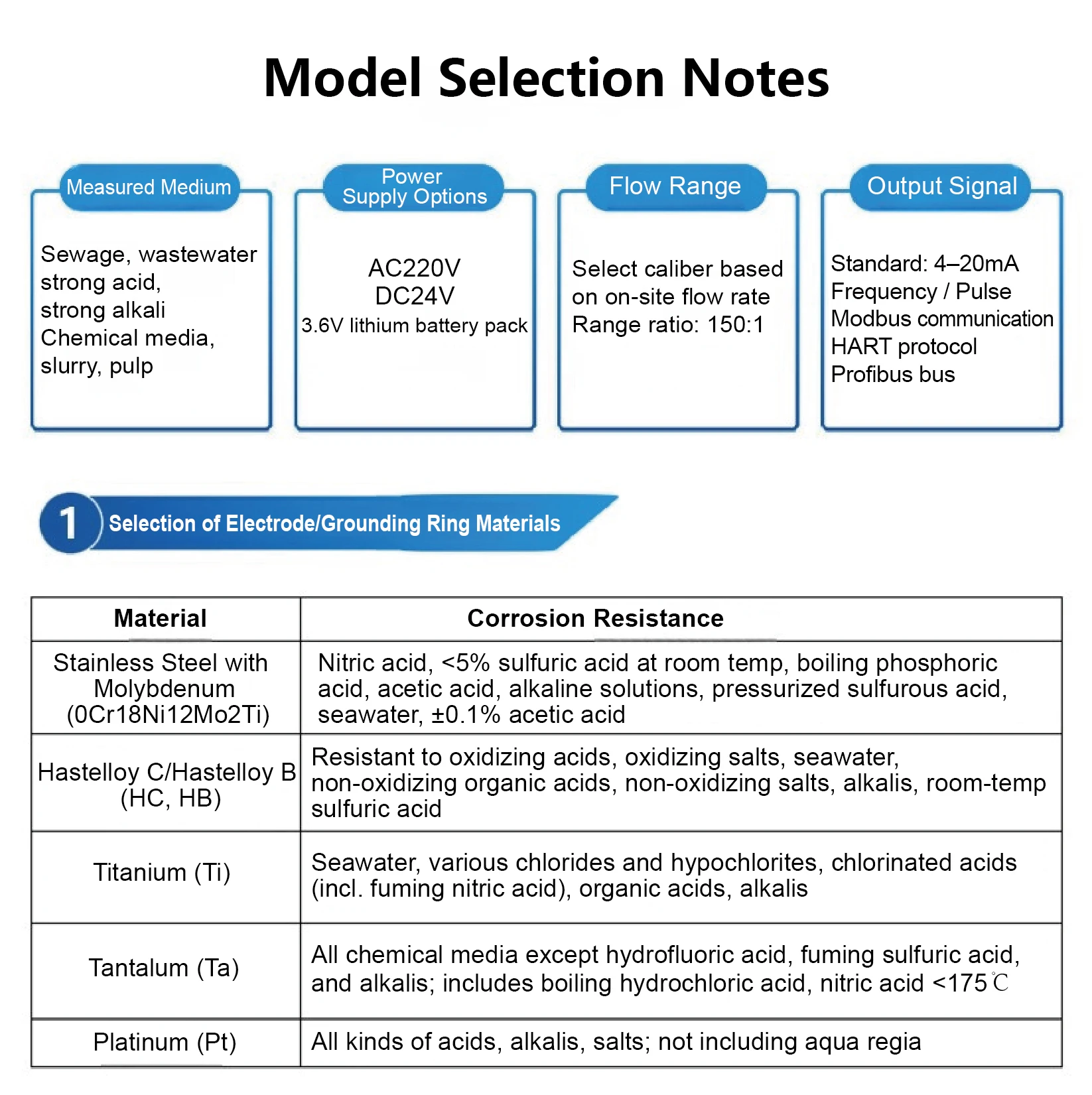

Electrode & Lining Material Selection Guide
Electrode Materials & Chemical Compatibility
Material | Corrosion Resistance |
316L SS (Mo-added) | Nitric acid, weak sulfuric acid (<5%), phosphoric acid, seawater |
Hastelloy C/B | Oxidizing acids/salts, seawater, alkalis, sulfates, chlorides |
Titanium | Chlorides, seawater, nitric acid, organic acids, hypochlorites |
Tantalum | Most media except hydrofluoric acid and fuming sulfuric acid |
Platinum | Suitable for nearly all acids, bases, and salts (except aqua regia) |

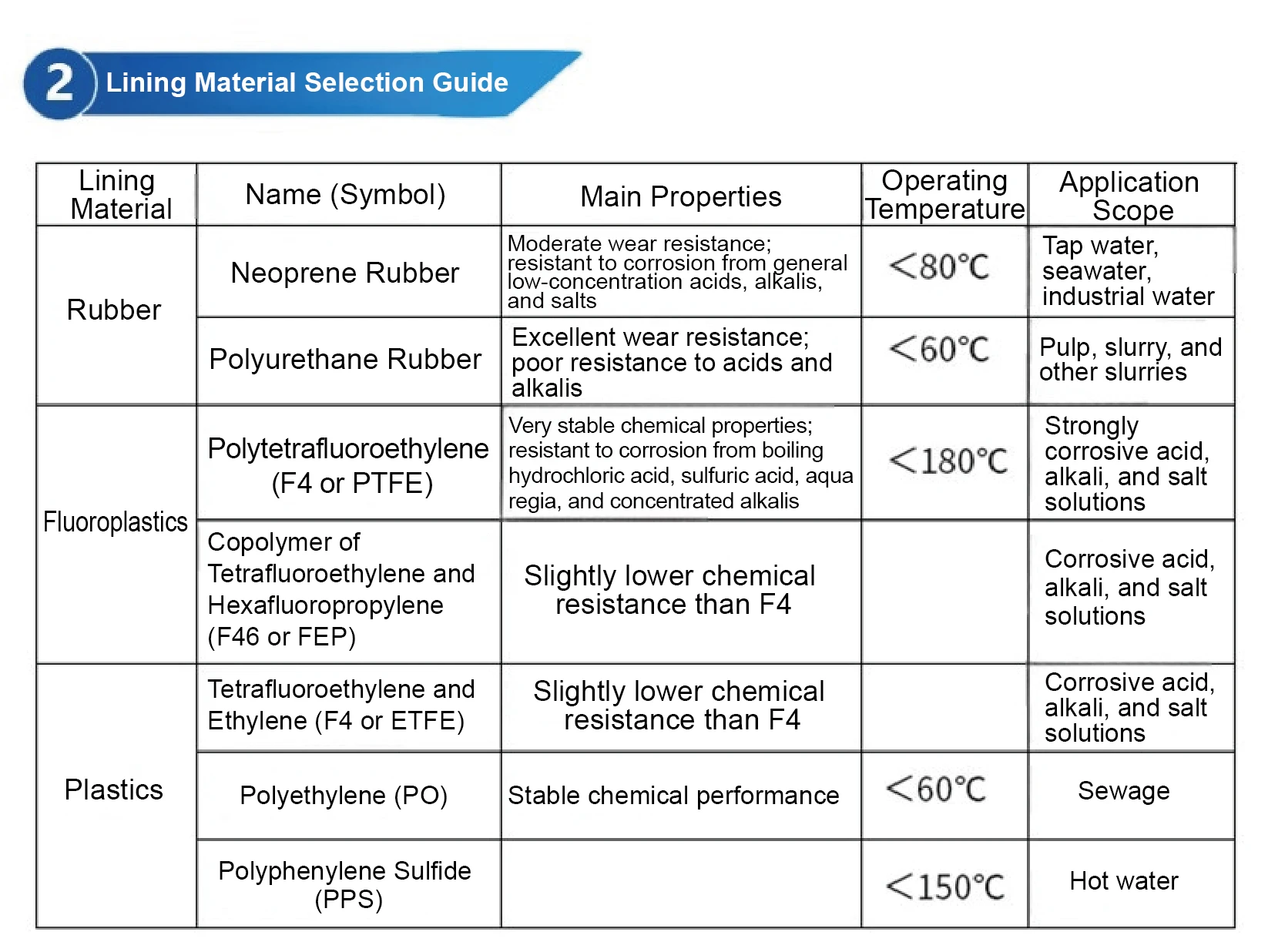

Lining Materials & Usage
Lining Material | Key Properties | Max Temp | Suitable For |
PTFE (F4) | Excellent chemical resistance, handles boiling acids | 180°C | Strong corrosive media |
F46 (FEP) | Slightly lower resistance than PTFE | ~150°C | Acid/alkali/salt solutions |
ETFE (F40) | High mechanical strength, chemical resistant | ~150°C | Corrosive fluids |
PO | Stable and economical | 60°C | Wastewater |
Rubber (Neoprene) | Good abrasion resistance, mild acid/alkali | 80°C | Water, seawater, industrial water |
Polyurethane | Excellent wear resistance, poor alkali resistance | 60°C | Slurry, pulp |

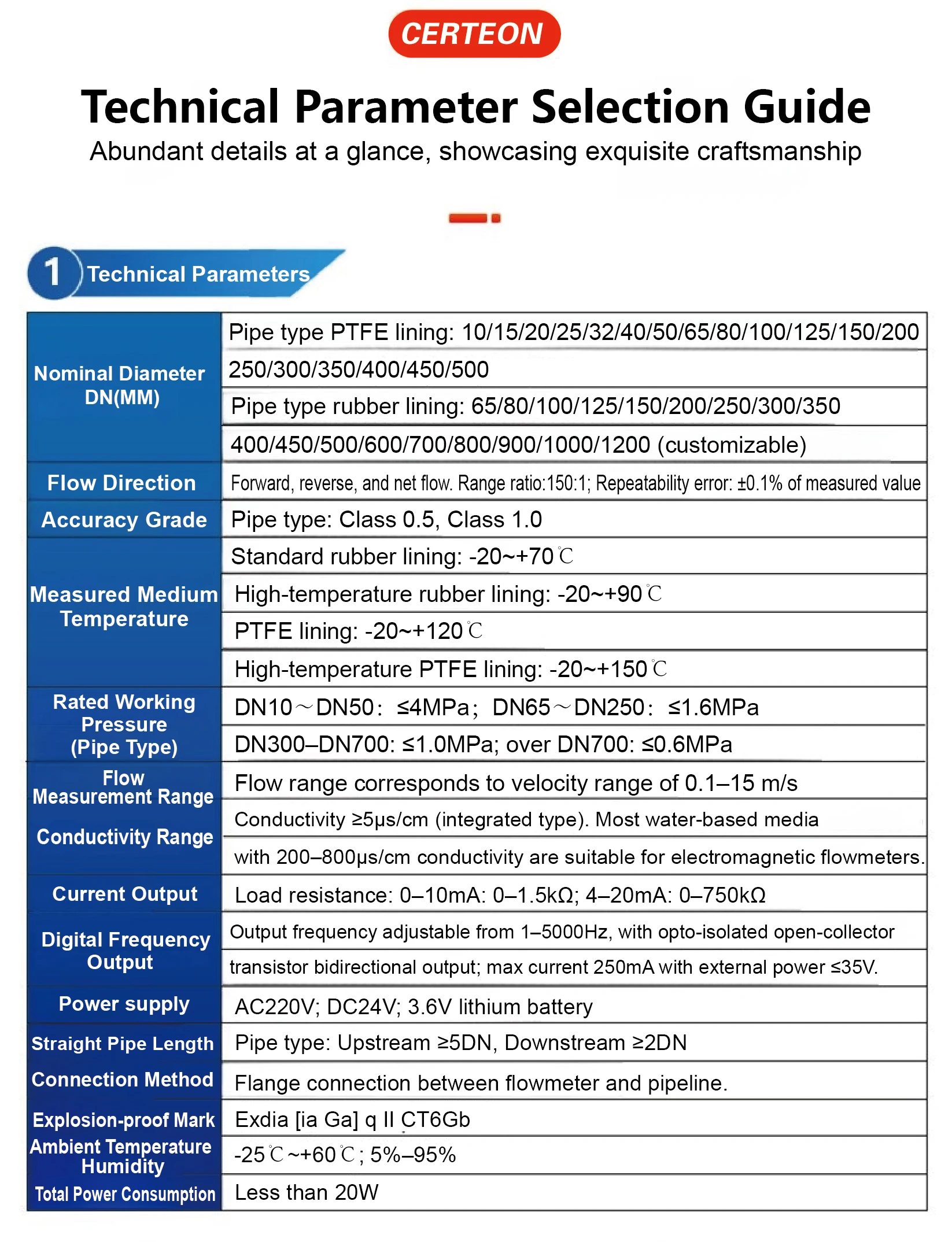

2. Parameters
Parameter | Specification |

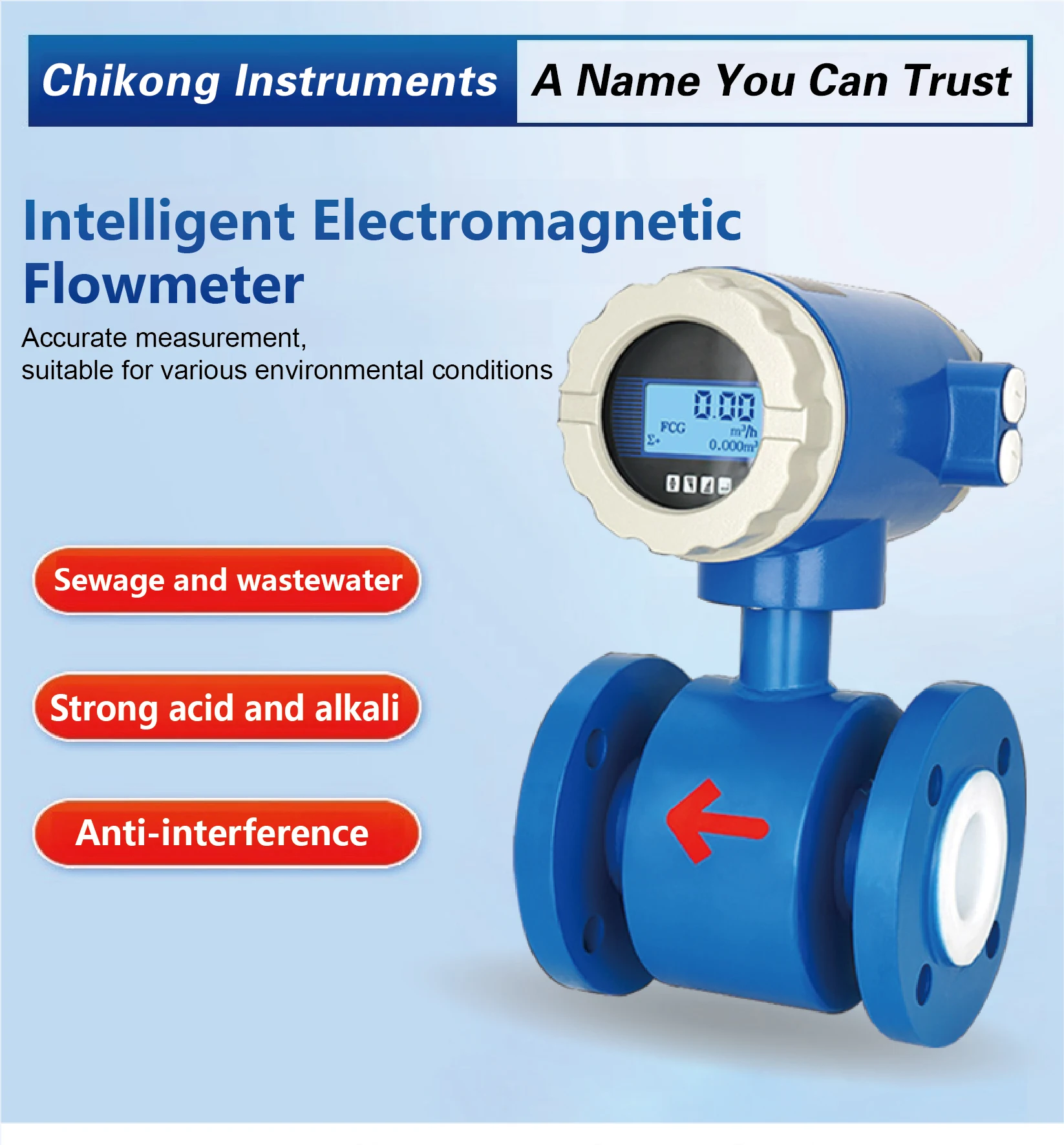

Product Name | Intelligent Electromagnetic Flowmeter |
Model | CKLDG / LDE |
Measuring Diameter | DN6–DN2600 |
Pressure Rating | DN10–150: 1.6MPa |
Body Material | Carbon Steel (default), SS304/316 optional |
Connection Type | Flange (default), Clamp/Thread (optional for DN15–50) |
Power Supply | AC220V (default), DC24V, Lithium Battery (optional) |
Accuracy | ±0.5% (integrated type), ±2.5% (insertion type) |
Protection Grade | IP65 (default), IP68 available for remote version |
Output Signal | Pulse, RS485 MODBUS, 4–20mA |
Lining Material | DN65↓: PTFE (default), DN80↑: Rubber (default) |
Electrode Material | 316L (default), Titanium, Tantalum, Hastelloy, Platinum |
Minimum Liquid Conductivity | ≥20 μS/cm |
3. Features

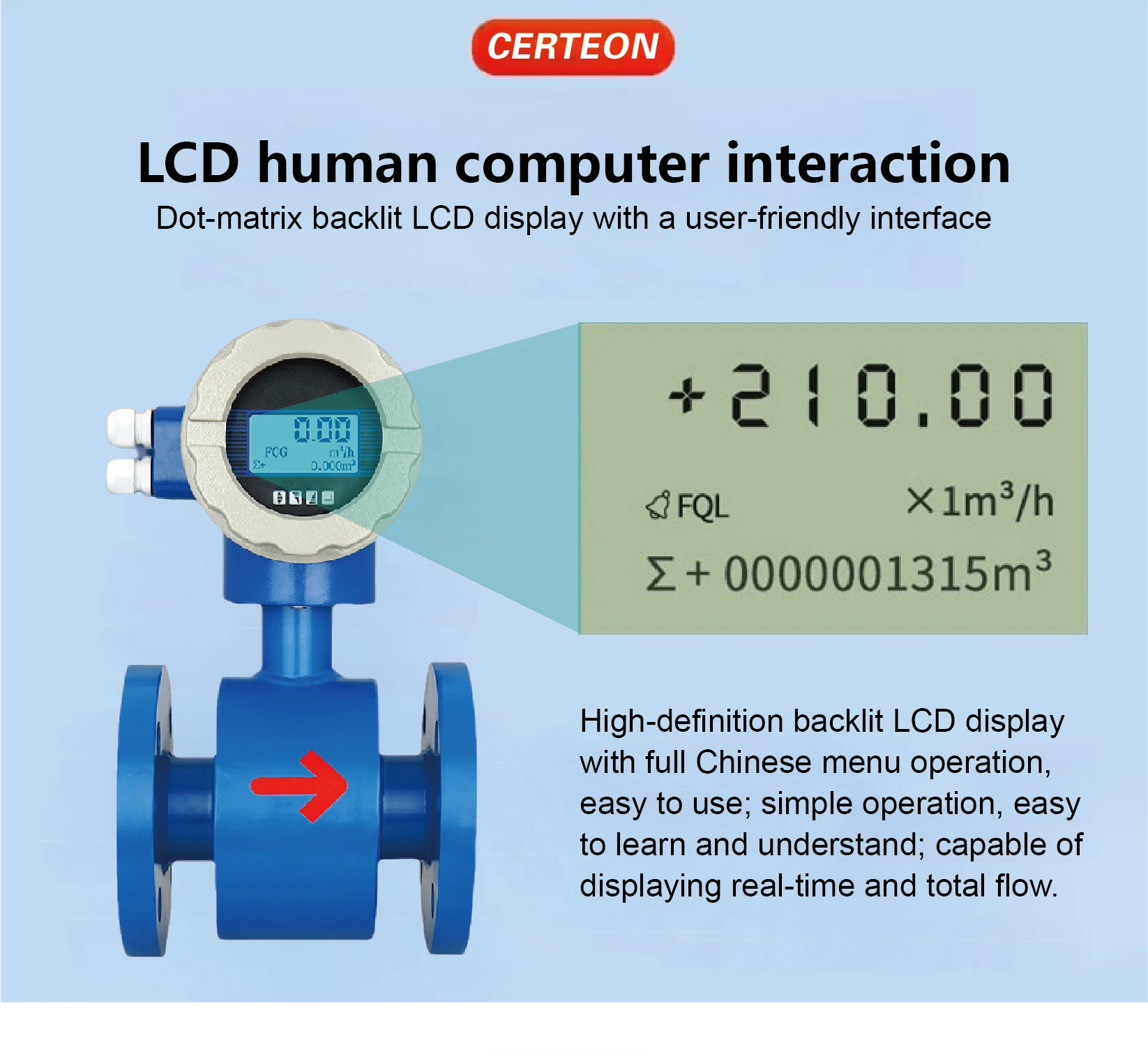

Backlit Multilingual Display
High-resolution LCD with backlight supports English/Chinese menu switching. Real-time and total flow readings displayed clearly for user convenience.
Wide Media Compatibility
Customizable lining and electrode materials allow compatibility with corrosive chemicals, slurry, pulp, seawater, and electroplating solutions.

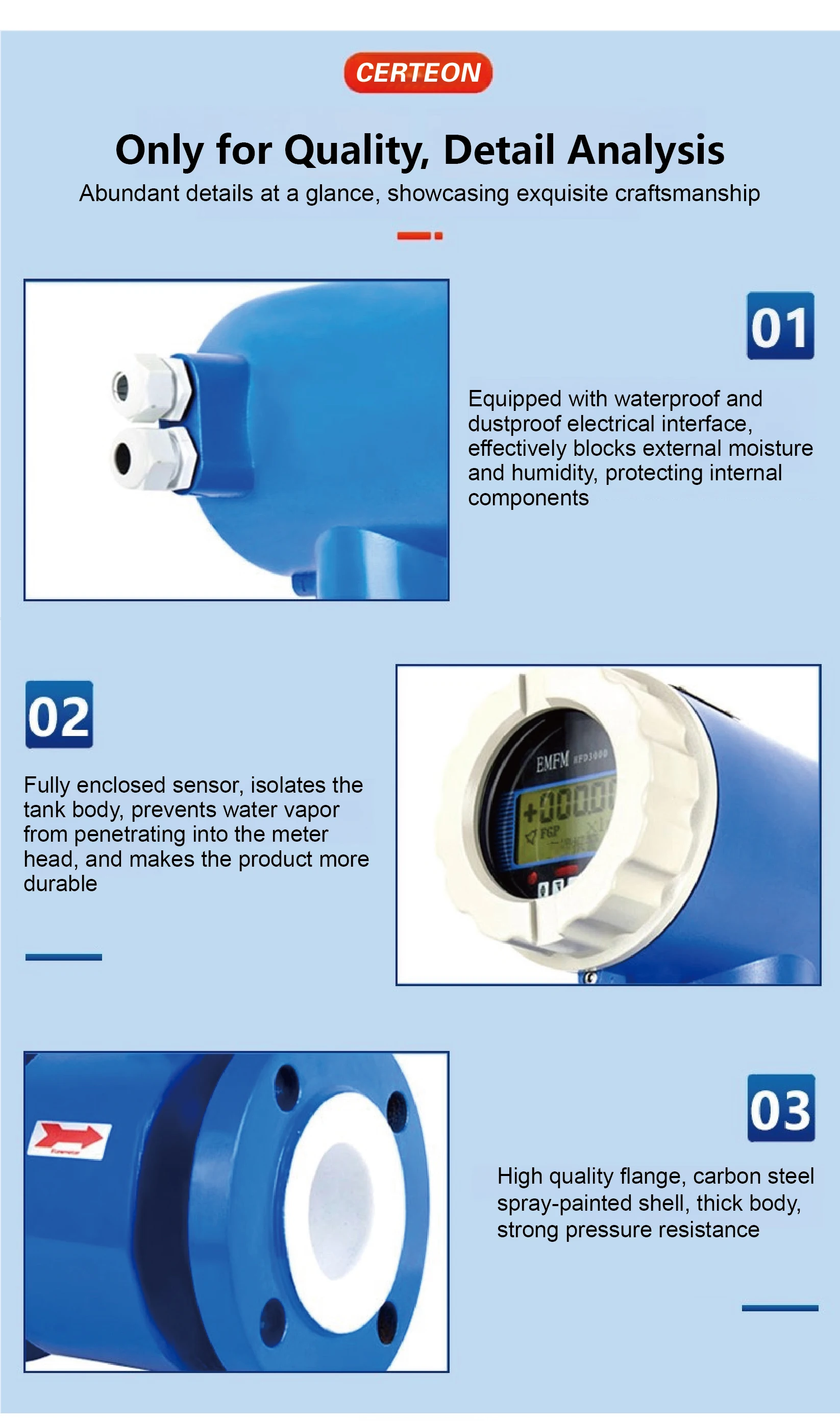

Robust and Reliable Build
Anti-interference circuit design, stable in harsh industrial environments. Optional high-pressure or IP68 waterproof versions available.
Flexible Installation Options
Flange as default, with optional clamp/thread fittings for small diameters. Multiple power and output formats ensure system compatibility.
Accurate and Scalable
Measuring accuracy up to ±0.5%, with size options from DN6 to DN2600 to cover both small and large pipeline systems.

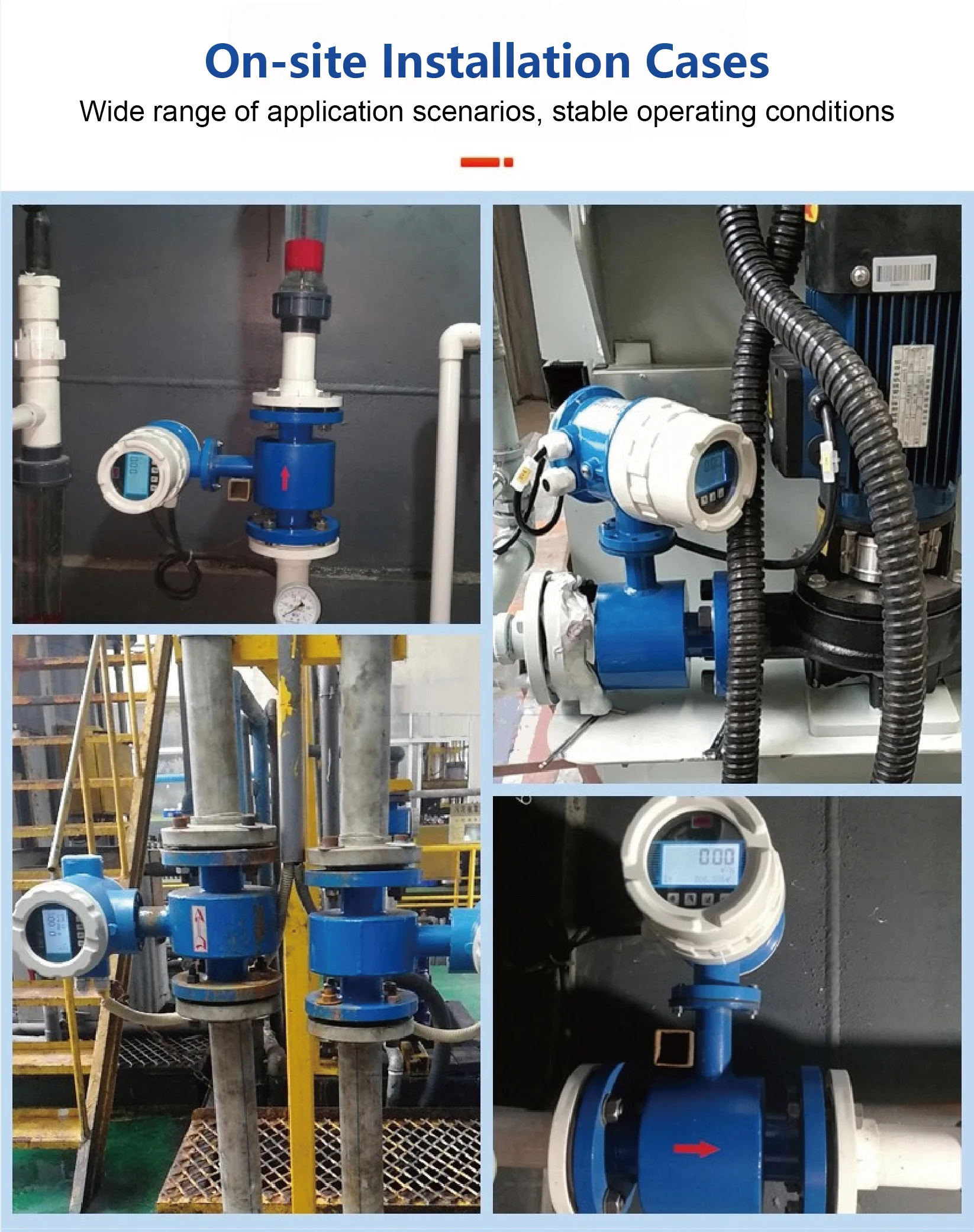

4. Applications
Dyeing and chemical plants
Sewage treatment facilities
Food and pharmaceutical industries
Tap water and rural sewage systems
Electroplating lines, slurry, pulp measurement
Strong acid/alkali and seawater monitoring
5. FAQs
Q1: Can this flowmeter handle high-corrosion fluids like acid or electroplating liquids?
A1: Yes. Please specify the fluid type and we will match the ideal electrode and lining materials (e.g., PTFE, Hastelloy, Platinum).
Q2: Is the product suitable for outdoor or submerged installation?
A2: The standard unit is IP65. For submersible or buried applications, we offer IP68 remote types upon request.
Q3: How do I ensure compatibility with my system?
A3: Before ordering, please confirm: pipe diameter, fluid type, expected flow range, installation environment, and any special requirements.
