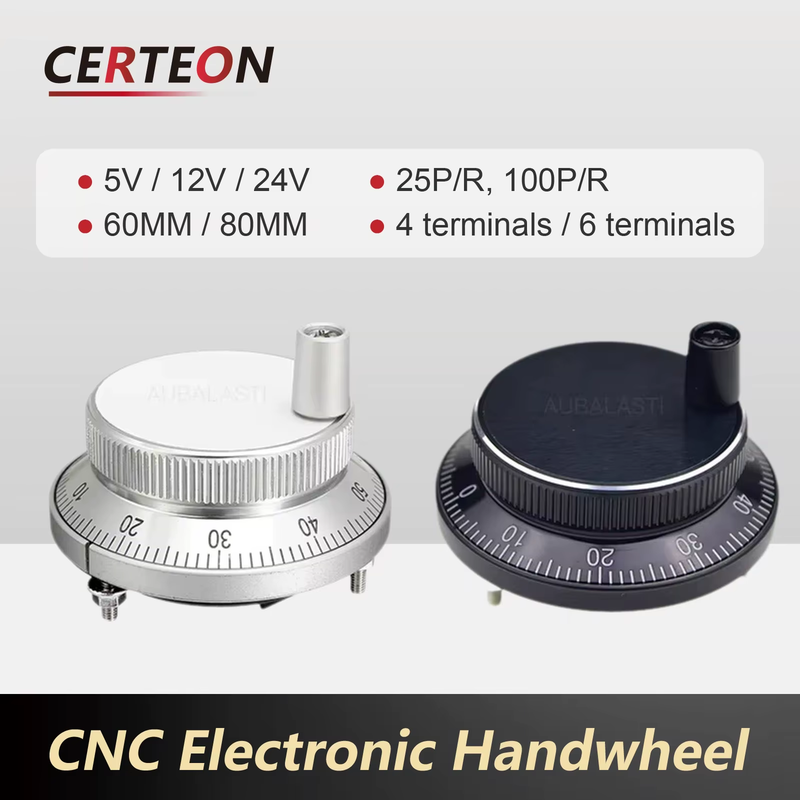

Product Description
1.NOTE
Default Parameters
Disc Diameter: 60mm, 80mm (Optional)
Power Supply: 5V, 12V, 24V (Optional)
Connection Terminals: 4-terminal, 6-terminal (Optional)
6-Terminal Output
L = Long-line driver output, 26LS31
4-Terminal Output Options
T1 = Voltage output, NPN + R
T2 = Voltage output (rotational), NPN + R
C = Open collector output, NPN
CP = Open collector output, PNP
Resolution Options
25 = 25 pulses per revolution (P/R)
100 = 100 pulses per revolution (P/R)
2. Parameters
Specification | Value |
Disc Diameter | 60mm / 80mm (Optional) |
Supply Voltage | DC 5V / 12V / 24V (Optional) |
Output Type | Voltage / Open Collector / RS422 |
Resolution | 25 PPR / 100 PPR |
Terminal Configuration | 4-pin / 6-pin (Optional) |
Max Rotational Speed | 600 rpm |
Operating Temperature | -40°C to +85°C |
Storage Temperature | -25°C to +85°C |
Protection Level | IP50 |
Weight | 250g |
3. Features
High Precision & Reliability
Ensures accurate signal output without pulse loss for precise control.
Rugged Metal Housing
Constructed from durable metal with a flame-retardant shell for added safety and longevity.
Flexible Output Options
Supports voltage output, open collector (NPN/PNP), and long-distance RS422 driver output.
Safe & Secure Terminal Design
Insulated terminals and anti-slip base improve installation safety and reliability.
Customizable Specifications
Offers customization for dimensions, electrical parameters, pulse count, and protocols.
4. Applications
Widely used in CNC machine tools, elevators, printing machinery, industrial automation systems, medical equipment, and textile machinery for manual positioning and motion control.
5. FAQs
Q1: What's the difference between 4-pin and 6-pin outputs?
A: 4-pin outputs are suitable for standard voltage or open collector signals. 6-pin outputs support RS422 differential signals for long-distance transmission.
Q2: Can I customize the encoder specifications?
A: Yes, we support custom configurations for pulse count, mechanical size, and signal protocol to fit your application needs.
Q3: What should I watch for during installation?
A: Follow the wiring diagram carefully, ensure power supply within spec, and mount securely to avoid vibration-related signal issues.
